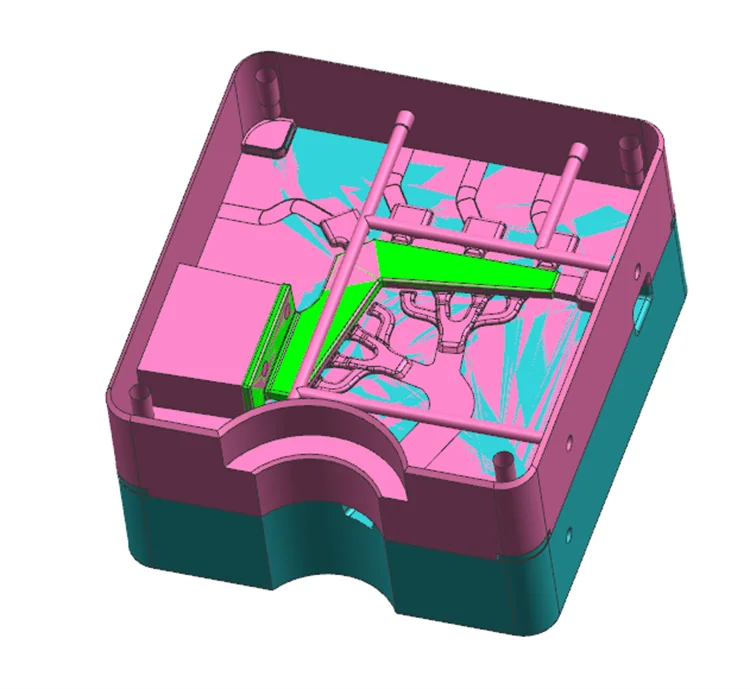

Фабрика Zhejiang Taizhou продает подержаные формы для литья под давлением по низким ценам детские пластиковые заднего сиденья велосипеда
381 425,70 ₽

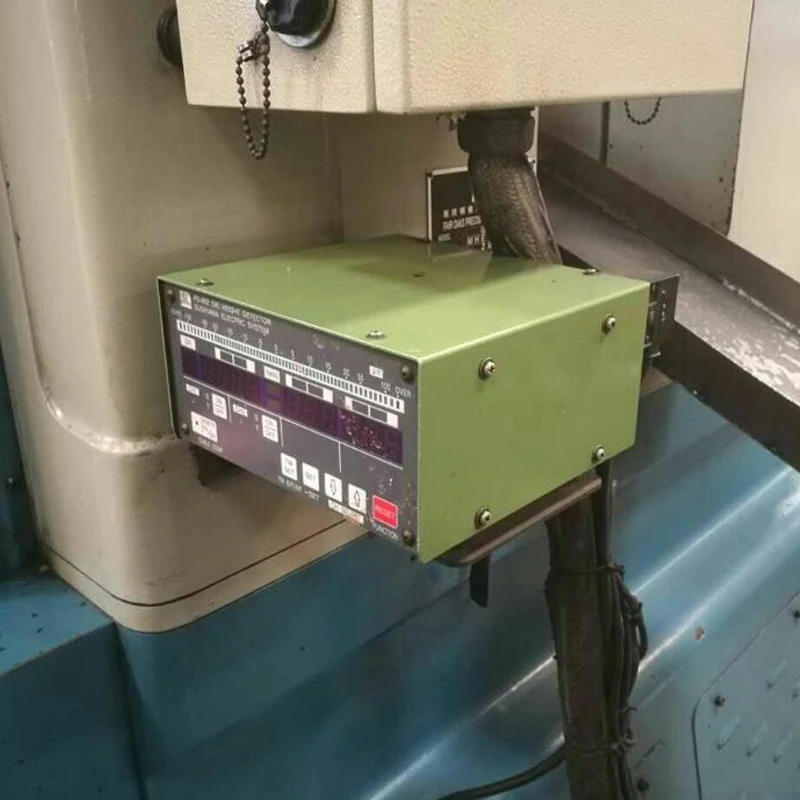

Sugiyama Электрический PS 464 с высоким разрешением детектор Нижней мертвой точки
- Категория: >>>
- Поставщик: Dongguan Shenhao Precision Mechanical Equipment Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1600820885524:
Описание и отзывы
Характеристики
【Product Features】
Bottom dead center detector PS-464/462 is a detector to detect floating slugs and double stamping etc. in press stamping and output a stop signal to the press machine if such a malfunction is detected.
By each stroke, the detector samples the bottom dead center of the signal of the eddy current proximity sensor set up in the press die, and computes displacement of the bottom dead center from the sampled signal with the use of a microcomputer.
By each stroke, the detector samples the bottom dead center of the signal of the eddy current proximity sensor set up in the press die, and computes displacement of the bottom dead center from the sampled signal with the use of a microcomputer.
The bottom dead center displacement is compared with the setting value. When the displacement exceeding the setting value is detected, a signal to stop the press is output.
Higher sensitivity
The accuracy of the sensor signal processing circuit has been improved. The maximum processing resolution has been developed to be 0.1 μm. Minute displacement at the bottom dead center can be detected.Displacement check with digital display and micron-indicator
The displacement is displayed simultaneously both with the digital display having high reading accuracy and the micron-indicator easy to check the condition. This enables an easy-check of the operating conditions of the detector. Displayed gap for sensor installation
The distance between the sensor head and a target is displayed at the time of installing the sensor. Without the use of the gap gauge, the sensor can be installed accurately.Flexible adjustment of the sensor cable length
The cable compensation function enables fine adjustment of the cable length on site. The cable length can be freely set for each channel.Developed detection timing
The external timing is produced from 2 inputs and the internal timing is from each channel. If the internal angle timing is used, the equivalent detection with the external timing can be achieved without an external cam.Effective timing test
The timing test can detect out of control conditions such as unusual installation of the sensor and improper operation of the external cam. Detection of sensor wire disconnection
A stop signal is output when PS-464/462 detects disconnection/defects of the sensor or disconnection of the sensor cable by the sensor disconnection function.
Obtain secured and reliable production sites with DUCIS Minimize errors and losses in press work.
product function
All-round, multi-angle protection of the mold.
Product characteristics
It replaces manual monitoring and automatically stops the machine in case of problems
product superiority
High precision and long service life.
【FAQ】
【 Company Introduction】
Dongguan ShenHao was founded in 2000. Is a Taiwan company with offices in Guangdong Province,Fujan province and Jiangsu province and other places, automation and safety in punch, research and development of unmanned has decades of history,this field has accumulated rich experience.
The company refers to advanced national technology. Professional design. Produce, manufacture and sell the mechanical equipment of the automatic series around the punch. It mainly produces and sells microcomputer-based detectors and fault detectors. Stainless steel oil barrel with automatic spot solenoid valve, double-sided oil feeder, fuel injector and various automatic equipment.
For a long time, we have been adhering to the tenet of "quality first, service first", and are dedicated to providing high-quality products for new and old customers. Efficient, humanized and automated, and regularly provide product maintenance and services for customers. The strong support and high trust of customers have created a good image in the business field. At the same time, the quality of products has also won the praise of customers.
Our company has strong technical strength, and installation, after-sales service and maintenance are very mature technologies. For a long time, we have adhered to the tenet of "quality first, service first". We are committed to providing high-quality, efficient, humanized and automated products for our new and old customers. We look forward to working with your company to create the future!
Our company has strong technical strength, and installation, after-sales service and maintenance are very mature technologies. For a long time, we have adhered to the tenet of "quality first, service first". We are committed to providing high-quality, efficient, humanized and automated products for our new and old customers. We look forward to working with your company to create the future!
Похожие товары
Изготовленные на заказ высокоточные пластиковые литья под давлением для мотоциклов и автозапчастей
Крышка люка литейная форма с покрытием для производства песка литье из сплава пластик CN;GUA высокое качество Шэньчжэнь на заказ
10,18 ₽

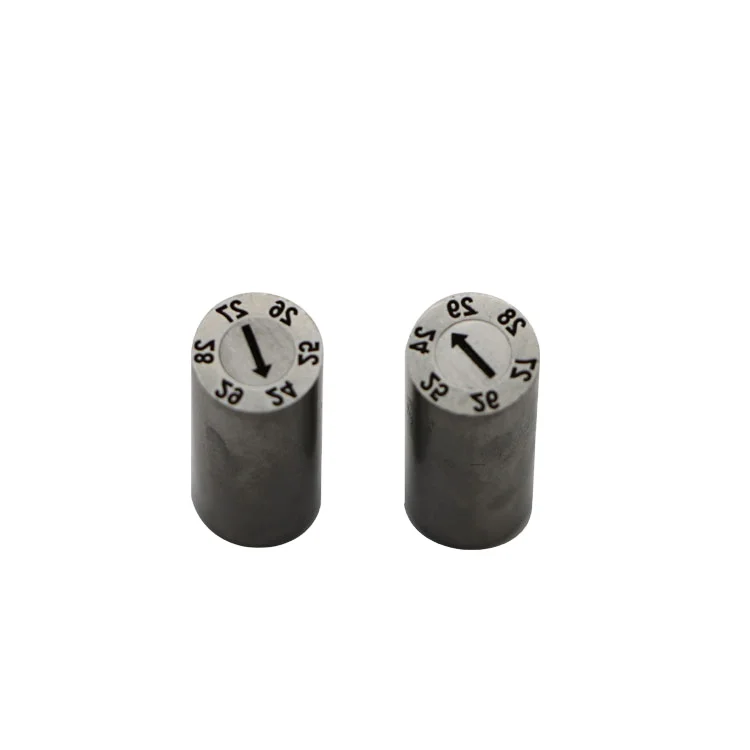

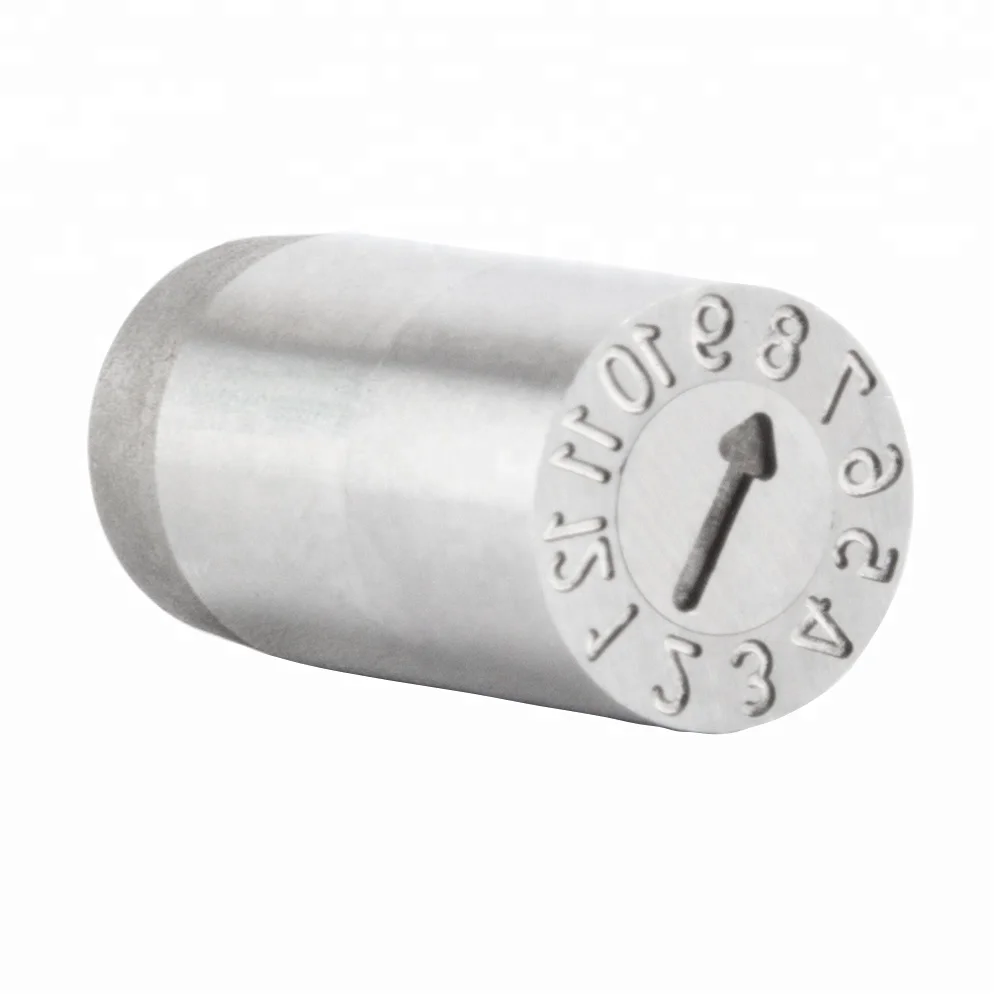

Прецизионная металлическая вставка даты штамп месяц 24-29 указывает

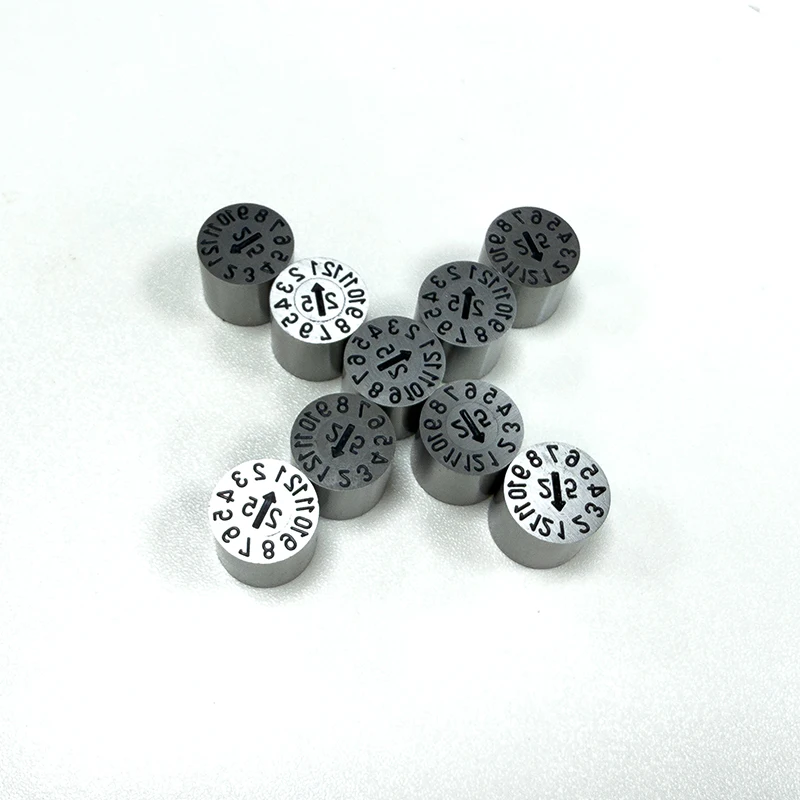

Подгонянная металлическая двойная цифровая отметка даты с маркировкой штамп года и месяца
Литье под давлением из нержавеющей стали
12,72-254,29 ₽
20% от международного стандарта прочные компоненты пресс-форм cumsa пресс-формы штамп пластмассовый для литья под давлением

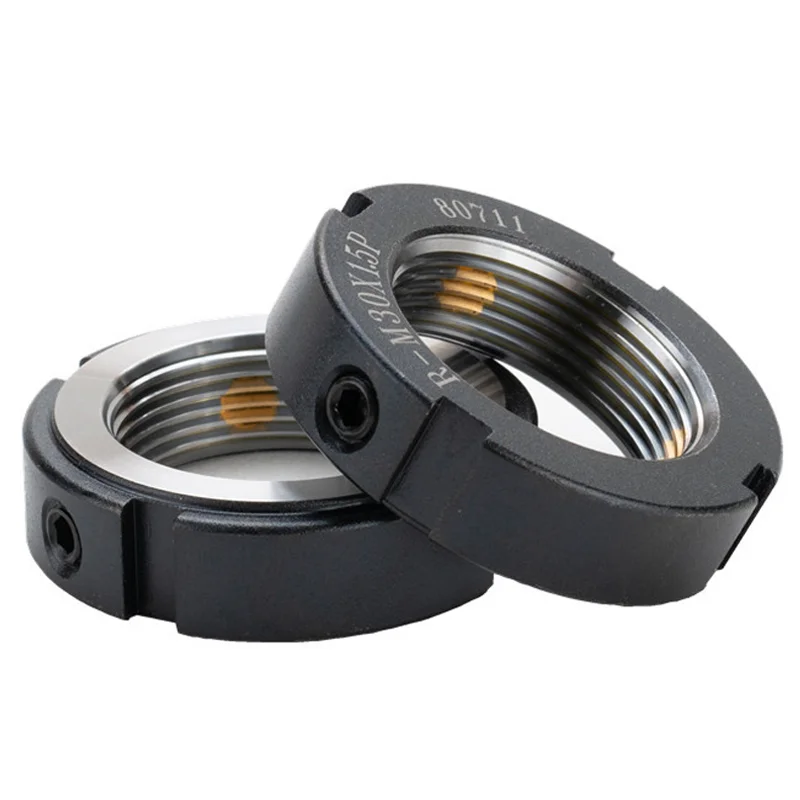

R-тип радиальные запирающие формы ЧПУ станок винт круглые стопорные гайки подшипник стержневые
