JK BD6A20S6P jk bms JK BMS 7S 20S 60A непрерывный 100A умный активный баланс 0.6A встроенный BT модуль для подключения к приложению
- Категория: >>>
- Поставщик: Hunan Xiaolithium Technology LimitedHunan Limited
Сохранить в закладки 1600820896352:
Описание и отзывы
Характеристики
Products Description

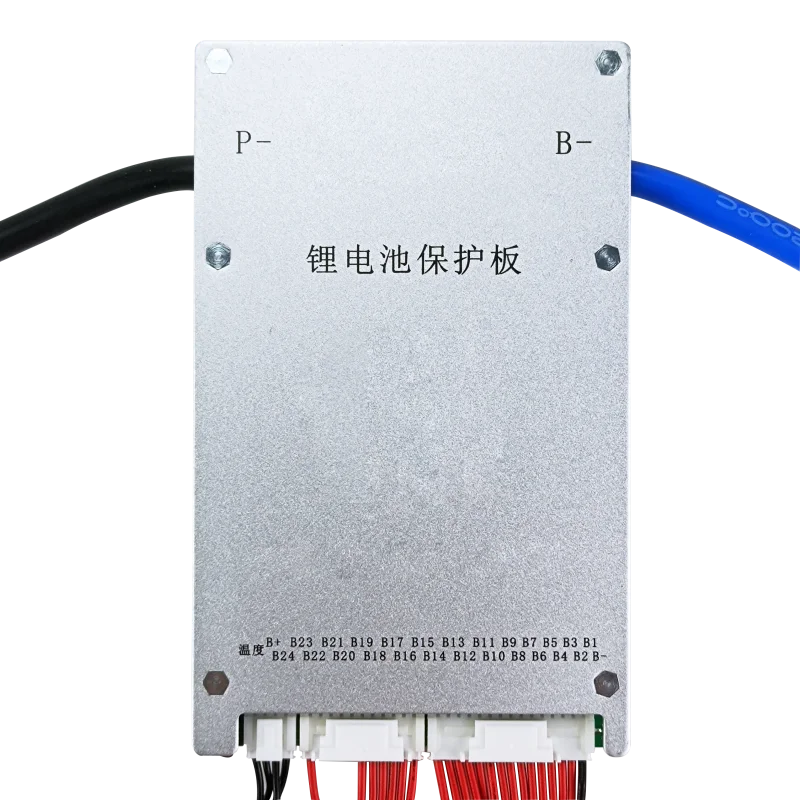

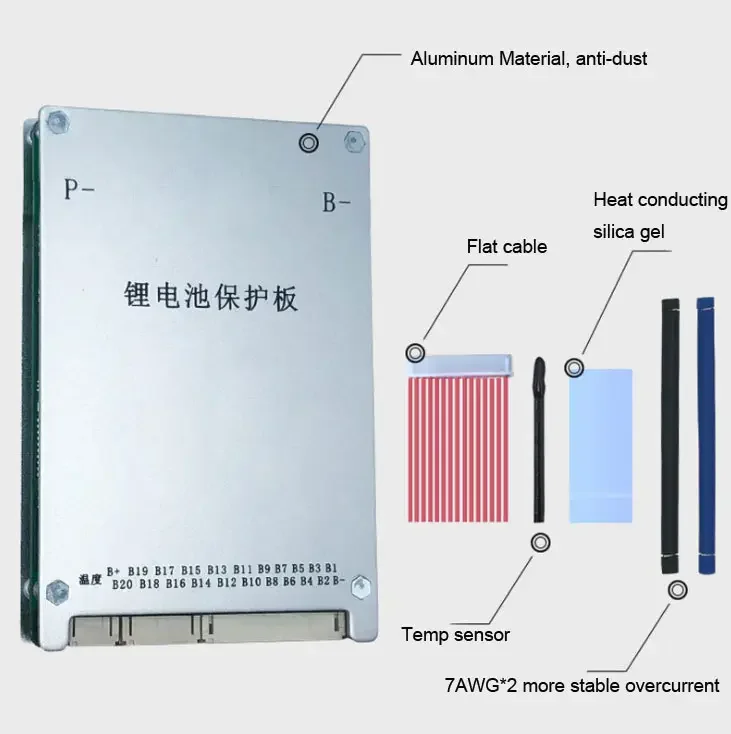

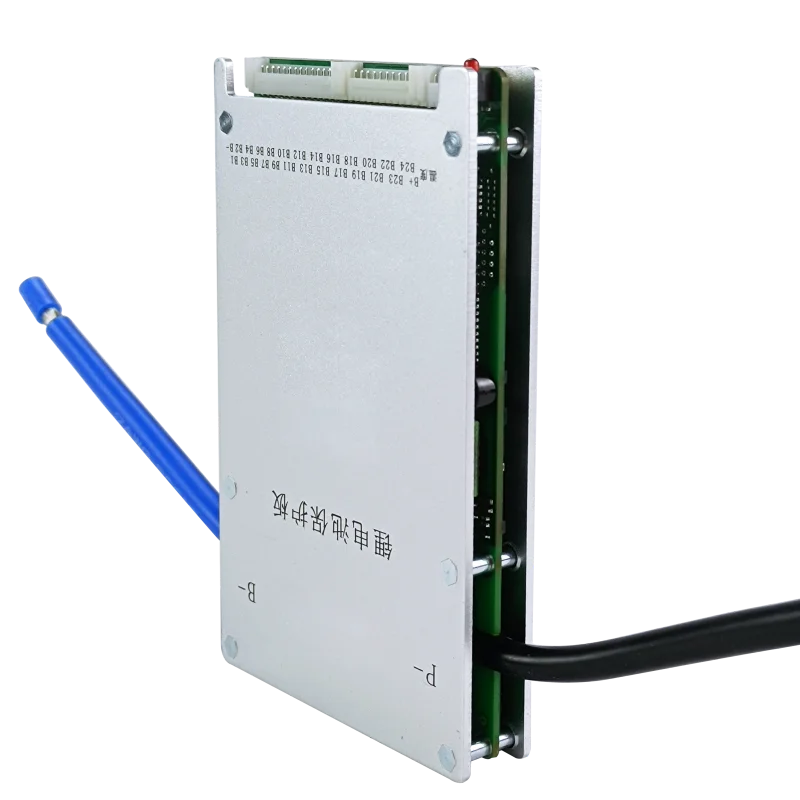

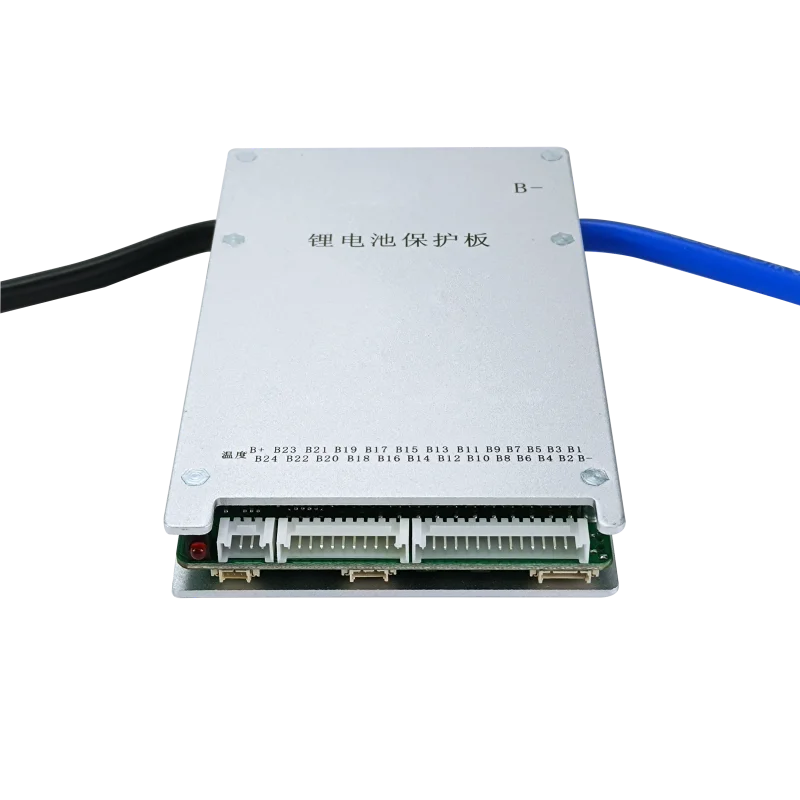

JK 7S-20S 60A continuous 100A peak smart active balance BMS 0.6A built-in BT module for connecting to APP
Product introduction:
can use for li-ion Lipo Lifepo4 LTO battery
have English APP for Android and IOS cellphone
each version size is different
Features:
1.Active balance functionality, no need to lose the battery capacity to balance the voltage difference of cells, raise the battery usage efficiency for 95%
2.It has the protections of Over-charge/Over-discharge/Over-current and Short circuit Over-temperature protection etc...
3.Single battery series voltage range is 1~5V, the precision is 5mV
4.With the function of coulomb meter, the remaining power is very clear
5.BT communication function, the battery status can be displayed on APP
can use for li-ion Lipo Lifepo4 LTO battery
have English APP for Android and IOS cellphone
each version size is different
Features:
1.Active balance functionality, no need to lose the battery capacity to balance the voltage difference of cells, raise the battery usage efficiency for 95%
2.It has the protections of Over-charge/Over-discharge/Over-current and Short circuit Over-temperature protection etc...
3.Single battery series voltage range is 1~5V, the precision is 5mV
4.With the function of coulomb meter, the remaining power is very clear
5.BT communication function, the battery status can be displayed on APP
Li ion | 12-17 | 12-20 | 12-24 | 12-17 | 12-20 | 12-24 | |||||
Lifepo4 | 13-17 | 13-20 | 13-24 | 13-17 | 13-20 | 13-24 | |||||
LTO | 17 | 17-20 | 17-24 | 17 | 17-20 | 17-24 | |||||
Balance way | Active balance | ||||||||||
Active balance | 0.6A | ||||||||||
MOSFET | 1.3mΩ | ||||||||||
Continuous discharge current | 60A | 80A | |||||||||
Peak discharge current | 100A | 150A | |||||||||
Over current protection | 10A-60A adjustable | 10A-80A adjustable | |||||||||
Other communication port | RS485 ( customize) | ||||||||||
out cable way | Same Port | ||||||||||
single cell voltage scale | 1-5v | ||||||||||
Voltage accurancy | ±5mV | ||||||||||
Over charge protection voltage | 1.2V-4.35V adjustable | ||||||||||
Over charge protection release | 1.2V-4.35V adjustable | ||||||||||
Over current protection release time | 2S-120S adjustable | ||||||||||
Over discharge protection voltage | 1.2V-4.35V adjustable | ||||||||||
Over discharge protection release | 1.2V-4.35V adjustable | ||||||||||
Temp sensor quantity | 3 | ||||||||||
Short circuit protection | Yes | ||||||||||
BT function | Support andriod and IOS | ||||||||||
Warning :
1,Should strictly follow the connection step as the diagram.
2,Double check the connection is correct,then connect it to the battery pack "+","-" Pin.
3,We are not responsible for the defectives caused by wrong connection.
Trust me, if the wiring is correct, the defect rate is 0.
1,Should strictly follow the connection step as the diagram.
2,Double check the connection is correct,then connect it to the battery pack "+","-" Pin.
3,We are not responsible for the defectives caused by wrong connection.
Trust me, if the wiring is correct, the defect rate is 0.
Attention When Connecting:
When we connect BMS with cells or disassemble BMS from battery pack, the following order and regulations must be complied with to avoid damage of components of BMS and problems of not protecting of cells.
In order to achieve the best performance of BMS and to run the longest distance, all the battery must be matched well (Each battery voltage difference less than 0.05V, IR difference less than 15 mΩ, capacity differenace less than 30mAh) to make sure the better consistency of the battery.
Cell must be connected in parallel first, after then connected in series.
Connection:
1. Connect charging /discharging wire, battery pack negative wire.
2. After confirm the wires are connected OK, plug the connector cable in the BMS
Do not plug connector cable in the BMS before connect wire.
Attention, ESD protection during work.
When we connect BMS with cells or disassemble BMS from battery pack, the following order and regulations must be complied with to avoid damage of components of BMS and problems of not protecting of cells.
In order to achieve the best performance of BMS and to run the longest distance, all the battery must be matched well (Each battery voltage difference less than 0.05V, IR difference less than 15 mΩ, capacity differenace less than 30mAh) to make sure the better consistency of the battery.
Cell must be connected in parallel first, after then connected in series.
Connection:
1. Connect charging /discharging wire, battery pack negative wire.
2. After confirm the wires are connected OK, plug the connector cable in the BMS
Do not plug connector cable in the BMS before connect wire.
Attention, ESD protection during work.
Recommend Products
Applications
Why Choose Us
Contact Us
Packing & Shipping
About us
Hunan XiaoLithium Technology Limited was located in Changsha City. We focus on designing, researching and developing,
manufacturing and selling Battery Management System, Power Equalizer, Spot Welders,Battery Charger and Accessories Of Battery Pack, etc.
manufacturing and selling Battery Management System, Power Equalizer, Spot Welders,Battery Charger and Accessories Of Battery Pack, etc.
These products are widely used on Electric Bikes, Electric Tricycle, Electric Scooter, Sweeper, Logistics Sorting
Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.
Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.
Our company promises: The product quality is safe and reliable,Reasonable price, Fast delivery time and satisfactory after-sales service. Welcome to contact with us!
FAQ
1.What is the common port and separate port? what is the difference?
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connectionport, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.
2.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po43.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well
3.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
4. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
5. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.
6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 0.1V, the fault is displayed that it cannot run far, no power supply at thestart range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
Похожие товары

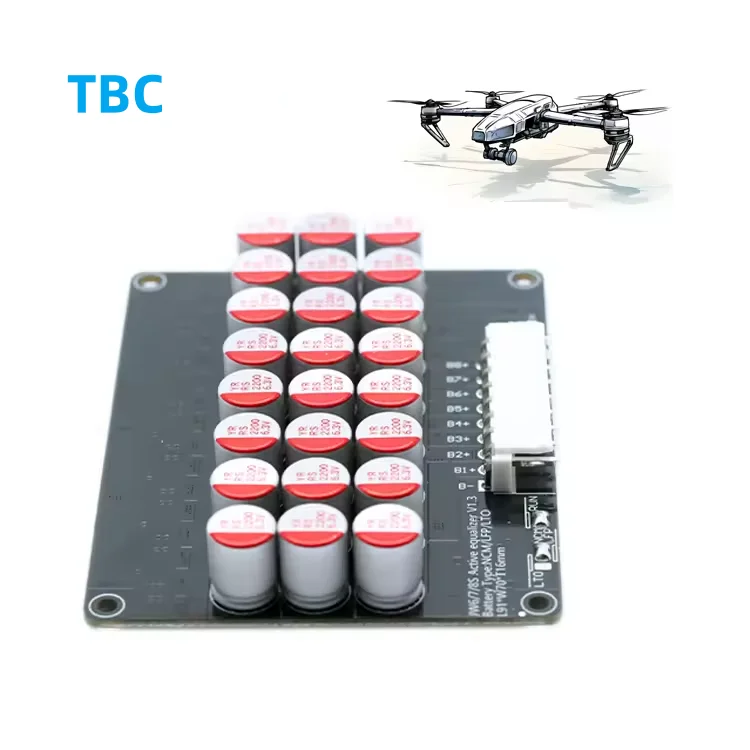

Балансировщик солнечной батареи 48 В свинцово-кислотный аккумулятор 16s эквалайзер 12s-16s 5a 3 2 v 7 литий-ионный
