Product Description

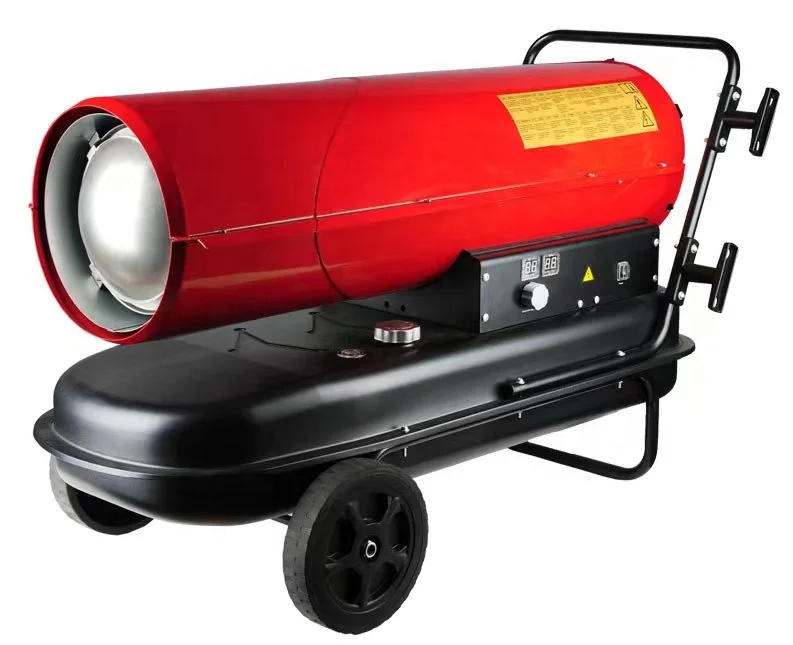

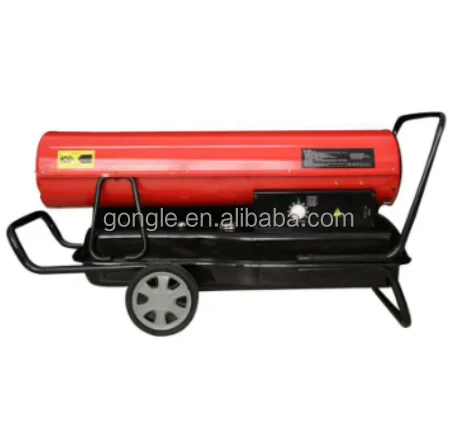

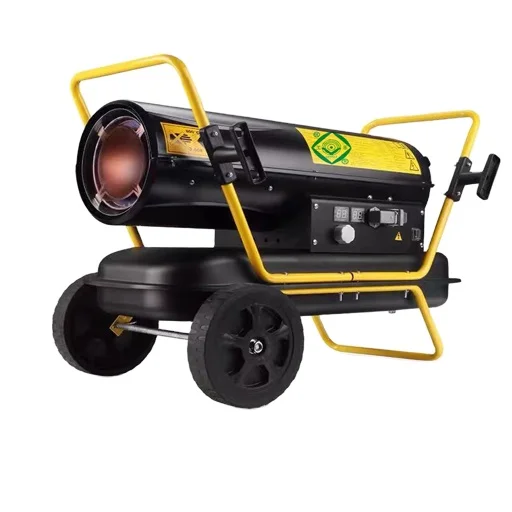

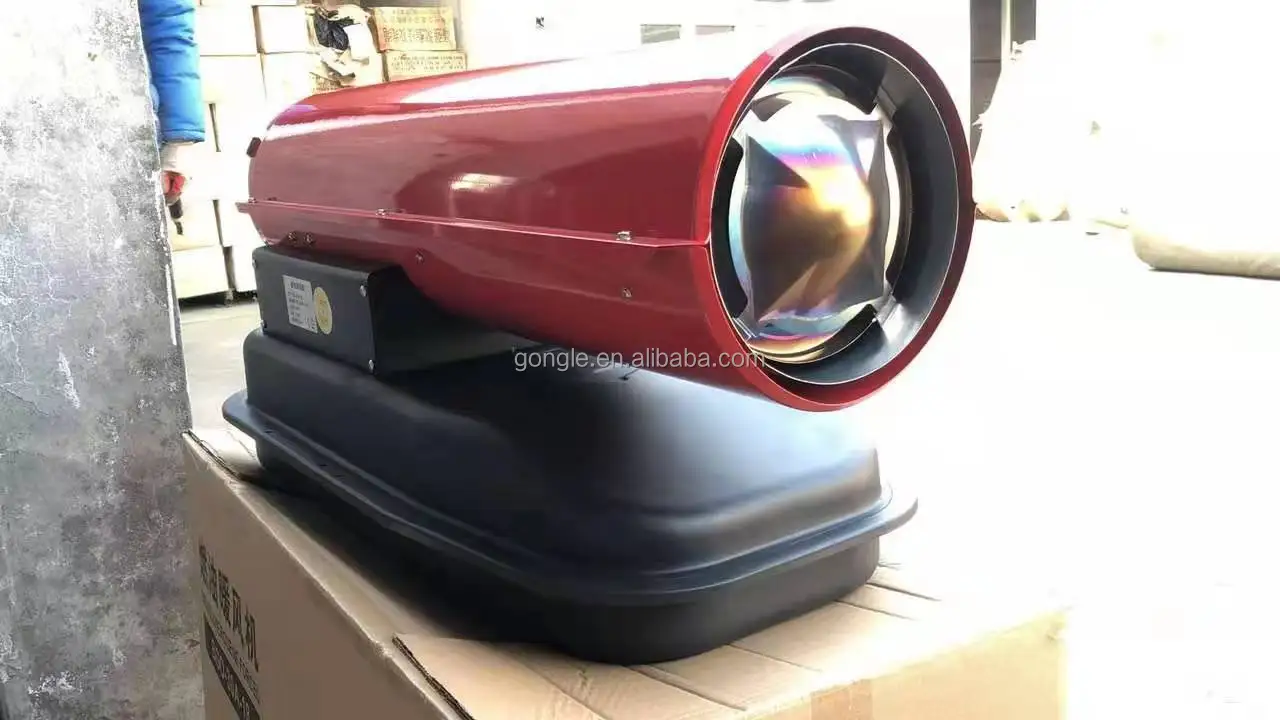

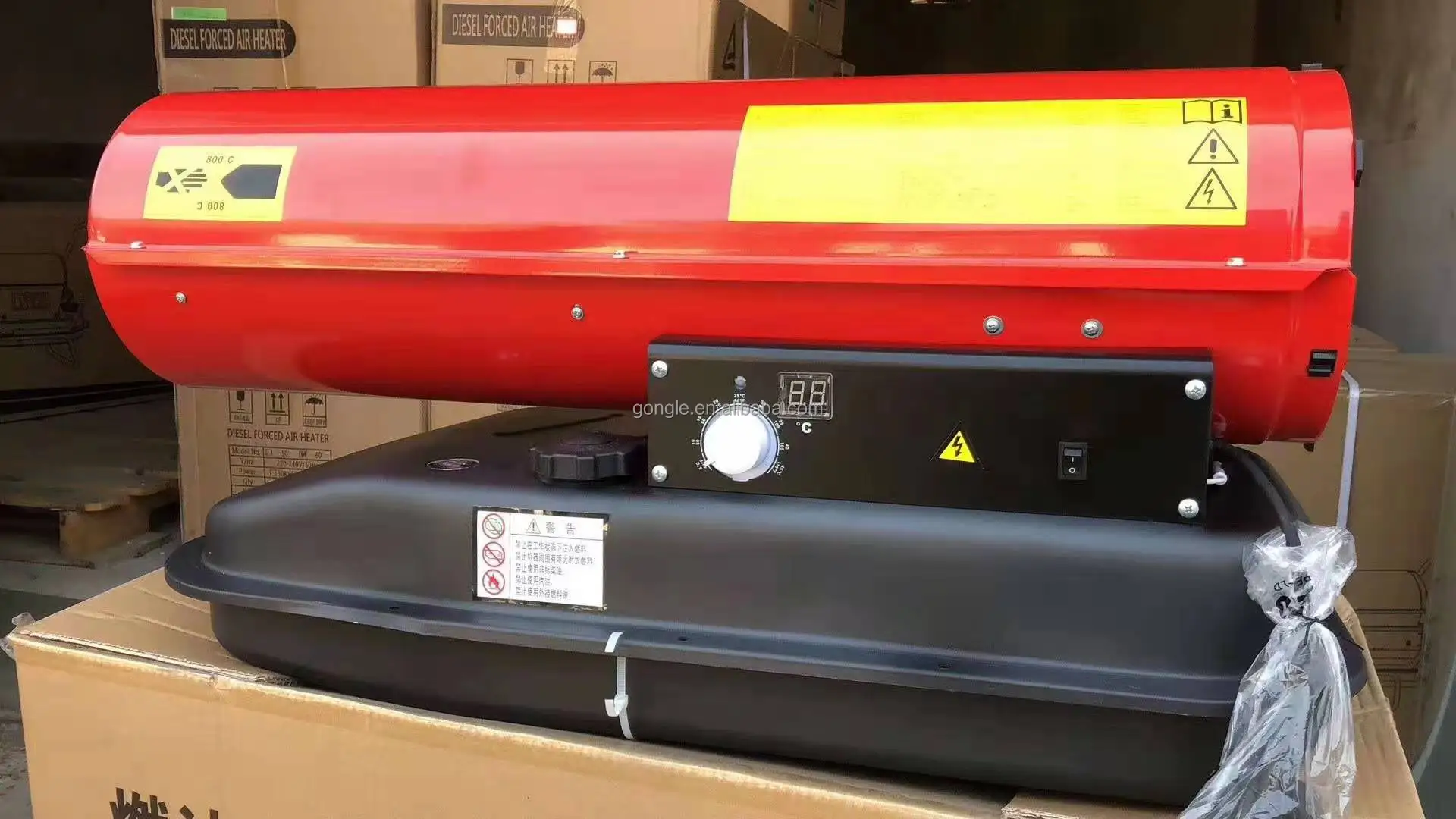

120KW high efficiency mobile poultry house diesel / kerosene forced air heater
Direct Fired Heaters, no chimney;
Diesel fuel or kerosene;
Gas atomization burner;
Stainless steel combustion chamber with the automatic cooling device;
Electronic flame monitoring;
Automatic electronic safety control devices;
Diesel fuel or kerosene;
Gas atomization burner;
Stainless steel combustion chamber with the automatic cooling device;
Electronic flame monitoring;
Automatic electronic safety control devices;
Brief introductions:
1, stainless steel body, containing fan.
2, adjustable temperature control: liquid expansion temperature control -5C °-50C ° adjustable, using rainbow mechanical thermostat.
3, using high-performance motor, insulation protection grade F.
4. Built-in automatic overheat protection and restart function to effectively protect the hot air blower.
5, using high-quality components and materials to ensure product quality. The interior is made of highly high temperature resistant silicone wire, which can be used directly in indoor high temperature environment to ensure the life of the machine; Import connectors are used to ensure the reliability and safety of the power connection;
6. The structure design is reasonable and beautiful, the bracket is stable and beautiful, and the movement is convenient and safe.
7. The rear anti-finch mesh cover design effectively increases the air intake efficiency, which is more conducive to motor heat dissipation and saves corresponding machine space.
2, adjustable temperature control: liquid expansion temperature control -5C °-50C ° adjustable, using rainbow mechanical thermostat.
3, using high-performance motor, insulation protection grade F.
4. Built-in automatic overheat protection and restart function to effectively protect the hot air blower.
5, using high-quality components and materials to ensure product quality. The interior is made of highly high temperature resistant silicone wire, which can be used directly in indoor high temperature environment to ensure the life of the machine; Import connectors are used to ensure the reliability and safety of the power connection;
6. The structure design is reasonable and beautiful, the bracket is stable and beautiful, and the movement is convenient and safe.
7. The rear anti-finch mesh cover design effectively increases the air intake efficiency, which is more conducive to motor heat dissipation and saves corresponding machine space.
Advantages:
1. Mobile air heater
2. Function on diesel oil or kerosene
3. Stainless steel combustion chamber with fan cooling
4. Built-in remember function- working automatically when electric back from failure
5. If no oil , heater will cut off the power
6. Fixed Oil display & flame sensor
7.Cut-off protection
8.Low pressure atomization,combustion completely
9.Waterproof class IPX4
10. Digital control with temperature setting and display
12. Equippted with Danfoss Gear pump + Nozzle
13. Temperature setting range 0-99 degrees
1KW=860 KCAL=3412 BTU ;
3. Stainless steel combustion chamber with fan cooling
4. Built-in remember function- working automatically when electric back from failure
5. If no oil , heater will cut off the power
6. Fixed Oil display & flame sensor
7.Cut-off protection
8.Low pressure atomization,combustion completely
9.Waterproof class IPX4
10. Digital control with temperature setting and display
12. Equippted with Danfoss Gear pump + Nozzle
13. Temperature setting range 0-99 degrees
1KW=860 KCAL=3412 BTU ;
Installation Tips
A：Handle
B: Lower steel pipe
C: Cotter pin
D: Nut 8PCS
E: Nut
F: Wheel
G: Flat pad
H: Wheel axle
I: Oil tank
J: Screw
B: Lower steel pipe
C: Cotter pin
D: Nut 8PCS
E: Nut
F: Wheel
G: Flat pad
H: Wheel axle
I: Oil tank
J: Screw
Specification
Model No. | Power | Voltage/Hz | Air volume | Tank capacity | Fuel consumption | Product size / Packing size | N.W/G.W |
GLH-10 | 10KW | 220V-240V~50HZ | 450m3/h | 19L | 0.8 L/H | 750*315*415MM/ 795*370*440MM | 13.6KG/15.2KG |
GLH-20 | 20KW | 220V-240V~50HZ | 550m3/h | 19L | 1.6 L/H | 750*315*415MM/ 795*370*440MM | 14KG/15.6KG |
GLH-30 | 30KW | 220V-240V~50HZ | 720m3/h | 38L | 2.4 L/H | 880*456*590MM/ 905*420*490MM | 21KG/23KG |
GLH-50 | 50KW | 220V-240V~50HZ | 1100m3/h | 56L | 4 .0L/H | 1090*490*585MM/ 1045*465*570MM | 27KG/31.8KG |
GLH-70 | 70KW | 220V-240V~50HZ | 1300m3/h | 69L | 5.4 L/H | 1215*580*705MM/ 1110*505*680MM | 40.8KG/45.8KG |
GLH-100 | 100KW | 220V-240V~50HZ | 1300m3/h | 69L | 7.9 L/H | 1215*580*705MM/ 1110*505*680MM | 40.8KG/45.8KG |
GLH-130 | 130KW | 220V-240V~50HZ | 3000m3/h | 69L | 11.3L/H | 1390*560*914MM/1365*505*890MM | 57KGS/65KGS |
GLH-150 | 150KW | 220V-240V~50HZ | 5000m3/h | 118L | 14.2L/H | 1676*647*1093MM/1804*712*1240MM | 100KGS/130KGS |
Fuel tank
Thickened 8mm steel oil tank Visual oil scale
Imported gear pump
Intelligent Temperature control ,More powerful and reassuring.
The fuel filter bowl is used together Filter impurities in oil to ensure service life
The fuel filter bowl is used together Filter impurities in oil to ensure service life
Imported nozzle
Imported nozzle, stable quality
Successful project
Widely used for Plant warehouse heating; infrastructure, floor construction, interior construction etc temporary heating; construction of emergency rescue and heating; agricultural heating drying; poultry chicken livestock farm breeding heating brooder etc.
Recommend Products
FAQ
Trade Information:
i.Trade Terms: FOB, CFR & CIF
ii.Payment Terms: T/T , L/C
iii. Payment Condition: 30% deposit in advance,70% balance against copy of B/L.
iv. Delivery Time: 15 days after the deposite.
v. Packing: By carton
vi.Shipping:By sea delivery
i.Trade Terms: FOB, CFR & CIF
ii.Payment Terms: T/T , L/C
iii. Payment Condition: 30% deposit in advance,70% balance against copy of B/L.
iv. Delivery Time: 15 days after the deposite.
v. Packing: By carton
vi.Shipping:By sea delivery
Contact us
Jessie Zhang
Sales Manager
Mobile/WeChat/Whatsapp: +86 -138 6968 6531
Sales Manager
Mobile/WeChat/Whatsapp: +86 -138 6968 6531
E-mail: yilinfish@hotmail.com
Tel: +86-536-3291094
Skype:yilinfish
Thanks again for your kind interests in our products. Welcome to contact us directly for more details, Thank You.
Thanks again for your kind interests in our products. Welcome to contact us directly for more details, Thank You.
Похожие товары
100% полиэстер тканый плавкий прокладочный колпачок хорошая цена
98,96 ₽
Гибридная система хранения солнечной энергии мощностью 200 кВт 300

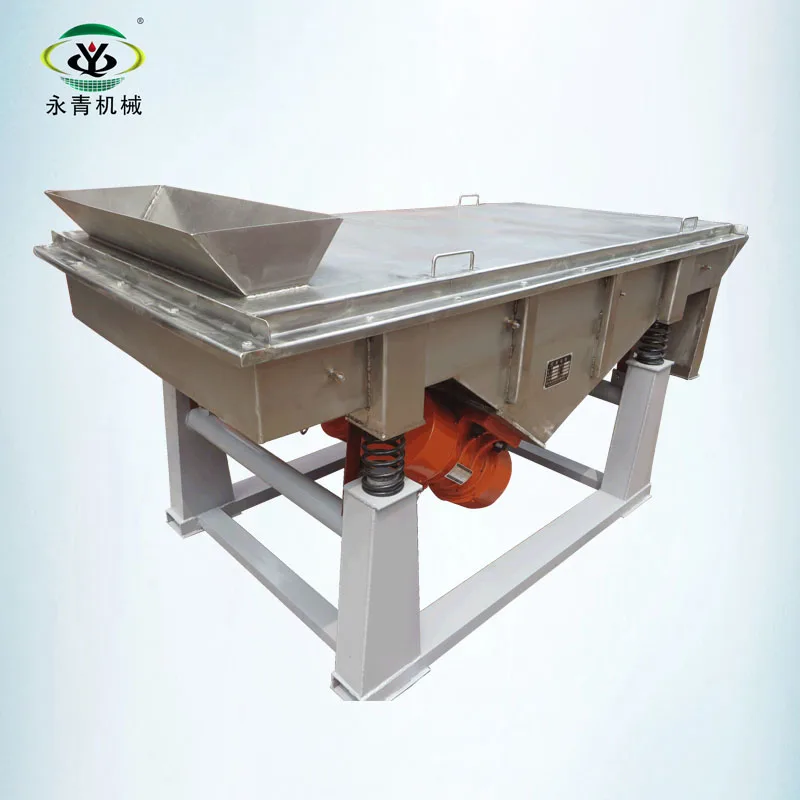

Вибропросеивающая сортировочная машина для зерна риса пищевого
372 538,88-419 106,24 ₽

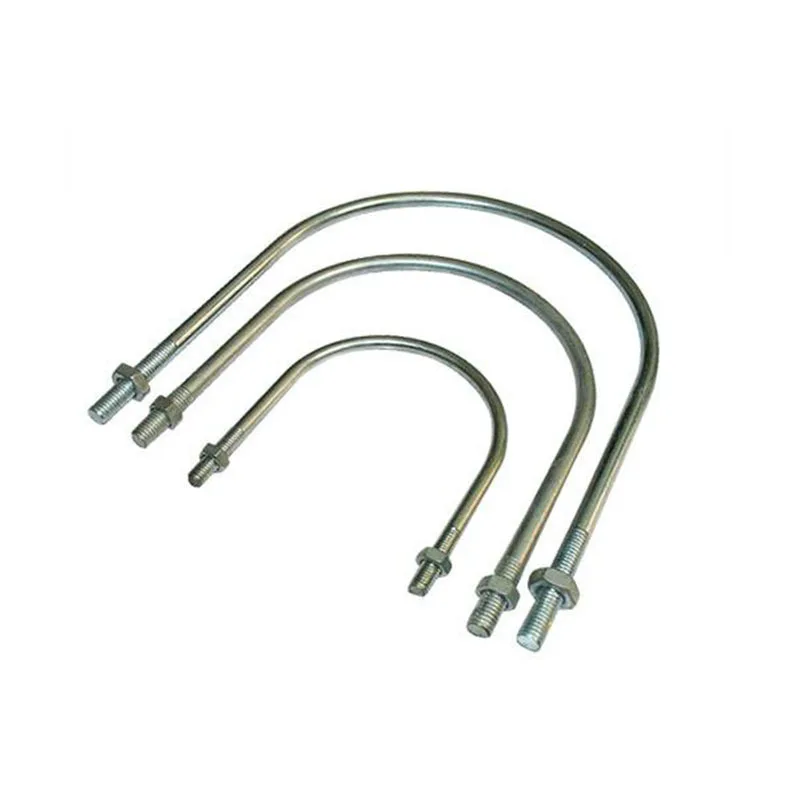

Низкая цена оптовая продажа прочный высокое качество U Болт для
1,16-8,10 ₽
Зимний 2024 новый мех лисы цельная кожа овечья облегающий многоцветный короткий меховой жилет с V-образным
14 668,72-19 092,62 ₽
600 мм ПВХ потолочная панель Легкая установка

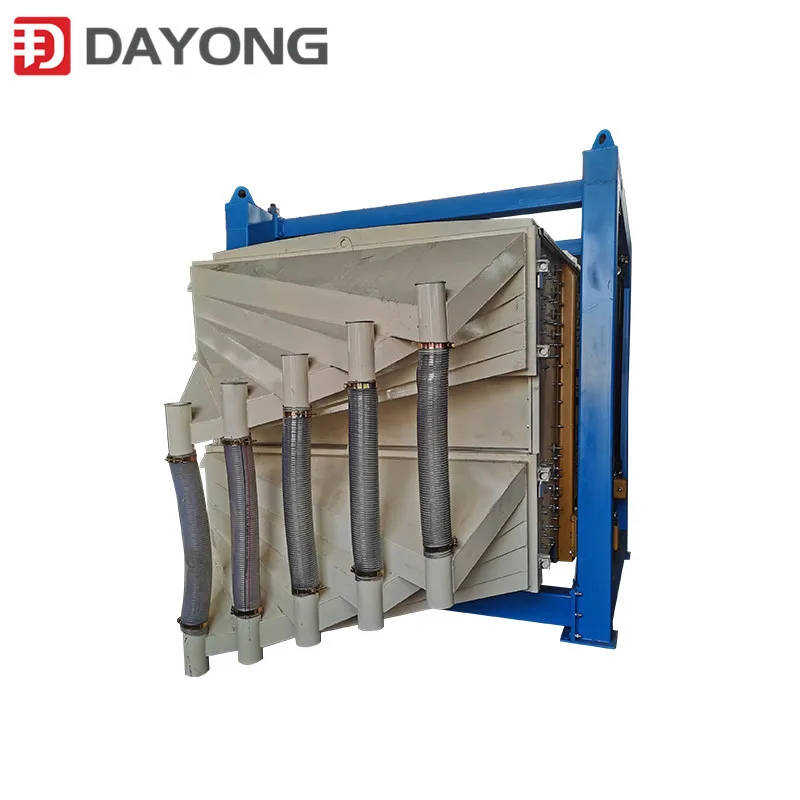

Квадратный вращающийся Вращающийся экран с приводом от двигателя ABB/видео просеивающий высокопроизводительный квадратный линейный
