УФ клей Бесконтактный высокоскоростной прецизионный пьезоэлектрический клапан впрыска
- Категория: >>>
- Поставщик: Dongguan Yiren Industry Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1600821564836:
Описание и отзывы
Характеристики
Products Description

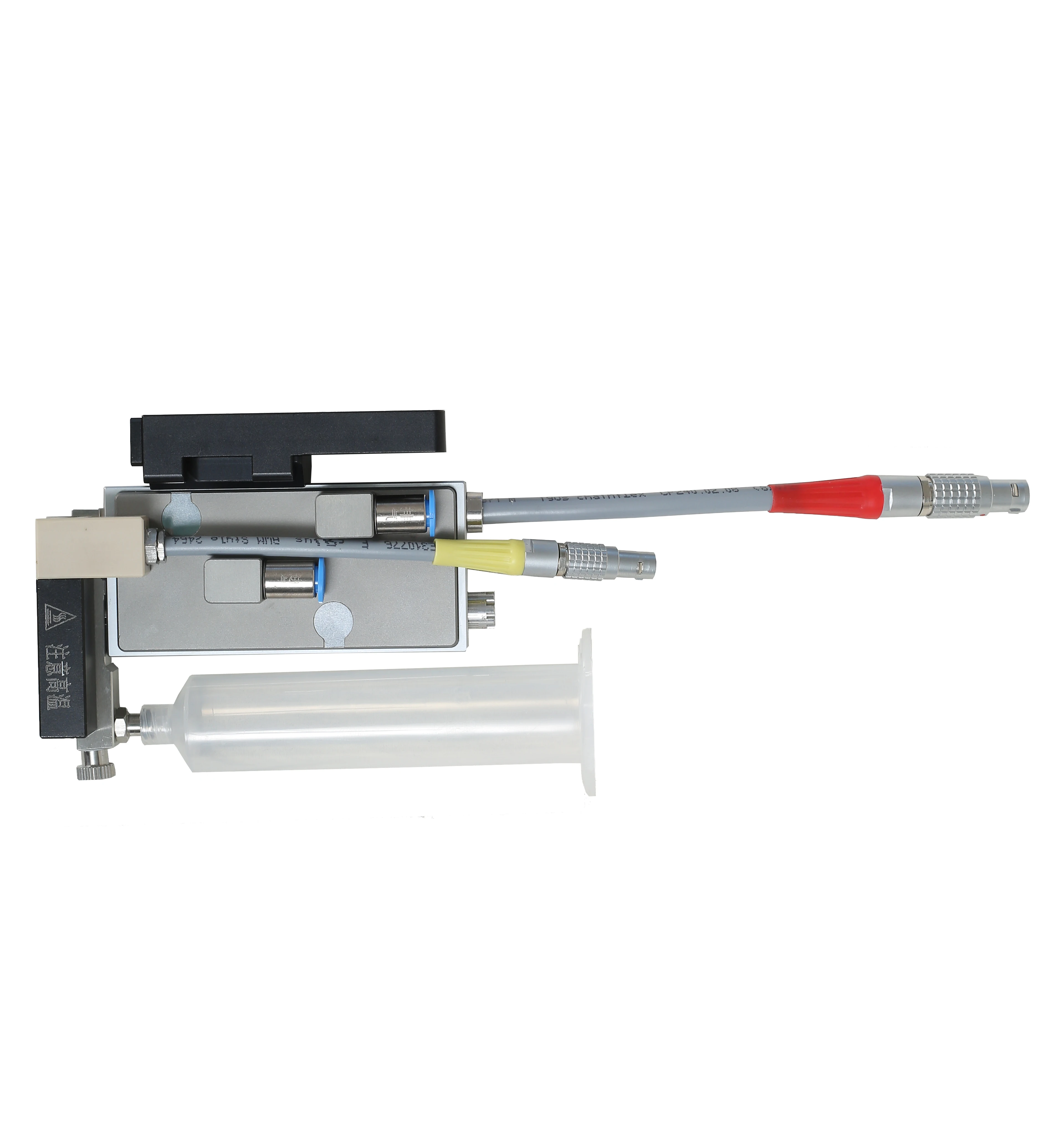

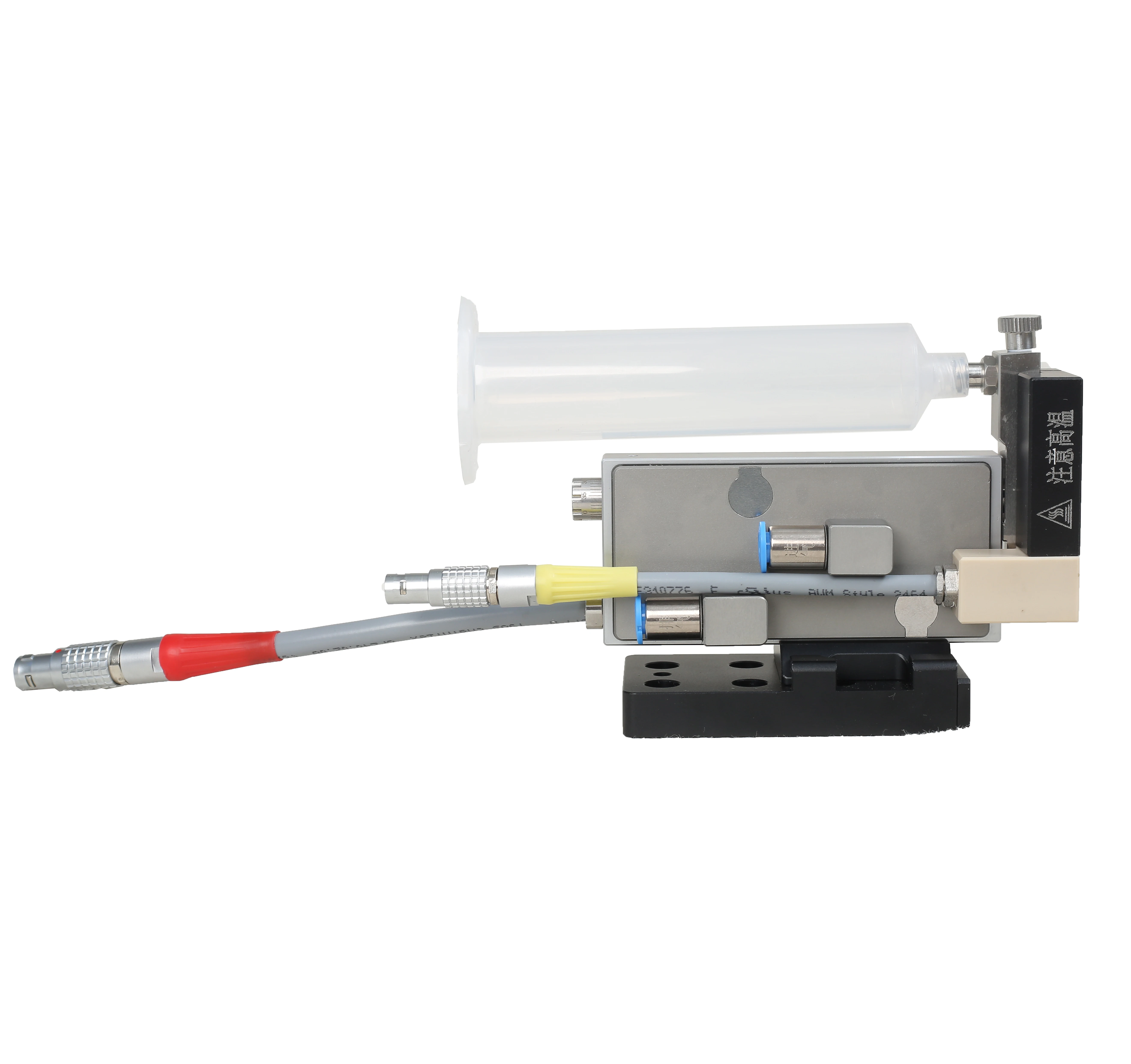

V5800 Piezoelectric injection valve
Non contact dispensing mode
1.The fast upper end correction method eliminates the traditional method of debugging the nozzle.
2.high speed Max:800 Hz
3.trace：2nl /spot
4.High precision glue control precision：±3%
5.Original injection mechanism and exquisite module design.
6.It realizes the ultra-fine of dotted line.
7.Stable dispensing repeatability is realized.
8.The standard is equipped with adjustable temperature control structure.
9. 232 communication and software modification of controller parameters can be implemented.
2.high speed Max:800 Hz
3.trace：2nl /spot
4.High precision glue control precision：±3%
5.Original injection mechanism and exquisite module design.
6.It realizes the ultra-fine of dotted line.
7.Stable dispensing repeatability is realized.
8.The standard is equipped with adjustable temperature control structure.
9. 232 communication and software modification of controller parameters can be implemented.
Details
Dispensing mode | Non contact dispensing | |
Dimension | L 104*W53*H260（mm） | |
Valve body weight | 400g | |
Applicable liquid viscosity | 0～200000 cps | |
Applicable liquid type | Bottom filling glue, UV glue, epoxy glue, silica gel, red glue, etc | |
working frequency | Max: 800Hz | |
Maximum driving voltage | 100% | |
Minimum single point diameter | 0.2mm | |
Minimum line width | 0.25mm | |
Materials in contact with liquid agent | Special stainless steel | |
Liquid agent inlet | Ruhr joint | |
Striker material | Tungsten steel, ceramics, diamond | |
Nozzle material | Tungsten steel, ceramics, diamond | |
Applicable nozzle model | 0.5～2.0（Diameter） | |
Applicable nozzle model | Spray nozzle：5-0.03mm～5-0.5mm，extended nozzle：5-0.075-L4～5-0.15-L5.75 | |
Fluid seal ring | PE | |
Maintenance cycle of seal assembly | 20000000 times | |
Glue supply pressure | 0.05Mpa～0.5MPa | |
Cooling air pressure | 0.03Mpa～0.1Mpa | |
Channel heater cable | 2.5m or 5m，high flexibility cable | |
Runner heater type | DC:24V, Temperature sensing：PT100, P:60W | |
Upper heating limit of channel heater | 230℃ | |
Controller cable | A set of two 2.5m or 5m high flexible cables | |
Recommended operating frequency: 250Hz ~ 400Hz, voltage value: 75% ~ 95% | ||

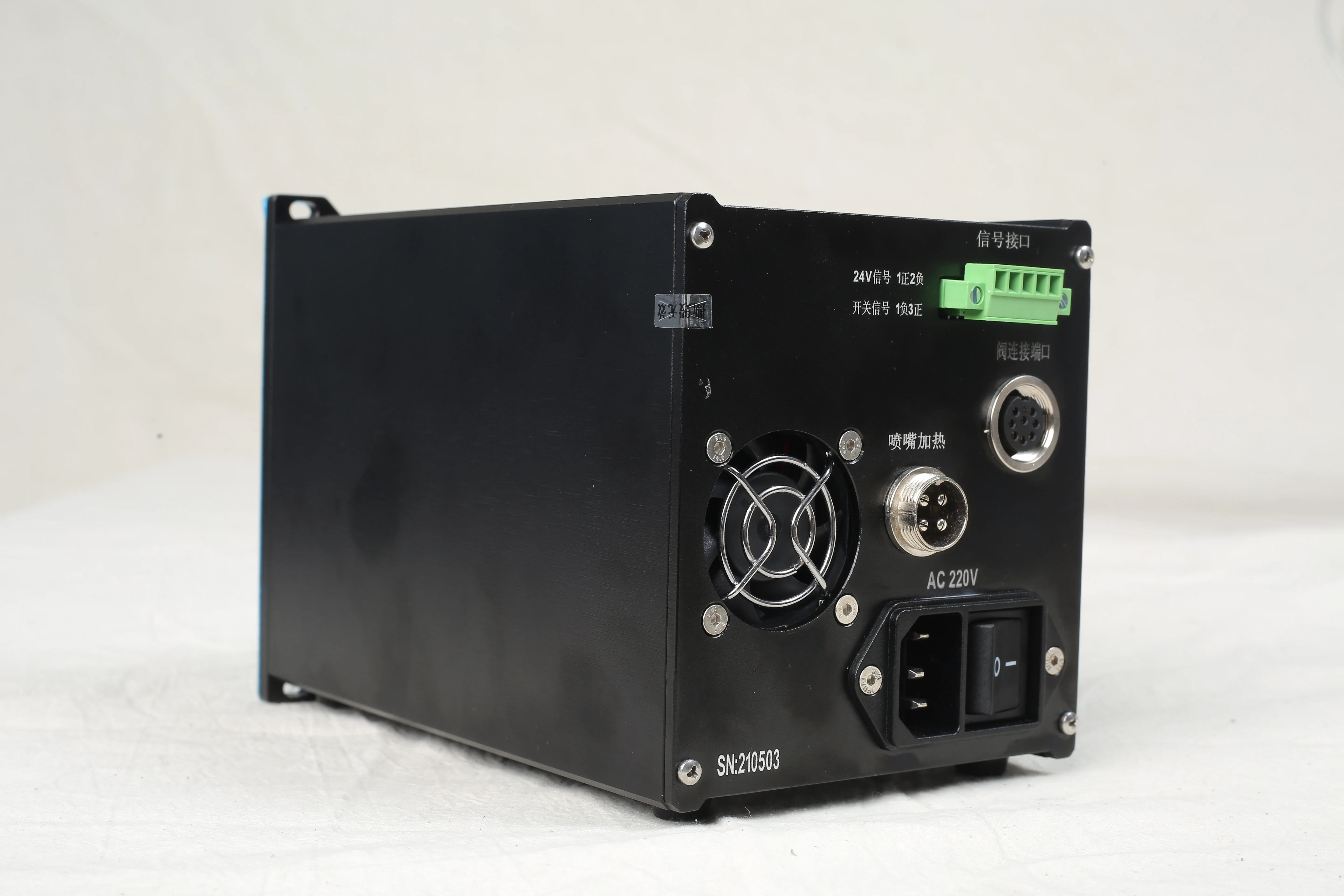

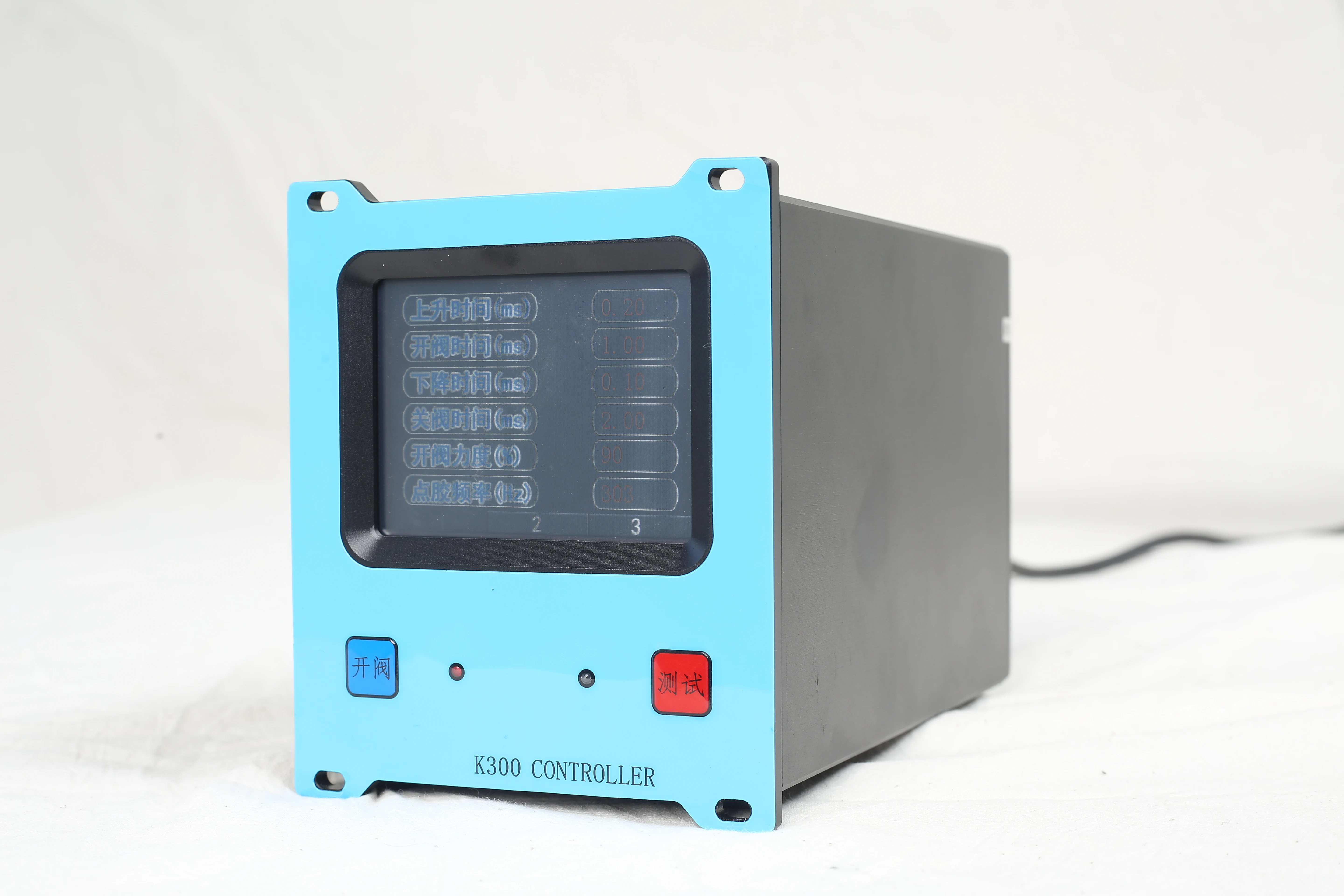

Product Paramenters
control mode | Electronic type |
Dispensing time control circuit | Digital circuits / parameters |
Power supply / power | AC220V/50Hz*300W |
Controller quality | 1.66Kg |
Machine control controller mode | 24V pulse signal or short circuit signal |
Dimension | L231.4*W123*H134（mm） |
Interface display | LCD |
Controller communication | 232 communication and software modification of controller parameters can be implemented. |
Controller performance 1 | The service times of valve body can be recorded |
Controller performance 2 | It can detect the high temperature of the valve body and realize alarm protection. |
Controller performance 3 | With nozzle correction function |
Push-button | Confirm、Trigger、Open the valve、←、↑、→、↓ |
Trigger input | TRIG Trigger or on-off signal |
Dispensing mode | Line drawing mode,Single point mode |
Lower limit of valve opening time | 0.1ms |
Lower limit of valve closing time | 1.0ms |
Lower limit of rise time | 0.2ms |
Lower limit of descent time | 0.09ms |
Average usage times of ceramics | 1.5 billion |
Valve body dimension drawing
Controller dimension diagram
Product packaging
Package & Terms
Package: Y&D standard package.
payment:100% T/T in advance after confirm the order
Shipping:DHL/TNT&Fedex express shipment
payment:100% T/T in advance after confirm the order
Shipping:DHL/TNT&Fedex express shipment
Exhibition
We will participate in Munich Fair every year to show our products and technologies and build our own brand with all our heart.
Company Profile
Company Strenghth
We are a professional manufacturer of dispensing equipment and liquid dispenser and all the accessories. Valve, pressure tank, cartridge, barrels, tips, dispensing pen, glue gun, connect and so on. Our main product including dispensing equipment and liquid dispenser. We also have gantry conveyor robot.
Competitive Advantages
* Professionalism,creativity,advanced fluid control technology.
* Established an unshakable position in the liquid control and dispensing production.
* Highly Vertical Integration Of Manufacturing.
* Worldwide Sales
* Advanced Engineering/ Development Capability.
* Good Material Management Programs.
* Established an unshakable position in the liquid control and dispensing production.
* Highly Vertical Integration Of Manufacturing.
* Worldwide Sales
* Advanced Engineering/ Development Capability.
* Good Material Management Programs.
OEM/ODM service offered
Our product could match with other accessories (valve, tank, cartridge) according to your actual situation or as your request. We are capable to manufacture dispensing equipment and liquid dispenser according to customer's drawings or samples. We are insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.
For more information, please feel free to contact our sales, and we will give you a quick reply as soon as we get to know it.
Our office hour
Monday to Saturday
AM 8:00-12:00 PM:13:30-17:30
Notice(Saturday we only work on half day)
Yan Zhong
Phone:86-769-85705386
Wechat: 15015488307
Phone:86-769-85705386
Wechat: 15015488307
Whatsapp: +86 15015488307
Skype: Ydsales-6
QQ:604911203
QQ:604911203
Our office hour
Monday to Saturday
AM 8:00-12:00 PM:13:30-17:30
Notice(Saturday we only work on half day)
Похожие товары
Высокое качество запорный клапан/горячая Распродажа клапан
16,00 $

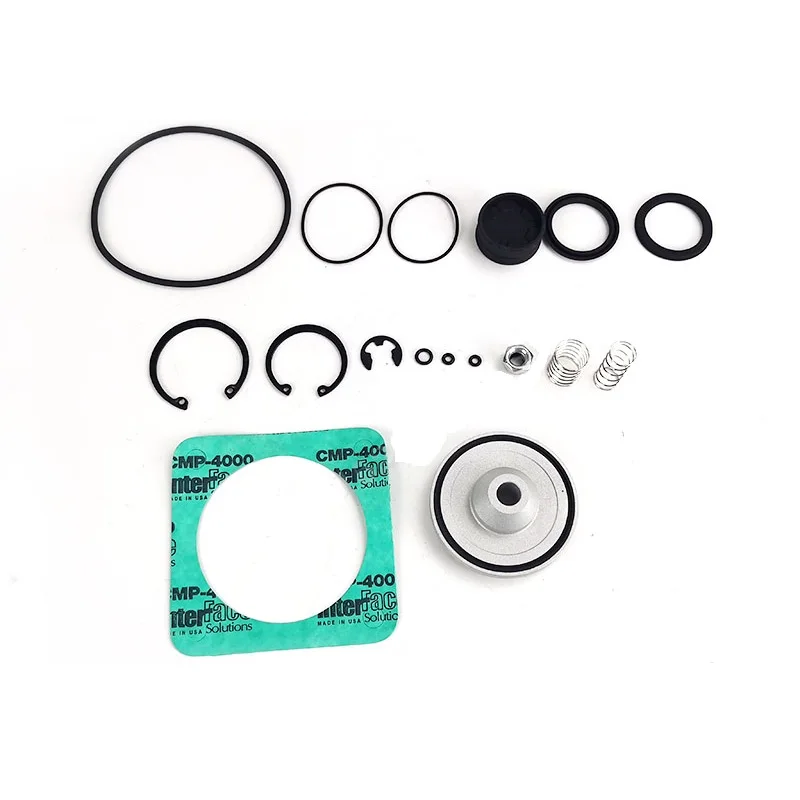

Комплектация для обслуживания 2901000201 компрессора
52,00 $
Высококачественный распределительный клапан для жидкого клея удлинитель отверстия подачи картриджа адаптер металлического фитинга

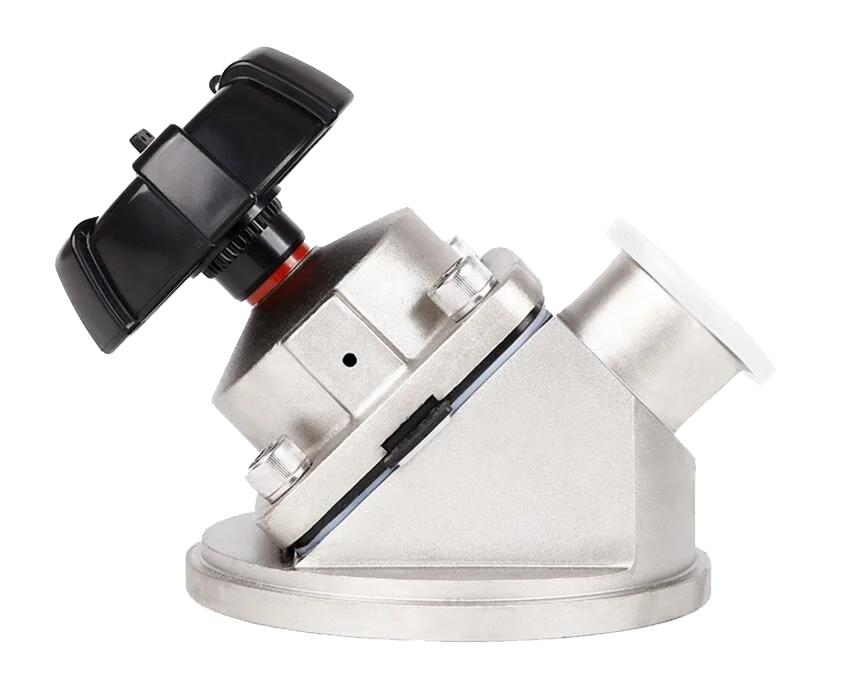

Санитарный нижний мембранный клапан бака из нержавеющей стали

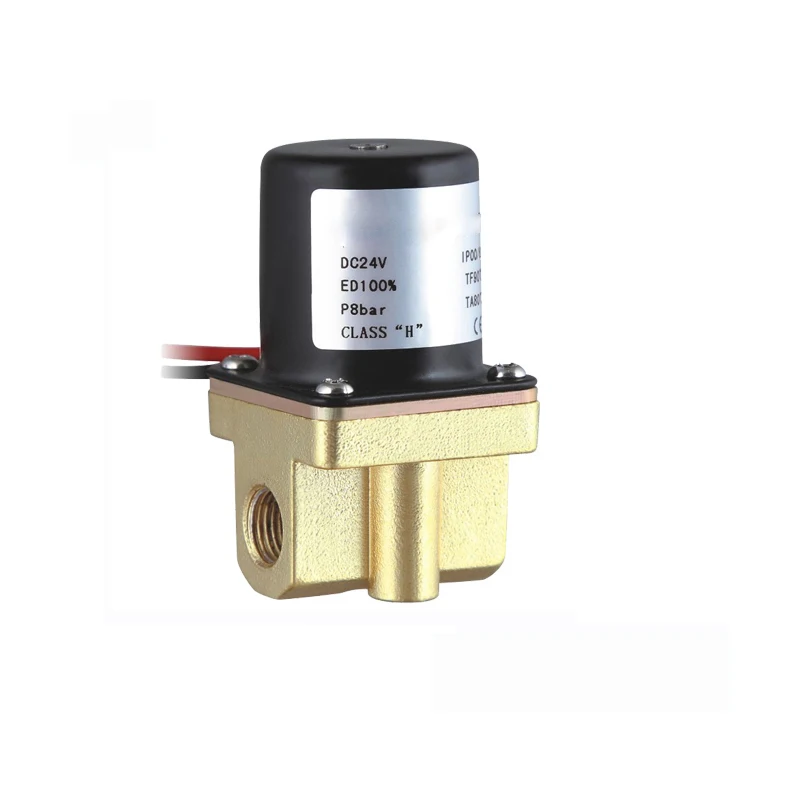

ZCQ-06BLVT DC24V 2/2 способ латунь электромагнитный клапан для сварочного аппарата
