Автозапчасти автомобильные испытания промышленный датчик кислорода азота для Cummins OEM 4307100 4384811
- Категория: >>>
- Поставщик: QINGHE COUNTY ZHIRUI PLASTIC AND RUBBER TECHNOLOGY CO. LTD
Сохранить в закладки 1600822027173:
Описание и отзывы
Характеристики
Recommend Products
Details Images
Products Description

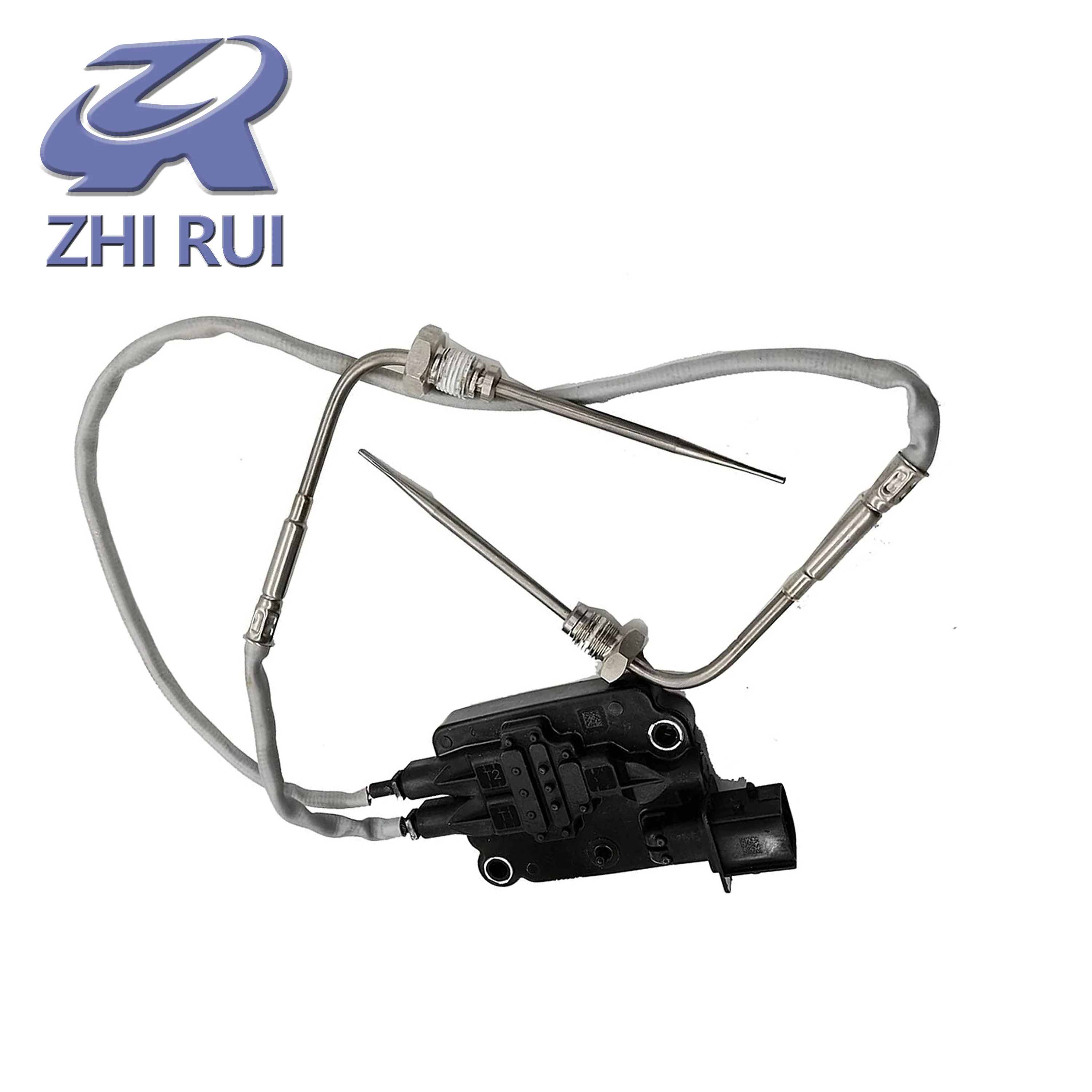

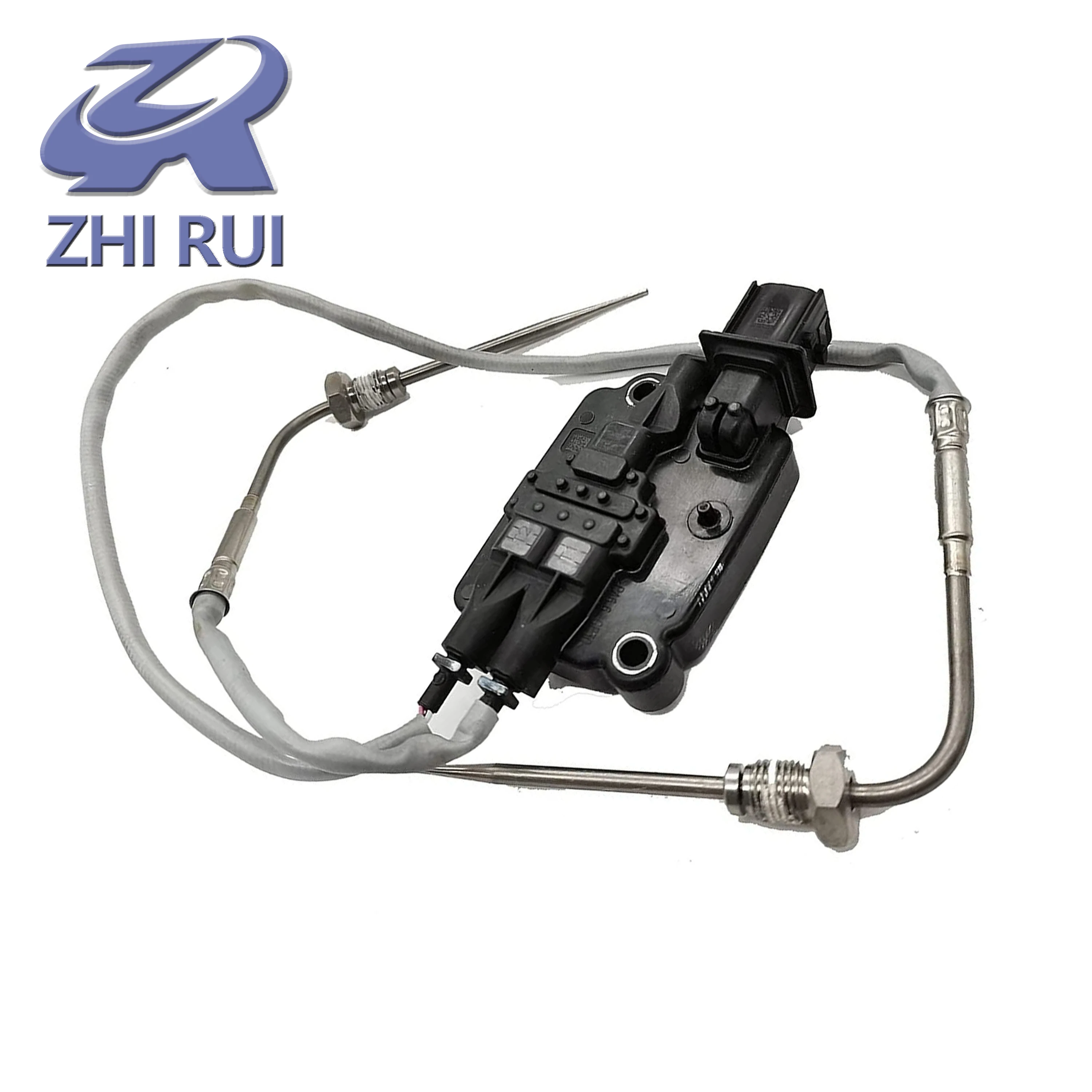

Item Name: Nitrogen Oxygen SensorSize
Size: Standard Size
Material Quality:Plastic and Metals.
Application:Car Diagnostic Tools
Custom: Accept
Material Quality:Plastic and Metals.
Application:Car Diagnostic Tools
Custom: Accept
Key Features: | Operating Temperature Range: | |||||
Measuring Range | NOx：0~2000ppm O2：-12%~21% | Minimum Ambient Temperature | −40℃ | |||
NOx Accuracy | 0~100ppm : 0±10ppm; 100ppm~500ppm : ±10%; 500ppm~1500ppm : ±15%； 1500-2000ppm: ±30% | Maximum ambient temperature | 105℃ | |||
Maximum Working Time At 105℃-115℃ | 24 H | |||||
Minimum Storage Temperature Without Charging | -40℃ | |||||
O2 Accuracy | 0%~5%:±0.25%; 5%~21% : ±5%； | Maximum Storage Temperature Without Charging | 120℃ | |||
Maximum Storage Time | 2 Years | |||||
Start Time (Light off) | Status Bit OK Within 100s | Maximum Acceptable Exhaust Gas Temperature | 800℃ | |||
Response Time | T(10-90%) ： NOx ≤ 5300ms T(10-90%) ：O2 ≤ 4950ms | Can Work In 950°Exhaust Gas For Up To | 100 H | |||
Response Time | T(10-90%) ： NOx ≤ 5300ms T(10-90%) ：O2 ≤ 4950ms | Maximum Temperature Of Hexagon Nut | 620℃ | |||
Supply Voltage | 12V,24V | Hexagon Nuts Can Operate In 650℃ Environments For Up To | 100 H | |||
Design Life | 6000h Or 350000km | Maximum Temperature Of Metal Buckle | 200℃ | |||
Cable Length | 410mm, 650mm, 950mm | Metal Clips Can work In A 220℃ Work Environment For Up To | 100 H | |||
Temperature | 800℃ | The Harness Can Operate For Up To | 100 H | |||
Basic Electrical Properties | ||
supply voltage | Minimum supply voltage: 12 V Minimum sensor heating voltage: 12V Standard power supply voltage: 24 V Maximum supply voltage: 36 V The nitrogen oxygen sensor 4 pin connector terminal has the function of preventing reverse connection | |
Power supply current | Average current: 0.5A Starting peak current: 12A Inrush current (DC/DC):>20A（ μ sec) | |
power | Maximum power: 20W | |
CAN line | Minimum line voltage: - 3 V Maximum line voltage: 36 V The CAN line does not have a harness terminal | |
connector | Number of connector legs: 5 Corresponding connector type: Hirschmann MLK 872-860-501 Pin definition: 1: Power supply voltage 2: Ground 3: CAN low 4: CAN high 5: Hanging - standard address; Location-Optional Address | |
Function Description
A ceramic sensor made of zirconia electrolyte measures the concentration of oxygen entering the first chamber from exhaust gas through a diffusion barrier layer through current measurement.The oxygen concentration in the chamber is controlled to a very small constant concentration.Other components in the exhaust gas also enter the chamber with HC, CO, and H2, and are oxidized on the pump electrode made of platinum.A small amount of PPM oxygen and nitrogen oxides enter the second chamber together from the first chamber, where all oxygen is pumped out by an auxiliary pump.On the measuring electrode, the dynamic balance equation NO<->N2+O2 has changed because the oxygen generated by the reduction of NO is pumped out.The concentration of nitrogen and oxygen in the exhaust gas is determined by measuring the current generated by the generation of oxygen, \\uD835\\uDC3C \\uD835\\uDC43 2.
The electronic control unit (ECU) heats the sensor element to operating temperature by controlling power.The oxygen concentration and nitrogen oxygen concentration are obtained by collecting the current in all chambers through integrated circuits.The nitrogen oxygen sensor transmits the gas concentration information to the engine ECU through a CAN message.
The nitrogen oxygen sensor transmits the gas concentration information to the engine ECU through a CAN message.
Packing＆Shipping
Company Introduction
Qinghe County Zhirui Plastic and Rubber Technology Co.,LTD is located in qinghe County, Xingtai City, hebei Province China. Our main product is fuel line connector, air intake hose, coolant hose, air filter housing. We have 20 sets injection machines.
Certifications
FAQ
About us
1. who are we?
We are based in hebei, China, start from 2015,sell to Domestic Market(55.00%),Mid East(10.00%),Western Europe(10.00%),North
America(5.00%),Eastern Europe(5.00%),South Asia(5.00%),Southeast Asia(3.00%),Africa(3.00%),South America(2.00%),Eastern
Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Plastic and Rubber Parts
4. why should you buy from us not from other suppliers?
We are manufacture and specialist for Mercedes benz ,bmw ,PSA ,citroen,bmw mini parts.
5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English, Chinese
We are based in hebei, China, start from 2015,sell to Domestic Market(55.00%),Mid East(10.00%),Western Europe(10.00%),North
America(5.00%),Eastern Europe(5.00%),South Asia(5.00%),Southeast Asia(3.00%),Africa(3.00%),South America(2.00%),Eastern
Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Plastic and Rubber Parts
4. why should you buy from us not from other suppliers?
We are manufacture and specialist for Mercedes benz ,bmw ,PSA ,citroen,bmw mini parts.
5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English, Chinese
Похожие товары

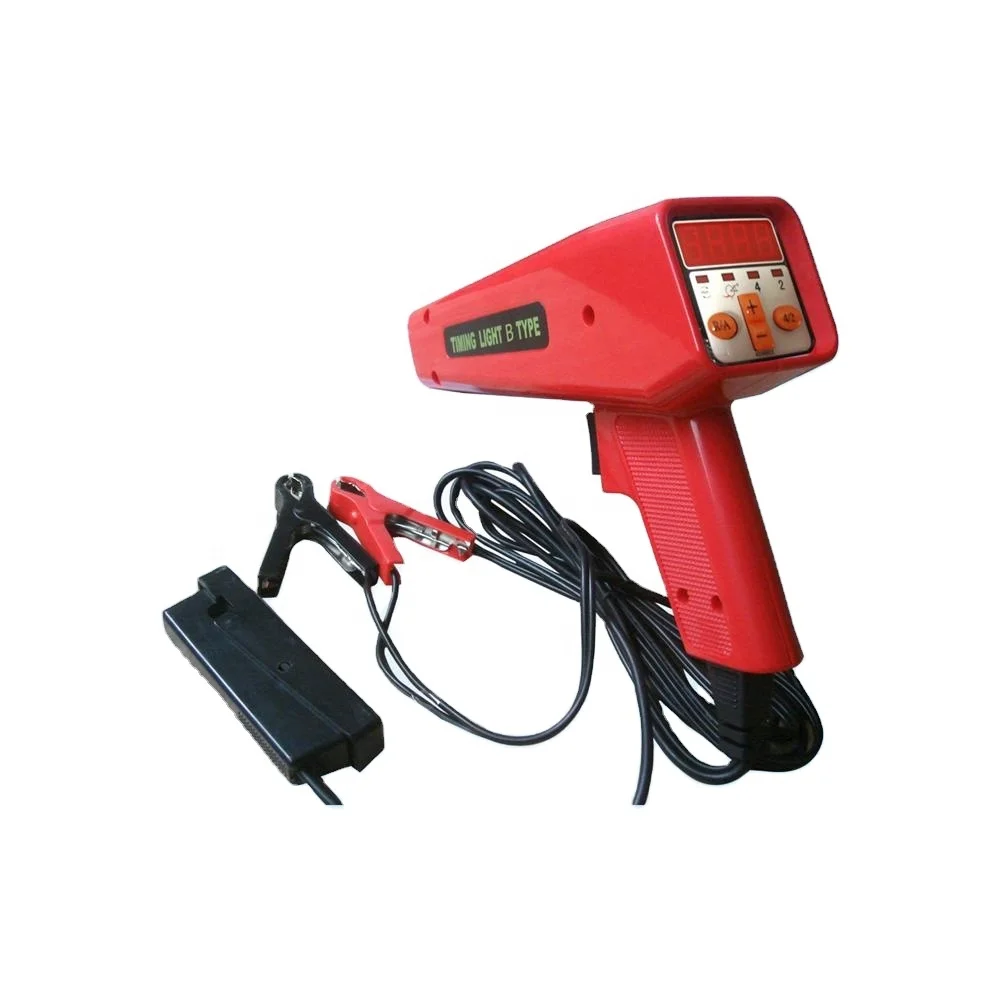

Лампа зажигания автомобиля
Профессиональный программный диагностический набор Autel maxisys ultra ev mk908 ecu, Автомобильный Электрический высоковольтный автоматический сканер
422 791,58 ₽ - 444 478,76 ₽
Датчик аномального шума подвески шасси для автомобиля
336 042,86 ₽ - 354 476,96 ₽

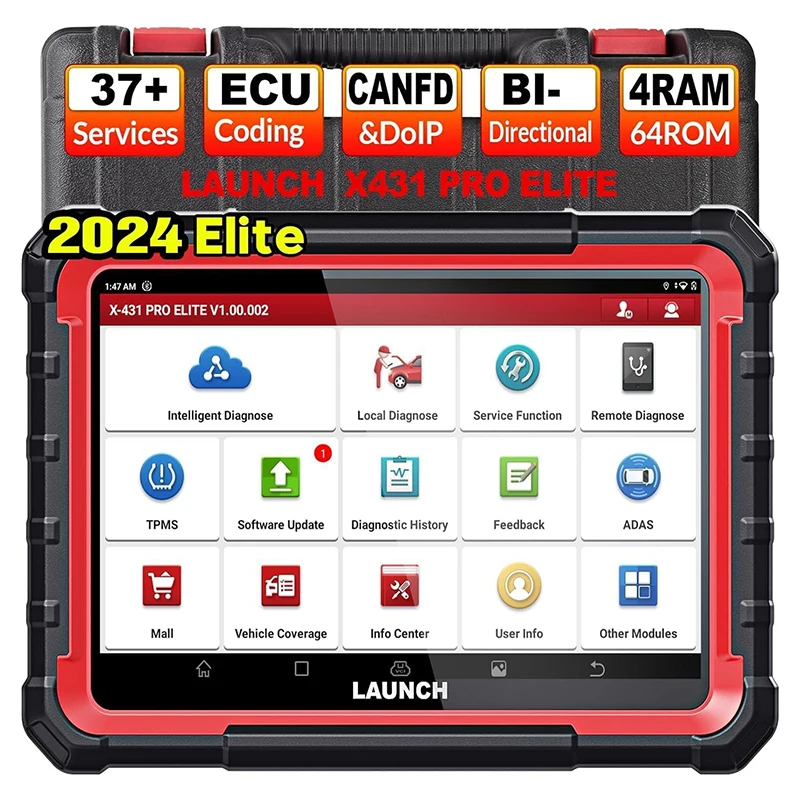

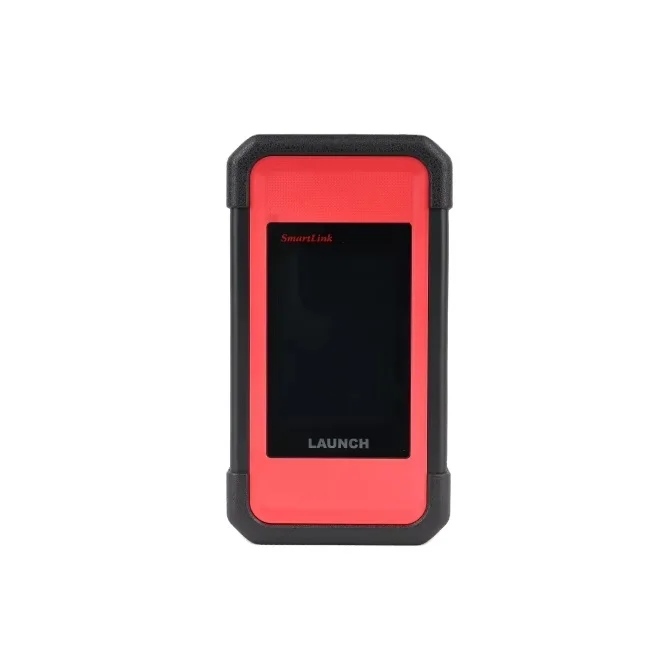

Launch X431 PRO ELITE двунаправленное управление, сканер онлайн-кодирования, Автомобильный сканер OBD2 с CANFD DOIP
47 603,37 ₽ - 49 772,08 ₽

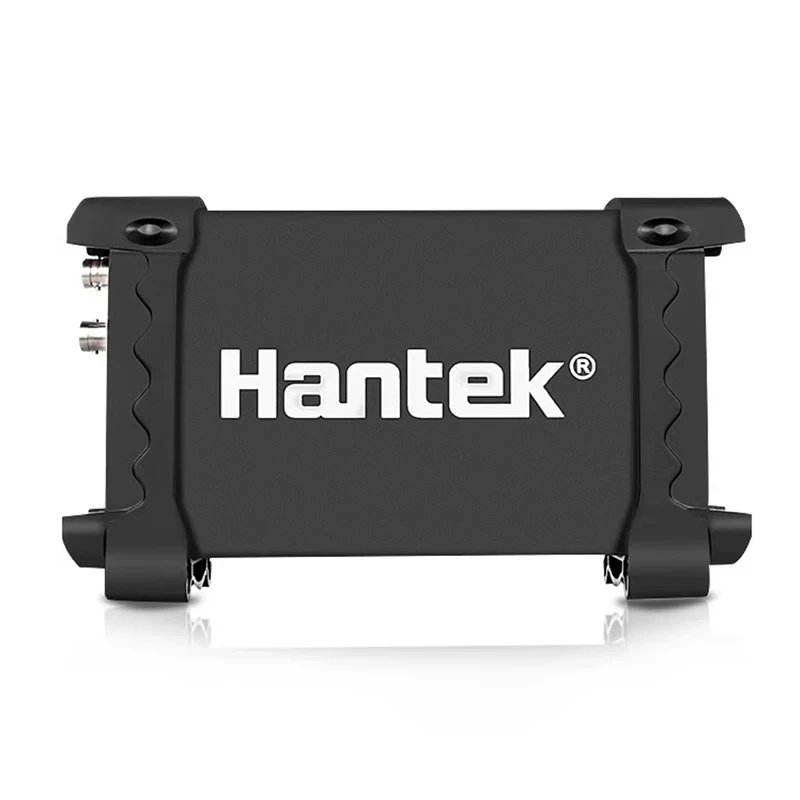

Hantek 6022BE 2 канала 20 МГц портативный автодиагностический осциллограф
5 203,84 ₽ - 6 179,77 ₽

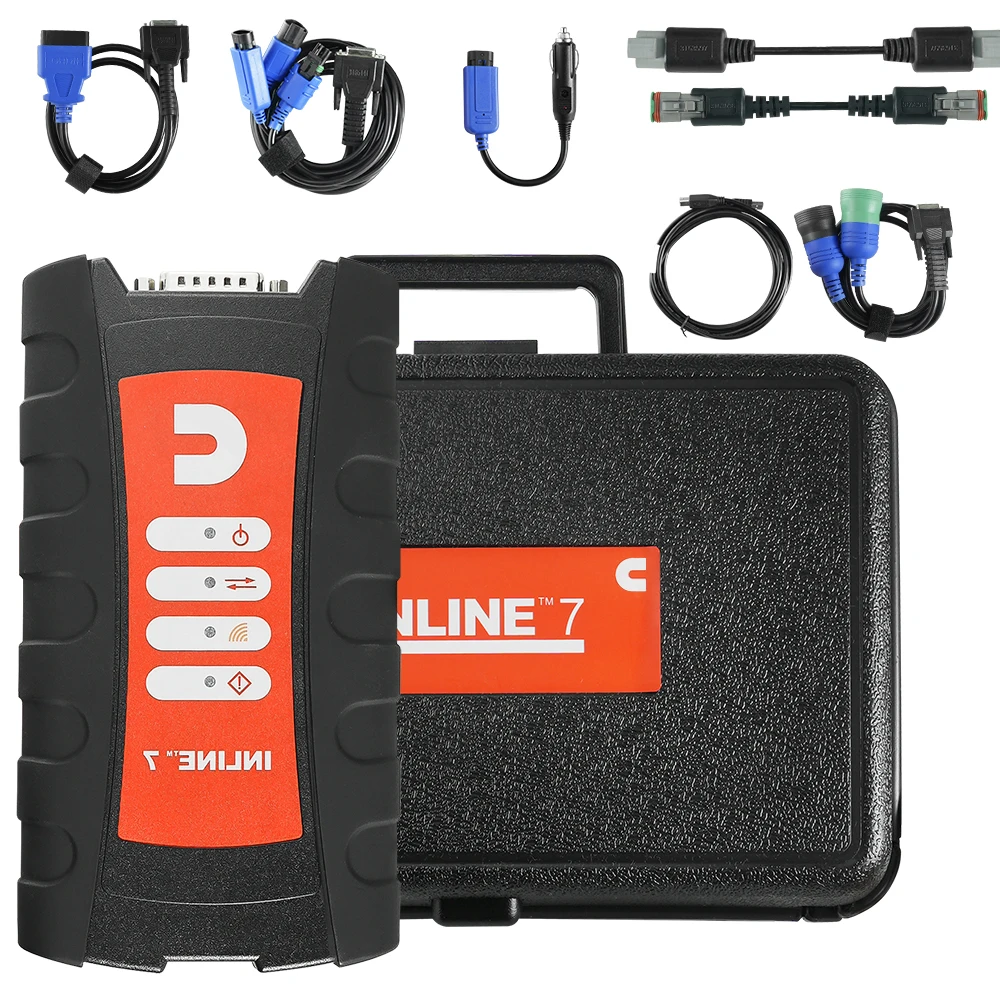

Адаптер для Cummins INLINE 7 для грузовых автомобилей, для диагностического инструмента Cummins с программным обеспечением для Cummins 8,7
