Пневматический клапан управления потоком водяного пара из нержавеющей стали пневматический мембранный регулирующий с позиционером

Описание и отзывы

Характеристики

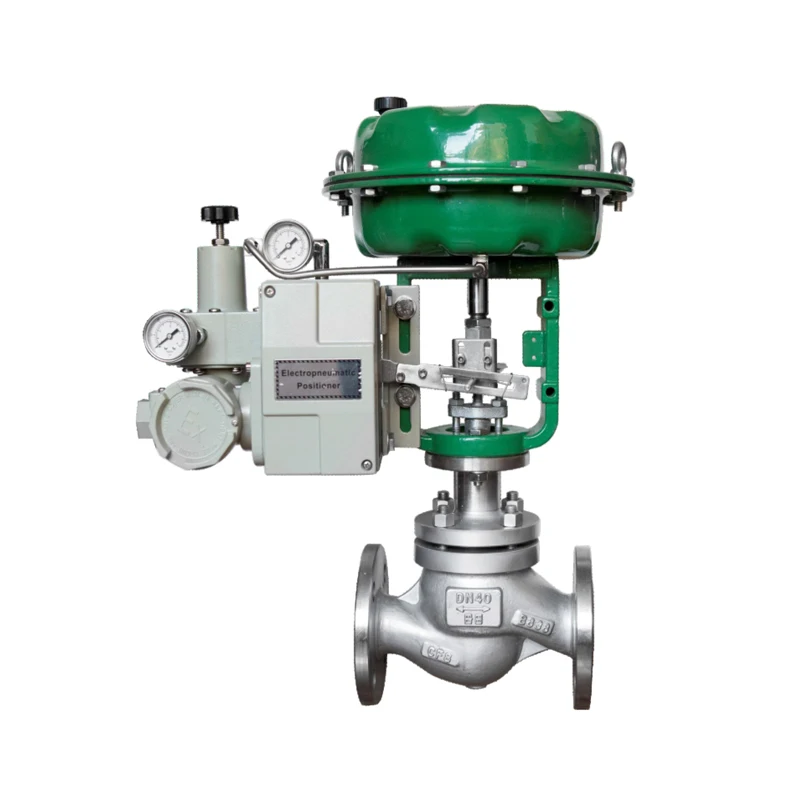

Stainless Steel Pneumatic Water Steam Flow Control Valve Pneumatic Diaphragm Control Valve With Positioner

Advantages:

• Guangzhou Fols Valve Technology Co., Ltd. aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.

• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.

• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.

• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.

• OEM / ODM service available.

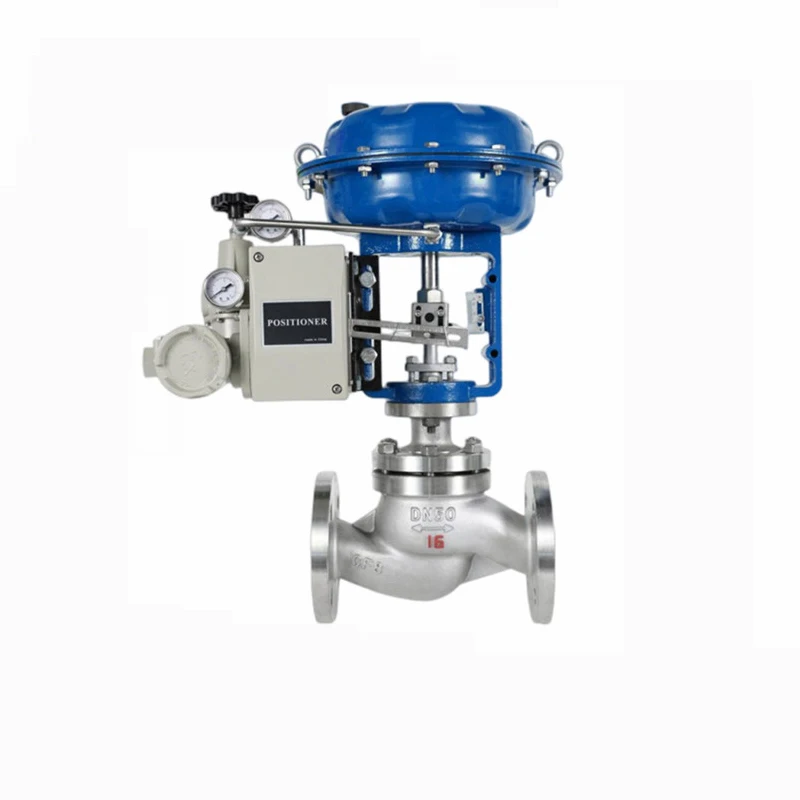

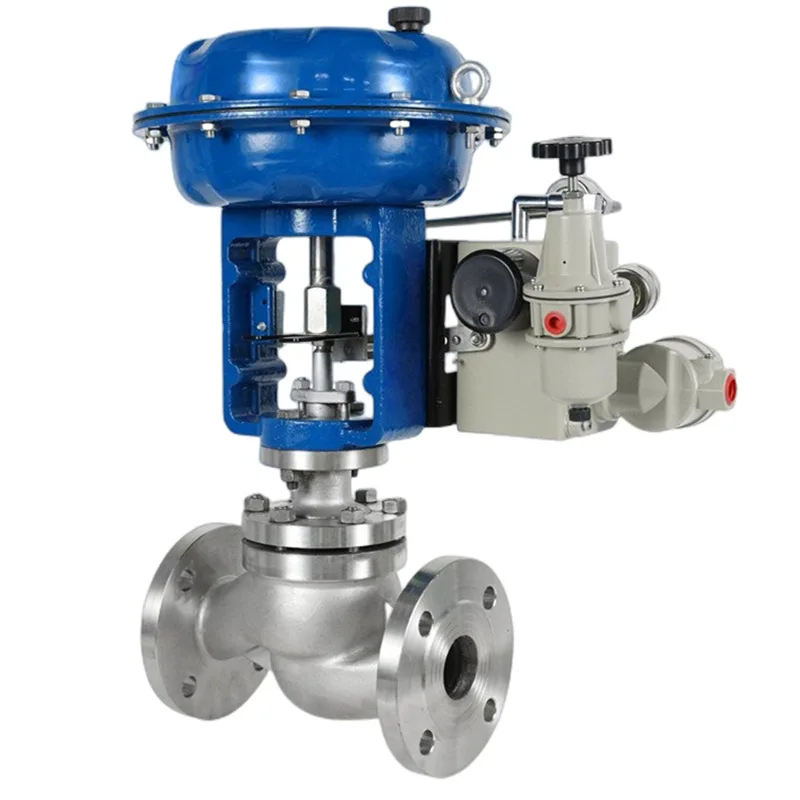

 Pneumatic Single Seat Control Valve

ZJHP fine small pneumatic film single seat regulating valve adopts top guide structure, with multiple spring actuator. It has the advantages of compact structure, light weight, sensitive action, s-streamline fluid channel, small pressure drop loss, large valve capacity, accurate flow characteristics, convenient disassembly and assembly. Widely used in precise control of gas, liquid and other medium process parameters such as pressure, flow, liquid level to maintain a given value. It is especially suitable for small leakage and small pressure difference before and after the valve. The nominal pressure levels of products are PN16,40,64;Nominal diameter range DN20~400. Suitable for liquid temperature from-200℃to +560℃ range of various grades. The leakage standards are grade iv or vi, and the flow characteristics are linear or equal percentage. A variety of character specifications to choose from.

Pneumatic Sleeve Control Valve

ZJHM fine small pneumatic film sleeve regulating valve adopts top guide structure, with multi spring actuator. It has the advantages of compact structure, light weight, sensitive action, s-streamline fluid channel, small pressure drop loss,large valve capacity, accurate flow characteristics, convenient disassembly and assembly. Widely used in precise control of gas, liquid and other medium process parameters such as pressure, flow, liquid level to maintain a given value. It is especially suitable for small leakage and small pressure difference before and after the valve. The nominal pressure levels of products are PN16,40,64;Nominal diameter range DN20~400. Suitable for liquid temperature from -200℃ to +560℃ range of various grades. The leakage standards are grade iv or vi,and the flow characteristics are linear or equal percentage. A variety of character specifications to choose from.

Advantage of Pneumatic Control Valve:
1. It is cost-effective and safe to be used,which can help you save cost of the whole system COVNA Single Seat Pneumatic Globe Control Valve maintenance.
2. It has a simple structure and a big torque, explosion-proof with short actuating times,optimized actuating forces and reliable tight sealing.
3. It can perfectly avoid problems of friction, corrosion, and emissions.
4. It is of low center of gravity, high vibration resistance and easy to install.
5. Simple to control, rapid response, and intrinsic safety, no need to take additional explosion-proof measures.
6. Fluid channels in a s- shaped streamline, small pressure drop loss large flow, wide adjustment range, high precision flow

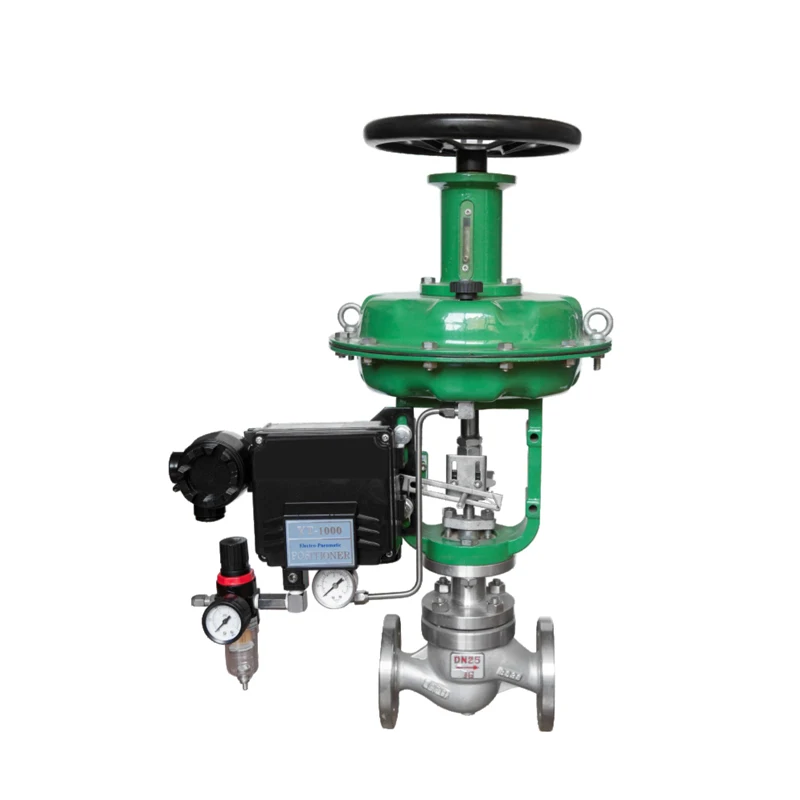

Explosion-proof                        With handwheel                              Multiturn                           IP68 Water-proof

ISO 5211 Mounting
