1G четырехволоконный порт OCP 3 0 мезонин NIC 10G Intel чипсет Ethernet сетевой адаптер

1G Quad Fiber port OCP 3.0  Mezzanine NIC 10G  Intel Chipset Ethernet Network Card Adapter

Product Description

     Guangruntong  GH904E-OCP-V3.0 SFP mezzanine card is based on Intel I350AM4 Ethernet controller, with fully integrated Gigabit Ethernet Media Access Control (MAC) and SFP interface. In addition to managing the MAC and PHY Ethernet layer functions, the controller also manages PCI Express packet traffic at its transaction, link and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculation and TCP segmentation.

Guangruntong SFP Gigabit Ethernet OCP mezzanine card is an ideal solution for implementing multiple network segments in high-performance OCP servers, mission-critical high-performance network applications and environments.

Host interface:

   • Support OCP Mezzanine Card 3.0 Design Specification

   •PCI Express Gen 2.0 X4 lanes

LAN and Virtualization Capabilities:

• VXLAN and NVGRE network virtualization offload

• Unified network provides single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)

• Virtual bridging support - VEPA / 802.1Qbg, BPE / 802.1Qbh

• Virtualization supports 8 virtual ports per port

• Virtualization - Alleviates hypervisor I/O bottlenecks by providing virtual machines (VMs) with flow separation

Key Features

Ø Four-port Gigabit Ethernet adapter provides SFP interface connection

Ø Innovative power management features and Energy Efficient Ethernet (EEE), integrated direct memory improves efficiency and reduces power consumption

Ø Flexible I/O virtualization technology provides up to 32 virtual channels for port differentiation and quality of service (QoS)

Ø Scalable iscsi provides cost-effective SAN connectivity

Ø Storage - Smart offload solution via native OS(including NAS, iSCSI and FCoE) for competitive performance

Ø Support hot plug-in

Specifications

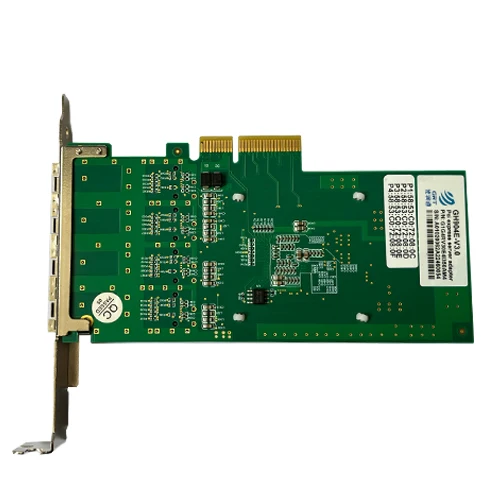

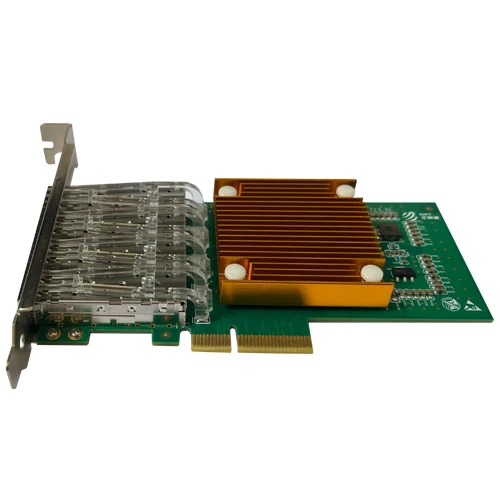

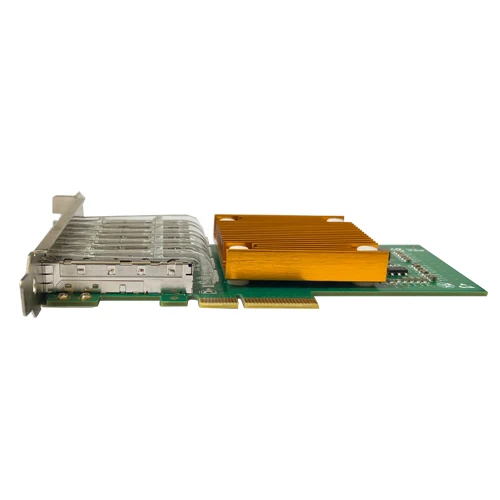

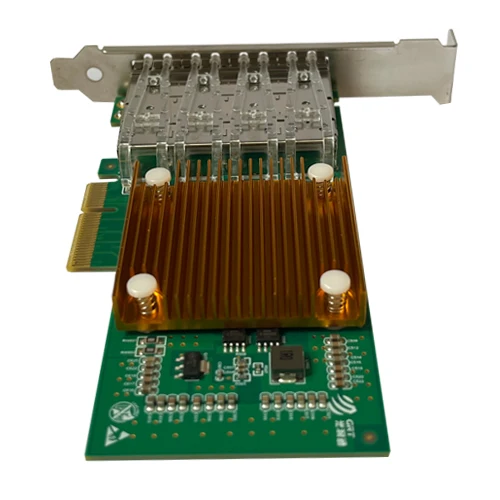

Product Show



.GRT's products have been widely used in fields like network secutity, storage,server, telecommunication, finance, railway, oil, customs and water conservation, etc.

Based on the principle of Quality comes first, GRT holds a complete series of quality tests for all its products from material to finished product.  Strict tests like adhesion test, current test,  electrostatic protection, return loss test, temperature cycle aging test, data reducing, functional test,hardware test, communication test and flow test will be made before storaging and leaving factory.

GRT is a leading supplier high level optical transmission products, including but not limited to 1Gb/10Gb fiber optic network card,server adapter, optical transceivers, patch cord, fiber media converter, CWDM/DWDM Mux/Demux, optical splitter, By pass,  Host Bus Adapter HBA card, host cabinet, optical cable,attenuator.

Aimed of enabling everyone to enjoy the freedom and joy brought by the fiber optics, as a young but passionate team, GRT strives to provide you with top quality networking products at reasonable prices and a prompt 7*24h service to keep your highly efficient and stable performance business guaranteed.
