Product Description




Product Name
SUCCESS High Temperature Clear Transparent Fused Silica Quartz Glass Rod
Material
99.99% Pure Quartz Crystal
Color
Transparent
Size
1. Diameter: 1.5-450mm.
2. Length: 10-3500mm.
3. OEM: All different sizes can be done according to customer's demand.
Aplication
Widely used in electric light source, electrical appliances (electric), semiconductor, Solar, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other.


Character of quartz rod:

They are widely used in optical instrument, sight glass, observation window for furnace, semiconductor, photoelectron, military industry, metallurgy, and test for Lab.





Advantage of Quartz rod:


1) High Temperature Resistance.
2) Good Thermal Stability.
3) Corrosion Resistance.
4)High purity :SiO2> 99.9%.
5) Strong Insulation.
6) High Transmittance> 85%.
7)Size can be customized.



Physical Property


Property
Value
Noted
Density
2.2g/cm3



Thermal stability:
Put the quartz material from
1100 °C to 20 ℃
three times, will not cracks.
It will be not changed color under
1100 degree for three hours.
Hardness
570KHN100
Tensile strength
4.8×107Pa(N/m2)
Compression strength
>1.1×109 Pa
Coefficient of thermal expansion (20℃-300℃)
5.5×10-7cm/cm℃
Thermal conductivity (20℃)
1.4W/m℃
Specific heat(20℃)
660J/kg℃
Softening point
1730℃
Annealing point
1250℃


Detailed Images




High Temperature Resistance:
The softening point temperature of quartz glass is about 1730℃, which can be used at 1200℃ for a long time. The short time use temperature can reach 1450℃.

Good Thermal Stability:
Quartz glass coefficient of thermal expansion is small, can withstand drastic temperature changes, the quartz glass heated to about 1200 ℃, put room temperature water will not blow up.

Corrosion Resistance:
Except for hydrofluoric acid, quartz glass almost does not react chemically with other acids, and its acid resistance is 30 times that of ceramics and 150 times that of stainless steel.

Strong Insulation:
The resistance value of quartz glass is equivalent to 10,000 times that of ordinary glass, which is a very good electrical insulation material and has good insulation performance at room temperature.

Good Light Transmittance:
In the entire spectrum of ultraviolet to infrared wavelengths have good light transmission, visible light transmission rate of 93% or more in the ultraviolet spectrum region, the transmission rate of 80 or more.

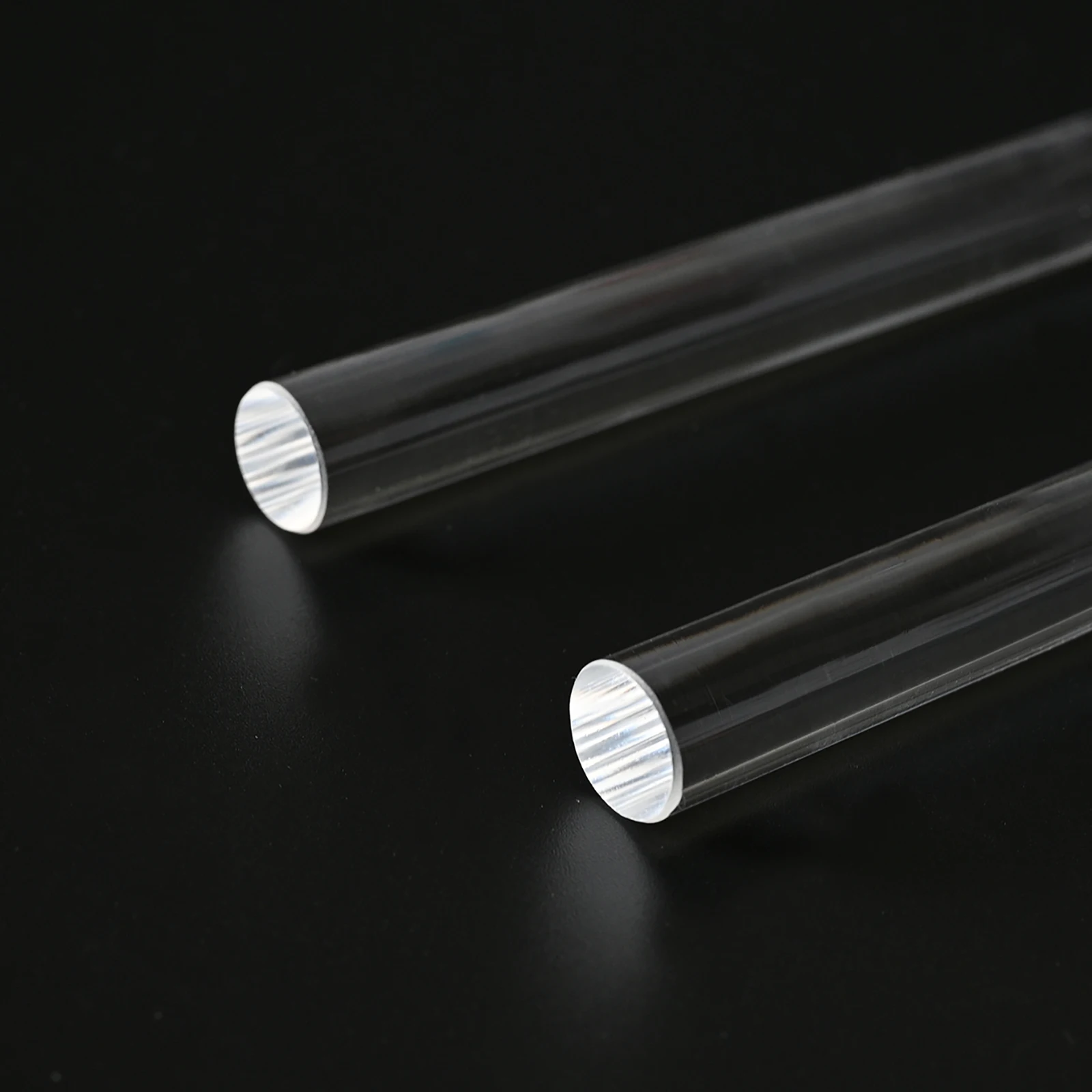

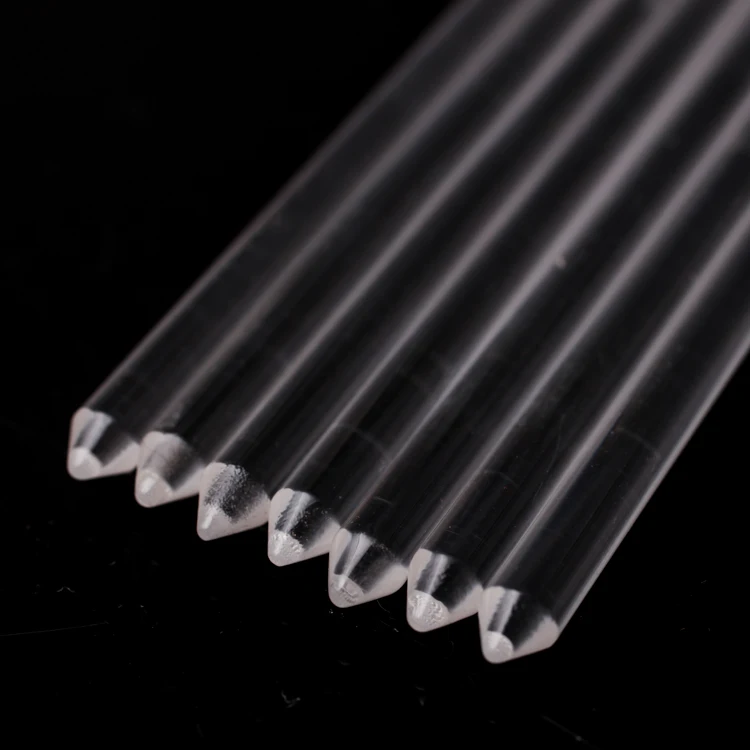

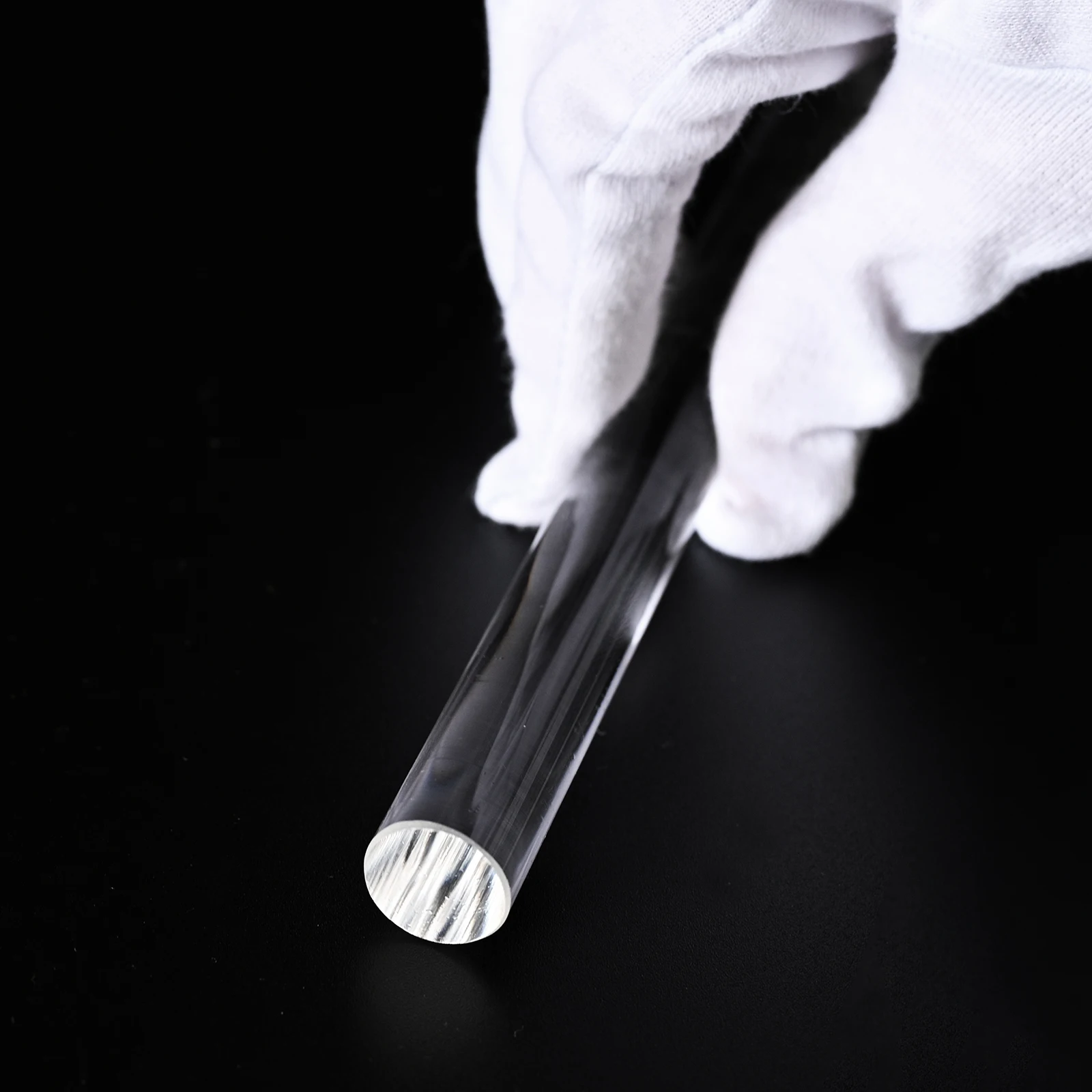

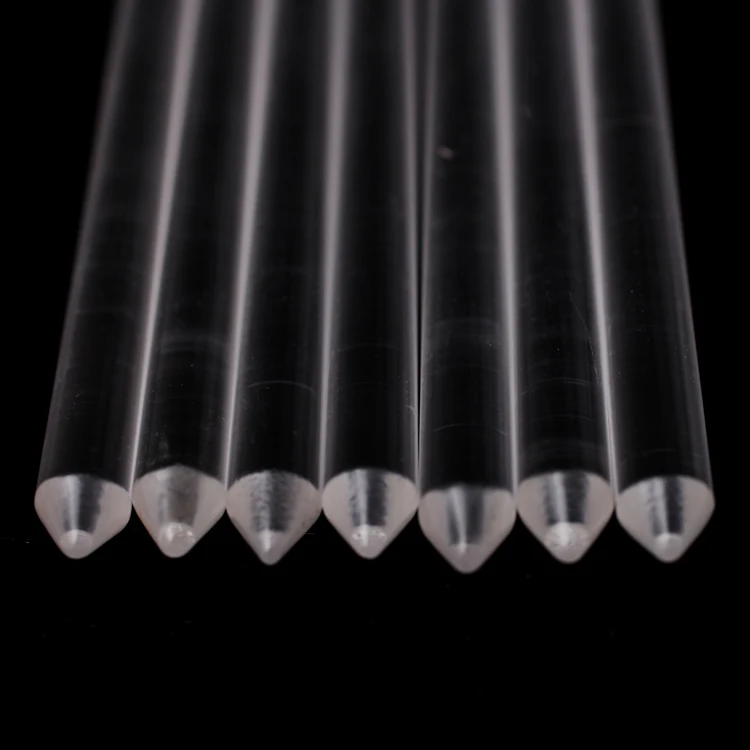

Products Real Shot




Packing & Delivery


1.plastic air cushion film
2.foam material
3.Carton box
4.wooden case
Delivery the quartz rod 7-10days after payment


Related Products






Our Company






Jinzhou City Success Quartz Glass Factory was founded in 2004 year, the factory has so many senior engineer who worked in former Jinzhou city 155 factory which a famous quartz glass manufacturer in China before.
The company developed quickly these years, we have several production lines and strong technical forces, we will study and improve our process continually, we produce various kinds quartz glass products with the exquisite technology and best raw material for customer. The quartz glass products widely used in electric light source, optical fiber field, semi-conductor, laser, optical instrument, laboratory instrument, medical treatment, chemical industry, melting metal, national defense and so on.
We produce and export variety of transparent and quartz glass products, mainly including quartz glass tube, quartz glass plate,quartz glass crucible, quartz glass instrument, quartz heating lamp,UV germicidal lamp, quartz rod, different Infrared and Ultraviolet quartz glass and other relation quartz glass products. Especially we have a great achievement on Quartz singing products, we have our own brand CVNC®, Quartz singing products including Quartz crystal singing bowl, Quartz crystal singing forks,Quartz crystal singing pyramid, singing harp and so on.
Our business philosophy is survive on quality, reputation for development. The products widely sales to all of the world, such as America, Germany, France, Italy, Australia, Canada, Britain, Spain, Sweden, Mexico, Argentina, Chile, Russia,India, Japan and other too many countries.

We will provide best quality, best service and best price, warmly welcome your visit !







Our Service


1. OEM Manufacturing welcome: Product, Package.
2. Sample order.
3. We will reply you for your inquiry in 24 hours.
4. Good after-sale service offered, please get back if you got question. After sending, we will track the products for you once every two days, until you get the products.

5.Delivery the goods to our customers with speed and precision.
6.We have rich experience of design and manufacture. We cherish every order from our honor.





FAQ


1. Q: Are you a factory or trading company?
A: We are a manufacture, our main products are all kinds of quartz products which are widely sold to all over the world and we are wormly welcome your visiting.
2. Q: Are normal glass tubes have inventory?
A: Yes, our normal glass tube have inventory.
3. Q: Are the price same for colored and colorless?
A: no, the prices are different.
4. Q: Can you produce special product?
A: Yes.
5. Q: What’s your payment terms?
A: L/C, D/A, D/P, T/T, Western Union and Paypal



 Why Choose Us:
1.High Quality Control

We are professional manufacturer about quartz poduct in China, combined with design produce together. We’ll check each item one by one to make sure the products in high quality before shipment.

2.Competitive Price
We are factory, and we are the source, We promise to offer you competitive factory price.

Our advantage:
1). We are a professional manufacturer for quartz product
2). We will try our best to offer the most affordable price and best service
3). We can accept customized
4). We can send you samples for review the quality before your ordering.
6). We will take detailed pictures for you check before shipping,
7). We can delivery the order on time.
8). we will keep all the files and full set of printings for re-orders

How to order:
Step1 Please choose the goods with links or pictures which you want to order, Then click contact supplier or chat with me Or just send an inquiry. When we get your inquiry, we will give you a quotation soon within 24hours.
Step2 You can email us your order list with details, we’ll reply right away when we received your email.

Send your inquiry Details in the Below for free sample,Click "Send"now.
