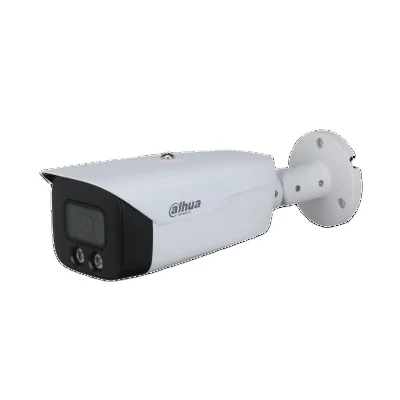

Сетевой видеорегистратор Dahua HAC-HFW1509MH-A-LED 5MP камера полноцветная HDCVI Встроенный микрофон Bullet камера объектив с фиксированным фокусным расстоянием водонепроницаемый сетевой видеорегистратор Dahua аналоговая камера
40,00 $ - 43,00 $
LR LINK PCle x8 двухпортовый 10G SFP мезонинный сетевой модуль Ethernet LREM5991PF 2SFP на базе микросхемы Intel 82599
- Категория: >>>
- Поставщик: Linkreal Co. Ltd.
Сохранить в закладки 1600825376883:
Описание и отзывы
Характеристики

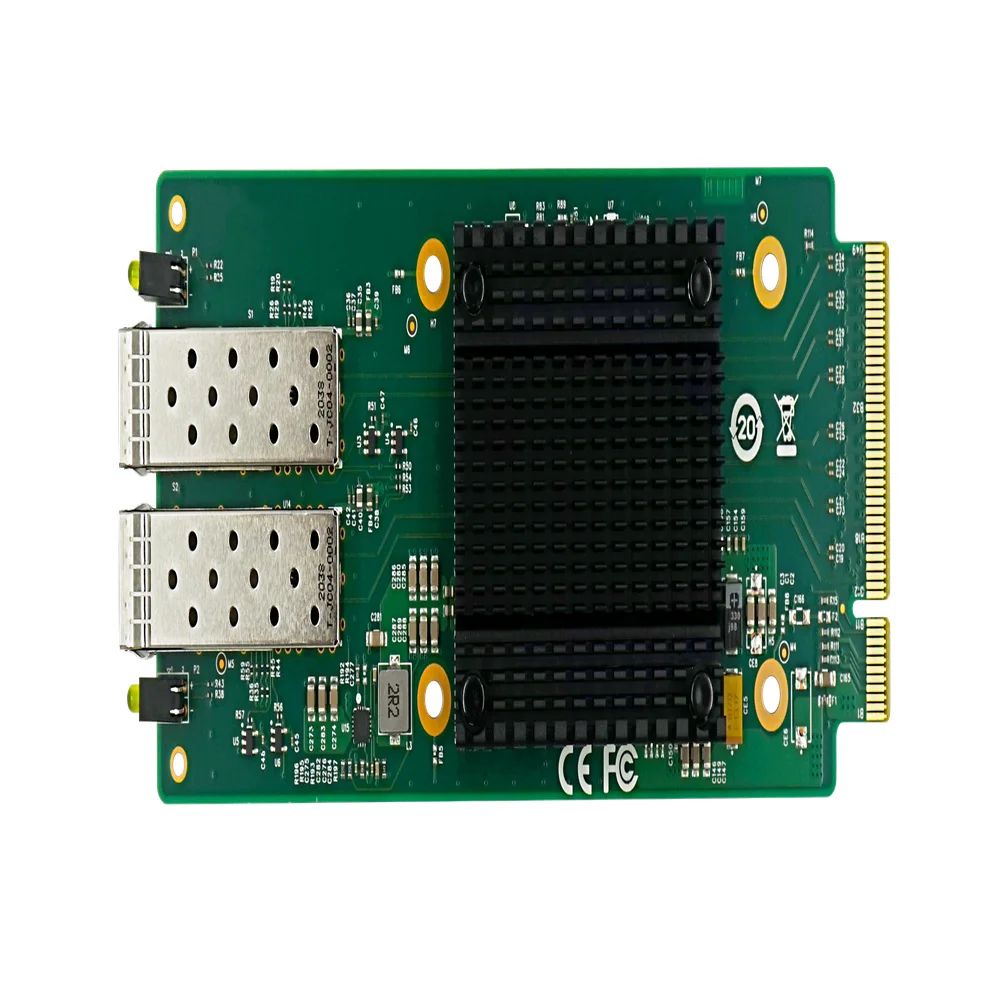

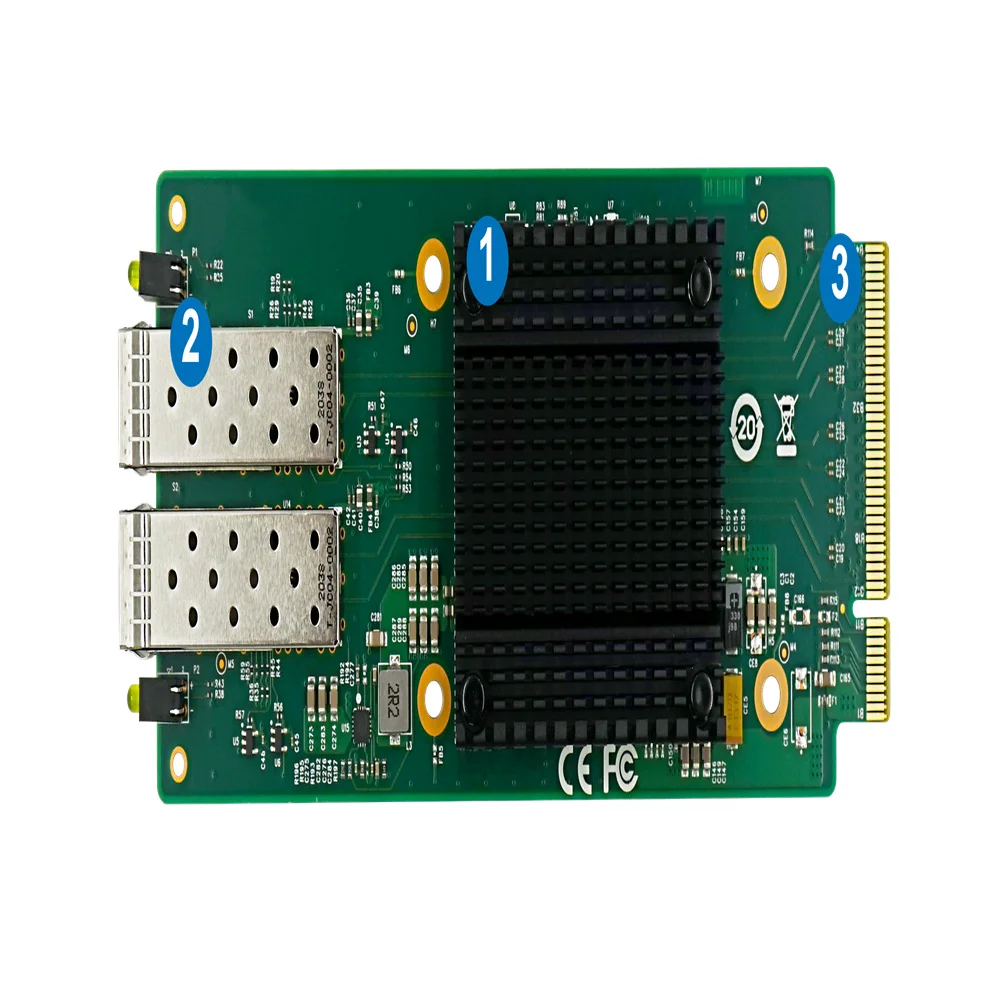

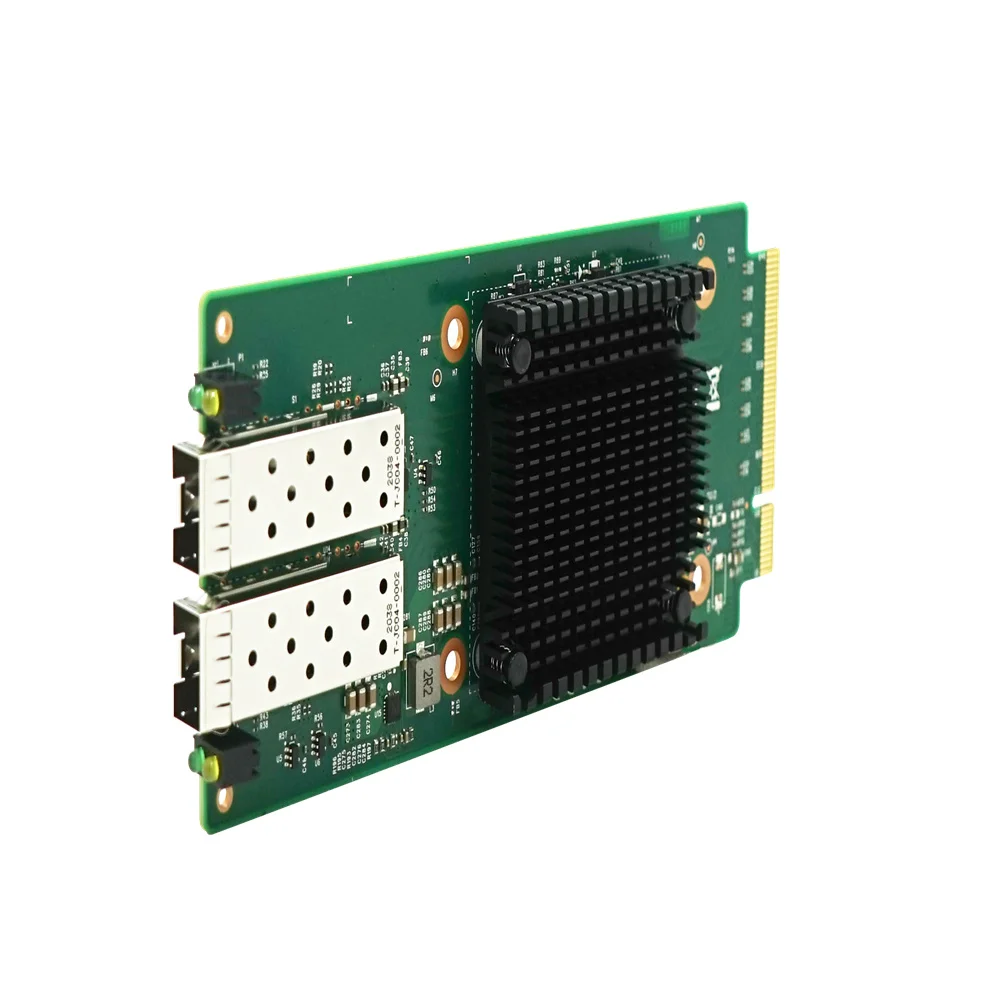

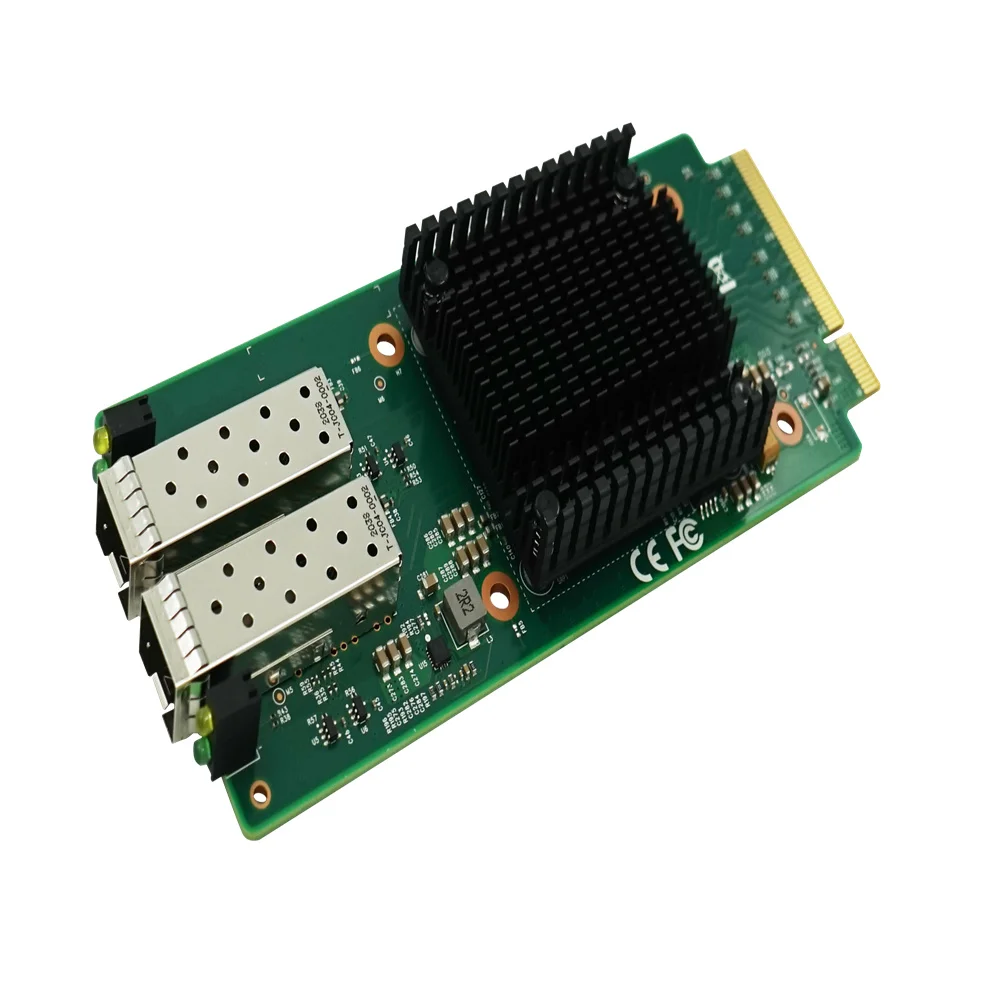

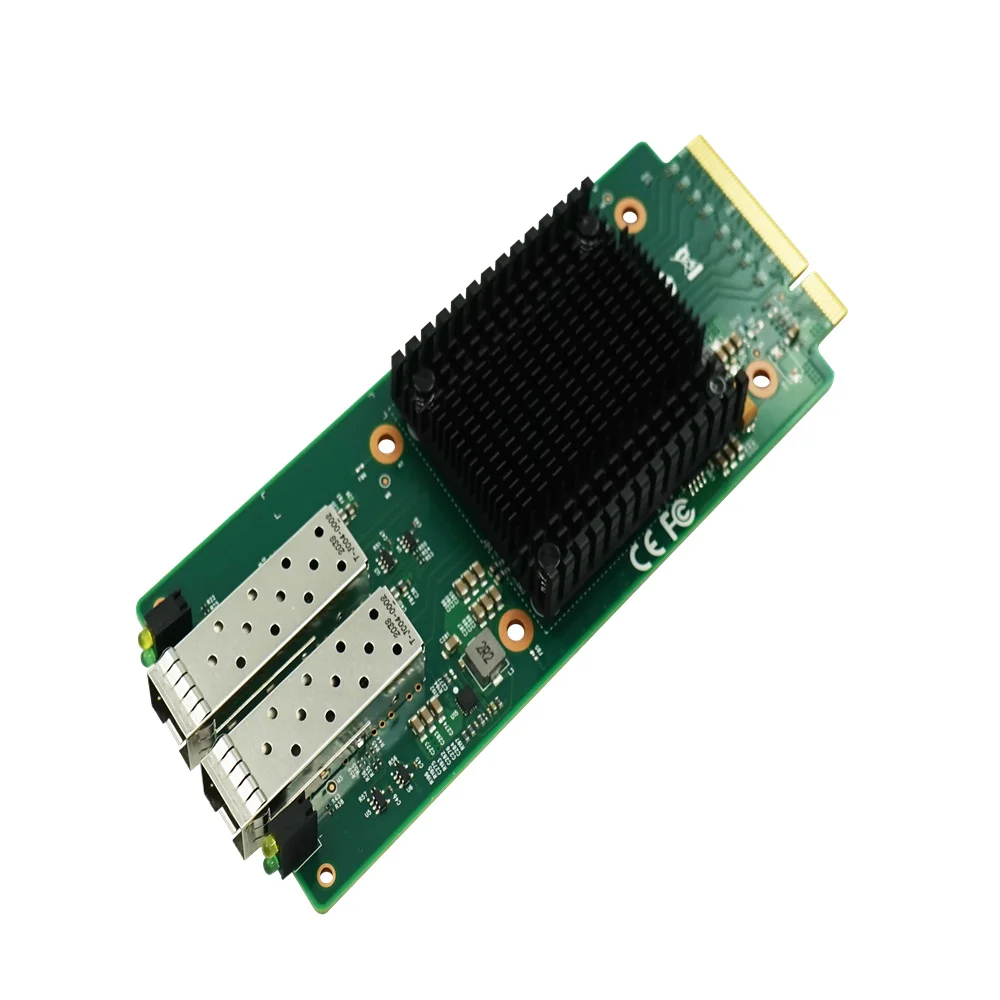

LR-LINK PCle x8 Dual-port 10G SFP+ Mezzanine Card Ethernet Network Module Adapter LREM5991PF-2SFP+ Based on Intel 82599 chip
LREM5990PF-2SFP+ is a PCI Express x8 interface quad port mezzanine 10G SFP + Ethenet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on Intel 82599 master control program. The product is used in data transmission such as firewalls and gatekeepers. In order to adapt to the non-stop operation around the clock.The Intel 82599 main control chip is adopted, which has a wide range of system compatibility and stability. Each network port has an independent 10 Gigabit channel and works independently of each other.Support 10000Mbps SR/LR link work at the application site. In the 10 Gigabit Ethernet network connection, four optical network ports can be allowed to work in full-duplex working mode, and four network ports can be aggregated to increase network traffic bandwidth or any network port can be used for aggregation. It can save PCl Express channel resources in the space of chassis such as firewalls and gatekeepers.
• PCI Express* (PCIe) v2.0, x8
• Dual-port 10G mezzanine fiber Ethernet network card.
• Convenient to use in firewall, gateway and other equipment environments.
• It can achieve fault tolerance and redundancy through bundling and aggregation into
groups to ensure network performance and expand network bandwidth.
• Dual-port 10G mezzanine fiber Ethernet network card.
• Convenient to use in firewall, gateway and other equipment environments.
• It can achieve fault tolerance and redundancy through bundling and aggregation into
groups to ensure network performance and expand network bandwidth.
Specifications | |||||||||||
Controller | Intel 82599 Chip | ||||||||||
Bracket | Low Profile Bracekt and Full-height Bracket | ||||||||||
Power Consumption | 8.0 W | ||||||||||
System Support | Windows Server 2019 R2 Windows Server 2016 R2 Windows Server 2012 R2 Windows Server 2012 Windows Server 2008 R2 Windows 10 Windows 8.1 Windows 8 Windows 7 X64 Linux Stable Kernel version 2.6,3.x,4.x or later Red Hat Enterprise Linux 6.8,7.3 FreeBSD 10.3,11 Linux SLES 12 SP2 Vmware ESXi 6.0\\6.5 or later | ||||||||||
Bus Type | PCI Express v2.0 (2.5GT/s) x8 | ||||||||||
Data rate per port | 10GbE | ||||||||||
Connector | 2 x SFP+ | ||||||||||
Technical Features | |||||||||
Protocol Support | IEEE 802.11ae 10GBase-SR,10GBase-LR,10GBase-ER,10GBase-ZR IEEE 802.3aq 10GBase-LRM IEEE 802.3z 1000BASE-SX,1000BASE-LX IEEE 802.1Qbg Virtual Bridging IEEE 802.1Qbb Priority Flow Control IEEE 802.1az Enhanced Transmission Selection | ||||||||
iSCSI | Yes | ||||||||
SR-IOV | Yes | ||||||||
Jumbo Frames | YES | ||||||||
DPDK | Yes | ||||||||
PXE | Yes | ||||||||
FCoE | Yes | ||||||||
IPv4,IPv6 | Yes | ||||||||
NFV | Yes | ||||||||
Environment Features | ||||||||
Operating Temperature | 0 ℃ to 55 ℃ (32℉ to +131℉) | |||||||
Storage Temperature | -40 ℃ to 70 ℃ (-40℉ to 158℉) | |||||||
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ | |||||||
Physical Features | ||||||||
Size(mm) | 165*120*21 | |||||||
Weight(g) | * | |||||||
LED Indicators | ||||||||
LED Indicators | 10GMbps: :Yellow & Green Green | |||||||
Order Information | ||||||||
P/N | Description | |||||||
LREM5991PF-2SFP+ | PCIe x8 Dual-port 10Gbps SFP+ Ethernet Network Module | |||||||
1. Who are we?
We are based in Guangdong, China, is a Design-R&D-Production-Sales-in-one National High-tech Enterprise.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
fiber optic network card,server network card,RJ45 optic card,OCP optic card,ethernet card,PoE frame grabber card
4. Why should you buy from us not from other suppliers?
Independent R&D, Own factory, focus on NIC 16 years ISO 9001:2015 Quality Management Certificate Integrity, Pragmatism, Innovation and Win-win Over 30 intellectual properties and 300 products PCIE Network Adapter
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese PCIE Network Adapter
We are based in Guangdong, China, is a Design-R&D-Production-Sales-in-one National High-tech Enterprise.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
fiber optic network card,server network card,RJ45 optic card,OCP optic card,ethernet card,PoE frame grabber card
4. Why should you buy from us not from other suppliers?
Independent R&D, Own factory, focus on NIC 16 years ISO 9001:2015 Quality Management Certificate Integrity, Pragmatism, Innovation and Win-win Over 30 intellectual properties and 300 products PCIE Network Adapter
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese PCIE Network Adapter
Похожие товары
ОУР продукта измерения лупа инструмент большой объектив светодиодной подсветкой используется машина работает лампа лупы

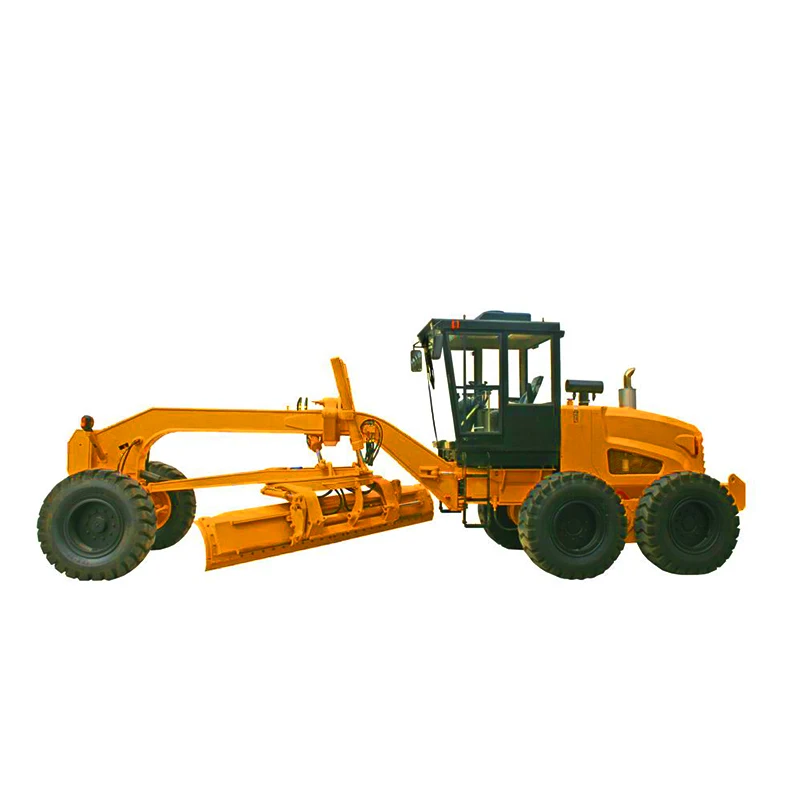

Топливный эффективный автогрейдер Liugong 18Ton 190HP 4230D в
50 000,00 $ - 61 000,00 $

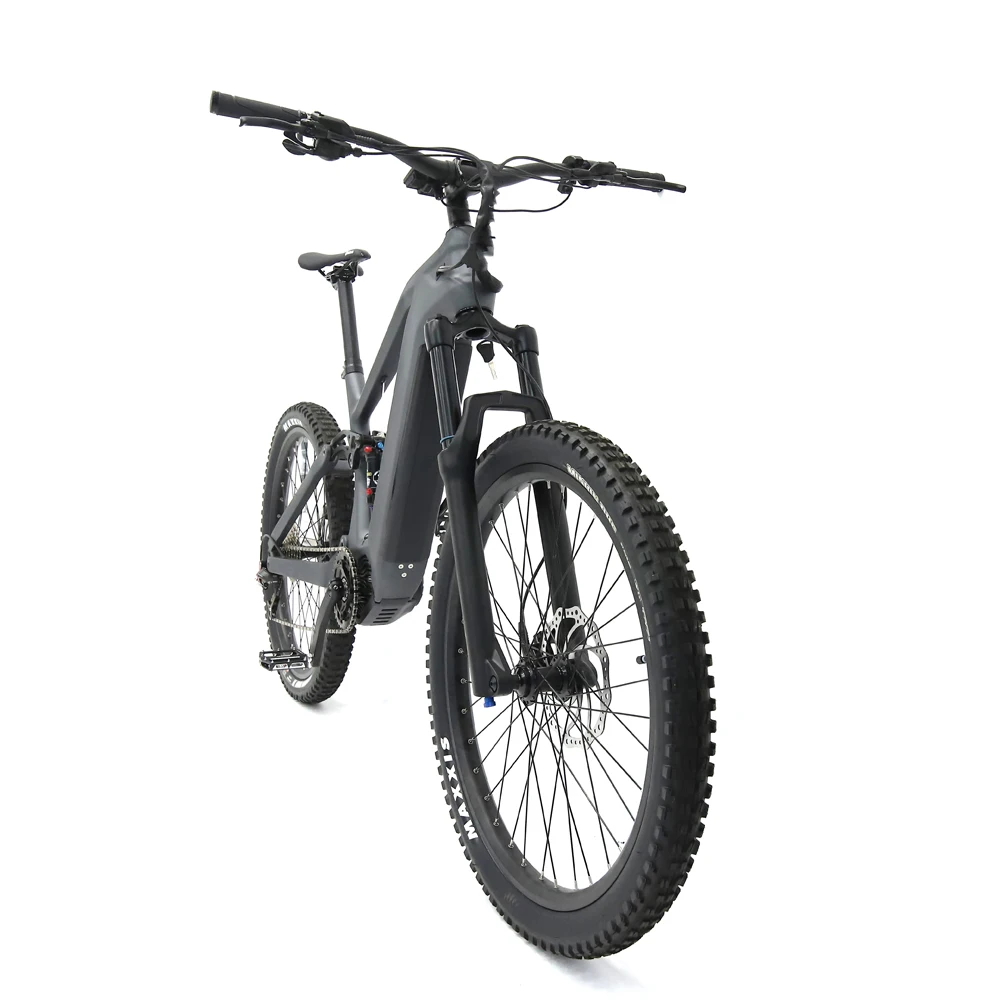

Joyebikes полностью подвесной велосипед из углеродного волокна для горного велосипеда 48 в 250 500 Вт 1000 Вт Bafang M510 M600 M620 Средний приводной мотор для электровелосипеда
2 350,00 $

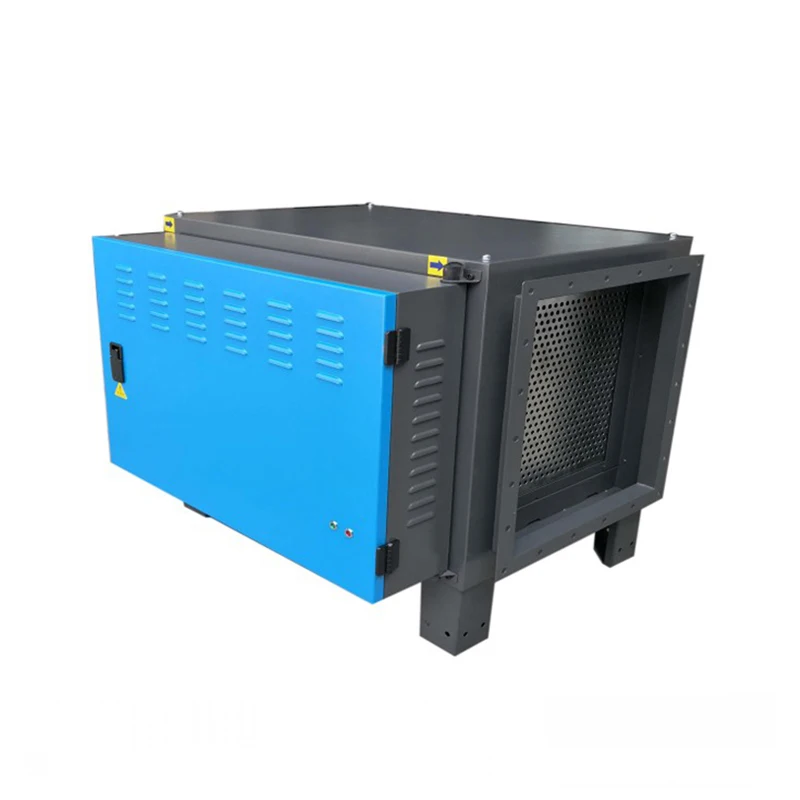

Промышленный электростатический фильтр для кофе
639,00 $ - 669,00 $

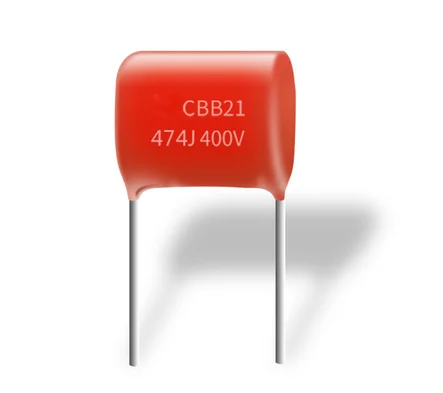

1,5 мкФ 250Vdc P = 20 мм Металлизированный полипропиленовый конденсатор CBB21

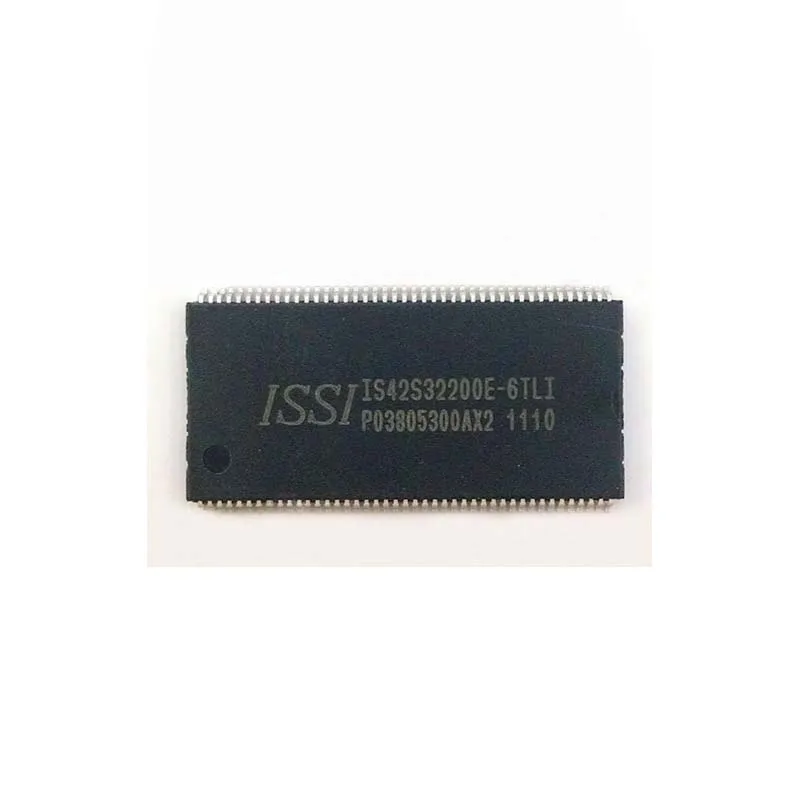

IS42S32200C1-6TL IS42S32200C1 новые оригинальные 2Mx32 синхронные драм IC 5,5 ns TSOP86 электронные компоненты
