Product Description
Overview:

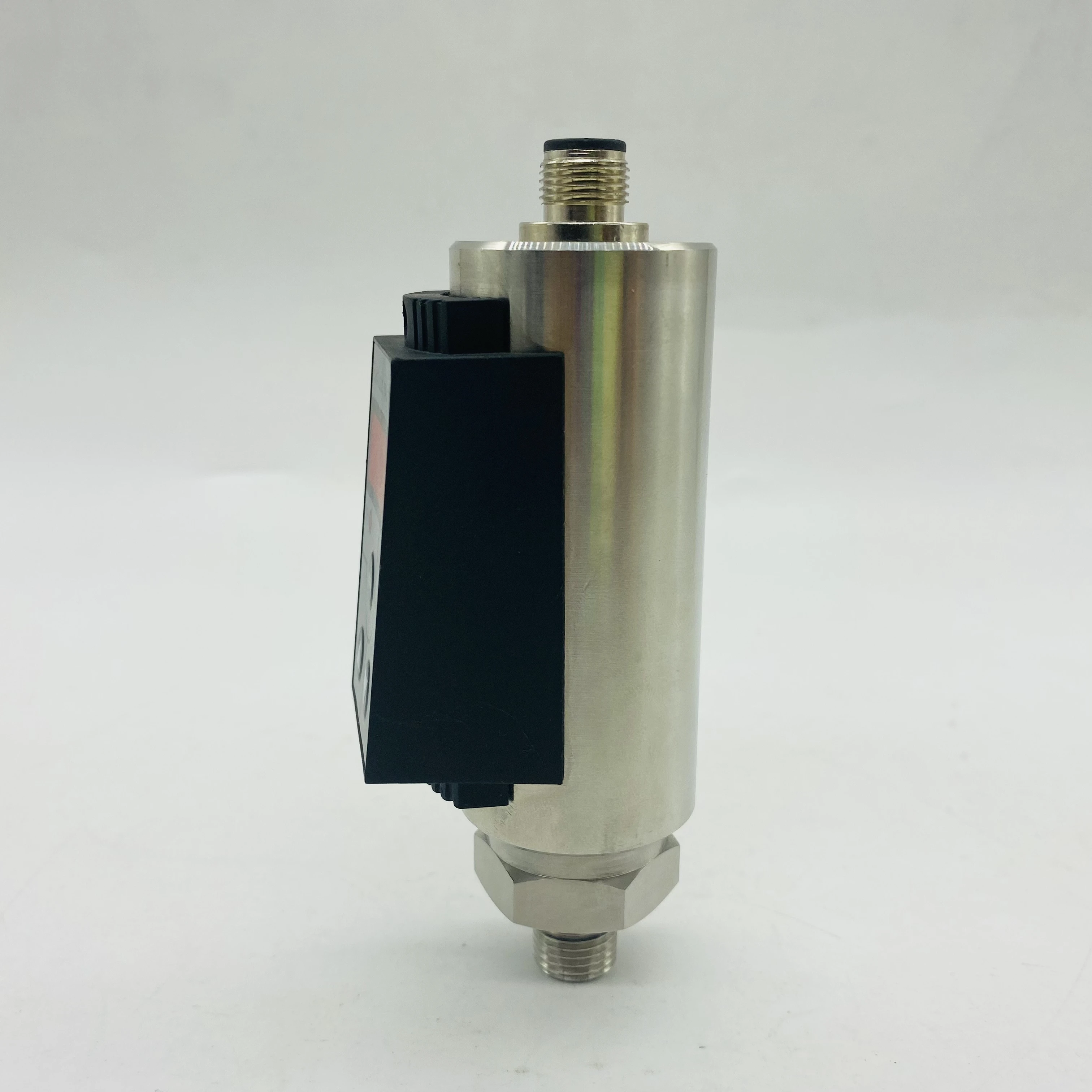

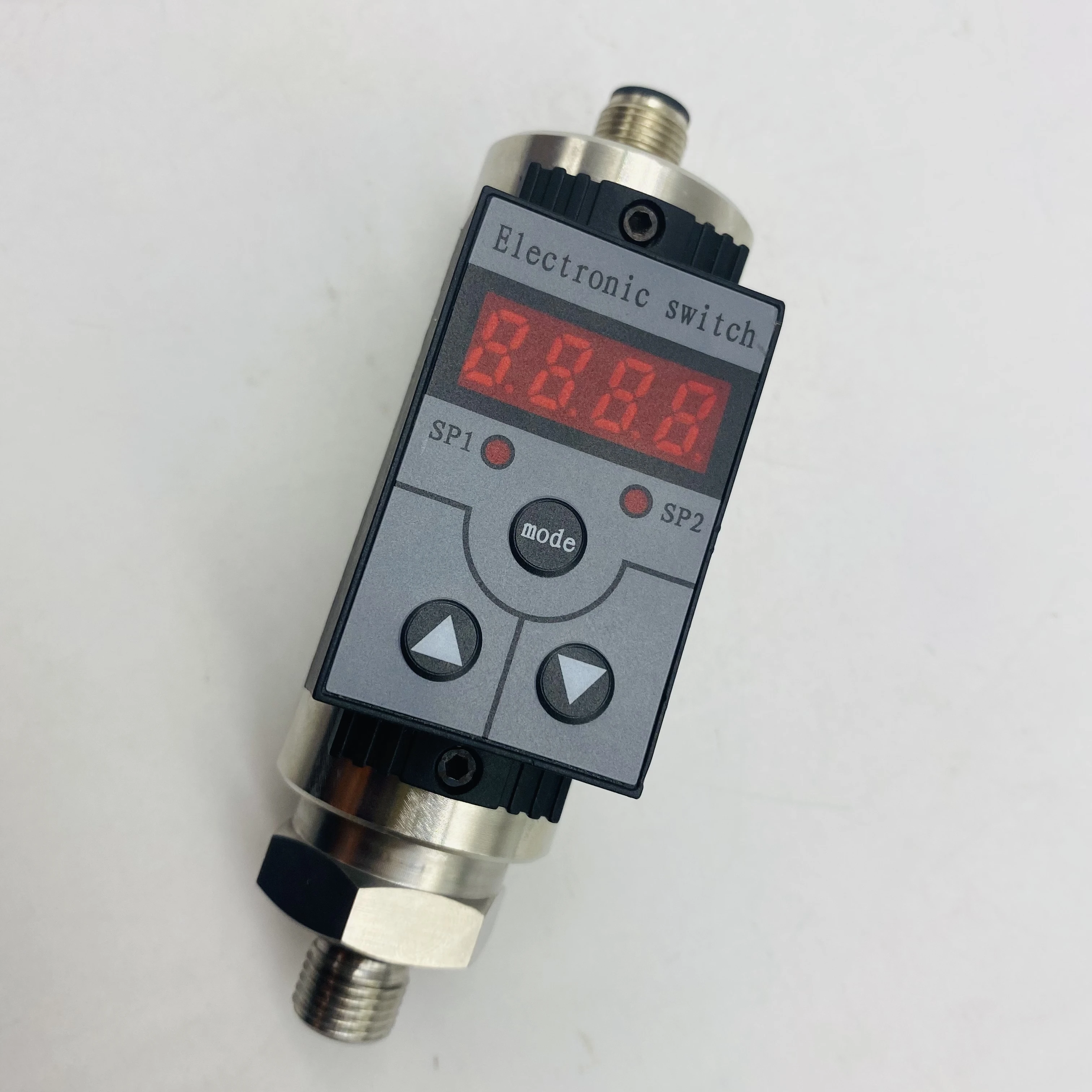

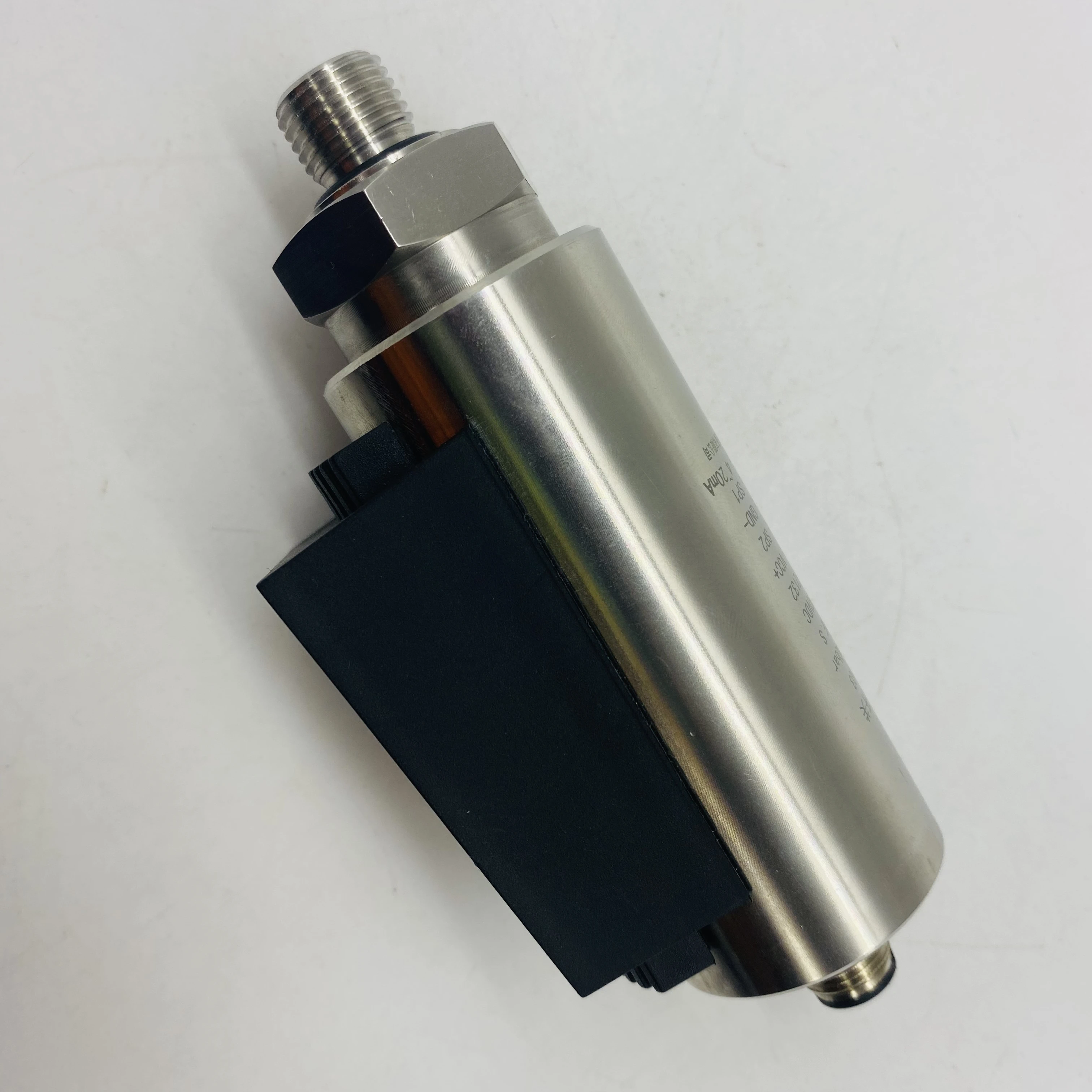

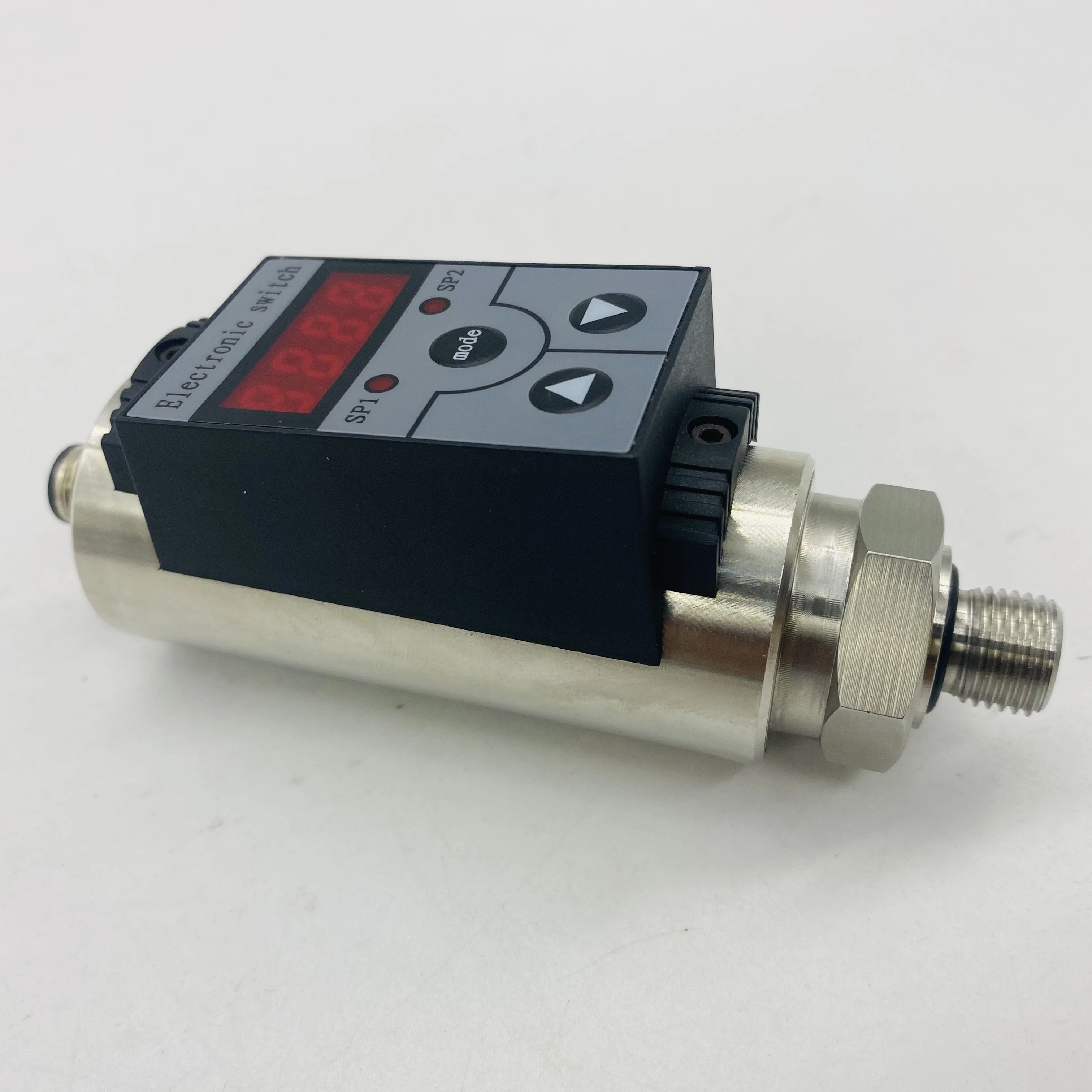

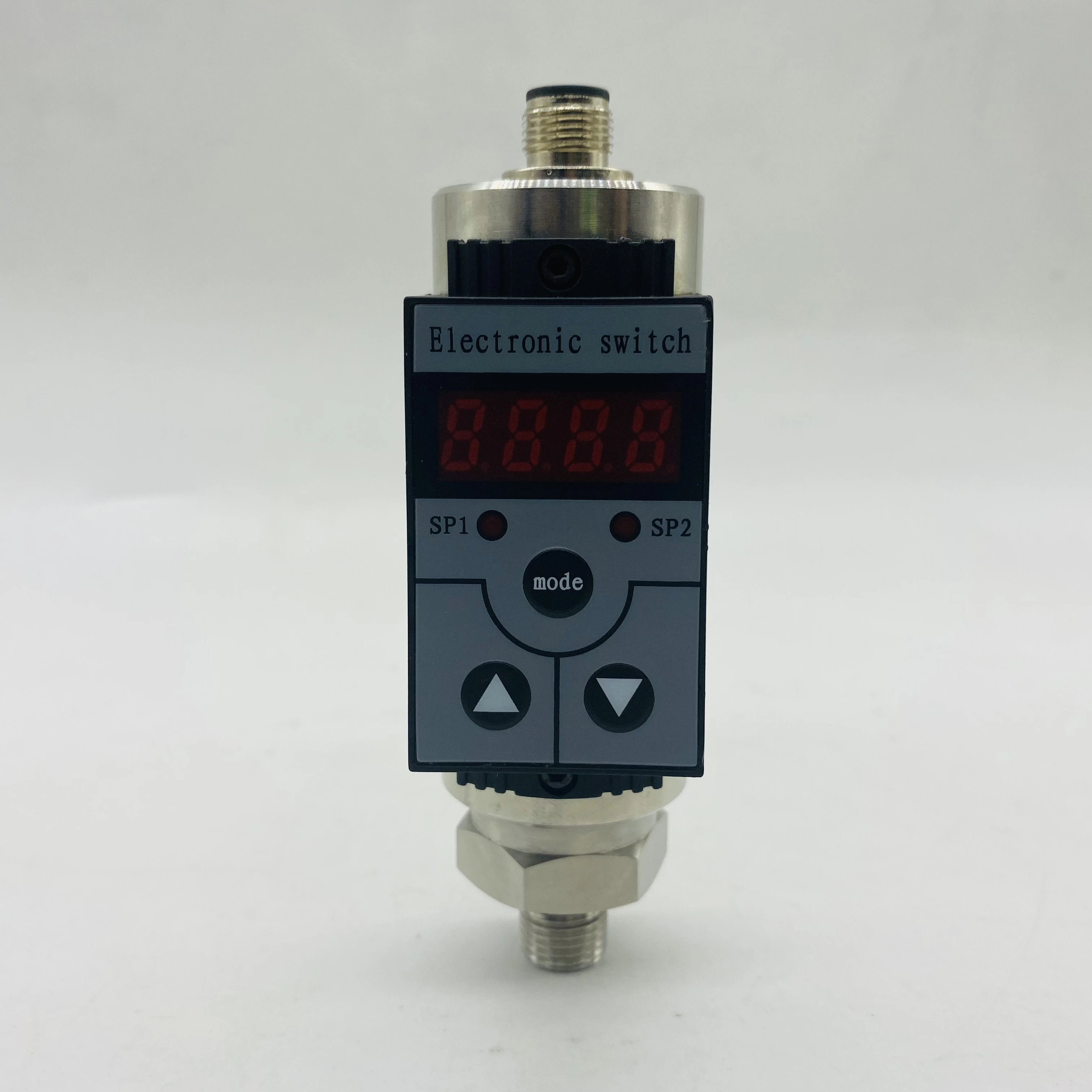

QYK103 Smart Pressure Switch is an intelligent digital product for pressure testing & controlling. It integrates functions of measuring, display, output and control all in one. It has a complete electronic structure. Oil-filled piezoresistive pressure sensor with diaphragm is applied in the front part. The output is processed by high-precision and low-temperature drift amplifier, then transformed by high-accuracy A/D converter into digital signal that could be processed by MPU(Micro Processor Unit).The processed signals control two switches then to test & control the pressure.
With flexible application, simple handling, easy debugging and high reliability, this product is widely employed to test & control the pressure of fluid medium in many industries including areas of hydroelectricity, city water, oil, chemical, machinery, hydraulic system etc.
With flexible application, simple handling, easy debugging and high reliability, this product is widely employed to test & control the pressure of fluid medium in many industries including areas of hydroelectricity, city water, oil, chemical, machinery, hydraulic system etc.
Main Features:
◆ Current pressure will be displayed with 4 digits
◆ The preset pressure switch point and delay can switch output
◆Switch quantity can be set between zero to full scale arbitrarily
◆ Lighting diode on the outer covering enable an easy observation
◆ The key adjustment and setting of various parameters can be in the field, easy operation
◆ 2 way switch output, load capacity of 1.2A
◆ Analog signal output（4～20mA）
◆ The preset pressure switch point and delay can switch output
◆Switch quantity can be set between zero to full scale arbitrarily
◆ Lighting diode on the outer covering enable an easy observation
◆ The key adjustment and setting of various parameters can be in the field, easy operation
◆ 2 way switch output, load capacity of 1.2A
◆ Analog signal output（4～20mA）
Dimensions:
Application Scenario:
Specification
item | value |
Whether the smart | Yes |
Place of Origin | China |
Brand Name | XYT |
Model Number | QYK103 |
Max. Current | 1.2A |
Max. Voltage | 24V |
Control Range | -0.1`0...100MPa |
Control Accuracy | ≤0.5%F.S |
Display | 4 Digit LED (-1999~9999) |
Power Range | 24VDC±20% |
Switch Type | PNP/NPN |
Load Capicity | <24V/1.2A |
Switch Life | >1 million times |
Response Time | <5ms |
Electrical Connection | Two-way switch + one Analog(M12-5P) |
Medium Temperature | -40~150℃ |
Packing & Delivery
Standard Export Carton Box
Company Profile
Baoji XingYuTeng Measure and Control Instruments Co., Ltd was foundedin 2007 in Baoji City, Shaanxi Province in China.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).
With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressuretransmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).
With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressuretransmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2007,sell to South America(30.00%),Southern Europe(15.00%),Northern Europe(10.00%),Western Europe(10.00%),Eastern Asia(10.00%),Oceania(10.00%),Central America(8.00%),North America(5.00%),Africa(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure measurement,level measurement,Temperature measurement,flow easurement,Date Terminal
4. why should you buy from us not from other suppliers?
We have more than 10 years manufacturer and export experience and got certification for ISO 9001. CMC . EX .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shaanxi, China, start from 2007,sell to South America(30.00%),Southern Europe(15.00%),Northern Europe(10.00%),Western Europe(10.00%),Eastern Asia(10.00%),Oceania(10.00%),Central America(8.00%),North America(5.00%),Africa(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure measurement,level measurement,Temperature measurement,flow easurement,Date Terminal
4. why should you buy from us not from other suppliers?
We have more than 10 years manufacturer and export experience and got certification for ISO 9001. CMC . EX .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
