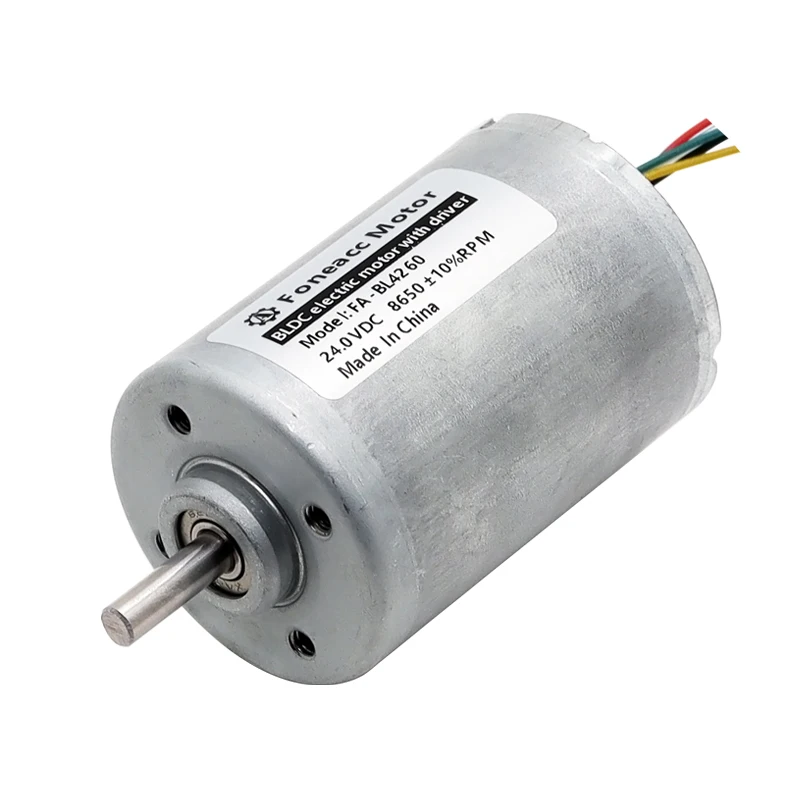

B4260M S03 бесщеточный электродвигатель PCD 29 мм bldc мотор со встроенным драйвером с датчиками Холла

Key features:

 ·  Size: Ø42* L 60 mm(Ø 1.65 inch * 2.36 inch)
 · Built-in driver (built-in driver controller with hall sensor)
 · PWM pulse wide speed range
 · Clockwise/counter-clockwise rotation
 · FG speed feedback signal
 ·  Low EMC · Low noise
 · Long lifespan: up to 20000hrs
 · Over-current protection  · Over-voltage protection · Under-voltage protection

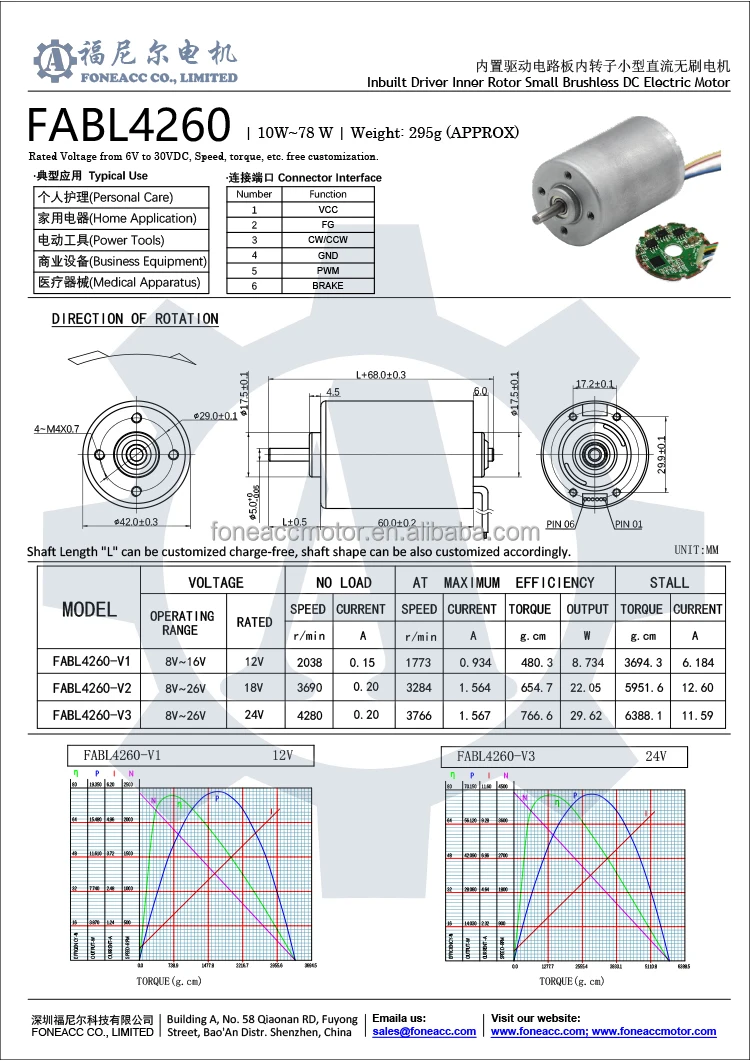

| - Model Number: FABL4260
| - Shell Stator Size : Ø42* L 60 mm(Ø 1.65 inch * 2.36 inch)
| - Shaft : Ø5.0mm[0.197 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 10W - 78W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 1000 gf-cm(98mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors

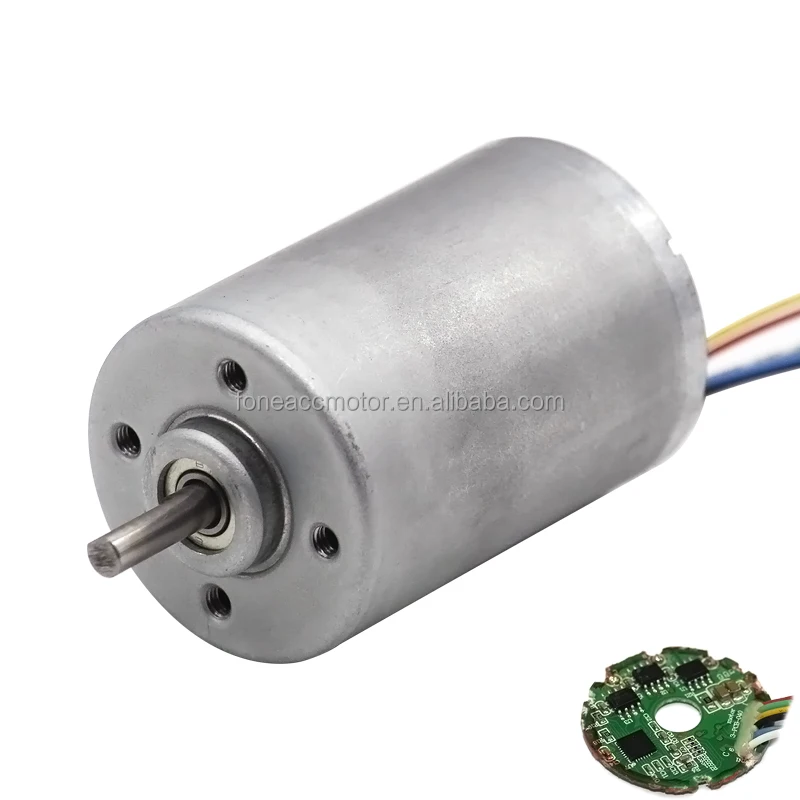

| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

Other service we provide:

***  Motor Design for OEM and ODM  ***
Foneacc Motor provides engineering and design services for OEM & ODM customers to develop custom motors based on their specific application requirements.
Generally, motor shell diameter and length is fixed values, volte, speed, torque, driveshaft shape and length could be customed free of charge. For big project shell diameter and length and other parameters can also be customized. Contact us for more info.

*** Product assembly and Global Motor Manufacturing and Sourcing  ***
We also provide product assembly service, such as terminal soldering, product assembly, etc.

Whether built in our Shenzhen factory, or from elsewhere within our manufacturing network, we have boots on the ground overseas to reduce your supply chain costs while guaranteeing quality requirements are met or exceeded.

About Us   Founded in 2002, Foneacc Motor is a leading provider of small permanent magnet DC electric motors for a variety of industry applications, medical apparatus, business equipment, smart home, automotive, communications equipment, intelligent security, electric kitchen equipment, machinery and electronics, and other high-end transmission structures, ranging anywhere from diameter 8 mm coreless dc motor to 60 mm planetary geared brushless dc electric motor.   We started exporting to overseas markets since 2017, our company is operated and managed in strict accordance with ISO9001 Quality Management System. Our company occupies more than 1000 square meters. With more than 200+ employees, including more than 10+ engineers, 20+ more marketing, workshop workers more than 150+. Our dedicated team provides on time answers to serve your motor design needs. We focus on delivering optimal solutions for our customers through application and engineering support, and by ensuring quality manufacturing processes and standards.   Our engineer support services help you to understand the behavior of small pmdcmotors with expected loads and deterioration mechanisms. We have the experience and expertise to test and assess the performance and durability of micro dc motor materials and gear motors parts. Our pre-sales service team has a certain electric motor knowledge reserve and good English communication skills, and can accurately convey your mini dc motor requirements to our engineer team, this will greatly reducing your communication costs and time costs.

Our certifications:

Our company is operated and managed in strict accordance with ISO9001 Quality Management System.

Our advantages: Choose Foneacc Motor, choose right.

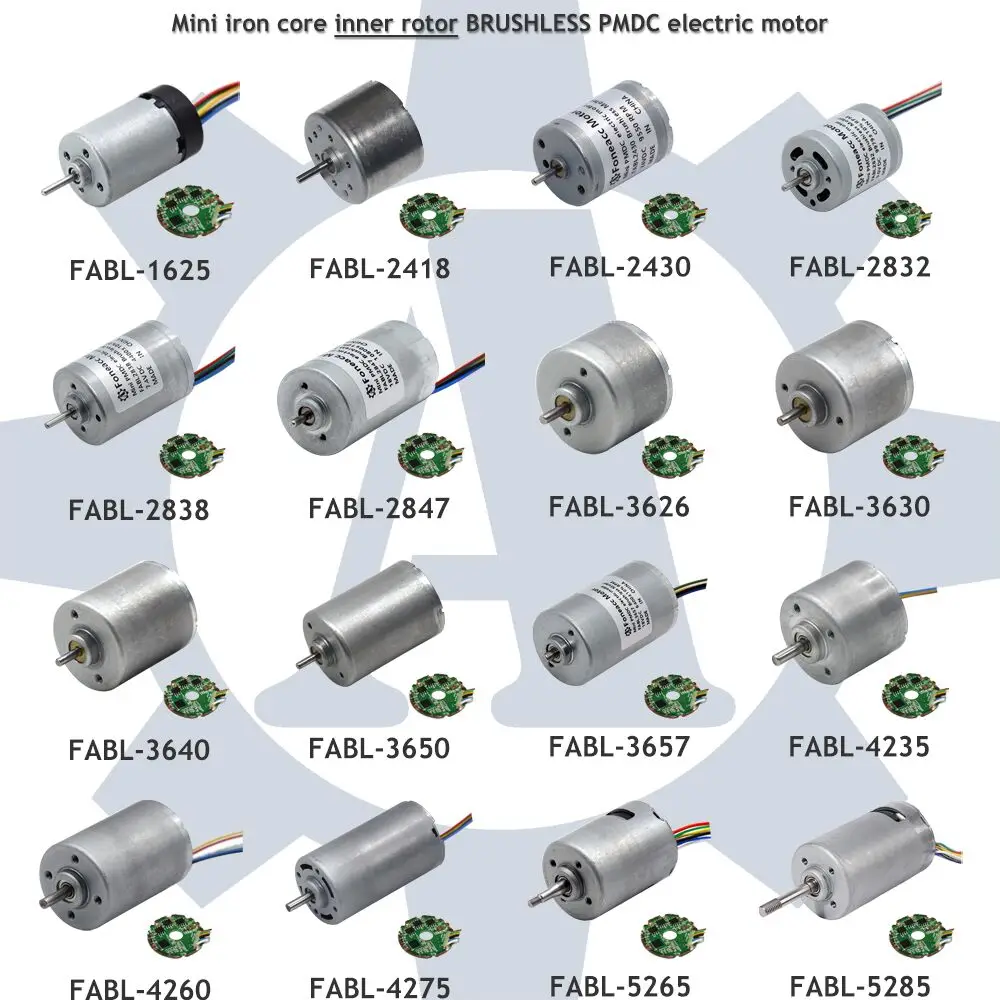

Our products range:

Full range of small gearbox dc motor, including spur gearhead dc motor, worm gearbox electric motor, and planetary gear reducer electric motor; diameters from 6 mm, 8 mm, 10 mm, 12 mm, 13 mm, 16 mm, 20 mm, 22 mm, 24 mm, 28 mm, 32 mm, 36 mm, 37 mm, 42 mm, 45 mm, 57 mm (from 0.24 inch to 2.244 inches); output speed 5 rpm to 3000 rpm; gear reduction ratio 5-1500, output torque from 1gf.cm to 500kgf.cm ( from  0.098 mN.m to 49 N.m; from 0.014 oz.in to 7000 oz.in). Long lifespan and reliable smooth running.

******  Strictly QC procedure  ******

In Foneacc, we strictly conduct fully inspection of incoming material quality inspection and fully outgoing mini dc motors quality inspection, this can ensure very low defective rate, which helps customers save time cost and also economy cost.

Product safe packaging to ensure customers can get our mini electric motors safe and sound.

There're multi ways of transportation you can choose, we have cost advantages for all the delivery methods, ask us the rate of shipping to compare with others.

Frequently Asked Questions and answers.

Q: 1. What dc motor/gear motor do you provide?
A: Full range of small gearbox dc motor, including spur gearhead dc motor, worm gearbox electric motor, and planetary gear reducer electric motor; diameters from 6 mm, 8 mm, 10 mm, 12 mm, 13 mm, 16 mm, 20 mm, 22 mm, 24 mm, 28 mm, 32 mm, 36 mm, 37 mm, 42 mm, 45 mm, 57 mm (from 0.24 inch to 2.244 inches); output speed 5 rpm to 3000 rpm; gear reduction ratio 5-1500, output torque from 1gf.cm to 500kgf.cm ( from 0.098 mN.m to 49 N.m; from 0.014 oz.in to 7000 oz.in). Long lifespan and reliable smooth running.

Q: 2. Is it possible for you to develop new motors if we can provide tooling costs?
A: Yes. Please kindly share the detailed requirements such as performance, size, annual quantity, target price, etc. Then we'll make our evaluation and provide you with the proposal.

Q: 3. Can I get some samples?
A: Most of our samples are free for you, some expensive motors we charge double the price as the bulk order price.
We only deal with bulk orders, many consumer customers only want 1 or 2 for replacement, so we set this rule to select target customers. :)
Don't worry, the extra samples charge will be refunded as payment of motors later when you place a mass production order.

Q: 4. When you will reply to me?
A: Our customer service staff will reply to you within 12 hours.

Q: 5. Can you send me a price list?
A: For all of our small dc motors and mini gear motors, they are customized based on different requirements like lifetime, noise, voltage, shaft, etc. The price also varies according to different quantities. So it's difficult for us to provide a price list. If you can share your detailed requirements and quantity, then we can send you the specified dc electric motor pricing.

Q: 6. How to order?
A: Send us an inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/Delivery → Further cooperation.

Q:7. What's the lead time for regular orders?
A: For regular dc motor and gear motor orders, the standard lead time is about 25-40 days and the lead time varies based on a different model, period, and quantity.

Q: 8. What are the payment terms?
A: We accept payment by T/T, PayPal. Initial payment 30-50% in advance, shipping against balance payment. We can also accept other payment terms after we have established a good long-term cooperative relationship.

Q: 9. Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post, Sea shipping are available, we have favorable prices for those shipping methods since we ship a lot. Contact us for details when you want to compare the shipping cost paid by your side and by our side.

Q: 10. My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents and check what should do. We apologize for any inconvenience.
