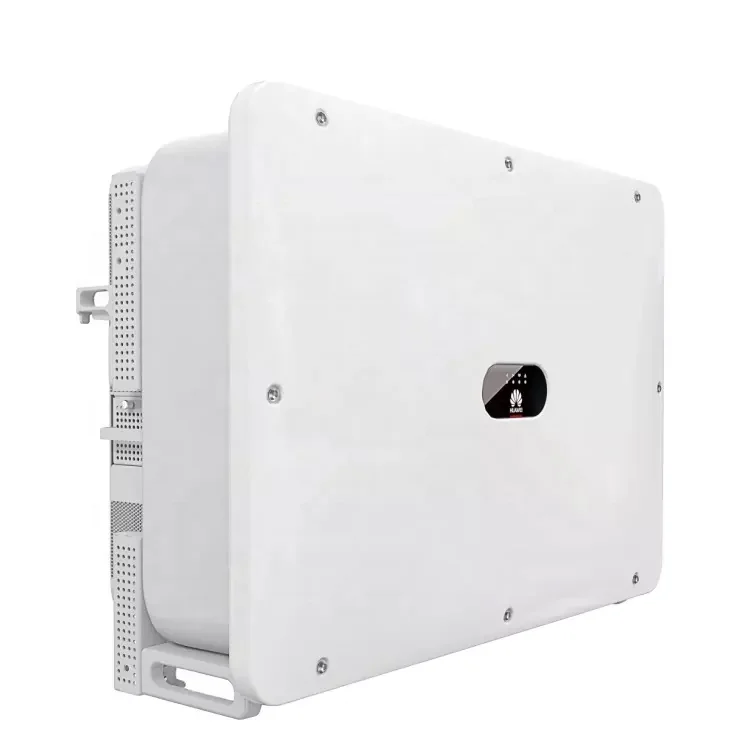

Smart hua SUN2000 100KTL M0 солнечный инвертор wei power inverter 100kw на сетке

Smart hua SUN2000 100KTL M0 солнечный инвертор wei power inverter 100kw на сетке

Категория: >>>
Поставщик: Sail Solar Energy Co. Ltd.

Цена:62 580,73 ₽ - 415 406,53 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Huawei Ongrid Solar Inverter

Huawei is a leading global provider of information and communications technology (ICT) infrastructure and smart devices, committed to bringing digital to every person, home and organization for a fully connected and intelligent world. Huawei Residential SUN2000 3K-10KTL-M1 series is on the top of world's ongrid inverter list.

Specification

Specification

SUN2000-3KTL-M1

SUN2000-4KTL-M1

SUN2000-5KTL-M1

SUN2000-6KTL-M1

SUN2000-8KTL-M1

SUN2000-10KTL-M1

Efficiency

Max. efficiency

98.2%

98.3%

98.4%

98.6%

98.6%

98.6%

European weightedefficiency

96.7%

97.1%

97.5%

97.7%

98.0%

98.1%

Input (PV)

Recommended max. PV power

4500wp

6000wp

7500wp

9000wp

12000wp

15000wp

Max. input voltage

1100V

Operating voltage range

140-980V

Start-up voltage

200V

Rated input voltage

600V

Max. input current per MPPT

11A

Max. short-circuit current

15A

Number of MPP trackers

2

Max. input number per MPP tracker

1

Input (DC Battery)

Compatible Battery

HUAWEI Smart String ESS 5kWh –30kWh

Operating voltage range

600 V ~ 980 V

Max operating current

16.7 A

Max charge Power

10,000W

Max discharge Power

3300W

4400W

5500W

6600W

8800W

10000W

Output (On Grid)

Grid connection

Three-phase

Rated output power

3000W

4000W

5000W

6000W

8000W

10000W

Max. apparent power

3300VA

4400VA

5500VA

6600VA

8800VA

11000VA

Rated output voltage

220 Vac/ 380 Vac, 230 Vac/ 400 Vac, 3W / N+PE

Rated AC grid frequency

50 Hz / 60 Hz

Max. output current

5.1A

6.8A

8.5A

10.1A

13.5A

16.9A

Adjustable power factor

0.8 leading ... 0.8 lagging

Max. total harmonic distortion

≤3 %

Output (Off Grid)

Backup Box

Backup Box – B1

Maximum apparent power

3000VA

3300VA

3300VA

3300VA

3300VA

3300VA

Rated output voltage

220 V / 230 V

Maximum output current

13.6A

15A

15A

15A

15A

15A

Power factor range

0.8 leading ... 0.8 lagging

Features & Protections

Input-side disconnection device

YES

Anti-Islanding protection

YES

DC reverse polarity protection

YES

Insulation monitoring

YES

DC surge protection

Yes, compatible with TYPE II protection class according to EN/IEC 61643-11

AC surge protection

Yes, compatible with TYPE II protection class according to EN/IEC 61643-11

Residual current monitoring

YES

AC overcurrent protection

YES

AC short-circuit protection

YES

AC overvoltage protection

YES

Arc fault protection

YES

Ripple receiver control

YES

Integrated PID recovery

YES

Battery reverse charging from grid

YES

General Data

Operating temperature range

-25 ~ + 60 °C (-13 °F ~ 140 °F)

Relative operating humidity

0 %RH～100%RH

Max. operating altitude

4,000 m (13,123 ft.) (Derating above 2000 m)

Cooling

Natural convection

Display

LED Indicators; Integrated WLAN + FusionSolarApp

Communication

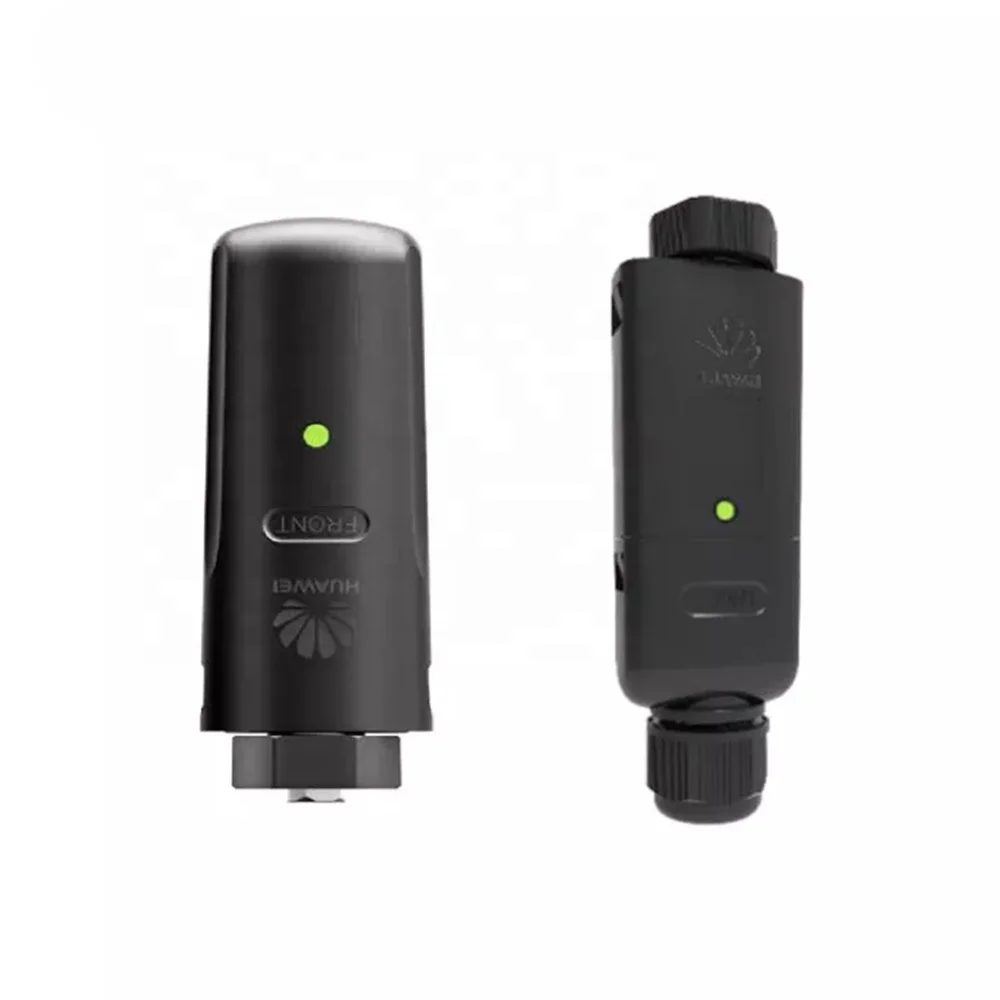

RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (Optional

Weight

17 kg (37.5 lb)

Dimension

525 x 470 x 146.5 mm (20.7 x 18.5 x 5.8 inch

Digree of Protection

IP65

Nighttime Power Consumption

< 5.5 W

Optimizer Compatibility

DC MBUS compatible optimizer

SUN2000-450W-P

Standard Compliance (more available upon request)

Certificate

EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116

Grid Connection Standards

G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA

System Connection

One-Fits-All
Solution,Easier Business

One optimizer fits most poly & mono PV module.
One App to set up all system components.
One inverter TUV verified: annual failure rate < 0.5%, High inverter availability up to 99.996%
One Supplier window for all system components pre-sales training & after sales service.

Intelligent Monitoring

Management System

>Visible Power Flow, real-time power flow

> Module Level Monitoring

>Statistical Indicator, self consumption & sufficiency Indicator

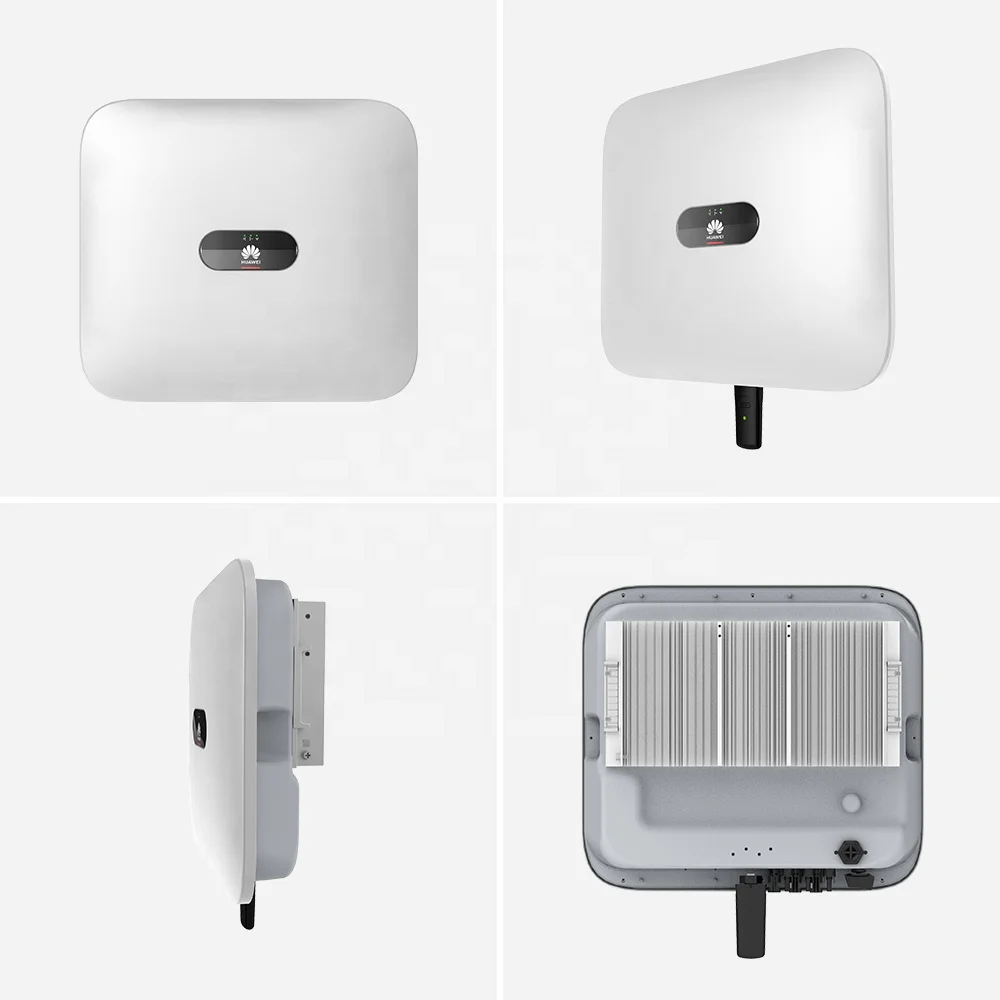

Details Images

222

>Fashionable and Modern Appearance, More Silicon, Less coper, High efficient topology

>No LCD/ Button, NO Quick -wear Parts, Inverter Touch Free

>Lighter weight and Smaller Size, Smart Design

>Easy Install, Wall Mounted Indoors or Outdoors, IP65 Protection.

Package and Delivery

Packing Details : In carton on pallet or wooden box
Delivery Details : 5-15 working days

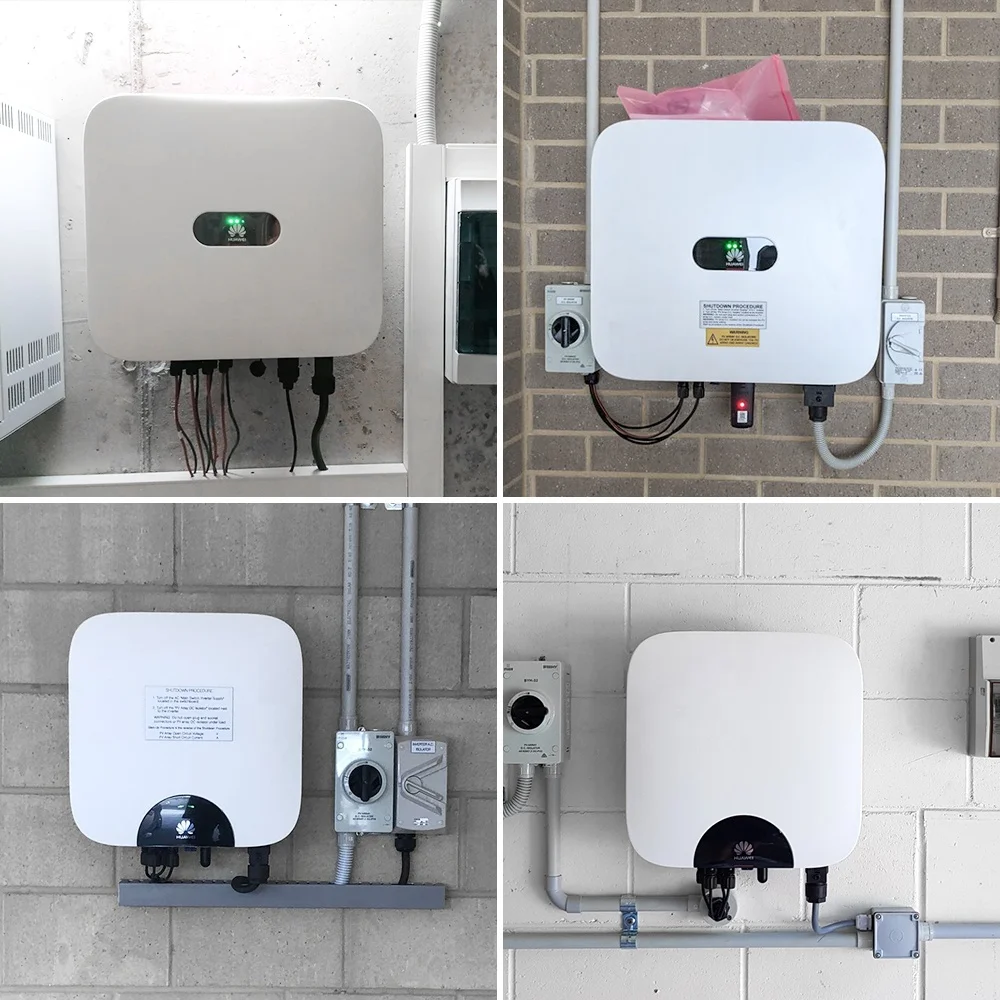

Projects

Huawei Ongrid Solar Sytem is All Over the world.

Go Solar

ALL IN ONE SOLAR SOLUTION

Sail Solar is a whole solar system designer and provider. Welcome to contact our sales for your system solution, we are 24 hours online.
