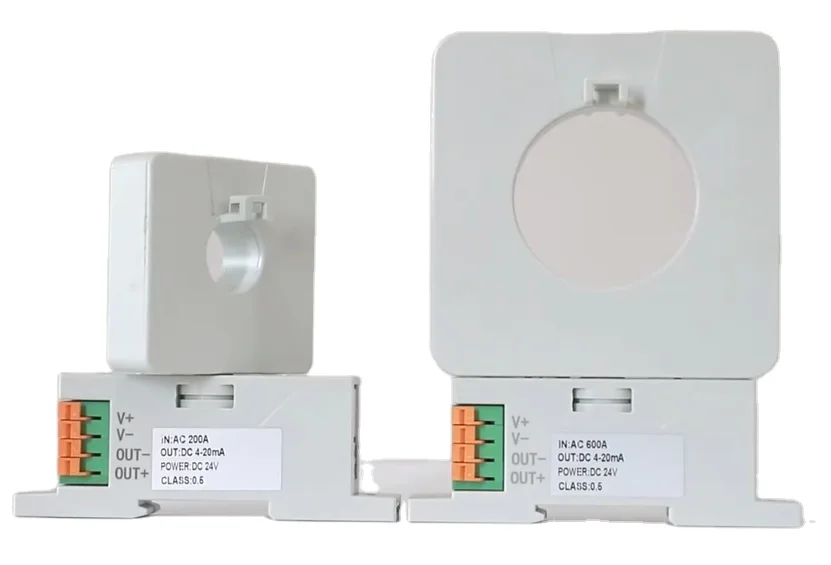

Датчик тока преобразователь INPUT0 200A выходного напряжения DC0 5V 1 5 В источник питания DC24V
- Категория: >>>
- Поставщик: Acrel E-Business (shanghai) Co. Ltd.
Сохранить в закладки 1600829162341:
Описание и отзывы
Характеристики
Product overview
BA series conduct the real-time measurement on the alternating current in the power grid according to the electromagnetic induction theory. They utilize the precise constant current technology and the linear temperature compensation technology to isolate and convert the measured current into the DC signal.They adopt the 24V or 12V power supply. They feature the large overload capacity, high accuracy, isolation and safety and low power consumption. Applications cover the industrial automation sector.
Technical Parameter
Input | AI——BA20(II)-AI: AC 0~(0.5-200)A BA50(II)-AI: AC 0~(60-600)A BA50L(II)-AI: AC 0~(0.1-1)A |
Output | I——Direct Current e.g. 4-20mA ; V——Direct Current Voltage e.g. DC0-5V |
Power Supply | DC12V or DC24V |
Measuring Aperture | 20-φ20mm, 50-φ50mm |
Communication | RS485 Modbus-RTU |

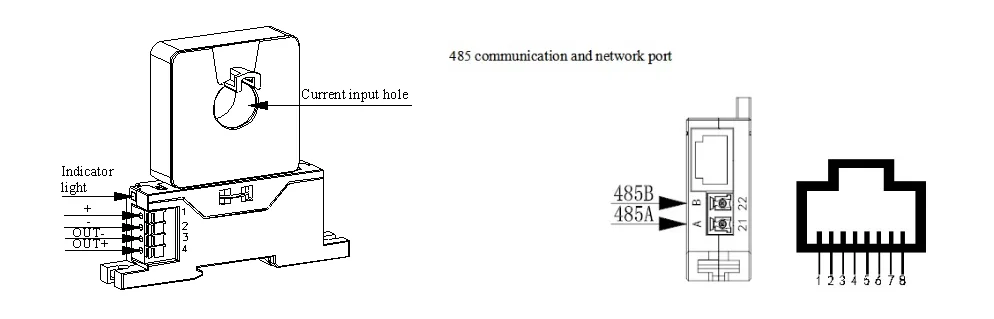

Wiring&Installation
Integrated Installation
ntegrated installation, a rotating structure can be used in the perforated part.
There are Φ20, Φ50 of hole sizes for your selection.
The main body could be connected to the display screen in order to display current and set parameters when integrated installation( use existing display screen as far as possible).

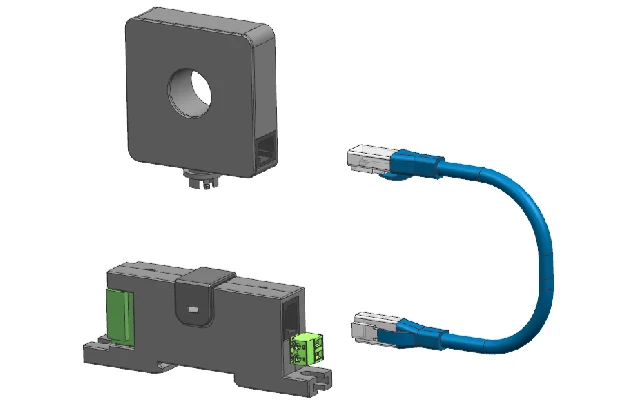

Split-type Installation
The current transformer is connected to the main body through network cable when using split-type connection.
Other types of Installation
TS3 din-rail mounting, or fix it on the cabinet with screws.
Application
Cement Building
Petrochemical Industry
Iron and Steel Metallurgy
Exhibition
