Сельскохозяйственные теплицы интеллектуальная система управления кормовой салат гидропонный беспочвенный вертикальный контейнерный завод
1 653 169,50 ₽ - 3 306 339,00 ₽
Интеллектуальный контроль и тепличная пленка сельскохозяйственная теплица
- Категория: >>>
- Поставщик: Weifang Laileo Machinery Co. Ltd.
Сохранить в закладки 1600830611162:
Описание и отзывы
Характеристики
Product Description

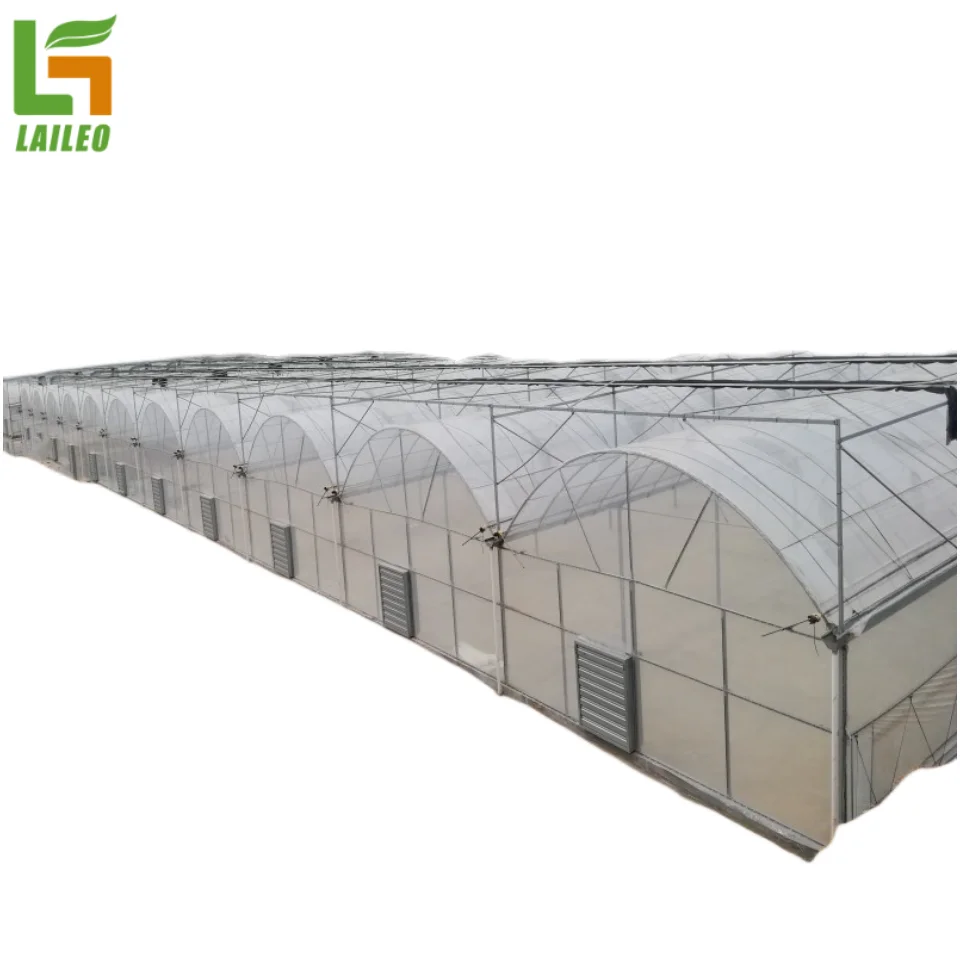

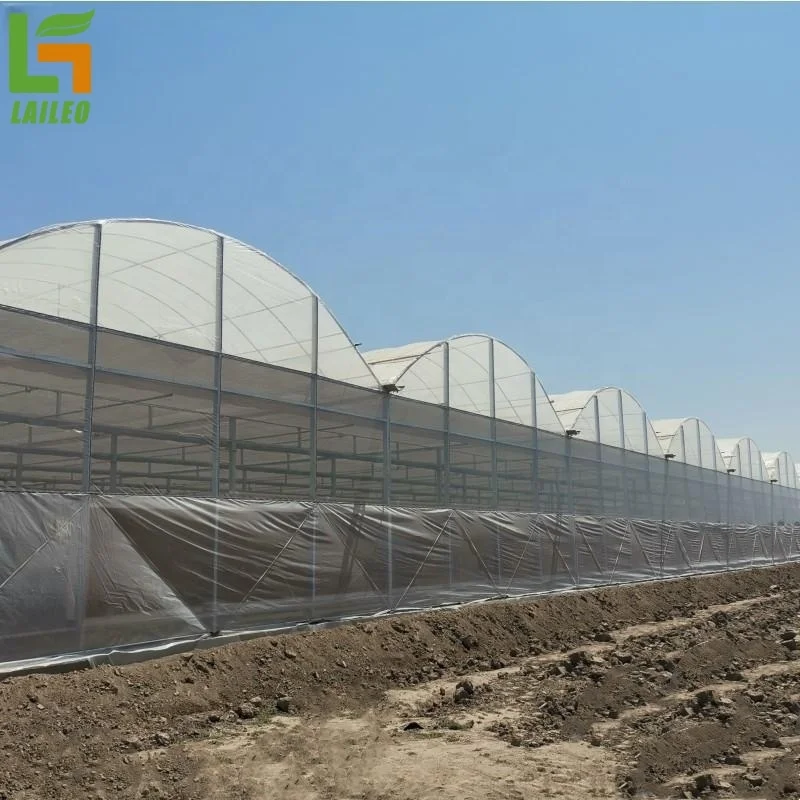

film greenhouse used sale and multi span agricultural greenhouses
The multi-span film greenhouse is large agricultural equipment, widely used in many countries.
The greenhouse span width usually 8m/9.6m/10.8m; the bay width usually 4m; gutter height usually from 3m-6m. need confirm more details, can design for custom.
The multi-span greenhouse is composed of foundation construction, greenhouse steel structure, greenhouse film cover, ventilation system, cooling system ,sunshade system,inner thermal system and heating system.
The multi-span greenhouse can plant all the vegetable and flowers. usually in greenhouse can do a hydroponic system in it. this system with water and fertilizer machine and other system. usually for tomato, cucumber and strawberry plant.
Film greenhouse with all the electric system, easy to control, is the best economic greenhouse.
Specification
Greenhouse system | Description of the system |
Steel structure | All steel structure hot galvanized |
Greenhouse cover | 150/200mic film Single/double |
Size | customized |
Type | Multi-Span Agricultural Greenhouses |
Inner sunshade system | Reduce the temperature |
Inner thermal system | keep greenhouse warem |
Cooling system | cooling fan and cooling pad |
Heating system | bolier /electric fan/heating fan |
hydroponic system | for tomato/cucumber/strawberry/flowers |
water and fertilizer machine | for vegetable and flower |
movable seedbed | for nursery |
insect net | high quality polyrthelene |
electric control system | Vegetable Fruits Flowers |
Usage | Flower Vegetable Growing |
Material | Steel Frame Construction |
Features | Stable Structure Easily Assembled |
Optional system | Cooling System.irrigation System.ventilation.etc |
Covering | 150/200micro PE Film |
Span width | 8m/9.6m |
Length | customized |
Others | greenhouse customized, need confirm more details. |
Greenhouse Details:
Hot Drip Galvanized Steel Structure
The steel structure is made of high quality carbon steel with inside and outside hot galvanized layer which will be not less than
60um.
Most connections of greenhouse structure are installed directly by screws or Self tapping screws.
The warranty period of standard skeleton is 15 years, but the actual service life will be more than 20 years.
60um.
Most connections of greenhouse structure are installed directly by screws or Self tapping screws.
The warranty period of standard skeleton is 15 years, but the actual service life will be more than 20 years.
Cover Material: Plastic PE Film
UV treated polyethylene film has function of anti-UV, anti-aging and anti-drip, will be fixed by special film lock channel and
wriggle wire.

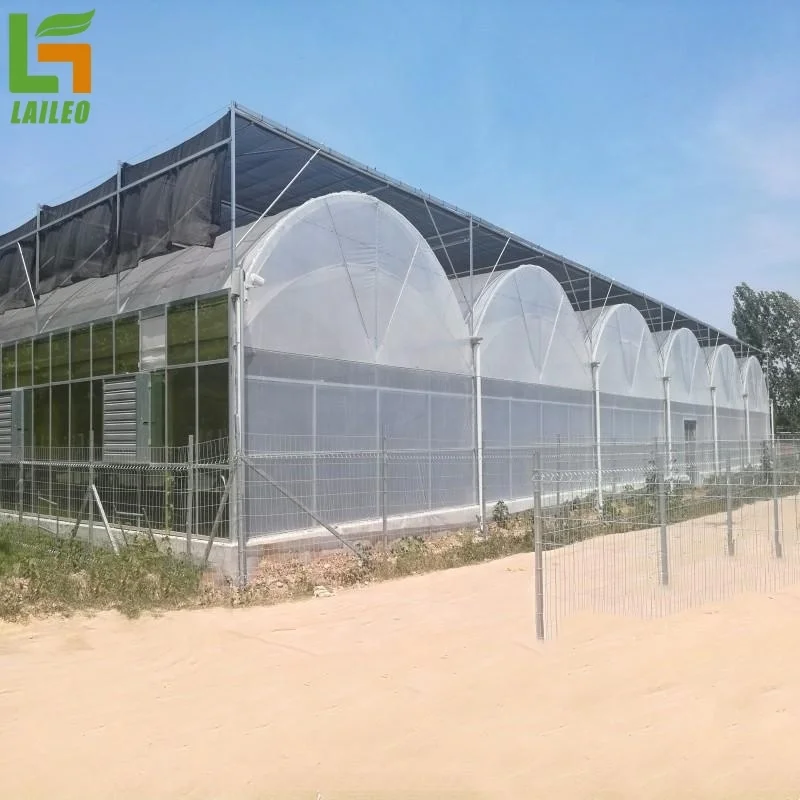

Outer Sunshade System
Material:Black Round-Wire Sunshade Net
Introduction:Installed and fixed above the frame of greenhouse, supported by the uprights and beams.
Advantage:Button control switch, reduce the internal temperature and avoid damages to plants caused by intense sunlight.

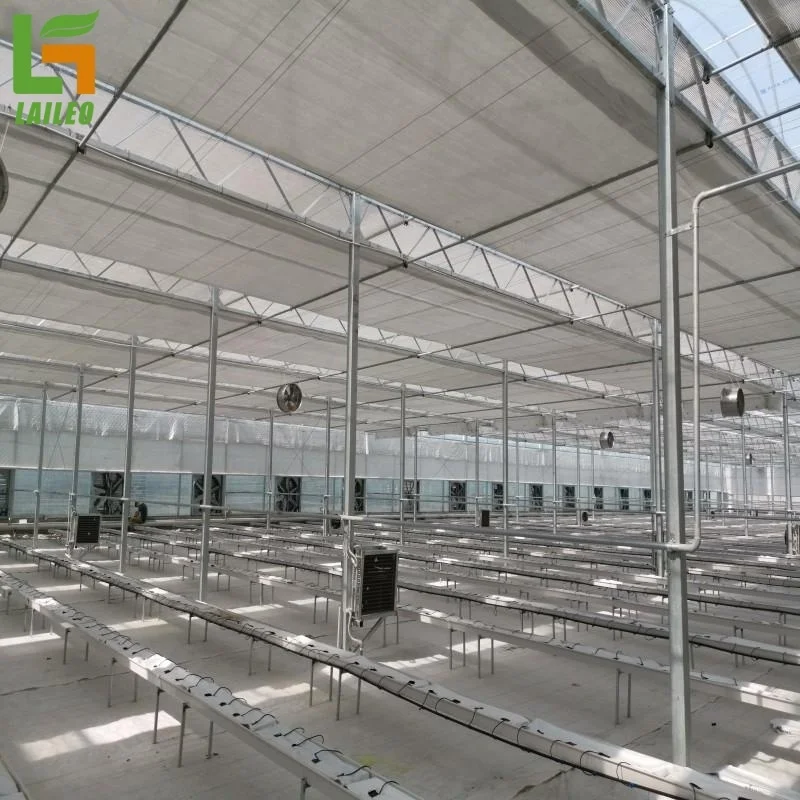

Inner Sunshade System
Material:Aluminum Sunshade Net
Introduction:Installed in the greenhouse, supported by the uprights and beams.
Advantage:Button control switch, reduce the internal temperature by cutting off excess solar radiation.
Introduction:Installed in the greenhouse, supported by the uprights and beams.
Advantage:Button control switch, reduce the internal temperature by cutting off excess solar radiation.
Inner Thermal Curtain System
Material:EPE
Introduction:Installed in the greenhouse, supported by the uprights and beams.
Advantage:In cold night, the system can effectively prevent the escape of infrared, reduce surface radiation heat loss and heating
energy consumption, usually used together with heating system.
Advantage:In cold night, the system can effectively prevent the escape of infrared, reduce surface radiation heat loss and heating
energy consumption, usually used together with heating system.
Ventilation System
Top ventilation: All the middle spans have two electric roll up motors and both of side spans have one electric roll up motor.
Side ventilation: Both sides have two electric roll up motors.
Each motor is 60w with climber and cable film fixed parts, rolling up 60m plastic film.
Side ventilation: Both sides have two electric roll up motors.
Each motor is 60w with climber and cable film fixed parts, rolling up 60m plastic film.
Cooling Fan
Introduction:The pads and fans are used together to realize the functions of cooling and ventilation.
Size:Exhaust Hammer Fans in 1380*1380*400mm with wind volume 44000m3/h
Advantage:In hot weather, using cool water circulation could reduce temperature and increase humidity inside the greenhouse at
same time.
Size:Exhaust Hammer Fans in 1380*1380*400mm with wind volume 44000m3/h
Advantage:In hot weather, using cool water circulation could reduce temperature and increase humidity inside the greenhouse at
same time.
Cooling Pad
Introduction:The pads and fans are used together to realize the functions of cooling and ventilation.
Size:Aluminum frame, height is 1.5m with thickness 150mm
Advantage:In hot weather, using cool water circulation could reduce temperature and increase humidity inside the greenhouse at
same time.
Size:Aluminum frame, height is 1.5m with thickness 150mm
Advantage:In hot weather, using cool water circulation could reduce temperature and increase humidity inside the greenhouse at
same time.
Coconut Coir Hydroponics
Coconut coir hydroponics is one of substrate cultivation, most widely used soil-less culture mode in the world.
As the most ideal organic culture medium at present, It has the advantages of excellent air-water ratio and bulk density,
renewable and sustainable.
The cultivation cost is low than others, with small investment very suitable for large-scale popularization and use, producing
vegetables with good quality and high yield.
As the most ideal organic culture medium at present, It has the advantages of excellent air-water ratio and bulk density,
renewable and sustainable.
The cultivation cost is low than others, with small investment very suitable for large-scale popularization and use, producing
vegetables with good quality and high yield.
NFT Hydroponics
NFT Hydroponics belongs to one kind of nutrient solution hydroponics by using PVC pipes which is more suitable for leaf
vegetables cultivation.
All pipes and pipe fittings are made by high quality PVC in food grade, it's very safe, non-toxic, and non-polluting, without any
damage to plants.
The shelf and pipes sizes can be customized according to the actual needs.
All pipes and pipe fittings are made by high quality PVC in food grade, it's very safe, non-toxic, and non-polluting, without any
damage to plants.
The shelf and pipes sizes can be customized according to the actual needs.
A-type Hydroponic System
The strawberry grow gutter is a type of vertical soilless culture for strawberry.
The gutter shelf is usually A-frame 4-layer structure, or hanging structure, first install and fasten the gutter.
Cover the gutter with the substrate, use drip irrigation system work for it
Electric Control System
The electric control system is used for control all the mechanical equipment installed in the greenhouse to realize the greenhouse
microclimate control.
It can realize the automatical control of water heaters and cooling system to save energy..
microclimate control.
The system includes one set of control cabinet, cablesand accessories and tools.
It can realize the automatical control of water heaters and cooling system to save energy..
Company Profile
Weifang Laileo Machinery Co.Ltd. Located in Weifang City, Shandong Province, it is a modern manufacturer specializing in the production of greenhouses and supporting equipment. The company has fully automated production equipment, testing equipment, excellent manufacturing technology and modern management technology. At the same time, it has a professional management team to ensure efficient production and delivery.
Contact us
Packing & Delivery
We have professional personnel who are responsible for packaging and shipping, and check the quality before shipping to ensure the quality of the goods.
FAQ
1. I just have plan about greenhouse but not sure about it?
We can design the size for you, plesae chat with me.
2. How long is your delivery time?
Generally it is 20-45 days after order.
3.How to install the greenhouse? Do you provide installation service?
We can provide the install drawing for you or can send an engineer to guide you.
4.What preparations I should be before installation?
First finish the greenhouse building authorization from the government if required.
Second prepare the tools as per the tool list we send to you.
Third prepare the workers.
Forth prepare the power supply if needed.
Fifth prepare one place that can store the greenhouse materials after arrival to protect it from rain if needed.
5. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
6.what can you buy from us?
Greenhouse and all greenhouse parts,fan,seedbed,aluminum,hydroponic gutter
2. How long is your delivery time?
Generally it is 20-45 days after order.
3.How to install the greenhouse? Do you provide installation service?
We can provide the install drawing for you or can send an engineer to guide you.
4.What preparations I should be before installation?
First finish the greenhouse building authorization from the government if required.
Second prepare the tools as per the tool list we send to you.
Third prepare the workers.
Forth prepare the power supply if needed.
Fifth prepare one place that can store the greenhouse materials after arrival to protect it from rain if needed.
5. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
6.what can you buy from us?
Greenhouse and all greenhouse parts,fan,seedbed,aluminum,hydroponic gutter
