item | value |
Place of Origin | Japan |

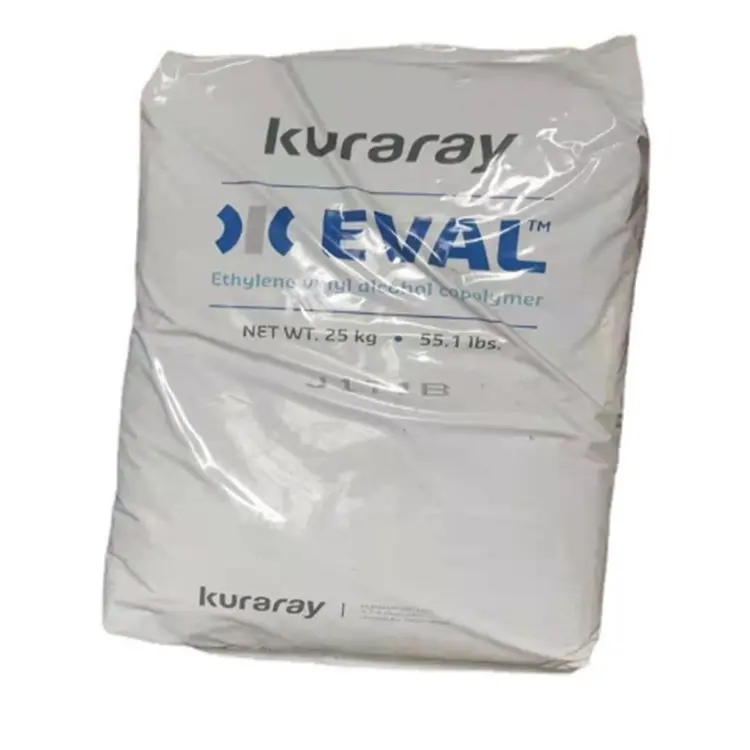

Brand Name | Kuraray |
Model Number | F171B |
Product name | EVOH F171B |
Color | Transparent |

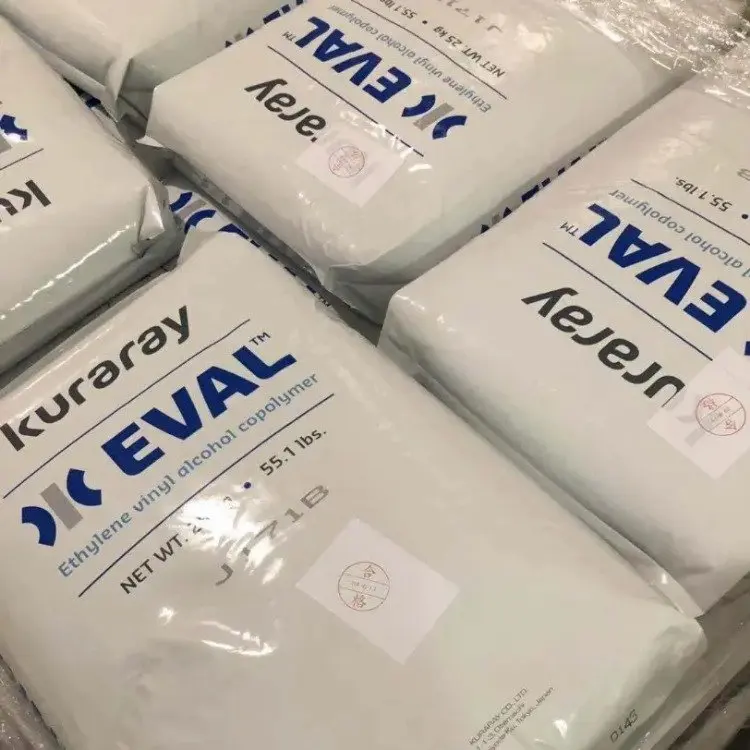

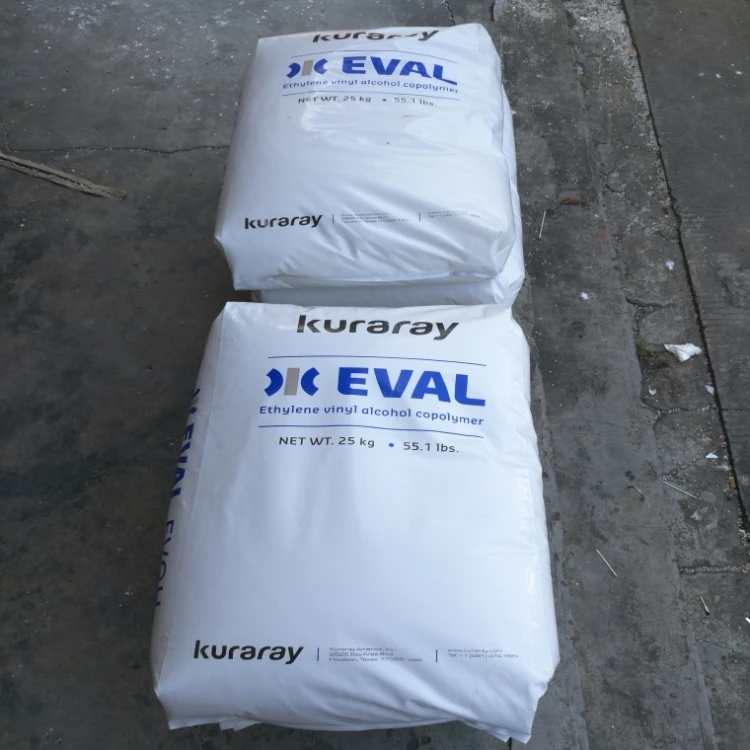

Package | 25 Kgs/bag |
Grade | Film Grade |

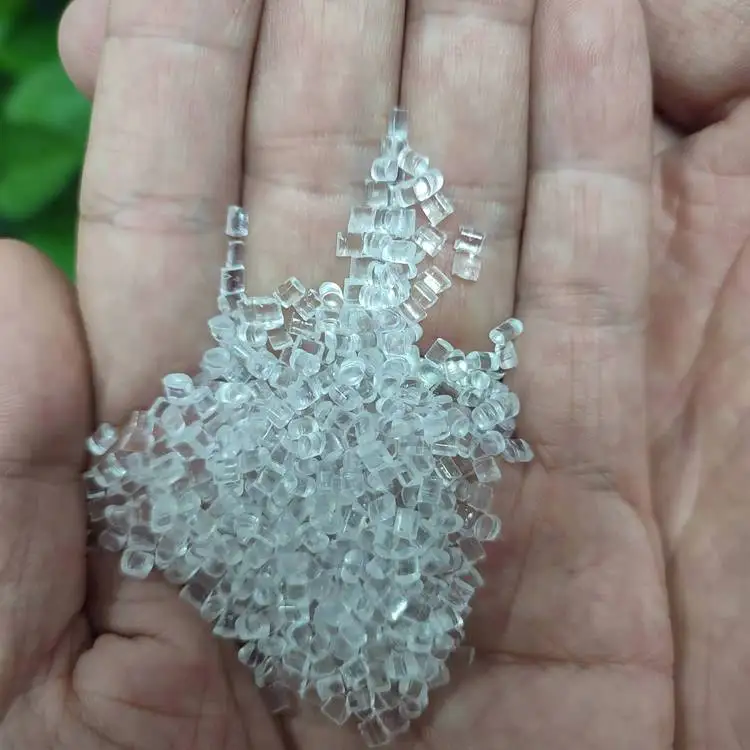

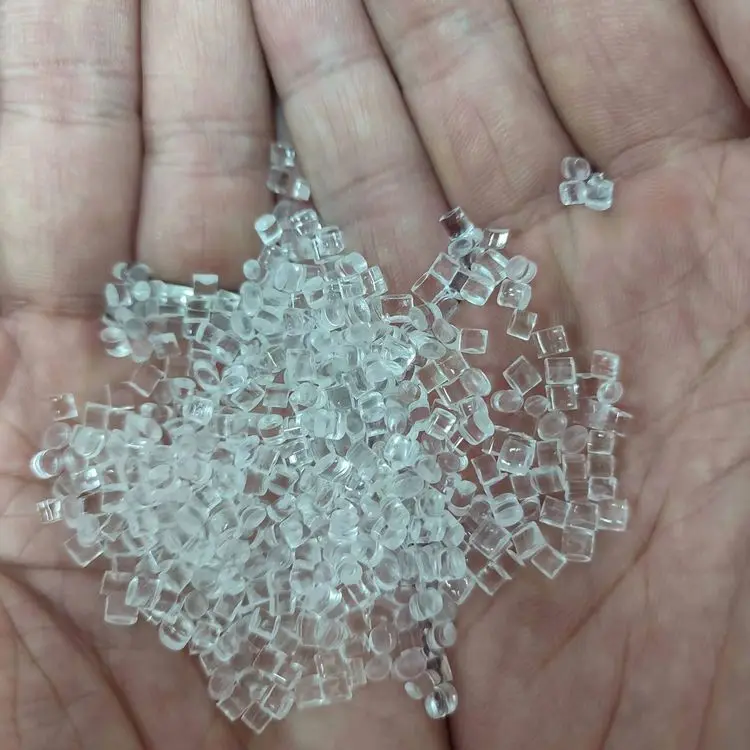

Shape | Pellet |
Application | food packaging |
MOQ | 5 Tons |
Sample | Available |
DELIVERY TIME | 1-2 Weeks |
PAYMENT TERM | T/T |
Standard Properties | Unit | Test Method | Value |
MFR | g/10min | ISO1133 (190°C, 2.16kg) | 1.6 |
Density | 10³ kg/m³ | ISO1183-3 | 1.19 |
Thermal Properties | Unit | Test Method | Value |
Melting Temperature | ℃ | ISO 11357 | 183 |
Crystalization Temperature | ℃ | ISO 11357 | 158 |
Glass Transition Point | ℃ | ISO 11357 | 60 |
Vicat Softening Point | ℃ | ISO 306 | 172 |
Mechanical Properties | Unit | Test Method (Dry injection piece, 23°C) | Value |
Tensile stress at break | MPa | ISO 527 | 34 |
Elongation at break | % | ISO 527 | 14 |
Young's Modulus | GPa | ISO 527 | 4.5 |
Charpy Impact Strength | GPa | ISO 178 | 4.3 |
Charpy Impact Strength | kJ/m² | ISO 179-1 | 7 |
Rockwell Hardness | HRM | ISO 2039-2 | 92 |
Barrier Properties (cast film) | Unit | Test Method (Cast film, 20°C, 65%RH) | Value |
Oxygen Transmission Rate | cm³.20µm/m².day.atm | ISO21309-2 Annex C | 0.3 |
