Производитель dn100 upvc вафли электродвигатель Дроссельный клапан
14 767,93 ₽ - 15 870,01 ₽

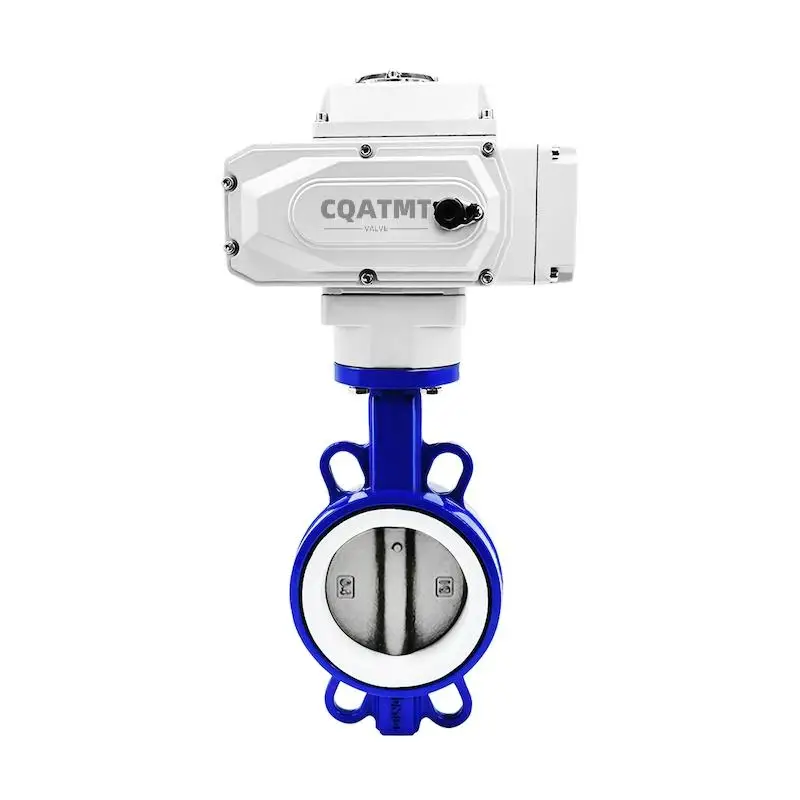

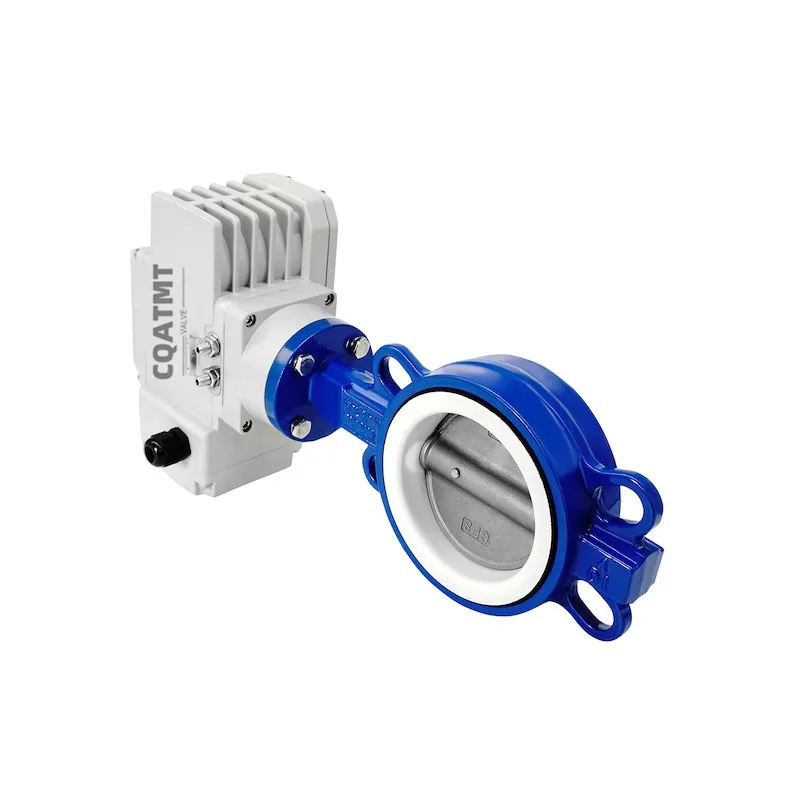

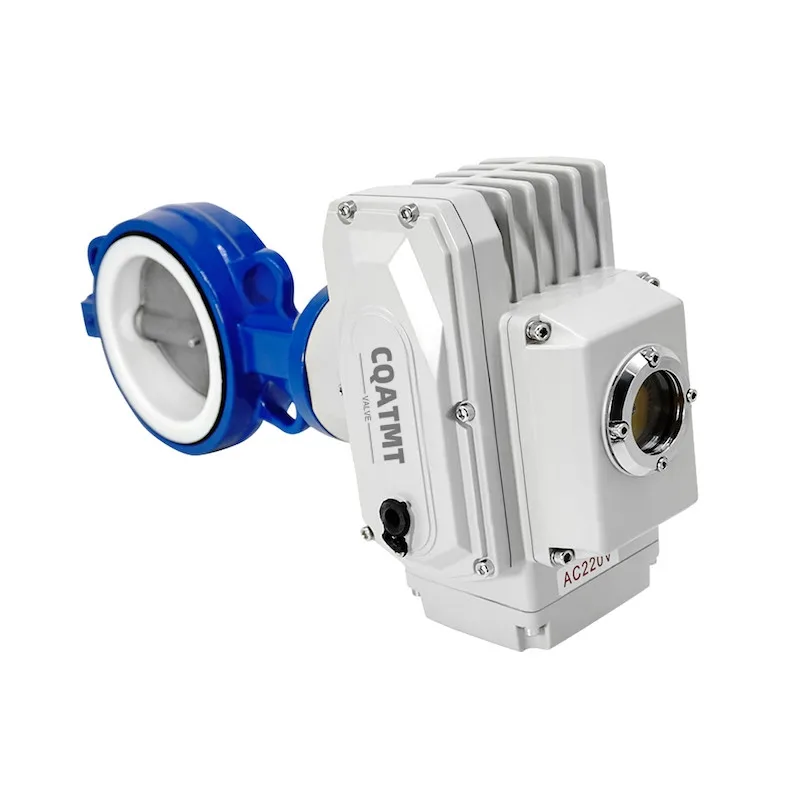

CQATMT производитель оптовая продажа высокое качество цена D71F4/D71F46 коррозионно стойкий фтор электрический клапан бабочка
- Категория: >>>
- Поставщик: CQATMT Valve Technology Co. Ltd.
Сохранить в закладки 1600832713038:
Описание и отзывы
Характеристики

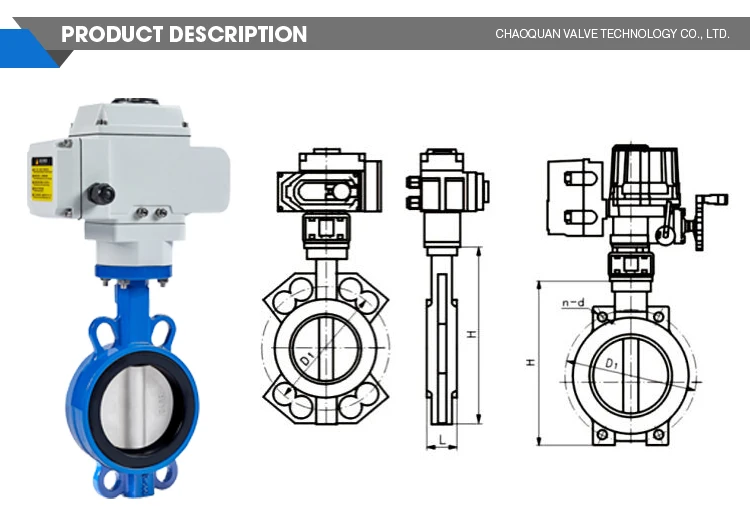

Production Description
Specification
item | Electric actuator butterfly valve. |
Warranty | 1 year |
Type | Butterfly valve. |
Customized support | OEM, ODM |
Place of Origin | JINAN |
Brand Name | CQATMT |
Model Number | D971F-16Q |
Application | General |
Temperature of Media | Medium Temperature, Normal Temperature |
Power | Electric execution. |
Media | Water |
Port Size | DN50-DN300 |
Structure | Butterfly. |

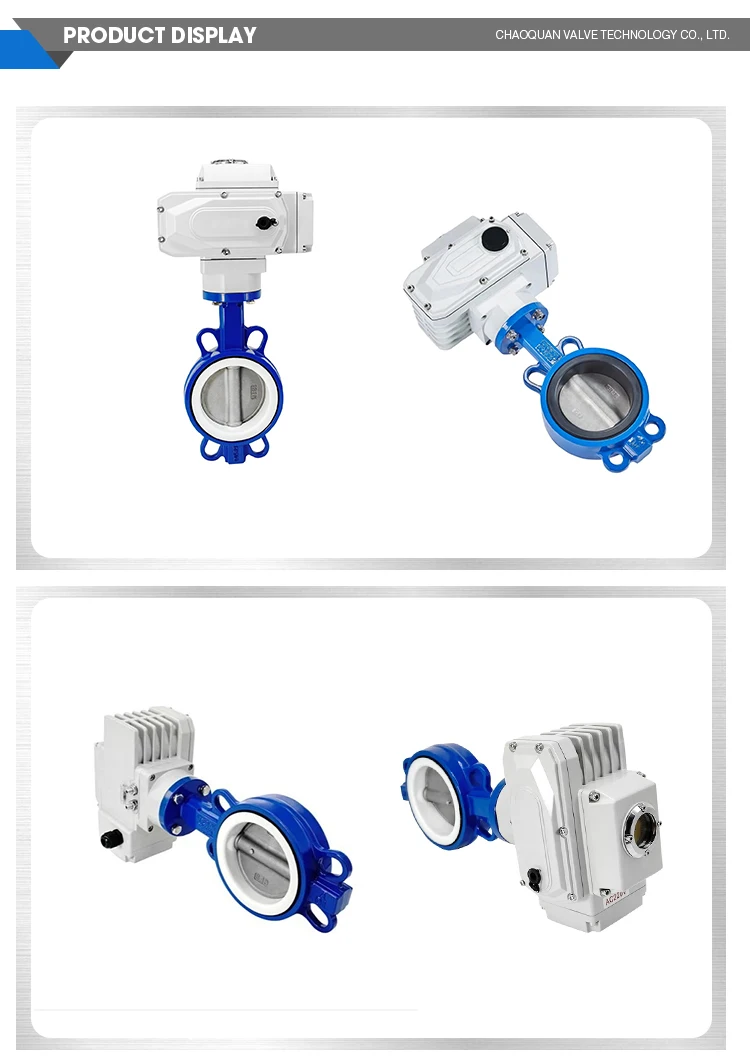

Product Display
Features of fluorine lined electric butterfly valves
The D71F4/D71F46 corrosion-resistant fluorine lined electric butterfly valve adopts a combination of two halves of the valve body, and the valve seat and valve body lining are integrated. When the valve is working, only the fully plastic valve seat and lining plastic butterfly plate are in contact with the medium. The product can withstand any medium corrosion except for molten alkali metal and elemental fluorine. The D71F46 valve stem and butterfly plate (forged) are integrated, and the surface is evenly coated with a layer of FEP. The inner surface of the valve body channel is smooth, with low fluid resistance, high CV value, strong flow capacity, and moderate torque.
The D71F4/D71F46 corrosion-resistant fluorine lined electric butterfly valve adopts a combination of two halves of the valve body, and the valve seat and valve body lining are integrated. When the valve is working, only the fully plastic valve seat and lining plastic butterfly plate are in contact with the medium. The product can withstand any medium corrosion except for molten alkali metal and elemental fluorine. The D71F46 valve stem and butterfly plate (forged) are integrated, and the surface is evenly coated with a layer of FEP. The inner surface of the valve body channel is smooth, with low fluid resistance, high CV value, strong flow capacity, and moderate torque.
The fluorine lined electric butterfly valve adopts a four stage sealing structure and is equipped with a temperature resistant and anti-aging SI rubber elastic gasket seat outside the sealing surface, which completely achieves zero leakage of the medium. 2. The fluorine lined electric butterfly valve is equipped with a series of electric actuators such as ZTD and ZTHQ. The AC220V or AC380V power supply can be used for switch control. The fluorine lined electric butterfly valve does not need to be equipped with a servo amplifier, and can input (4-20mADC or 1-5ADC) signals to adjust parameters such as pressure, flow rate, and temperature.

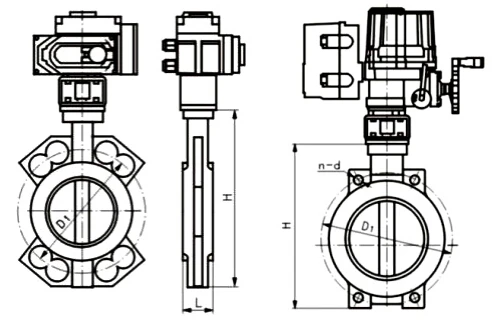

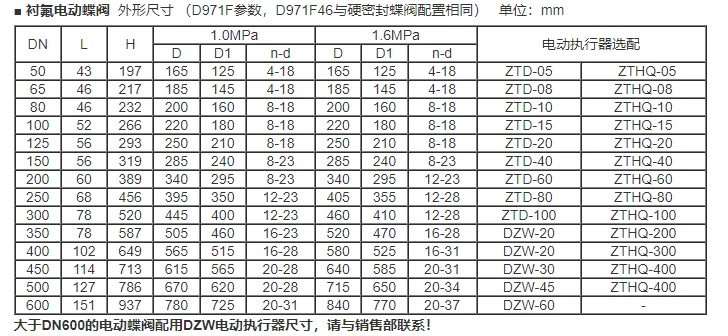

Main technical parameters of fluorine lined electric butterfly valve
Nominal diameter DN (mm) 50-600
Nominal diameter DN (mm) 50-600
Nominal pressure PN (Mpa) 1.0 1.6
Test pressure (Mpa) Strength test 1.5 2.4
Sealing test (water) 1.1 1.76
Sealing test (gas) zero point six
Leakage level A (zero leakage) Connection method clamp
Design standard JB/T8527 GB121238
Flange connection dimensions JB/T74-90 GB9113.1-9113.26
Pressure test GB/T 13927
Applicable media: Suitable for concentrated sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, aqua regia, various organic acids, strong acids, oxidizing media or high-temperature sulfuric acid, high-temperature concentrated acetic acid, acid-base alternation, and various organic solvents and other highly corrosive media
Applicable temperature -29 ℃ -150 ℃ Drive mode electric
Electric actuators ZTD type, ZTHQ type, DZW type, user specified products
Protection level IP54/IP67/IP68
Control form: switch type/analog quantity adjustment type Voltage AC220V/AC380V/AC110V/DC24V
Material of main parts of fluorine lined electric butterfly valve
Part Name Material Valve body gray cast iron, ductile iron, cast steel, stainless steel Butterfly plate stainless steel, WCB+F46 Sealing ring PTFE, F46 (polytetrafluoroethylene propylene) Valve stems 2Cr13, 1Cr13 stainless steel, CF8, CF8M, 17-4PH
Part Name Material Valve body gray cast iron, ductile iron, cast steel, stainless steel Butterfly plate stainless steel, WCB+F46 Sealing ring PTFE, F46 (polytetrafluoroethylene propylene) Valve stems 2Cr13, 1Cr13 stainless steel, CF8, CF8M, 17-4PH
Product Application
Main Products
Company Profile
Packaging&Shipping
FAQ
1. Who are we?
We are based in Shandong, China, start from 2022,sell to South America(20.00%),Eastern Europe(20.00%),North America(10.00%),Southeast Asia(10.00%),Western Europe(9.00%),South Asia(5.00%),Eastern Asia(5.00%),Central America(5.00%),Mid East(5.00%),Oceania(4.00%),Africa(3.00%),Southern Europe(2.00%),Northern Europe(2.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Valve, Pneumatic Actuator Control Valve, Electric Control Valve, Pressure Reducing Valve, Self-control Valve
4. Why should you buy from us not from other suppliers?
The company mainly produces regulating valves, ball valves, gate valves, globe valves, check valves, power station valves, butterfly valves and other related products that meet GB, ANSI/API, JIS, DIN, BS, NF and other standards.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2022,sell to South America(20.00%),Eastern Europe(20.00%),North America(10.00%),Southeast Asia(10.00%),Western Europe(9.00%),South Asia(5.00%),Eastern Asia(5.00%),Central America(5.00%),Mid East(5.00%),Oceania(4.00%),Africa(3.00%),Southern Europe(2.00%),Northern Europe(2.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Valve, Pneumatic Actuator Control Valve, Electric Control Valve, Pressure Reducing Valve, Self-control Valve
4. Why should you buy from us not from other suppliers?
The company mainly produces regulating valves, ball valves, gate valves, globe valves, check valves, power station valves, butterfly valves and other related products that meet GB, ANSI/API, JIS, DIN, BS, NF and other standards.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
Поставка от китайского производителя пластиковый бабочный клапан 1/2 до 6 дюймов из НПВХ с ручным рычагом
Клапан-бабочка типа A216 WCB вытяжной резиновый уплотнитель из углеродистой стали Китай 150 Psi 6 дюймов вода/Нефть/Газ/Еда/кислота/база
4 468,96 ₽ - 4 799,58 ₽
Устойчивый к высоким температурам кислотно-щелочной стойкости материал PPH турбинный бабочный клапан
3 306,26 ₽
Plastic hand wheel type butterfly valve
Двойной эксцентричный червячный редуктор с мягким уплотнением соединительный фланец ручной тип клапан-бабочка прайс-лист
47 169,20 ₽

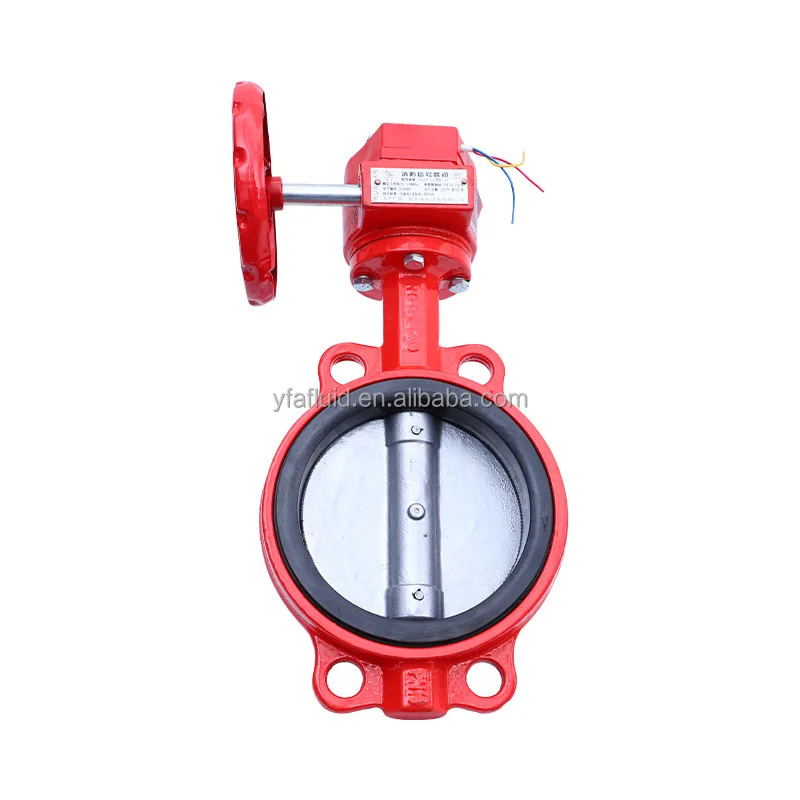

Клапан-бабочка с канавкой для пожаротушения 4 дюйма рукоятка рифленый клапан типа fm-пластины воды
