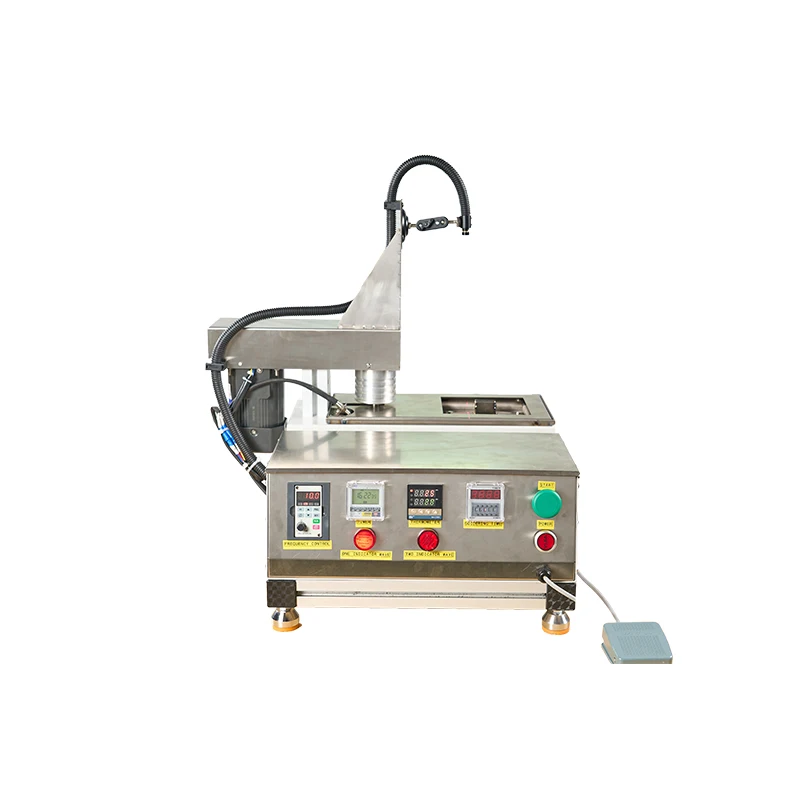

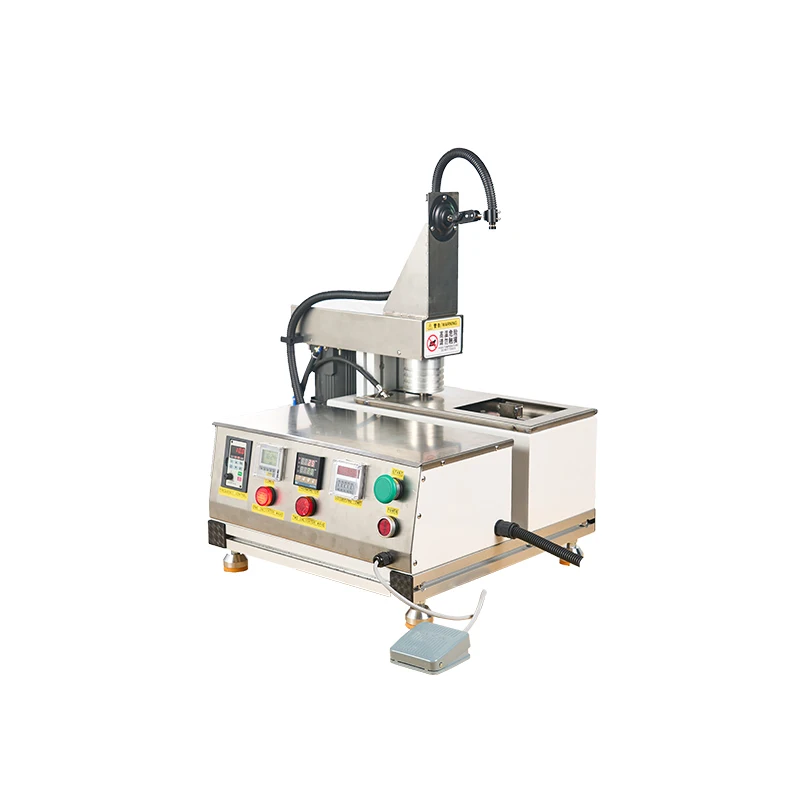

YX250 Min мини полуавтоматическая машина для пайки волнами
- Категория: >>>
- Поставщик: Wenzhou Yingxing Import&Export Co. Ltd.
Сохранить в закладки 1600833654825:
Описание и отзывы
Характеристики
Product Description
Introduction
The welding technique using multi - point nozzle is dip welding. In this welding process, the board is immersed in and removed from the solder. In this welding process, the crest height and the temperature of the solder are the key factors. All nozzles shall be of the same temperature and have the same solder bubble height. The first method is to immerse the component in solder. During the welding process, the solder should not overflow to the top of the nozzle edge, otherwise, the component will be in contact with the solder around. The second method is to keep the solder height just below the edge of the nozzle as the board moves down. Then, accelerate the pump out the solder, pushing it up and touching the board. Next, the pump speed is reduced and the board is removed from the solder. In order to prevent residual oxides on the board during the retention of the welding process, pump speeds should not be too high. In addition, the exit speed should be optimized to prevent bridging. Here, according to the particularity of the circuit board, make the first method and the second method of combination.
Part list
1. The jet tin furnace uses the jet tin liquid to directly act on the solder joint, which is mainly suitable for multi-pin through hole components Disassembly, welding, such as DIP, IC, PBGA, connector, connector, etc.
2. Can automatically control the temperature, after the initial use of three rise cooling cycle, the temperature controller will be self-tuning PID value, and can keep the temperature within plus or minus 3oC, to help improve the quality of solder.

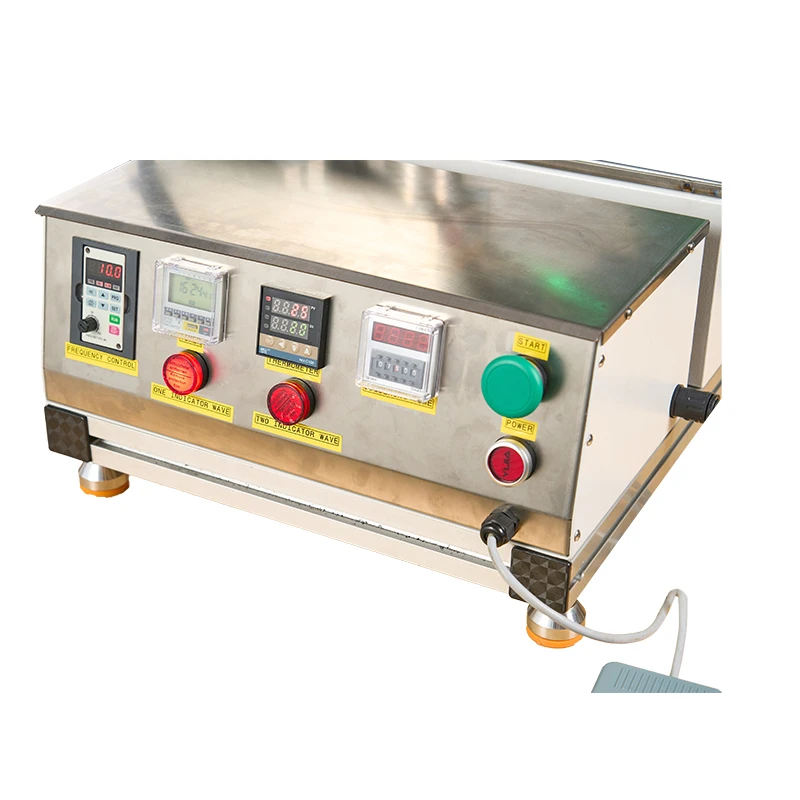

3. Digital temperature display, real-time temperature setting. The temperature of tin liquid can be set according to the situation.
4. Configure safety loop. The motor cannot run until the set temperature is reached.

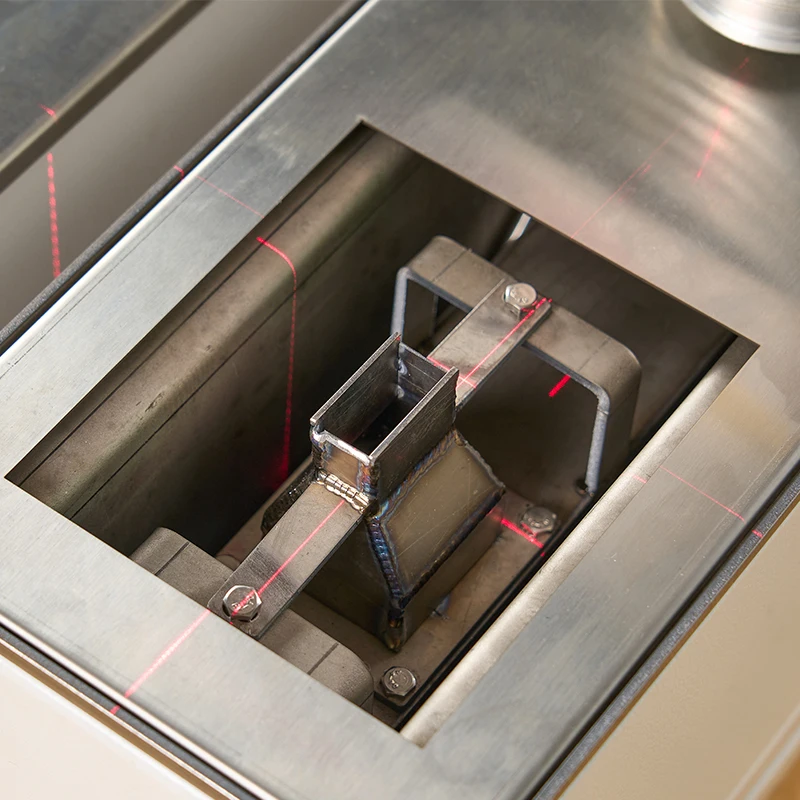

5. Configure different nozzles to meet different requirements.
6. Furnace liner material is made of industrial titanium alloy, high temperature resistance, corrosion resistance, no tin.
7. Heating core using high temperature ceramic heating wire, fast temperature rise, long life.
8. The peak height is adjusted by frequency converter, and different peak heights can be set arbitrarily.
The YX250-Min software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The YX250-Min machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands).
The welding technique using multi - point nozzle is dip welding. In this welding process, the board is immersed in and removed from the solder. In this welding process, the crest height and the temperature of the solder are the key factors. All nozzles shall be of the same temperature and have the same solder bubble height. The first method is to immerse the component in solder. During the welding process, the solder should not overflow to the top of the nozzle edge, otherwise, the component will be in contact with the solder around. The second method is to keep the solder height just below the edge of the nozzle as the board moves down. Then, accelerate the pump out the solder, pushing it up and touching the board. Next, the pump speed is reduced and the board is removed from the solder. In order to prevent residual oxides on the board during the retention of the welding process, pump speeds should not be too high. In addition, the exit speed should be optimized to prevent bridging. Here, according to the particularity of the circuit board, make the first method and the second method of combination.
Part list
1. The jet tin furnace uses the jet tin liquid to directly act on the solder joint, which is mainly suitable for multi-pin through hole components Disassembly, welding, such as DIP, IC, PBGA, connector, connector, etc.
2. Can automatically control the temperature, after the initial use of three rise cooling cycle, the temperature controller will be self-tuning PID value, and can keep the temperature within plus or minus 3oC, to help improve the quality of solder.
3. Digital temperature display, real-time temperature setting. The temperature of tin liquid can be set according to the situation.
4. Configure safety loop. The motor cannot run until the set temperature is reached.
5. Configure different nozzles to meet different requirements.
6. Furnace liner material is made of industrial titanium alloy, high temperature resistance, corrosion resistance, no tin.
7. Heating core using high temperature ceramic heating wire, fast temperature rise, long life.
8. The peak height is adjusted by frequency converter, and different peak heights can be set arbitrarily.
The YX250-Min software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The YX250-Min machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands).
Items | Content |
Tin furnace temperature control range | Room temperature ~ 300℃ |
Weldable area | L150×M80 (partial welding) |
Tin furnace capacity | 18KG-25KG |
Tin furnace heating power | 2.5kw |
Crest motor | AC220V/0.12KW |
Heat-up time | 30 minutes |
Size（mm） | L650×M400×H380 |
Weight（kg） | 30KG |
Power | AC220V 50Hz |
Total starting power（KW） | 2.5KW |
Total working power（KW） | 0.3-0.8KW |
Control mode | RKC temperature control meter control |
Product Details
Company Information
Exhibition
Certifications
Product packaging
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Похожие товары

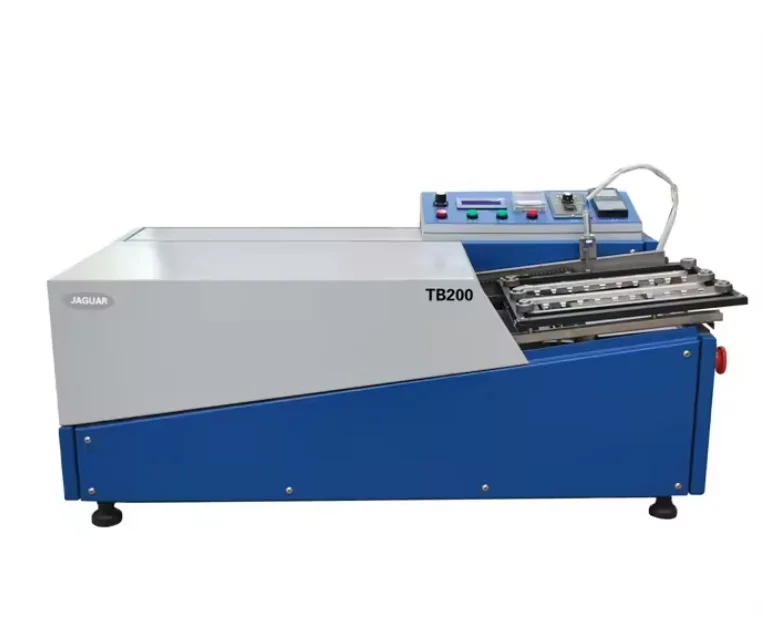

Низкая цена, лидер продаж, Настольная мини-волновая паяльная машина TB200 для smd-оборудования, сварки печатных плат
194 411,16 ₽
SMD мини настольная селективная волновая паяльная машина для dip

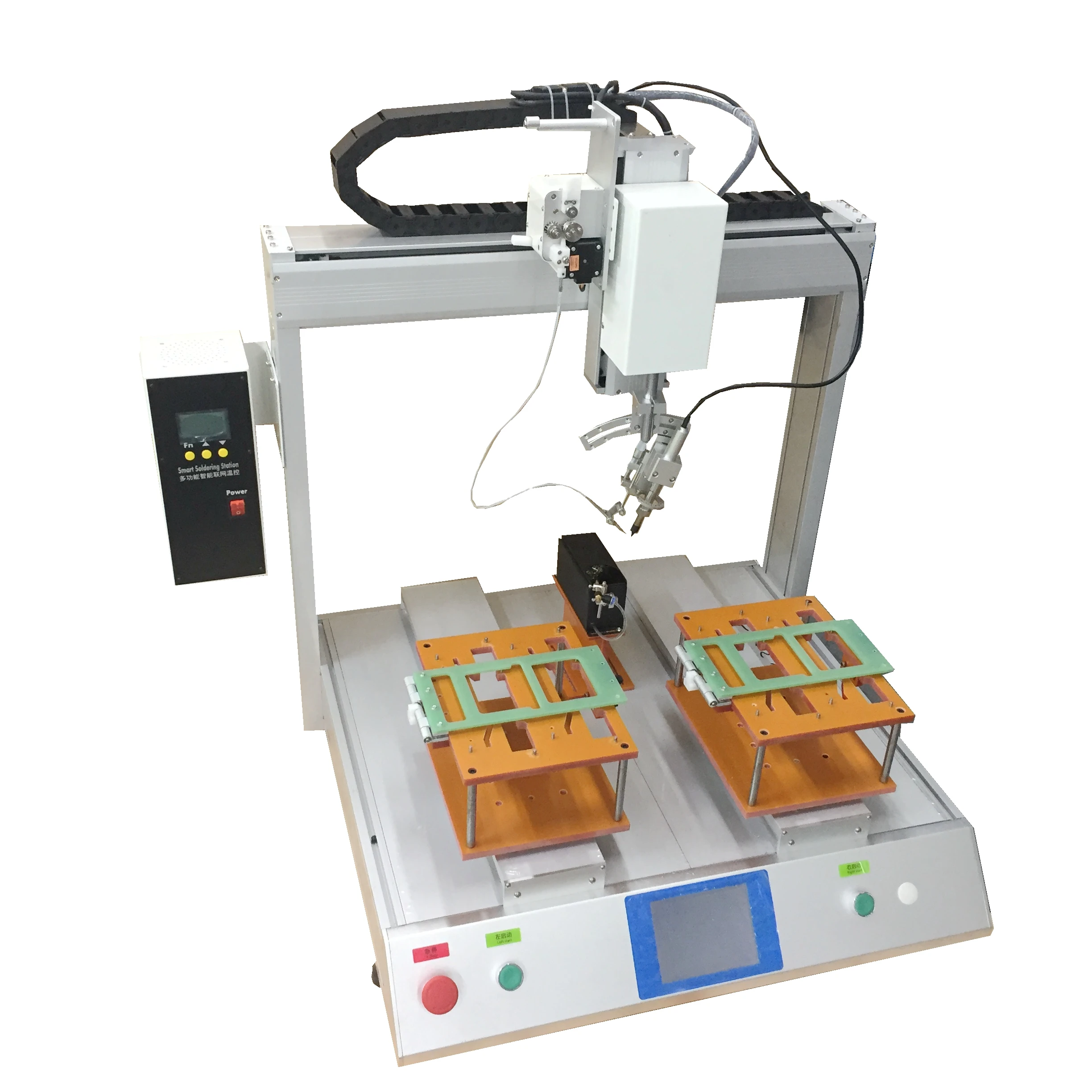

Автоматическая паяльная машина для печатных плат
313 216,90 ₽ - 345 618,76 ₽

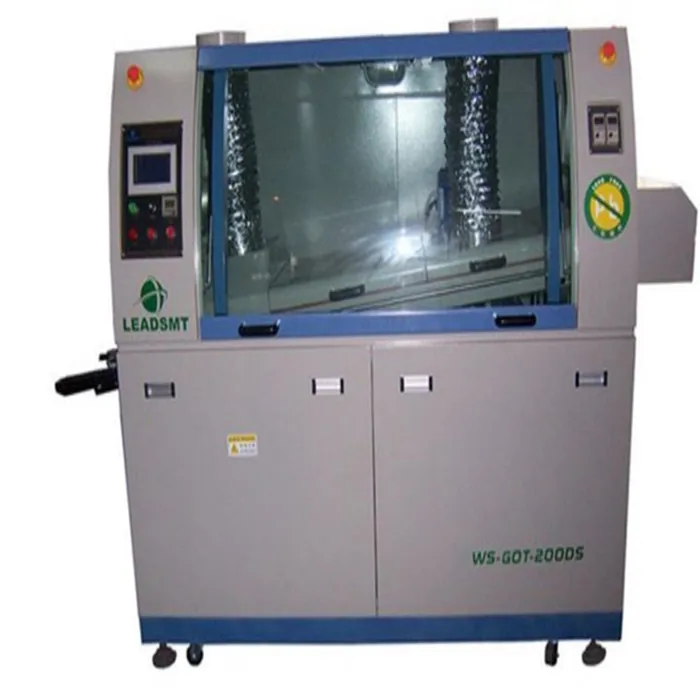

Небольшая мини-волновая паяльная машина, бессвинцовая двухволновая паяльная машина для погружных компонентов
