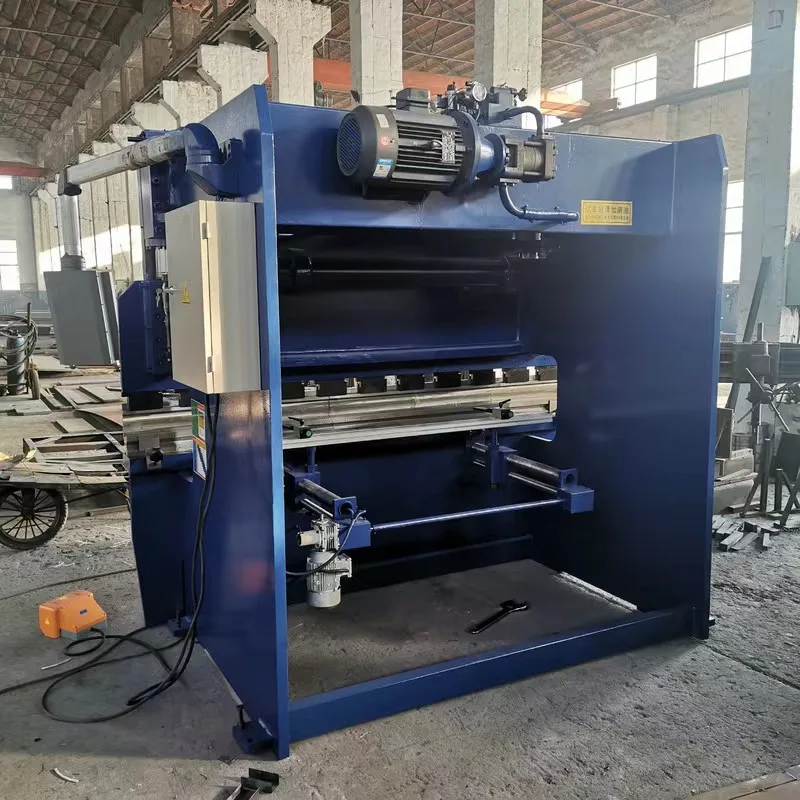

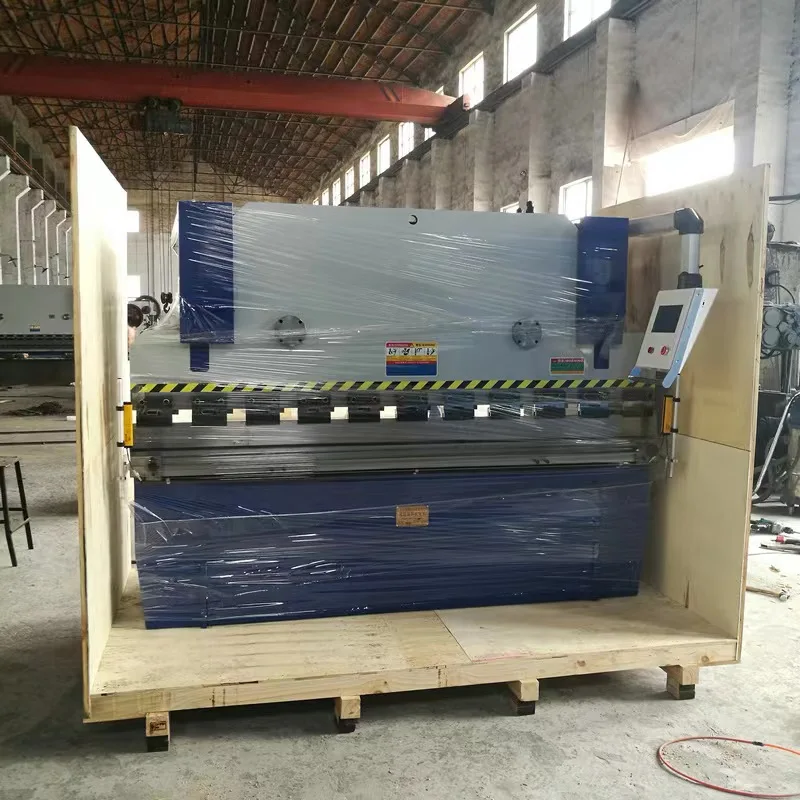

WC67Y 160t * 3200 гибочный станок с ЧПУ 1600KN от производителя
- Категория: >>>
- Поставщик: Tengzhou Believe Machinery Co. Ltd.
Сохранить в закладки 1600834174262:
Описание и отзывы
Характеристики
Product Description
Specification
Model | nominal pressure（kn） | Workbench lengt （mm） | Workbench length （mm） | throat depth (mm) | Slide stroke (mm) | Maximum opening height （mm） | Main motor power（kw） | weight（kg） | L×W×H(mm) |
30t/1600 | 300 | 1600 | 1304 | 200 | 80 | 210 | 3 | 1200 | 1600×800×1780 |
30t/2000 | 300 | 2000 | 1304 | 200 | 80 | 210 | 3 | 1500 | 2000×800×1780 |
40t/2200 | 400 | 2200 | 1850 | 250 | 100 | 340 | 5.5 | 2600 | 2200×1200×1900 |
40t/2500 | 400 | 2500 | 2030 | 250 | 100 | 340 | 5.5 | 2800 | 2500×1200×1900 |
63t/2500 | 630 | 2500 | 1970 | 250 | 100 | 340 | 5.5 | 4000 | 2500×1600×2200 |
63t/3200 | 630 | 3200 | 2360 | 250 | 100 | 340 | 5.5 | 4800 | 3200×1600×2200 |
80t/2500 | 800 | 2500 | 1970 | 250 | 100 | 350 | 5.5 | 4500 | 2500×1700×2250 |
80t/3200 | 800 | 3200 | 2360 | 250 | 100 | 350 | 5.5 | 5500 | 3200×1700×2300 |
80t/4000 | 800 | 4000 | 3065 | 250 | 100 | 350 | 5.5 | 6400 | 4000×1700×2300 |
100t/3200 | 1000 | 3200 | 2510 | 320 | 120 | 380 | 7.5 | 6200 | 3200×1800×2500 |
100t/4000 | 1000 | 4000 | 2980 | 320 | 120 | 380 | 7.5 | 7200 | 4000×1800×2500 |
125t/3200 | 1250 | 3200 | 2510 | 320 | 120 | 380 | 7.5 | 6800 | 3200×1850×2500 |
125t/4000 | 1250 | 4000 | 2980 | 320 | 120 | 380 | 7.5 | 8000 | 4000×1850×2500 |
160t/3200 | 1600 | 3200 | 2510 | 320 | 200 | 450 | 11 | 11000 | 3200×1900×2700 |
160t/4000 | 1600 | 4000 | 3040 | 320 | 200 | 450 | 11 | 12000 | 4000×1900×2700 |
160t/5000 | 2000 | 5000 | 3800 | 320 | 200 | 450 | 11 | 16000 | 5000×1900×3100 |
160t/6000 | 1600 | 6000 | 4600 | 320 | 200 | 450 | 11 | 19800 | 6000×1900×3300 |
200t/3200 | 2000 | 3200 | 2600 | 320 | 250 | 540 | 15 | 13500 | 3200×1950×2800 |
200t/4000 | 2000 | 4000 | 3300 | 320 | 250 | 540 | 15 | 15800 | 4000×1950×2800 |
200t/5000 | 2000 | 5000 | 3800 | 320 | 250 | 540 | 15 | 20500 | 5000×1950×3000 |
200t/6000 | 2000 | 6000 | 4600 | 320 | 250 | 540 | 15 | 23500 | 6000×1950×3300 |
250t/3200 | 2500 | 3200 | 2600 | 400 | 250 | 580 | 18.5 | 17400 | 3200×2000×3200 |
250t/4000 | 2500 | 4000 | 3300 | 400 | 250 | 580 | 18.5 | 20500 | 4000×2000×3400 |
250t/5000 | 2500 | 5000 | 3800 | 400 | 250 | 580 | 18.5 | 24000 | 5000×2000×3500 |
250t/6000 | 2500 | 6000 | 4600 | 400 | 250 | 580 | 18.5 | 27500 | 6000×2000×3600 |
300t/3200 | 3000 | 3200 | 2600 | 400 | 250 | 580 | 18.5 | 21000 | 3200×2100×3300 |
300t/4000 | 3000 | 4000 | 3300 | 400 | 250 | 580 | 18.5 | 24000 | 4000×2100×3500 |
300t/5000 | 3000 | 5000 | 3800 | 400 | 250 | 580 | 18.5 | 27500 | 5000×2100×3700 |
Adopting an all steel welded structure with sufficient strength and rigidity.
Hydraulic transmission, the oil cylinders at both ends of the machine tool are placed on the sliding block. Direct drive sliding operation.
The slider synchronization mechanism adopts torsional axis forced synchronization.
Adopting mechanical block mechanism, stable and reliable.
Mobile quick adjustment of slider stroke, manual fine adjustment, counter display.
The oblique wedge type deflection compensation mechanism ensures high bending accuracy.
Machine Tool Features and Standard Configuration
1. The machine adopts standard two axis control (Y, X)
2. Adopting mechanical torque synchronization

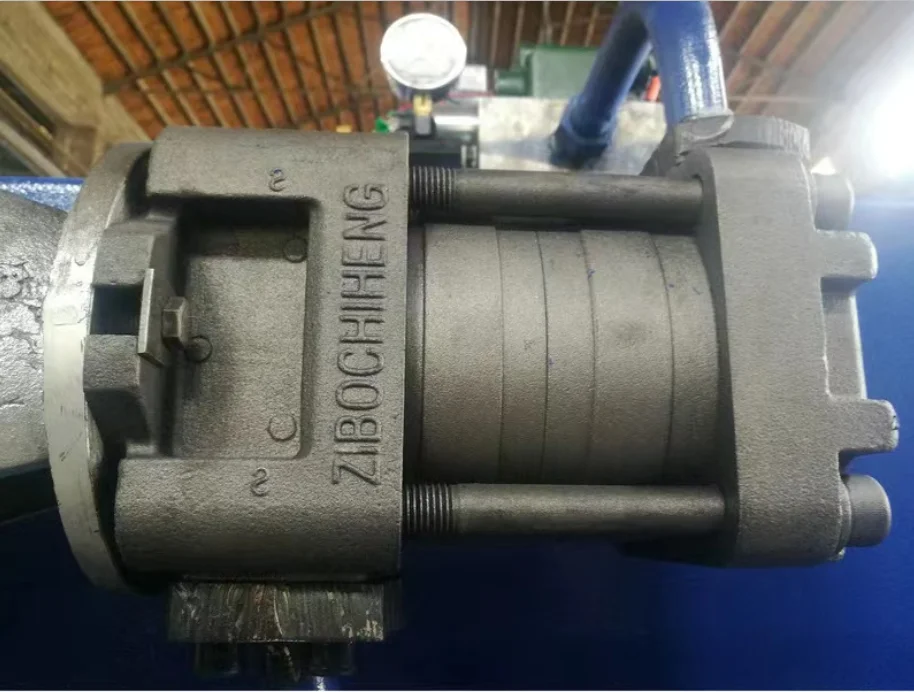

3. Equipped with domestic famous brand hydraulic integrated system
4. Equipped with Schneider or Siemens low-voltage electrical appliances
5. Equipped with frequency converter to control motor operation
6. Equipped with imported sealing ring

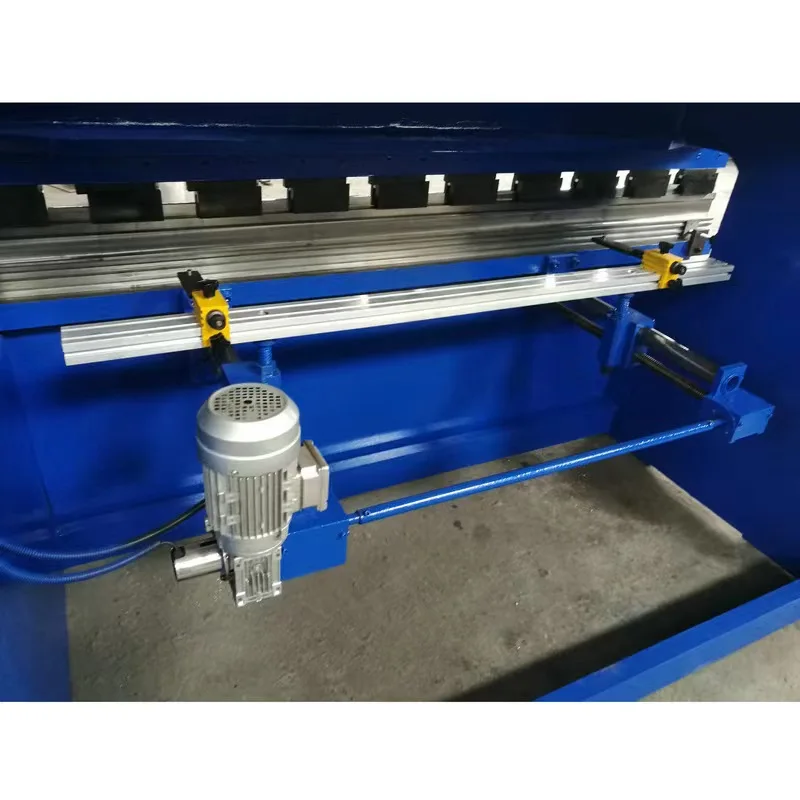

7. Equipped with ball screw to control the rear blocking operation
8. Equipped with standard upper and lower molds (upper inclined block deflection compensation)
9. Equipped with front support frame.
Hydraulic transmission, the oil cylinders at both ends of the machine tool are placed on the sliding block. Direct drive sliding operation.
The slider synchronization mechanism adopts torsional axis forced synchronization.
Adopting mechanical block mechanism, stable and reliable.
Mobile quick adjustment of slider stroke, manual fine adjustment, counter display.
The oblique wedge type deflection compensation mechanism ensures high bending accuracy.
Machine Tool Features and Standard Configuration
1. The machine adopts standard two axis control (Y, X)
2. Adopting mechanical torque synchronization
3. Equipped with domestic famous brand hydraulic integrated system
4. Equipped with Schneider or Siemens low-voltage electrical appliances
5. Equipped with frequency converter to control motor operation
6. Equipped with imported sealing ring
7. Equipped with ball screw to control the rear blocking operation
8. Equipped with standard upper and lower molds (upper inclined block deflection compensation)
9. Equipped with front support frame.
Company Profile
Tengzhou Believe Machinery co., LTD., to provide you with one-stop shopping service, there are many different machines, machine tools, machinery accessories.We have long experience in export machine, we will provide you with stable quality products and excellent service.
We have a good relationship with a few of factories, which have rich experience in this industry, so we can assure you of our products.In addition, we have a good after-sales service.
We have our own engineers, more than years of the worked experience and some are trained.Our training engineer can not only help customers on behalf of the company to check the goods before shipping and tracking of the production process each link.
We guarantee that all products can be used free of defects in a year's purchase. The date During our warranty, all customers can enjoy free maintenance services change any defective parts, this guarantee does not apply to these defects, directly or indirectly due to improper use and maintenance or maintenance.
We have a good relationship with a few of factories, which have rich experience in this industry, so we can assure you of our products.In addition, we have a good after-sales service.
We have our own engineers, more than years of the worked experience and some are trained.Our training engineer can not only help customers on behalf of the company to check the goods before shipping and tracking of the production process each link.
We guarantee that all products can be used free of defects in a year's purchase. The date During our warranty, all customers can enjoy free maintenance services change any defective parts, this guarantee does not apply to these defects, directly or indirectly due to improper use and maintenance or maintenance.
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to Southeast Asia(15.00%),Southern Europe(10.00%),North America(10.00%),Mid East(10.00%),South America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Africa(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
milling and drilling machine,CNC lathe machine,bending machine,shearing machine,forming machine
4. why should you buy from us not from other suppliers?
Tengzhou Believe machinery Co. Ltd ,provide one-stop shopping service for you,here there many different machines, machine tools.We have long time exporting machines experience, we will provide stable quality products and excellent service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,CIP,DDP,DDU；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2015,sell to Southeast Asia(15.00%),Southern Europe(10.00%),North America(10.00%),Mid East(10.00%),South America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Africa(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
milling and drilling machine,CNC lathe machine,bending machine,shearing machine,forming machine
4. why should you buy from us not from other suppliers?
Tengzhou Believe machinery Co. Ltd ,provide one-stop shopping service for you,here there many different machines, machine tools.We have long time exporting machines experience, we will provide stable quality products and excellent service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,CIP,DDP,DDU；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
Похожие товары

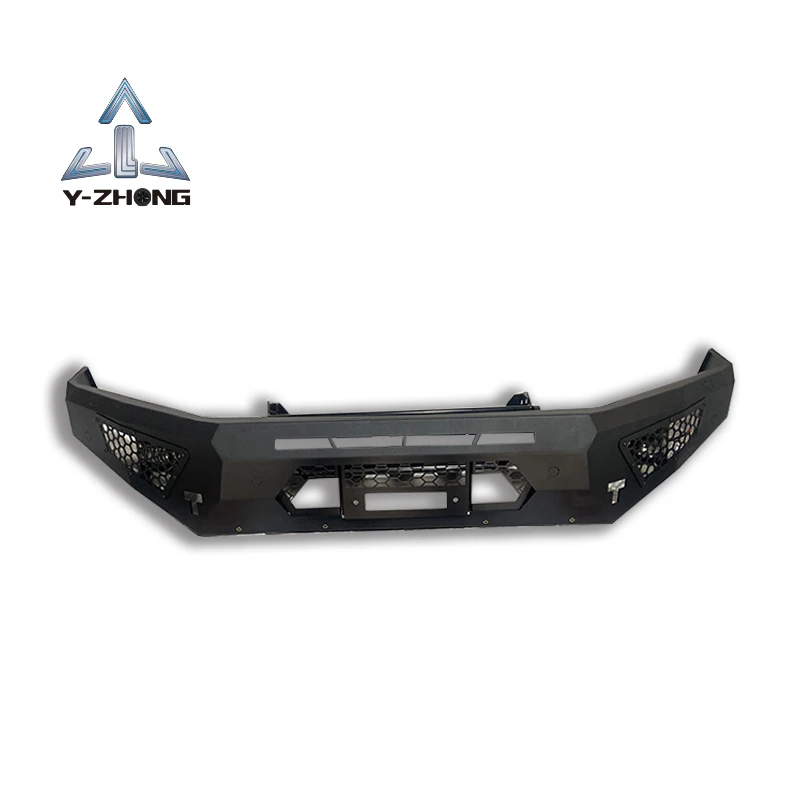

Аксессуары для экстерьера пикапа 4x4, стальной передний бампер для D-MAX Volkswagen Amarok Isuzu
279,00 $ - 305,00 $

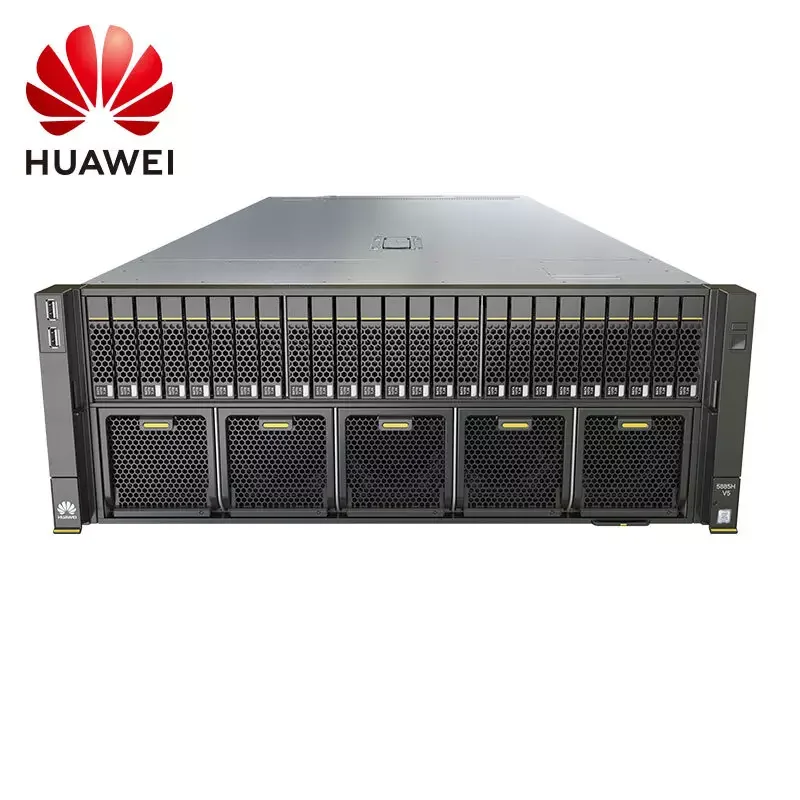

4U стойка типа 6250 ЦП 3 90 ГГц 256G 1 2 T SAS Huawei 5885H V5 серверный новый
