DC370 NOVA ремесло Buddy Die машина для резки
- Категория: >>>
- Поставщик: Wenzhou Denchern Machinery Co. Ltd.
Сохранить в закладки 1600834775424:
Описание и отзывы
Характеристики

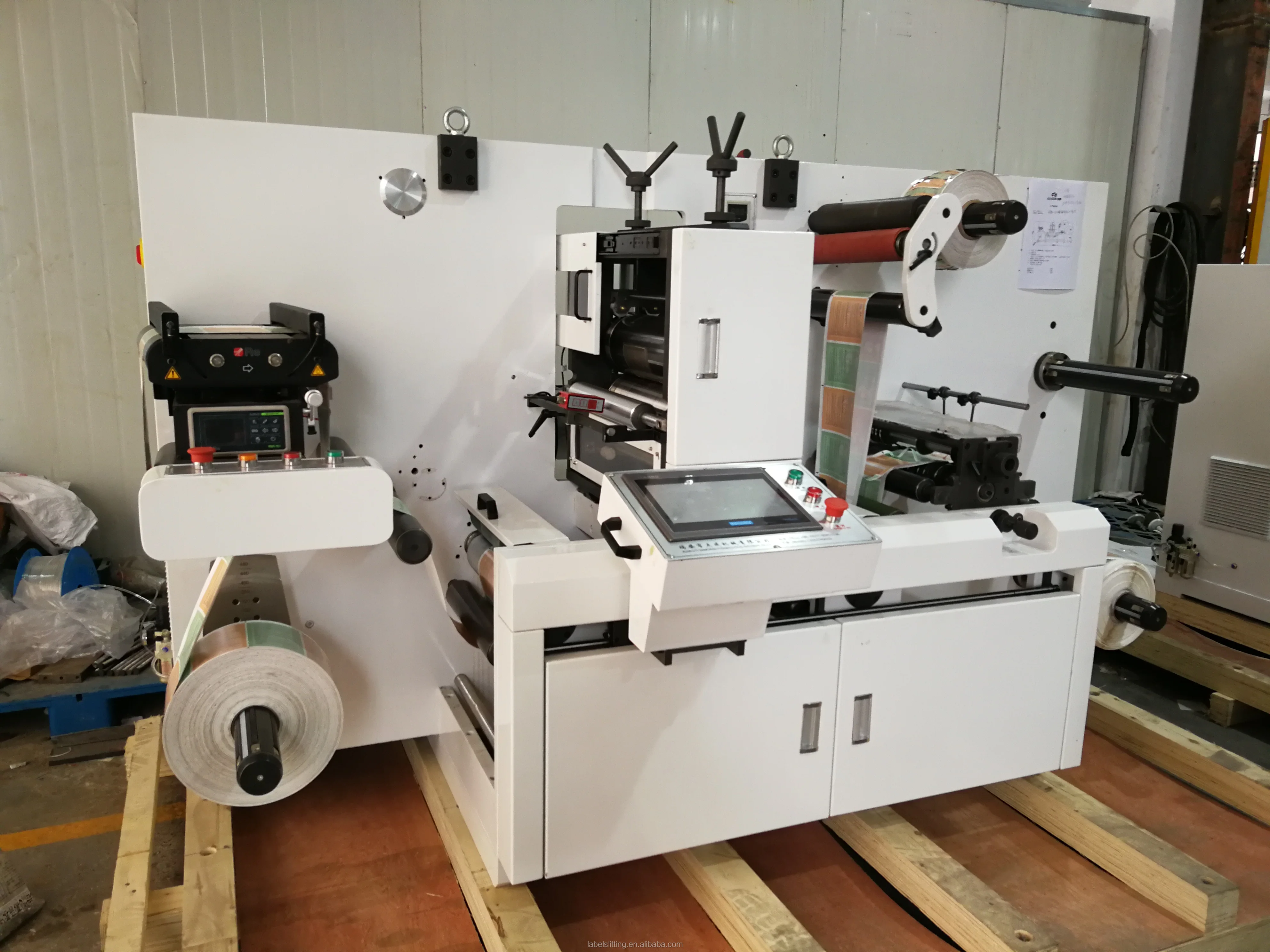

Product Description
Character
This equipment is the latest research and development product, equipped with die-cutting, intermittent die-cutting and slitting units, it adopt advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency; with the latest full-rotary and intermittent interchangeable technology; suitable for digital printing label small and medium quantity order after die-cutting.
This equipment is the latest research and development product, equipped with die-cutting, intermittent die-cutting and slitting units, it adopt advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency; with the latest full-rotary and intermittent interchangeable technology; suitable for digital printing label small and medium quantity order after die-cutting.
Model | DC370-NOVA |
Max. Rotary Speed | 120m/min |
Max. Intermittent Speed | 300times/min |
Max. Web Width | 370mm |
Die Cutting Repeat | 50-444.5mm |
Die Cutting Precision | ± 0.15mm |
Max. Unwinding Dia. | 800mm |
Max. Up Rewind Dia. | 450mm |
Max.Down Rewind Dia. | 800mm |
Rewind Inner Core Size | 1-6inch (standard in 3 inch) |
Magnetic Cylinder | 80-210T (standard in 140T) |
Thickness Of Material | 20-300um |
Air source | 0.8Mpa |
Dimension (L*M*H) | 2500mm*1300mm*1530mm |
Weight | 2500kg |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Use the latest full-rotary and intermittent interchangeable technology and intelligent operating platform to improve efficiency.
3) Adopt international brand tracking Sensor with high precision sensor.
4) Running in a high automatization and intellectualization,no pollution
1) Simple structure in linear type ,easy in installation and maintation.
2) Use the latest full-rotary and intermittent interchangeable technology and intelligent operating platform to improve efficiency.
3) Adopt international brand tracking Sensor with high precision sensor.
4) Running in a high automatization and intellectualization,no pollution
Details Images

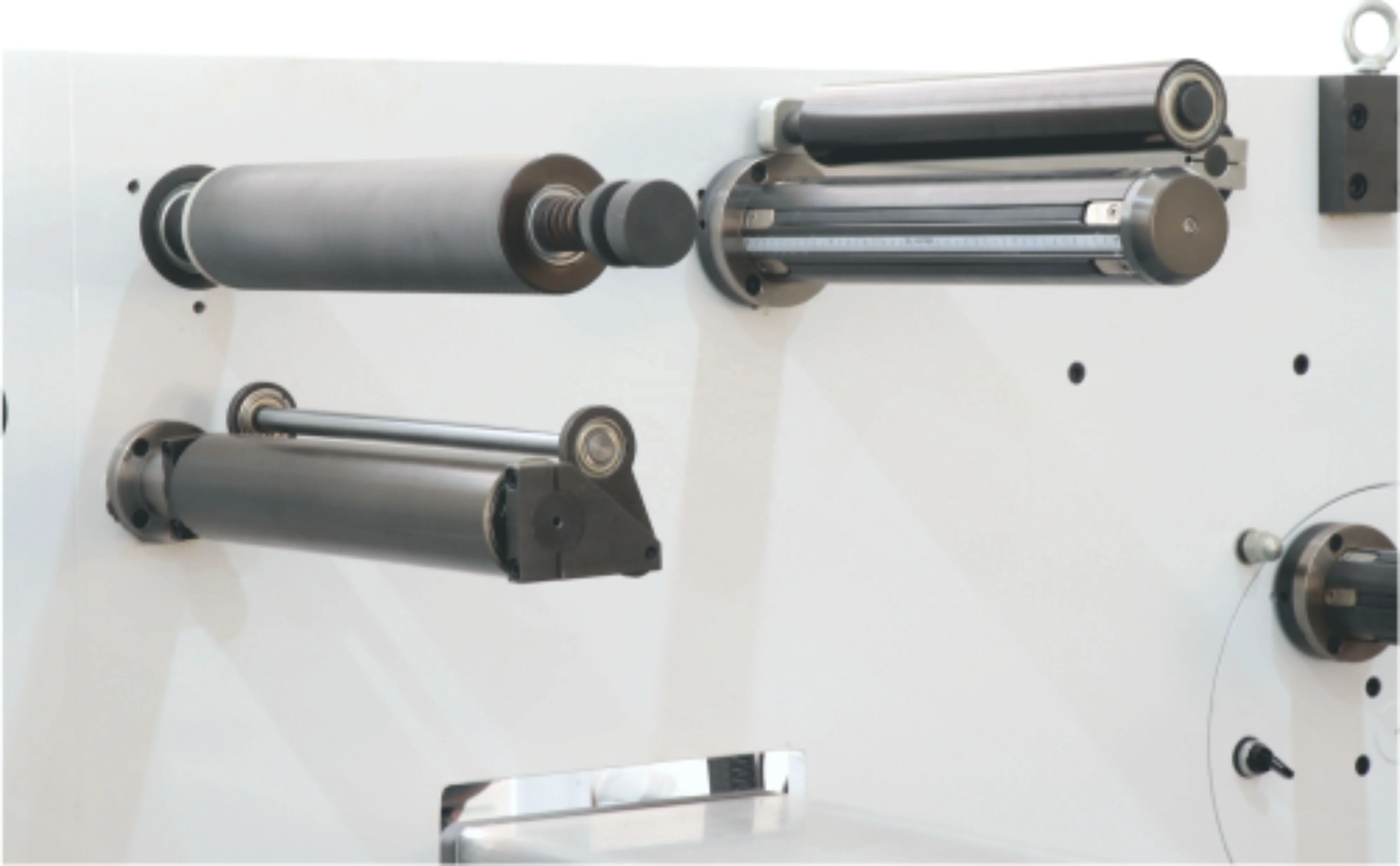

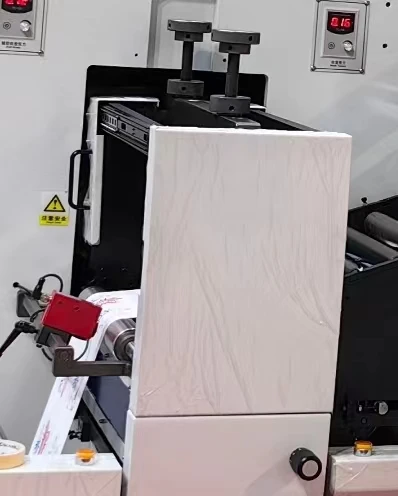

Waste Matrix Unit
Independent tension control, the rewinding speed changes following with the speed of the main machine, reducing tension fluctuations and prolonging the life of the magnetic powder.

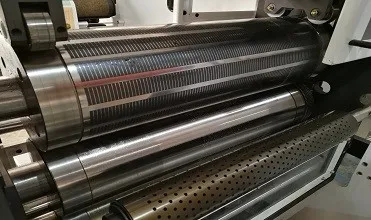

Magnetic Cylinder
High precision 140T magnetic cylinder, can adsorb iron sheet, release pressure on paper when the machine is working, and press out the model.

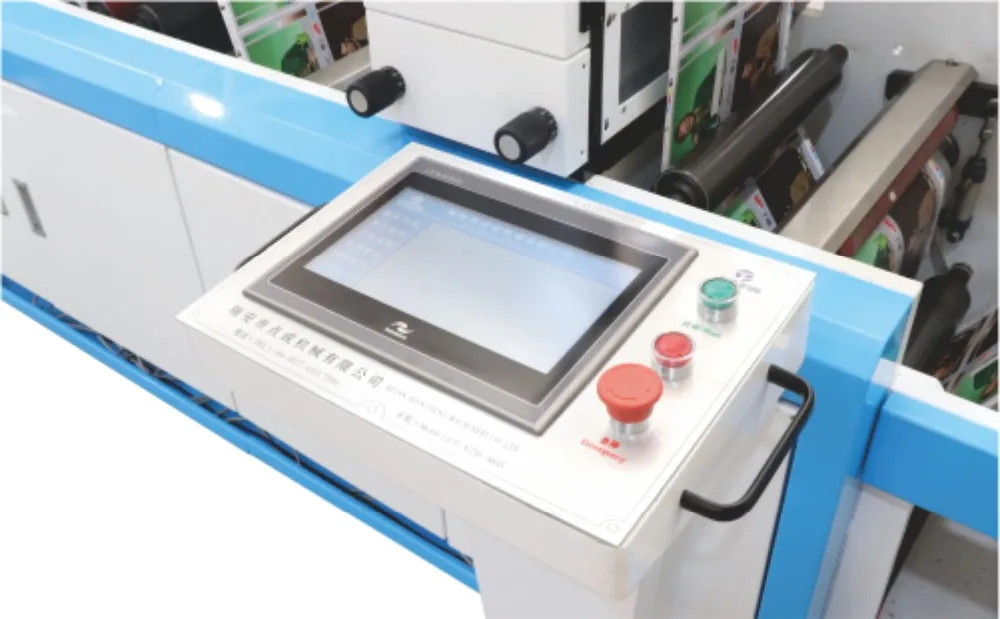

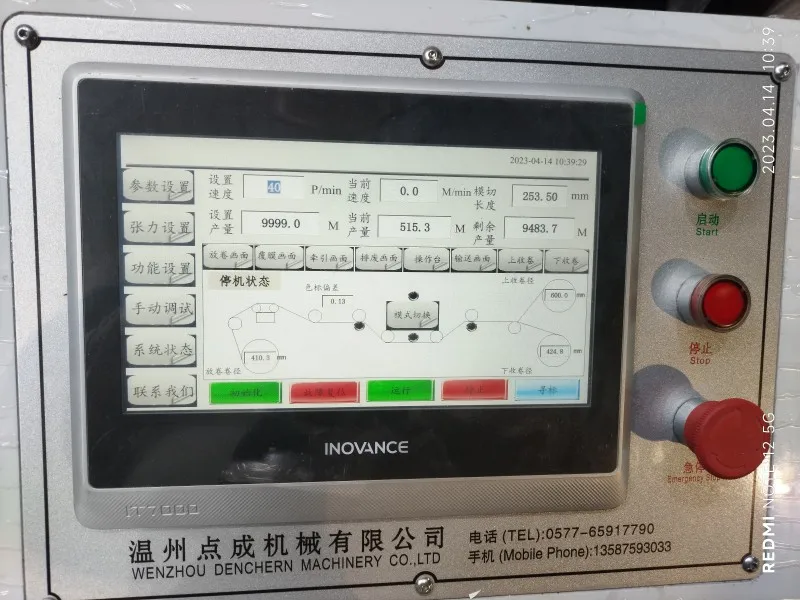

Touch Screen
Movable platform, friendly touched control screen with double language exchange for more convenient performance.

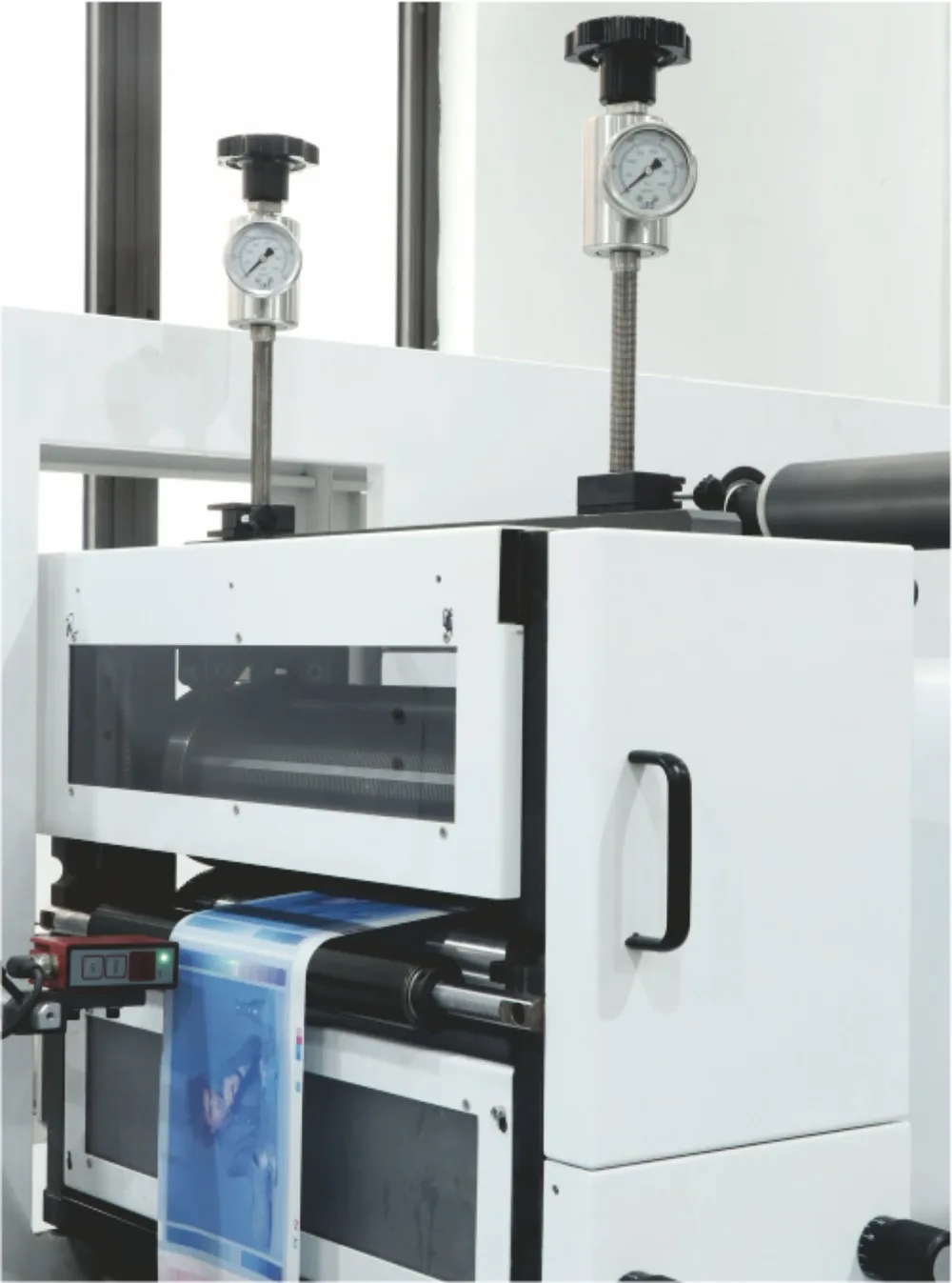

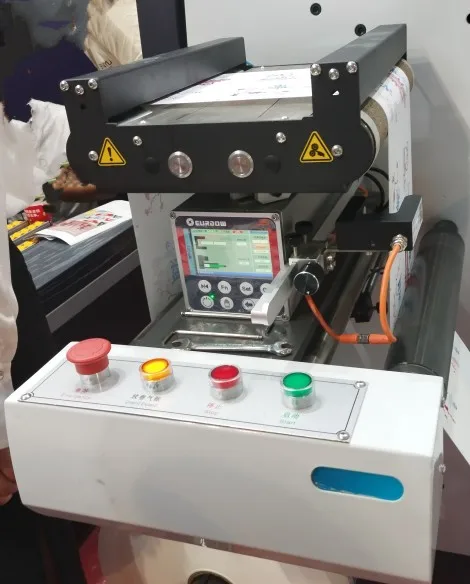

Die Cutting Unit
Adopt servo motor diver, double servo motor traction, independent tracking system, intermittent and rotary interchange working

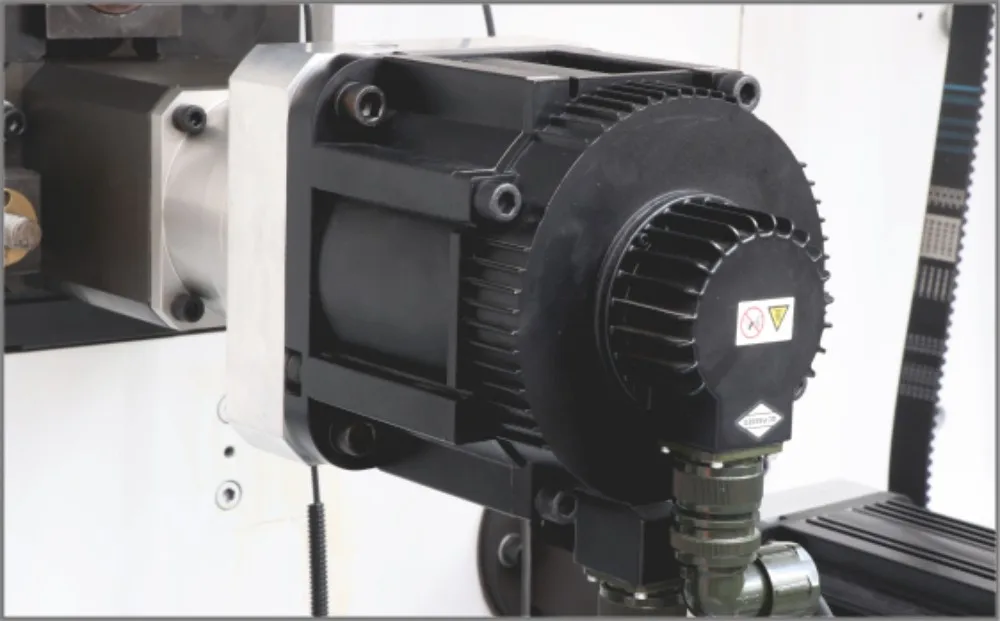

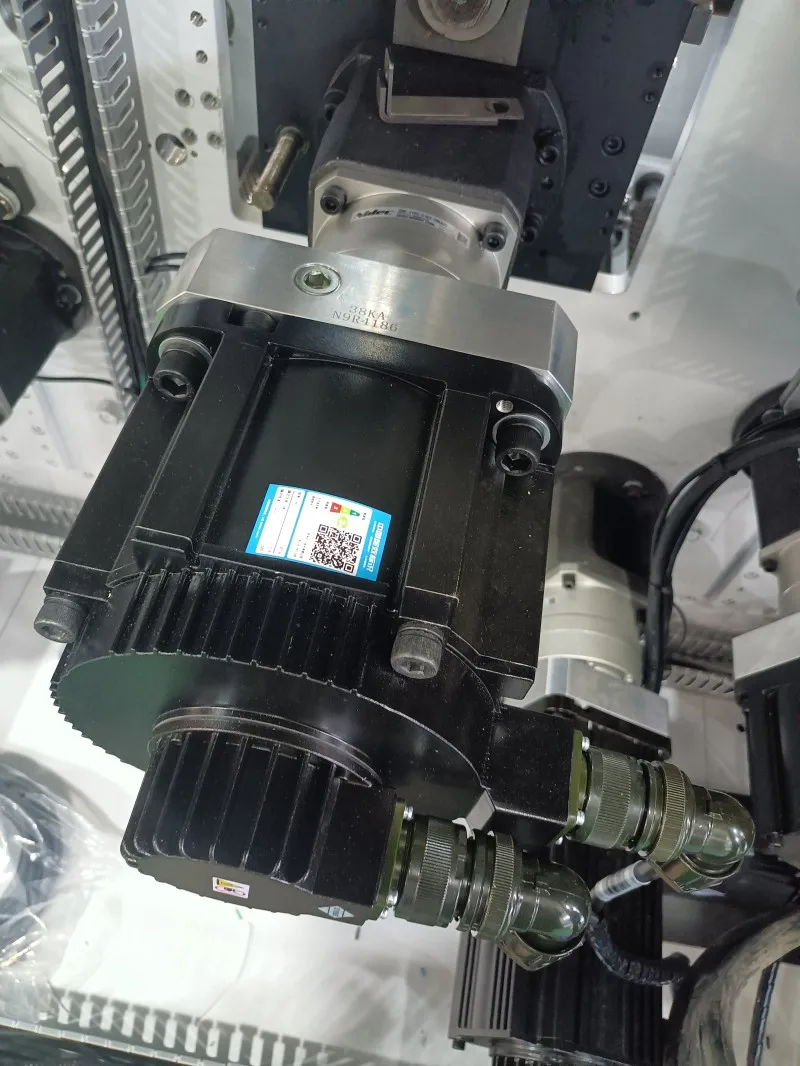

Servo Drive
Adopt Chinese leader brand servo motor driven.

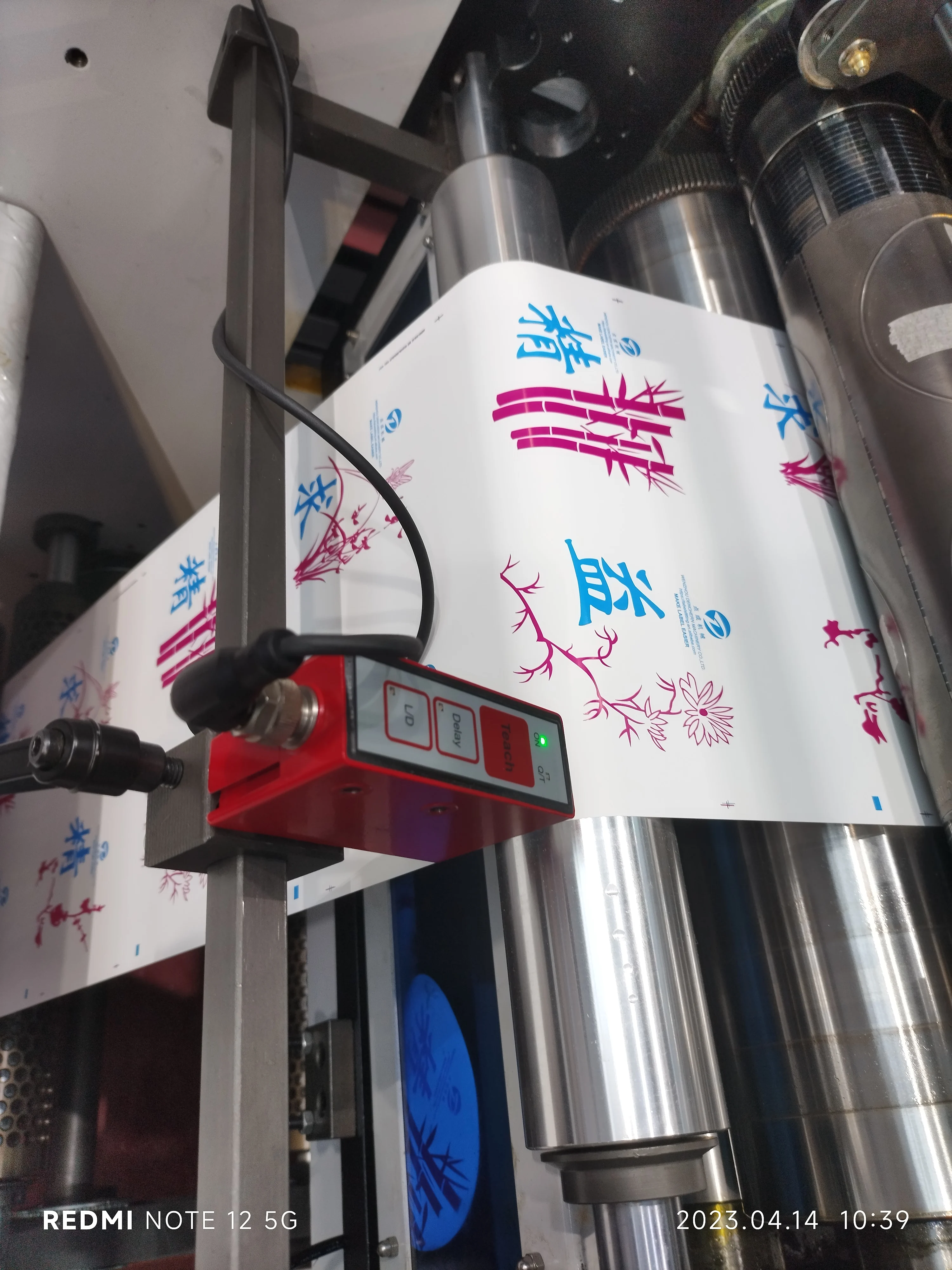

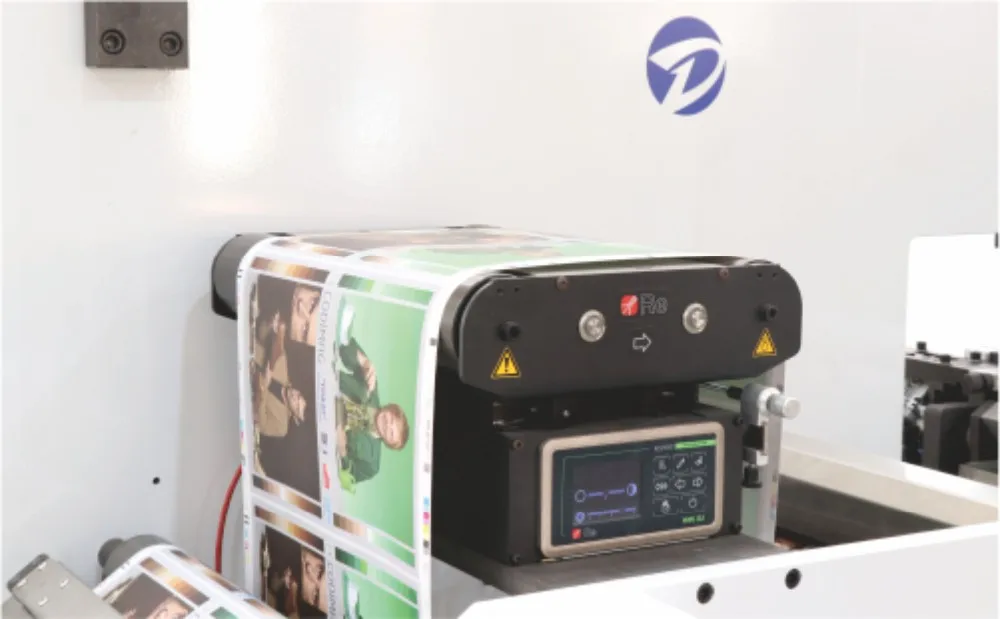

Web Guide
International brand web guide system, High precision.
Packing & Delivery

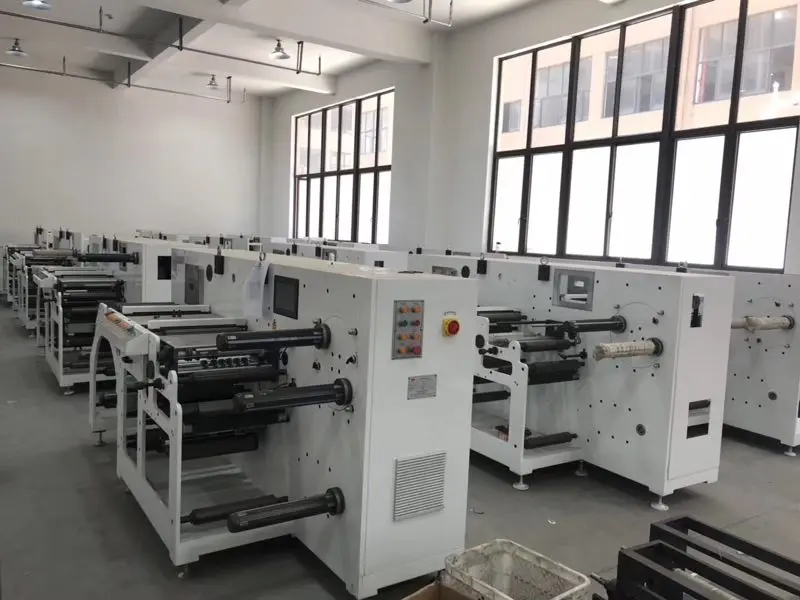

Our Company
Wenzhou Denchern machinery Co.,Ltd.
Wenzhou Denchern Machinery Co.,Ltd. is in Dongshan Industrual Zone,Ruian,Wenzhou City.It is located in the middle of China's gold coastline, between Shanghai Economic Zone and xiazhangquan Golden Delta. It is the connecting zone between the Pan Yangtze River Delta and the Pearl River Delta. Its geographical position is superior and its traffic is convenient.
Denchern machinery company is an enterprise that focuses on the R&D and production of self-adhesive label post printing equipment. In recent years, it has been in the forefront of technology development, technology reserve and product innivation. At present, we have more than 10 national patents. The main products are finishing equipment after digital printing,RFID electronic label finishing equipment, multi-functional label printing rotary processing equipment, full automatic high speed slitting machine, intermittent rotary die cutting machine, high speed flat bed hot stamping & die cutting machine machine, full automatic label inspection platform, full servo inkjet printing platform, etc.
Since Denchern company establishment, we have always taken the concept of "innivation, quality, mutual benefit" and the standard of "innovation, efficiency and energy saving".Especially in the aspect of quality management, we persistently carry out the management of "prior control, in-process and after control:, and increase the input of testing equipment to ensure the stability of product quality, which bring trust from the customers.
With "innovation" as the driving force, we will continue to deepen the management system, strengthen technical innovation, strengthen the team strength, and strive to become a first-class enterprise with internatioal competitiveness.
Wenzhou Denchern Machinery Co.,Ltd. is in Dongshan Industrual Zone,Ruian,Wenzhou City.It is located in the middle of China's gold coastline, between Shanghai Economic Zone and xiazhangquan Golden Delta. It is the connecting zone between the Pan Yangtze River Delta and the Pearl River Delta. Its geographical position is superior and its traffic is convenient.
Denchern machinery company is an enterprise that focuses on the R&D and production of self-adhesive label post printing equipment. In recent years, it has been in the forefront of technology development, technology reserve and product innivation. At present, we have more than 10 national patents. The main products are finishing equipment after digital printing,RFID electronic label finishing equipment, multi-functional label printing rotary processing equipment, full automatic high speed slitting machine, intermittent rotary die cutting machine, high speed flat bed hot stamping & die cutting machine machine, full automatic label inspection platform, full servo inkjet printing platform, etc.
Since Denchern company establishment, we have always taken the concept of "innivation, quality, mutual benefit" and the standard of "innovation, efficiency and energy saving".Especially in the aspect of quality management, we persistently carry out the management of "prior control, in-process and after control:, and increase the input of testing equipment to ensure the stability of product quality, which bring trust from the customers.
With "innovation" as the driving force, we will continue to deepen the management system, strengthen technical innovation, strengthen the team strength, and strive to become a first-class enterprise with internatioal competitiveness.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:What's your delivery date?
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balance before machine delivery.
We accept L/C at sight.
We accept Cash.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100USD/day.
A: We are factory.
Q:What's your delivery date?
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balance before machine delivery.
We accept L/C at sight.
We accept Cash.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100USD/day.
Похожие товары
RDA-350E hontec постпечатное оборудование умирает автомат для резки круговой Матрица прессования технологии
Высокоточная машина для штамповки этикеток резки VR30
537 059,67 ₽ - 656 418,51 ₽

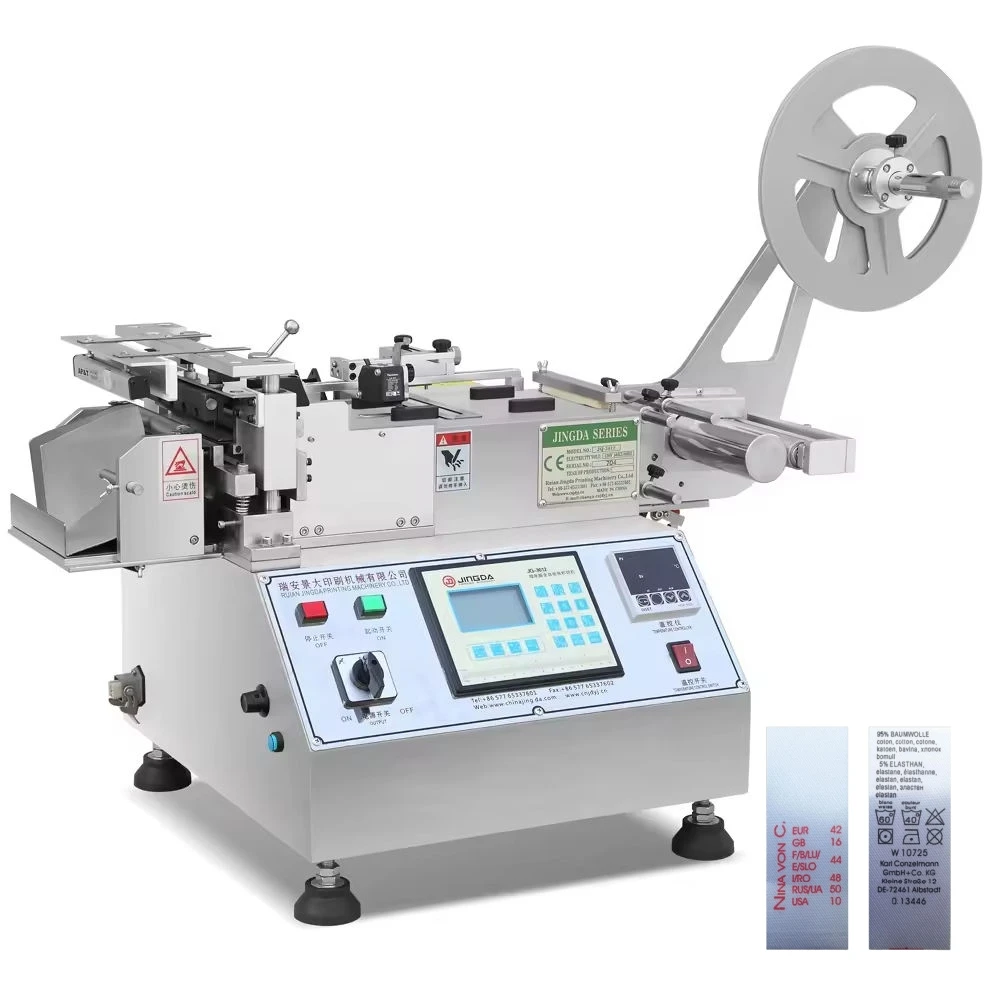

JQ-3012 Китай Jingda мини-размер высокоточный автоматический горячий и холодный резак этикетки для резки одежды
264 507,12 ₽ - 319 612,77 ₽
Пароварка для текстильной ткани с цифровой печатью
A4 мини-Ультрафиолетовый принтер-самый маленький Ультрафиолетовый планшетный принтер для печати чехла телефона с программным обеспечением
77 037,70 ₽ - 110 101,09 ₽
Машина для тиснения номерных знаков бумажных изделий
165 316,95 ₽ - 187 359,21 ₽

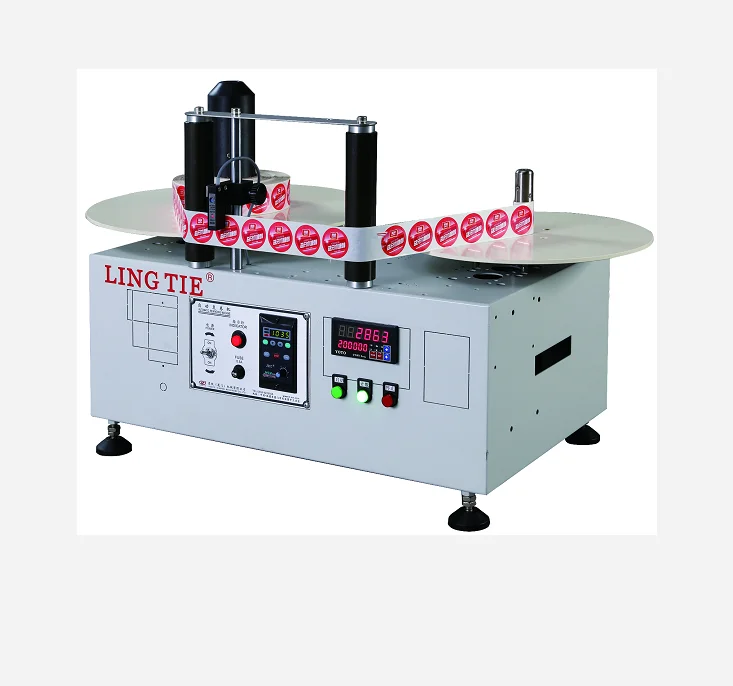

Машина для перемотки счетчика этикеток в рулоне
