600 импульсный инкрементный фотоэлектрический Лифт поворотный кодер DC5 24V AB двухфазный 600Ppr
- Категория: >>>
- Поставщик: Shenzhen Andeweier Technology Co. Ltd.
Сохранить в закладки 1600834972978:
Описание и отзывы
Характеристики
Product Description
Specification

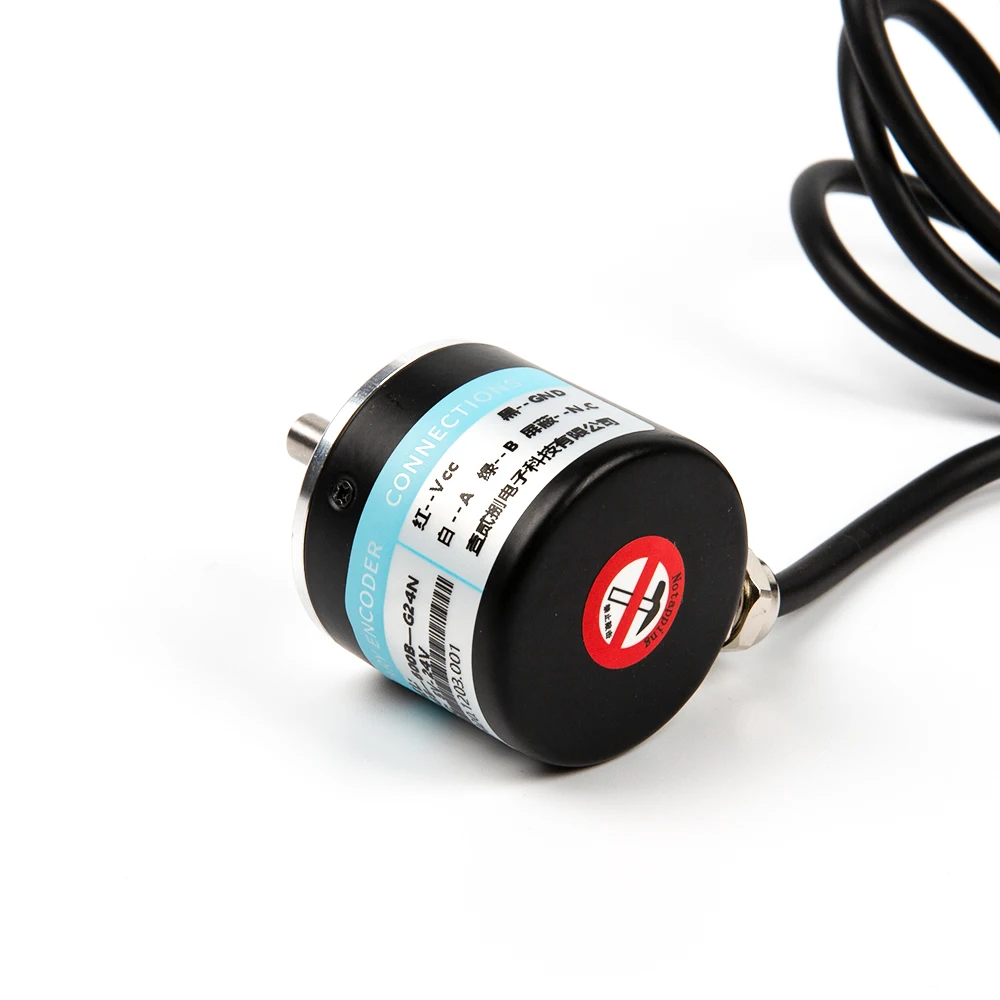

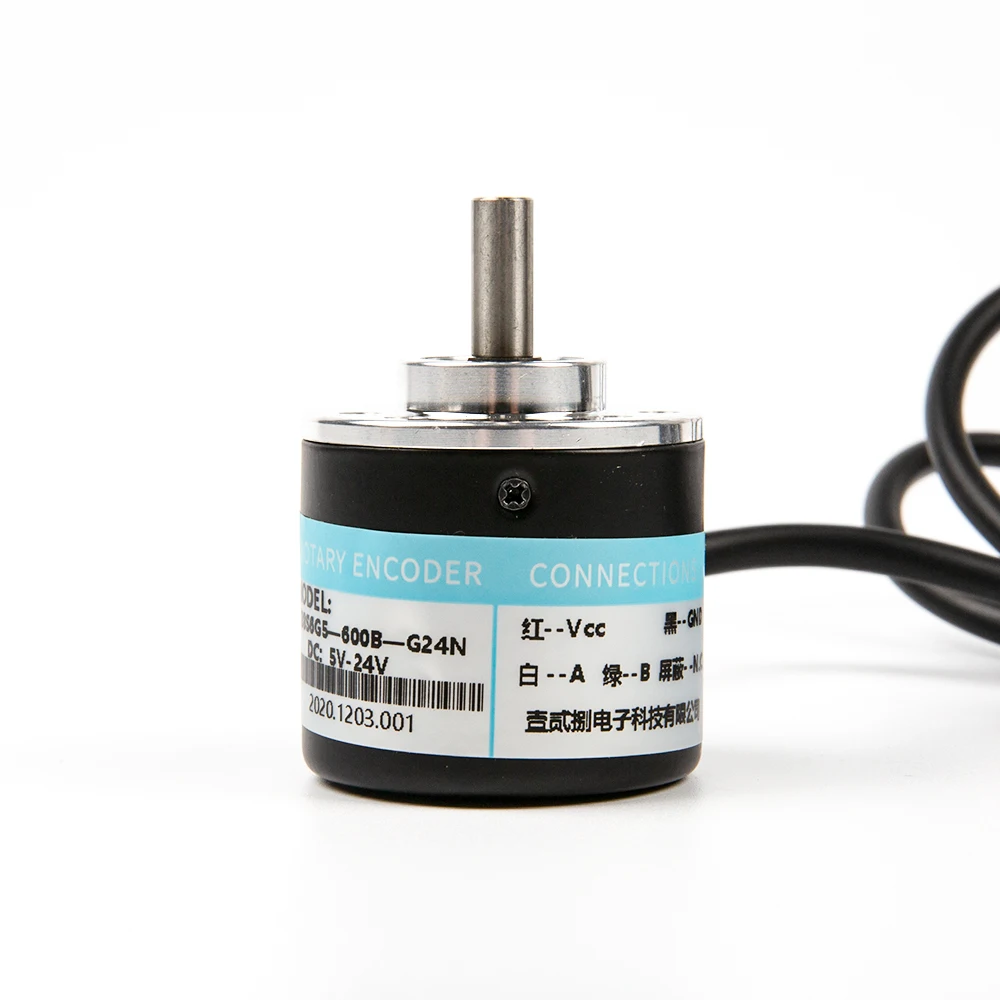

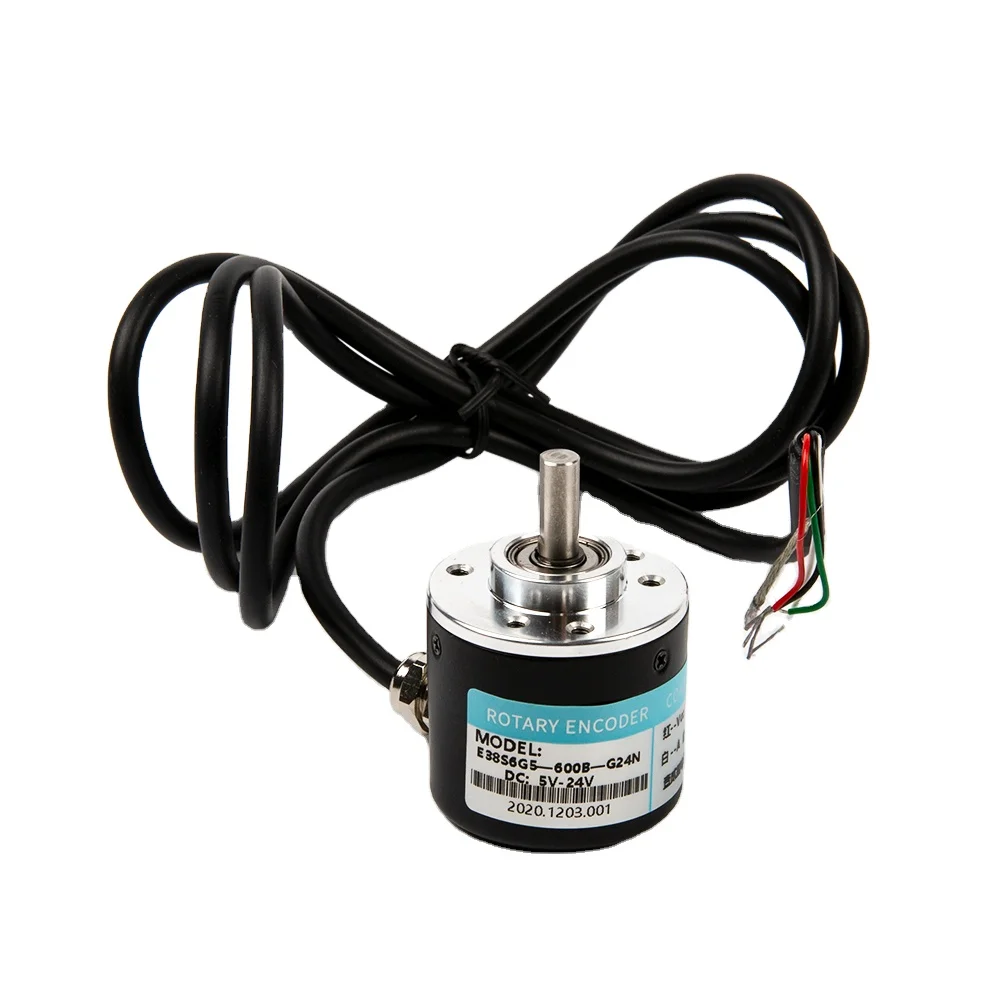

600 Pulse Incremental Photoelectric Elevator Rotary Encoder DC5-24V AB Two-phase 600Ppr LPD3806-600BM-G5-24CAB two phase incremental optical encoder
New design：600 pulses, two light modes: NPN open collector output or output voltage. with aluminum coupling standard 1.5 m cable.Model: 600,P/ R incremental encoder, AB two-phase performance: 600 pulse / Rev.operating voltage: DC5-24V ,maximum mechanical speed 5000 rev /min, the electrical response frequency 20 K / sec, integrated speed 2000 rev / min.
Measure:encoder main body: φ38mm;shaft φ6 × 13mm;axis platform: High 5mm, φ20mm;mounting holes: M3 screws, three mounting holes on the

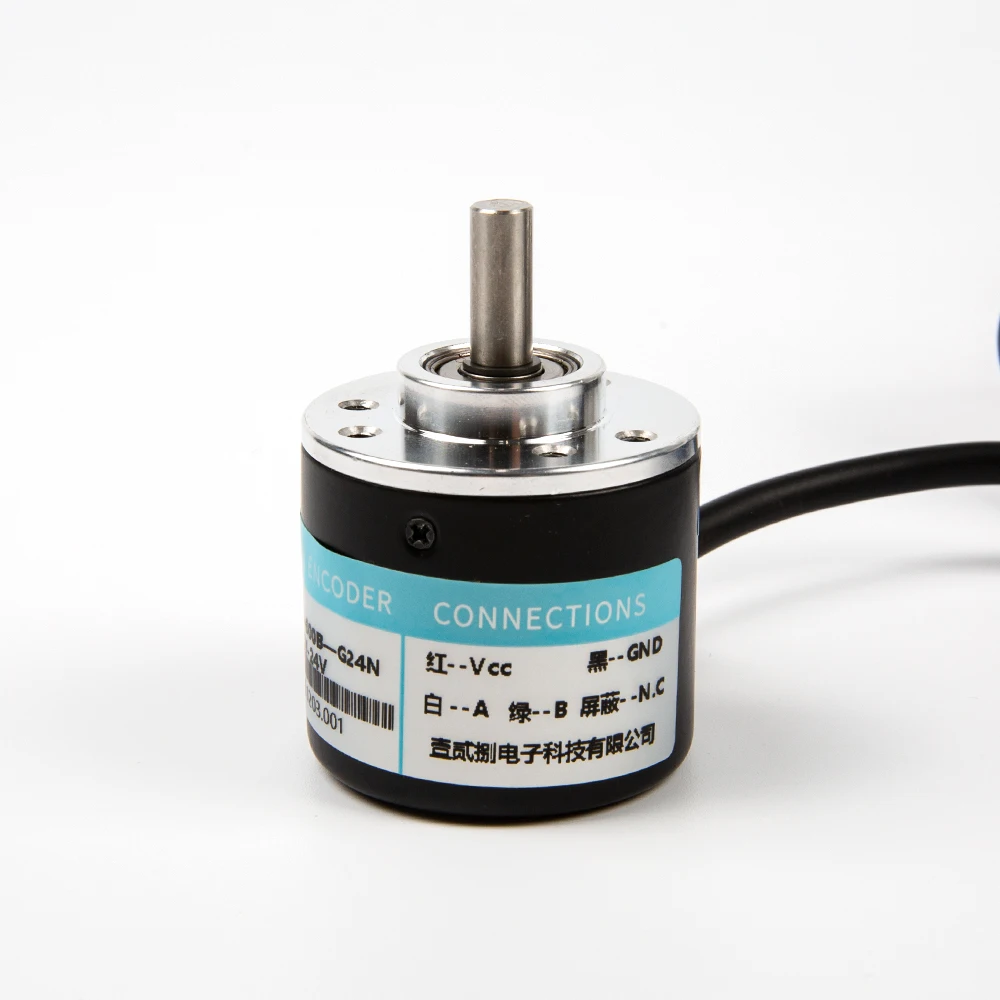

circle 30, and the other three mounting holes on the circle 28; side wire leads out.wiring: Green = Single phase, white = B phase,red = Vcc positive supply, black = V0 accept wiring as above with metal shielding low interference.
Output: AB rectangular two-phase quadrature pulse output circuit output NPN open collector output type, this output type can beused with internal pull-up resistor directly on the microcontroller or PLC, such as 51 MCU or Mitsubishi PLC (PLC input mustswitch to receive 0 V work ), note: if the encoder is not connected to the device can not directly oscilloscope oscilloscope
(opencollector output when no pull-up resistor, there is no output voltage) to oscilloscope in the AB two-phase output plus twopull-up resistor;
Uses: for measuring the rotational speed of the object, angle, acceleration, and length measurements.
Usage: Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machine, steel fixed-length cutting controller, civil measured height, human scale, college game with robots.
Features: small size, light weight, easy installation, high cost of major advantages.
Note: A phase and B phase output lines must not be directly on VCC, otherwise the output will burn audion.
New design：600 pulses, two light modes: NPN open collector output or output voltage. with aluminum coupling standard 1.5 m cable.Model: 600,P/ R incremental encoder, AB two-phase performance: 600 pulse / Rev.operating voltage: DC5-24V ,maximum mechanical speed 5000 rev /min, the electrical response frequency 20 K / sec, integrated speed 2000 rev / min.
Measure:encoder main body: φ38mm;shaft φ6 × 13mm;axis platform: High 5mm, φ20mm;mounting holes: M3 screws, three mounting holes on the
circle 30, and the other three mounting holes on the circle 28; side wire leads out.wiring: Green = Single phase, white = B phase,red = Vcc positive supply, black = V0 accept wiring as above with metal shielding low interference.
Output: AB rectangular two-phase quadrature pulse output circuit output NPN open collector output type, this output type can beused with internal pull-up resistor directly on the microcontroller or PLC, such as 51 MCU or Mitsubishi PLC (PLC input mustswitch to receive 0 V work ), note: if the encoder is not connected to the device can not directly oscilloscope oscilloscope
(opencollector output when no pull-up resistor, there is no output voltage) to oscilloscope in the AB two-phase output plus twopull-up resistor;
Uses: for measuring the rotational speed of the object, angle, acceleration, and length measurements.
Usage: Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machine, steel fixed-length cutting controller, civil measured height, human scale, college game with robots.
Features: small size, light weight, easy installation, high cost of major advantages.
Note: A phase and B phase output lines must not be directly on VCC, otherwise the output will burn audion.
item | value |
Mounting Type | DC5-24V |
Description | DC5-24V Incremental Photoelectric Rotary Encoder, DC5-24V 600 Pulses, Pulses Incremental Photoelectric Rotary Encoder |
Model Number | ND077 |
Type | Mechanical Encoder |
Place of Origin | Guangdong, China |
Brand Name | Robotlinking, Robotlinking |
Usage | DC5-24V 600 Pulses, Pulses Incremental Photoelectric Rotary Encoder |
Theory | DC5-24V 600 Pulses, Pulses Incremental Photoelectric Rotary Encoder |
Product name | DC5-24V 600 Pulses Incremental Photoelectric Rotary Encoder |
encoder main body | 38mm |
performance | 600 |
operating voltage | DC5-24V |
shaft | 6 x 13mm |
Condition | Condition |
Company Profile
Andowell Technology Ltd provide one-stop service from 1 Piece PCB prototype to Massive complete product building.Including the PCB sampling, component purchasing, PCB assembly, PCB functional testing and final product assembly.
Products mainly sell to oversea customer from United States, Europe, Israel, Australia, Turkey, ect
PCBS widely used for consumer electroinics, Beauty devices, medical,communications, solar energy, machinerys ect.
Also we are selling electronic modules,electric parts as well,
Andowell have worked for PCB field since 2008 to help customer to go with a electronic product process from design to finished production. We understand a electronic product would take a lot of time and engergy. So, we think we may provide some ready modules to help customer save some time/cost during the design or production process.
Products mainly sell to oversea customer from United States, Europe, Israel, Australia, Turkey, ect
PCBS widely used for consumer electroinics, Beauty devices, medical,communications, solar energy, machinerys ect.
Also we are selling electronic modules,electric parts as well,
Andowell have worked for PCB field since 2008 to help customer to go with a electronic product process from design to finished production. We understand a electronic product would take a lot of time and engergy. So, we think we may provide some ready modules to help customer save some time/cost during the design or production process.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to North America(50.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Northern Europe(5.00%),Central America(5.00%),Mid East(5.00%),Oceania(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PCBA/ PCBA design,Module,Car Electronics,Electronics
4. why should you buy from us not from other suppliers?
PCBA &Development board:Turnkey service. From 1pcs to massive production
Car Electronics, Car Stereo, Car Video, Car DVD player
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2016,sell to North America(50.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Northern Europe(5.00%),Central America(5.00%),Mid East(5.00%),Oceania(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PCBA/ PCBA design,Module,Car Electronics,Electronics
4. why should you buy from us not from other suppliers?
PCBA &Development board:Turnkey service. From 1pcs to massive production
Car Electronics, Car Stereo, Car Video, Car DVD player
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
Похожие товары
Автоматический резервуар сосуд под давлением круговой шов сварочный аппарат
750,00 $ - 6 500,00 $
Молд король 21026 МК звезды тысячелетия строительные блоки игрушки маленький ребенок модели пластиковые строительные игрушки
185,57 $ - 199,98 $

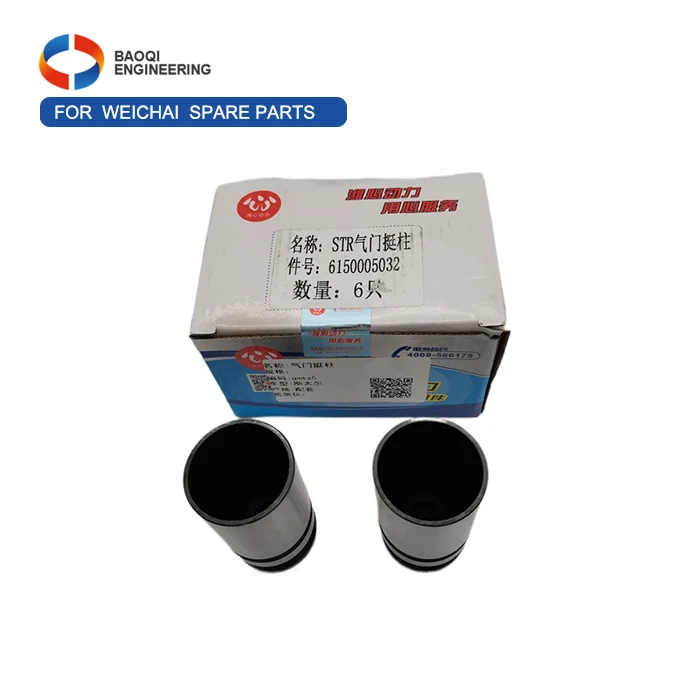

Заводская розетка высокого качества клапан-Tappet 6150005032 клапан Tappet для WEICHAI WD615

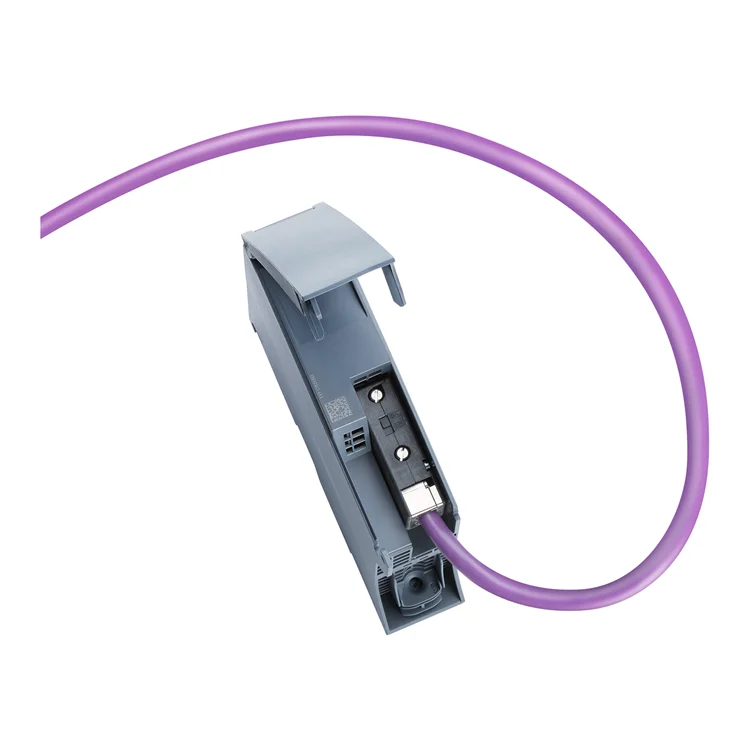

Siemens SIMATIC NET коммуникационный модуль см 1542-5 PROFIBUS DP 6GK7542-5DX00-0XE0 100% Совершенно новый и оригинальный

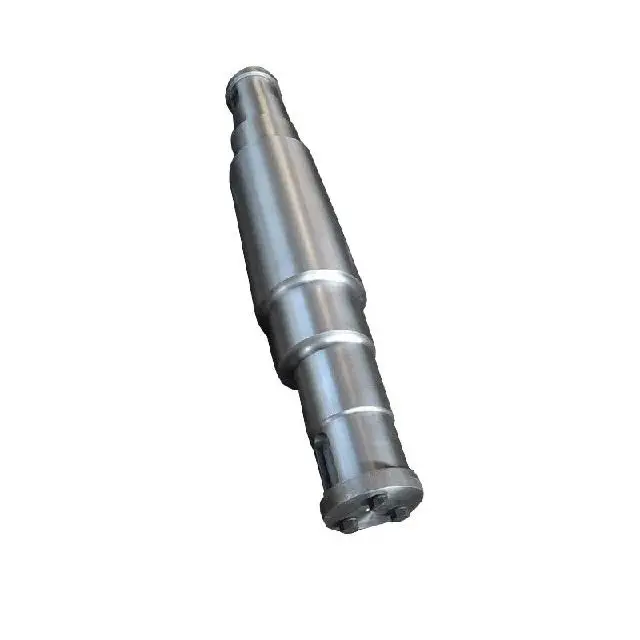

Специализируется на производстве кованых стержней большого
5,50 $ - 6,00 $

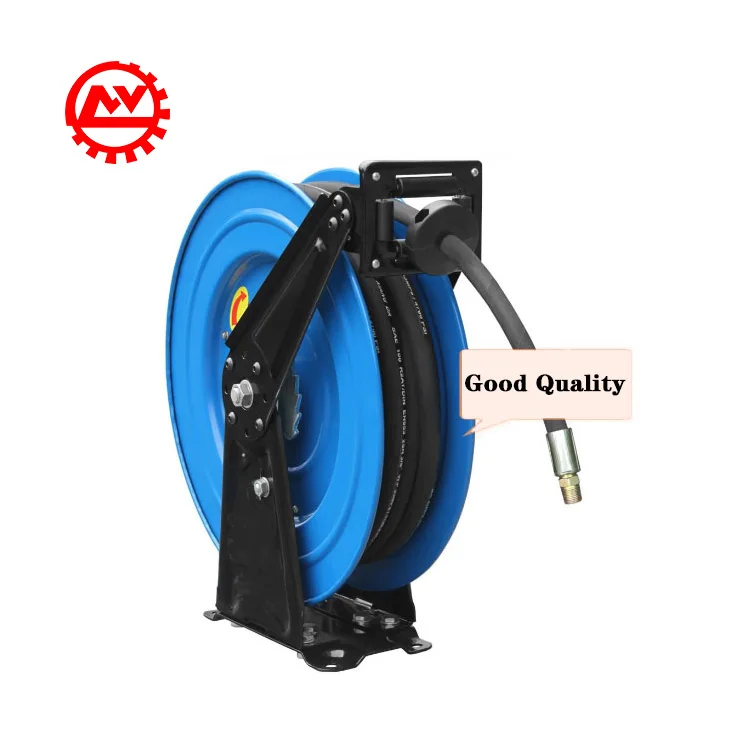

Сверхмощная Автоматическая выдвижная настенная пружина для перемотки шлангов 1/2 дюйма 20 м промышленного
179,00 $ - 185,00 $

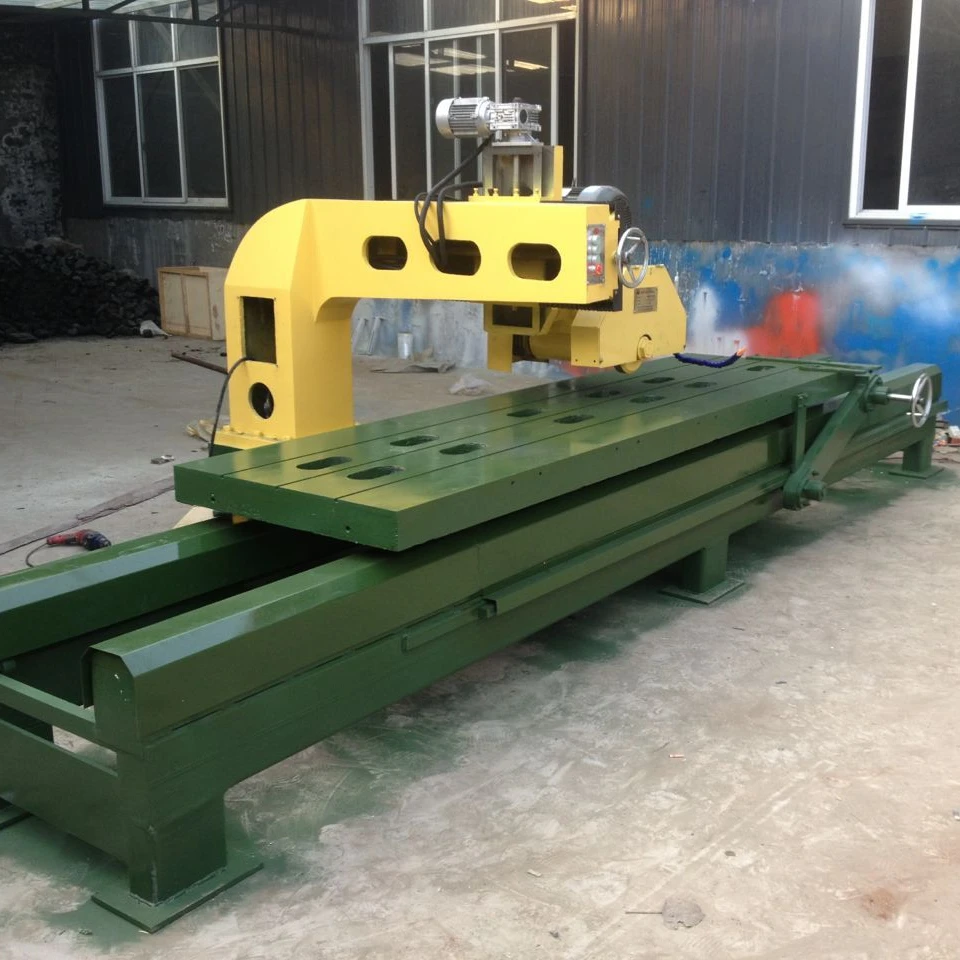

Гидравлическая горная машина для резки мраморного блока с открытой рамой, машина для резки камня для резки графитового драгоценного камня
