Автоматическая машина для напыления цементного раствора

Автоматическая машина для напыления цементного раствора

Категория: >>>
Поставщик: Wenzhou Wengong Engineering Machinery Co. Ltd.

Цена:328 180,20 ₽ - 711 057,10 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

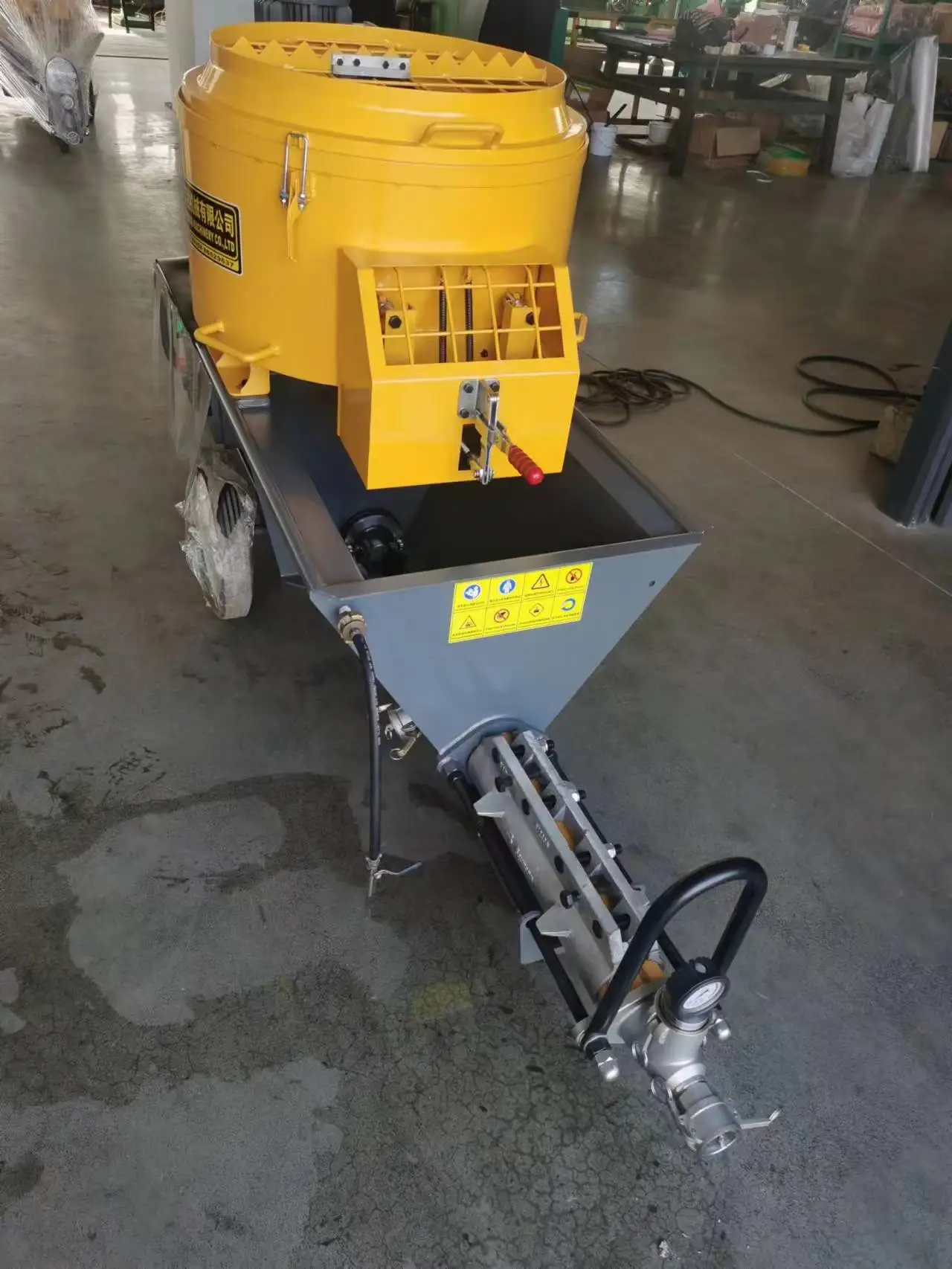

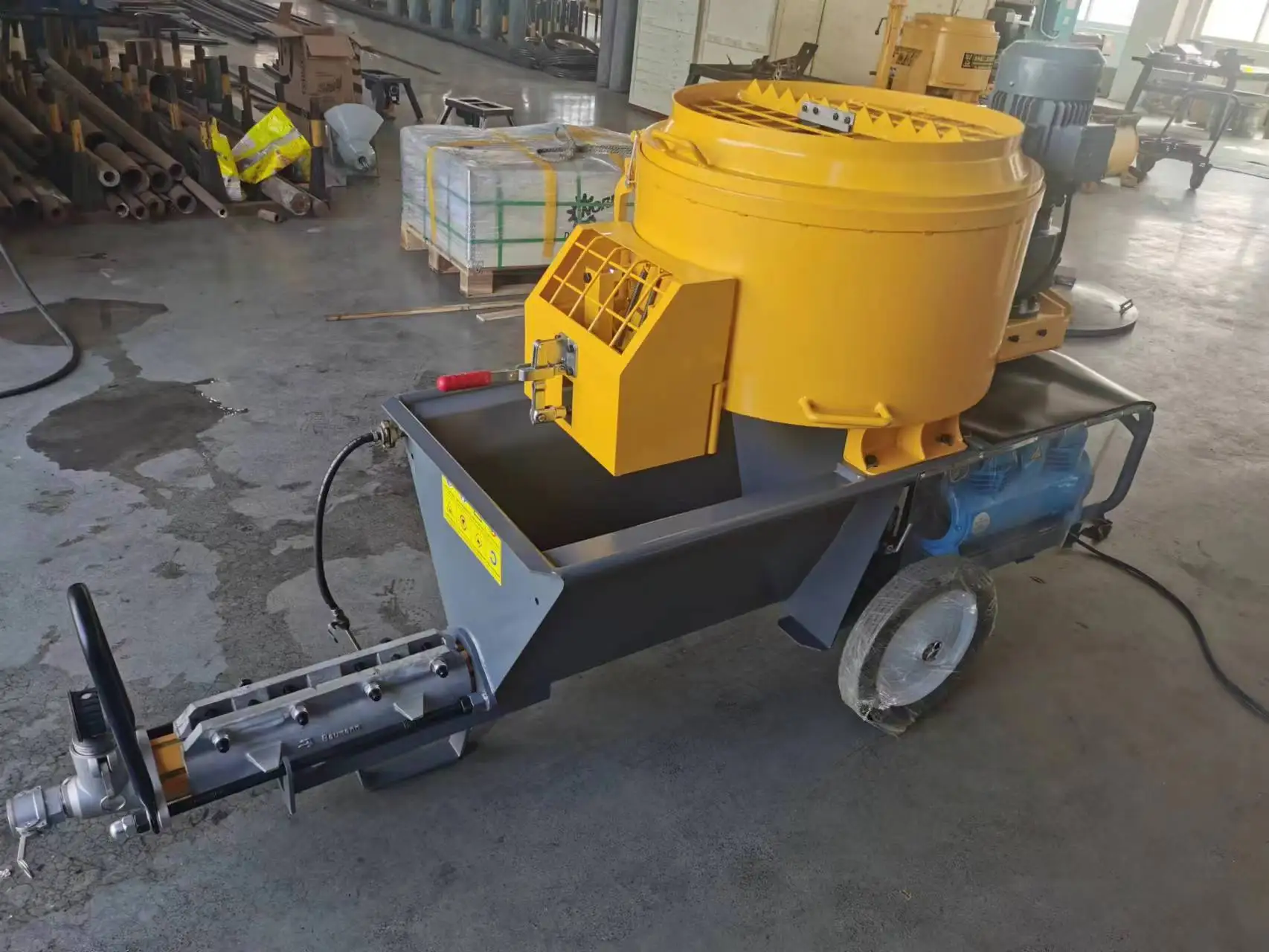

JP70-L wall cement machine

JP70-L is multi-functional large output plastering machine introduced Italian technology. It has the combined functions of mixing, pumping, bonding and plastering. It's suitable for different characteristics dry ready-mixed mortar construction. With modular structure, it's easy to move, dissemble and operate. With variable speed regulation, can achieve different pressure, output and plastering speed. Sets the pressure controlling protection mechanism, and meets the remote control working requirement.

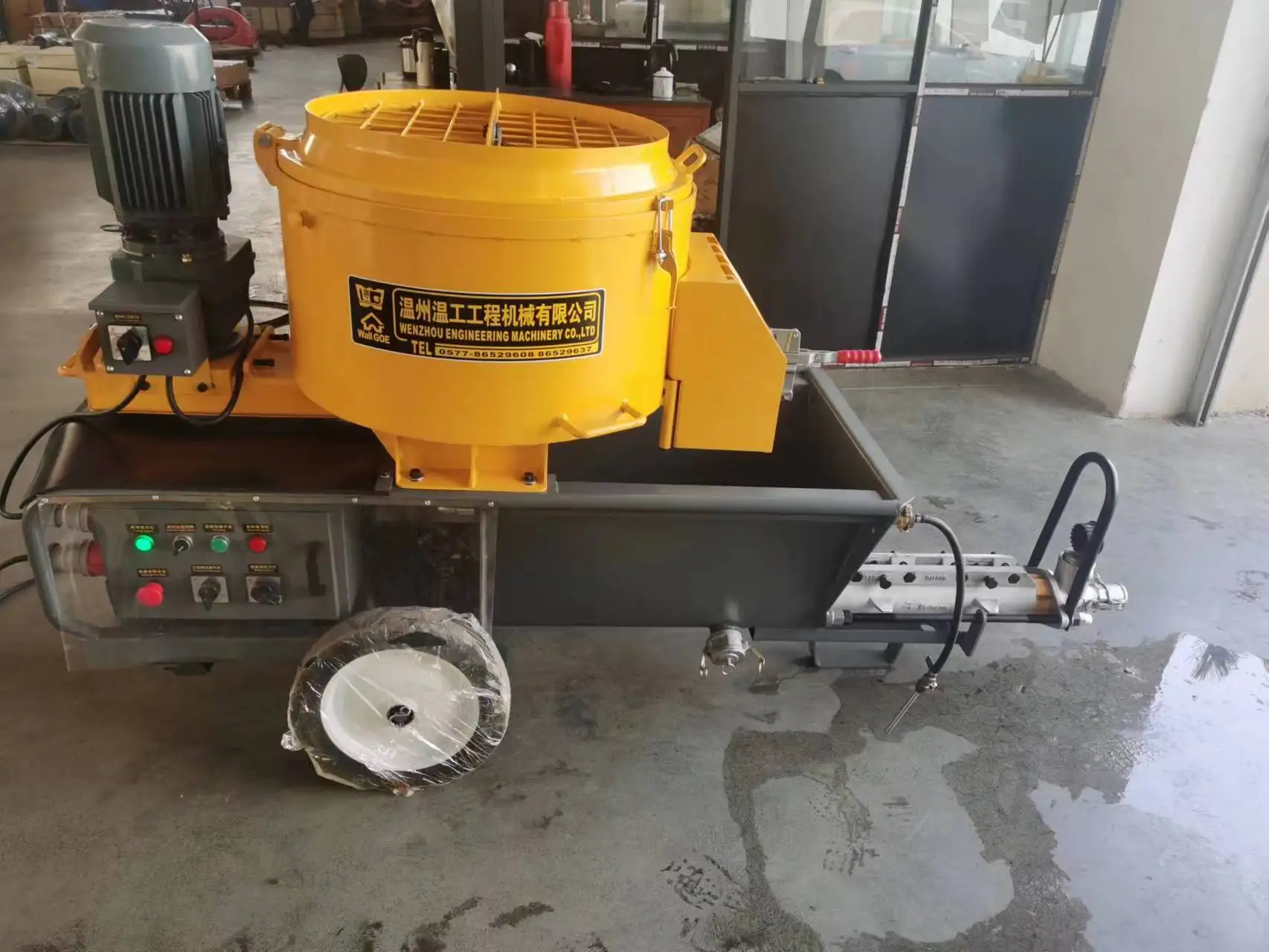

JP70-L 01

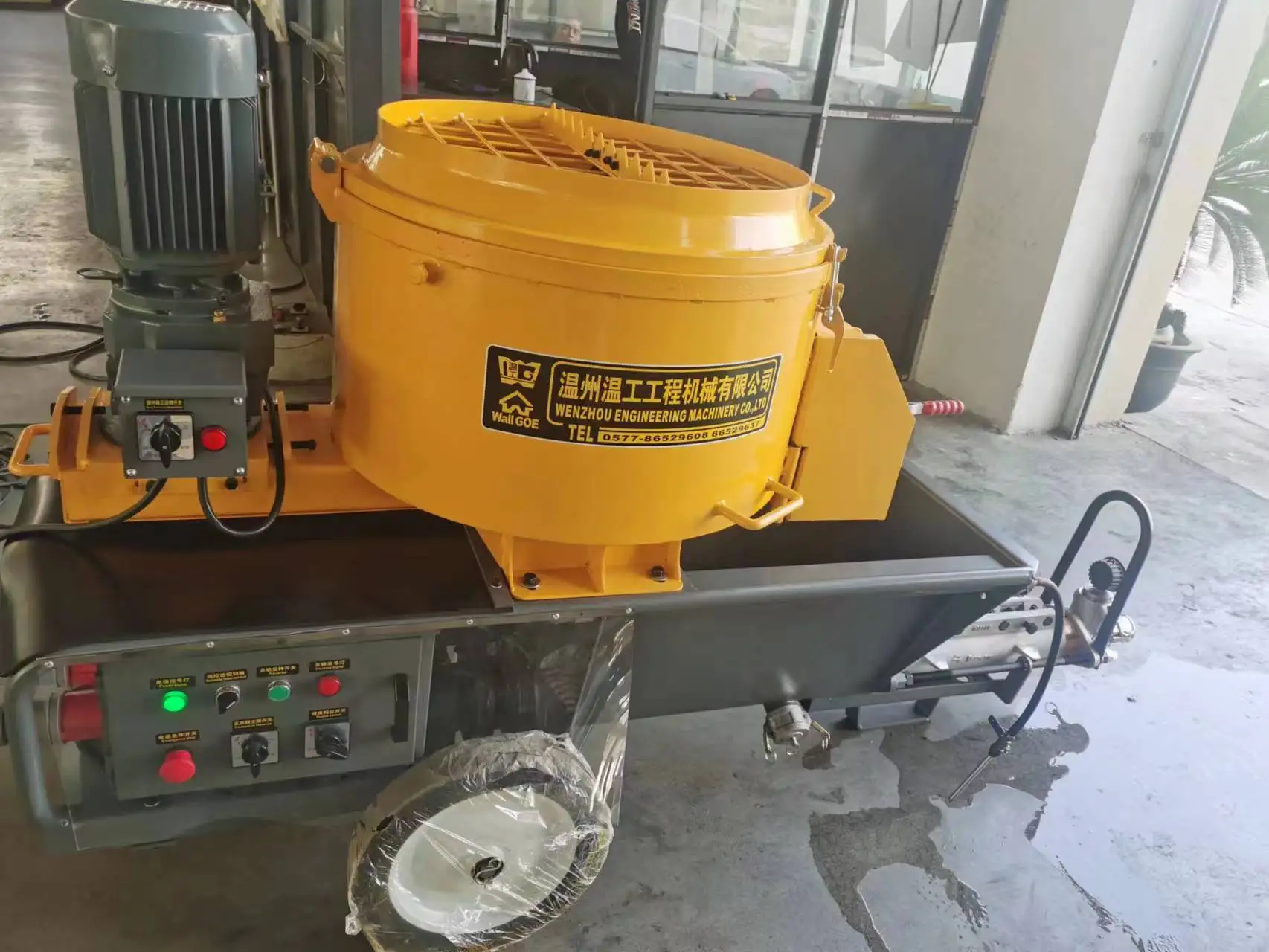

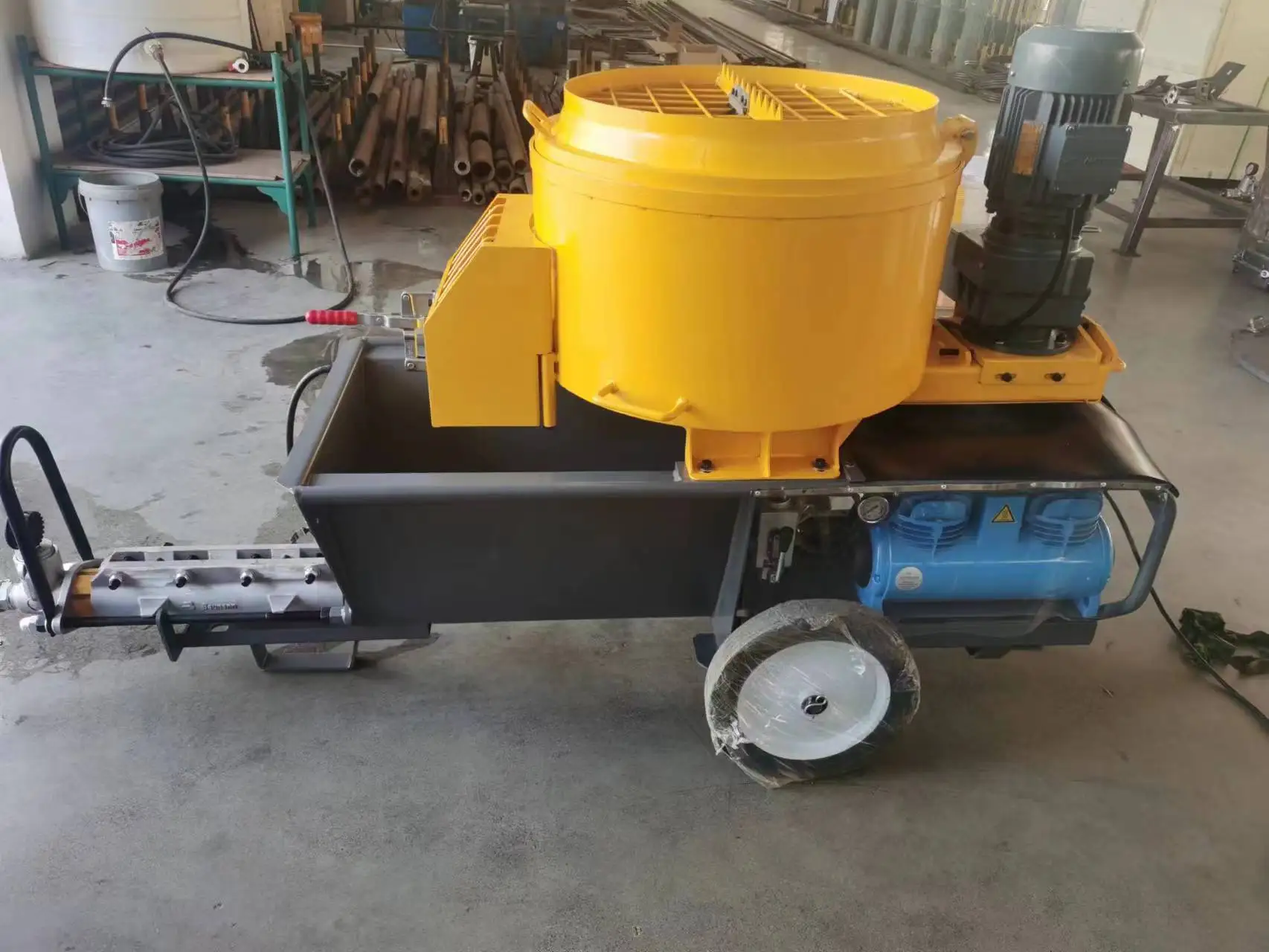

JP70-L 02 JP70-L S (3) JP70-L S (2)

JP70-L plastering machine feature:
For spraying or pumping traditional mortar and pre-mixed plasters, fiber-reinforced and refractory mortars, fireproof materials, self-leveling screeds and for reinforcing injections at controlled pressure.

Technical parameters of JP70-L Mortar plastering machine

Model	—	JP70-L
Supply power	—	400V 50Hz
Motor power	kw	3.7/4.4
Compressor power	kw	2.2
Maximum grain size	mm	8
Output	L/min	70
Delivery pressure	bar	30
Horizontal delivery distance	m	60
Vertical delivery distance	m	30
Mixer power	kw	1.1
Mixer volume	l	120
Hopper volume	l	120
Net weight	kg	395
Dimension (L×W×H)	mm	2040×820×1270
