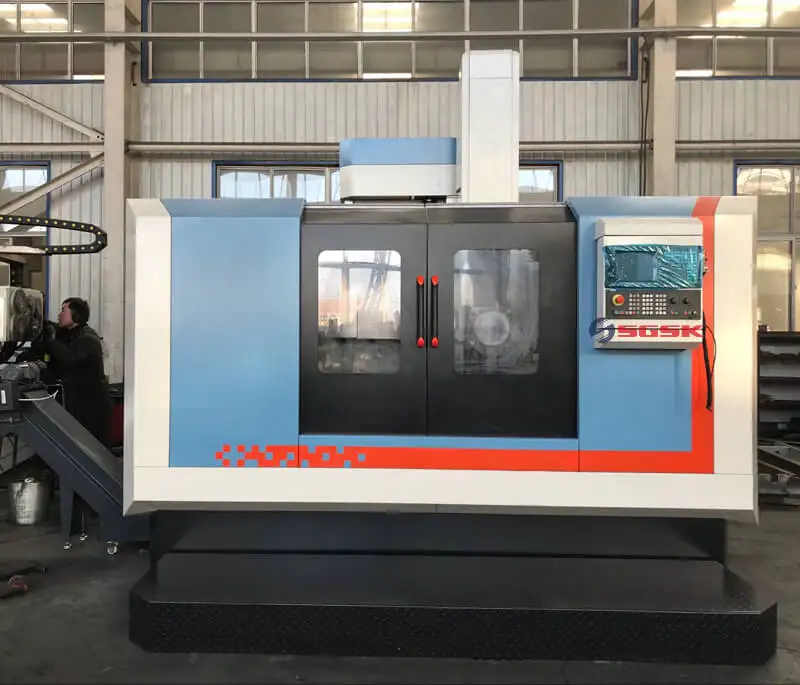

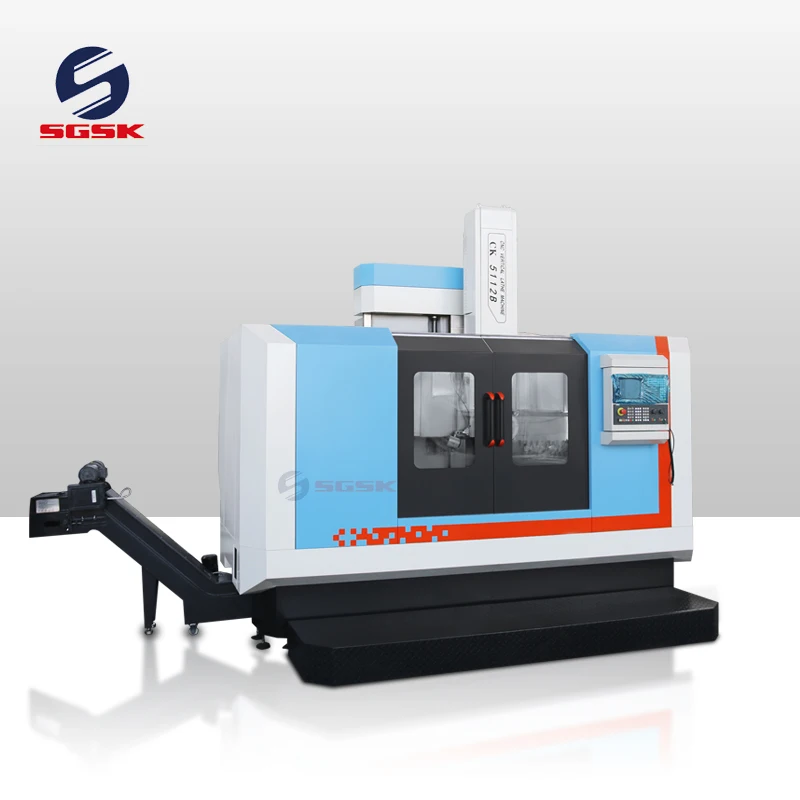

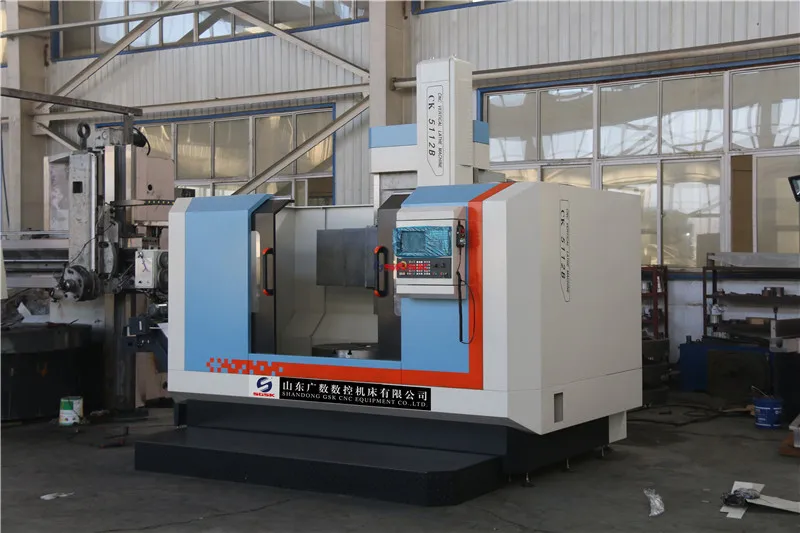

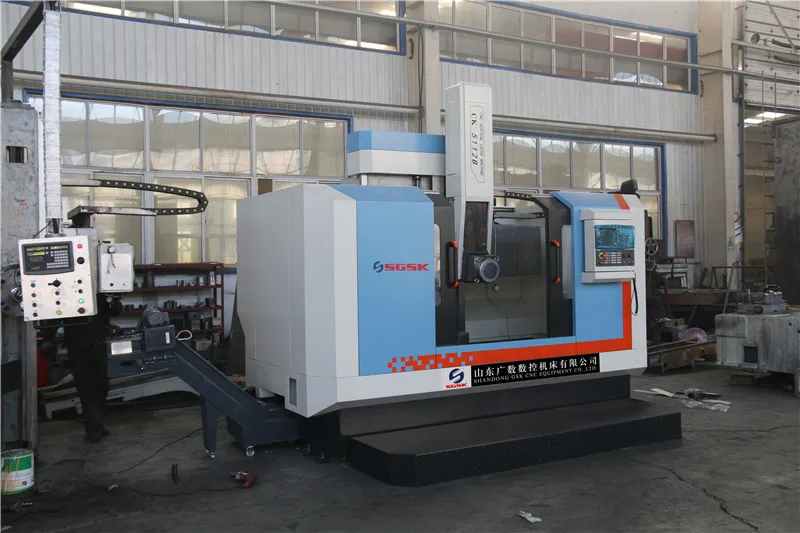

Вертикальный токарный станок с ЧПУ Okuma CK5125D японский
- Категория: >>>
- Поставщик: Shandong Gsk Cnc Equipment Co. Ltd.
Сохранить в закладки 1600835830224:
Описание и отзывы
Характеристики
Okuma vertical cnc lathe machine CK5125D japanese cnc lathe
Products Description

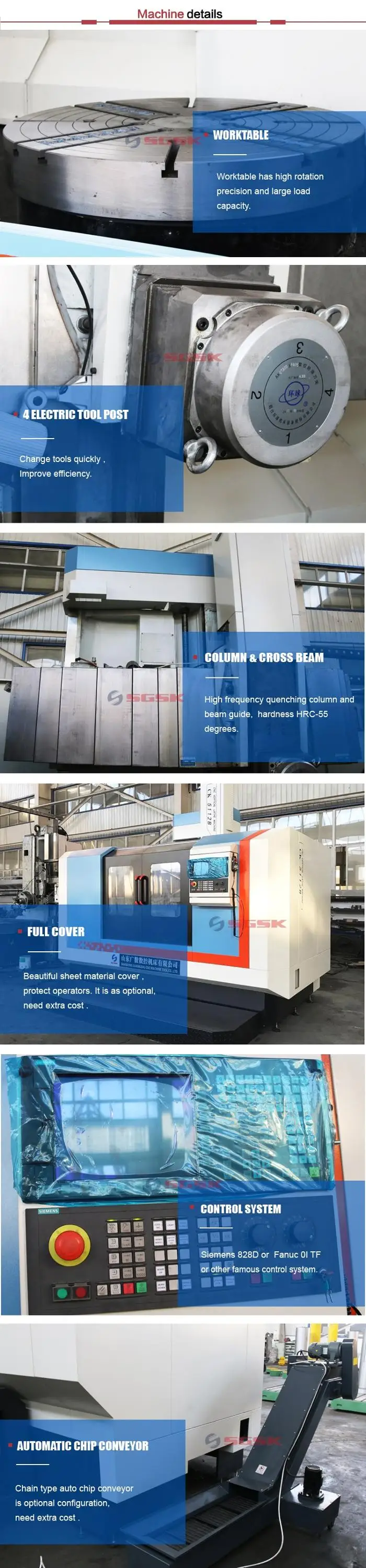

Details Display
The lathe features:
1. This vertical CNC lathe is a advanced equipment of high performance, widely technology range, high production efficiency. It lathe is apply to machining of all industries. Rough and finish machining of inside&outside cylindrical surface, circular conical surface, end face, grooving, arc surface, sorts of curve face and thread
2. Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to
centering to centering. Axial direction adopts CC hydrostatic guideway, worktable have the features of high running accuracy, big bearing capacity, small thermal deformation.

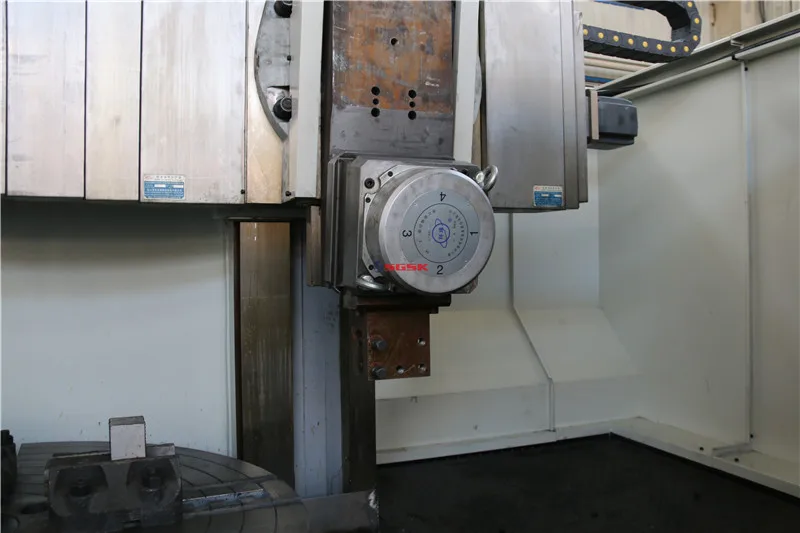

3. The lathe feed adopts AC servo motor, ball screw for drive. Rail head of cross beam equipped with close shield, increase the safety and the amenity
4. The lathe feed adopts AC motor drive, 16 steps main spindle speed change mechanism and realize the worktable range of speed

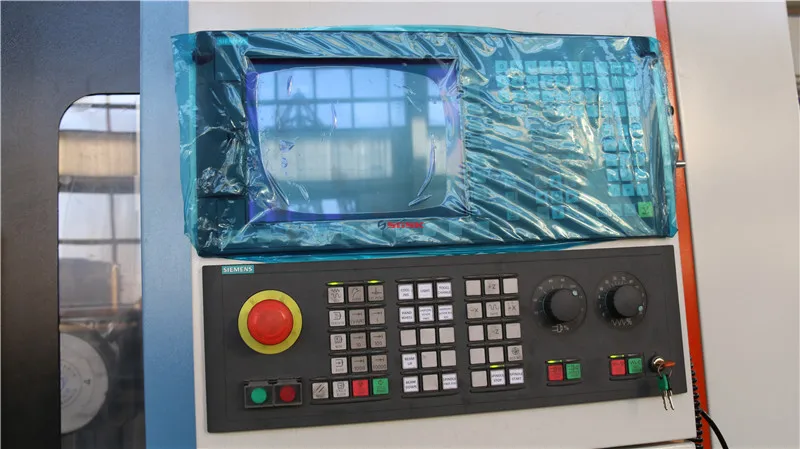

5. CNC system can select import or domestic according to user needs, CK51A series not have cover housing, CK51B series have cover housing, chip removal and cooling liquid recovery device
6. Vertical column, cross beam guideway all use high-frequnency, quenching, and the quenching hardness is HRC48-55
Technical specifications:
1. This vertical CNC lathe is a advanced equipment of high performance, widely technology range, high production efficiency. It lathe is apply to machining of all industries. Rough and finish machining of inside&outside cylindrical surface, circular conical surface, end face, grooving, arc surface, sorts of curve face and thread
2. Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to
centering to centering. Axial direction adopts CC hydrostatic guideway, worktable have the features of high running accuracy, big bearing capacity, small thermal deformation.
3. The lathe feed adopts AC servo motor, ball screw for drive. Rail head of cross beam equipped with close shield, increase the safety and the amenity
4. The lathe feed adopts AC motor drive, 16 steps main spindle speed change mechanism and realize the worktable range of speed
5. CNC system can select import or domestic according to user needs, CK51A series not have cover housing, CK51B series have cover housing, chip removal and cooling liquid recovery device
6. Vertical column, cross beam guideway all use high-frequnency, quenching, and the quenching hardness is HRC48-55
Technical specifications:
Specification | Unit | CK5112D | CK5116D | CK5120D | CK5123D | CK5125D | CK5126D |
Table diameter | mm | 1000 | 1400 | 1800 | 2000 | 2250 | 2250 |
Max. turning diameter | mm | 1250 | 1600 | 2000 | 2300 | 2500 | 2600 |
Max. height of workpiece | mm | 1000 | 1000 | 1250 | 1350 | 1600 | 1600 |
Max. weight of workpiece | T | 3.2 | 5 | 8 | 8 | 8 | 8 |
Tool section size | mm | 30x40 | 30x40 | 30x40 | 30x40 | 30x40 | 30×40 |
Max. Cutting force of vertical tool post | N | 25000 | 25000 | 25000 | 25000 | 25000 | 25000 |
Max.torque of table | N·m | 25000 | 25000 | 32000 | 32000 | 32000 | 32000 |
Table speed steps | 4 steps stepless | 4 steps stepless | 4 steps stepless | 4 steps stepless | 4 steps stepless | 4 steps stepless | |
Table speed range | r/min | 6.3-200 | 5-160 | 3.2-100 | 3.2-100 | 2-63 | 2-63 |
Max.travel of vertical tool post(horizontal) | mm | 700 | 915 | 1115 | 1300 | 1400 | 1400 |
Max.travel of vertical tool post(verticall) | mm | 650 | 800 | 800 | 800 | 800 | 800 |
Vertical tool post feed range | mm/min | 0.5-2000 | 0.5-2000 | 0.5-2000 | 0.5-2000 | 0.5-2000 | 0.5-2000 |
Vertical tool post feed steps | stepless | stepless | stepless | stepless | stepless | stepless | |
Tool post rapid traverse | mm/min | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
Max.travel of cross beam | mm | 650 | 650 | 850 | 850 | 1250 | 1250 |
Cross beam lifting speed | mm/min | 440 | 440 | 440 | 440 | 440 | 440 |
Main motor power | Kw | 22 | 30 | 30 | 30 | 37 | 37 |
Cross beam lifting motor power | Kw | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
CNC coordinate axis | X\\Z | X\\Z | X\\Z | X\\Z | X\\Z | X\\Z | |
CNC system | GSK 980TDC | GSK 980TDC | GSK 980TDC | GSK 980TDC | GSK 980TDC | GSK 980TDC | |
Positioning accuracy | mm | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
Repeat positioning accuracy | Mm | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 |
Machine weight | T | 8.5 | 13 | 17 | 18 | 23 | 23 |
Overall dimensions | mm | 2360*2277*3403 | 3200*2570*3150 | 3200*2800*3250 | 3200*2850*3350 | 3300*4000*3500 | 3300*4000*3500 |
Recommend Products
Why Choose Us
All our machine include cnc lathe machine, cnc milling machine , lathe machine , milling machine , drilling machine will running 24hours . And it have finished all test , then we will arrange package.
Choose SGSK machines, we will supplied the 5 star service to you .
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
Contact Us
Похожие товары

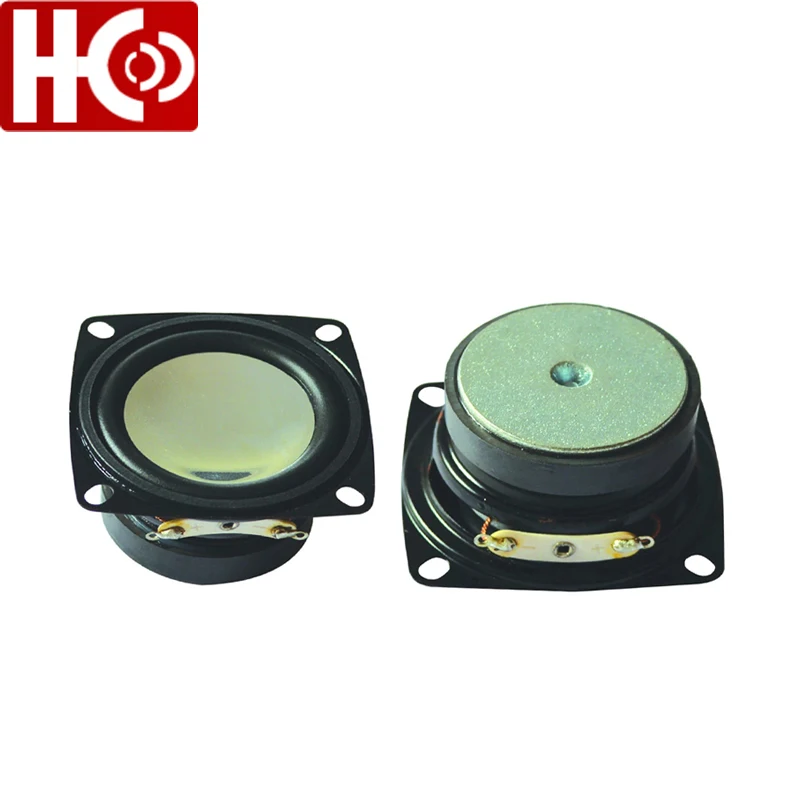

Новый дизайн hifi звуковой громкоговоритель блок 52 мм динамик драйвер
Производитель питания оксид железа черный 330 722 и оксид железа синий 886 для резиновой блокировки асфальтоукладчика плитки
Cnc производитель 4 оси ЧПУ электронный комплект с поворотным Mach3 контроллер мебельная промышленность
2 000,00 $ - 5 000,00 $
Новый оригинальный интегрированный IC чип NH82801GB NH82801GBM

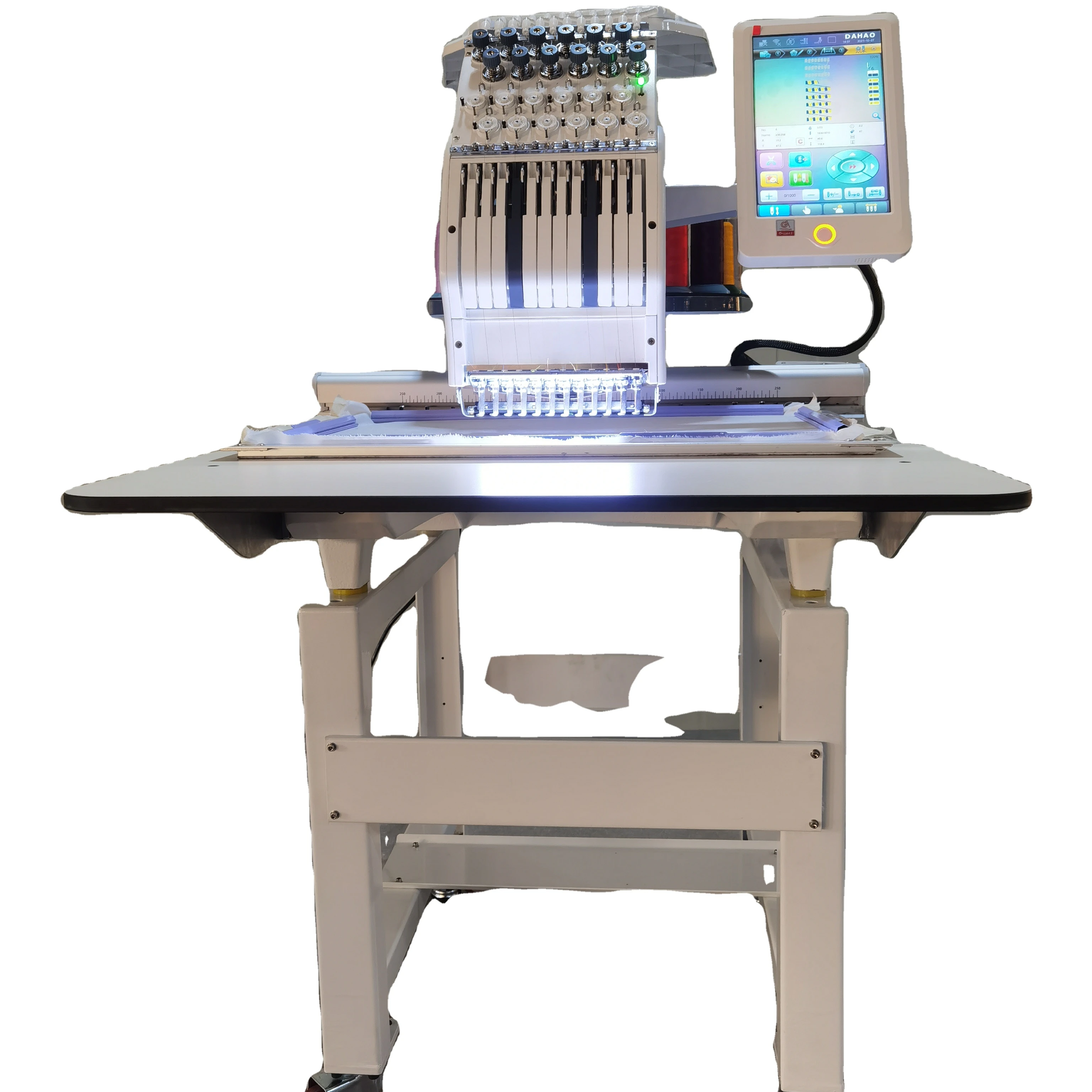

Yeshi новейшие компьютеризированные маленькие высококачественные горячие продажи одноголовочные вышивные машины доступны все размеры для продажи
Заводская цена, Sip-панели, Изолированная панель для очистки оксисульфида магния, MOS сэндвич-панель для стен и потолка
11,30 $ - 11,50 $

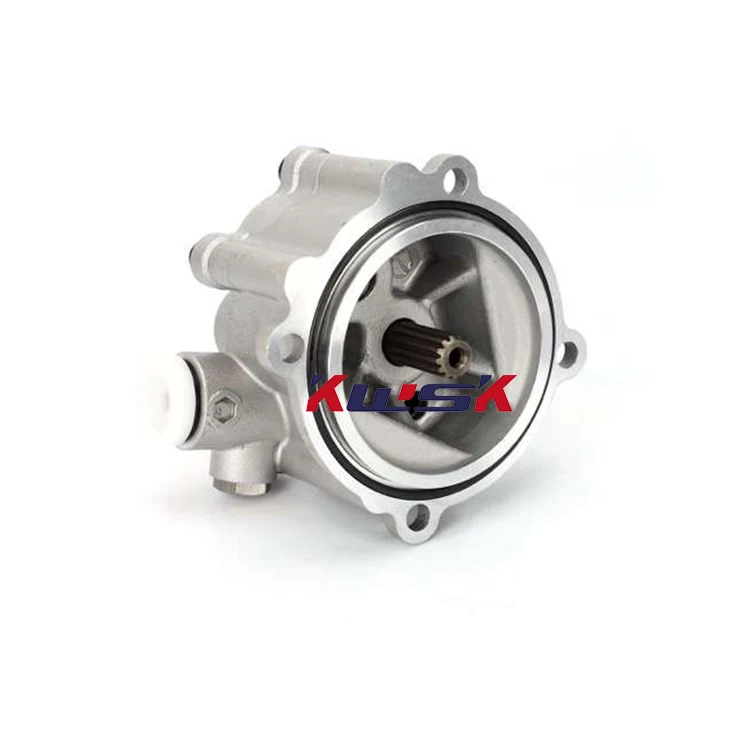

SH210-5 R210-7 CLG922D 2902440-2976A K3V112DT гидравлический насос с зубчатой передачей насос экспериментальный насос SH210-5 2976A
