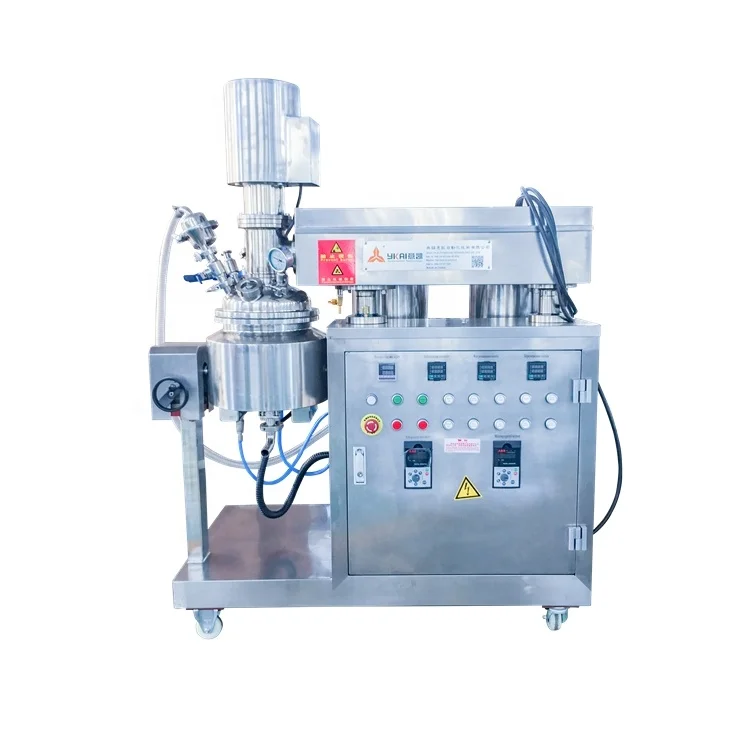

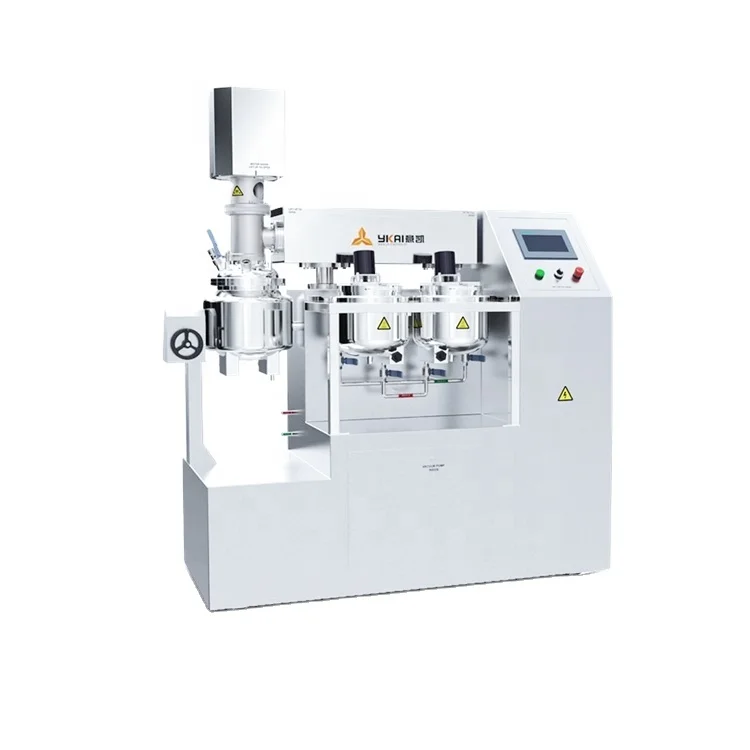

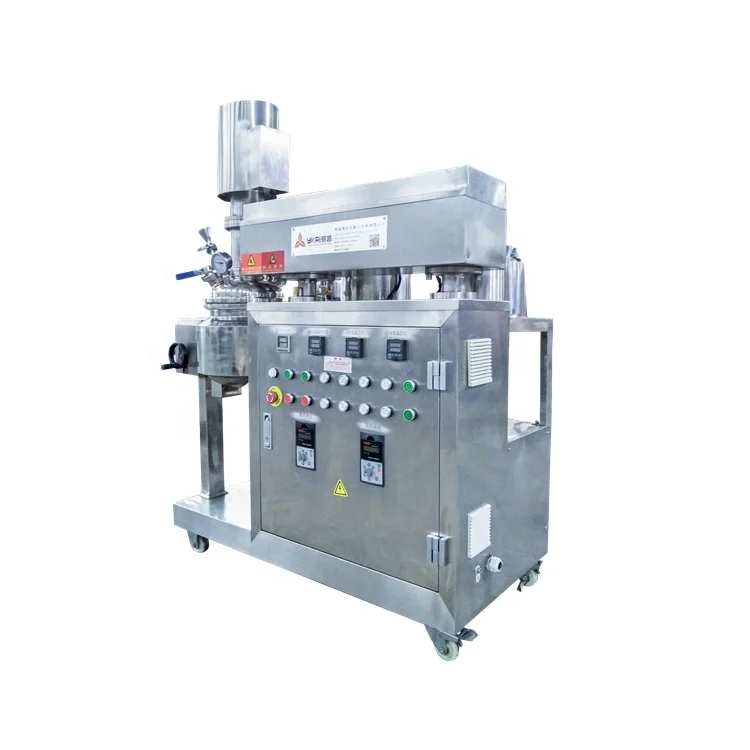

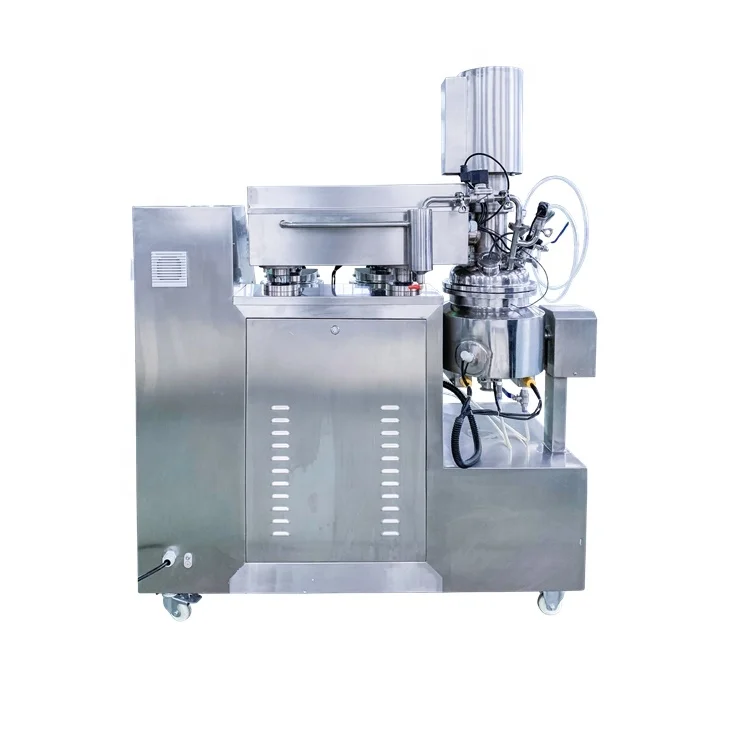

Промышленное смесительное оборудование машина для производства косметических кремов вакуумный эмульгирующий смеситель

The pot cover is automatic lift type, the material was directed draw into the emulsifying boiler from oil boiler and water boiler based on a pipe that is under vacuum, the discharge is based on the turn the emulsifying boiler. And the heating system is electric heating or steam heating that the temperature is automation control. Put the cool water into the intercalated bed so cooling the material, simple operation and safety( at the outside have a warm layer). The homogenizer and the blade stirring can together work or separate work. The material sliming, emulsification, mixing, dispersing, etc. what will finished during short time. Contact position adopt high-quality stainless steel (medical use adopt 316L material make with supplies, polish mirror of interior surface, mix the hygiene of the device in vacuum, it accords with the normal hygiene standard manufacture of GMP to adopt that is most ideal production equipment.

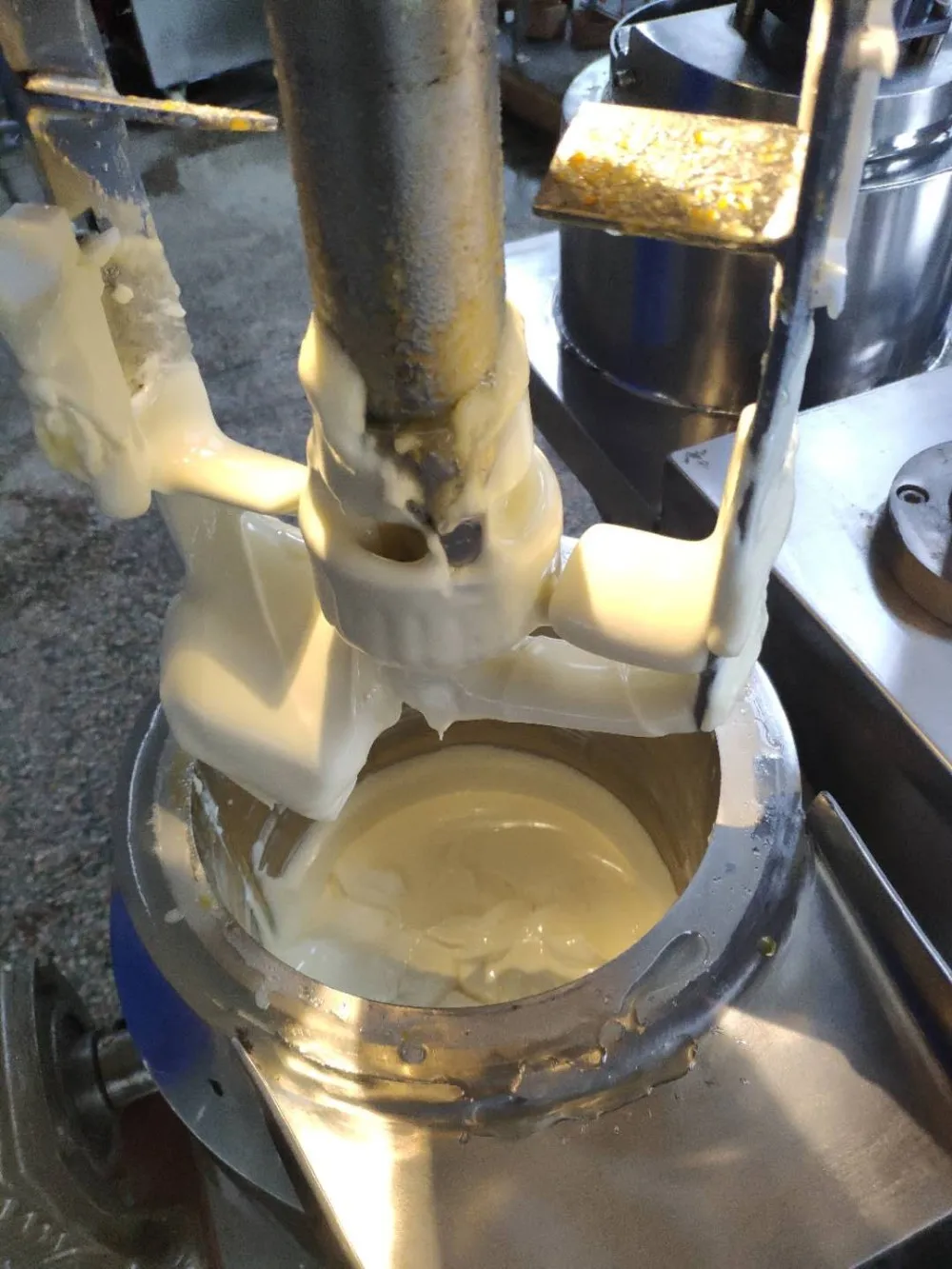

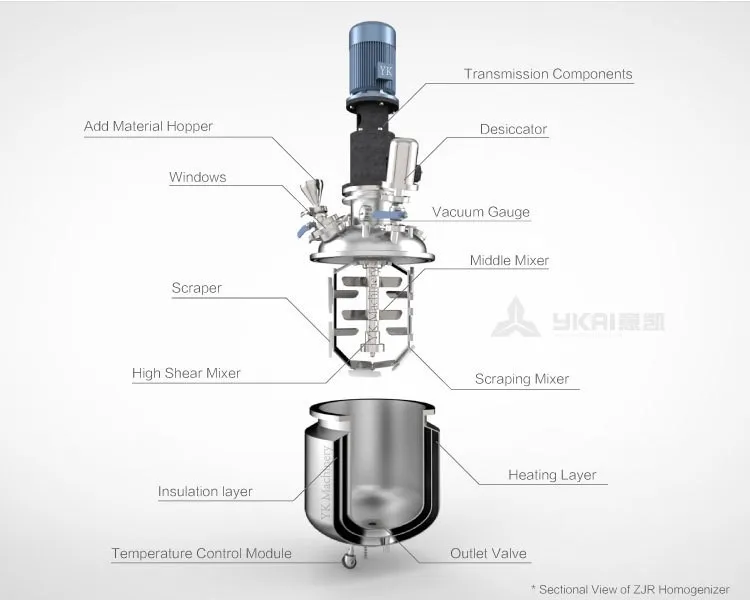

After the materials are heated & mixed in water pot and oil pot, they are drawn into emulsifying boiler by the vacuum pump. Adopting the middle stirrer & Teflon scrapers residues in emulsifying boiler that sweep the residues on the wall of the boiler makes the materials wiped off become the new interface constantly. Then they are cut off, compressed and fold by the blades to stir, mix and run to the homogenizer. By the strong cutting off, impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off in cut interstices and turn to particles of 200nm-2um promptly. Because the emulsifying boiler is under vacuum state, the bubble that produces in the course of mixing is taken away in time.

Key features of production emulsification machine:

·Complete process of mixing, dispersing, emulsifying, homogenizing, vacuum, heating and cooling in one unit

·Working capacity from 50L to 2000L

·Suitable for cream and emulsions of 10,000~50,000cps viscosity

·Internal emulsifying and homogenizing by top mounted batch homogenizer

·Contra mixing system of center agitator and wall scraper

·Outer frame agitator has triangle design for enhanced mixing

·Variable speed for homogenizer and agitators

·Oil hydraulic lifting system for easy cleaning and maintenance

·Double jackets for heating and cooling

·Different jacket designs available for steam and electric heating

·Double temperature probes and controllers for electrical heating in main emulsification machine

·Vacuum system to take out the air bubbles during mixing and to transfer the ingredients

·Compressed air to discharge the finished cream

·Tilting system for discharging finished product and easy cleaning

·Multiple safety protection devices for vacuum, hydraulic pump and workers

·All contact parts are made of SS316L and mirror polished

·Spray ball is equipped to connect customer's CIP

·The specifications of the vacuum emulsification equipment comply with cGMP regulations

·Push buttons control panel for easy operation

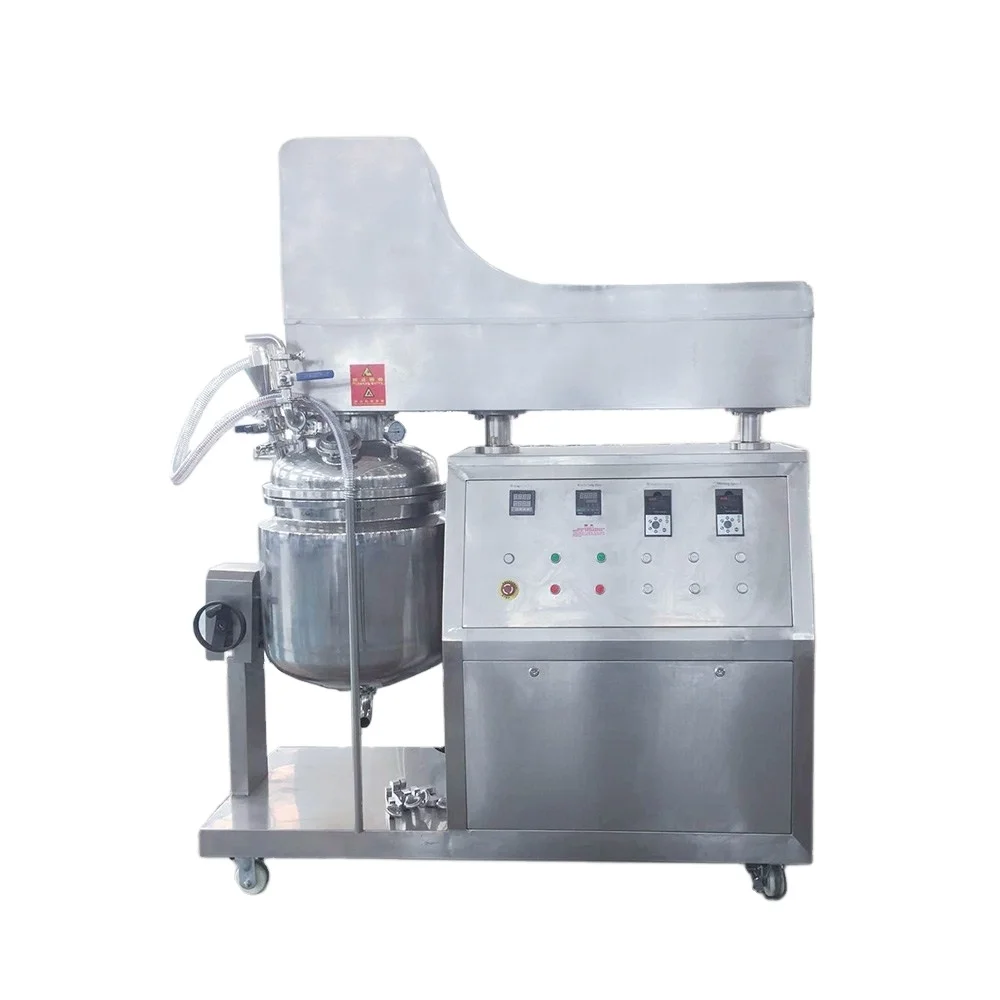

Old model ZJR-5/10

ღ Packaging:

packing by wooden case usually, we also do other packaging as per customer's requirement.

ღ Shipping:

European Countries: 22-28 days

United States: East --13-16 days, West--21-28 days

Brazil: 30-40 days

Russia: 36 days

Asia Countries: 3-5days

1. Why your machine similar with other supplier?

We are an overseas-funded enterprise. We are manufacturer and had been in this industry for more than 17 years, with more than 9 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine, Service and quality is more important than it.

2. I'm new in our industry, but I'm planning to set up a factory, What can I do?

We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.


3. The machine is suitable for the production of?


We could offer various kinds of machines and whole production line.


(1) Cream, paste Products,


In cosmetic industry: face cream, body cream, washing cream,vaseline etc

In food industry industry: sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc

In chemical industry:welding paste,ink, paint,pigment etc.

Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc


(2) Liquid products


shampoo, lotion, liquid soap, detergent, juice,solution, etc.


Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc


(3) Make-up products:


Lipstick, lip gloss, nail polish, marscara etc

Machines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc


(4) Adhesive products:


Instant glue, AB glue, silica gel, anaerobic adhesive,silicon, sealing etc.


Machines for them: double planet mixer, ribbon blender, tube filling and sealing machine, hydraulic distributing machine, cartridge filling machine, etc.




ღ For your inquiries, pls kindly let us know:


1. What is your products? Cream, toothpaste, moisturizer, face cream, etc.

2. What is the capacity do you want for this vacuum emulsifying machine? 5L, 10L, 30L, 50L, 100L, 150L, 200L, etc.

3. Required heating method: electric heating or steam heating?

4. Required voltage and frequency of power supply? eg:380V 50Hz 3phase?

5. Requirement of Certificate (CE, CSA, or no need)Introduced here is just a small part of the product function,
