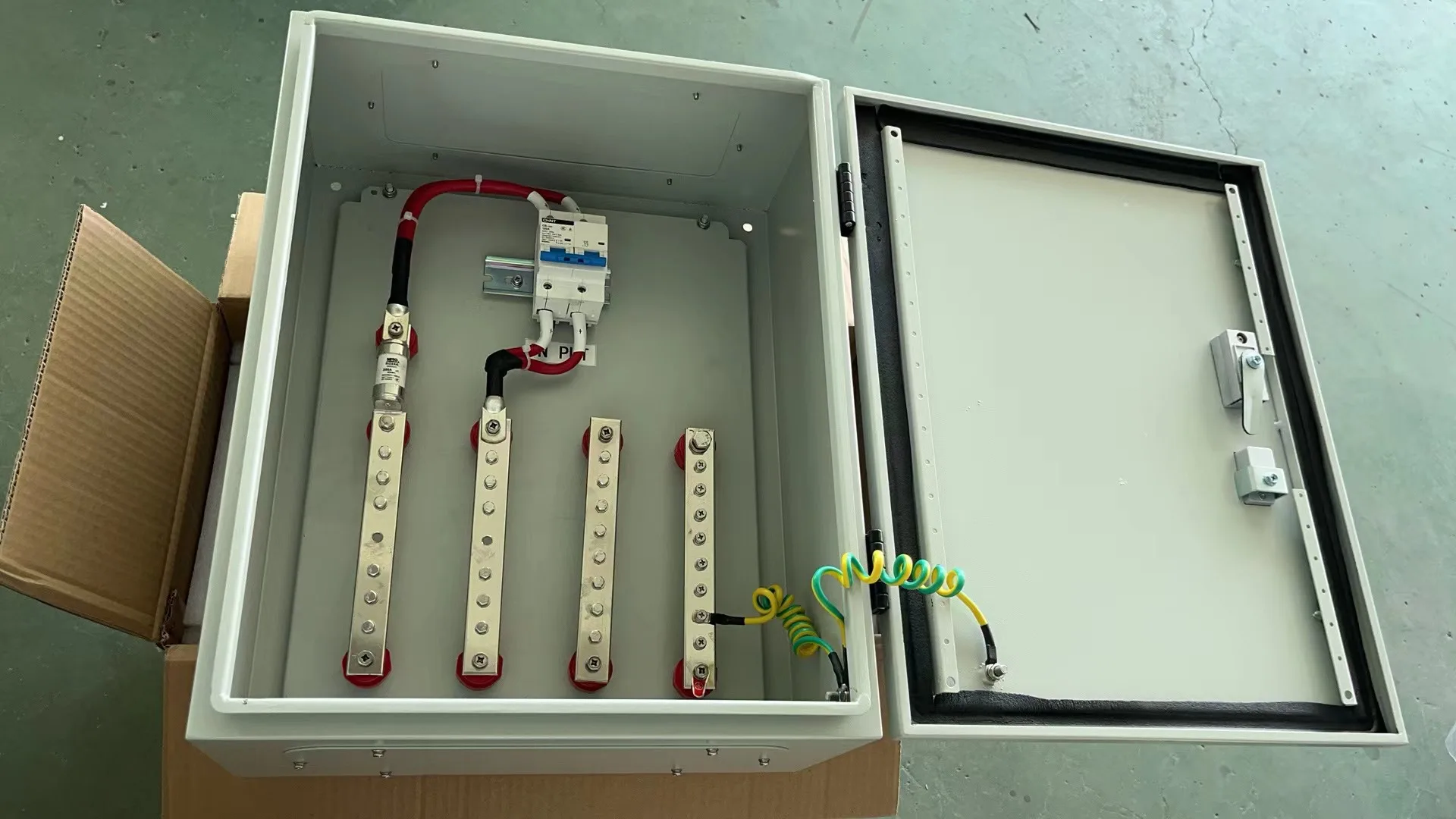

GSO Battery Combiner Box for LFP battery packs
Features & Benefits
* Light and handy
Small size and light weight, easier for handling and wall mounting.
* Safe
All positive and negative inputs adopt fuses to protect against short circuit failure.
* Convenient
All waterproof terminals are plug and play design, convenient and efficient.
* Flexible
Maximum batteries connected in parallel to meet various capacity requirements.
* Light and handy
Small size and light weight, easier for handling and wall mounting.
* Safe
All positive and negative inputs adopt fuses to protect against short circuit failure.
* Convenient
All waterproof terminals are plug and play design, convenient and efficient.
* Flexible
Maximum batteries connected in parallel to meet various capacity requirements.
Products Description
Lithium ion battery have been deployed in varied places. From a small electronics battery to large energy storage and power driving batteries used in solar system, golf cart, medical equipment, electric mobility, power back up, ups and other application,lithium iron phosphate batteries are available in all shapes and sizes. And that renders them to be the perfect option for power needs irrespective of the size of the application devices.
This battery cell cyclelife is 5000 times at 80%DOD what we use is a smart BMS with many function here ,In the front of the battery you could see it has ON/OFF buttons ,Running light ,alarm light,SOC light which could be show the battery capacity when you discharge and charge the battery.
Model | GBP48V-50AH | GBP48V-100AH | GBP48V-200AH | GBP48V-500AH | GBP48V-1000AH | ||||
Nominal Voltage (V) | 48 | 48 | |||||||
Battery Capacity (AH) | 50 | 100 | 200 | 500 | 1000 | ||||
Working Voltage Range | 42-56.25 | 42-56.25 | |||||||
Recommended Charging voltage (V) | 52.5 | 52.5 | |||||||
Recommended Discharge cutoff Voltage(V) | 45 | 45.7 | |||||||
Standard Charging Current (A) | 25 | 50 | 100 | 100 | 200 | ||||
Max Continuous Charging Current(A) | 50 | 100 | 200 | 500 | 1000 | ||||
Standard Discharge Current (A) | 25 | 50 | 100 | 100 | 200 | ||||
Max. Discharging current（A） | 50 | 100 | 200 | 500 | 1000 | ||||
Temperature（℃） | -30℃～60℃(Recommend 10℃～35℃) | -20℃~60℃ (recommend 10℃~35℃) | |||||||
Allowable humidity range | 0～85% RH | Natural air cooling | |||||||
Storage temperature（℃） | -20℃～65℃(Recommend 10℃～35℃) | CE, UN38.3, MSDS | |||||||
Protection Level | IP20 | Around 5000 times | |||||||
Cooling method | Natural air cooling | RS485(CAN optional) | |||||||
Maximum Dimension（W*D*H）for rack type | 483*360*175 | 483*535*175 | 750*780*350 | 550*483*175*5 | 550*483*175*10 | ||||
Net Weight | 30KG | 56KG | 114KG | 280KG | 560KG | ||||
Battery Cell | A Grade Prismatic Cell | IP20 | |||||||
Protection | Built-in Smart BMS | RS485(CAN optional) | |||||||
Performance Test
Nominal Capacity
The battery pack is placed in a 25℃ environmental chamber,0.2C constant current and constant voltage to 54.65V, 0.05C cut-off,put it aside for 60 minutes; 1C discharge to 37.5V.
Rate Charging
The battery pack are charged at a constant current of 0.1C,0.2C,0.3C,0.5C,and 1C to 54.75V in an environment of 25℃.Stop charging after the constant voltage reaches 0.05C, and record the charging test data under different magnifications.
Storage performance-place at room temperature
In a normal temperature environment,100% SOS storage for 28 days,test capacity retention and recovery rate(Test for 5 groups batteries)
Storage performance-place at high temperature
55℃,100%SOC storage 4*7 28 days,test capacity retention and recovery rate(Test average value for 5 groups batteries)
25℃,0.2C constant current charge to 53.25V, constant voltage to 0.05C cut-off;after 30 minutes of storage,0.2C discharge Power to
42V,cycle to 80%SOC cut-off;25℃,1C constant current charge to 53.25V,constant voltage to 0.05C cut-off;after 30 minutes of storage,1C discharge to 42V,cycle
to 80%SOC cut-off.
Our Advantages
Company Profile
Product packaging
FAQ
1. Are you factory or trade company?
As a professional manufacturer, our company has established in 2010. Our company has engaged in photovoltaic solar panel, inverter and power system for many years.
2.What is your advantage in photovoltaic products?
We could supply both solar panel and turnkey solution of solar system 25 years warranty of solar paenl.
3.What is the payment term?
By T/T, L/C, Credit Card, Alibaba Trade Assurance,etc.
4.How can guarantee quality?
2.What is your advantage in photovoltaic products?
We could supply both solar panel and turnkey solution of solar system 25 years warranty of solar paenl.
3.What is the payment term?
By T/T, L/C, Credit Card, Alibaba Trade Assurance,etc.
4.How can guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
5.Do you provide after-sales serive?
Yes,the warranty is 6 years, if any quality problems on our side in this period, we can send new one as replacement.
