SJ140-130 высокой емкости 2-х стадийной штранг-прессования PE PP пластиковые гранулы машина
22 000,00 $ - 23 000,00 $
Пластиковая машина для гранулирования пластиковая
- Категория: Plastic Raw Material Machinery >>>
- Поставщик: Zhangjiagang Kooen Machinery Co. Ltd.
Сохранить в закладки 1600836955077:
Описание и отзывы
Характеристики
Product Description

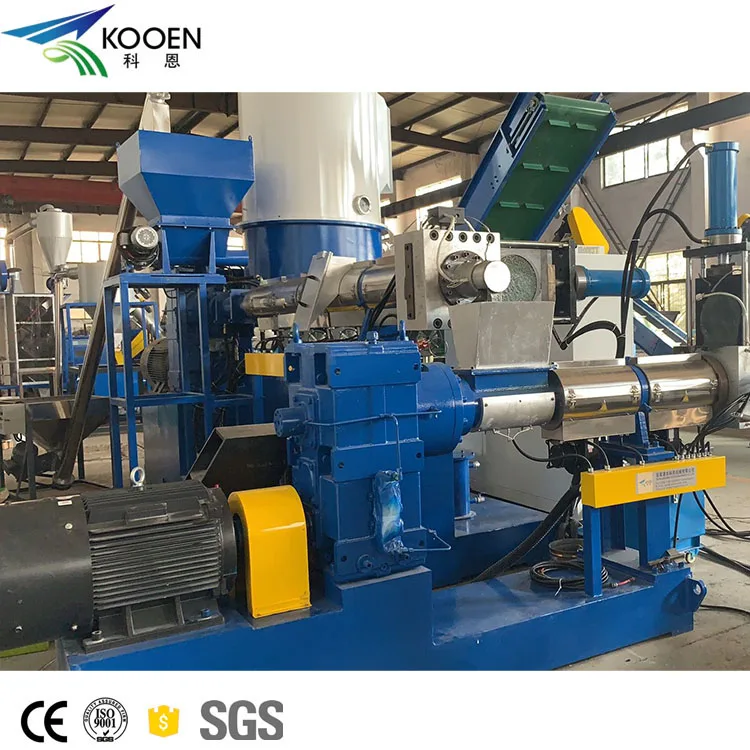

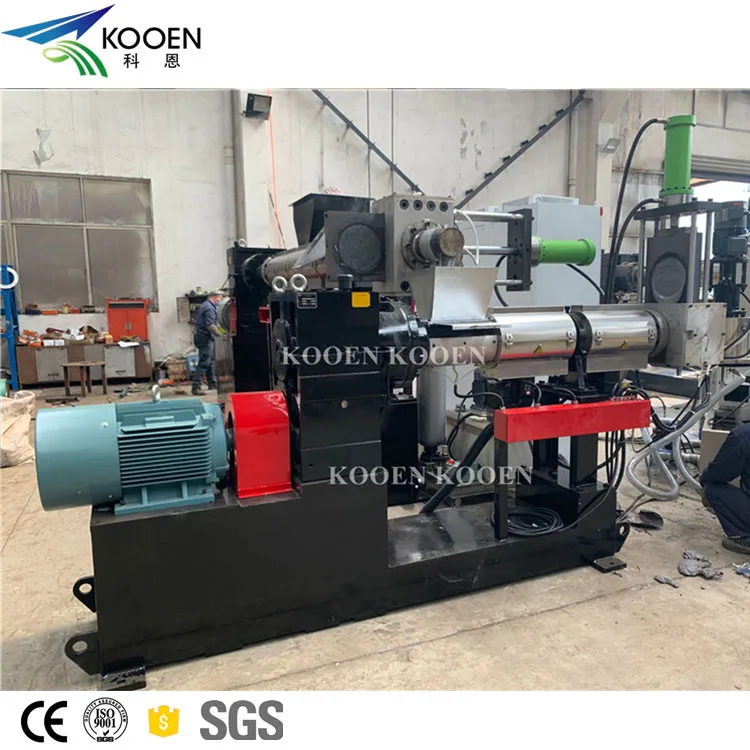

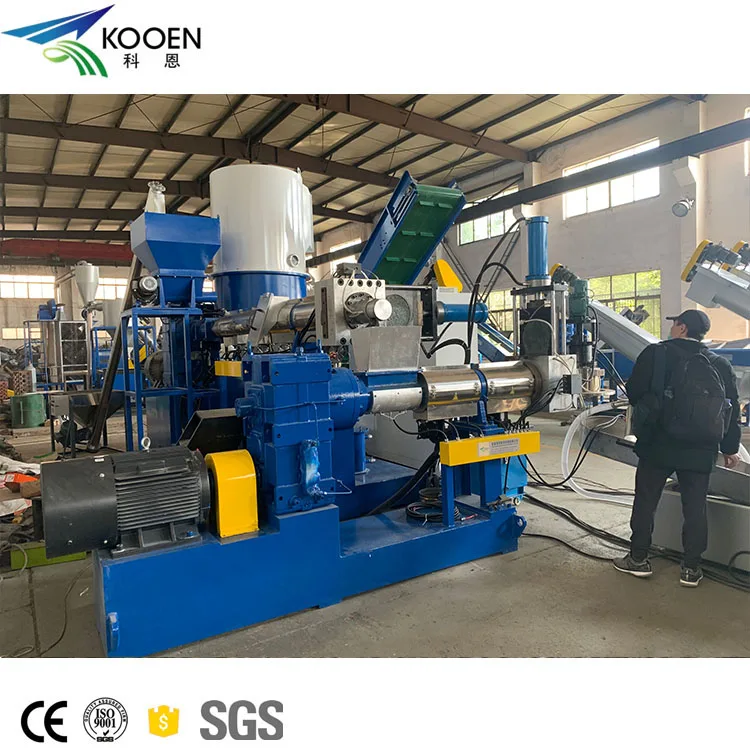

SJ Series Double Stage Granulator
Model (Double-stage) | SJ100-100 | SJ120-120 | SJ150-160 | SJ180-200 |
Screw Diameter (mm) | 100 | 120 | 150 | 200 |
L/D | 28-30 | 28-30 | 28-30 | 28-30 |
Capacity(kg/h) | 150kg/hour | 250-300 kg/hour | 300-400kg/h | 500-600kg/h |
Application: PE, PP film, Flakes, etc.
Note:Our SJ series pelletizing machine can be pull strip cutting method, or water ring cutting method for option
Consist of:
Side force feeder → Main extruder → Hydraulic screen changer →Sub extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage
Main Components:
Note:Our SJ series pelletizing machine can be pull strip cutting method, or water ring cutting method for option
Consist of:
Side force feeder → Main extruder → Hydraulic screen changer →Sub extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage
Main Components:

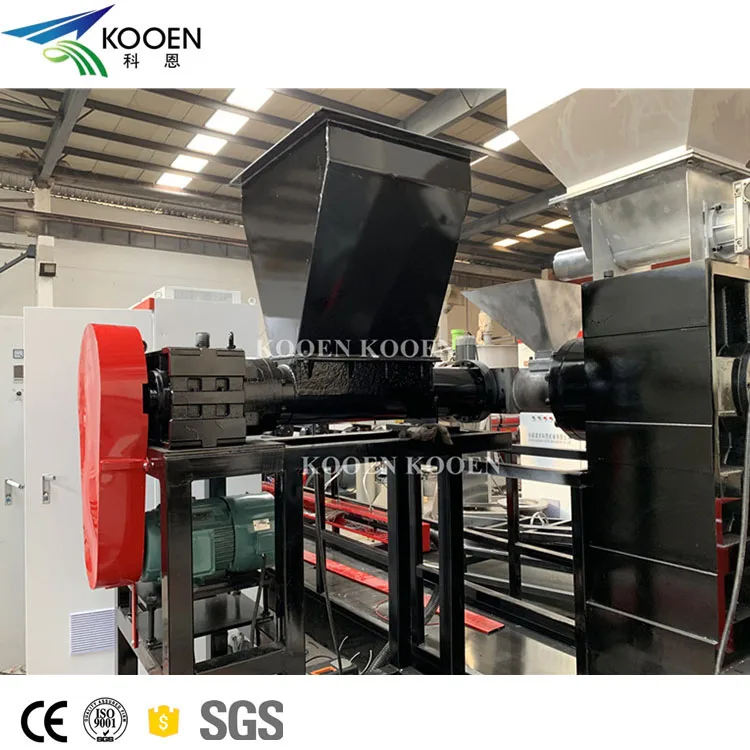

Side force feeder
Feeding plastic films/ flakes.
Main extruder
Screw diameter: 80100/120/150/180/200mm for option Aluminum heater
Screw/barrel material: 38CrMoAl, Nitrify processing Vacuum system for option
Hydraulic screen changer
Motor power:2.2/3KW
Special design board (no-stopping screen change, no leak)
Special design board (no-stopping screen change, no leak)
Sub extruder
Screw diameter: 100/120/150/180/200mm for option Aluminum heater
Screw/barrel material: 38CrMoAl, Nitrify processing
Screw/barrel material: 38CrMoAl, Nitrify processing
Hydraulic screen changer
Motor power:2.2/3KW
Special design board (no-stopping screen change, no leak)
Special design board (no-stopping screen change, no leak)
Water-ring cutting system
Motor power: 2.2/3kw
Frequency control
Frequency control

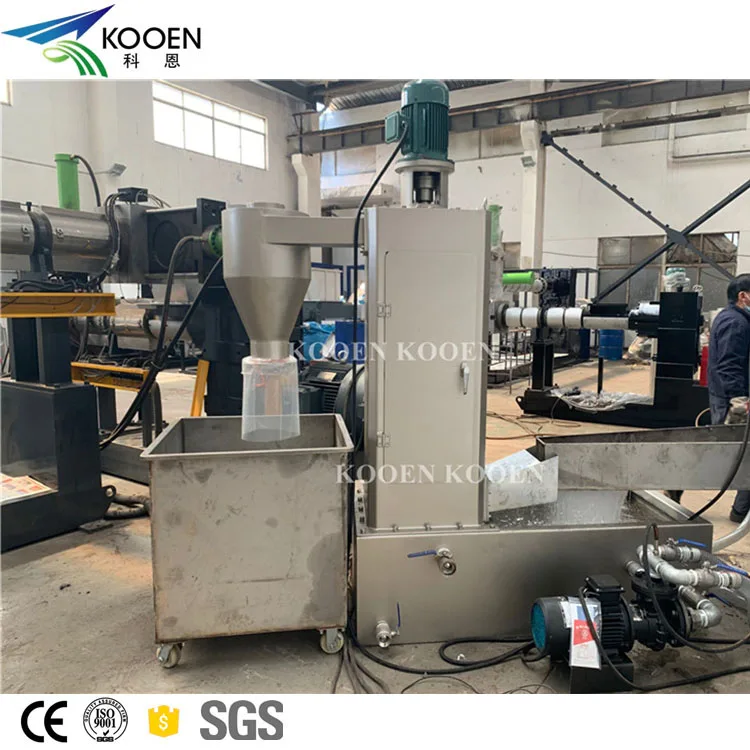

Centrifugal dryer
Motor power:4/5.5/7.5KW for option
Rotation speed: 1200rpm
Made of SUS304 stainless steel
Rotation speed: 1200rpm
Made of SUS304 stainless steel
Silo
Made of SUS304 stainless steel
Control cabinet
Word famous brand electric components
Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor
Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor
Horizontal water ring cutting system
Easy for fix/disassemble the knives
Pull strip cutting
Hole diameter: 3mm
Vibration screen
Three layers, to separating the pellets
Made of stainless steel
Made of stainless steel
Related Products
KOOEN company more plastic recycling machine for reference
//www.kooenmachine.com/pe-pp-film-washing-line-2/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ （Video link）
//www.kooenmachine.com/pe-pp-film-washing-line-2/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ （Video link）
//www.kooenmachine.com/hdpe-pp-rigid-plastic-washing-line/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/hdpe-pp-bottle-washing-line-video/ （Video link）
//www.kooenmachine.com/pet-bottle-washing-line/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/pet-bottle-washing-line-video/ （Video link）
//www.kooenmachine.com/zl-single-stage-pepp-film-compactor-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ （Video link）
//www.kooenmachine.com/zl-double-stage-pepp-film-compactor-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ （Video link）
//www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/ （Video link）
//www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/ （Video link）
//www.kooenmachine.com/squeezer-machine/ （Website link）
//www.kooenmachine.com/recyling-machine-auxiliary-machine-video/plastic-squeezer-machine-video/（Video link）
//www.kooenmachine.com/shredder-machine-crusher-machine/ （Website link）
//www.kooenmachine.com/shredder-machine-crusher-video/ （Video link）
Company profile
Our Service:
1. KOOEN will provide all the machines for the complete production according to customer's requirements.
2. KOOEN will provide complete service for factory layout and other information to help customer to build the factory.
3. KOOEN will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. For long-term cooperation, we always provide good quality, good price and good service to customer.
2. KOOEN will provide complete service for factory layout and other information to help customer to build the factory.
3. KOOEN will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. For long-term cooperation, we always provide good quality, good price and good service to customer.
For choosing proper machine and saving your time, please read these bellow guides carefully:
1. What material do you want to process/recycling? PE/PP film? PE/PP rigid plastic flake? PET flake? or other plastic?
2. What capacity (kg/h) do you want?
3. When (Times for delivery) do you want the machine?
4. Other requirements about the plastic film washing and recycling machine you want.
1. What material do you want to process/recycling? PE/PP film? PE/PP rigid plastic flake? PET flake? or other plastic?
2. What capacity (kg/h) do you want?
3. When (Times for delivery) do you want the machine?
4. Other requirements about the plastic film washing and recycling machine you want.
KOOEN is a leading waste plastic recycling machinery manufacturer in China, dedicated to series waste plastic recycling machine with more than 20 years export experience. If you have related requirement about waste pe pp plastic film /PET bottle crushing washing and recycling machine/line, please do not hesitate to let me know...
If want to see videos of our plastic recycling machine, please log on our web: www.kooenmachine.com
Похожие товары

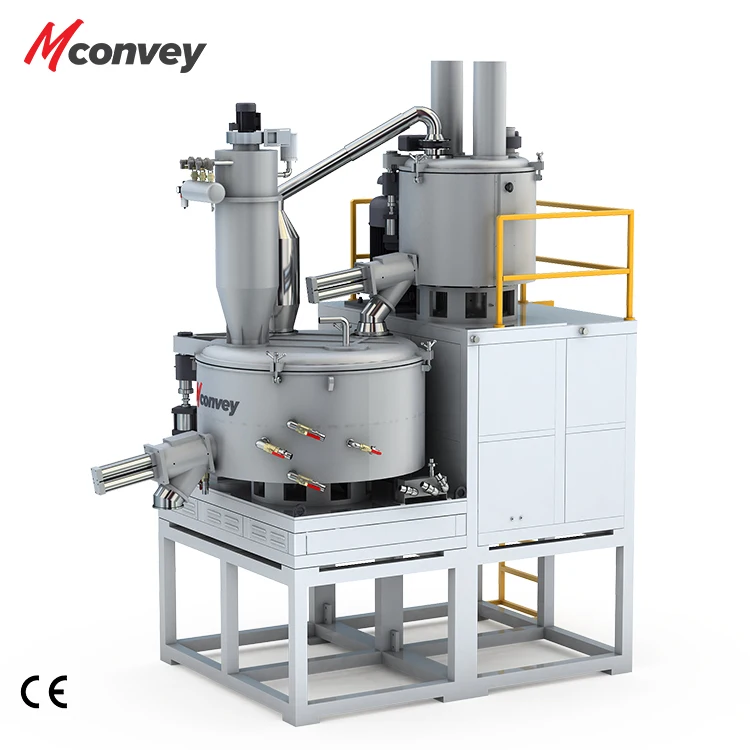

Высокоскоростной блендер Смеситель Пластиковый Порошок ПВХ
38 900,00 $ - 39 600,00 $
Линия гранулятора из нетканого материала машина для производства зерновых отходов полиэтилена и
18 970,00 $ - 24 850,00 $
Машина для гранулирования крахмала из биоразлагаемых гранул/экструдер переработанного
40 000,00 $

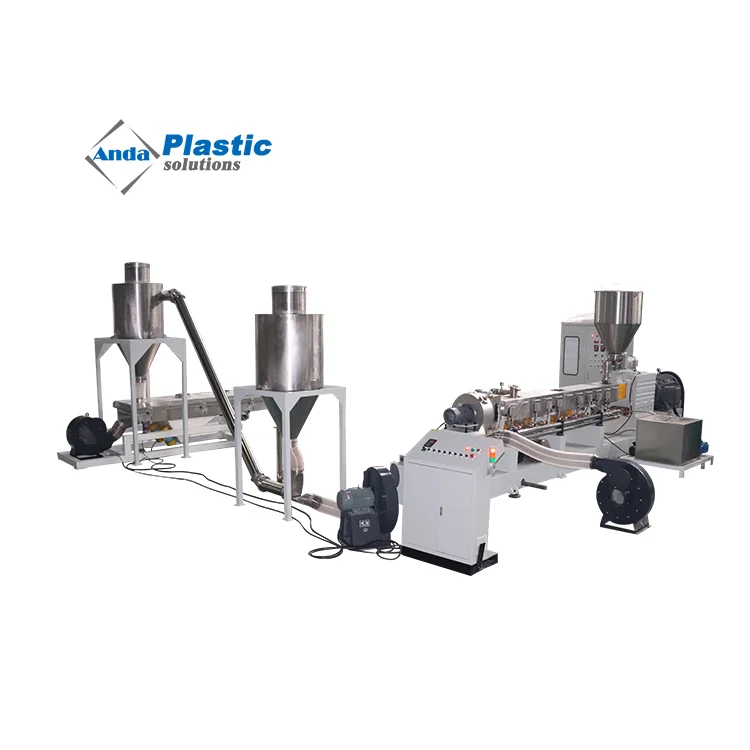

Пластиковый гранулятор ANDA WPC машина для производства гранул

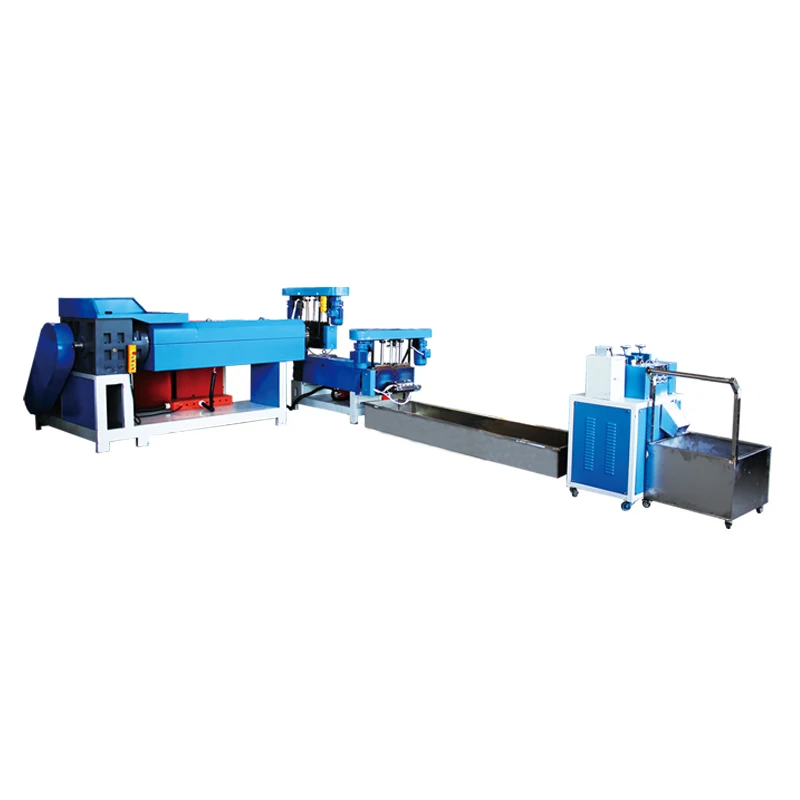

Низкая цена, машина для переработки ПЭВД, пелд, ПП, АБС-пластик, сырье, машина для производства гранул
15 000,00 $ - 20 000,00 $
Машина для гранулирования полиэтиленовой
1,00 $

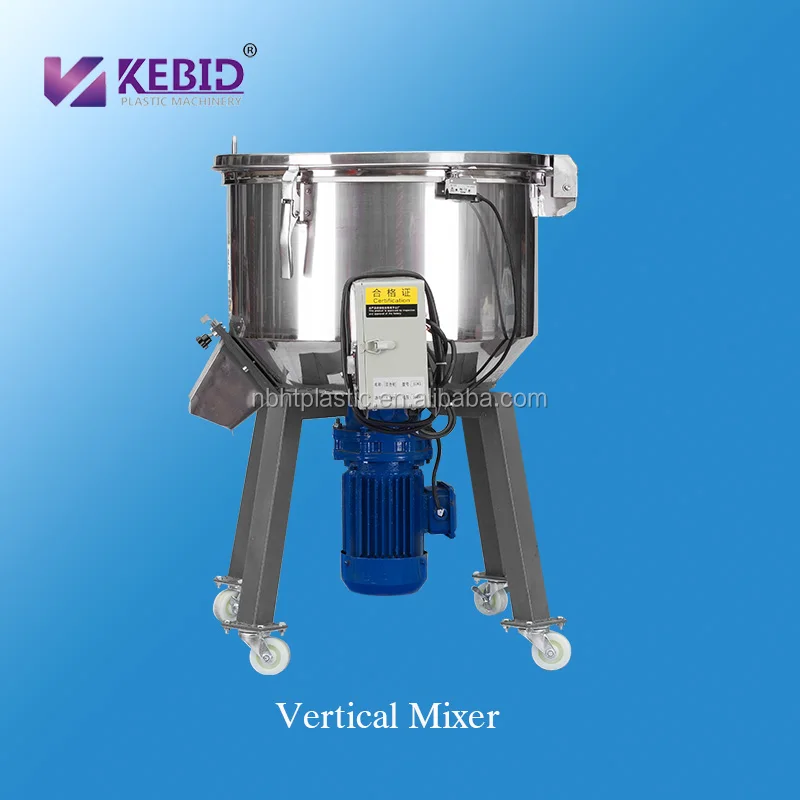

Цветной Миксер для смешивания пластиковых сырья с высокой мощностью и эффективностью по низкой
