Высокоэффективная автоматическая 2 года гарантии бетоносмесительная машина дизельная бетономешалка и насос для
19 800,00-29 800,00 $
Бетономешалка 30 м3/ч 40
- Категория: >>>
- Поставщик: Zhengzhou Unique Industrial Equipment Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1600837142706:
Описание и отзывы
Характеристики
Product Description
1. JBS Concrete mixer pump is mixer + pump 2 in 1 type machine.
2. Small moble mixing plant, which can pump while mixing
3. Vertical conveying distance can reach 90 m; horizonal convering 450m.
4. Fast and continuous discharing, easy delivery from on project to another.
Items | Units
| Parameters | |
JB40-10-82R | |||
Whole performance of machine | Max. theo. concrete output | m3/h | 40 |
Mixer Input Volume | m3 | 0.56/batch | |
Mixer Discharge volume | m3 | 0.45/batch | |
Max.concrete pumping pressure | MPa | 10 | |
Distribution valve type |
| S valve | |
Concrete cylinder diameter×stroke | mm | dia 180×1000 | |
Hopper capacity | L | 400 | |
Outlet diameter | mm | dia 150 | |
Power system | Diesel engine model |
| Made in China/imported |
Electrical engineering power | kw | 82 | |
| Winding motor power | kw | 5.5 |
| Stir the motor Power | kw | 4.5 |
| Water pump motor power | kw | 0.55 |
Hydraulic system | Circuit type |
| Open circuit |
Pumping system pressure | MPa | 32 | |
Mixing system pressure | MPa | 6-8 | |
Capacity of oil tank | L | 350 | |
| The biggest transportation is away from vertically | m | 160/800 |
| Actual pumping distance | m | 90/450 |
| Max. aggregate diameter | mm | Scree: 40 |
| Inside diameter of delivering pipe | mm | dia 125 |
| Dimensions:length×width×height | mm | 6000x2300x3150 |
| Total weight | kg | 4500 |
| packing |
| 1*40’HQ |

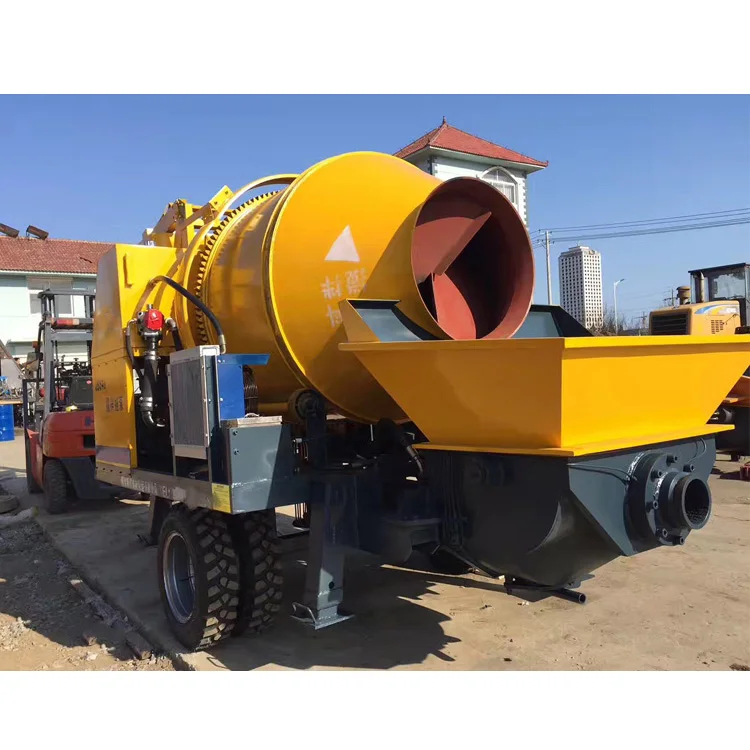

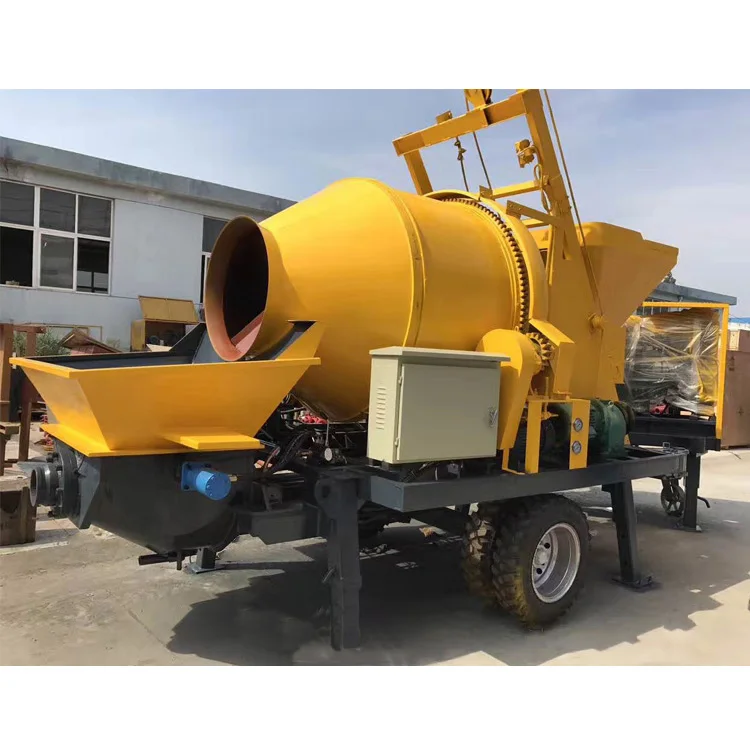

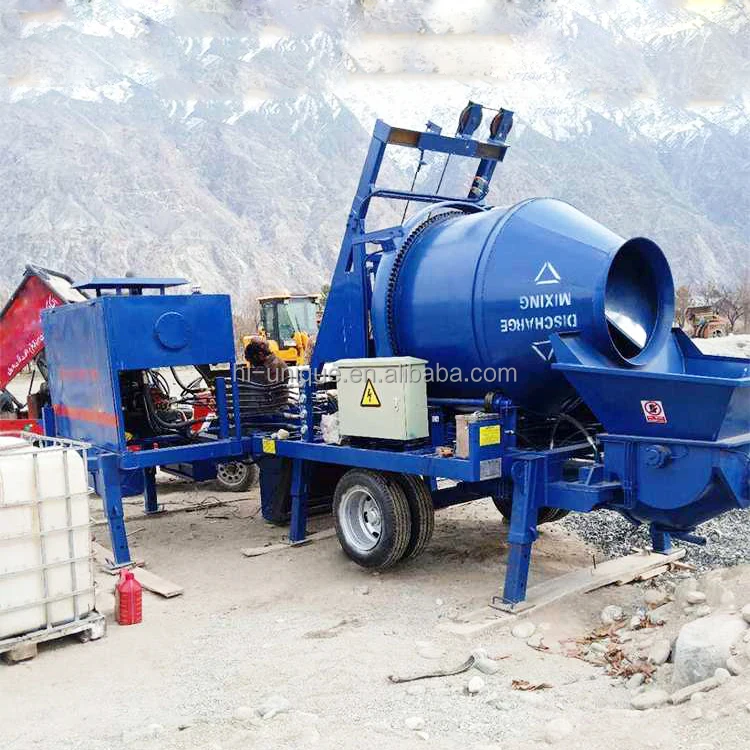

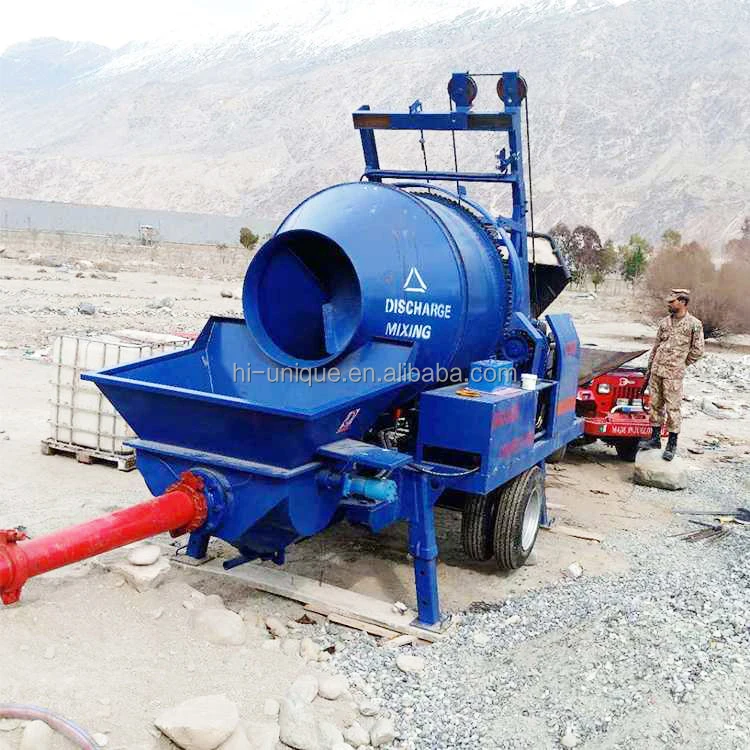

Detailed Images
Packaging & Shipping
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* View our factory.
After-Sales Service
* Engineers available to service overseas.
* Training how to install and use the machine.
* One year warranty.
Company Information
UNIQUE Group was founded in 1983, which has been dedicated to making the most suitable products and services for
construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering
construction, expanding the field, healthy development, built mainly with development and production of construction
machinery, across regions, and cross-industry conglomerates.
For 40 years, UNIQUE Group relied on scientific and technological innovation, optimize the structure of products.
Concrete machinery products are currently JZC series, JS series concrete mixer, PLD concrete batching machine,
HZS series concrete mixing plant, mobile concrete mixing plant, WBZ-series stabilized soil mixing plant, planetary
concrete mixers and so on concrete mixing machinery.
Certification:
FAQ
Q1: Are you trading Company or Factory?
We are factory. We have been engaged in the production of concrete machine for more than 30 years.
Q2: What's the lead time for regular order?
Generally it is around 7 days if the goods in stock. If there is no goods in stock, it will be about 20 days, subject to the quantity you ordered.
Q3: What is your payment method?
30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
Q4: What is the capacity of your concrete mixer pump?
We have 30m-40m3/h, diesel or electric two types.
Q5: How long and high you want to pump?
We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.
Q6: Do you provide after-sale service?
Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q7: Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
