JBD Smart BMS 13s 14s 16s 100A 120A 200A литиевая батарея LiFePO4 8S 24V 48V 60V с UART BT RS485 может
- Категория: PCB & PCBA >>>
- Поставщик: Dongguan Jiabaida Electronic Technology Co. Ltd.
Сохранить в закладки 1600837608195:
Описание и отзывы
Характеристики
JBD-AP21S001

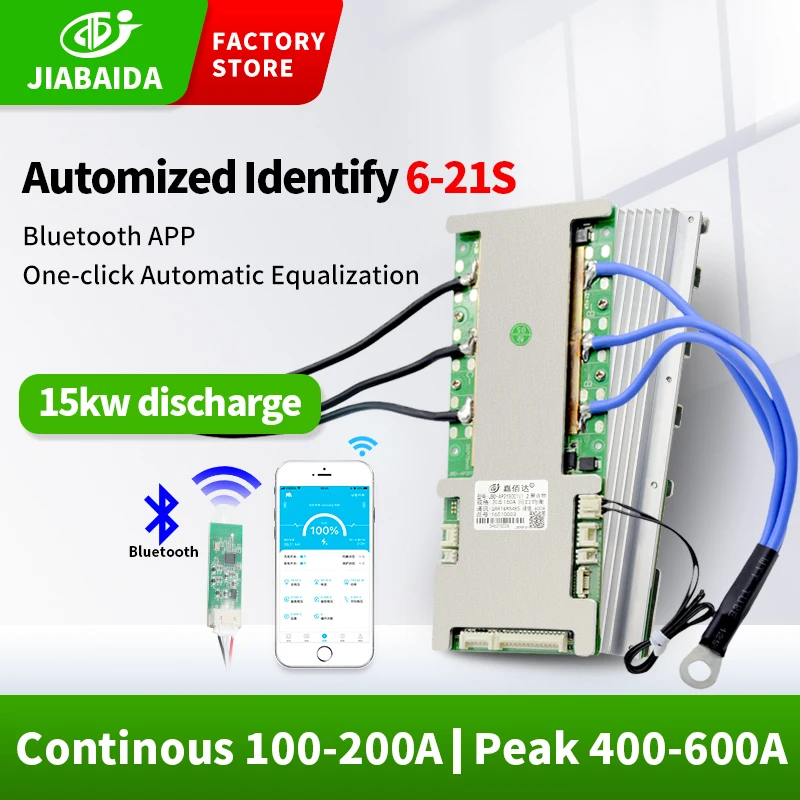

JBD-AP21S001 is a software protection board solution designed specifically for 6-21 battery packs such as electric motorcycles, small three-wheels, small four-wheels, etc. It can be applied to lithium batteries with different chemical properties, such as lithium ion, lithium polymer, and iron phosphate. Lithium etc.
The whole system uses Panasonic's front-end acquisition chip + MCU, and an external communication port.
● 6-21 series battery cell series protection.

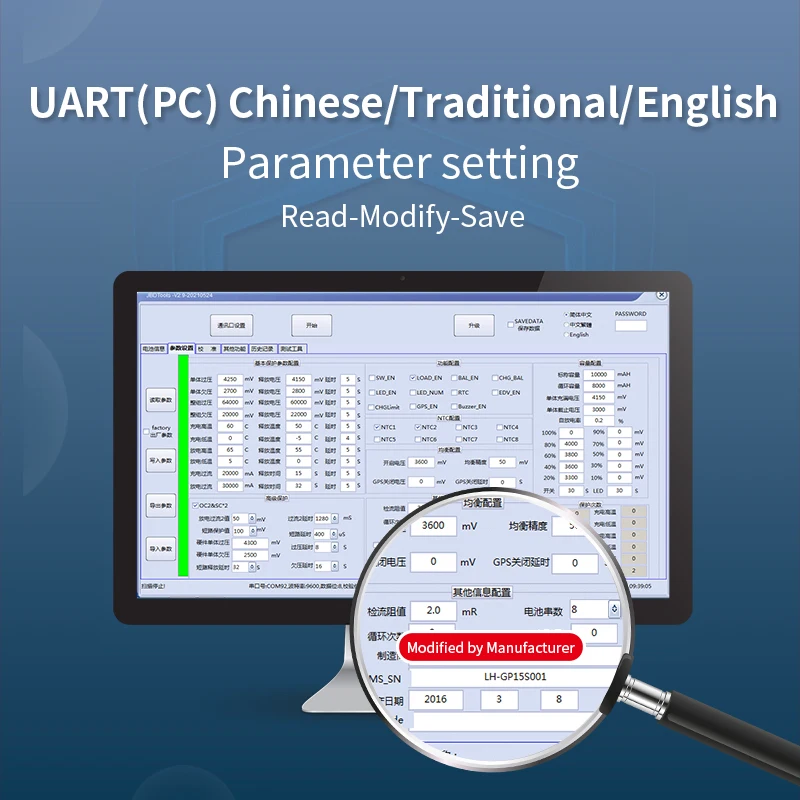

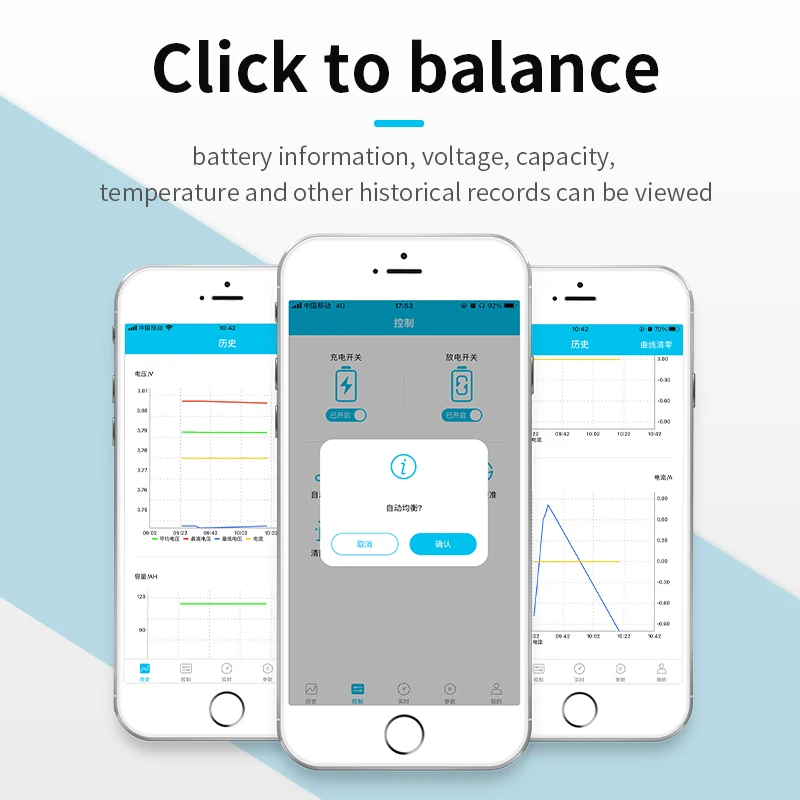

●The battery is intelligently balanced, and the balanced opening voltage and pressure difference can be flexibly adjusted by the host computer. Optional charge balance or static balance. Through time-sharing equalization, the maximum equalization current can reach 200mA.
● Integrate hardware protection functions such as overvoltage, undervoltage, overcurrent, and short circuit.
● Multiple working modes, when the protection board is in a static state, it can delay to enter dormancy to achieve the purpose of reducing power consumption.
●The default three-channel temperature detection probe, one channel detects the internal temperature of the protection board, and the two channels are placed in the place where the temperature needs to be detected according to customer needs.

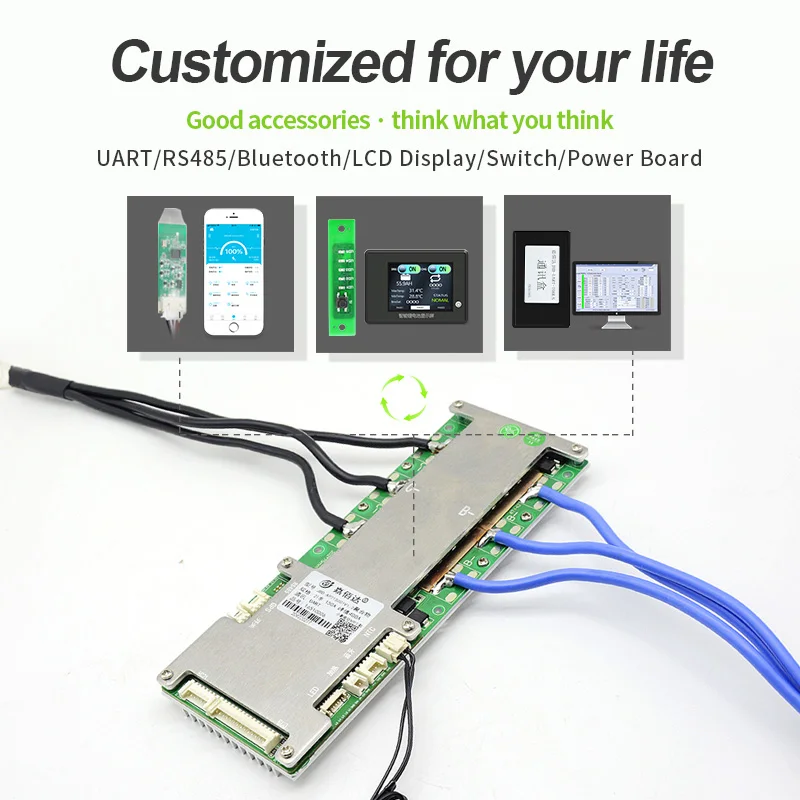

● Multiple external expansion interfaces can be used to add CAN\\RS232 communication, charging low-temperature heating, secondary protection (FUSE), charger ID identification resistance, LED power display and other functions through the expansion interface.
Products Name | Smart BMS |
Type | AP21S001 |
Size | 202mm * 76mm * 18mm |
Current | 150A/200A |
Voltage | 24V/36V/48V/60V/72V |
Communication | UART/BT/RS485/CAN communication/LCD display |
Strings | 6-21S |
Product Description
Company Profile
Application
Certifications
Customer Reviews
Payment & Packaging & Shipping
FAQ
Q. What type of charger should I choose?
A. Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
Q. The relationship between Battery capacity and BMS current?
A. There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
Q. Whether my BMS damaged?
A. If you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
Q. Are the CANbus ports on these BMS'es "electrically isolated"
A. Yes. Electrical isolation is also electrical isolation. The so-called electrical isolation is to electrically isolate the power
supply from the electrical circuit, that is, to isolate the electrical branch circuit from the entire electrical system, making it
an electrically isolated, independent, ungrounded safety system. In order to prevent the danger of indirect contact with
electricity when the exposed conductor fails and is electrified.
A. Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
Q. The relationship between Battery capacity and BMS current?
A. There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
Q. Whether my BMS damaged?
A. If you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
Q. Are the CANbus ports on these BMS'es "electrically isolated"
A. Yes. Electrical isolation is also electrical isolation. The so-called electrical isolation is to electrically isolate the power
supply from the electrical circuit, that is, to isolate the electrical branch circuit from the entire electrical system, making it
an electrically isolated, independent, ungrounded safety system. In order to prevent the danger of indirect contact with
electricity when the exposed conductor fails and is electrified.
Похожие товары

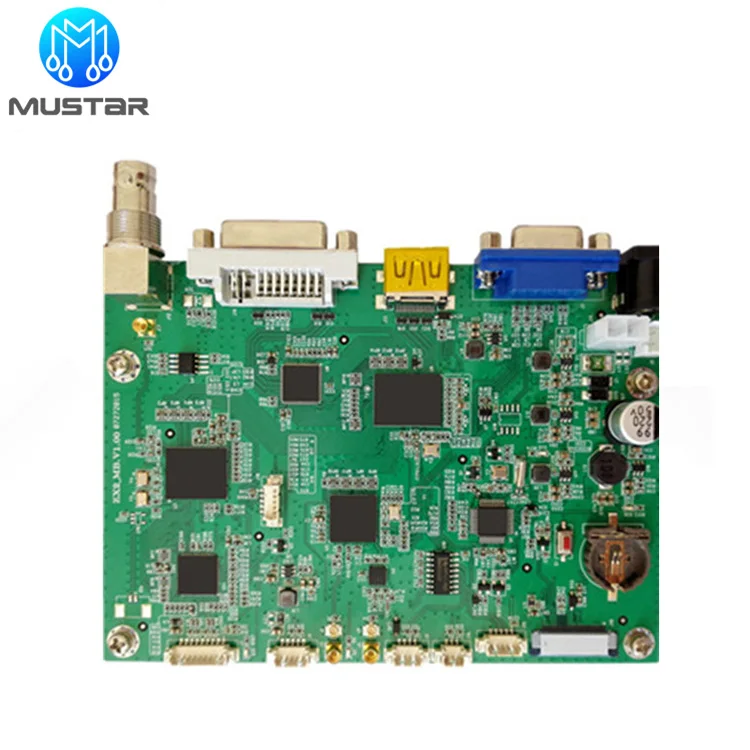

Индивидуальный образец Hdi Gerber Medical Nova-tion Pcba производство инвертора сборка электроники обслуживание печатных
1,00 $ - 5,00 $

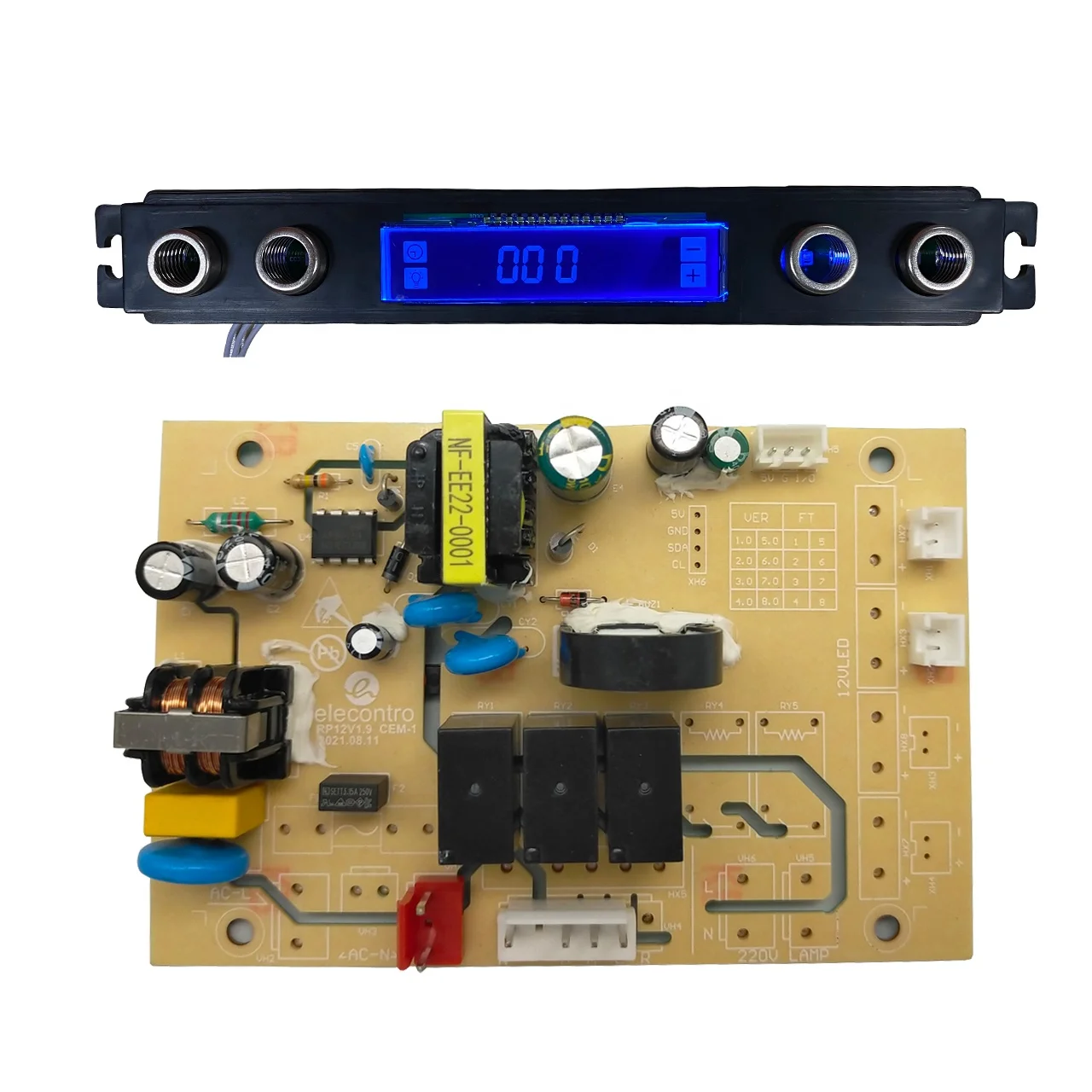

Очиститель воздуха, очиститель, панель управления pcba, сборная плата PCBA под ключ в Шэньчжэне

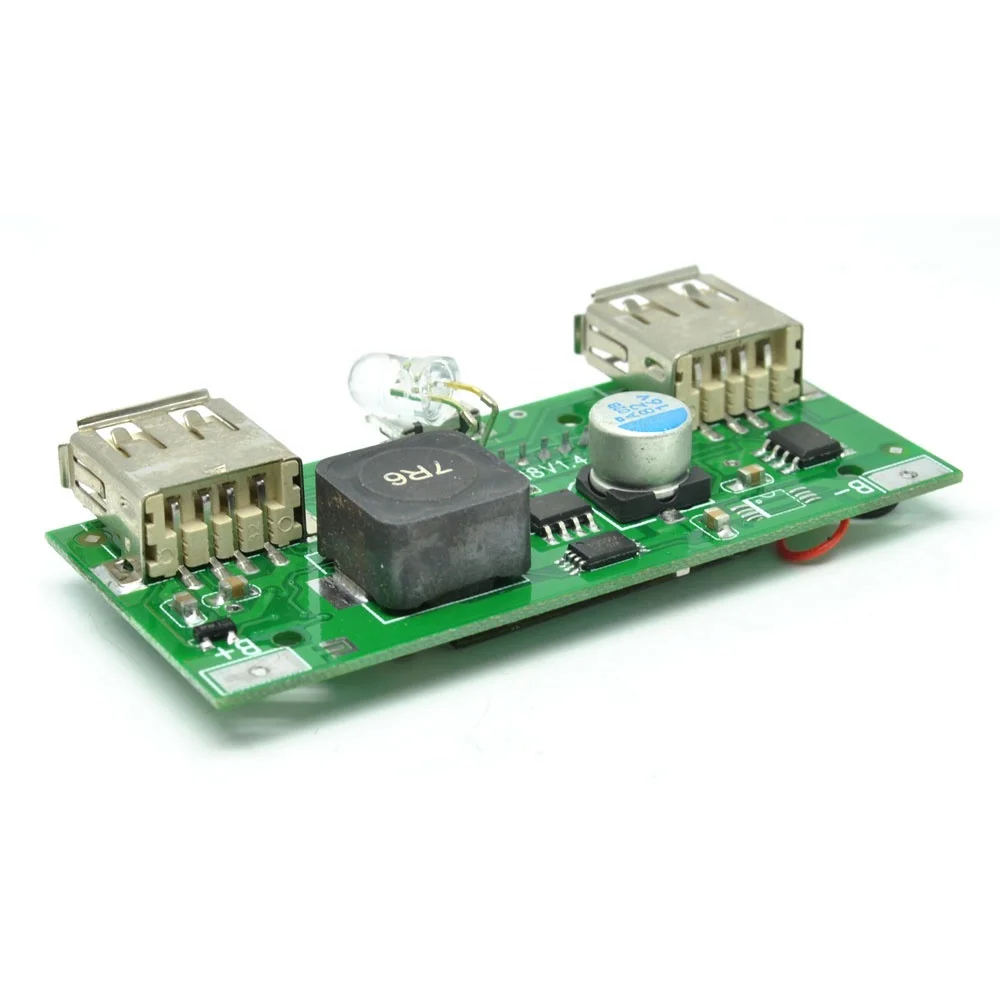

Электронная печатная плата для солнечного внешнего аккумулятора 10400 мАч OEM-поставщик Мобильный Внешний
0,65 $ - 4,50 $

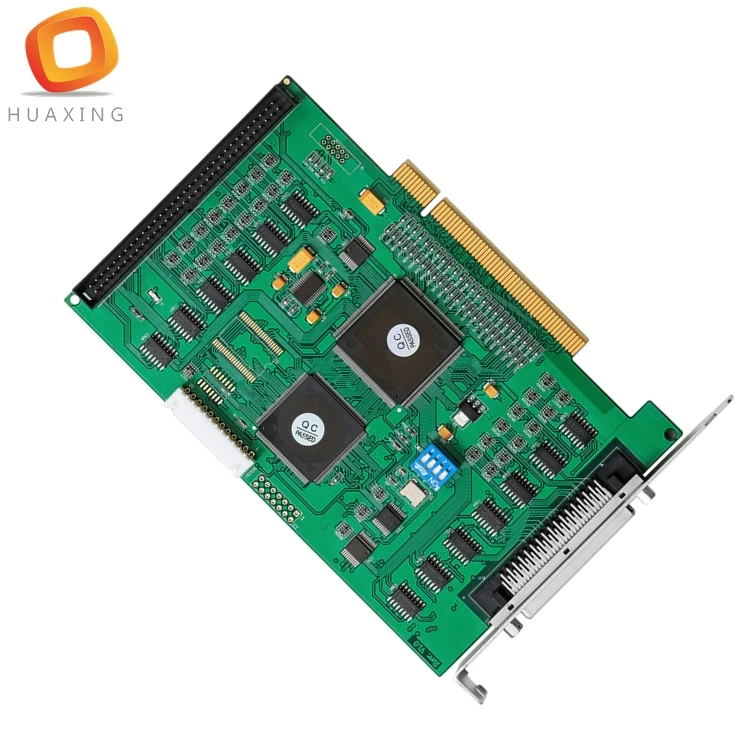

Профессиональный производитель печатных плат OEM в сборе файл Gerber список BOM индивидуальная
1,00 $ - 2,00 $
Выключатель сенсорного управления для капота со светодиодным дисплеем и логотипом панель сборка по производству печатных
7,20 $ - 9,00 $
JBD активный баланс BMS 4S 12 В 250A 300A LiFePO4 литиевая батарея Защитная плата для инвертора с подогревом UART

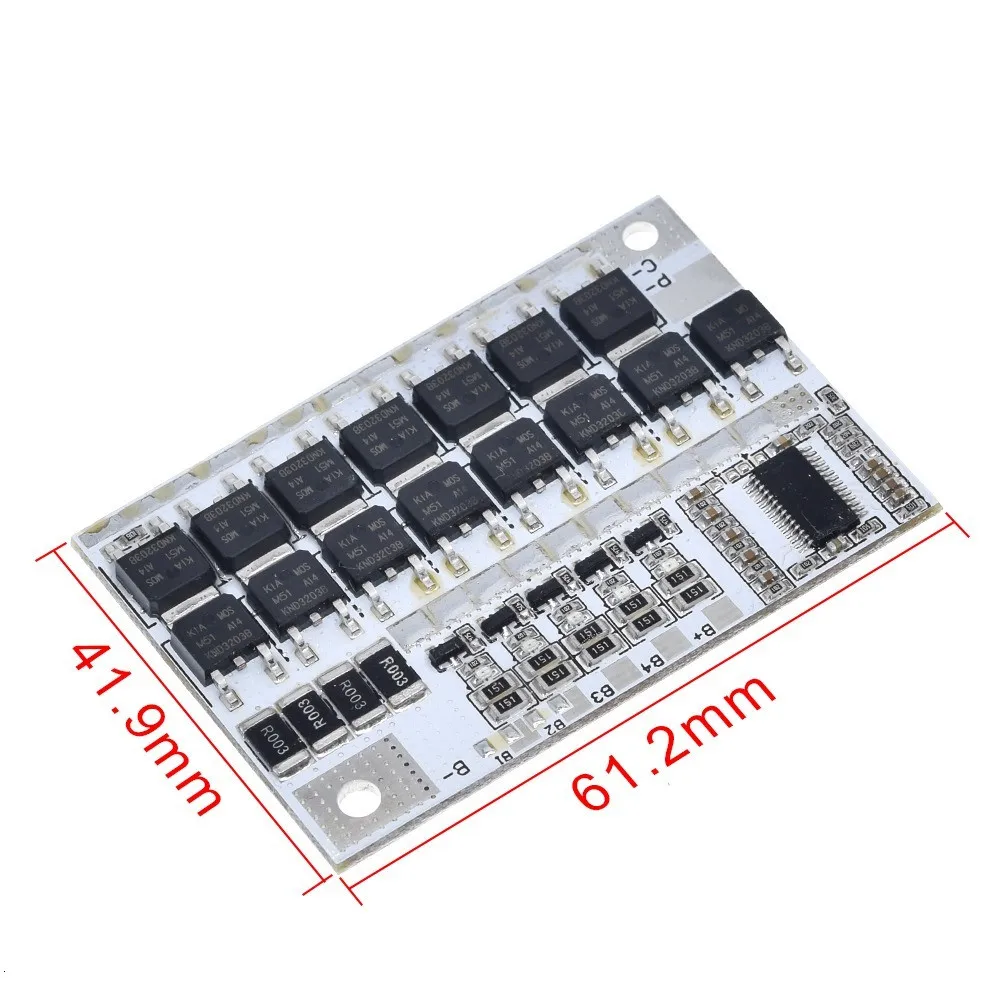

3s/4s/5s Bms 12v 16 8 v 21v 3 7 100a литий-ионный ЖИО трехкомпонентная литиевая батарея защиты печатной платы литий-полимерная для
