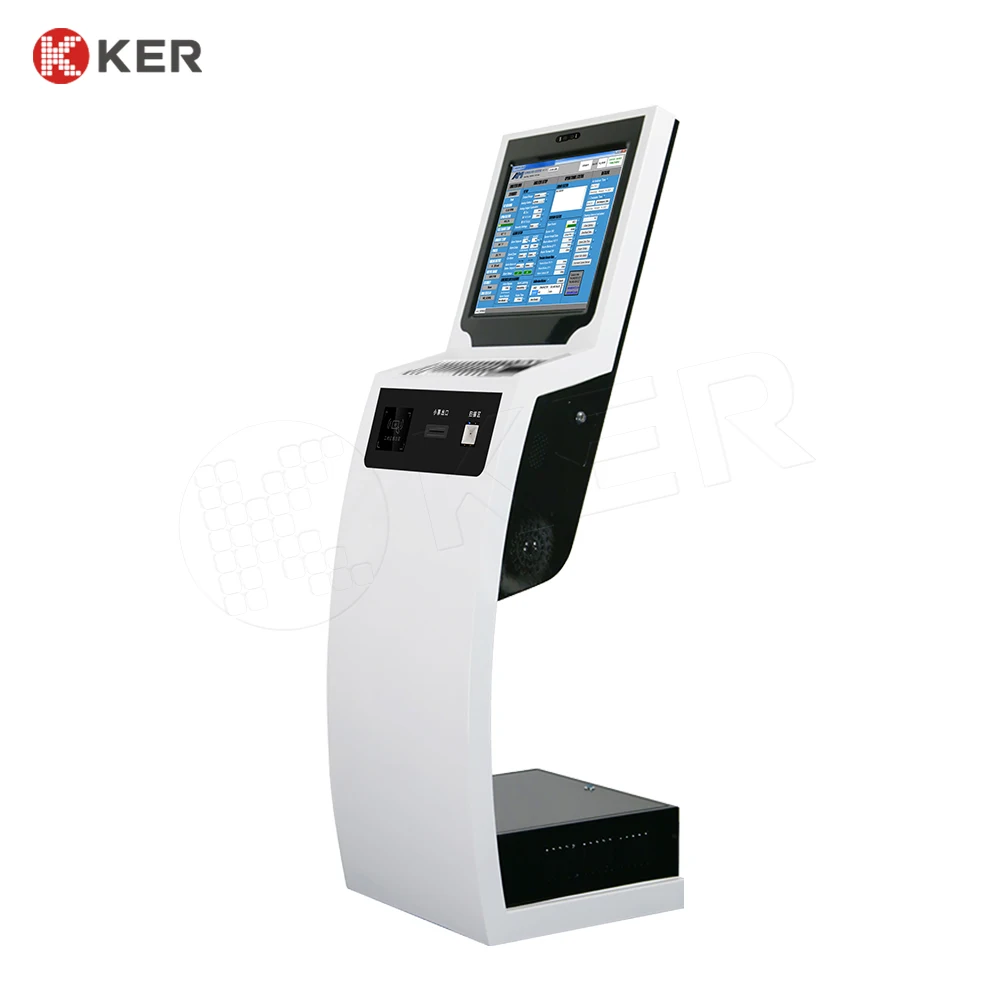

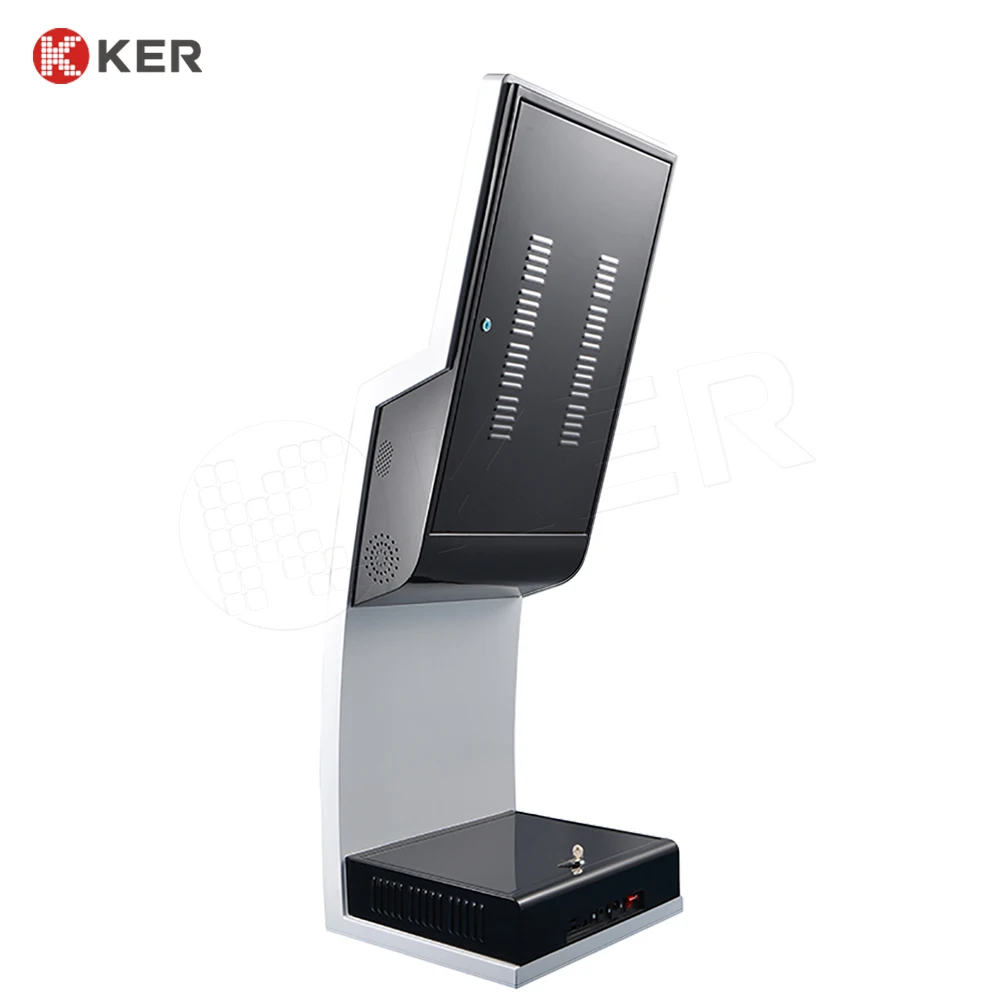

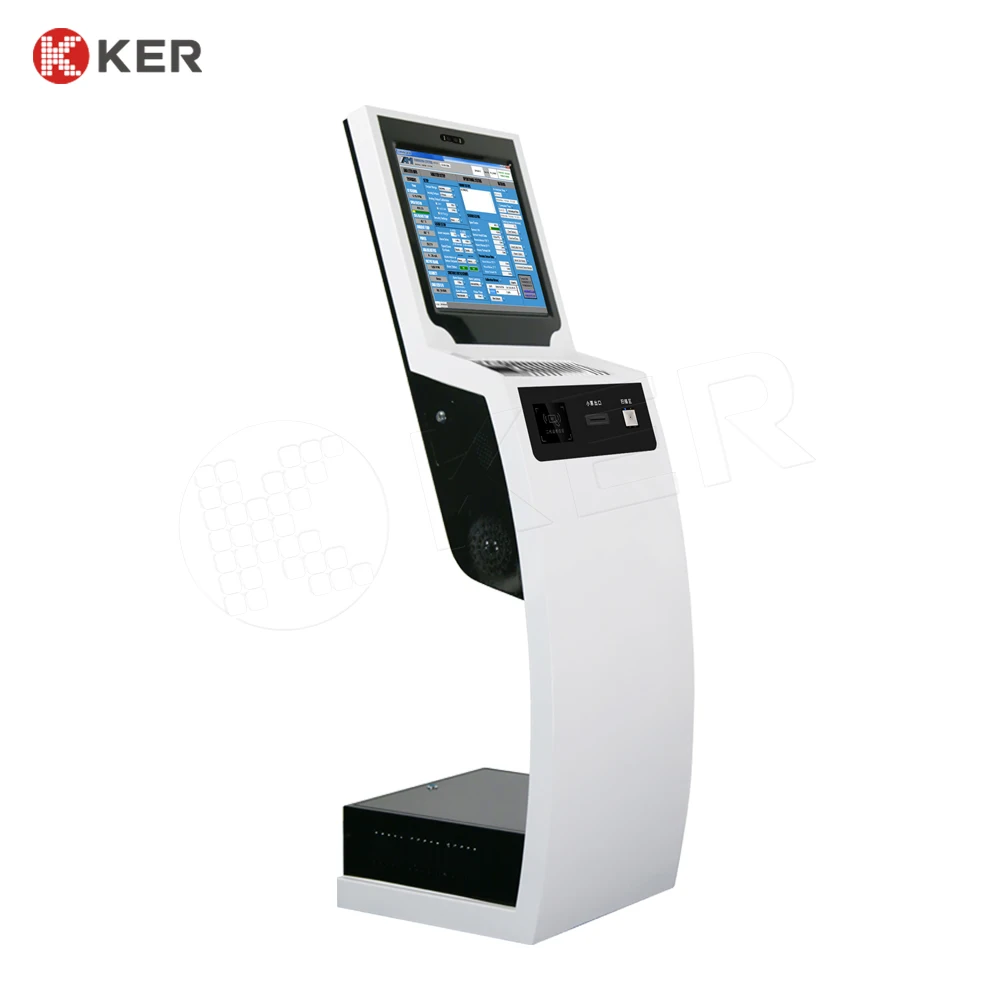

Хорошее качество 19 дюймов ANDROID 10/11/12/13 киоск для записи на прием с сенсорным экраном киоски печати билетов самообслуживания

Хорошее качество 19 дюймов ANDROID 10/11/12/13 киоск для записи на прием с сенсорным экраном киоски печати билетов самообслуживания

Категория: >>>
Поставщик: Guangzhou Chujie Information Technology Co. Ltd.

Цена:92 984,39 ₽ - 103 923,73 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Specification

*PRODUCT NAME

1)BASIC PARAMETERS

Product Name

Self-Service Ticket Kiosk

Product Model

ST-TK-005 19"

* PRODUCT SPECIFICATION

CATEGORIES

CATEGORIES -2

DESCRIPTIONS

*PRODUCT SPECIFICATION

1)LCD PARAMETERS

Screen Size

19 "

Screen Type

LED industrial grade A standard LCD screen

Screen Brand

LG

Display Area

376MM(L)*301MM(W)

Resolution

1280*1024

Screen Ratio

4:3

Brightness

350cd/㎡

Contrast

1500:1

Response Time

5.5ms

Max. Color

16.7m

Refresh Rate

50\\60hz

Visual Angle

178°(H)\\178°(V)

Service Lift

60000hours

2)TOUCH SCREEN PARAMETERS

Touch Screen Type

Projected capacitive touch screen (G+G)

Response Time

3ms

Touch Points

10-point touch, can realize multi-touch functions such as zooming in and zooming out pictures

Effective Touch Recognition

＞1.5mm(Opaque objects such as fingers and touch pens)

Scan Rate

50scans\\s

Scan Accuracy

4096*4096

Communication Methods

Full speed USB2.0\\3.0

Theoretical Clicks

60 million times or more

Working Current/ Voltage

180ma\\dc+5v±5%

Anti-light Interference

Normal use when sunlight, incandescent lamp, fluorescent lamp, etc. strong light changes

Touch Data Output Method

Coordinate output

Surface Hardness

Physically tempered Mohs Grade 7 explosion-proof glass

Operating System Compatibility

Windows\\Android

Drive

Drive-free, plug and play

3)HOST CONFIGURATION

Program

Android

Windows

Processor

RK3288 quad-core Cortex-A17 (optional)

Intel Core I3 dual core four threads (optional)

RAM

2G(optional)

4G(optional)

ROM

8G(optional)

64G(optional)

GPU

ARM Mali-T764

Integrate display (optional)

OS

Android 7.1

Windows10

Internet

Support Ethernet\\Wireless WIFI

Support Ethernet\\Wireless WIFI

Interfaces

USB*2, HDMI*1, RJ45*1, audio\\headphone*1

USB*4, HDMI*1, RJ45*1, audio\\headphone*1

Other Customization

Wake on LAN, self-start after power on, Bluetooth, 4G, COM serial port, etc.

Wake on LAN, self-start after power on, Bluetooth, 4G, COM serial port, etc.

*PRODUCT SPECIFICATION

4.1)FRONT CAMERA PARAMETERS
(OPTIONAL)

Model name

Binocular wide dynamic camera module

Model no.

SXHD80DBL-V1.0

Camera pixels

1920*1080*2

Image sensor

HDR1080P*2

Image dynamic image resolution and transmission rate

1920*1080/30fps
1280*720/30fps
800*600/30fps
640*480/30fps
352*288/30fps
320*240/30fps
160*120/30fps

Captured image resolution

1920*1080 or other

Signal noise

41 db

Dynamic range

100 db

Adjust focal length

60 cm

Infrared wavelength

850（Narrowband）

Lens optical structure

2G2P+IR

Field angle

105°±5°

Aperture distortion

F2.0 <1％

Relative illuminance

0.65

4.2)QR-CODE SCANNER PARAMETERS
(OPTIONAL)

Model name

QR-CODE scanner

Model no.

F20

Image sensor

640×480 CMOS

Lighting

White light LED（6500K）

Reading code system

2D: PDF417, Data Matrix, QR Code;
1D: Interleaved 2 of 5, ISBN, Code 93, Code 11,UCC/EAN-128
GS1 Databar, Matrix 2 of 5, Industrial 2 of 5,Code 128, EAN-13,
EAN-8, Code 39, UPC-A, UPC-E, Codabar,Standard 2 of 5, MSI_x005f_x005f_x005f_x005f_x0002_Plessey,GS1 composite code, etc.

Reading accuracy

≥5mil

Typical reading depth of field

E-payment: 30-150mm (based on the front end of the lens, the size of the mobile phone screen is 5.2 inches)
Metro\\Bus: 50-120mm (based on the front end of the lens, the size of the mobile phone screen is 5.2 inches)

Symbolic contrast

≥20%

Bar code sensitivity

Tilt ± 55 °, deflection ± 55 °, rotation 360 °

Field angle

Horizontal 60 °, vertical 48 °

4.3)THERMAL PRINTER PARAMETERS
(OPTIONAL)

Model name

Thermal printer

Model no.

TC35

Printing method

Line thermal printing

Print paper width

80mm

Print width

72mm

Resolution

203DPI

Points per line

576 points

Print speed

100mm/s(12v)
250mm/s(24V)

Printable content

GBK Chinese character library, ASCII characters, one-dimensional bar code, supports printing of dot maps with different densities,
raster bitmaps and download bitmaps. Expandable 2D barcode.

Default font

12x24 (ASCII), 24x24 (Chinese)

5)CABINET PARAMETERS

Cabinet Material

Tempered explosion-proof glass, Aluminum alloy frame, Iron sheet metal body

Cabinet Color

White\\Customizable

* EQUIPMENT SPECIFICATION

CATEGORIES

CATEGORIES -2

DESCRIPTIONS

*EQUIPMENT SPECIFICATION

1)POWER PARAMETERS

Input Power

AC110-240V, 50\\60Hz

Power Consumption

≤85W

Standby Power Consumption

＜3W

2)WORKING ENVIRONMENT

Operating Temperature

0℃-38℃

Working Humidity

10%-95%

Storage Temperature

0℃-40℃

Storage Humidity

10%-95%

3)ACCESSORIES

Bracket

\\

Power Cable

1 PC

Manual

1 PC

Warranty Card

1 PC

Certificate of Conformity

1 PC

4)PHYSICAL PARAMETERS

Screen Size

19"

Net Weight

35KGS

Gross Weight

40KGS

Machine Dimension

1476MM(H)*500MM(W)*450MM(D)

Package(Carton) Dimension

1220MM*660MM*240MM

Products Description

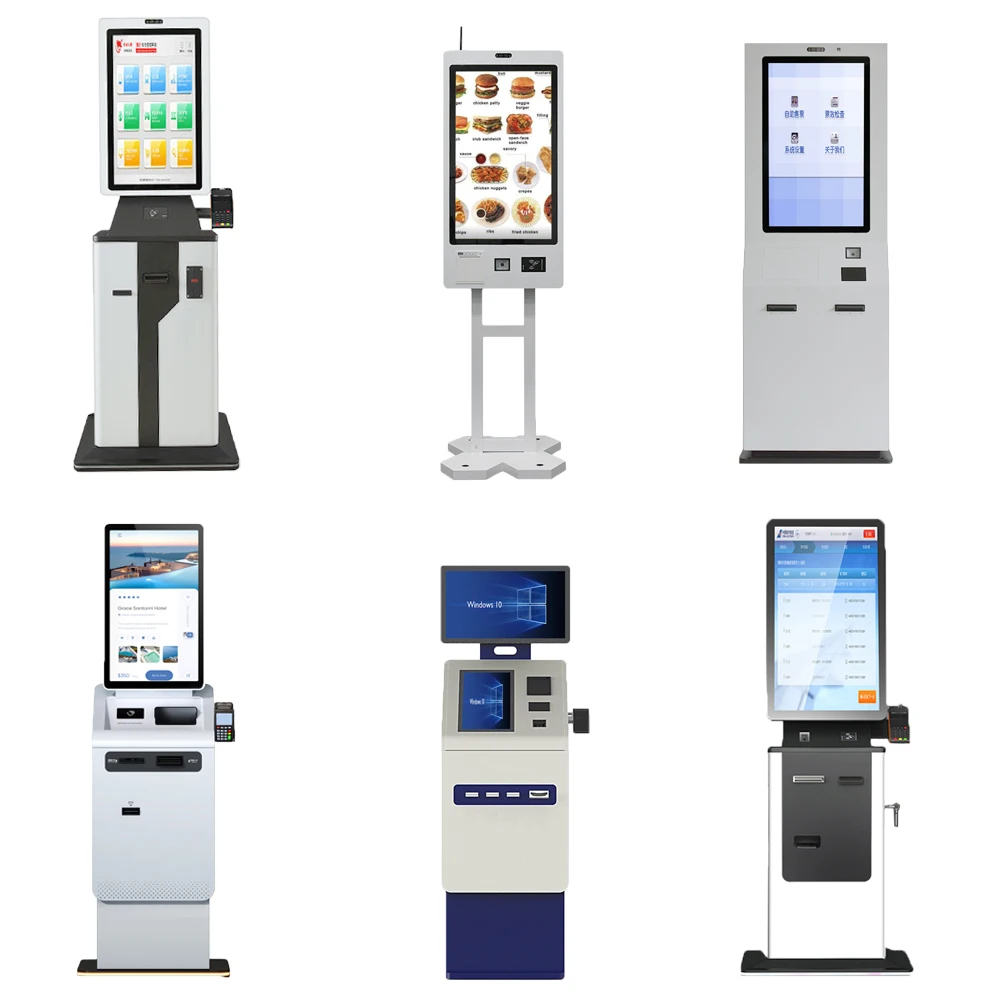

Recommended Products

Company Profile

FAQ

1.How can I get the price?-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.

3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 10-15 days for small quantity, and about 30 days for large quantity.

4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.

6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come
from.
