Flipsky 100A 75 В двойной 75100 FSESC с алюминиевым контроллером PCB для скутера/скейтборда/контроллера скорости/Ebike

Сохранить в закладки 1600838135190:


Цена:19 707,00-27 081,23 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Flipsky 100A 75V Dual FSESC 75100 with Aluminum PCB  Controller  for  Scooter / Skateboard/ Speed Controller  /Ebike



Product Advantages


























Voltage14-84V (safe for 4-20S)ModesDC, BLDC, FOC (sinusoidal)
Continuous Currentmax 100a singleSupported sensors:ABI, HALL, AS5047,AS5048A
BEC5V@1AEPRM150000

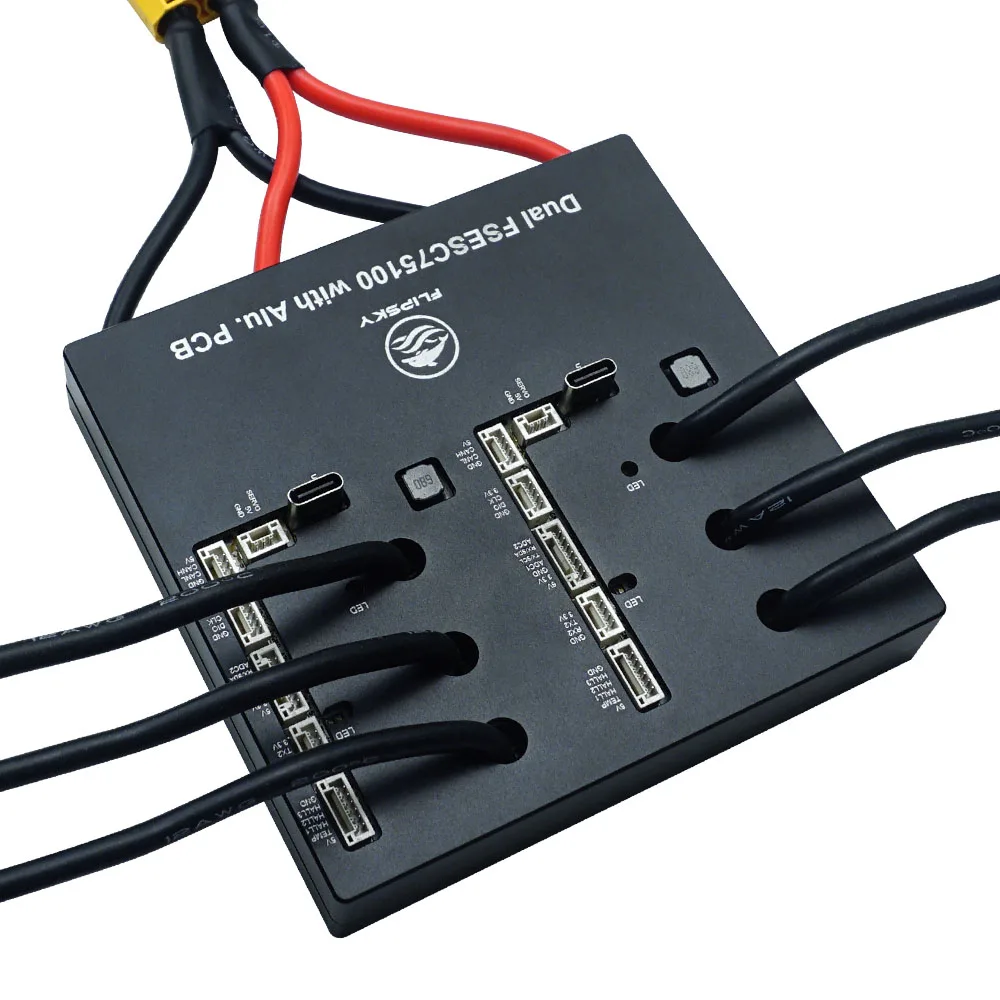

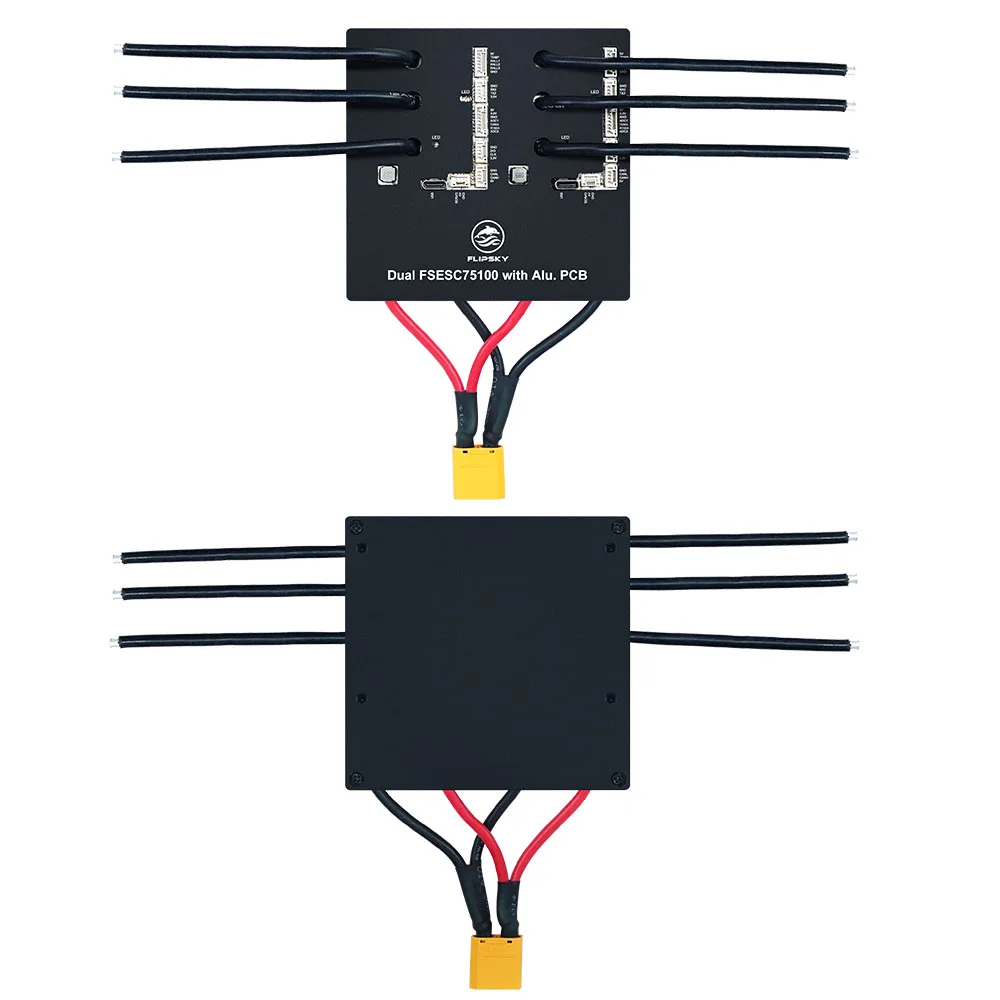

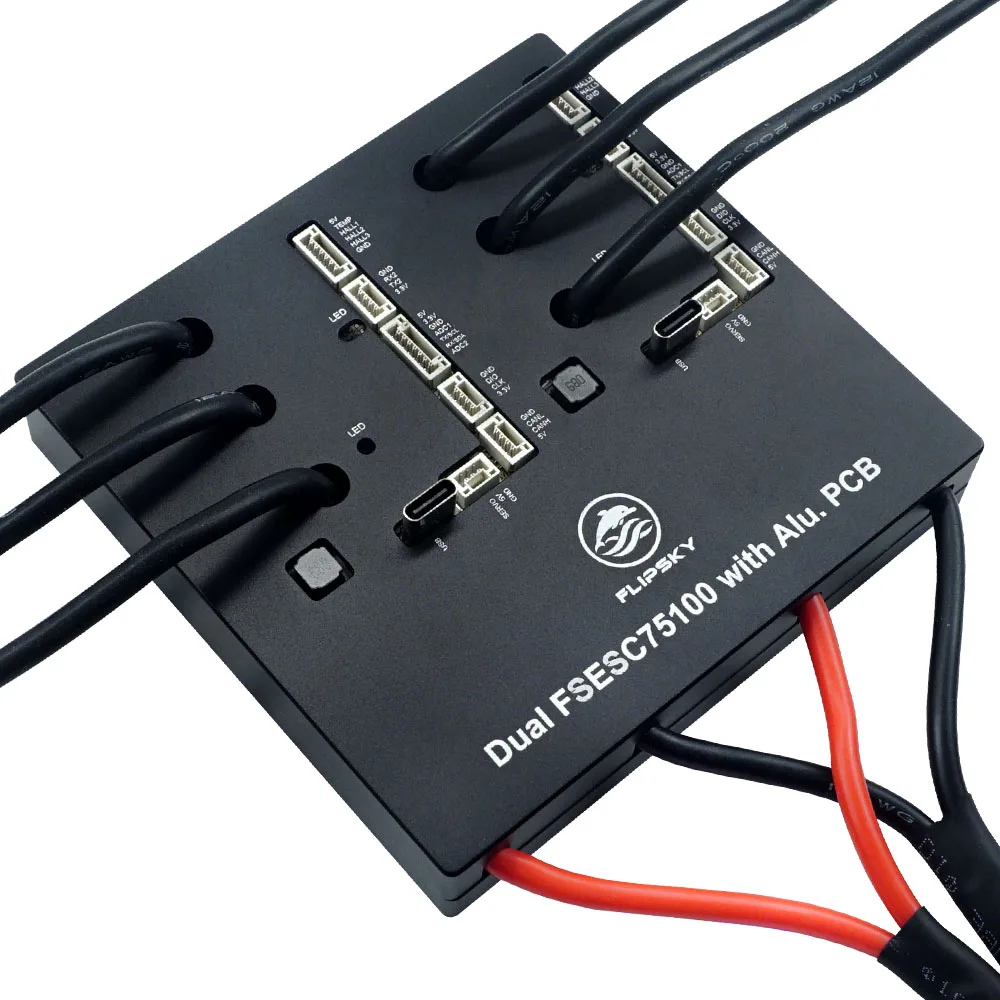

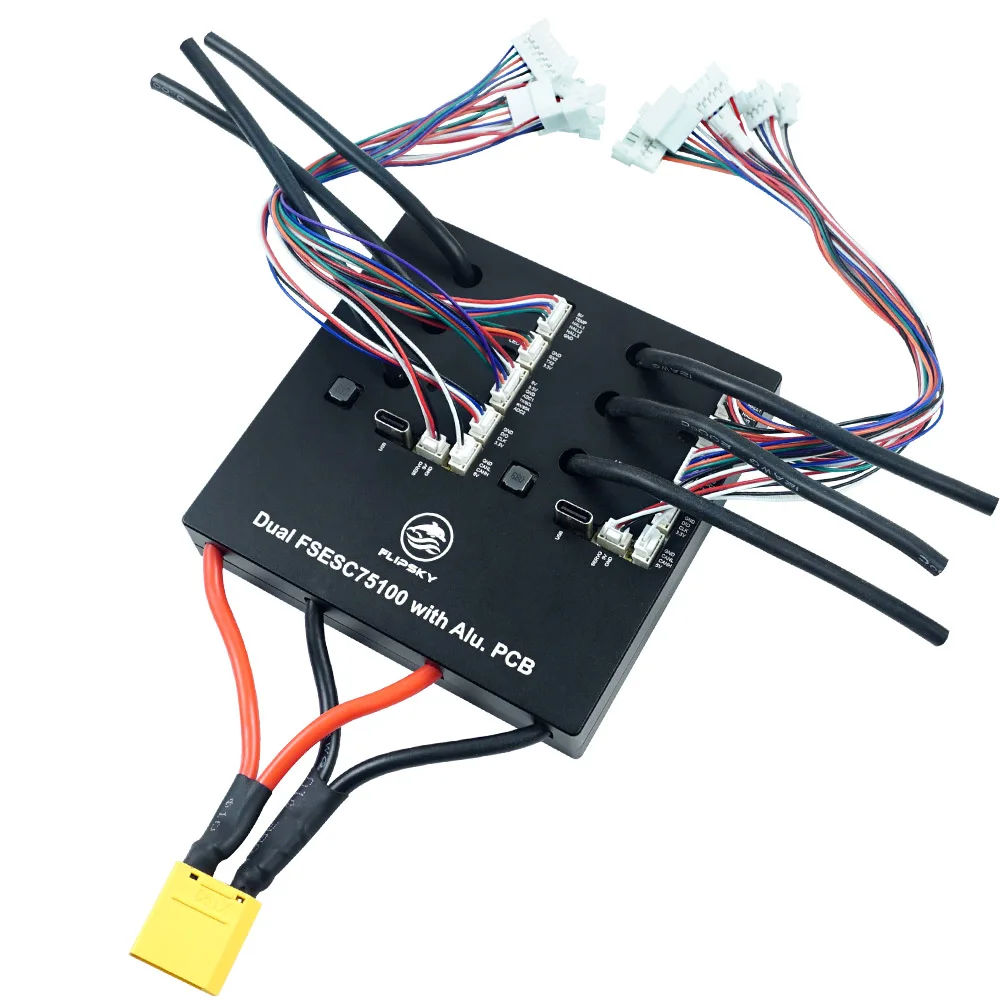

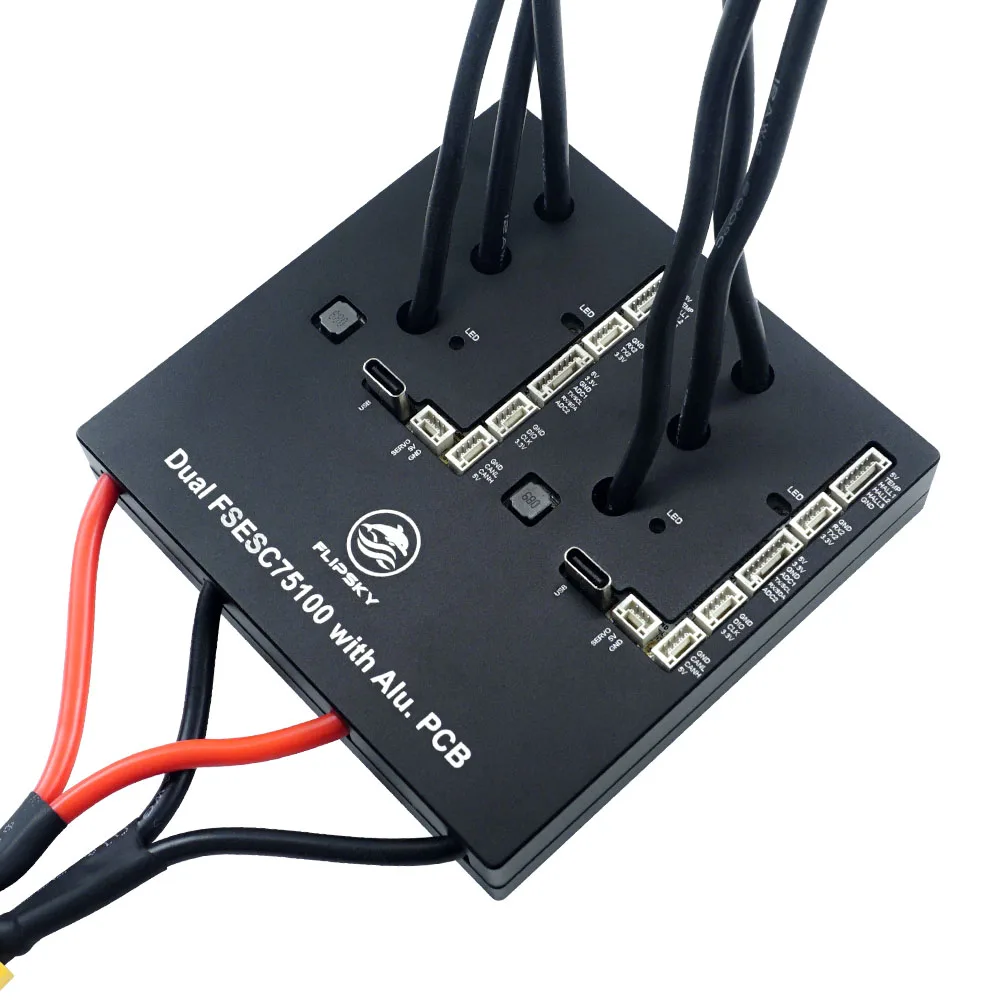

Flipsky Dual FSESC 75100 with Aluminum PCB 75V 100A Controller based on VESC for Skateboard / Scooter / Ebike/ Speed ControllerFlipsky Dual FSESC 75100 with Aluminum PCB 75V 100A Controller based on VESC for Skateboard / Scooter / Ebike/ Speed Controller





Product Advatages



  • Size:L107mm*W103mm*H18.5mm

  • Voltage:14-84V (4-20S safey)

  • Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting  and ambient temperature around the device!

  • BEC:5V@1A

  • Support BLDC square wave mode control and FOC sine wave mode

  • Firmware: latest (firmware update supported)

  • ERPM:150000

  • Control Interface Ports:USB,CAN,UART

  • Supported Sensors:ABI,HALL,AS5047,AS5048A

  • Input Set Support:PPM,ADC,NRF,UART

  • Wire Size: 12AWG

  • Programmable: Yes

  • Regenerative Capacity: Yes


Warm tips:


Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
YouTube:https://bit.ly/3IIV0ci
Blog:https://bit.ly/3JBRRMR


lease be careful to limit the Absolute Maximum Current below 250A.

Flipsky Dual FSESC 75100 with Aluminum PCB 75V 100A Controller based on VESC for Skateboard / Scooter / Ebike/ Speed Controller
