Автоматическая квадратная машина используемая для плитки керамическая производственная
7 229 712,00-10 844 568,00 ₽
5 осевая Водоструйная машина Hualong резка 5 осей водоструйная с ЧПУ
- Категория: >>>
- Поставщик: Fujian Province Hualong Machinery Co. Ltd.Fujian Ltd.
Сохранить в закладки 1600840236447:
Описание и отзывы
Характеристики
CNC Waterjet Cutting Machine

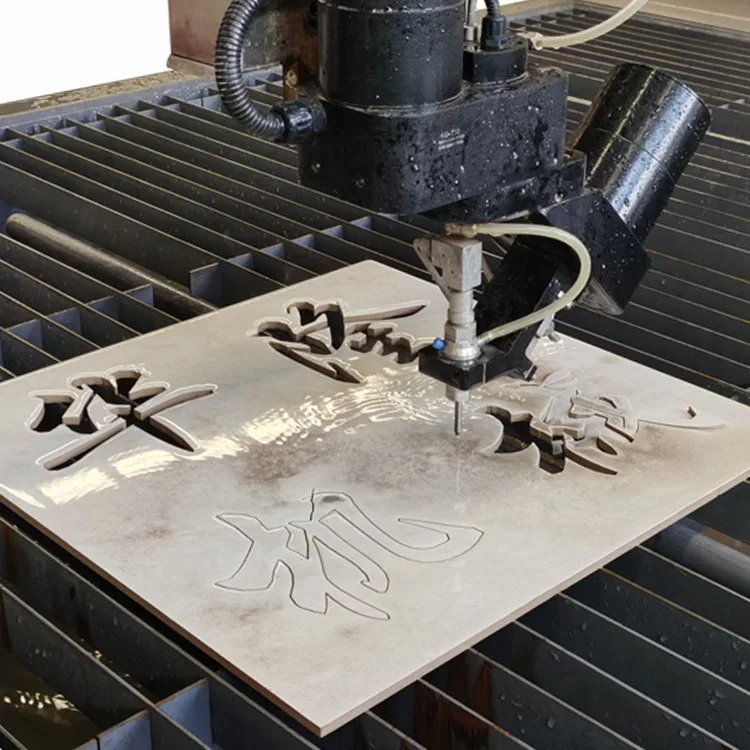

HLWJ-4020 , which using a very high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in the stock material, is an industrial tool capable for cutting almost any material while maintaining high precision.
This 5 axis waterjet cutter can cut any angle within +60°, it solves the traditional problem of water cutting inclination, and
achieves 2D/3D cutting easily.The line cutting accuracy is +0.1mm, angle cutting accuracy is +0.1°. Our machine is applied to cut bevel surface, straight surface, conical surface, circular surface, rotating surface, groove, chamfer, and arbitrary surface. It is able to cut steel, stainless steel, aluminum titanium, marble, granite, ceramic, glass, rubber, foam and many other materials.
This 5 axis waterjet cutter can cut any angle within +60°, it solves the traditional problem of water cutting inclination, and
achieves 2D/3D cutting easily.The line cutting accuracy is +0.1mm, angle cutting accuracy is +0.1°. Our machine is applied to cut bevel surface, straight surface, conical surface, circular surface, rotating surface, groove, chamfer, and arbitrary surface. It is able to cut steel, stainless steel, aluminum titanium, marble, granite, ceramic, glass, rubber, foam and many other materials.
Main Features:
1) Processable any curve cutting, flexible, convenient and versatile.
2) Notch is fast and smooth, no dust, no thermal deformation and no pollution.
Tension-free processed parts due to minimal cutting force.3) Narrow kerf – The amount of material removed by the water jet stream
is typically about 0.5-1.0 mm wide. Cut width optimizes material use, increasing cost effectiveness.
4) Cut Recovery - Pick back up where Jet stopped.
5) Programmable Z axis height. Z axis retracts between pierces.
6) Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.
7) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.
8) Driver system sealed against water,dust and grit. Long working life.
2) Notch is fast and smooth, no dust, no thermal deformation and no pollution.
Tension-free processed parts due to minimal cutting force.3) Narrow kerf – The amount of material removed by the water jet stream
is typically about 0.5-1.0 mm wide. Cut width optimizes material use, increasing cost effectiveness.
4) Cut Recovery - Pick back up where Jet stopped.
5) Programmable Z axis height. Z axis retracts between pierces.
6) Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.
7) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.
8) Driver system sealed against water,dust and grit. Long working life.
Technical Data for water jet cutting machine | ||||||
Model No. | HLWJ-3020 | HLWJ-4020 | ||||
Working area | mm | 3300*2100 | 4100*2100 | |||
X-axis stroke | mm | 3200 | 4000 | |||
Y-axis stroke | mm | 2000 | 2000 | |||
Z-axis stroke | mm | 80-130 | 80-130 | |||
Max. angle of C axis rotation | ° | +/- 360 | +/- 360 | |||
Max. angle of A axis swing | ° | +/- 60 | +/- 60 | |||
Cutting accuracy | mm | +/- 0.1 | +/- 0.1 | |||
Repeatable accuracy | mm | +/- 0.05 | +/- 0.05 | |||
Traverse speed | mm/min | 5000/15000 | 5000/15000 | |||
Main motor power | kw | 37 | 37 | |||
Dimension (L x W x H） | mm | 443x278x220 | 494x280x222 | |||
Driving System
Adopt imported core parts, durable and safe, pressurize water and continuously output water, so as to convert into supersonic water jet at cutting head. Maximum output pressure up to 4137bar(60000psi)400MPa, Sustainable cutting pressure up to 380MPa.
Auto Abrasive Delivery System
Transfers the abrasive to the abrasive regulator.
Air valve to prevent jams and breakages
Auto control with CNC auxiliary function
Self sealing
Slightly adjust the flow.
Oil Cooled Chiller
A less mantained, more stable and better working chiller.
It cool and guarantee the hydraulic system can be used in a stable
circular manner at 42-45°C，while at 55-57°C if by water chiller.
It cool and guarantee the hydraulic system can be used in a stable
circular manner at 42-45°C，while at 55-57°C if by water chiller.
Movable Operator Station

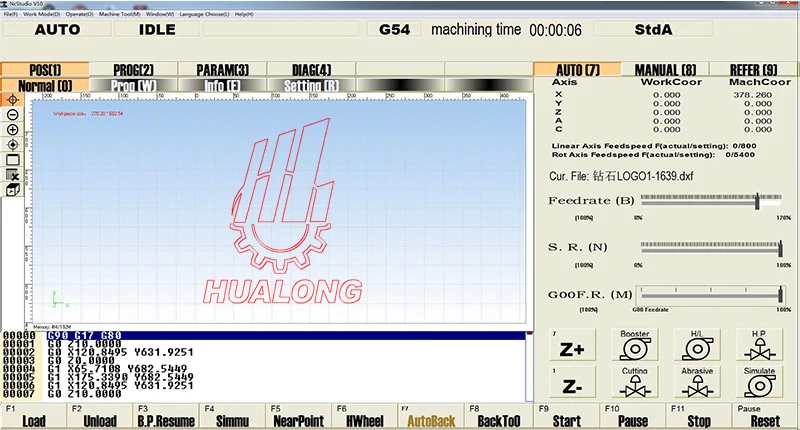

The station comes equipped with NcStudio V10 Waterjet cutting CNC system, 19" LCD, pump interface,keyboard and mouse.
Compatible G code, PLT, DXF file generated by CAD/CAM software of UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw etc.
Compatible G code, PLT, DXF file generated by CAD/CAM software of UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw etc.
Remote Control (optional)
For operating the movement of 5 axises conviniently.
For operating the movement of 5 axises conviniently.

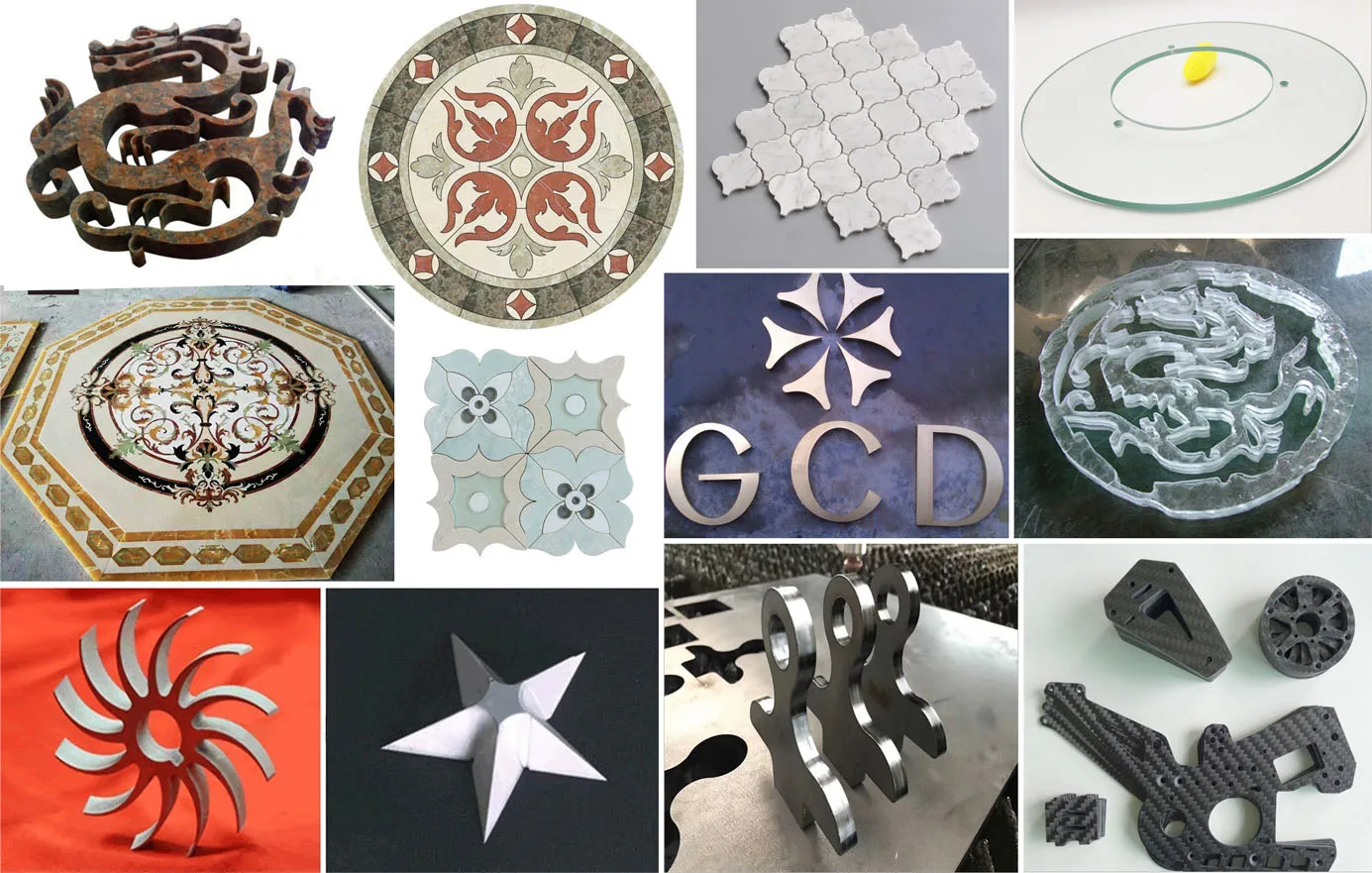

* Stone/Ceramic industries such as used for countertops, art puzzles, flooring Inlays and mosaics.
* Glass industry , such as bathroom glass, shop window glass, automotive glass and appliance glass.
* Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting, Cutting of metal parts.
* Gasket Cutting
* Foam Product Cutting.
* Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting, Cutting of metal parts.
* Gasket Cutting
* Foam Product Cutting.
Water Jet Software
Brand: Weihong
Original: China
A mature motion control solutions, to solve the high pressure water jet taper, towing and other technical problems, and realize
perfect dynamic five-axis cutting,
Easy to operate and to learn.
A mature motion control solutions, to solve the high pressure water jet taper, towing and other technical problems, and realize
perfect dynamic five-axis cutting,
Easy to operate and to learn.
Main Motor
Produced by : Siemens
Original: China
Power: 37 kw
Efficiency: 92.7%
To generate motion energy throught electtical energy for high pressure pump
Original: China
Power: 37 kw
Efficiency: 92.7%
To generate motion energy throught electtical energy for high pressure pump

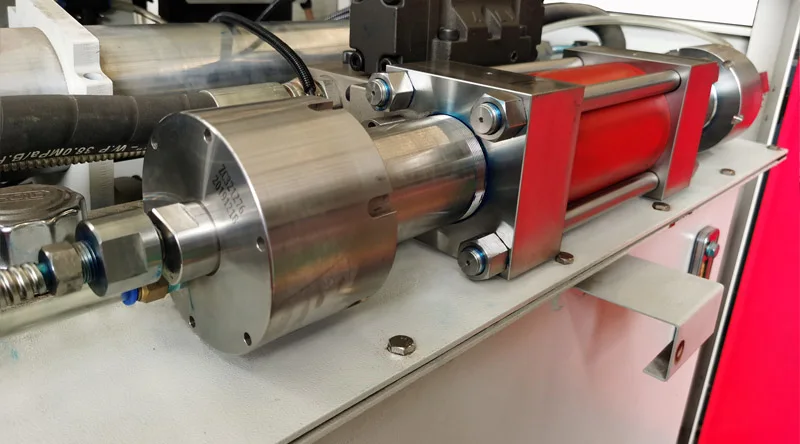

Intensifier
To produce high pressure water continuously.
Main parts come from Ashcroft, USA.Stable performance and operation
Main parts come from Ashcroft, USA.Stable performance and operation
Elec-magnet Valve
Brand: Yuanhong
Indicate and change advantage
Origina: China
Indicate and change advantage

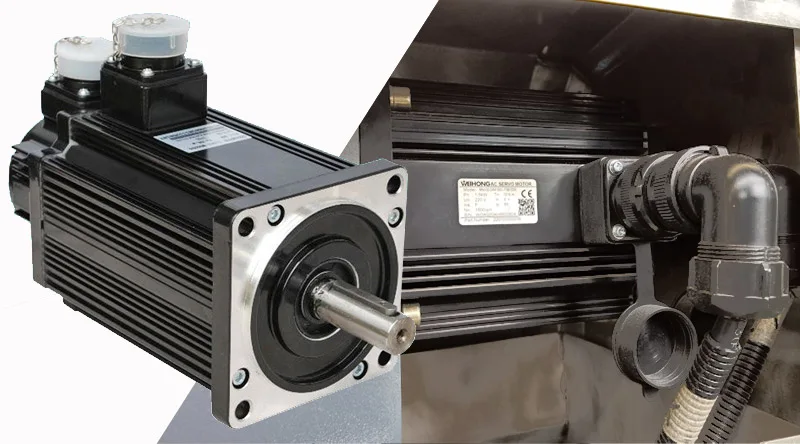

Servo Motor
Brand: Weihong
Origin: China
Nr of revolutions: 0-1500 rpm
Nr of revolutions: 0-1500 rpm
Drive X axis moving accuracy and reposefully.
Laser Sensor
Brand: Weihong
Original: China
Automatic scanning precision altimeter function, ensure the knife head distance workpiece surface constant
Automatic scanning precision altimeter function, ensure the knife head distance workpiece surface constant
VR
