Product Description:

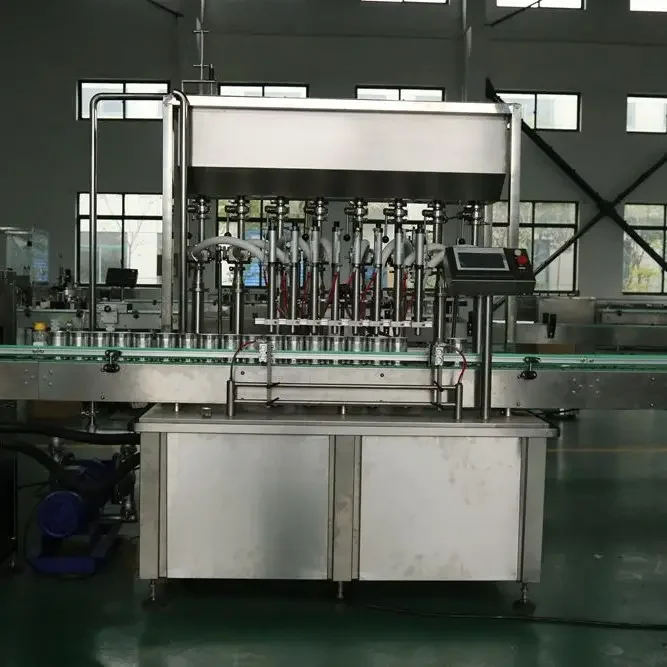

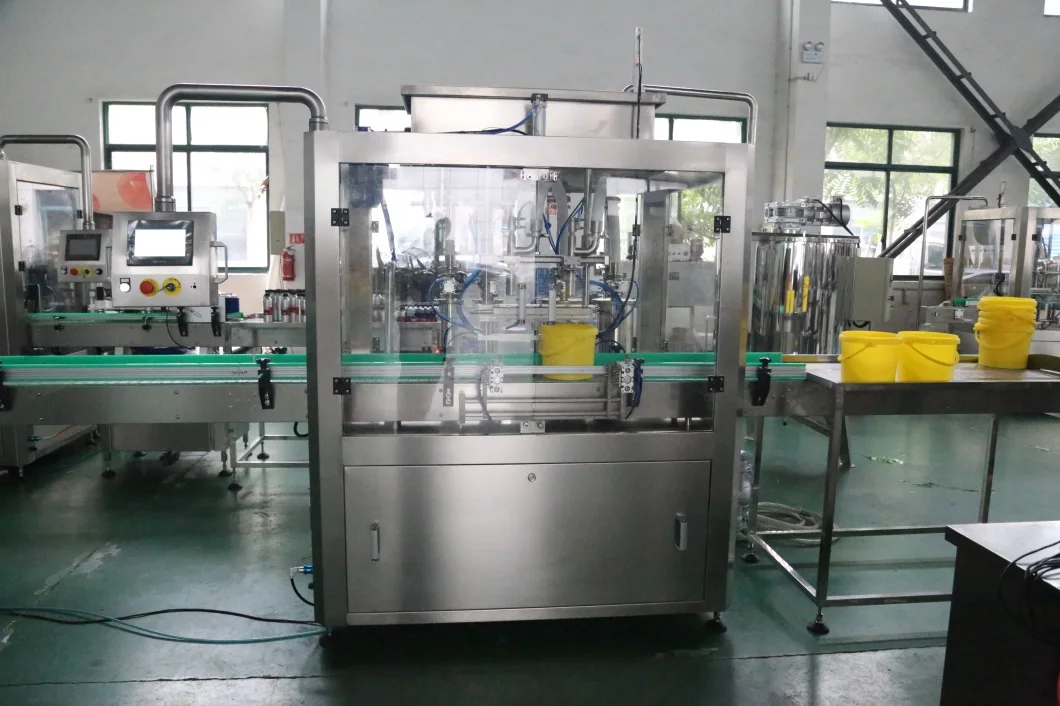

The machine is suitable for the quantitative filling of various kinds of sauces such as tomato sauce, chili sauce, fruit jam, high concentration and containing pulp or granule beverage, even pure liquid. This machine adopts the principle of upside down piston filling. The piston is driven by the upper cam. The piston and piston cylinder are specially treated. With precision and durability, it is an ideal choice for many food seasoning manufacturers.
Filling Nozzles | 2 nozzles | 4 nozzles | 6 nozzles | 8 nozzles | |||
Filling Speed | 25BPM | 30BPM | 40BPM | 50BPM | |||
Filling Volume | 50-150ml/10-250ml/50-500ml/100-1000ml/250-2500ml/500-5000ml | ||||||
Filling Accuracy | ±0.5-1% | ||||||
Power Voltage | 220V/380V/410V/440V, 60Hz, 3 Phase | ||||||
Air Consumption | 0.5-0.7Mpa | ||||||
Bottle Size | Customized | ||||||
Bottle Type | Glass, Plastic, Metal, etc | ||||||
Machine Frame Material | SS304/SS316 | ||||||
Remark | 1. The filling speed based on 500ml/bottle water. 2. More options can be customized according to your requirements. | ||||||
Features:
1. Filling valve can be customized according to customer’s materials to meet the filling requirements of different customer materials.
2. The tomato Sauce Paste filling machine equipped with horizontal mixing hopper, the maximum guarantee of uniform material in the filling process, no oil ketchup separation, to ensure the accuracy of each bottle filling.
3. The equipment greatly shortens the filling distance from the hopper to the filling head in design, and overcomes the material with large oil content (such as: chili oil containing sesame seeds).
4. Material contact parts are made of stainless steel, easy to disassemble and assemble, easy to clean and meet the requirements of GMP.
5. Easy to adjust filling volume and filling speed, operated and displayed by touch screen, beautiful appearance.
6. With no bottle no filling function, liquid level automatic control feeding.
2. The tomato Sauce Paste filling machine equipped with horizontal mixing hopper, the maximum guarantee of uniform material in the filling process, no oil ketchup separation, to ensure the accuracy of each bottle filling.
3. The equipment greatly shortens the filling distance from the hopper to the filling head in design, and overcomes the material with large oil content (such as: chili oil containing sesame seeds).
4. Material contact parts are made of stainless steel, easy to disassemble and assemble, easy to clean and meet the requirements of GMP.
5. Easy to adjust filling volume and filling speed, operated and displayed by touch screen, beautiful appearance.
6. With no bottle no filling function, liquid level automatic control feeding.

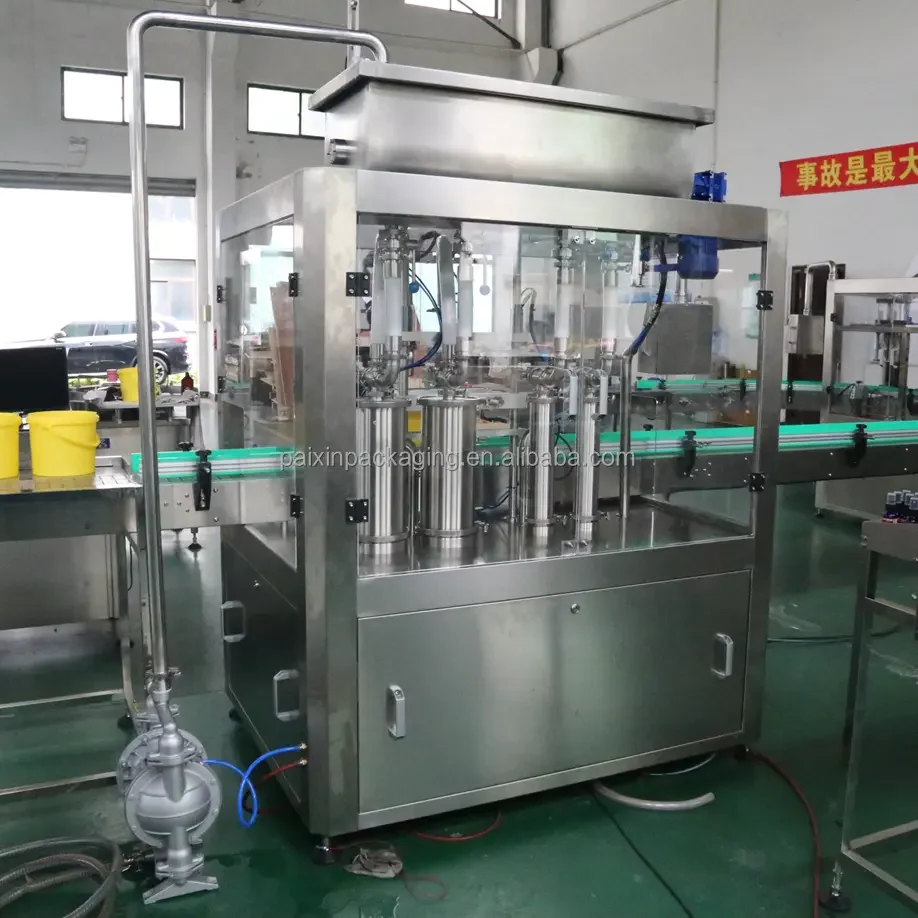

A hopper for storing materials
316L stainless steel hopper, inner wall with heat pipe and oil, heat preservation according to the temperature required by the material. Agitator bar can prevent the thick liquid solidification, increase the fluidity of the material.

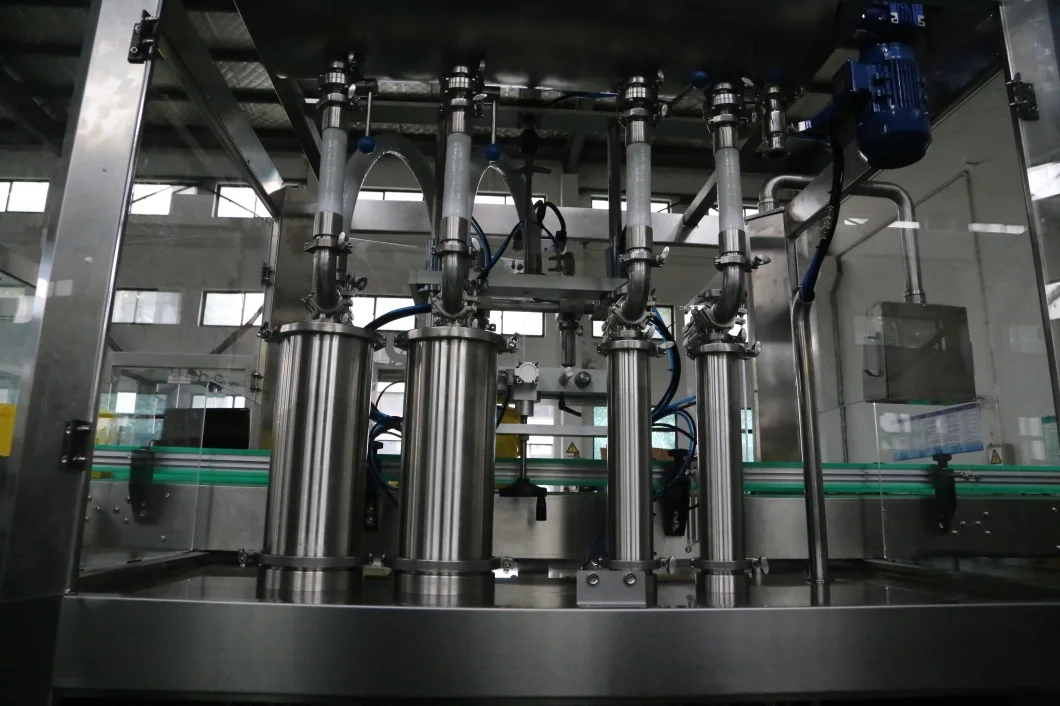

Filling Machine
Filling nozzles with anti-dripping design,we can customize multiple filling nozzle as production needs.Each nozzle of this machine can be controlled separately.
Capping Machine
To be different from traditional capping motor , Paixie uses magnetic motor in torquing , you can set all power as the cap need so that we prevent cap from broken or liquid leaking beucase of toure over or few.
Cap Hopper
The conveyor width can be adjusted according to the bottle diameter. The transferring speed is adjustable by operation panel.
Conveyor
The conveyor width can be adjusted according to the bottle diameter. The transferring speed is adjustable by operation panel.

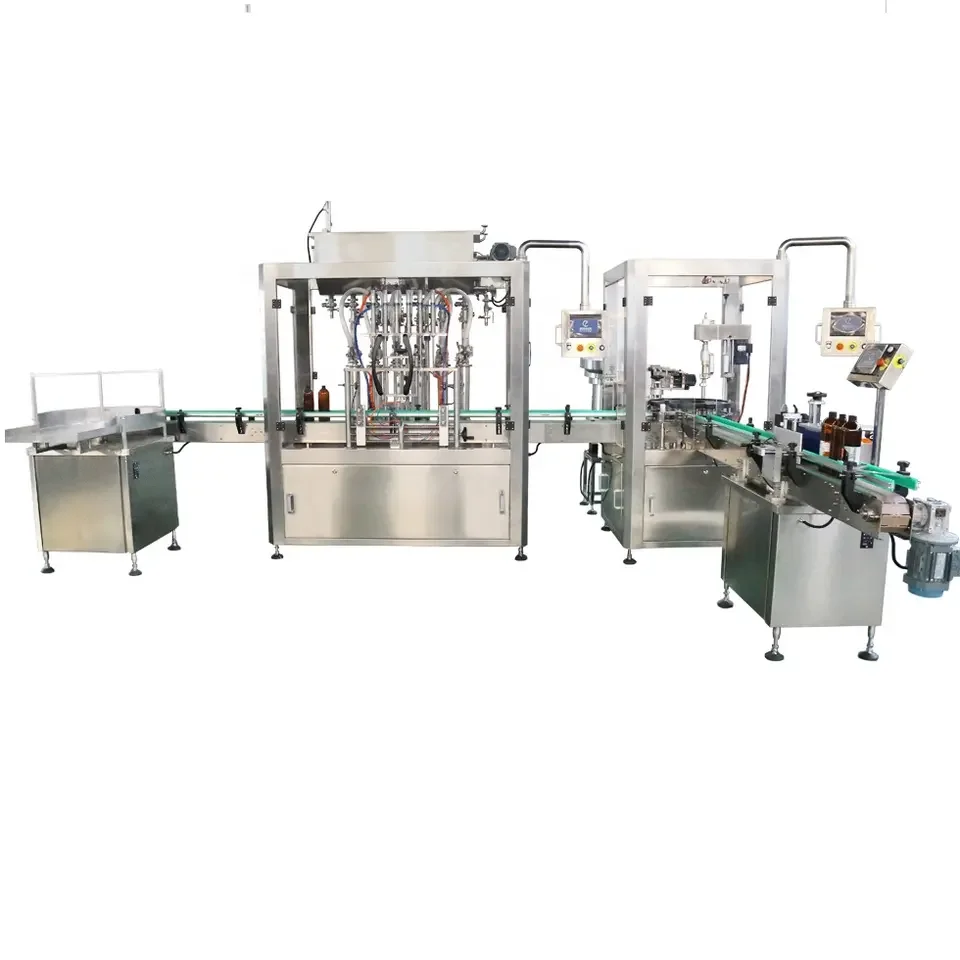

Shanghai Xiepai Machinery Equipment Co.,Ltd is a professional manufacturer of filling line for over 12 years, customized filling lines for different industry customers like food and beverage, cosmetic, medical industry, chemical industry and etc, lots of successful cases for your reference. The full automatic liquid filling machine is designed for saving time on adjusting and testing machine, it can fill liquid or paste accurately by entering a certain filling volume. The PLC control method makes it easy to operate and thigh speed working efficiency is ideal for different scale production. It can work with the automatic capping machine and labeling machine and other equipment based on customer requirement. XIEPAI filling line is widely used in the following industries:
* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
A SERIES OF INSTALLATION AND TECHNICAL GUIDE VIDEOS, EASY TO LEARN
