Цельная продажа промышленный большой двигатель NEMA45 310 В 3 кВт BLDC
- Категория: >>>
- Поставщик: Changzhou Modar Intelligent Technology Co. Ltd.
Сохранить в закладки 1600844282362:
Описание и отзывы
Характеристики

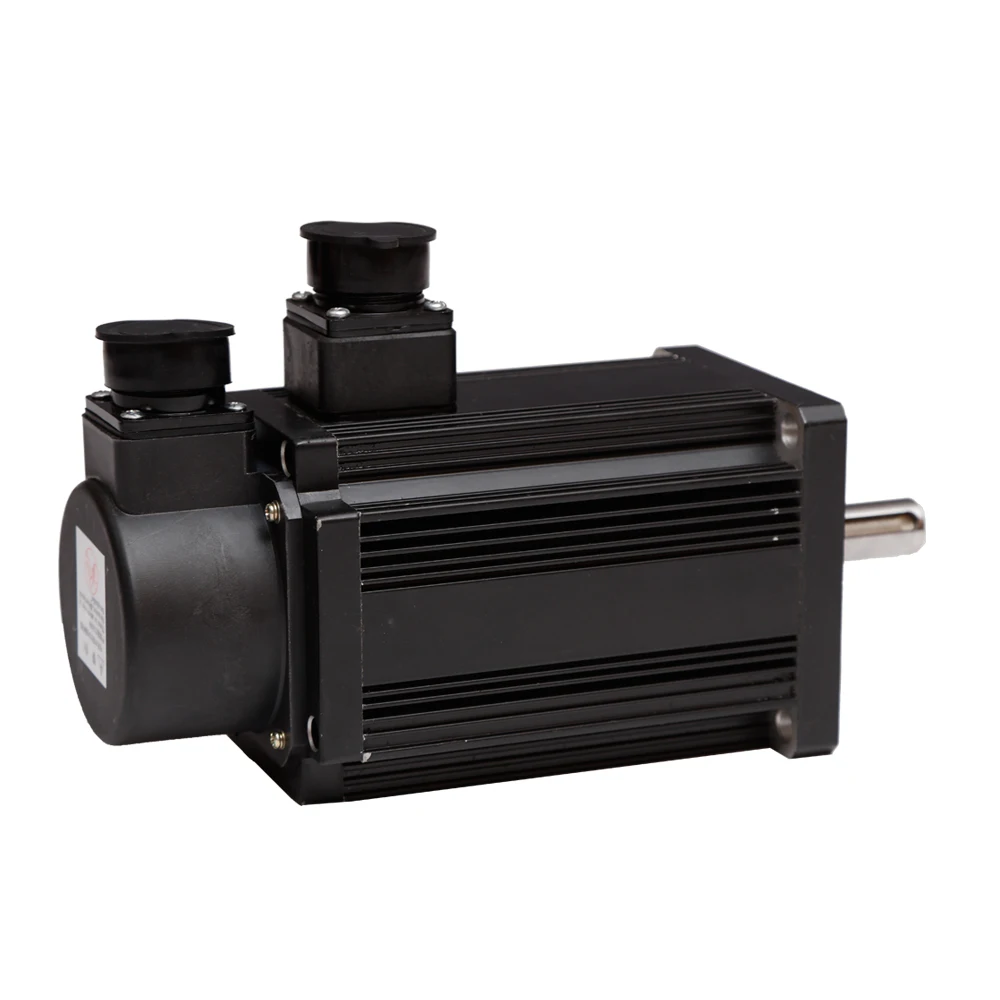

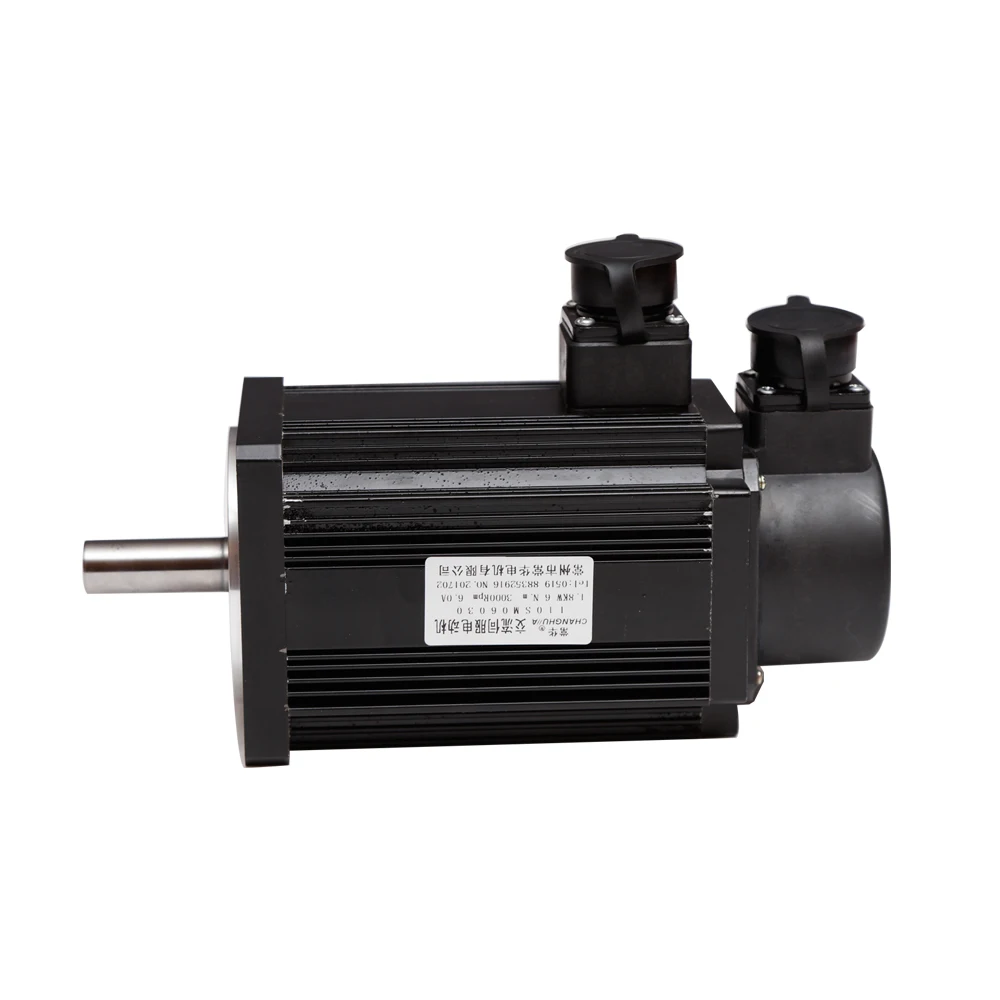

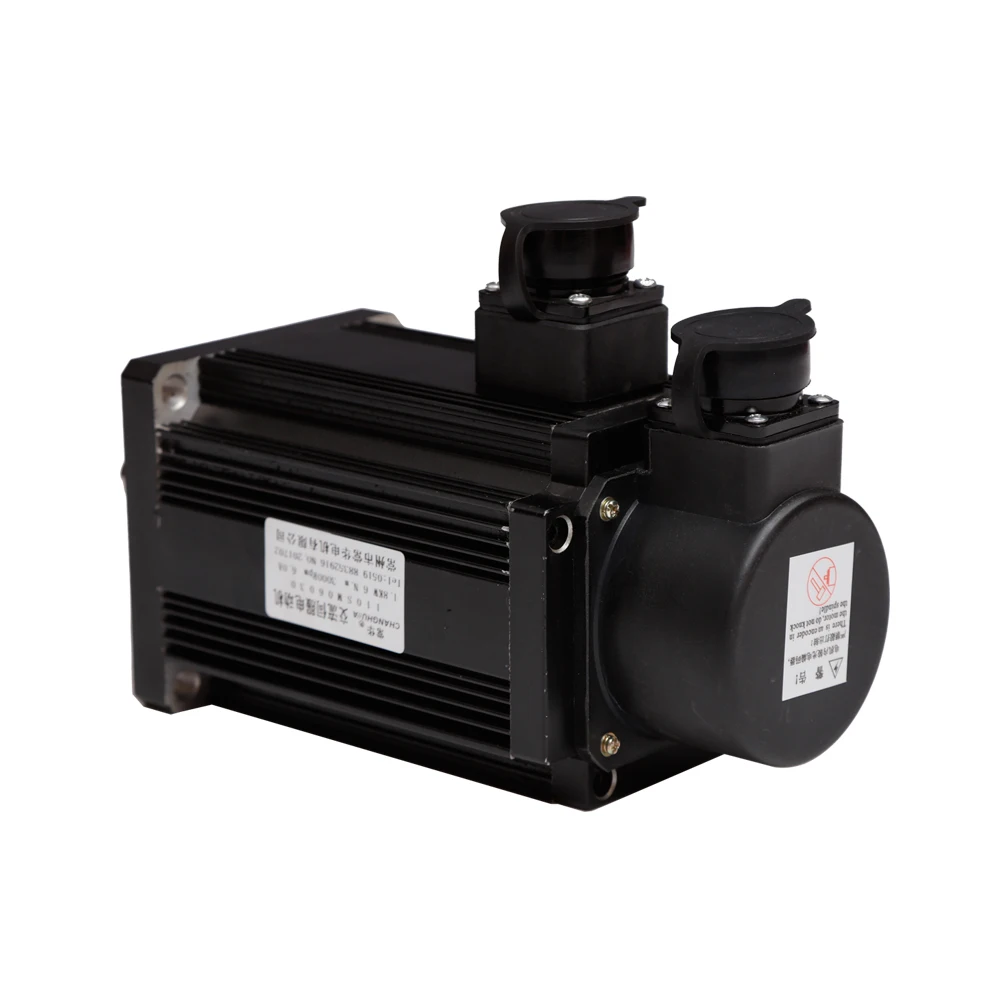

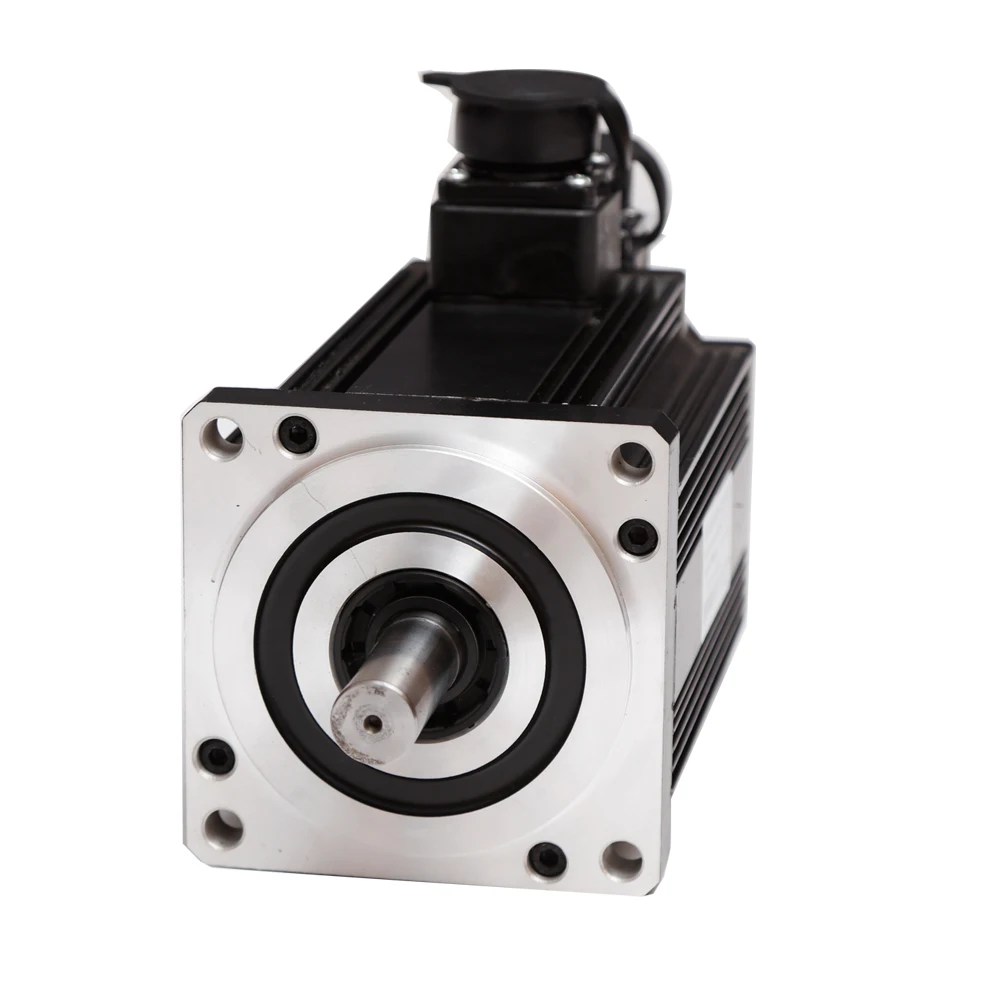

BLDC motor
Brushless DC motors are especially suitable for environments that require quiet operation and have a long service life. BLDC Motos provided by Modar have a high acceleration, combined with very high efficiency and speeds of up to 14,000 rpm. Along with encoders, BLDC motors can also be used in applications that require precise positioning.
Products Description
Product Specifications
Model | Voltage | Speed | Torque | Peak Torque | Current | Power | Rotor inertia | Length | Weight |
V | rpm | N.m | N.m | A | W | kg.mm2 | mm | Kg | |
110BL110-430 | 48 | 3000 | 3.2 | 9.6 | 28 | 1000 | 730 | 110 | 4.5 |
110BL110-630 | 310 | 3000 | 3.2 | 9.6 | 4.2 | 1000 | 730 | 110 | 4.5 |
110BL140-430 | 48 | 3000 | 4.8 | 14.4 | 42 | 1500 | 1100 | 140 | 5.5 |
110BL140-630 | 310 | 3000 | 4.8 | 14.4 | 6.3 | 1500 | 1100 | 140 | 5.5 |
110BL170-630 | 310 | 3000 | 6.4 | 19.2 | 8.4 | 2000 | 1460 | 170 | 7 |
110BL230-630 | 310 | 3000 | 9.6 | 28.8 | 12.6 | 3000 | 2200 | 230 | 9 |
item | value |
Warranty | 1year |
Place of Origin | China |
Jiangsu | |
Brand Name | Modar Motor |
Model Number | 110BL110/140-430 110BL110/140/170/230-630 |
Usage | Home Appliance, Medical Apparatus |
Type | Brushless Dc Motor |
Torque | 3.2/4.8/6.4/9.6N.m |
Voltage | 48/310V |
Construction | Permanent Magnet |
Commutation | Brushless |
Speed(RPM) | 3000RPM/min |
Continuous Current(A) | 28/4.2/42/6.3/8.4/12.6A |
Efficiency | Ie 3 |
Product Paramenters
Recommend Products
If you need brushless motors with different diameters, you can choose from the following products.
86BL80/90/105/115/130-430
86mm brushless dc motor 3-phase 4-pole
Voltage:48V
power: 314W-750W
rated torque: 1N.m-2.5N.m
length: 80mm-130mm
rated torque: 1N.m-2.5N.m
length: 80mm-130mm
42BL53/73/93-230
42mm brushless dc motor 3-phase 8-pole
Voltage:24V
power: 32W-95W
rated torque: 0.1N.m-0.3N.m
length: 53mm-93mm
rated torque: 0.1N.m-0.3N.m
length: 53mm-93mm
If you want to know the following other types of motors, please click on the URL: https://modarmotor.en.alibaba.com
Manufacturing Technique
Packing & Delivery
Company Profile
Modar Motor
For more than 10 years, Modar Motor has offered BLDC motors, brushed DC motors, AC motors etc. available from 1 to 3000W in 12V, 24V, 48V, 310V versions. We also provide stepper motors, Linear actuator, pump motor for medical equipments etc..
We are specialized in provide the DC motor, brushless motor, stepper motor, servo motor, AC motor, pump motor and other motors for medical equipments.
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2021, sell to Eastern Europe(20.00%), North America(15.00%), Southeast Asia(10.00%),South America(10.00%), South Asia(5.00%), Southern Europe(5.00%),Northern Europe(5.00%), Central America(5.00%),Western Europe(5.00%), Eastern Asia(5.00%), Mid East(5.00%), Oceania(5.00%), Africa(5.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
DC MOTOR, BRUSHLESS MOTOR, PUMP MOTOR, STEPPER MOTOR, AC MOTOR
4. Why should you buy from us not from other suppliers?
Specialized in designing and making DC motors, brushless motors, pump motors, ac motors, gearbox motor and motors for medical machines, auto machines.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, DAF, DES；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken:English, Chinese, German
We are based in Jiangsu, China, start from 2021, sell to Eastern Europe(20.00%), North America(15.00%), Southeast Asia(10.00%),South America(10.00%), South Asia(5.00%), Southern Europe(5.00%),Northern Europe(5.00%), Central America(5.00%),Western Europe(5.00%), Eastern Asia(5.00%), Mid East(5.00%), Oceania(5.00%), Africa(5.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
DC MOTOR, BRUSHLESS MOTOR, PUMP MOTOR, STEPPER MOTOR, AC MOTOR
4. Why should you buy from us not from other suppliers?
Specialized in designing and making DC motors, brushless motors, pump motors, ac motors, gearbox motor and motors for medical machines, auto machines.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, DAF, DES；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken:English, Chinese, German
