10 кВт мини pv 2 оси Солнечный двухосевой привод для солнечной системы слежения
55 302,31 ₽

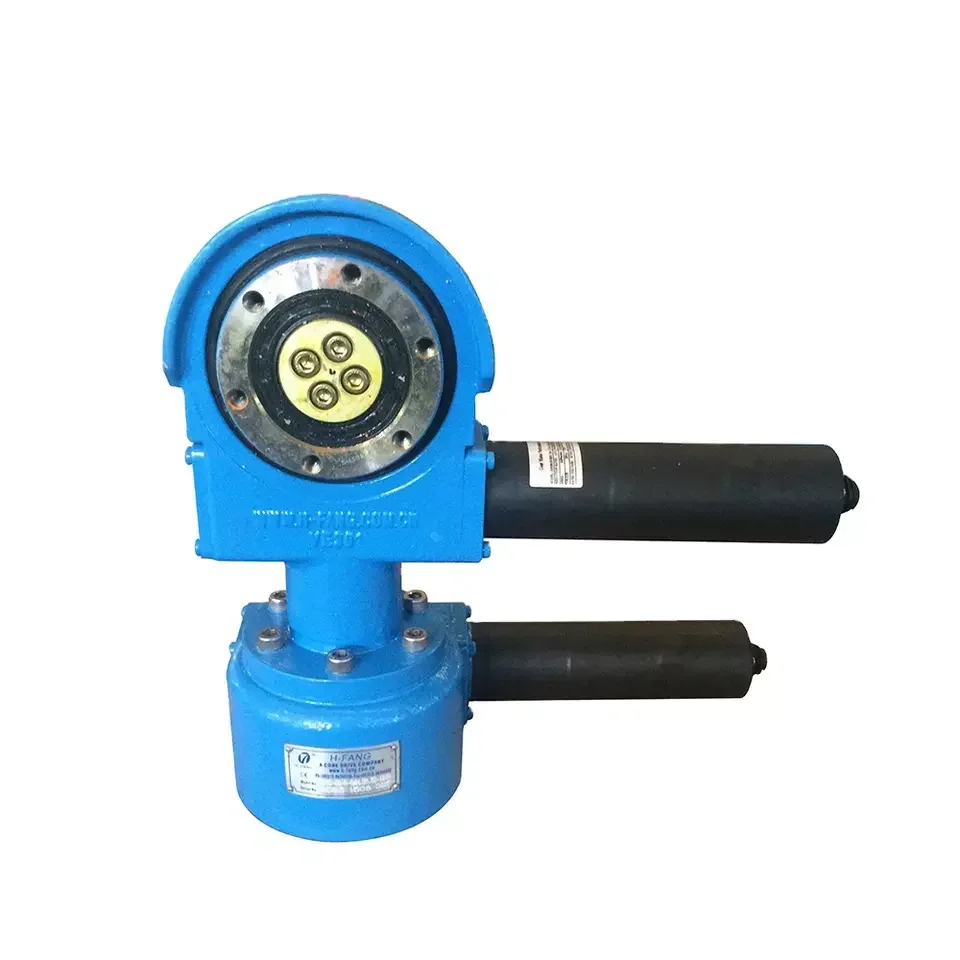

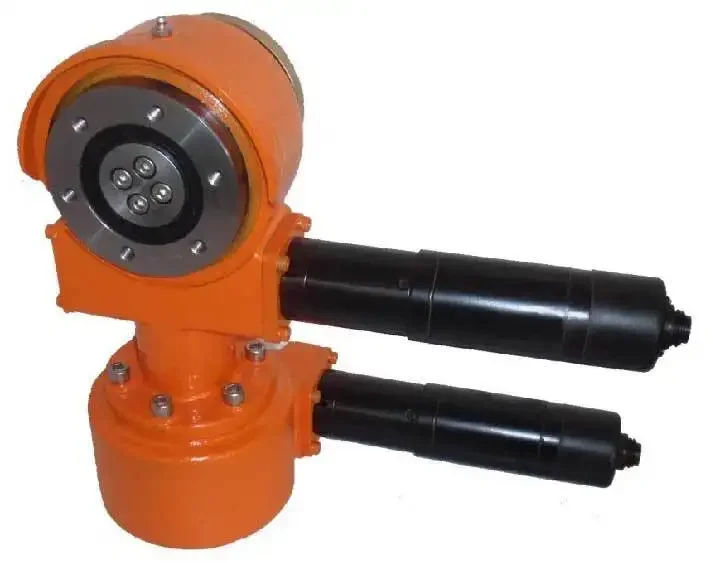

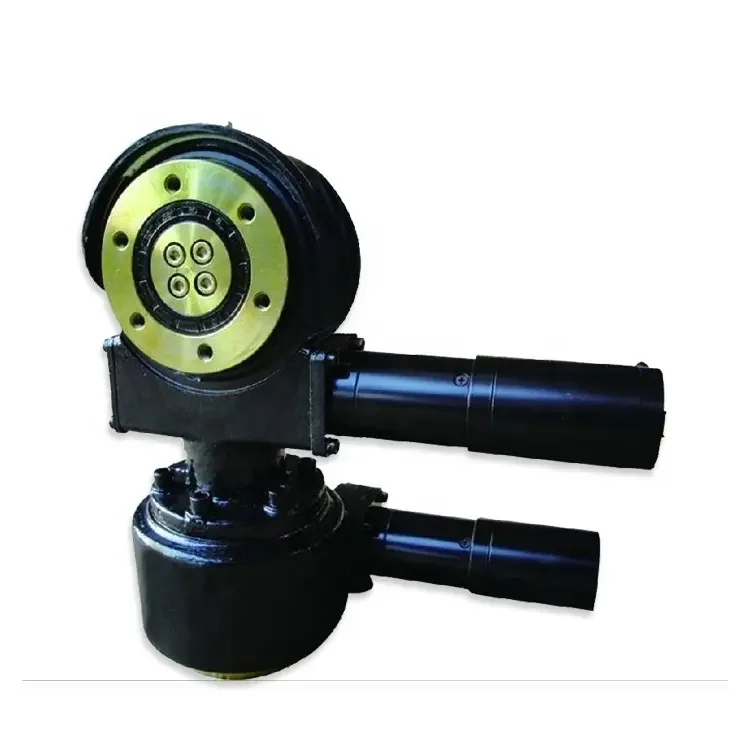

SDE3 2 осевой Солнечный трекер двухосевой поворотный привод с гидравлическим двигателем 24 В постоянного тока вращающийся электродвигатель
- Категория: >>>
- Поставщик: Luoyang Jiawei Bearing Manufacturing Co. Ltd
Сохранить в закладки 1600846307209:
Описание и отзывы
Характеристики
Production Description
China LYJW Factory Supply Dual Axia Slew Drive SDD3 with 24 DC Motor for Solar Tracker System use
SDE3 a slew worm drive system is a compactly constructed unit which consists of a slewing ring, base plate and worm. This unit brings the advantages of a slewing ring and a worm into one unit.
It is suitable for applications which demand slow rotation with a continuous or cyclical movement capable of handling combined loads. The product is with standard dimensions for coupling an electric or hydraulic motor as well as coupling a whole system to equipment.
Due to its compactness, high rigidity and other mentioned advantages, a worm drive system is used in varying equipment such as Solar Power System, mobile assembly platforms, satellite system, hydraulic loading cranes on haulage vehicles, small marine cranes, extendable rotating ladders, in wheel units of large marine portal transporters.
It is suitable for applications which demand slow rotation with a continuous or cyclical movement capable of handling combined loads. The product is with standard dimensions for coupling an electric or hydraulic motor as well as coupling a whole system to equipment.
Due to its compactness, high rigidity and other mentioned advantages, a worm drive system is used in varying equipment such as Solar Power System, mobile assembly platforms, satellite system, hydraulic loading cranes on haulage vehicles, small marine cranes, extendable rotating ladders, in wheel units of large marine portal transporters.
Type | Customization | ||||||
Place of origin | Luoyang City,Henan Province,China | ||||||
SE Series | SDE3 SDE7 SDE9 SDE14 | ||||||
Application | excavator, truck with crane, hydraulic aerial cage, solar power, wind power generation, grab machine, Modular trailers | ||||||
Advantages
1. Azimuth 360° rotation, elevation 180° rotation.
2. Connection of a driving motor from the left or right side
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
1. Azimuth 360° rotation, elevation 180° rotation.
2. Connection of a driving motor from the left or right side
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
Model | Max Output Torque | Backholding Torque | Tilting Torque | IP | Precision | Torsion Stiffness |
Nm | Nm | Nm | （Nm/mRad) | |||
SDE3 | 1240 | 3000 | 500 | IP66 | ≤0.1° | 250 |
SDE7 | 11000 | 12000 | 7000 | IP66 | ≤0.1° | 663 |
SDE9 | 14000 | 39000 | 16000 | IP66 | ≤0.1° | 3107 |
SDE14 | 18000 | 55000 | 48000 | IP66 | ≤0.1° | 3388 |
Our Advantages
our advantages
With a perfect design team,many years of pet clothing sales experience,and perfect supply chain.
Design,proofing,selection,shipment,the whole process is cantrolled by yoursef, only to present the artistic effect of the
design more perfectly.
design more perfectly.
company strength,pey attention to cradit, abide by the contract,ensure product qualitymwith a vaniety of managemenl characteristics and the principle of prolisand quick sales.
Application
Company Profile
Company Profile
LYJW is located in Bearing Zone,Yiyang Industry District,Luoyang City, China. It is a professional manufacturer of all type of slewing bearings,heavy and large slewing bearings, special used bearings and non-standard bearings, integrating research ,manufacture and sale together.
LYJW relies on the largest bearing production base in China-Luoyang City
LYJW relies on the largest bearing production base in China-Luoyang City
By viryue of expertise team,advanced manufacturing technologies and strict quality management system, LYJW takes the lead in the R&D of slewing bearings and custom bearings,which are designed with reasonable construction,light weight,good load carrying capacity and high versatility. The bearings'diameters range from 200
to 1500 mm and the accuracy covers P0, P9 and P5 class.Our slewing bearings,slewing drive,precision bearings
and custom bearings are widely used in construction,engineering,mining,marine,chemioal.,military,wind turbine,medical equipment,and many other industries.
In 2008， LYJW passed the ISO 9001-2015 Quality Management System Certification and actively explorod overseas markets in that year, and exported our slewing ring bearings to Europe,America,Asia and many other countries and regions. In 2015,we passed CCS Certification and ABS Certification. Now,LYJW can manufacture CCS,ABS, BV, GL and other certifled products.
Certification
Quality controls flow chart
Raw material
Enter goods a verification a record an examination
Qualified and Store in warehouse
Work preface processes
Again products checkout Head checkss Check articularly Cruise check Fill in the Head piececard in the Head piece card
Qualified and Flow into next working procedure
The work preface be over appearance marking
Finished product part
Assemble Process
Check finished product bearings
Enter the finished product
Assemble process
1.After the part checkout is qualified enter
assembling
2.Part washes rust protection
3.Choose cover and grouping
4.Finished product part jointly cover with
5.Demagnetization and wash
3.Choose cover and grouping
4.Finished product part jointly cover with
5.Demagnetization and wash
6.Finished product examination
7.Qualified
8.Typewrite,wash,rust,protection, package
7.Qualified
8.Typewrite,wash,rust,protection, package
Packaging&Shipping
FAQ
Q1:What is your MOQ?
A:For common bearing model,our MOQ is 1pcs.
Q2:How long is your bearings' useful life ?
A:The service life of slewing bearing is related to the use of the environment, load,speed, lubrication, the
Q2:How long is your bearings' useful life ?
A:The service life of slewing bearing is related to the use of the environment, load,speed, lubrication, the
accuracy of the seat frame and the maintenance.The rated service life of the slewing bearing is in 60000
hours to 100000 hours.
Q3:When can I get the quotation ?
A:usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,please call
Q3:When can I get the quotation ?
A:usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,please call
us or tell us in your e-mail so that we will regard your inquiry priority.
Q4:How long is your delivery time ?
A:Generally within 7~10 days after confirm, it will be 30-50 days if the goods are not in stock , The specific
Q4:How long is your delivery time ?
A:Generally within 7~10 days after confirm, it will be 30-50 days if the goods are not in stock , The specific
time need refer to the quantity.
Q5: why choose us ?
A:1.More than 24 years slewing bearing produce and sale.
2.Can produce integrated bearing from 100mm to 15000mm.
3.ISO9001, ABS, BV,DNV,GL,CCS,SGS support quality.
4.Custom different type.
5.already cooperated with many domestic listed company.
Q5: why choose us ?
A:1.More than 24 years slewing bearing produce and sale.
2.Can produce integrated bearing from 100mm to 15000mm.
3.ISO9001, ABS, BV,DNV,GL,CCS,SGS support quality.
4.Custom different type.
5.already cooperated with many domestic listed company.
