Высококачественный генератор с постоянным магнитом мощностью 3 кВт 96 В 110 В 220 В для ветровой энергии
62 580,73 ₽
Лидер продаж 1000 Вт 1200 2000 500 спиральный красный фонарь ветряная турбина вертикальная ось переменного тока Выходная
- Категория: >>>
- Поставщик: Guangdong Engineering Plastics Industries (group) Co. Ltd.
Сохранить в закладки 1600846321684:
Описание и отзывы
Характеристики
If you have any questions about the freight, please give us
the address ,and we can quote freight for you.

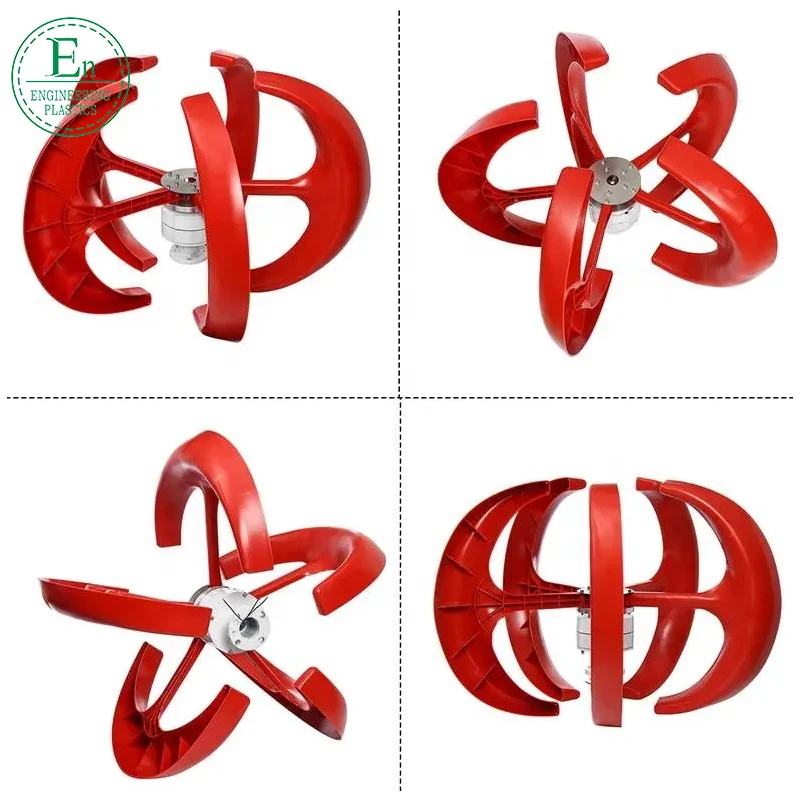

Lantern type DC hoop wind generator
1. Low starting wind speed, high wind energy utilization, small size, elegant appearance, andlow running vibration;
2. The host adopts the latest design hoop connection in 2020, which is convenient, quick and easy to disassemble and save labor;
3. The wind turbine blades are precision injection molded with a new process and designed with the latest aerodynamic principles. The wind speed at startup is lower. At the same time, the blades are made of high-strength PA66 and fiber-reinforced nylon. the amount;
4. Use rare earth permanent magnet generator with special stator design to effectively reduce the resistance torque of the generator, and at the same time make the wind wheel and generator have a better matching and improve the stability of the unit;
5. Added DC output indicator for generator, which is convenient for observing the operation of the fan and has the function of troubleshooting. The lights are eye-catching and beautiful;
6.Using the built-in maximum power tracking intelligent microprocessor controller, which effectively adjusts the current and voltage, DC output, waterproof and dustproof, and is convenient for customers to use and install.

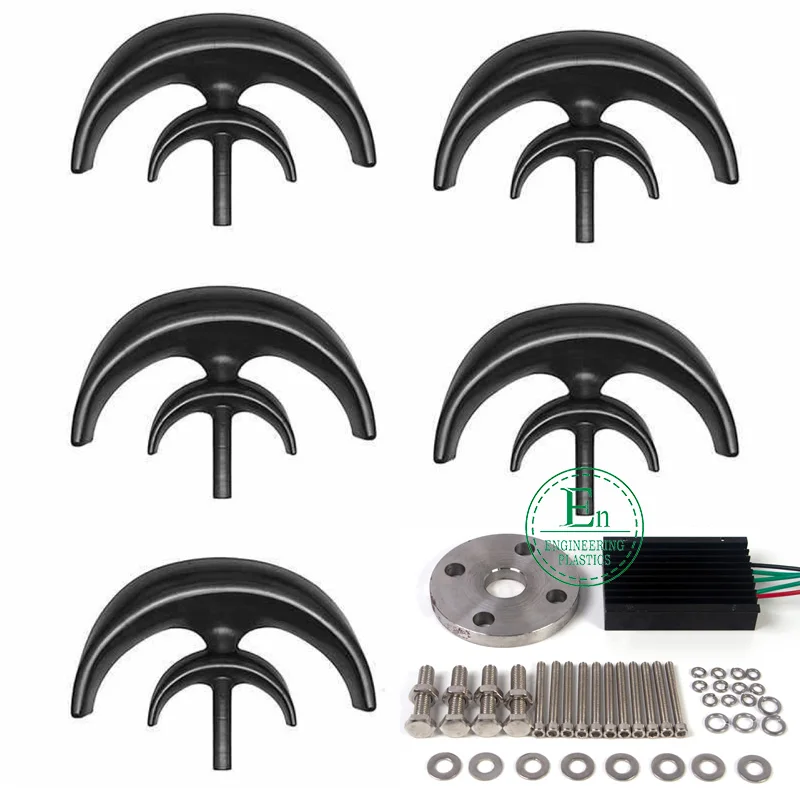

Package:
1 x 3-Phase Permanent Magnetic Synchronous Generator
5 x Red Nylon Fiber Blades
1 x Assembling Accessories
1 x User Manual (English)
1 x wind controller
1 x 3-Phase Permanent Magnetic Synchronous Generator
5 x Red Nylon Fiber Blades
1 x Assembling Accessories
1 x User Manual (English)
1 x wind controller
Hot Sale 1000W 1200W 2000W 500W Spiral Red Lantern Wind Turbine Vertical Axis AC Output Generator Wind Turbine
Prouduct Parameters
model | EQ-500R | EQ-700R | EQ-800R | EQ-900R | EQ-1000R | |||||
Rated power | 500W | 700W | 800W | 900W | 1000W | |||||
maximum power | 530W | 720W | 820W | 920W | 1020W | |||||
Rated voltage | 12v/24v/48V | 12v/24/48V | 12v/24/48V | 12v/24/48V | 12v/24/48V | |||||
Starting wind speed | 2m/s | 2m/s | 2m/s | 2m/s | 2m/s | |||||
Rated wind speed | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s | |||||
Safe wind speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | |||||
Net weight of main engine | 11kg | 12kg | 12.5kg | 13kg | 13.5kg | |||||

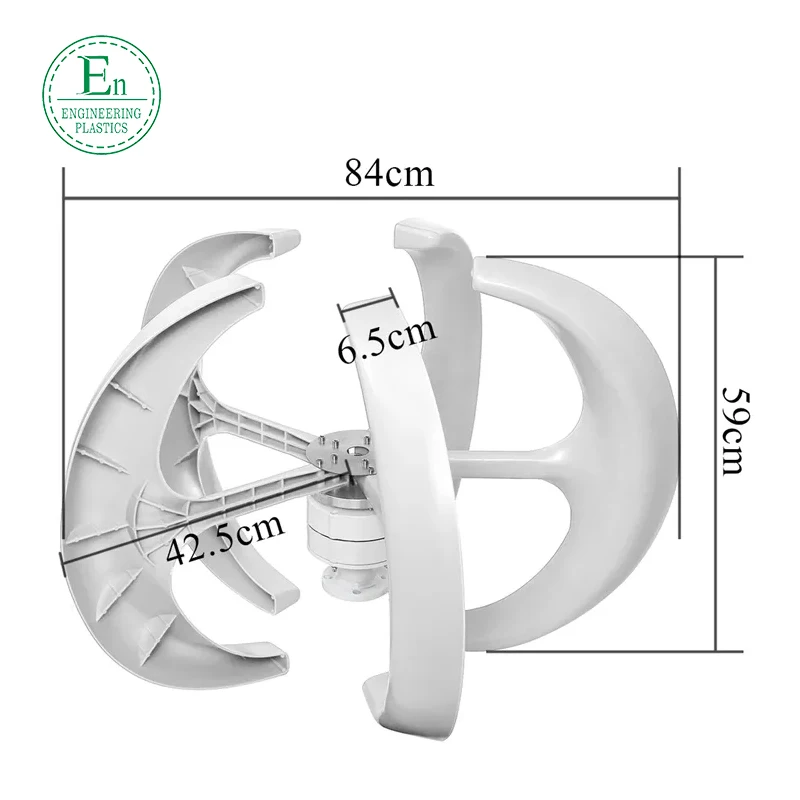

Diameter of wind turbine | 0.9m | |||||||||
Number of blades | 5 pieces | |||||||||
Blade material | Nylon fibre | |||||||||
alternator | Three phase AC permanent magnet generator/permanent magnet suspension generator | |||||||||
Braking mode | electromagnetism | |||||||||
Wind direction adjustment | Automatic upwind | |||||||||
working temperature | -40℃-80℃ | |||||||||
carton size | 61cm*44cm*30cm | |||||||||

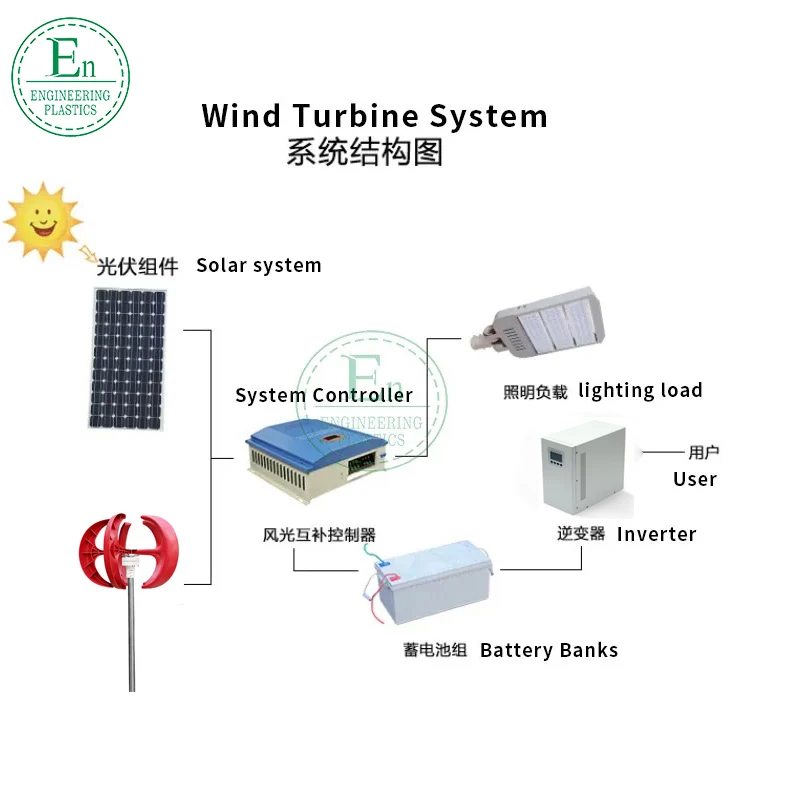

Selection and matching of small wind turbine system
1. First, application; second, good quality and low price; third, safety and reliability;
2. Select wind turbines according to local wind resources;
3. The wind turbine shall be selected according to the power consumption of electrical appliances;
4. The wind turbine equipped with hand brake parking device shall be selected in coastal windy areas;
5. The best matching of battery and wind turbine;
6. The best match between electrical appliances and wind turbines;
7. The best match between the controller and the wind turbine;
8. The best matching of inverter and generator system;
9. The best match between the load release device and the wind turbine;
4. The wind turbine equipped with hand brake parking device shall be selected in coastal windy areas;
5. The best matching of battery and wind turbine;
6. The best match between electrical appliances and wind turbines;
7. The best match between the controller and the wind turbine;
8. The best matching of inverter and generator system;
9. The best match between the load release device and the wind turbine;
FAQ
Q1: How many winds for wind turbines can generate electricity?
In general situation, about 3 levels to the battery charge (the wind generator voltage is higher than the battery voltage), the installation of wind turbines must be aware of your local wind resources, such as the annual wind speed in the 3-5 level, we proposed 300-1000W small wind power generator, if more than 4 levels of wind resources in the usual year, can choose more than 1000W wind generator.
Q2: How to confirm your wind situation
Level 1: smoke with the wind
Level 2: wind blows the face
Level 3: the leaves move, the red flag flies
Level 4 level: wind blowing paper
Level 5 level: shakes with small leaves
Level 6: hard lifting
Level 7: inconveniences in the wind
Level 8 level: wind blowing branch break
Level 9 level: roof flying tile
Level 10: pull up a tree and reverse the house
Q3: Why does the fan has the starting wind speed
In addition to the influence of gravity, such as its own wind blades, and the wind cap, the most important thing is the magnetic resistance (that is, the resistance that usually cuts the magnetic line). Now the good Magnet material is used NdFeB. So the speed of the fan does not necessarily mean that the amount of electricity generated is much.
Q4:Why the wind generator will brake
When the battery is full, or in the case of strong wind, the fan will also have the phenomenon of braking or not turning. This is the normal phenomenon of the fan controller in protecting the battery or the fan.
In general situation, about 3 levels to the battery charge (the wind generator voltage is higher than the battery voltage), the installation of wind turbines must be aware of your local wind resources, such as the annual wind speed in the 3-5 level, we proposed 300-1000W small wind power generator, if more than 4 levels of wind resources in the usual year, can choose more than 1000W wind generator.
Q2: How to confirm your wind situation
Level 1: smoke with the wind
Level 2: wind blows the face
Level 3: the leaves move, the red flag flies
Level 4 level: wind blowing paper
Level 5 level: shakes with small leaves
Level 6: hard lifting
Level 7: inconveniences in the wind
Level 8 level: wind blowing branch break
Level 9 level: roof flying tile
Level 10: pull up a tree and reverse the house
Q3: Why does the fan has the starting wind speed
In addition to the influence of gravity, such as its own wind blades, and the wind cap, the most important thing is the magnetic resistance (that is, the resistance that usually cuts the magnetic line). Now the good Magnet material is used NdFeB. So the speed of the fan does not necessarily mean that the amount of electricity generated is much.
Q4:Why the wind generator will brake
When the battery is full, or in the case of strong wind, the fan will also have the phenomenon of braking or not turning. This is the normal phenomenon of the fan controller in protecting the battery or the fan.
Похожие товары

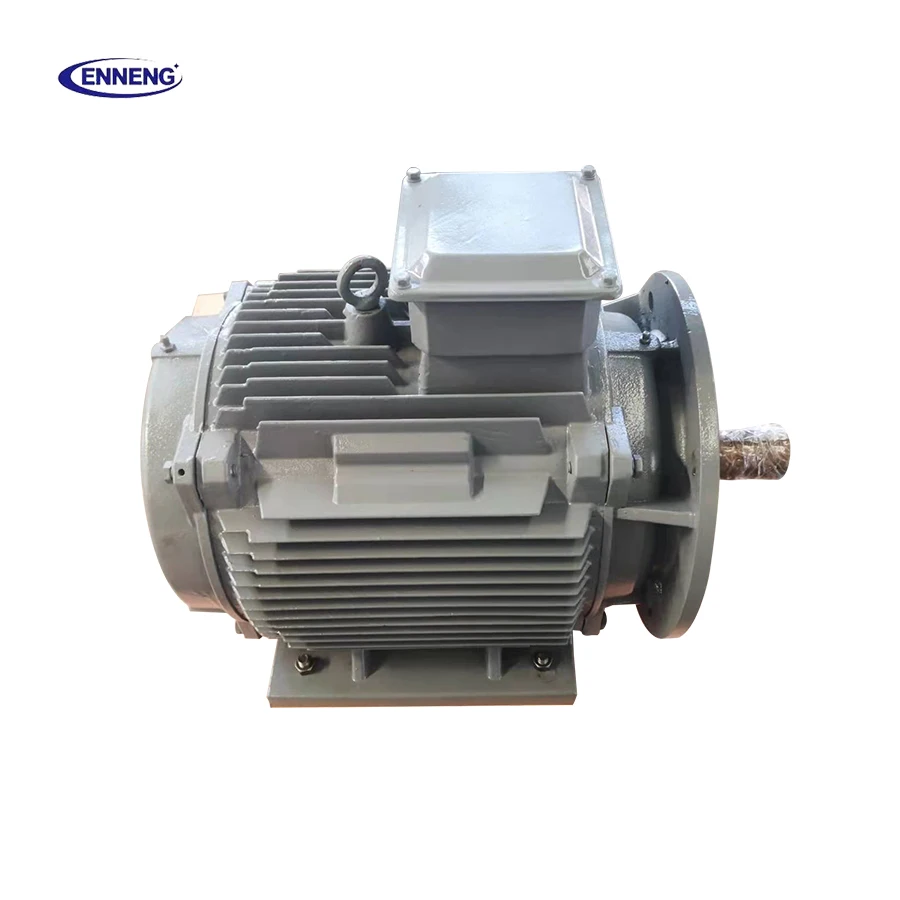

15 кВт 20 кВт 200 кВт 1 МВт Магнитный электрический генератор свободной энергии генератор трехфазный генератор переменного тока для продажи
32 369,34 ₽

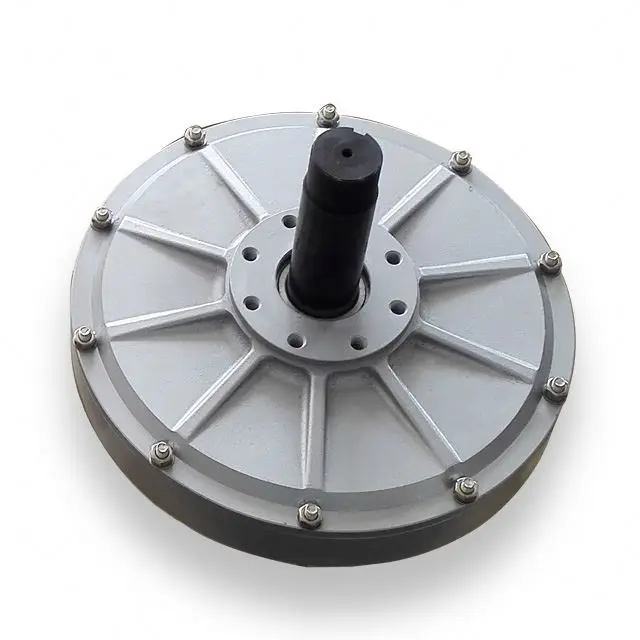

Высокопроизводительный генератор без сердечника, 3 кВт, 200 об/мин, ветряная турбина PMG, дисковый двигатель dynamo pms

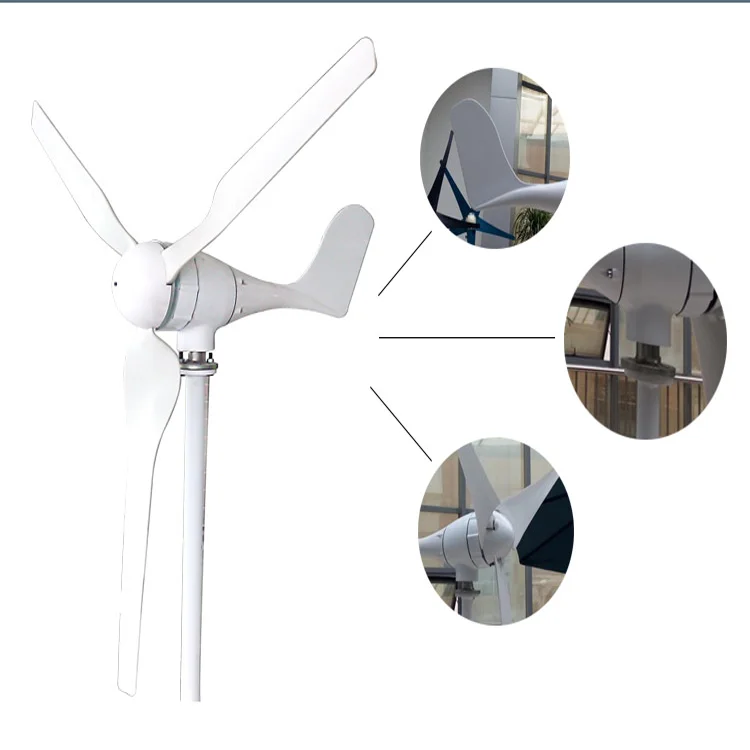

Горизонтальный ветряной генератор, 1200 Вт, 12 В, 24 В, 48 В, 3 лопасти, ветряная мельница с бесплатным контроллером заряда MPPT и неэлектрическим инвертором
