Product Description




Application: Chemical industry, pharmacy, automobile industry, light industry, food industry, electroplating industry, etc.


SPECIFICATION


Product name:
Bag filter housing
Materials:
stainless steel 304
Bag Size:
180*810mm
Bag number:
1 bag
Filter area:
0.5 m2
Diameter:
φ219mm
Height:
1200mm
Design Pressure:
150PSI
Vent Connection:
¼'' BSPT

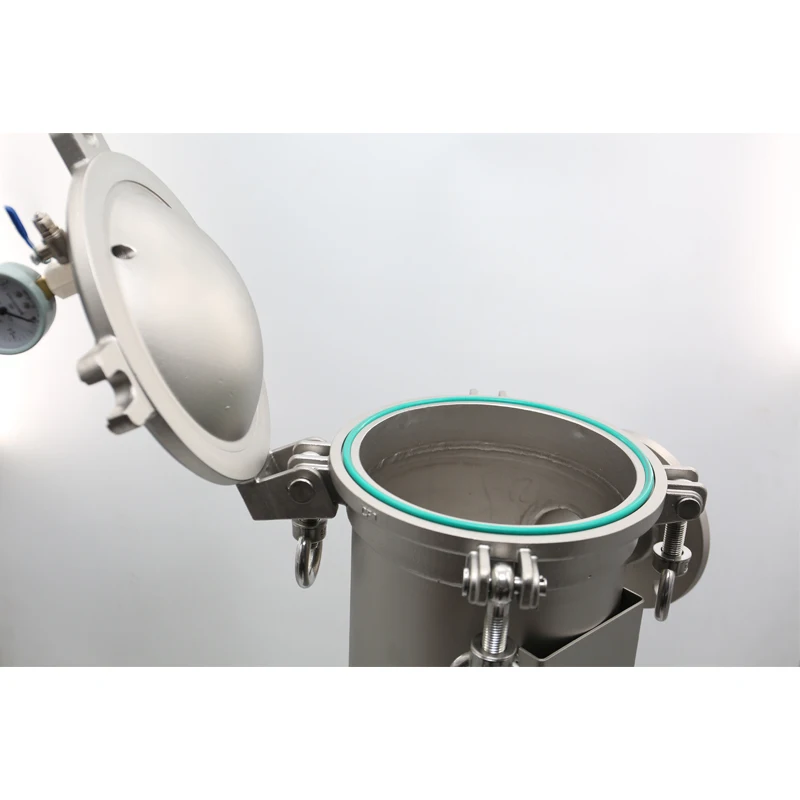

Seal Material:
EPDM O-ring
Inlet and outlet:
2'' BSPT

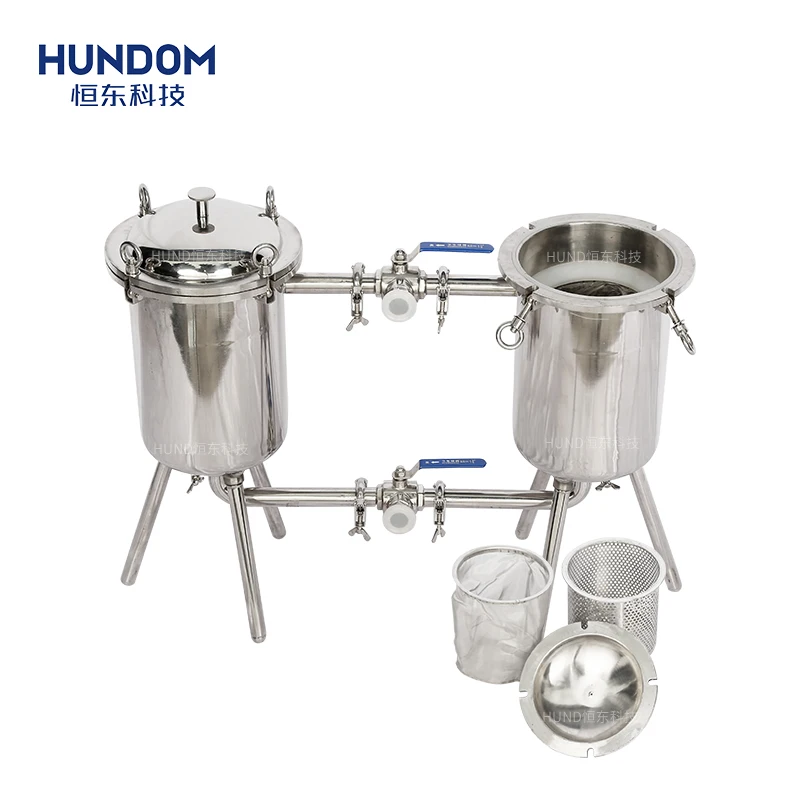

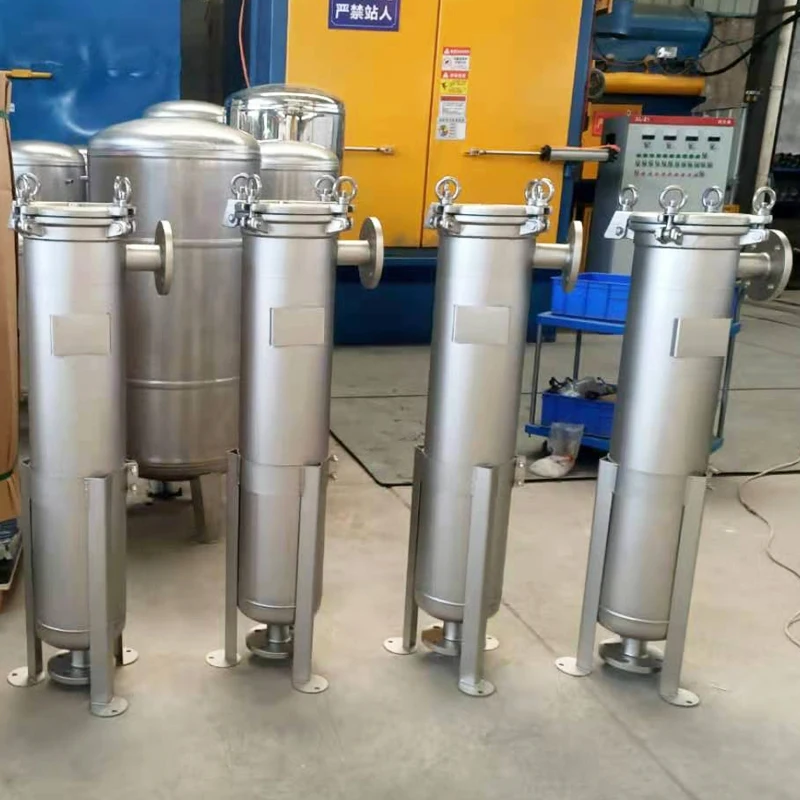

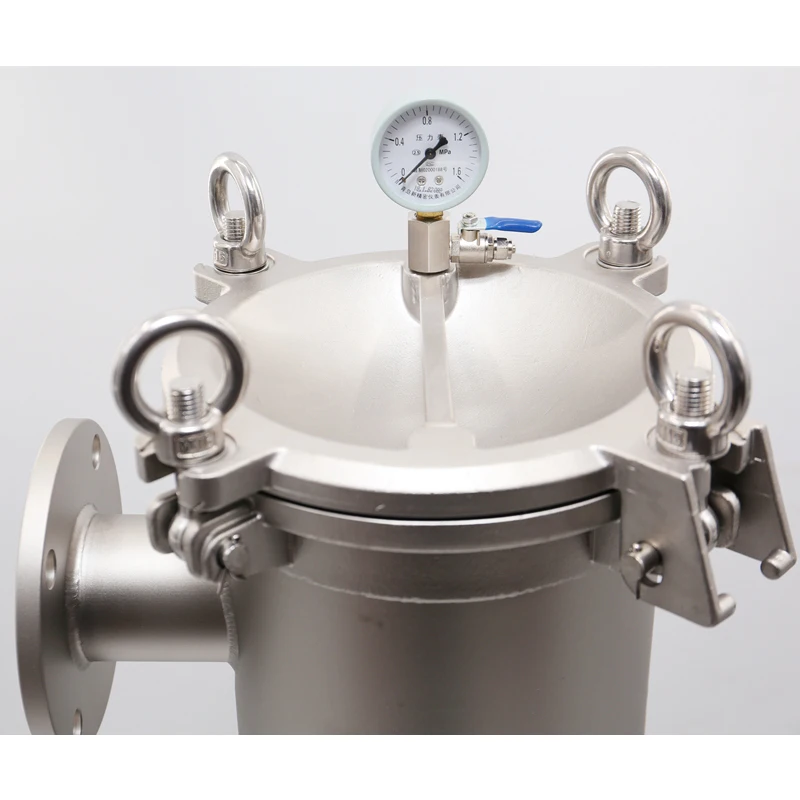

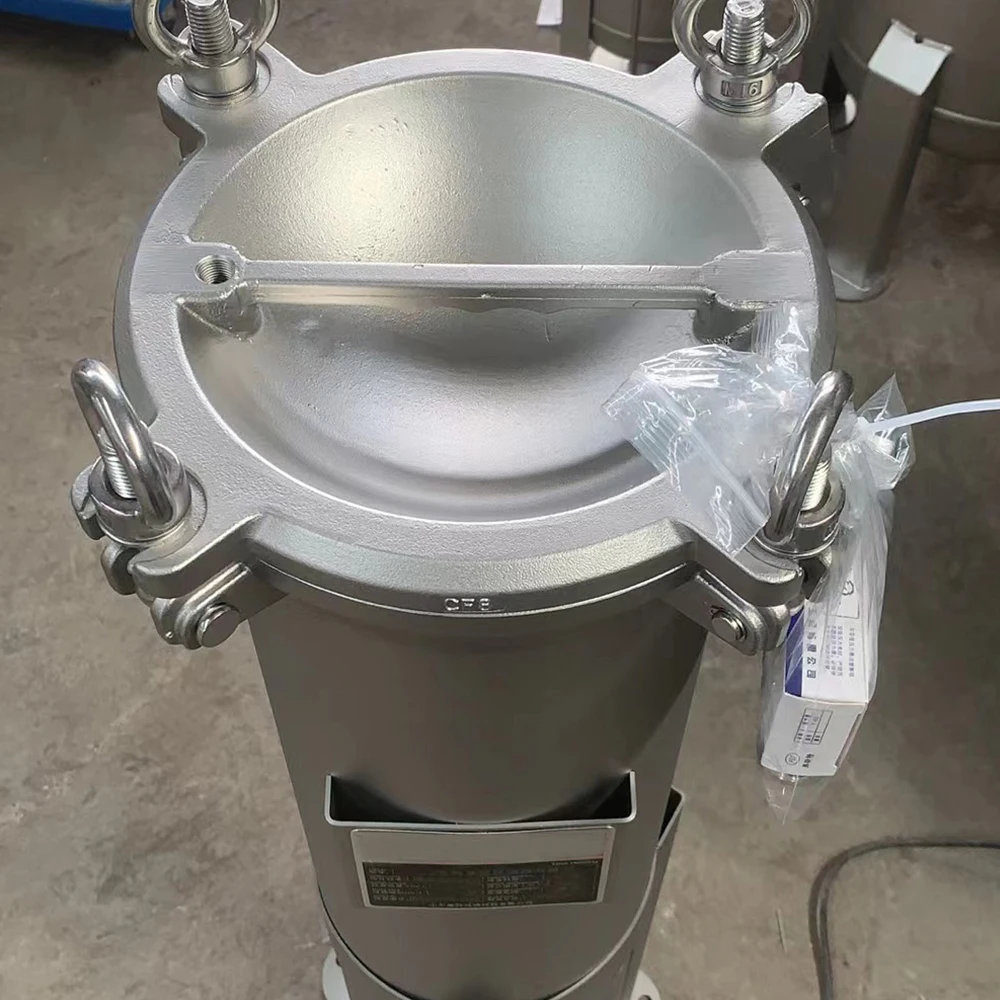

Product Show


Product Application

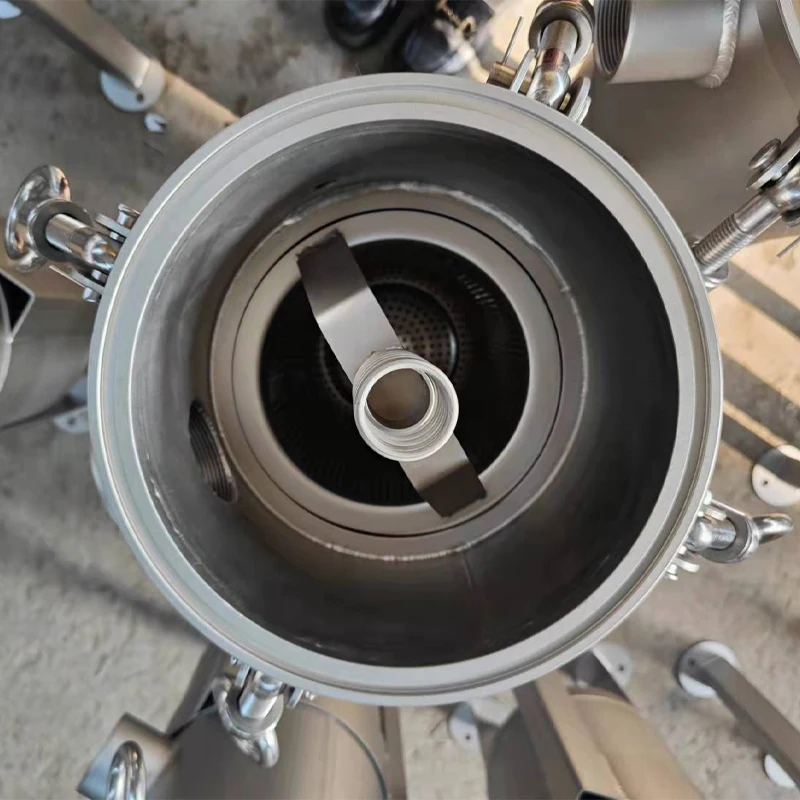

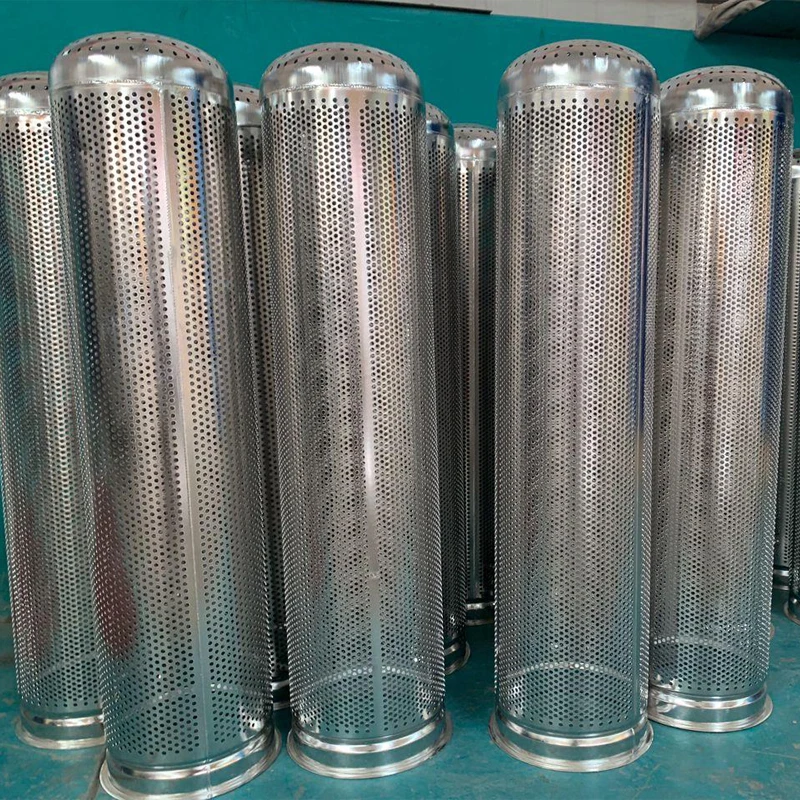

The filter bag is supported by the stainless steel mesh inside. The liquid flows into the chamber via inlet, and go through the filter bag.

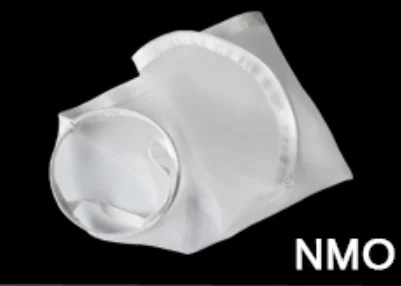

The impurities will be blocked into the filter bag. The filter bag can be reused repeatedly after washing or cleaning and it is easy to change the bag.

The filter is features of no material consumption and low operation cost.








Max capacity is the reference value base on water test: the actual value can be different because of liquid viscosity, solid content and pressure difference.









The material can be carbon steel, SUS304 and SUS316








Advantages
1) High capacity, small size
2) Easy to replace the filter bag, no need clean and labor saving
3) After cleaning the filter bag can be used repeatedly to save cost
4) Lower leakage risk ensures high quality
5)Wide application, flexible use, various installation model for choice 6) High working pressure, low pressure loss, low operation cost and energy saving


Packaging & Delivery

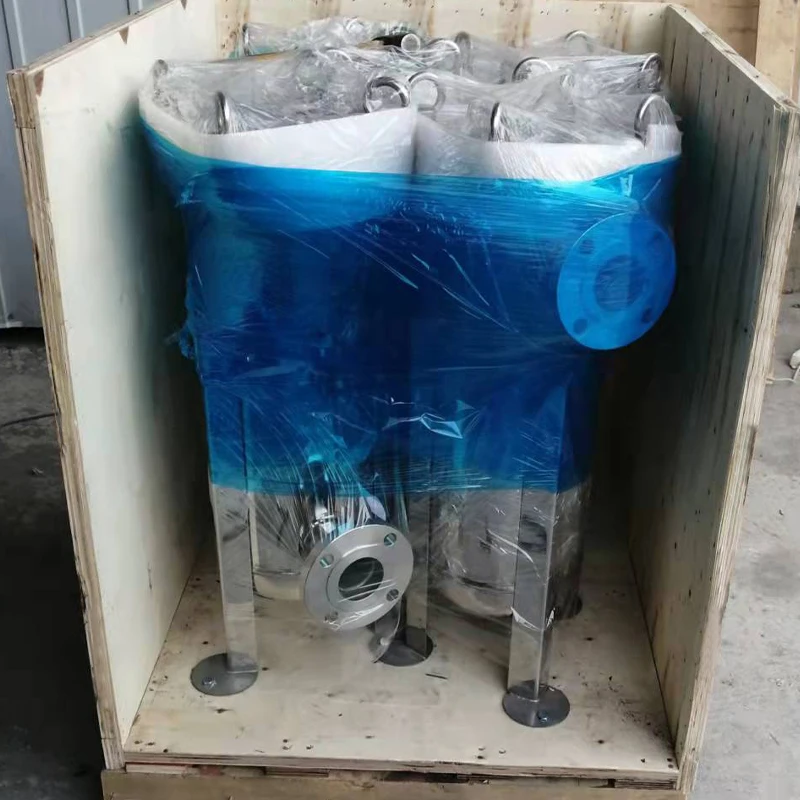

The normal package is wooden box(Size: L*W*H).If export to european countries,the wooden box will be fumigated.

If container is too tigher,we will use pe film for packing or pack it according to customers special request.
