Стандартный алюминиевый габаритный фонарь DC24 с высокой нагрузкой светодиодный проводной или беспроводной дорожный стержень для дорожного центра

Сохранить в закладки 1600846809003:


Цена:17,00-18,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Why Choose Us




Our Services:
1.Any inquiries will be replied within 24 hours.
2.We have 10 years industry experience of solar traffic safety products.Our main businesses are solar road stud, solar traffic sign, solar burst light, yellow flashing light.
3.We own CE/RoHS/IP68 certifications.
4.After-sales Service:
Every solar road studs will be strictly inspected in warehouse before packing.
Every solar road studs will be
packed carefully before shipping.
Every solar road studs will enjoy
1year warranty.If there is any natural damage in the warranty period,we will ship you a new one for free.

We can offer an installation brochure or a video to help you install solar road studs correctly.
5.Delivery:
In a General way,we deliver the solar road studs in 3-5days according to your order quantity.
6.Terms of Payment:
You can pay for the cargoes through L/C,T/T,Western Union, PayPal,etc.And 30% should be paid in advance,the rest can be paid before shipping.
7.Shipping:
We can ship our solar road studs by air or courier in 3-5 days or by sea in 20-45 days.
8.About CadSolarLedLight.
Cad is a company with factory,it has years experience in Traffic equipment,such as solar road stud ,solar raod traffic light,traffic signs and so on.
Quality is our culture ,we have professional after sales service deparment,Not only we provide traffic equpment of high quality,but also the best after sales service.

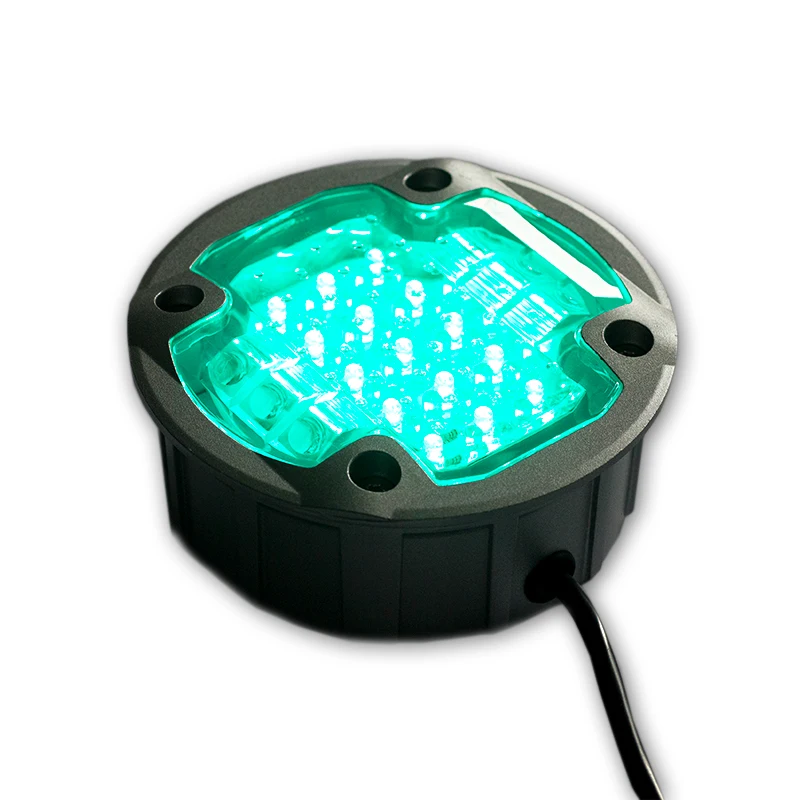

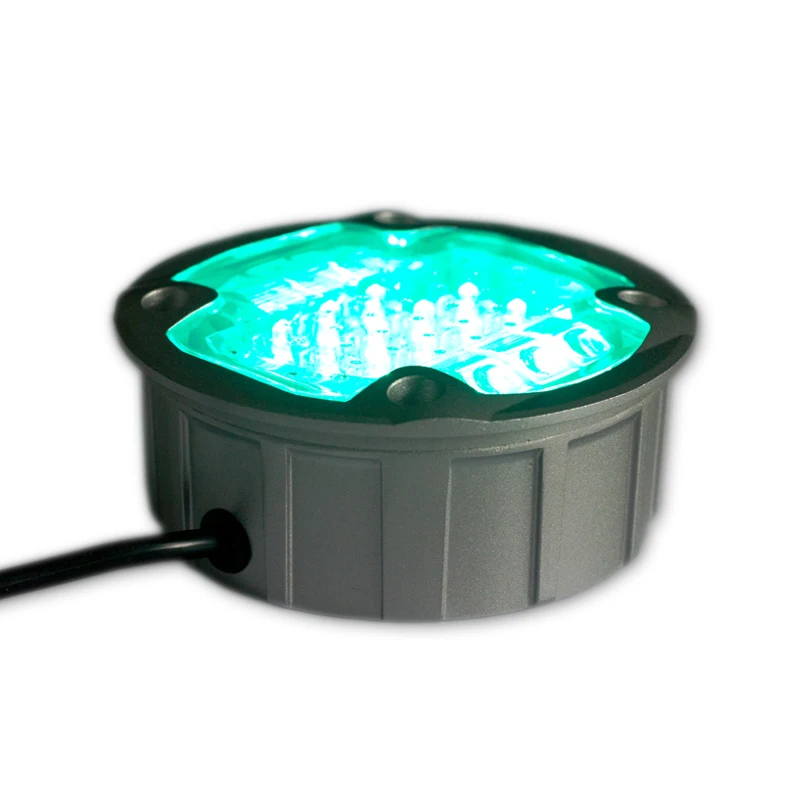

Products Description


Model No
CS-WRS-824 Smart Zebra Crossing Solar Aluminum Reflective Road Stud Horseshoe Solar Road Studs Ip68 Dc 24V Tunnel Wired Road Stud
Material
Anti-UV PC+Aluminum

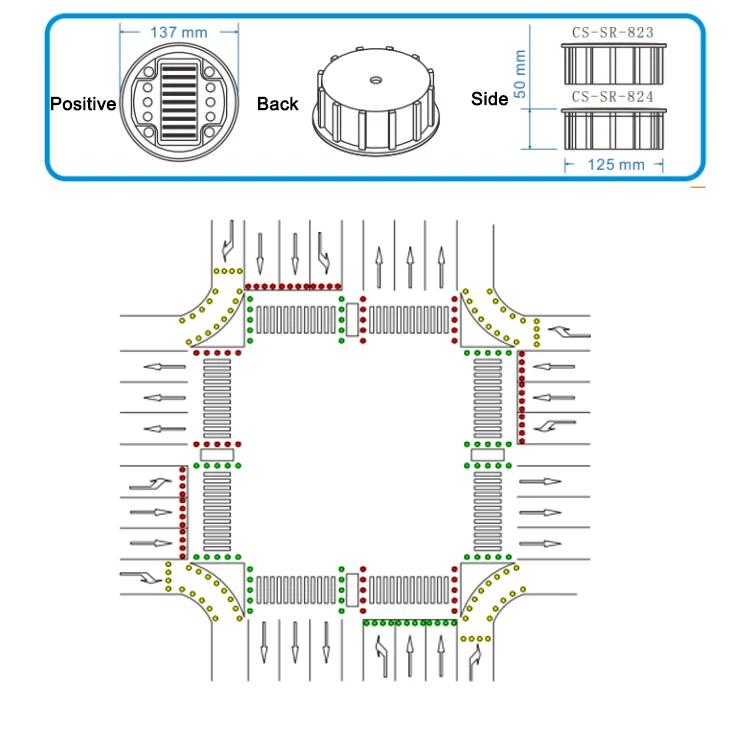

Product Size
Diam:137MM  Height:50MM
Visible distance
>1000 meters
Work mode
Flash or steady
LED Qty
Red, yellow and green each 21pcs 5MM diameter super bright LED lamp beads
LED color
Red /Yellow /Green
Lifespan
2-3 years
Compression resistance
50 Tons
Working temperature
 -20 ℃~+80 ℃
Working voltage
24V DC
Carton size
32.5 * 32.5 * 24CM, 16 pieces per box, box weight 19KG




Product advantages:
● The middle lamp body is detachable, which is convenient for later maintenance.
● Embedded design, flush with the road surface.
● It adopts high-strength 10MM thick PC mask, filled with epoxy resin inside, and can be installed in the middle of the road and pedestrian zebra crossing.
● The sealant and the waterproof ring are double-layer sealed, and the waterproof grade is IP68.
● Fixed by 4 anti-theft screws, easy to install and beautiful.
● Red, yellow and green each 42PCS super bright LED lamp beads, the viewing distance is more than 1000 meters.














Installation Steps


Place to Install:

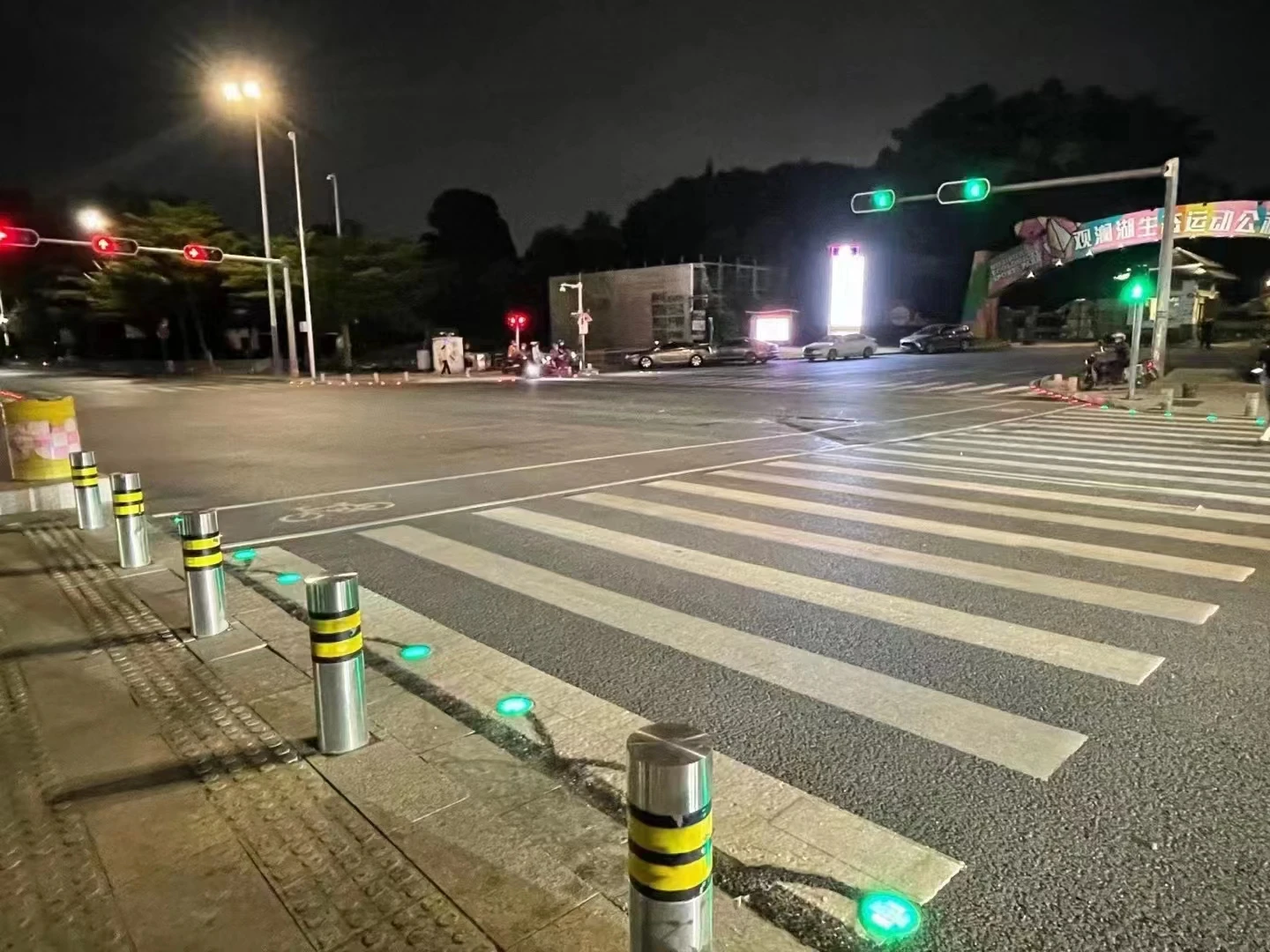

1. Dangerous blind corners and sharp-curves, black spots and poorly lit areas.
2. Areas with unpredictable weather conditions (coastal roads, foggy areas, wet and rainy regions, etc.).
3. Joint intersections, on and off ramps, center lines and dividers, entrance warnings, carpool lanes, bridges, cross and side walks
4. Guidance lines, traffic islands, roundabouts and mountain roads.
5. Taxiways at airports, bike and pedestrian lanes, aboard ships and watercrafts.
6. Entertainment areas, parking lots, hotel entrances and gas stations etc. They can even


1.Drill a hole Dia 125mm.
2.Clean the mess inside.
3.Filling the hole with epoxy resin approx. 70-80g.


4.Put the solar road stud in vertically!
5.Press to firm up!
6.Solar road stud is installed.


Recommend Products




Our Certificate




Company Profile




Shenzhen CadSolar Technology Co.,Ltd,is located in Shenzhen,is a hi-tech enterprise specialized in manufacturing solar powered Led products.With"Technology Innovation,friendly environment ,Green Future"motto, CadSolar creates many solar LED products step by step and owns our independent.
After years of efforts,most of our products are exported to Germany,France,Australia,New Zealand,Indonesia,Malaysia,Vietnam,South Africa,Brasil,Chile etc...
Our Main Products as belowing:A.Solar road studs/reflective road studsB.Solar led warning lightC.Solar Led traffic signsD.wired road studsE.Solar led traffic lightF.
led traffic signal light Applications Scope: Our products can be used for highways,families, schools, industrial parks, parks,streets and various public places, etcFor mutual benefits.
We hope to establish long-term and regular business relationships with you.






Our Exhibition




FAQ


Q: Whether your solar road stud can work normally in tropical areas?
A: CadSolar solar road stud can be functioned very well in -20 degree centigrade to 80 degree centigrade since its anti-high temperature battery.

Q: How long will the solar road stud work in raining days?
A: CadSolar solar road stud can work properly for constant 120 hours after fully charged

Q: How about the waterproof level and the compressionresistance ability of your road stud?
A: CadSolar solar road stud is filled with epoxy glue,and certified with lP68,so it can work underwater and anti 20 tons pressure.

Q: Do you have any installation guide for us?
A: Yes,we can prepare an installation manual or a video for you and the solar road stud canbe easily installed by screw or epoxy glue.

Q: Are your solar road stud CS-SR-802 will turn yellow ?
A: The materials of CS-SR-802 are anti-UV PC and a kind of transparent epoxy glue is filledaround the LED interface edge, so it would never turn yellow.

Q: What's your payment clause?
A: We accept L/CT/T,Western Union and Paypal,and 30% should be paid in advancethe rest can be paid before shipping.

Q: Where are the main markets of your solar road stud?
A: Philippines, Middle East, Malaysia, Africa
