500 кВт 1 МВт Коммерческая солнечная энергетическая система покупка онлайн в Китае монокристаллические солнечные панели MPPT новые изделия 10 лет
- Категория: >>>
- Поставщик: Hefei Pinergy Solar Technology Co. Ltd.
Сохранить в закладки 1600847459544:
Описание и отзывы
Характеристики
Product Description

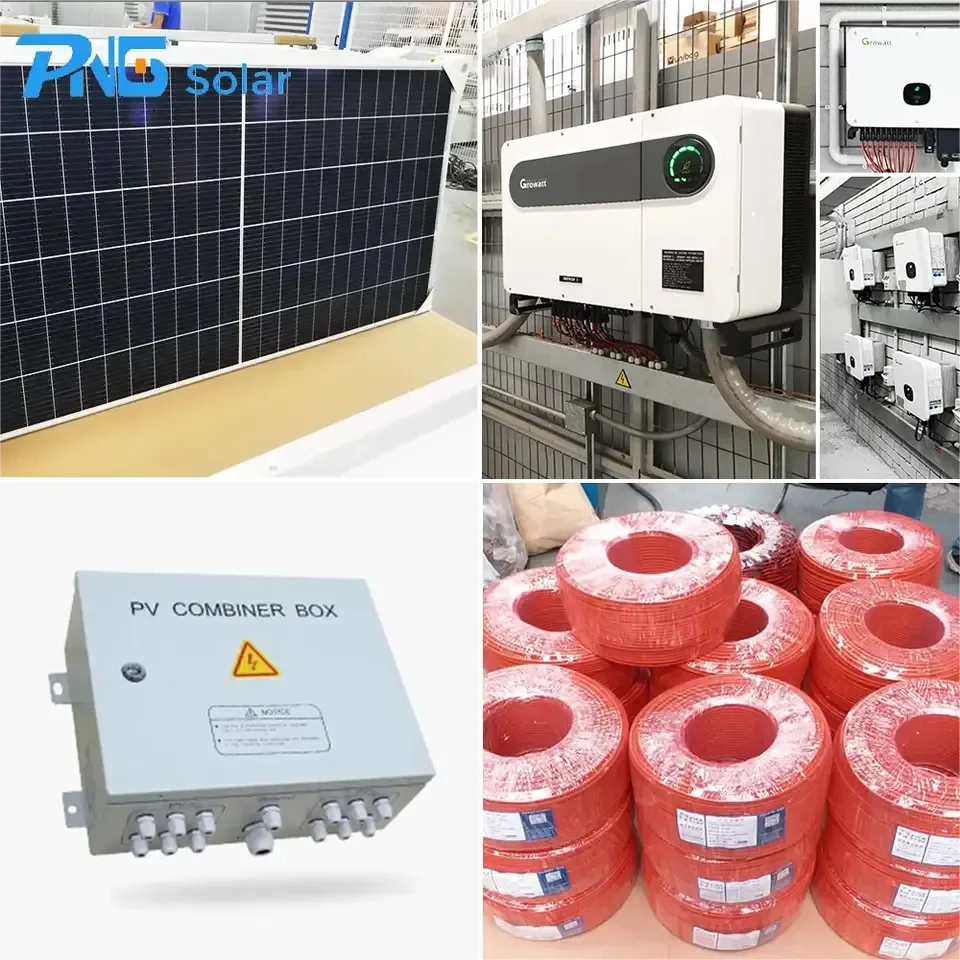

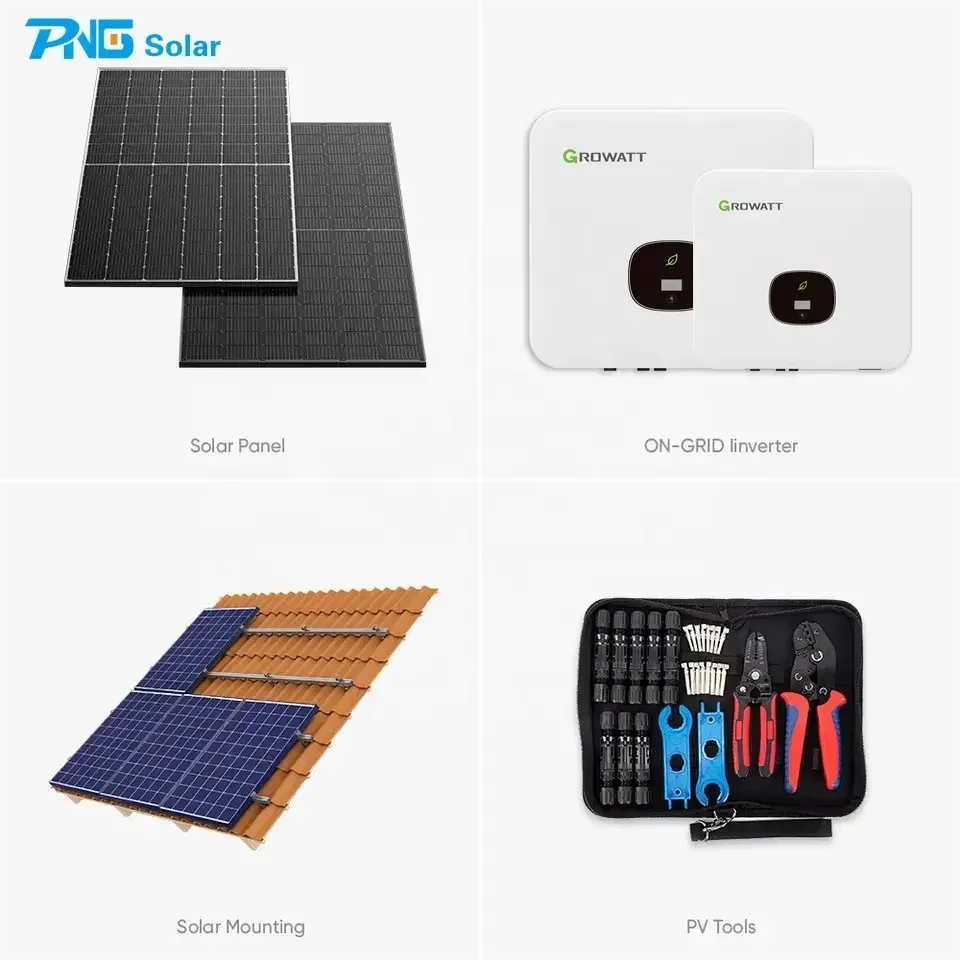

Specification
Model | SP-50KW-ON | SP-100KW-ON | SP-200KW-ON | ||
Half Cut Mono 560W Solar Panel | 96 Pieces | 180 Pieces | 360 Pieces | ||
DC Isolation Switch | 8Piece | 15Piece | 30Piece | ||
On Grid Inverter | Solis-50K | Solis-100K-5G | Solis-100K-5G/2PCS | ||
AC Isolation Switch | 1Piece | 1Piece | 2Piece | ||
DC Cable 4mm2 | 800 meter | 1500 meter | 3000 meter | ||
MC4 Connector | 20 Pairs | 90 Pairs | 180 Pairs | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||||
Model | SP-300KW-ON | SP-400KW-ON | SP-500KW-ON | ||
Half Cut Mono 560W Solar Panel | 540 Pieces | 720 Pieces | 900 Pieces | ||
DC Isolation Switch | 45Piece | 60Piece | 75Piece | ||
On Grid Inverter | Solis-100K-5G/3PCS | Solis-100K-5G/4PCS | Solis-100K-5G/5PCS | ||
AC Isolation Switch | 3Piece | 4Piece | 5Piece | ||
DC Cable 4mm2 | 4500 meter | 6000 meter | 7500 meter | ||
MC4 Connector | 270 Pairs | 360 Pairs | 450 Pairs | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||||
item | value |
Warranty | 5years |
Free installation service | NO |
Place of Origin | China |
Anhui | |
Brand Name | PNG Solar |
Model Number | PNG-500KW GT |
Application | Commercial |
Solar Panel Type | Monocrystalline Silicon, Grade A Polycrystalline |
Battery Type | Lead-Acid |
Controller Type | MPPT |
Mounting Type | Ground Mounting |
Load Power (W) | 500kw |
Output Voltage (V) | 110vac/120vac 220-240/400VAC, 110vac/120vac 220-240-400VAC |
Output Frequency | 50/60HZ |
Work Time (h) | 24hours |
Certificate | CE TUV, TUV CE ISO |
Pre-sales project design | Y |
Specification | Normal |
System Warranty | 10 Years |
Solar panel | A grade cells |
Inverter | Trannegy Brand |
Product name | Grid Solar Power System |
Type | On grid |
Note:
>All of equiipments has warranty.
>Reliable after sale sevice during warranty period,replace or repair all parts.
>Product dimensions and physical appearance in this data sheet are nominal.
>Pinergy Solar reserves the right to make the product changes from time to time.
>All of equiipments has warranty.
>Reliable after sale sevice during warranty period,replace or repair all parts.
>Product dimensions and physical appearance in this data sheet are nominal.
>Pinergy Solar reserves the right to make the product changes from time to time.
Product Details
Peak Power Watts: 550W (PNG550-144M)
Maximum Power Voltage: 42.3V
Maximum Power Current: 9.69A
Warranty: 10 years
Short Circuit Current: 10.60A
Dimensions:2278×1134×35mm
Weight:29 kg
Maximum Power Voltage: 42.3V
Maximum Power Current: 9.69A
Warranty: 10 years
Short Circuit Current: 10.60A
Dimensions:2278×1134×35mm
Weight:29 kg
5 years standard warranty
Support Working in Parallel
Max.Efficiency 99.6%
Integrated DC switch for added safety protection
With WIFI Monitoring Device
Support Working in Parallel
Max.Efficiency 99.6%
Integrated DC switch for added safety protection
With WIFI Monitoring Device
Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of
your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or
GPRS.App Available for PC, IOS & Andriod
your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or
GPRS.App Available for PC, IOS & Andriod
Mounting Brackets
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Warranty: 10 Years
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Warranty: 10 Years
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
IP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

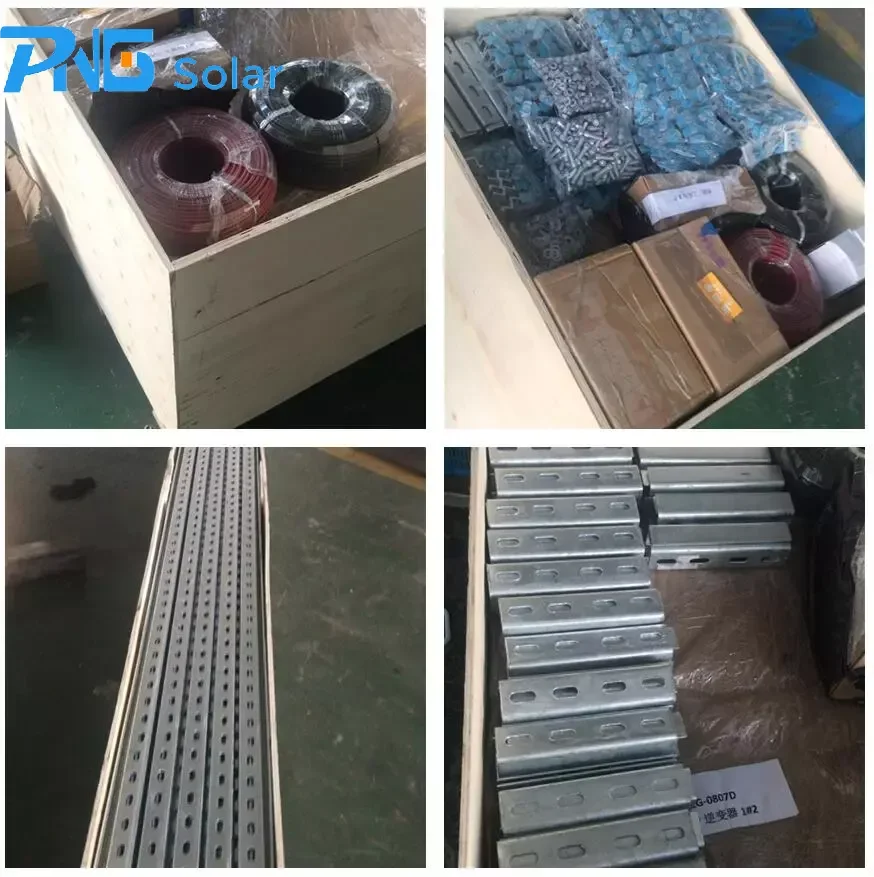

Packing & Delivery

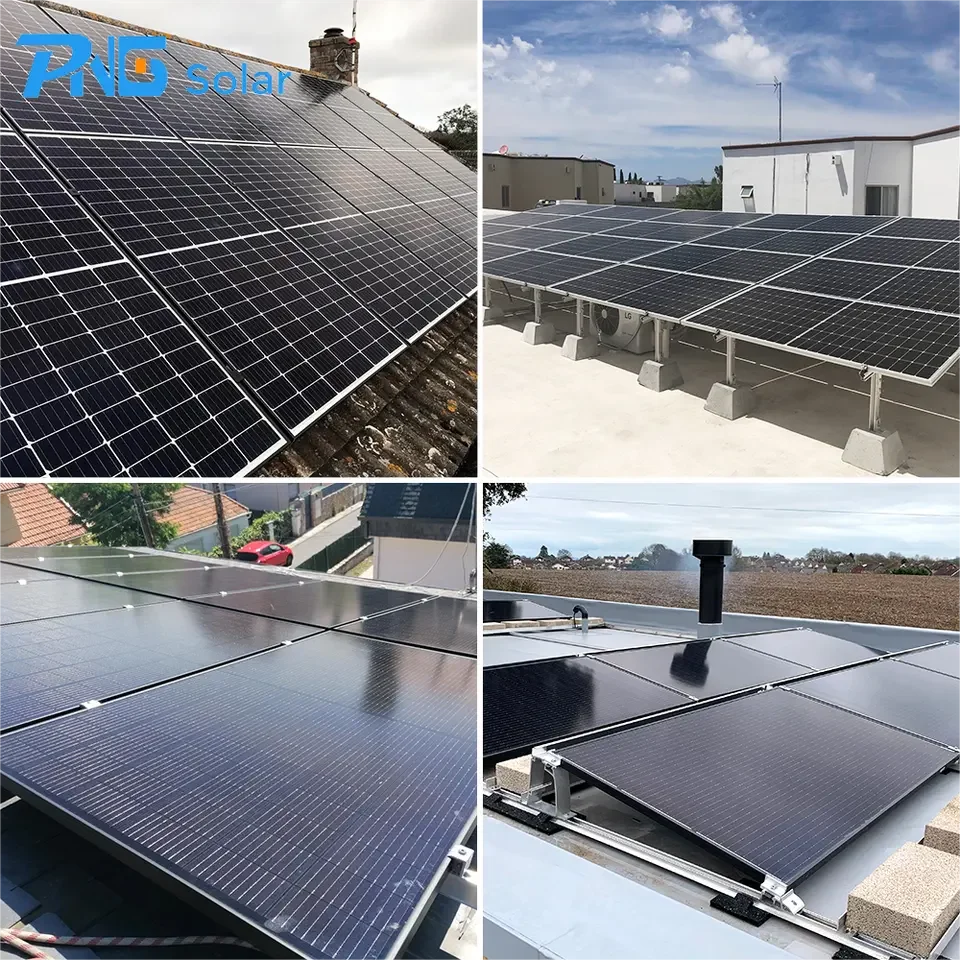

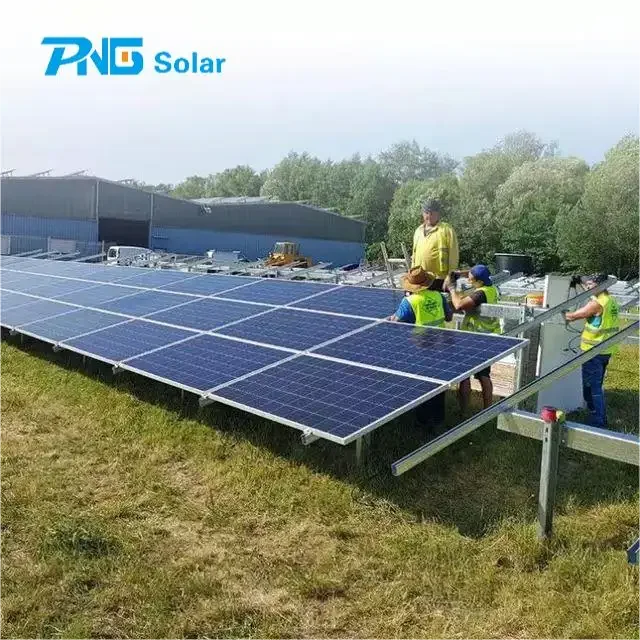

Project Cases
Company Profile
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D, production
andsales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.The
companyis located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the
world.Weare world-renowned manufacturer and supplier of solar cells, solar PV modules and solar systems.Covering an area of 46000
squaremeters,we have more than 200 employees now,which makes annual production capacity of 800MW and 90% were exported all over
theworld. The advanced production system and excellent quality control have enabled us to win the trust and support of our
customers.We have got certificates of TUV,CE,etc.At present, PINERGY has established a global sales network covering 70
countries/regions.Mainly covering Europe, Asia and South America, customers all over the world.
PINERGY has a complete PV productsystem: solar cells, PV modules and PV systems, etc.The goal of PINERGY is to create a new
first-class PV product brand, provide clean energy to the world, and assume future responsibility. Excellent quality, PINERGY
manufacturing!
andsales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.The
companyis located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the
world.Weare world-renowned manufacturer and supplier of solar cells, solar PV modules and solar systems.Covering an area of 46000
squaremeters,we have more than 200 employees now,which makes annual production capacity of 800MW and 90% were exported all over
theworld. The advanced production system and excellent quality control have enabled us to win the trust and support of our
customers.We have got certificates of TUV,CE,etc.At present, PINERGY has established a global sales network covering 70
countries/regions.Mainly covering Europe, Asia and South America, customers all over the world.
PINERGY has a complete PV productsystem: solar cells, PV modules and PV systems, etc.The goal of PINERGY is to create a new
first-class PV product brand, provide clean energy to the world, and assume future responsibility. Excellent quality, PINERGY
manufacturing!
Certifications
FAQ
1. who are we?
We are based in Anhui, China, start from 2017,sell to Domestic Market(40.00%),Southern Europe(25.00%),Southeast Asia(15.00%),Eastern Asia(2.00%),North America(2.00%),South America(2.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Africa(2.00%),Eastern Europe(2.00%),Mid East(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel, Solar System, Battery, Solar Inverters, Solar Cell
4. why should you buy from us not from other suppliers?
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D, production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.The company
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Anhui, China, start from 2017,sell to Domestic Market(40.00%),Southern Europe(25.00%),Southeast Asia(15.00%),Eastern Asia(2.00%),North America(2.00%),South America(2.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Africa(2.00%),Eastern Europe(2.00%),Mid East(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel, Solar System, Battery, Solar Inverters, Solar Cell
4. why should you buy from us not from other suppliers?
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D, production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.The company
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
