Полностью автоматические высокоскоростные кабельные лотки лестницы с штамповочной машиной для холодного проката
4 958 534,10-6 484 236,90 ₽
Полностью автоматический 100 мм 600 мм ширина Регулируемый перфорированный оцинкованный металлический мост Электрический медный кабельный лоток формовочная машина
- Категория: >>>
- Поставщик: Sussman Machinery (wuxi) Co. Ltd.Sussman Ltd.
Сохранить в закладки 1600847486547:
Описание и отзывы
Характеристики
Product Description
Cable tray roll forming machine is commonly used for cable management in commercial and industrial construction. This intelligent roll former could produce different types of cable trays like: Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. with different raw materials like: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm. You could set up 10 different lengths for cable tray.
In Electrical Industries, we are able to manufacture more machines like strut channel roll forming machine, DIN rail roll forming machine and Electrical Enclosure Box roll forming machine etc.
In Electrical Industries, we are able to manufacture more machines like strut channel roll forming machine, DIN rail roll forming machine and Electrical Enclosure Box roll forming machine etc.
Items | Specifications | |
Materials | Width of the profile | 100-600mm |
Thickness | 0.8-2mm galvanized coils and black steel | |
Height of the profile | 50-150mm | |
Un Coiler | 5 tons hydraulic | |
Punching | Way | Hydraulic punching 1 set |
Forming system | Rolling Speed | 5-6m/min |
Roller Stations | About 20stations | |
Roller Material | Gcr15with quenching | |
Shaft | Dia 90mm | |
Maim Motor Power | 15 kw | |
Hydraulic cutting Power | 7.5 kw | |
Cutting system | Material Of Cutting | CR12 with quench treatment |
Hardness | HRC58-62 | |
Tolerance | +-1.5mm | |
Electrical control system | Electric Source | 380V, 50HZ,3 phase Also can satisfy Customer’s require |
Control System | PLC (Panasonic) as list in the note | |
Weight | About 18 tons | |
Profile width and height adjustment | Control by the motor | |
Way Of Drive | 1.2 inch single chain | |
Size of main machine | About Length 13000mm* Width 1800mm* Height 1000m |
Profile Drawing:
Width: 100mm-600mm
Height: 50-150mm
Thickness: 0.8-2mm
Height: 50-150mm
Thickness: 0.8-2mm
Type | W(mm) | H(mm) | L(mm) |
XKH-100 | 100 | 50-150 | 3000-6000 |
XKH-150 | 150 | 50-150 | 3000-6000 |
XKH-200 | 200 | 50-150 | 3000-6000 |
XKH-250 | 250 | 50-150 | 3000-6000 |
XKH-300 | 300 | 50-150 | 3000-6000 |
XKH-450 | 450 | 50-150 | 3000-6000 |
XKH-600 | 600 | 50-150 | 3000-6000 |
Product Display
5 Tons Hydraulic Decoiler
Diameter: 460-520mm expansion.
Expansion: hydraulic
Capacity: 5000kgs per mandrel
Expansion: hydraulic
Capacity: 5000kgs per mandrel
Max Coil Width: 1250mm
Leveling device
1. 7 rolls leveling, 3 rolls up and 4 rolls down
2. Diameter is Ø70mm, chrome and HRC60 heat treatment to secure the smooth surface
3. Leveling Raw Material thickness:0.7-1.2mm
4. Max Leveling Raw Material width: 1250mm
2. Diameter is Ø70mm, chrome and HRC60 heat treatment to secure the smooth surface
3. Leveling Raw Material thickness:0.7-1.2mm
4. Max Leveling Raw Material width: 1250mm
Feeding Device
Feeding Servo feeding motor: 4.4kw (Yaskawa, Japanese Brand), max width 1000mm
Description: servo feeding can control the punching distance in precision, controlled by PLC, and the feeding tolerance can
be+-0.05mm, the servo motor can control the speed, and can accept the input signal, and react quickly, and performance well, the
touch screen can display the rotating speed, the length and the quantity, it can be controlled by the manual and auto modes.
Description: servo feeding can control the punching distance in precision, controlled by PLC, and the feeding tolerance can
be+-0.05mm, the servo motor can control the speed, and can accept the input signal, and react quickly, and performance well, the
touch screen can display the rotating speed, the length and the quantity, it can be controlled by the manual and auto modes.
Hydraulic punching device
Hydraulic pump power: 22kw

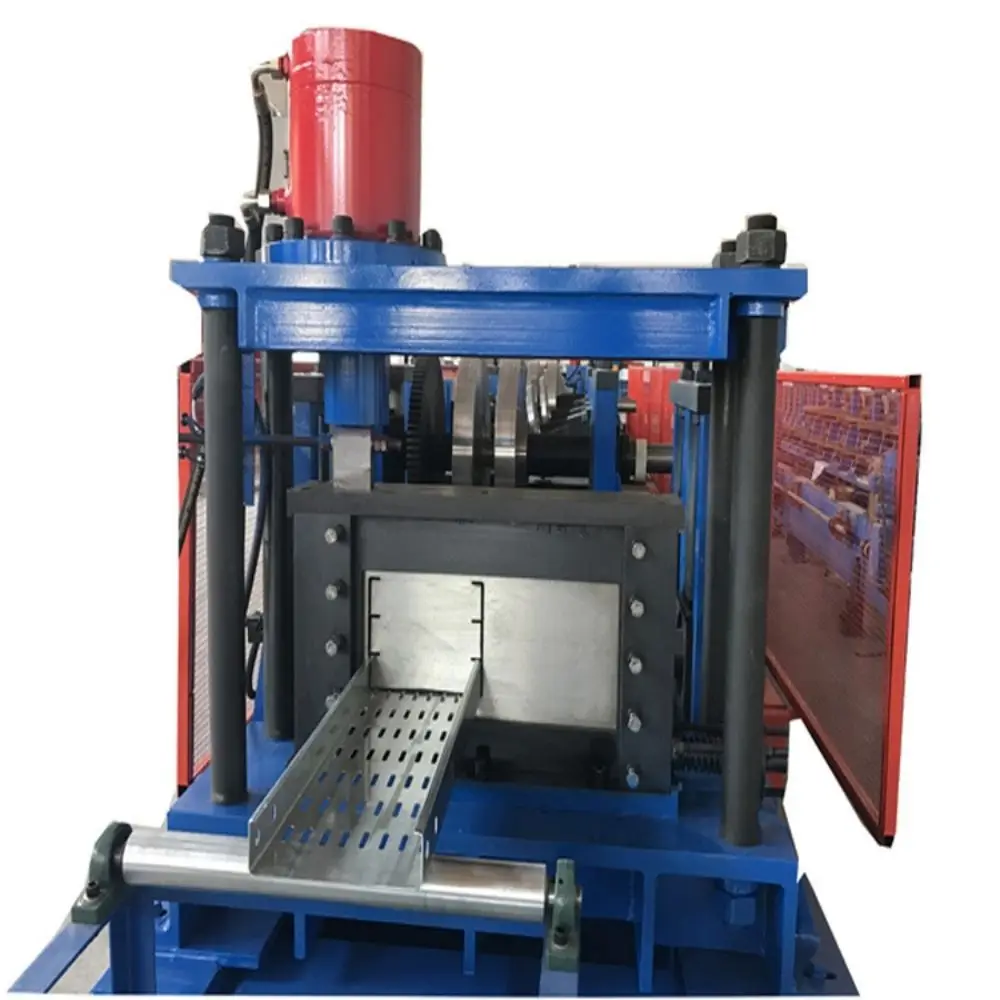

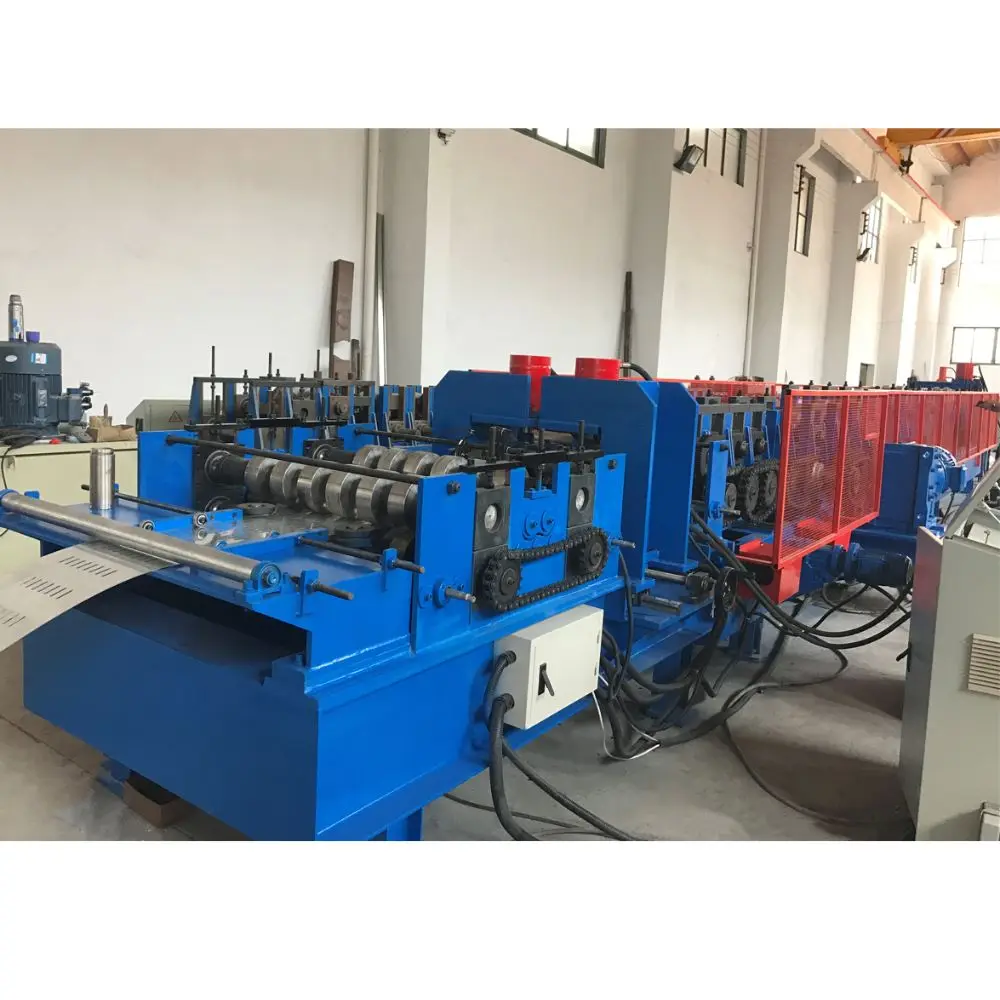

Main Roll Forming Part
5.1. Suitable Plate Material: Galvabond, black steel
Profile width: 100-600mm adjustable by PLC
Height: 50mm, adjust the profile height by spacer
Thickness:0.7-1.2mm
5.2. Working Speed: 2-3meters / min
5.3. Forming Steps: about 20 stations
Profile width: 100-600mm adjustable by PLC
Height: 50mm, adjust the profile height by spacer
Thickness:0.7-1.2mm
5.2. Working Speed: 2-3meters / min
5.3. Forming Steps: about 20 stations
Control Box
(1) Power supplier: 380 V, 50 Hz, 3Phase
(2) Length & quantity measurement automatically;
(3) Length & quantity controlled by PLC Panasonic,
(4) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) The language in the touch screen: English and Chinese
(8) Unit of length: millimeter (switched on the control panel)
(2) Length & quantity measurement automatically;
(3) Length & quantity controlled by PLC Panasonic,
(4) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) The language in the touch screen: English and Chinese
(8) Unit of length: millimeter (switched on the control panel)

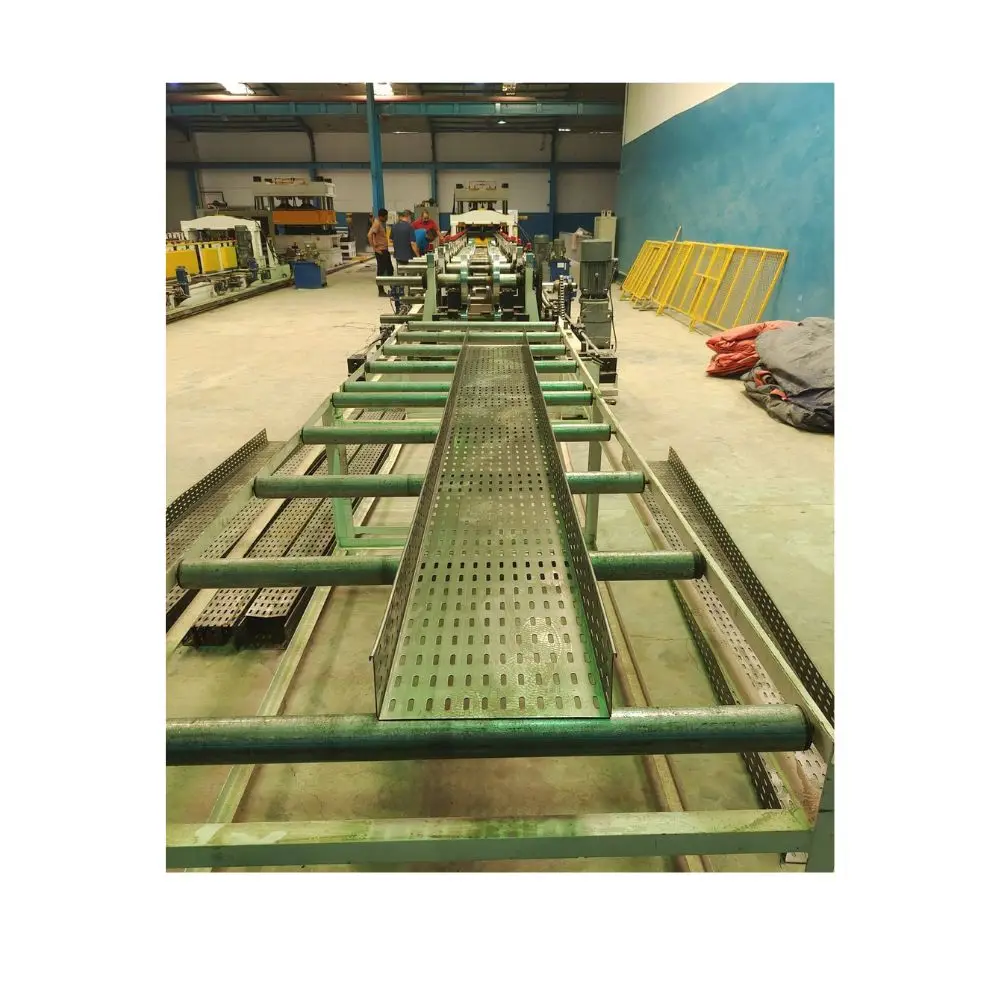

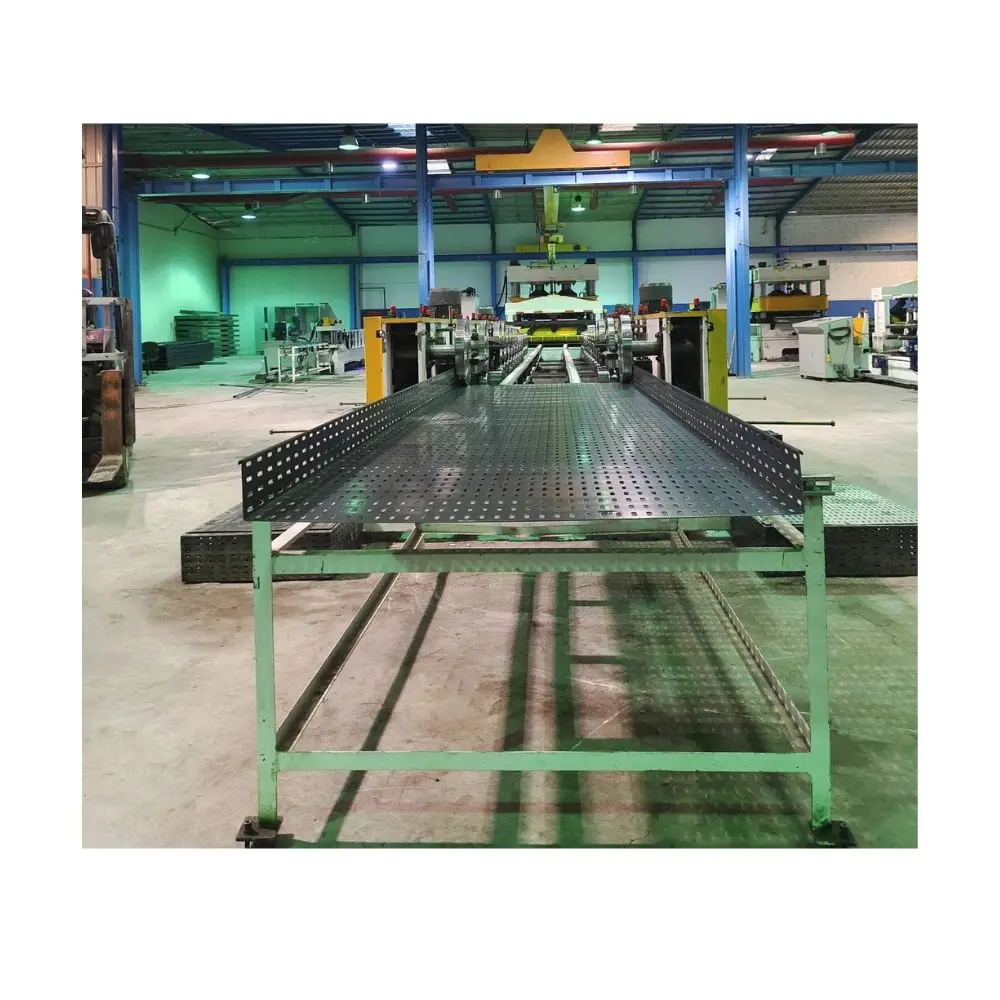

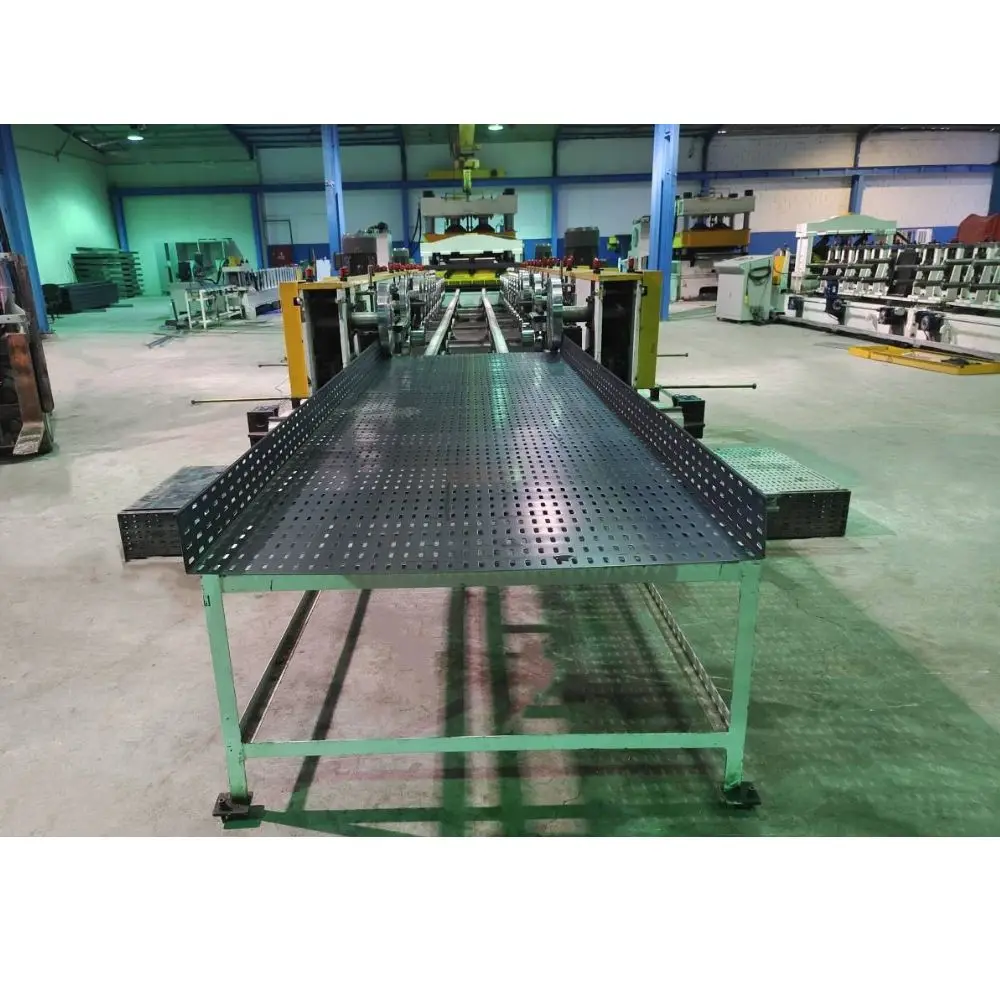

Output Table
Length: 1.5 meters
Quantity: 2 units
Application
Company Information
Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 20 years before, it' s always design and produce various type profile of roll forming machine.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
Packing & Delivery
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will paint the coil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire ropes, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
Second, make some protection on the machine, Such as, we will paint the coil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire ropes, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
Our Customers
Sussman Machinery has exported its equipment and machines to more than 80 countries over the world, such as Russia, India, Australia, Malaysia, Nigeria, Romania, Rwanda,UNITED ARAB EMIRATES,Tanzania,Kenya,Philippines, Indonesia,South
Africa,Mauritius,Mexico,etc. It has received excellent reputation. In the future, we are committed to better equipment and sales service and meeting customers' requirements when and where they need.
Africa,Mauritius,Mexico,etc. It has received excellent reputation. In the future, we are committed to better equipment and sales service and meeting customers' requirements when and where they need.
Certificate
