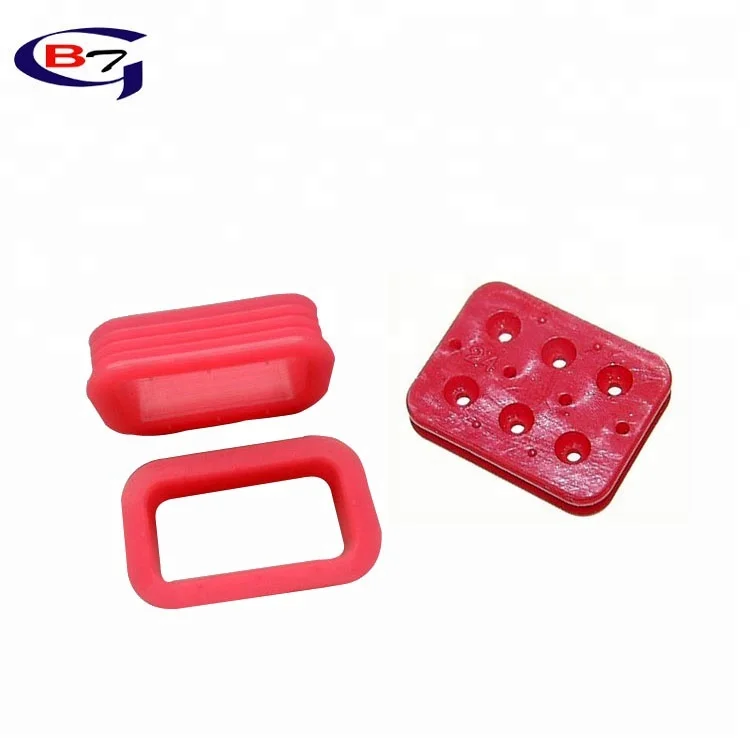

Пользовательские водонепроницаемый штекер полость Разъемы резиновый провод уплотнения Защитная крышка
1,10 ₽ - 2,19 ₽
Стандартный уплотнитель Weco FMC 3 дюймовый комплект для ремонта молотка 1502
- Категория: >>>
- Поставщик: Shanghai Qinuo Industry Co. Ltd.
Сохранить в закладки 1600847736550:
Описание и отзывы
Характеристики
Product Overview
What is Hammer Union Seal?
Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
The product Specification of
Hammer Union Seal as Follows:
Material: Buna / Viton / HSN
We offers Hammer Union Seals in Nit-rile (also known as NBR, Buna, or Buna-N) for standard service, Viton (also known as fluoroelastomer or FKM) for increased temperature and chemical resistance or HNBR for Sour Gas Service or Teflon (PTFE).
1" 1502, Buna / Viton / HSN 1-1/2" 1502, Buna / Viton / HSN 2" 602/1502, Buna / Viton / HSN(Brass/Stainless Anti-Ext) 3" 602/1502, Buna / Viton / HSN(Brass/Stainless Anti-Ext) 4" 602/1002/1502, Buna / Viton / HSN(Brass/Stainless Anti-Ext) 2" FIG 206, Buna / Viton / HSN(AS568-228) 3" FIG 206, Buna / Viton / HSN(AS568-236) 4" FIG 206, Buna / Viton / HSN(AS568-346) |

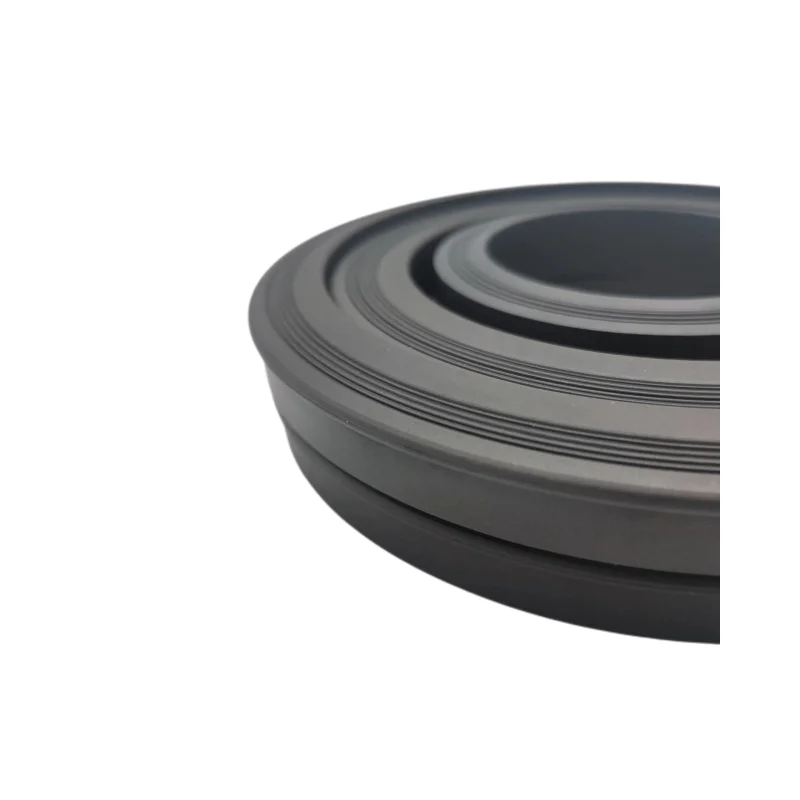

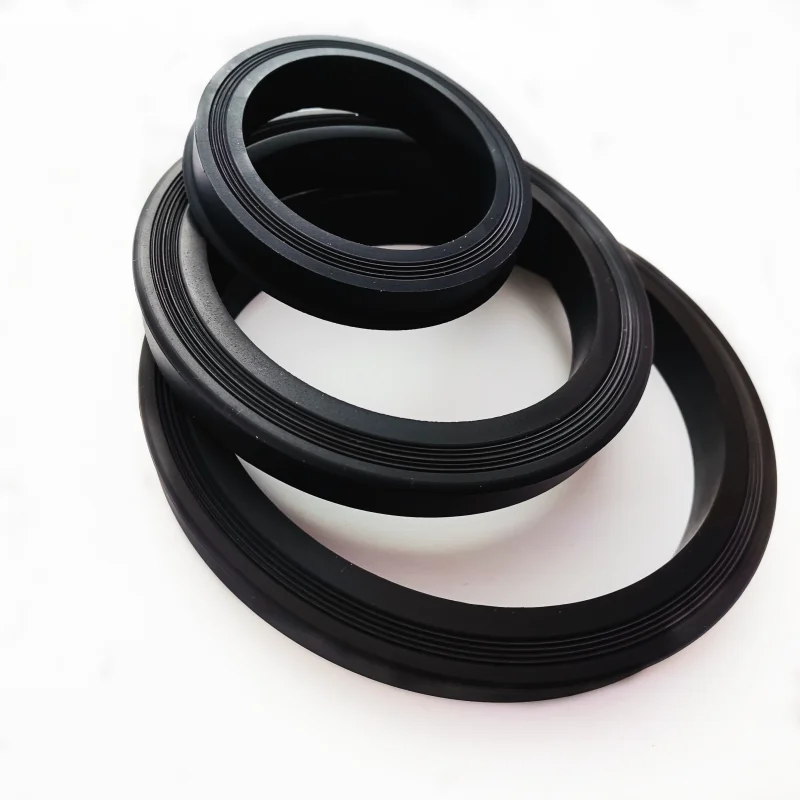

Hammer Union seals

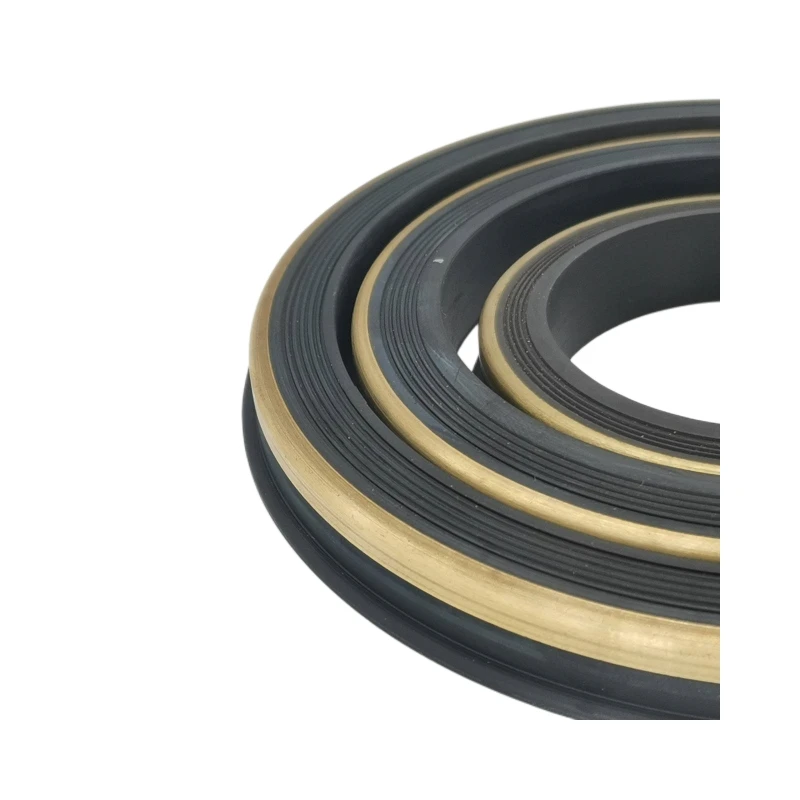

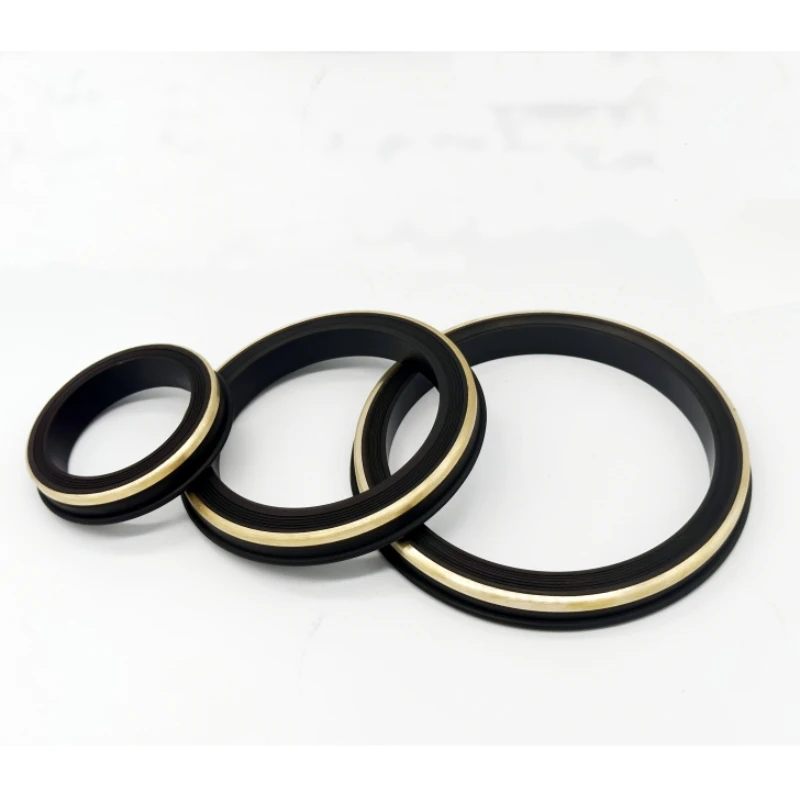

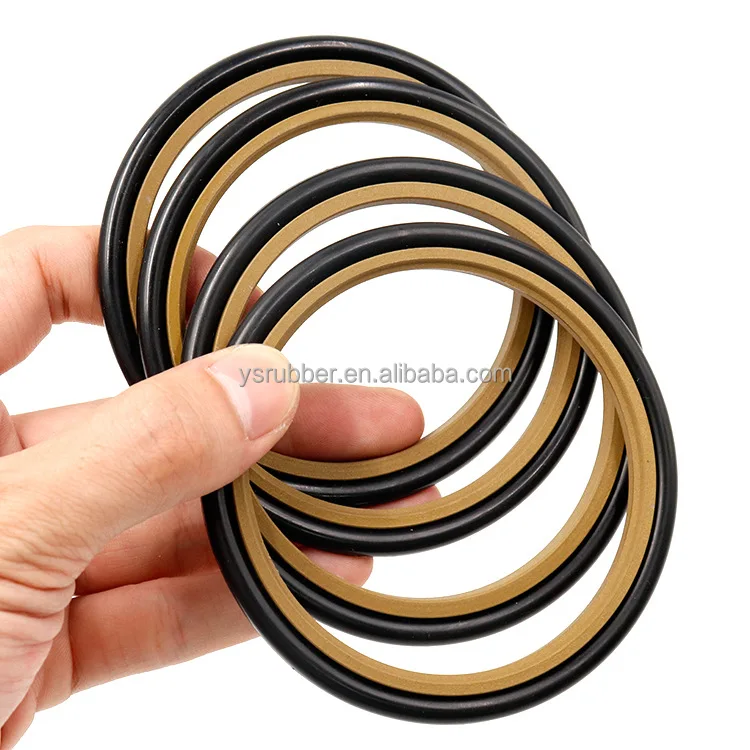

with brass rings

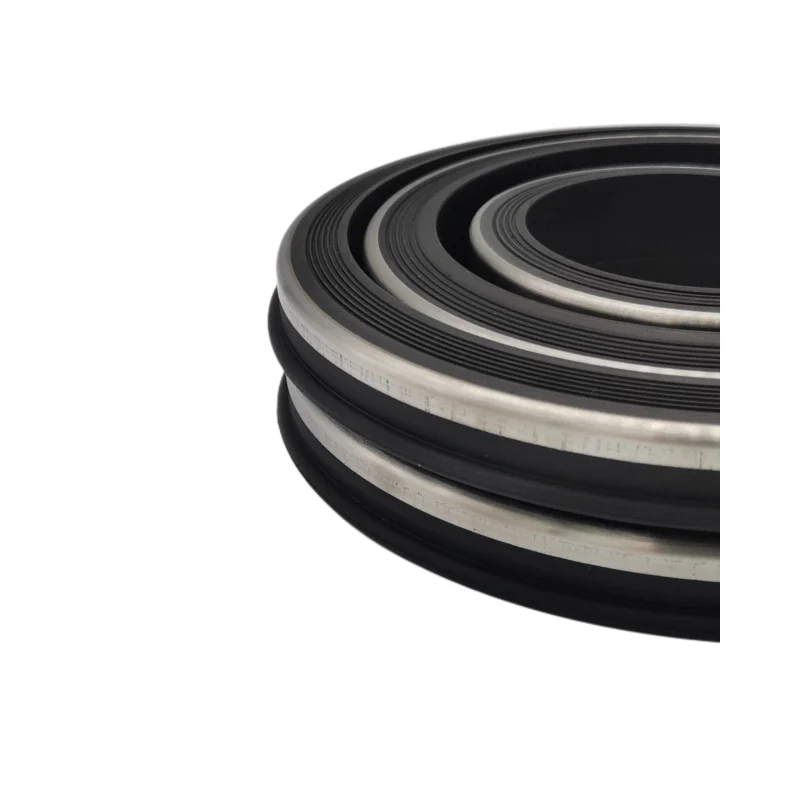

with stainless steel rings
Rubber Material
Material | ASTM D1418 | ASTM D2000 Class | Standard Temperature Range (°F) | Petroleum Fluids | Ozone | Resistance Weather (UV) | Vacuum | Compression Set | Resilience |
Buna-N | NBR | BG | -40 to +257 | 1 | 4 | 4 | 2 | 1 | 2 |
FKM | FKM | HK | -13 to +446 | 1 | 1 | 1 | 1 | 1 | 1 |
EPDM | EP | BA | -40 to +275 | 4 | 4 | 4 | 2 | 2 | 2 |
Silicone | VMQ | GE | -85 to +400 | 3 | 1 | 1 | 4 | 1 | 2 |
Fluorosilicone | FVMQ | FK | -75 to +400 | 1 | 1 | 1 | 3 | 1 | 2 |
Neoprene | CR | BC | -40 to +250 | 2 | 2 | 2 | 2 | 2 | 2 |
1=>Good 2=>Fair 3=>Questionable 4=>Poor
Material | Special Applications |
Buna-N | Hydrogenated Nitrile (HNBR) improves ozone and weather resistance |
FKM | Custom compounds improve chemical and low-temperature resistance. |
EPDM | Good for water, steam, solvents and acids |
Silicone | Popular for food and medical applications |
Fluorosilicone | Low outgassing, used in military and aerospace applications |
Neoprene | Used in refrigerations industry for resistance to ammonia and Freon |
Company Profile
About us
Shanghai Qinuo Industry Co.,Ltd was located in Shanghai, is a rapid development international trading company which intergrating R&D, production and sales.
Our main products are standard or customized rubber and plastic parts, widely using in domestic, industry, aerospace, oil and gas exploitation and other industries.
We adopt comprehensive quality management system, factory was approved ISO9001 certification,we have been adhering
to the principle of "quality first" in selling products.
Our main products are standard or customized rubber and plastic parts, widely using in domestic, industry, aerospace, oil and gas exploitation and other industries.
We adopt comprehensive quality management system, factory was approved ISO9001 certification,we have been adhering
to the principle of "quality first" in selling products.
Rating& Review
More Products
Customized Products
FAQ
Q: Can I get some samples?
Sure, samples are available,3-10 samples or 1 pack samples are for free.
Please kindly note that: shipping cost is not for free. we also can use your courier account for the samples shipment.
Please kindly note that: shipping cost is not for free. we also can use your courier account for the samples shipment.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q:What is the price?
If bulk packing, please place the order directly, if you need to custom make packing or stick a label, please contact our sales stuffs.
Q:Can I print my logo on the product or packing?
Yes, we provide custom service, details please contact us.
Q: Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
Q: Can you send the goods to Amazon warehouse?
Absolutely sure, just tell us the exact address, we will arrange the shipment.
Q: What is the payment for the order?
Paypal/western union/TT/credit card/Alibaba trade assurance.
Q: What is the lead time?
Stock goods: generally within 15days according to the quantity.
Produce Goods: 12-25days according to the packing and quantity.
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q:What is the price?
If bulk packing, please place the order directly, if you need to custom make packing or stick a label, please contact our sales stuffs.
Q:Can I print my logo on the product or packing?
Yes, we provide custom service, details please contact us.
Q: Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
Q: Can you send the goods to Amazon warehouse?
Absolutely sure, just tell us the exact address, we will arrange the shipment.
Q: What is the payment for the order?
Paypal/western union/TT/credit card/Alibaba trade assurance.
Q: What is the lead time?
Stock goods: generally within 15days according to the quantity.
Produce Goods: 12-25days according to the packing and quantity.
Send us message
Tel: +86 21 38258692 | Fax: +86 21 38258697-804
Web: https://qinuogroup.en.alibaba.com
Email: sales9@qnrubber.com
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары
Резиновый EPDM NBR силиконовый Oring
4,38 ₽ - 5,47 ₽

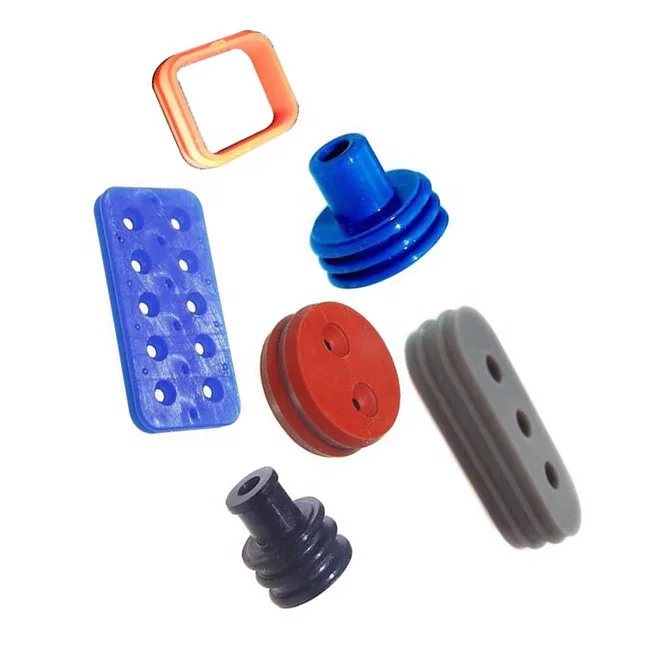

Высокое качество пользовательские силиконовые провода уплотнения разъемы и заглушки резиновая пробка
Индивидуальные различные размеры формованных уплотнений резиновой прокладки epdm
5,47 ₽ - 10,94 ₽
Индивидуальные круглые силиконовые резиновые уплотнения пищевой кремниевой O-RING
43,76 ₽ - 54,70 ₽

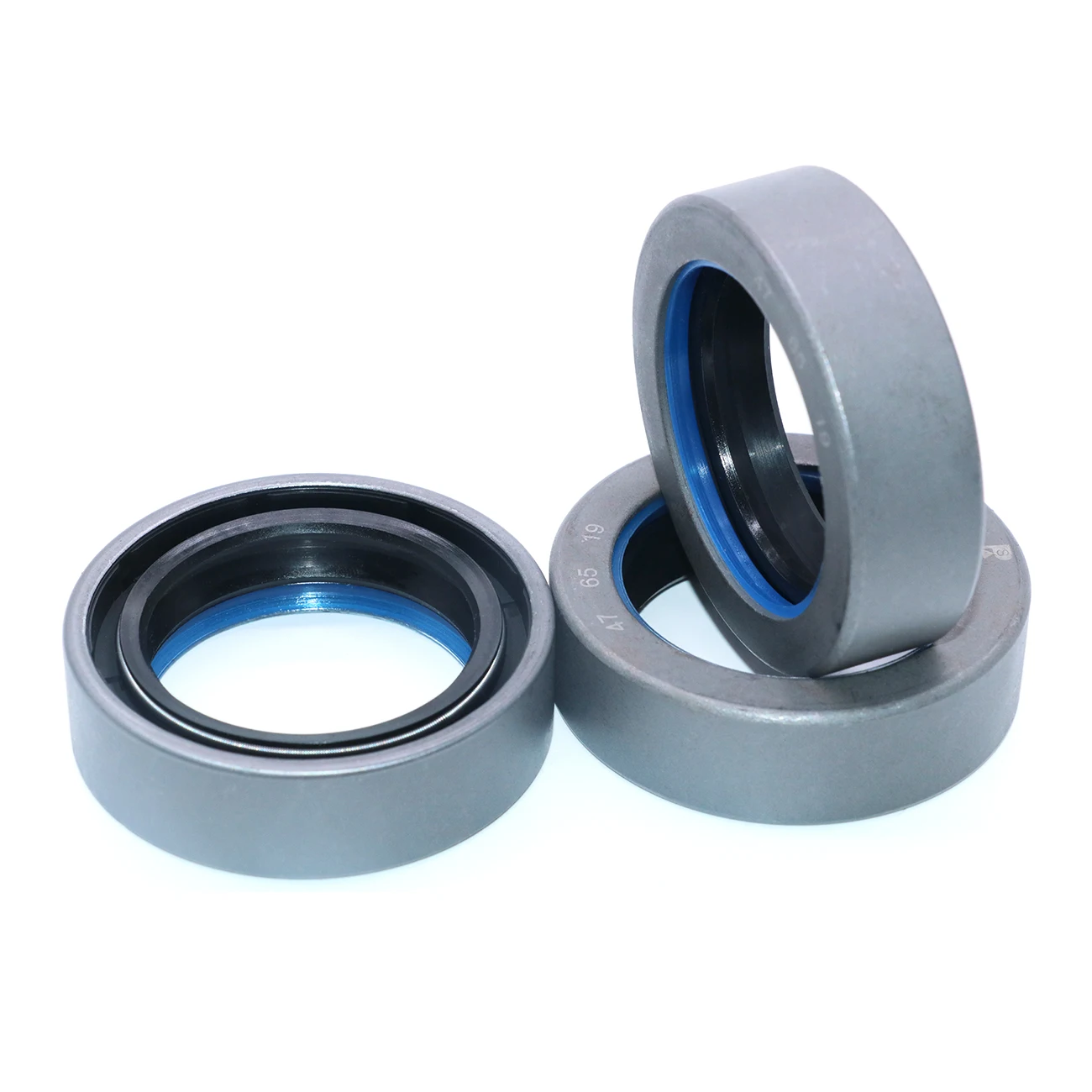

Комби Sf13, маслоуплотнение вала сельскохозяйственного трактора, маслоуплотнение для коленчатого вала 47x65x19 мм или 47*65*19
306,31 ₽ - 590,73 ₽

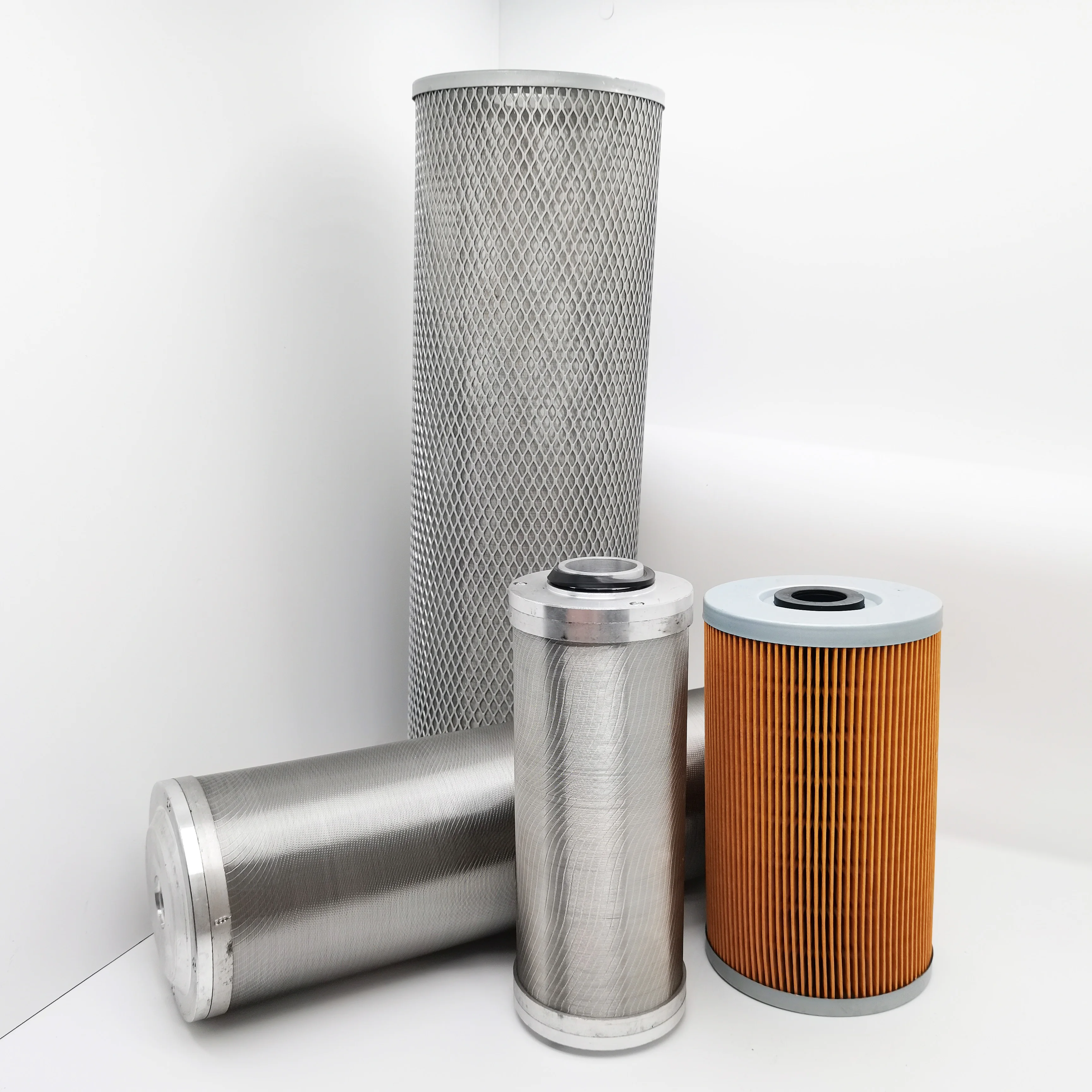

Высококачественный ПРЕЦИЗИОННЫЙ гидравлический всасывающий резервуар из нержавеющей стали CFNAK, масляный фильтрующий элемент
