180VOC солнечная панель система литий ионная батарея LiFePO4 зарядное устройство контроллер MPPT заряд 60A Солнечный
- Категория: >>>
- Поставщик: Shenzhen Yishang New Energy Technology Co. Ltd.
Сохранить в закладки 1600848574670:
Описание и отзывы
Характеристики
Product Main Features
100% MPPT controller
Intelligent Maximum Power Point Tracking technology
Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V/36V/48V
Three-stage charging optimizes battery performance
Multi-function LCD displays
Reverse polarity protection of solar panel
Overcharge protection
Can be mounted easily
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
100% MPPT controller
Intelligent Maximum Power Point Tracking technology
Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V/36V/48V
Three-stage charging optimizes battery performance
Multi-function LCD displays
Reverse polarity protection of solar panel
Overcharge protection
Can be mounted easily
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
Specification
Item | Parameter | |||||||||||||
Models | ICharger MPPT 6048 | |||||||||||||
Charging mode | 3-stage: constant current(MPPT), constant voltage, floating | |||||||||||||
System Voltage | 12/24/36/48/Auto | |||||||||||||
Max PV Input Power | 720W/12V; 1440W/24V 2160W/36V; 2880W/48V | |||||||||||||
Max PV Input Voltage | 180 Voc | |||||||||||||
Battery voltage automatic recognition | 12V system (DC8.7V-DC15.5V)；24V system (DC16V-DC31V) 36V system (DC33V-DC41V)；48V system (DC42V-DC64V) | |||||||||||||
Overcharging protection voltage | 12V system (16V)；24V system (32V) 36V system (48V)；48V system (64V) | |||||||||||||
Limited current protection | 61A | |||||||||||||
Max efficiency | ≥98.1% | |||||||||||||
PV utilization | ≥99% | |||||||||||||
Auto Temperature Compensation | -3mV/2V/ºC | |||||||||||||
Protection Function | ||||||||||||||
Temperature protection | 75℃ | |||||||||||||
Fan-on temperature | >45℃ | |||||||||||||
Fan-off temperature | <40℃ | |||||||||||||
Properties | ||||||||||||||
Size (mm) | 214x115x50 | |||||||||||||
Net weight(Kg) | 1.1 | |||||||||||||
Gross weight(Kg) | 1.2 | |||||||||||||
Electromagnetic compatibility | Accord to EN61000, EN55022, EN55024 | |||||||||||||
Enclosure | IP21 | |||||||||||||
Environmental temperature | -20℃ ~ +55℃ | |||||||||||||
Storage temperature | -40℃ ~ +75℃ | |||||||||||||
Battery Parameters | ||||||||||||||
Battery Type | System Volt | EQU | BST | FLD | BST_R | LRV | LDV | |||||||
GEL | Auto | 14.2V | 14.2V | 13.8V | 13.2V | 12.6V | 12.0V | |||||||
SEL | Auto | 14.6V | 14.4V | 13.8V | 13.2V | 12.6V | 12.0V | |||||||
FLD | Auto | 14.8V | 14.6V | 13.8V | 13.2V | 12.6V | 12.0V | |||||||
USE | Auto/12/24/36/48V | Defined by users | ||||||||||||
LI | 12/24/36/48V | --- | Defined by users | --- | --- | Defined by users | ||||||||
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.) | 12V system (360W) | 12V system (480W) | 12V system (600W) | 12V system (720W) | ||||||||||
24V system (720W) | 24V system (960W) | 24V system (1200W) | 24V system (1440W) | |||||||||||
36V system (1080W) | 36V system (1400W) | 36V system (1800W) | 36V system (2100W) | |||||||||||
48V system (1440W) | 48V system (1700W) | 48V system (2200W) | 48V system (2800W) | |||||||||||
Product Description
Certifications
Packing & Delivery

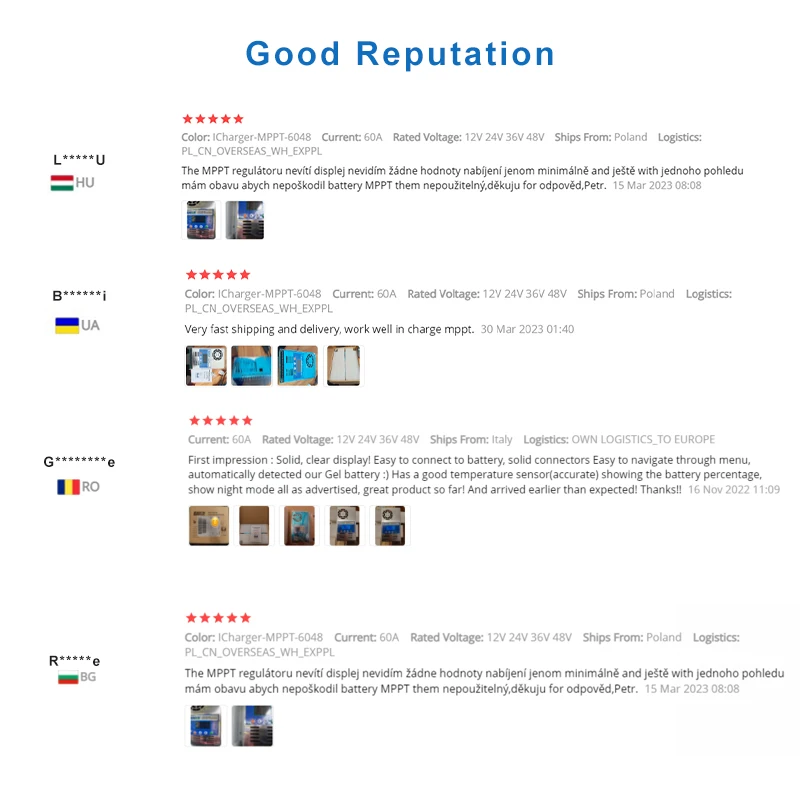

Customer Photos
Company Profile
Shenzhen EASUN New Energy is a new energy factory established in 2012, Our Company Has Been Dedicated To Be A Professional High-Tech Enterprises In Solar Energy Field. We Focus On Quality, Efficiency And Stability Of The Solar Energy Products, Which Include Solar Inverters, Panels, Solar Energy Systems , Batteries And Charger Controller. we have an experienced and well-educated R&D team and our products posses more than 100 R&D patents on electronic technology,battery technology and chemical application engineering. We offer OEM,ODM and advanced customization services to meet various needs from different clients. The enterprise has passed ISO9001 quality management system certification, and our products have obtained ROHS,VDE,UL,ISO UI, CE,UN38.3, MSDS, IEC and other international certifications, At present, EASUN New Energy has reached a long-term strategic partnership with thousands of overseas customers in the new energy industry, and has established lots of logistics warehousing bases to efficiently serve customers in Asia,Africa,Europe,the Middle East,the Americas and other regions. We aim to provide the green,energy-saving and safe electrical energy safety solar storage system for global users. and continue to provide competitive products and reduce the intermediate costs for many foreign entrepreneurs,merchants and retailers in the new energy industry.
FAQ
Q1: How long is the warranty period ?
A1: Solar Inverter with 12-24 Months, if you want to extend the period, welcome to contact us .
Q2: How to install and use the solar inverter ?
A2: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q3: What if I don't have export experience ?
A3:We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q4. Do you have solar panel and battery ?
A4: Yes, we offer all in one, one-stop, solar system ESS programme.
Q5: How is your technical support?
A5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer
you video call anytime,our engineer will also go to oversea help our customers if necessary.
you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q6: How can I make sure it's a secure transaction ?
A6: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,Alibaba will release us the money.
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,Alibaba will release us the money.
Q7: Can you get the the solar inverter ODM/OEM customized for us ?
A7: Of course, brand name, machine color, designed unique patterns available for customization.
Q8:How to become your agent?
A8:Contact us through Alibaba and Sign agency agreement, we will give you the best price and service.
Похожие товары
SUYEEGO 9-ступенчатое зарядное устройство для свинцово-кислотных аккумуляторов, 12 В, 24 В, 20 А
12V 24V фотоэлектрический аккумулятор Панель зарядное устройство 20A MPPT контроллер солнечного заряда

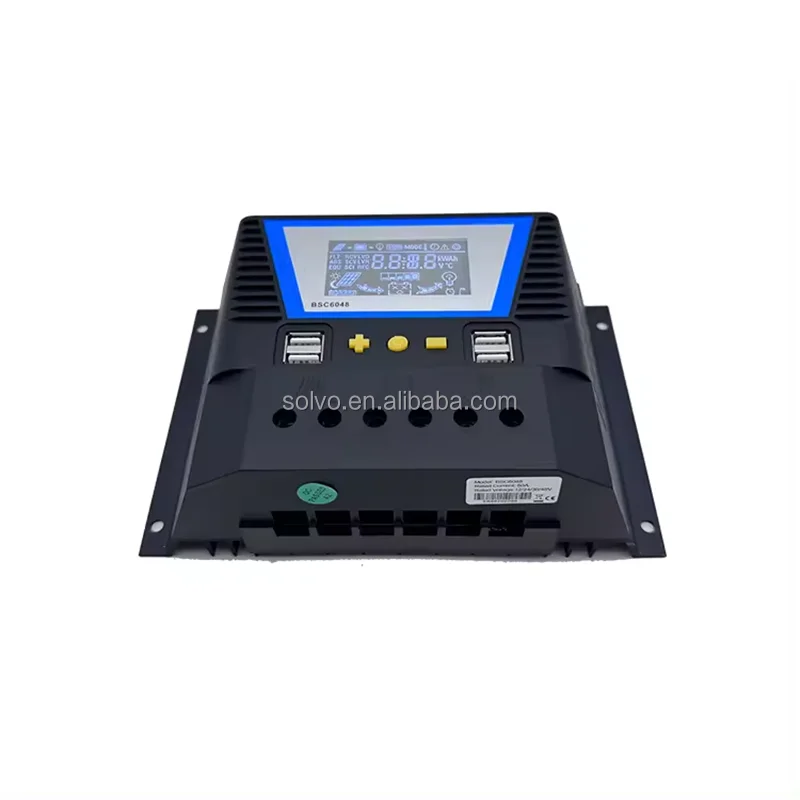

Solvo 60A PWM 12v 24v 48V контроллеры автомобильного зарядного устройства с ЖК-дисплеем контроллер солнечного заряда Черный OEM Заводская дешевая цена moq
