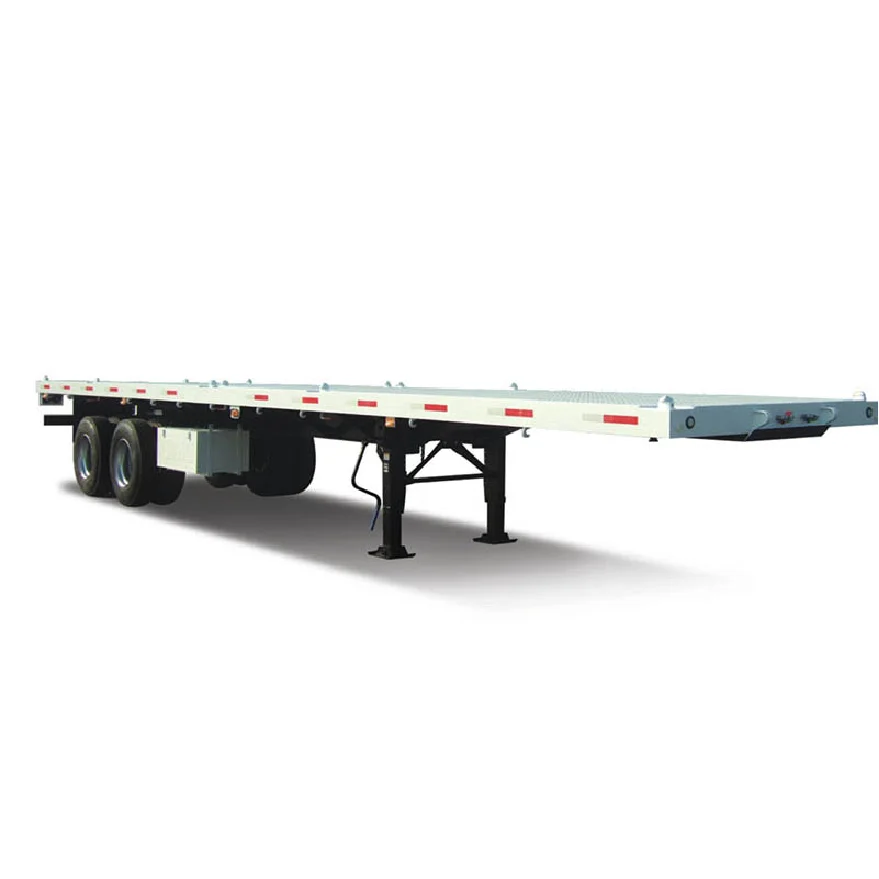

Производство новых 2 осных грузовых автомобилей Fuwa грузоподъемность 20 футов погрузка контейнеров 40 тонн портовый бортовой полуприцеп

Производство новых 2 осных грузовых автомобилей Fuwa грузоподъемность 20 футов погрузка контейнеров 40 тонн портовый бортовой полуприцеп

Категория: >>>
Поставщик: Shandong Hstar Auto Co. Ltd.

Цена:6 500,00 $ - 8 100,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

3 AXLES 40FT FLATBED SEMI TRAILER

This flat bed semi-trailer can carry bulk cargo, heavy equipment, piping, 20/30/40/45 ft containers. 40 tons - 80 tons of loading capacity for your choice.

3 AXLES 40FT FLATBED SEMI TRAILER

All accessories are world famous brand or independent products of Jianxing factory, quality is guaranteed.

3 AXLES 40FT FLATBED SEMI TRAILER

Our flat bed semi trailers usually have 13 or 16 ton axles. For braking, we use brake pads with a width of 220 mm, which improves braking performance by 20%.

3 AXLES 40FT FLATBED SEMI TRAILER

We use high quality container locks to ensure that your goods can be safely delivered to the destination.

3 AXLES 40FT FLATBED SEMI TRAILER

We use high quality container locks to ensure that your goods can be safely delivered to the destination.

3 AXLES 40FT FLATBED SEMI TRAILER

Automatic welding construction of submerged arc welding, strengthening of key parts, targeted welding, avoiding some parts prone to welding leakage, to ensure that vehicles work for a long time without maintenance.

Specifications
Dimension	12.4m×2.50m×1.55m (Outside)
Payload	40T
Tare weight	About 6.5 T
Twist lock	12uints
Chassis
Main beam	Heavy duty and extra durability designed I beam; Opting for high tensile steel T700, welded by automatic Submerged-Arc processes.
Frame Beam	Top Flange 12mm,width 140mm; Middle Flange 8mm; Bottom Flange 12mm,width 140mm, main beam height 500mm
Frame Floor	The Thickness is 3mm pattern
Axle	3 axles, 13Ton 16ton brake pads
Landing Gear	Fuwa BRAND 28T lifting capacity with two speed
King Pin	2.00 inch bolt-in king pin
Suspension	Mechanical suspension reinforced type
Leaf Spring	90mm(W)13mm(T)10 Layer
Pneumatic Braking System	Dual line pneumatic brake system,T30 air chamber ,40L x2 air tanks, Emergency relay valve
Rim	9.0-20*13 pcs
Tire	12R22.5*13 pcs Triangle tire
Accessories	One standard tool box
Spare tire rack	One
Electrical system	24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors
Packing and shipping
Painting	Dusting
Shipping Terms	By container

Company Profile

Our Factory

Customer Photos

Packing & Delivery

FAQ

Q1: Does your company is a factory or trade company?
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.

Q2: Whats the qualify assurance we provided and how do we control quality?

A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process. 100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.

Q3: What's your MOQ?
A3: One unit trailer or truck.

Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
