 Product Description

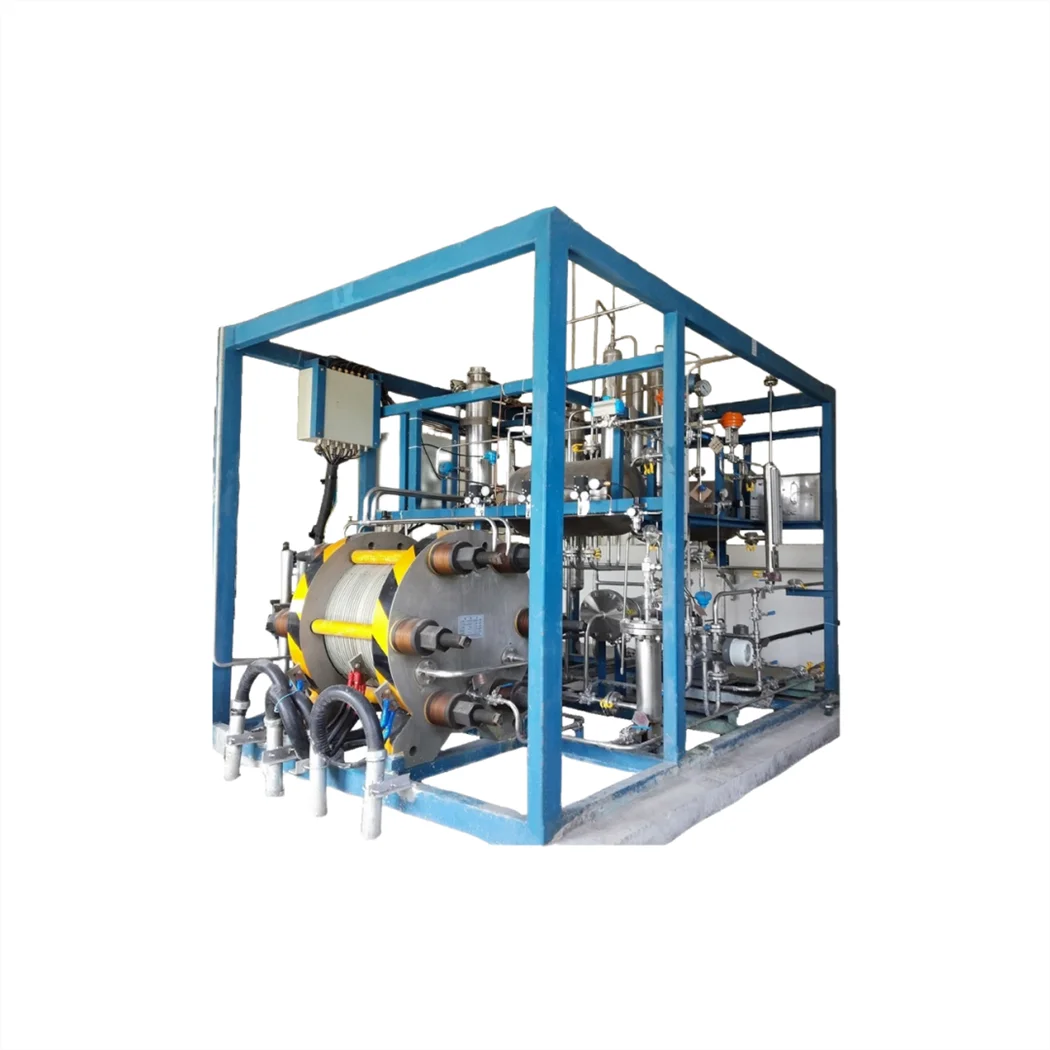

This water electrolysis hydrogen production system is one of our best-selling equipment, with a hydrogen production capacity of up to 20Nm3/h-2000Nm3/h per unit, and a hydrogen production station layout;


All stainless steel equipment has a polished surface, which is aesthetically pleasing and elegant;

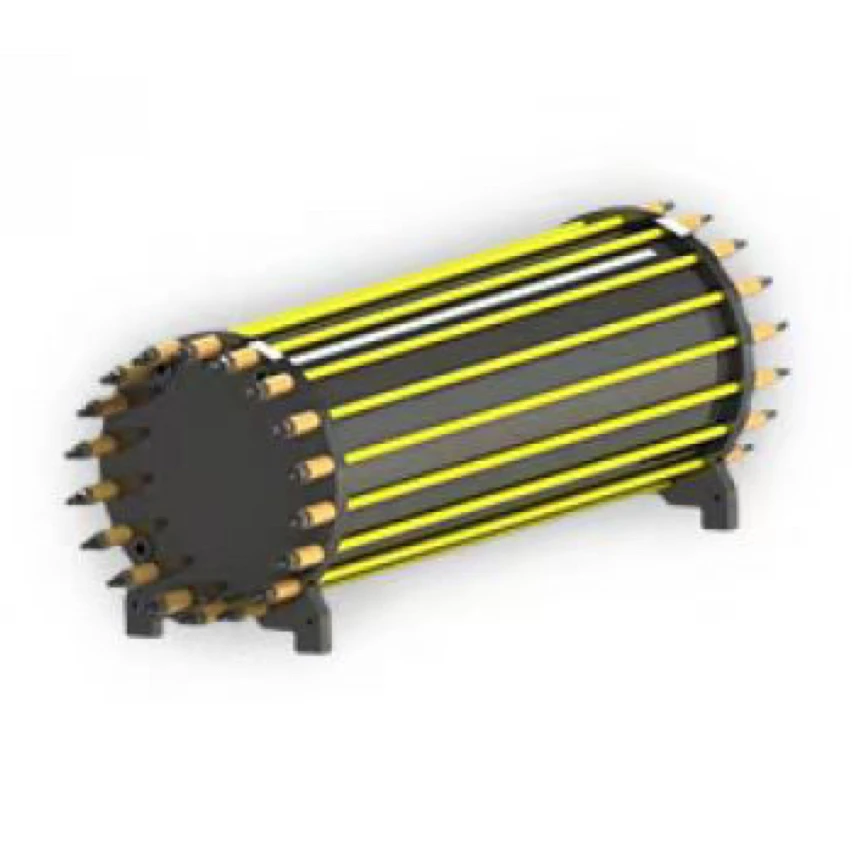

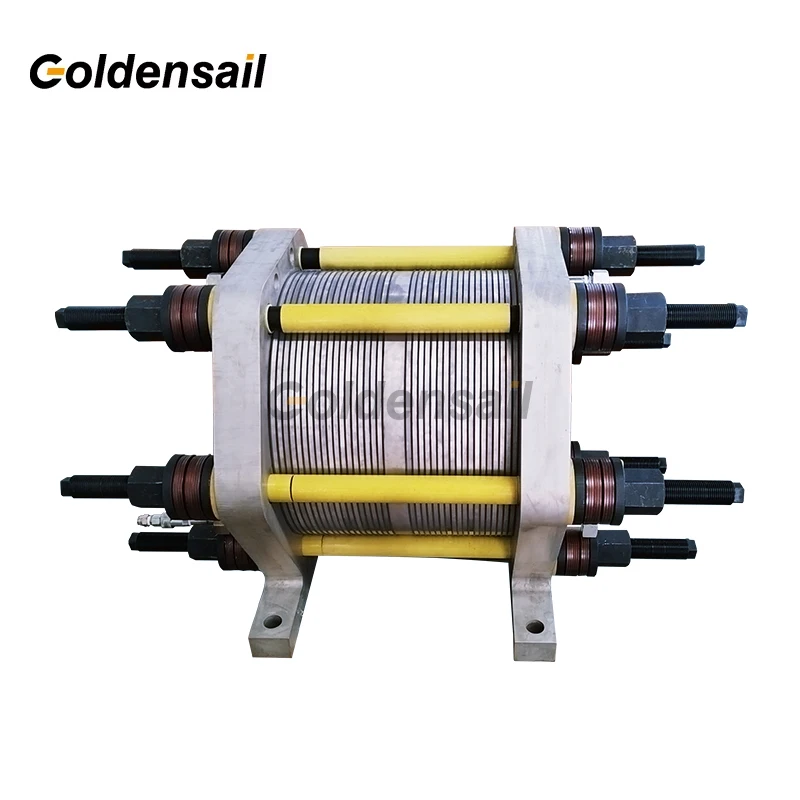

The electrolytic cell adopts a bipolar pressure filtration structure, and the sealing performance of the insulation sealing gasket is strong;

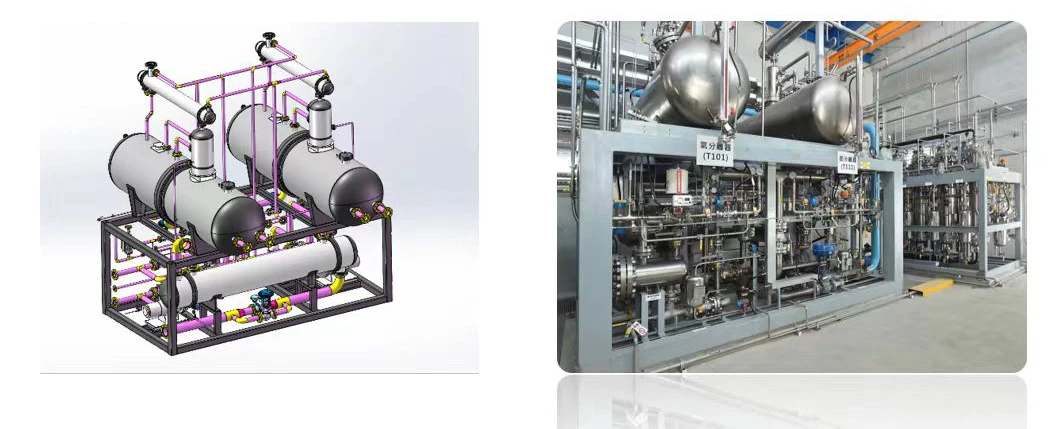

The gas-liquid processor adopts a frame combination structure, with a simple process and easy installation, operation, and maintenance;
















































No.


Item / description


Unit


Specification


1


H2 rated flows


Nm3/hr


20


2


Operating pressure


MPa


1.50


3


Operating turndown


%


50 ~ 100


4


Product H2 purity


%


99.999


5


Trace O2 content in H2


ppm


Less than 2ppm;


6


Dew point of H2


Deg.C


Better than -70 Deg.C









The use of silicon rectification instead of the original thyristor rectification method reduces harmonic interference to the power grid during device operation, effectively eliminates high order harmonic pollution to the power grid, and reduces reactive power loss;
Fully automatic microcomputer control with high degree of automation, capable of remote centralized management, human-machine intelligent interface, easy to operate, safe and reliable;
The purity of product hydrogen before purification treatment can reach 99.8%, the purity of oxygen can reach 99.2%, and the purity of product hydrogen after purification treatment can reach 99.999%.



General equipment includes:

electrolytic cell, post-treatment system, purification system, DC power supply, control system, and auxiliary system.






7971683249784_.pic7981683249785_.picIMG_06213371683042930_.pic3231683042910_.picWechatIMG250








It can be applied to technologies such as renewable energy generation for hydrogen production, hydrogen infrastructure hydrogen refueling station for hydrogen supply, and natural gas hydrogen blending. It has been widely applied in the transportation field, power grid energy storage, smart microgrids fields.



3451683042936_.pic3411683042933_.pic3501683042941_.pic

8361683250079_.pic

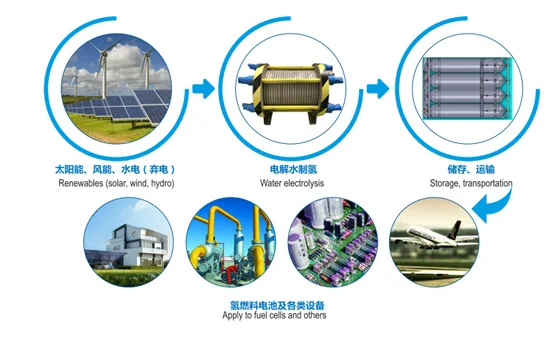

 IMG_0460













16554312918247811655431596182321IMG_0751IMG_0727

Company Profile

Wuxi Daze New Energy Development Co., Ltd..

Develop and distribute various products in the hydrogen energy industry chain, including but not limited to hydrogen production, hydrogen storage, hydrogen storage, hydrogen supply, chimney and BOP components, fuel cell system components, fuel cell vehicles, hydrogen power station systems, etc.


We have an experienced professional technical research and development team that can provide professional services from product selection and matching, system design, product customization and development, to technical support. Our products and packaging services have rich experience and are highly welcomed by customers both domestically and internationally.





















 FAQ

1) How is the product quality?


Our products are produced in accordance with international standards, and the production process has strict quality control and inspection procedures, and all products are qualified products.





2) Do the products have relevant certification?

In accordance with international requirements, our products have passed relevant international certifications, such as: CE, DOT, UL, etc.



3) Can it be customized according to customer requirements?

Yes,we can produce according to customized requirements.



4) Do the products have a warranty?

Yes, all our products have a certain warranty period, and different products have different warranty



5) Is there any discount on the product?

Yes, we are committed to providing the best price with different discounts for different quantities.



6) What are the shipping methods of the product?

We can provide you with sea, air or land transportation services according to clients' needs.







Wuxi Daze New Energy Development Co., Ltd..
Contact: Alice
Tel/Whatsapp/Wechat: +8618651581538
Email:info-at-wxdaze.cn
