Автоматическая машина для розлива бутылок
- Категория: >>>
- Поставщик: Shanghai Gebo Machinery Co. Ltd.
Сохранить в закладки 1600851150954:
Описание и отзывы
Характеристики
Case Erector automatically forms the carton boxes KX03
KX03 Case erector
This machine is of high speed 20-50cartons.
This machine is of high speed 20-50cartons.
automatically forms the carton boxes and bottom seal with adhesive tape or hot-melt glue from horizontal ways.
Carton Erects automatically with cover flaps-folding,
automatic tape bottom sealing functions.
pls note. KX01 Is our basic standard
pls note. KX01 Is our basic standard
horizontal carton open machine
* Auto flap fold and closer in bottom
* Adjustable with All specified Boxes.
* Sensor & PLC touch HMI ,
* Belt feeding speed Controlled by inverter .
* Safety relay for any door open
* Push carton board automatic buckle: Material trough fixed bracket with push carton board automatic buckle, lock material trough which is convenient for user.
* Mechanism of folding front and rear board: Upgraded mechanism of folding front and rear board, cartons can be formed faster, stable and endurable.
* Siemens PLC: The internal electric circuit adopts anti-jamming technology and Siemens control program, which can control position accurately and work stable for long time.
* Endurable conveyor belt: Using endurable conveyor belt with strong friction which can transport steadily.
* Automatic alarm: When tape broken or used up, the alarm will alarm automatically. It’s convenient for user to change and adjust in time. Box drop of fail alarm,Machine stops on box over.
* Adjustable with All specified Boxes.
* Sensor & PLC touch HMI ,
* Belt feeding speed Controlled by inverter .
* Safety relay for any door open
* Push carton board automatic buckle: Material trough fixed bracket with push carton board automatic buckle, lock material trough which is convenient for user.
* Mechanism of folding front and rear board: Upgraded mechanism of folding front and rear board, cartons can be formed faster, stable and endurable.
* Siemens PLC: The internal electric circuit adopts anti-jamming technology and Siemens control program, which can control position accurately and work stable for long time.
* Endurable conveyor belt: Using endurable conveyor belt with strong friction which can transport steadily.
* Automatic alarm: When tape broken or used up, the alarm will alarm automatically. It’s convenient for user to change and adjust in time. Box drop of fail alarm,Machine stops on box over.
* Replace tape quickly: Equipped with protective door, replacing tape conveniently and safely as the door open.
Automatic operations, Enhanced durability ,
Automatic operations, Enhanced durability ,
less power consumption
special machine can be made , the bigger , the slower.
Specification
Carton Opening Speed | Up to 50 cartons /min | |
Carton Size | L250-450×W150-400×H100-400mm | |
Power Supply | 110/220V 50/60Hz 1 Phase | |
Power | 240W | |
Adhesive Tape Width | 48/60/75mm (Choose one size) | |
Carton Storage Quantity | 80-100pcs (800-1000mm) | |
Air Consumption | 450NL/min | |
Air Compressing | 6kg/cm³ | |
Table Height | 620+30 mm | |
Machine dimension | L2100×W1650×H1450mm | |
Machine Weight | 450kgs | |
KX01 Carton open machine as following KX01 case erector, carton open machine automatically , small different carton sizes can share on one case erector... big difference carton size better take different machine , the machine will work stably and smoothly . Carton open speed 8-12pcs/min Width of adhesive tape 48mm,60mm,72mm Power 400W Voltage 220V/380V 50Hz single phase Air supply 6kg /cm2, 450nl/min Conveyor height Min.600mm Max.700mm Standard height:650mm Machine dimension L2100mm*W2100mm*H1480mm N.W 450kg | ||
Product Usage
Product usage introduction

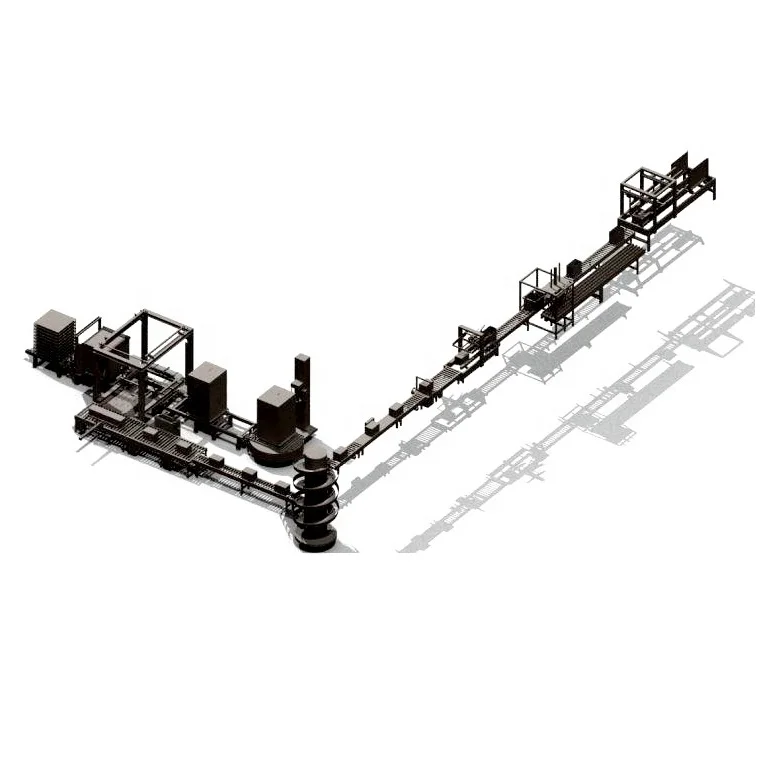

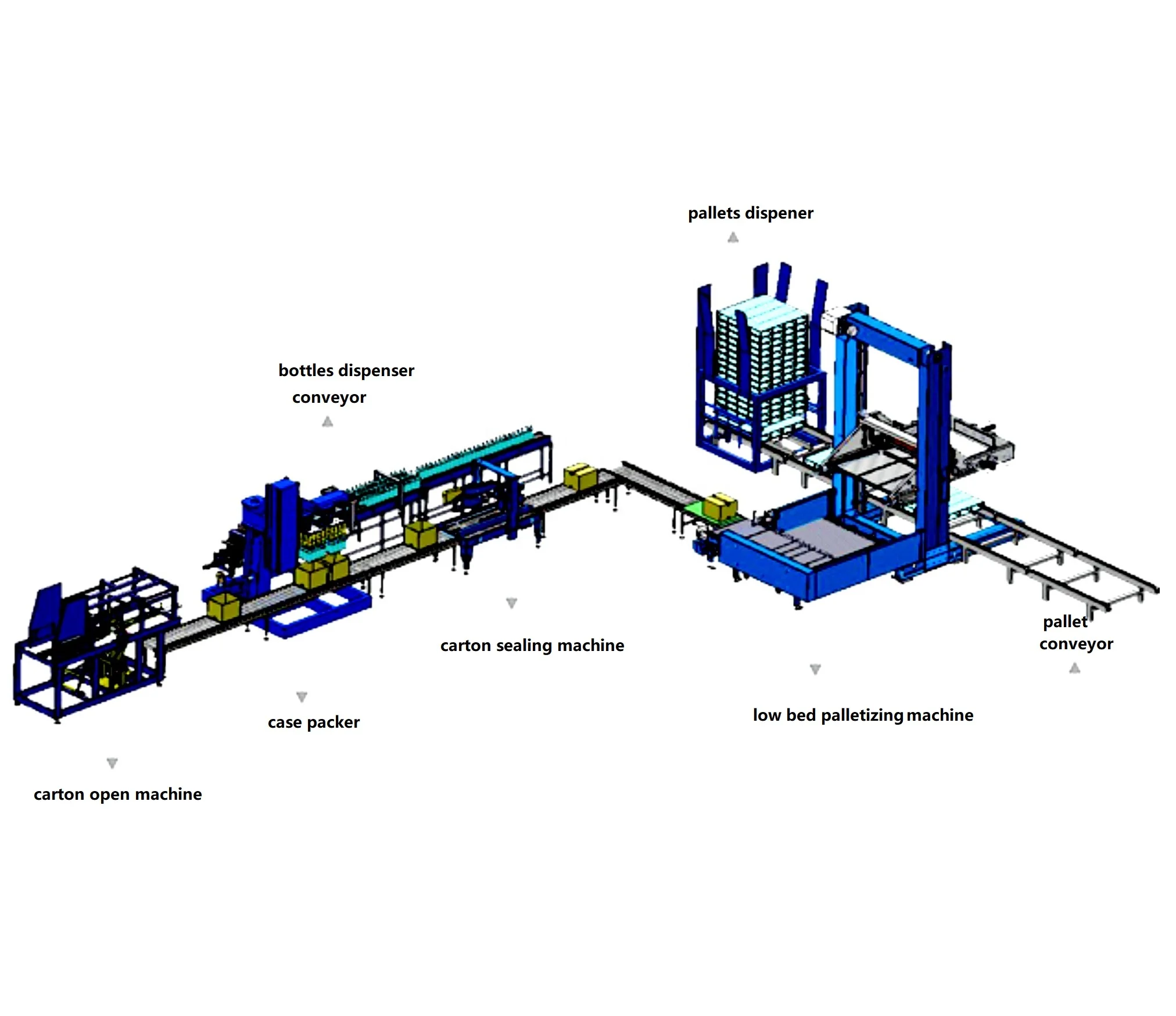

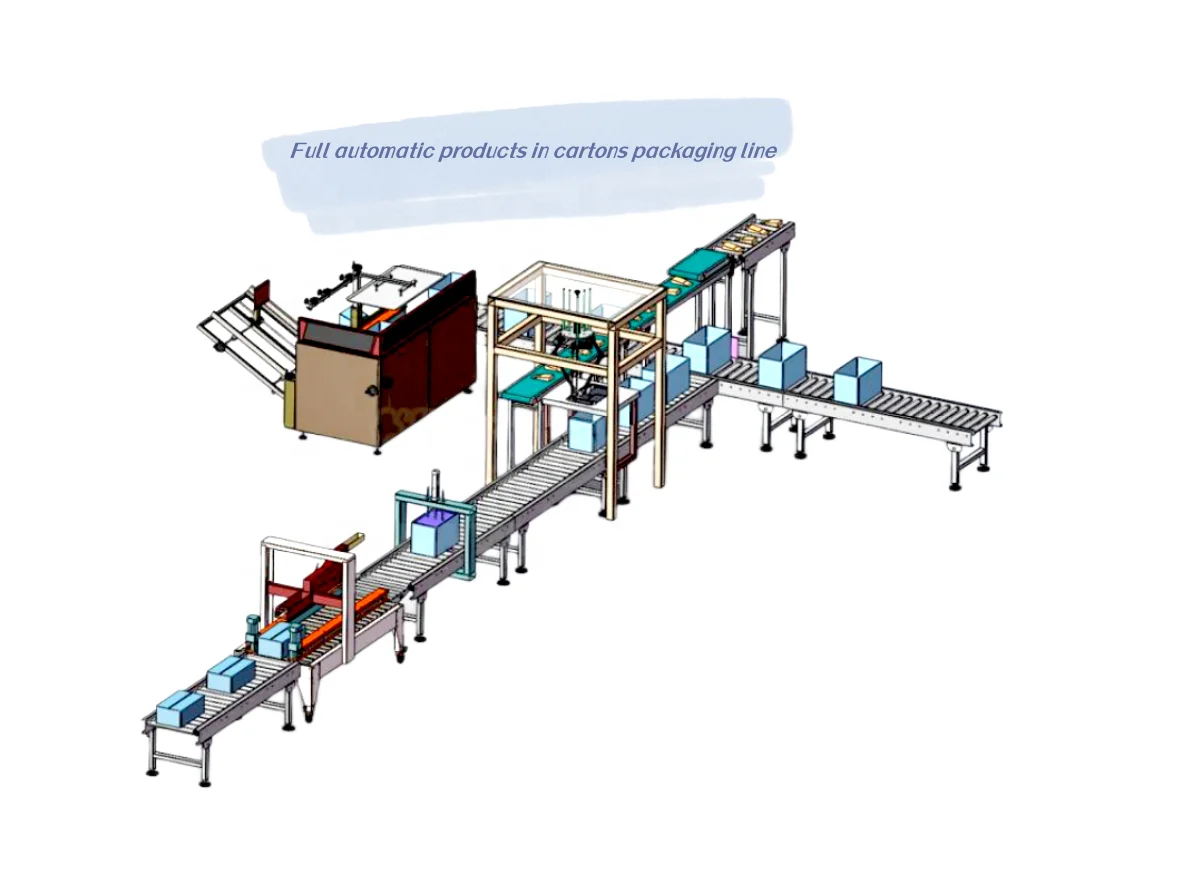

there are two tunnels , one is from productiong line feed to the case packer, our bottles or boxes from cartoning machine or from bag sealing machine or horizontal flow wrapping machine
Another tunnel is our carton opening machine , machine will open the carton automatically , and feed the empty cartons to the case packer.

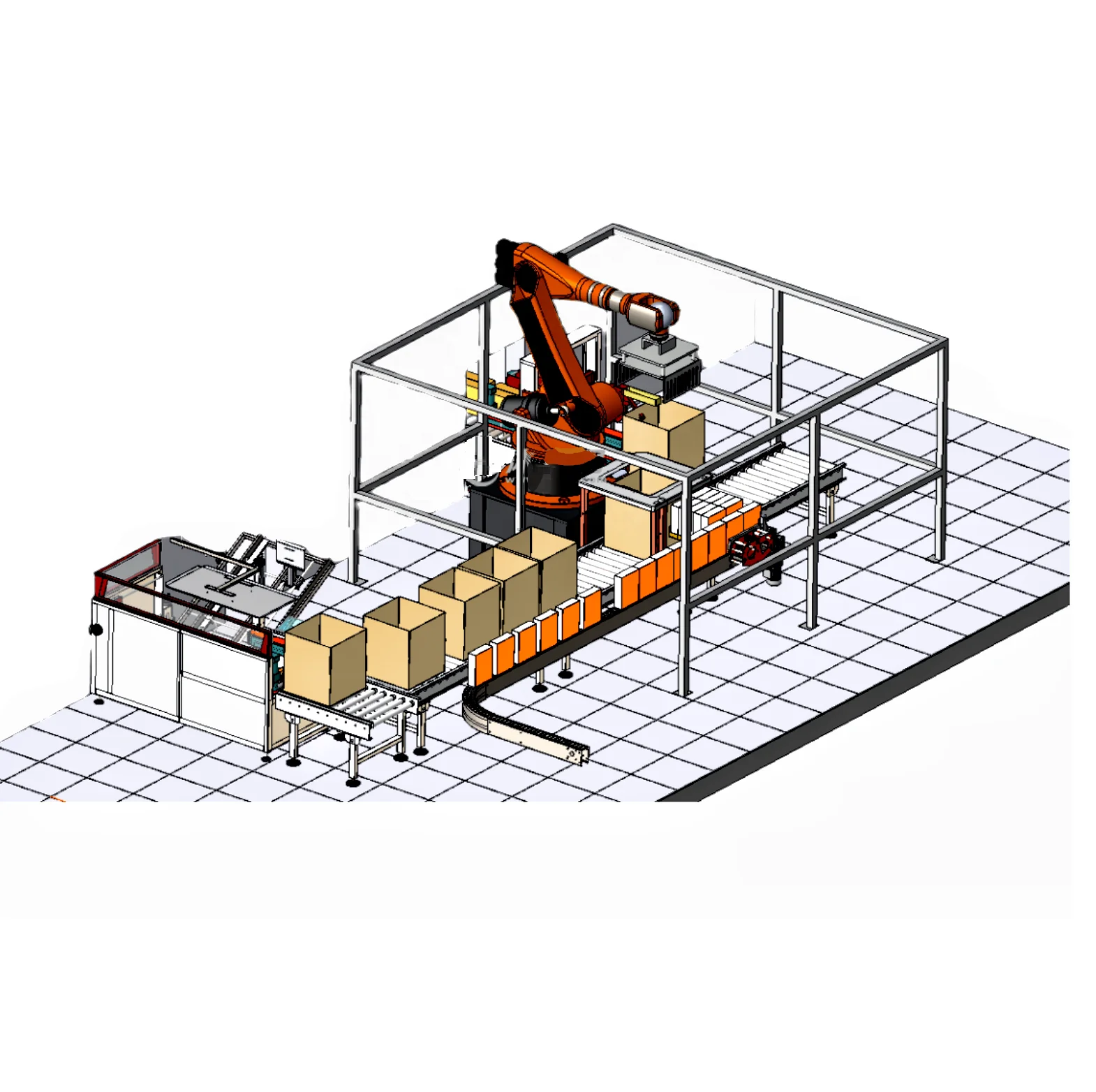

Case packer will Put （pack） the boxes bags into cartons， the machine will take group by group, we usually equip with the carton erector and carton sealing machine , for the liquid or heavy carton , come with the strapping machine , then palletizer will stack the cartons after carton sealing machine
Specification
MODEL KX01-ZX03-FX05 | Automatic Case Packer Packing line box filling packing machine |
Packing Speed | 5-10 Cartons/drums /min |
Carton/Drum Size | L250-450×W150-400×H100-400mm |
Power supply 380V/220V 50/60Hz 1 Phase 10000 w |
● Gripping action is easily configured, adjustable and using custom-designed gripper heads, we can meet the exact requirements of your product and packaging format. ● The gripper is picked up and placed an entire pack of the product completely into the erected carton. once it finished, the full carton will be discharged and conveyed to a carton sealing machine. ● It's capable of speeds up to 2-6 cases per minute. ● Utilizing the servo motor driven of Japan Panasonic, PLC and touchscreen of Japan Mitsubishi. ● Full safety interlocked guarding. Insufficient coming will be stopped. ● Easy to program, maintain consistent operation, increase productivity and reduce labor costs. FX05Q carton sealing machine is widely used in production line , It has the sensor detector to meet different size of carton itself. So, it is popular one in modern requests.'' packing speed meet the whole line . |

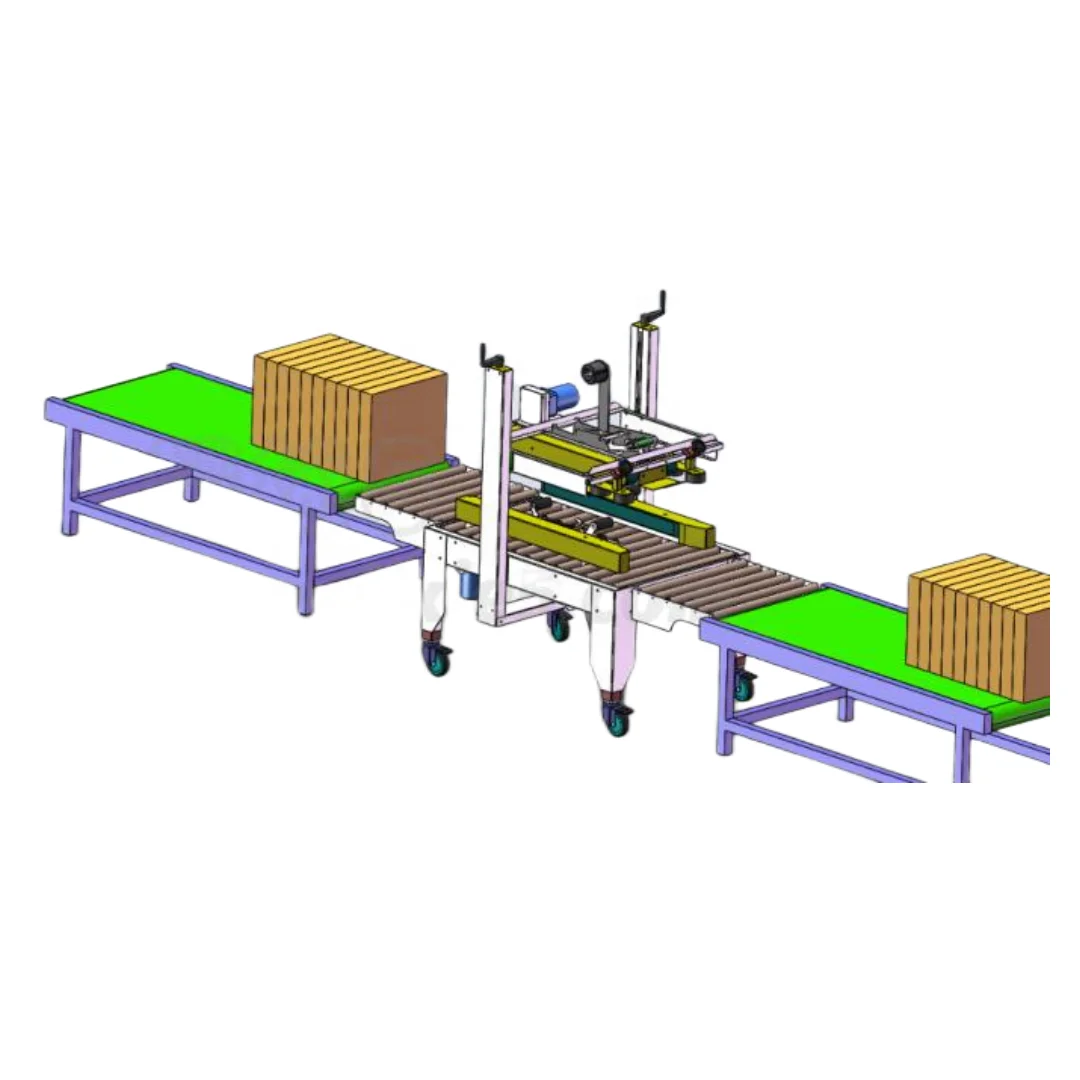

1. Automatic Case Erector /Case Packer / Carton Box Sealing Machine
Basic description
1) Using painted steel and plastic safety shield and guard,Meet CE certificate .
2) Mechanical parts chrome steel, stainless steel, aluminum and corrosion.
3) Main drive adopts adjustable speed reducer, variable speed, auto correct feature.
4) Box or bag feeding feeding slat conveyor ,conveyor material consisting of a low coefficient of friction ,continous
feed bottles, lane guide.
5) For Product location for automatic speed adjustment and all the bottle detection.
6) The detection of inverted bottle and lack of bottle in the enter bottle place ,alarm for shortage of box .
7) main electric cabinet on the machine.
8) Schneider low voltage control system
9) AIRTAC pneumatic components
10) Autonics photoelectric control system
11) Siemens PLC process controller with the console, and a color LCD touch screen ,directly modify the machine
2. Automatic Case Packer / Case Erector / Carton box Packing machine with factory priceMachine description
1) voltage:380V(± 10%max)50Hz 3PH+PE.
2) For non-380V voltages, can provide an auto transfer.
3) Control voltage: 24V DC ,Schneider low voltage control system
4) According to the IEC 529 standard, the electrical cabinet protection grade is IP54, Button protection grade is IP65
5) Insulating refractory cable (paint color according to the DESINA standard)
6) Total switch: domestic brands
7) Panel buttonØ30mm:Schneider
8) proximity switch: South Korea
9) With the joint of the photoelectric tube IP67 diameter18 D
10) Relay connector conforming to Din50-022-35 standard
11) Rapid stand joints conforms to the Din50-022-35 standard
12) Contactor relay with the French Schneider TE/ABB
13) frequency converter is Taiwan Teco
14) main controller: Germany Siemens
15) Asynchronous motor: Domestic
16) Other electric driving device in accordance with the IEC529 standard is not less than IP54
17) Gear motor; China
18) Bearing:TR
19) Chain: polymer plastics
20) Electronic valve in
2) Mechanical parts chrome steel, stainless steel, aluminum and corrosion.
3) Main drive adopts adjustable speed reducer, variable speed, auto correct feature.
4) Box or bag feeding feeding slat conveyor ,conveyor material consisting of a low coefficient of friction ,continous
feed bottles, lane guide.
5) For Product location for automatic speed adjustment and all the bottle detection.
6) The detection of inverted bottle and lack of bottle in the enter bottle place ,alarm for shortage of box .
7) main electric cabinet on the machine.
8) Schneider low voltage control system
9) AIRTAC pneumatic components
10) Autonics photoelectric control system
11) Siemens PLC process controller with the console, and a color LCD touch screen ,directly modify the machine
2. Automatic Case Packer / Case Erector / Carton box Packing machine with factory priceMachine description
1) voltage:380V(± 10%max)50Hz 3PH+PE.
2) For non-380V voltages, can provide an auto transfer.
3) Control voltage: 24V DC ,Schneider low voltage control system
4) According to the IEC 529 standard, the electrical cabinet protection grade is IP54, Button protection grade is IP65
5) Insulating refractory cable (paint color according to the DESINA standard)
6) Total switch: domestic brands
7) Panel buttonØ30mm:Schneider
8) proximity switch: South Korea
9) With the joint of the photoelectric tube IP67 diameter18 D
10) Relay connector conforming to Din50-022-35 standard
11) Rapid stand joints conforms to the Din50-022-35 standard
12) Contactor relay with the French Schneider TE/ABB
13) frequency converter is Taiwan Teco
14) main controller: Germany Siemens
15) Asynchronous motor: Domestic
16) Other electric driving device in accordance with the IEC529 standard is not less than IP54
17) Gear motor; China
18) Bearing:TR
19) Chain: polymer plastics
20) Electronic valve in
special machine SUS304 Frame and conveyor
Air Consumption | 450NL / Min |
Air Compressing | 6kg/cm³ |
Carton conveyor Height | 500-820 mm as requested | |
pls tell us , it is important | ||
Whats's your products, how many kinds of products, | ||
carton & products size , | ||
do you have the space layout | ||
packing speed , | ||
Company Profile
Shanghai Gebo Machinery Co., is located in Shanghai, China.
The GDP in China's biggest city is our Shanghai City.It is the heart of China.
We have our own manufacture factory , aftersales team and engineering team.
There are more or less 50 workers in our company.
Our working shop is about 3000 squarmeter.
We mainly produce all kinds of Filling machine,
Automatic feeder of bottle turntable,
Bottle filling machine,
Capping machine,
Labeling machine,
Bag Seaing Machine,
Bag Packing Machine,
Box Packing Machine,
Shrink Wrapping Machine,
Case erector,
Bag Inserter Machine,
Carton Packer,
Carton Sealing Machine,
Strapping Machine,
Palletizer,
Pallet Wrapping Machine,
Coil Wrapping Machine,
Other Packing Machine,
Packaging Material,
Conveyors,
We can help you to make the special machine and automatic packing line accord your request,to meet your requirement.
Our machines are widely used in pharmaceutical, food and beverage, daily chemical, pesticides and cultural goods and other industries.Our machines were sold to many countries and regions.
Honesty And Quality Machines are our mission and base .Our Company insists on Honesty ,Innovation, Good After-sale service as Business Philoso.
We always keep honesties and integrities to our staffs, to customers, to social.
We are gold supplier on tradekey and alibaba. if you order from us,you will enjoy bussiness protect & safeguard & our experiences. please support us and we believe we can provide you higher quality and better service for you.
Welcome to visit our company in Shanghai,China .
The GDP in China's biggest city is our Shanghai City.It is the heart of China.
We have our own manufacture factory , aftersales team and engineering team.
There are more or less 50 workers in our company.
Our working shop is about 3000 squarmeter.
We mainly produce all kinds of Filling machine,
Automatic feeder of bottle turntable,
Bottle filling machine,
Capping machine,
Labeling machine,
Bag Seaing Machine,
Bag Packing Machine,
Box Packing Machine,
Shrink Wrapping Machine,
Case erector,
Bag Inserter Machine,
Carton Packer,
Carton Sealing Machine,
Strapping Machine,
Palletizer,
Pallet Wrapping Machine,
Coil Wrapping Machine,
Other Packing Machine,
Packaging Material,
Conveyors,
We can help you to make the special machine and automatic packing line accord your request,to meet your requirement.
Our machines are widely used in pharmaceutical, food and beverage, daily chemical, pesticides and cultural goods and other industries.Our machines were sold to many countries and regions.
Honesty And Quality Machines are our mission and base .Our Company insists on Honesty ,Innovation, Good After-sale service as Business Philoso.
We always keep honesties and integrities to our staffs, to customers, to social.
We are gold supplier on tradekey and alibaba. if you order from us,you will enjoy bussiness protect & safeguard & our experiences. please support us and we believe we can provide you higher quality and better service for you.
Welcome to visit our company in Shanghai,China .
Related Products
FAQ
Q1:Are you a trading company or manufacture?
A1: We are manufacturer with experience over 15 years in Shanghai , China
Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.
Q3: What is your packing pattern?
A3: For FCL ,Ply wooden pallet + stretch film covering
For LCL, steel frame + wooden box packing
Q4: How about your service?
A4: main parts free offer in warrentee , 24 hours answers on line
Also, engineers available to serve your company overseas for installation and train your worker in the workshop.
wechat ID : helencow and whatsapp:+86 13472401937
Q5: How about your product?
A5: We mainly produce all the machines ourselves . We have the standard production and complete quality control system to ensure high quality .We can make all kinds of machine accord to your request.
Our products get ISO9001:2008, Euro CE
A1: We are manufacturer with experience over 15 years in Shanghai , China
Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.
Q3: What is your packing pattern?
A3: For FCL ,Ply wooden pallet + stretch film covering
For LCL, steel frame + wooden box packing
Q4: How about your service?
A4: main parts free offer in warrentee , 24 hours answers on line
Also, engineers available to serve your company overseas for installation and train your worker in the workshop.
wechat ID : helencow and whatsapp:+86 13472401937
Q5: How about your product?
A5: We mainly produce all the machines ourselves . We have the standard production and complete quality control system to ensure high quality .We can make all kinds of machine accord to your request.
Our products get ISO9001:2008, Euro CE
Palletizing machie we can offer too, If you were interested in our machine , pls send us the inquiry or message.
Похожие товары

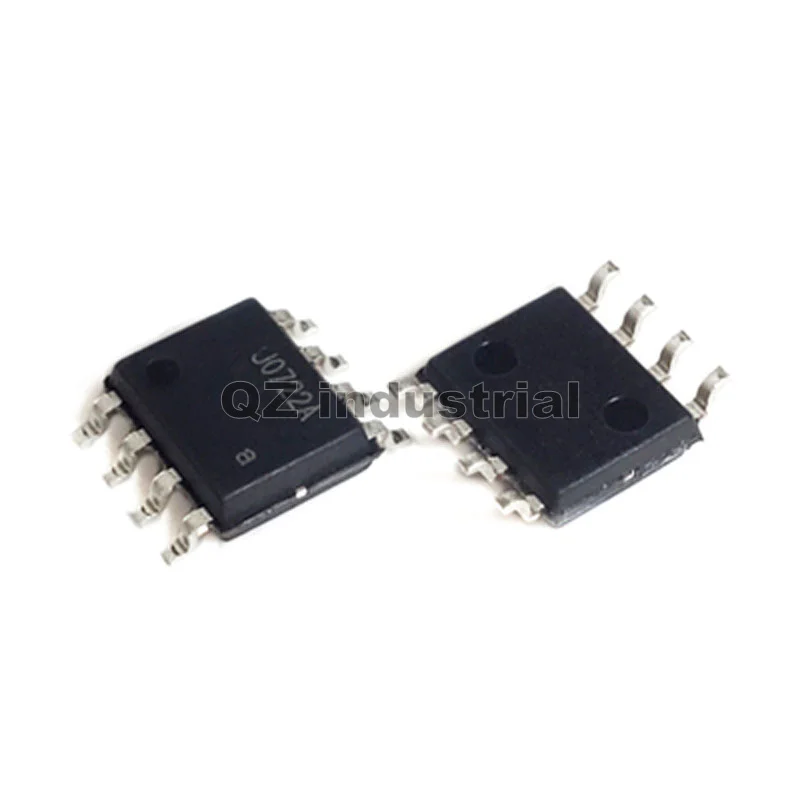

QZ Новый Оригинальный ЖК чип управления питанием IC SOP8 OB2201 OB2201CPA OB2201CP

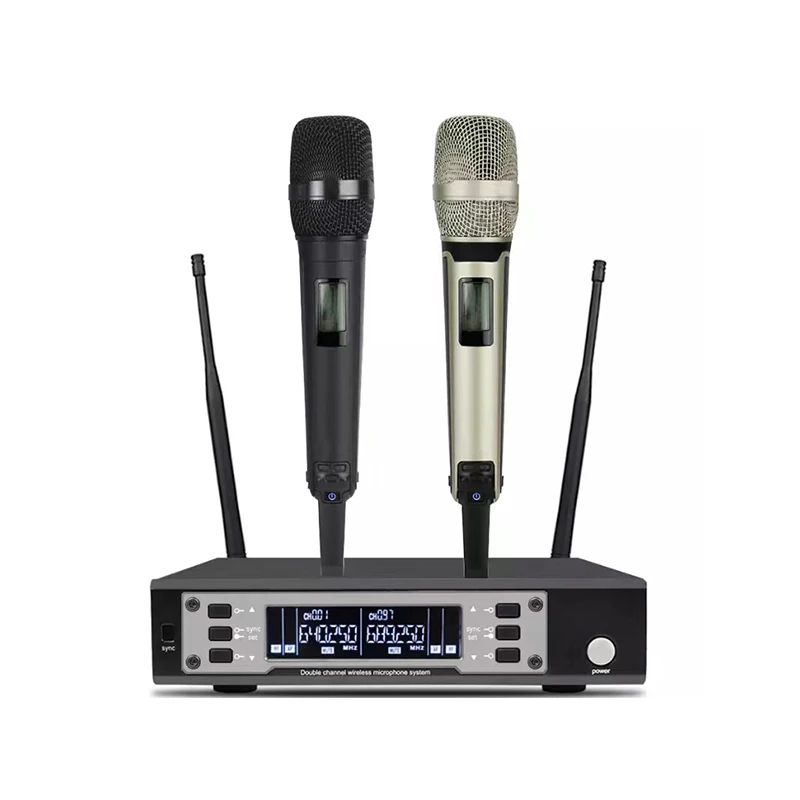

Профессиональный ручной динамический микрофон для вокала EW135 G4 беспроводной SKM9000
46,00 $ - 62,00 $

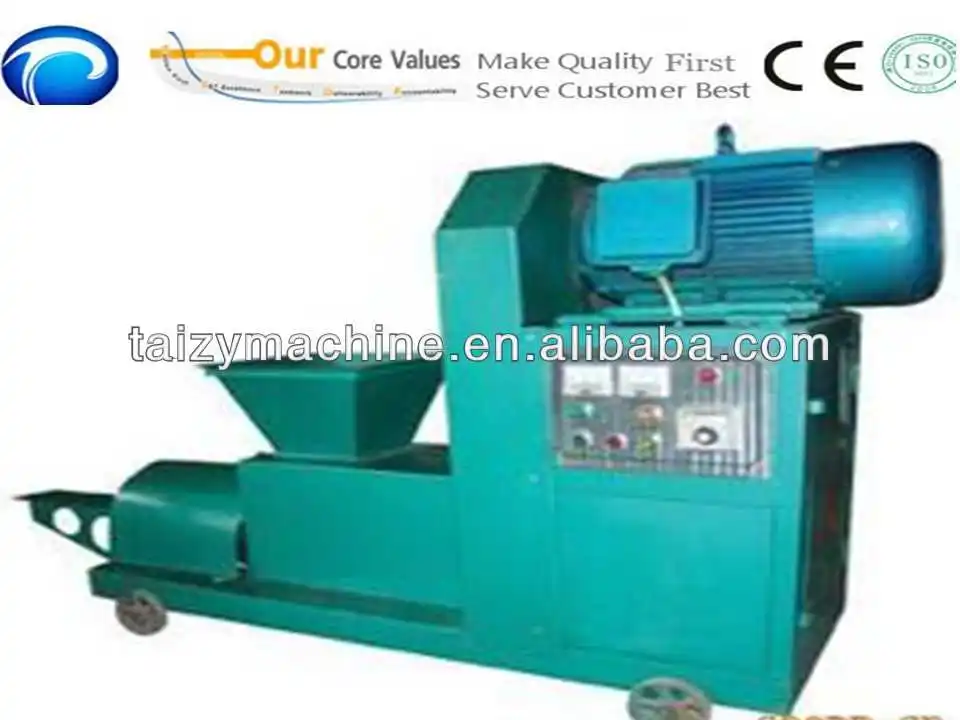

автоматический угольных брикетов машины

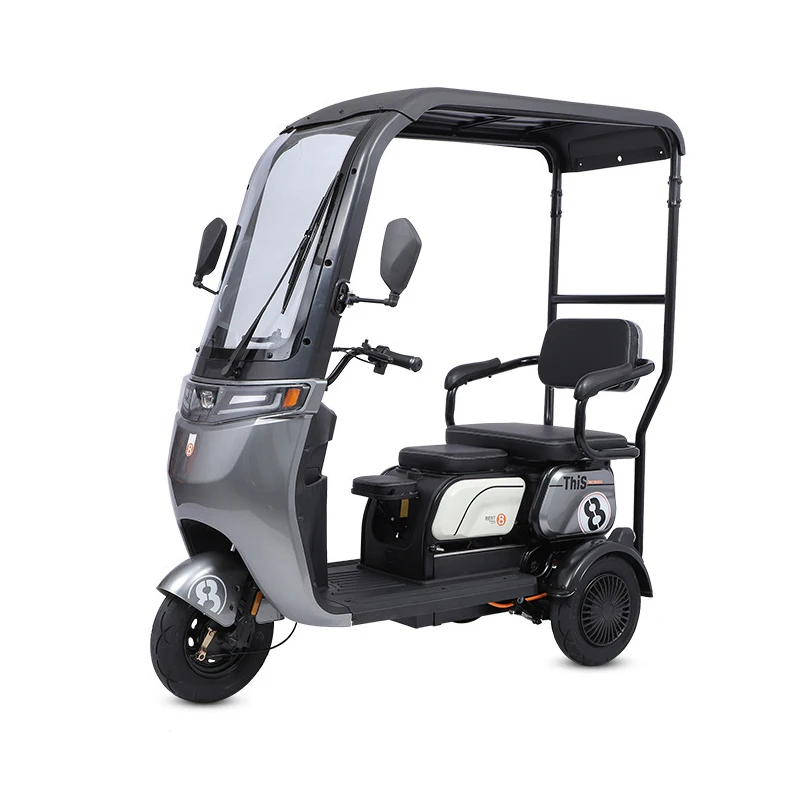

Электрический трехколесный велосипед 800 Вт с закрытой крышей для взрослых
33 498,99 ₽ - 36 281,98 ₽
Автоматический съемный наружный Тент со светодиодной подсветкой
258,00 $ - 458,00 $
Изготовленный На Заказ блок питания лист металлический корпус Enclose компоненты обслуживание изготовления U зажим батарея терминал лазерная резка
0,10 $ - 0,30 $
JUNMU медицинский паровой автоклав, запасные части, автоклав, нагревательный элемент для продажи
Новые поступления
Новинки товаров от производителей по оптовым ценам
Светлая Золотая морская солнечная энергия ландшафтное украшение постмодерн минималистский стиль чистая ручная роспись маслом 24x3 1 дюйм/60x80
35-53 $
Европейские антикварные простой Последние двойной металлической кровати
Автоматизированная складская система автоматического хранения в Гуанчжоу Eyda с эффективными стеллажами и
10 000-35 000 $
Декоративный чехол для PS5 Сменный Чехол консоли пластины Playstation5 пылезащитный с защитой от царапин
7,50-7,70 $
Лучшее качество детские подгузники для сухих подгузников новорожденных размер 2 4 и большие доставка или
3 $
Выключатель для формованного корпуса Schneider NSX100N 50KA AC 3P3D 25A TMD новая модель C10N3TM025
Буф2-.. М .. Краны
Оптовая продажа высококачественный сублимированный клубничный порошок Заводская поставка
5,50-6,40 $
