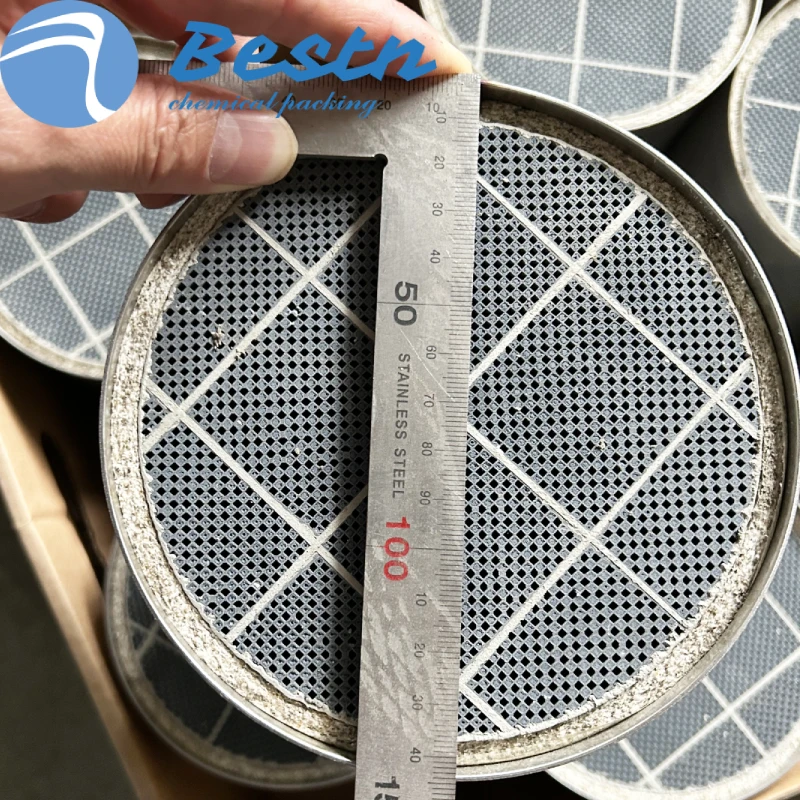

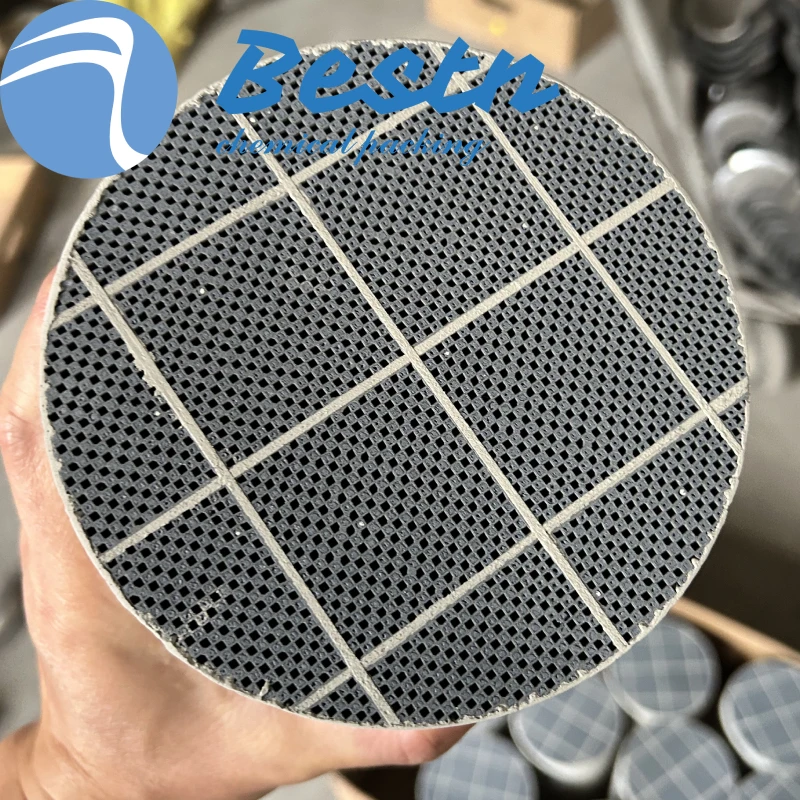

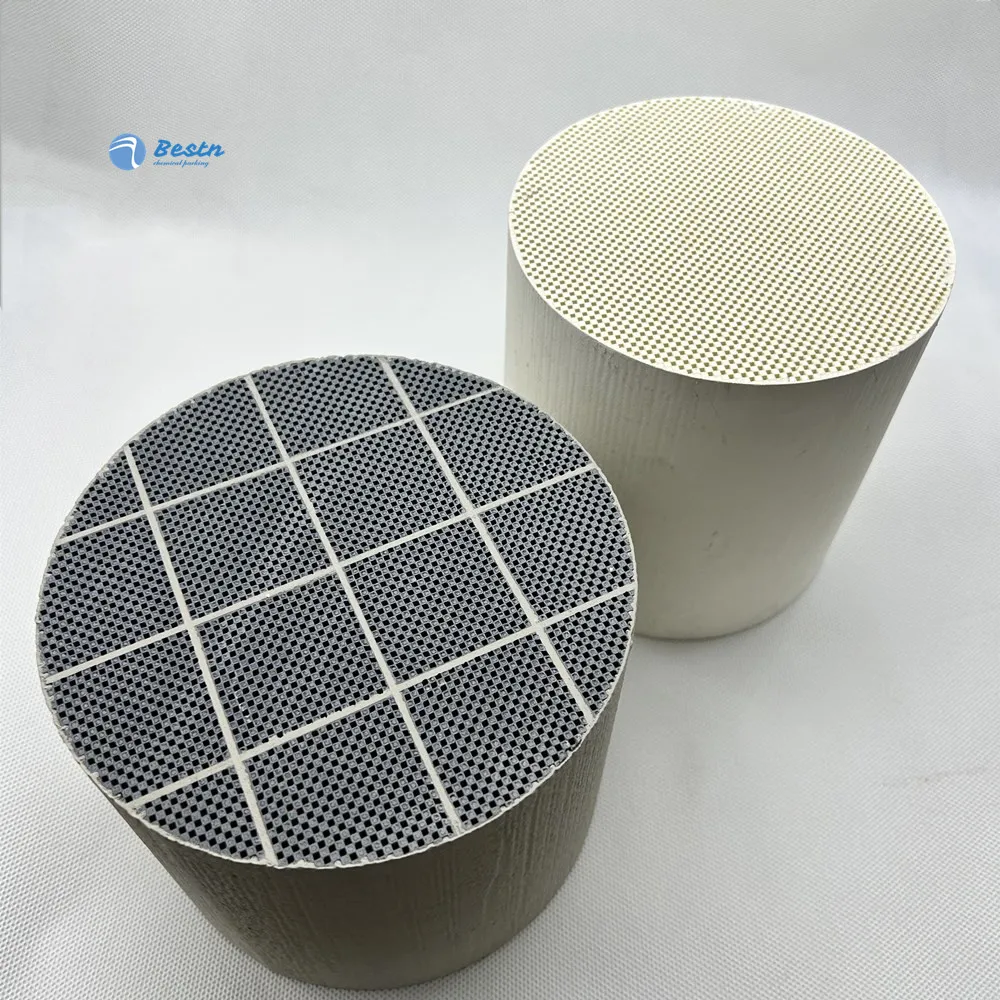

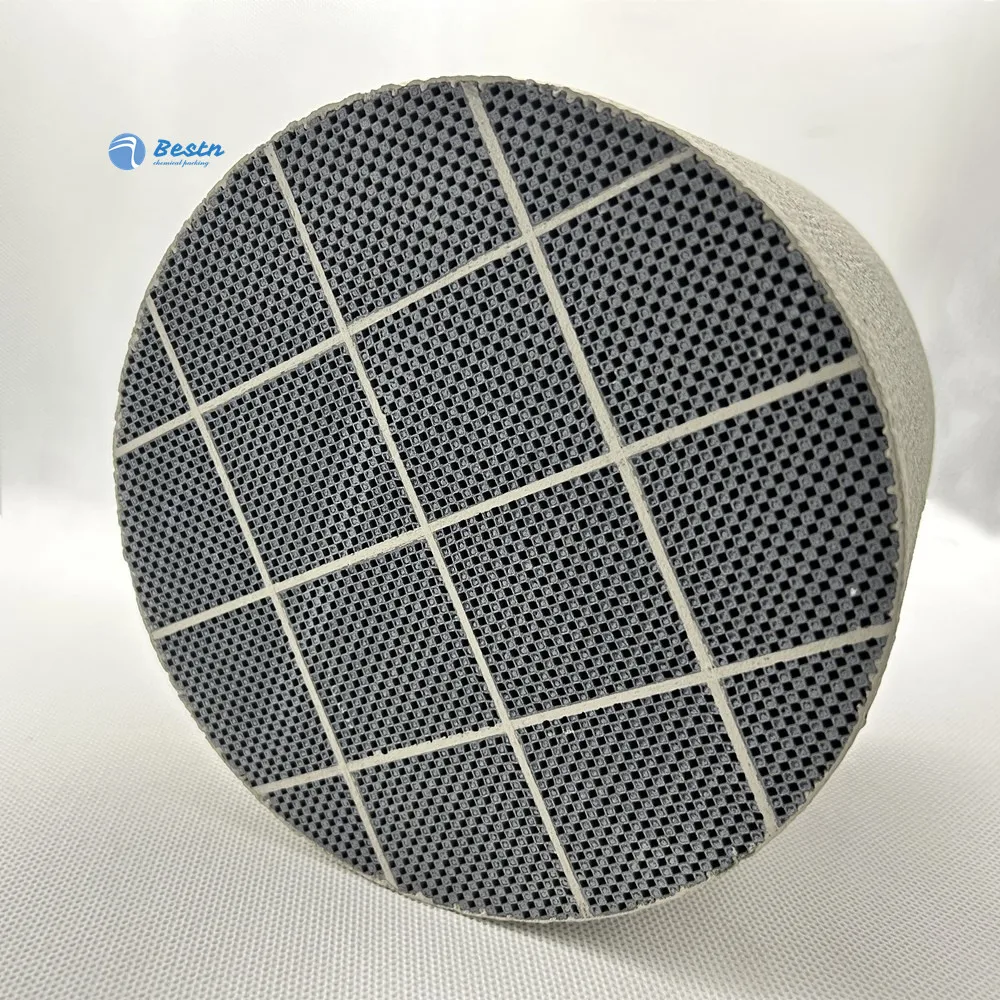

SIC DPF кремниевый Карбид несущий катализатор Дизельный сажевый фильтр керамический сотовый каталитический нейтрализатор для дизельных автомобилей
- Категория: >>>
- Поставщик: Pingxiang Bestn Chemical Packing Co. Ltd.
Сохранить в закладки 1600851237357:
Описание и отзывы
Характеристики
Product Description
The increasingly strict emission regulations require diesel engines to use necessary post-treatment purification devices while using clean fuels and internal purification. Particle trap (DPF) is the most commonly used post-treatment technology for PM emissions.
The main part of DPF is the filter carrier, which is mainly divided into two categories based on materials: ceramic based and metal based. Ceramic based DPF carrier materials include Cordierite, silicon carbide, mullite, zirconia, etc; Metal based DPF carrier materials include sintered metal, foam metal, metal wire mesh, etc. At present, the most commonly used filter materials are Cordierite and silicon carbide.
The design structures of DPF include wall flow type, fluid type, etc., with the most common being wall flow type. This type of DPF usually adopts a cylindrical ceramic structure, forming many small, parallel channels in the axial direction. Unlike conventional flow type filters, the wall flow type filter structure selects either end of the channel adjacent to the filter layer to block, forcing the exhaust gas to pass through the porous wall to capture particulate matter. The gas flow path is shown in Figure.
The main part of DPF is the filter carrier, which is mainly divided into two categories based on materials: ceramic based and metal based. Ceramic based DPF carrier materials include Cordierite, silicon carbide, mullite, zirconia, etc; Metal based DPF carrier materials include sintered metal, foam metal, metal wire mesh, etc. At present, the most commonly used filter materials are Cordierite and silicon carbide.
The design structures of DPF include wall flow type, fluid type, etc., with the most common being wall flow type. This type of DPF usually adopts a cylindrical ceramic structure, forming many small, parallel channels in the axial direction. Unlike conventional flow type filters, the wall flow type filter structure selects either end of the channel adjacent to the filter layer to block, forcing the exhaust gas to pass through the porous wall to capture particulate matter. The gas flow path is shown in Figure.
Specification
Index | Unit | Value | ||
Thermal expansion coefficient | 10-6/k | ≤4.8 | ||
Compressive strength | A-axis | Mpa | ≥5 | |
B-axis | / | |||
Water absorption rate | % | ≥31 | ||
Softening temperature | ℃ | ＞1300 | ||
Unit weight | g/L | ≤800 | ||
Thermal-shock resistance | / | ≥500℃ No cracking after 3 cycles | ||
SIC content | % | ＞85 | ||
Shape | Hole size | Wall Thickness(mm) | Diameter(mm) | Height(mm) | Tolerance(mm) |
Cylinder | 200-300 | 0.23-0.3 | 50-330 | 50-350 | ±1.5 |
Oval and race track |
Size | Cell density | Shape | ||
Diameter × Height | ||||
Φ70×152mm | Dia.2.76" × 6" | 100/200CPSI | Cylinder | |
Φ144 × 152mm | Dia.5.66" × 6" | 100/200CPSI | Cylinder | |
Φ144 × 205mm | Dia.5.66" × 8" | 100/200CPSI | Cylinder | |
Φ144 × 254mm | Dia.5.66" × 10" | 100/200CPSI | Cylinder | |
Φ144 × 305mm | Dia.5.66" × 12" | 100/200CPSI | Cylinder | |
Φ170 × 254mm | Dia.6.69" × 10" | 100/200CPSI | Cylinder | |
Φ190 × 200mm | Dia.7.48" × 7.87" | 100/200CPSI | Cylinder | |
Φ228 × 152mm | Dia.8.97" × 6" | 100/200CPSI | Cylinder | |
Φ228 × 254mm | Dia.8.97" × 10" | 100/200CPSI | Cylinder | |
Φ228 × 305mm | Dia.8.97" × 12" | 100/200CPSI | Cylinder | |
Φ240 × 240mm | Dia.9.45" × 9.45" | 100/200CPSI | Cylinder | |
Φ240 × 254mm | Dia.9.45" × 10" | 100/200CPSI | Cylinder | |
Φ240 × 305mm | Dia.9.45" × 12" | 100/200CPSI | Cylinder | |
Φ260 × 305mm | Dia.10.23" × 12" | 100/200CPSI | Cylinder | |
Φ270 × 305mm | Dia.10.63" × 12" | 100/200CPSI | Cylinder | |
Φ286 × 305mm | Dia.11.26" × 12" | 100/200CPSI | Cylinder | |
(98 ×195) ×154mm | (3.8" × 7.7") × 6" | 100/200CPSI | Race track | |
(98 ×195) ×205mm | (3.8" × 7.7") × 8" | 100/200CPSI | Race track | |
(98 ×195)× 254mm | (3.8" × 7.7") × 10" | 100/200CPSI | Race track | |
(98 ×195) ×305mm | (3.8" × 7.7") × 12" | 100/200CPSI | Race track | |
Advantages
1. High filtration efficiency, high strength, strong resistance to thermal shock and mechanical vibration;
2. I have superior heat, corrosion resistance, and thermal conductivity;
3. The pore structure of SIC has better adjustability,
Filter materials with higher porosity and more uniform pore size distribution can be prepared;
2. I have superior heat, corrosion resistance, and thermal conductivity;
3. The pore structure of SIC has better adjustability,
Filter materials with higher porosity and more uniform pore size distribution can be prepared;
Working principle
After the airflow enters the DPF, due to the blockage of the outlet, the airflow flows out from the inner wall, forming a silicon carbide DPF carrier, which traps carbon smoke inside the DPF. The lifting mechanism of the silicon carbide DPF carrier plays a role in collecting carbon smoke, with a purification efficiency of over 90%. Finally, the collected carbon smoke is removed through regeneration and oxygenation combustion.

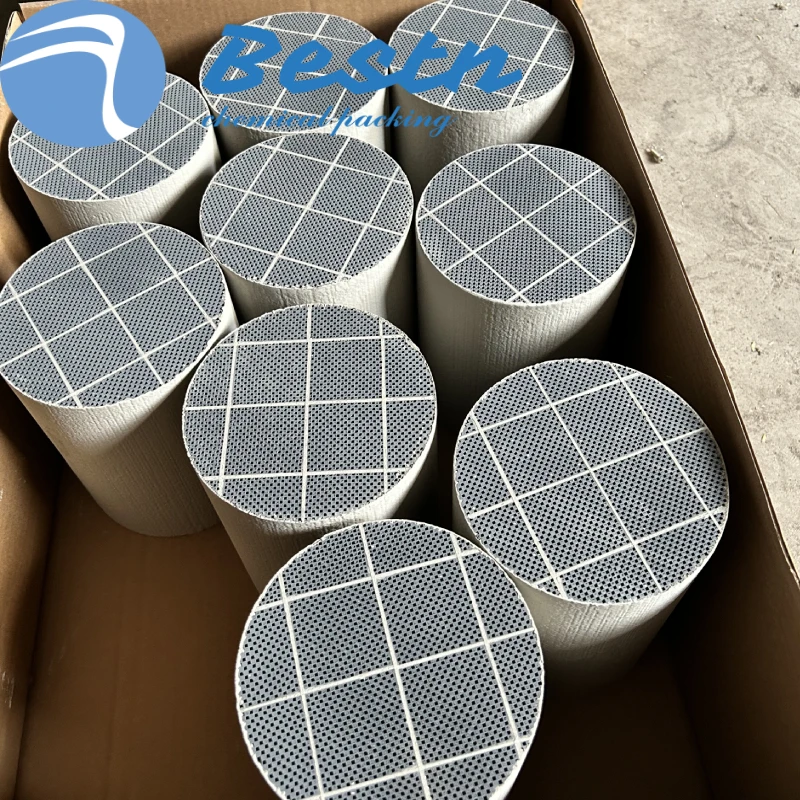

Packing & Delivery
Package Type | Container Load Capacity | Delivery time | Quality Insurance | Payment Terms | ||
20 GP | 40 GP | |||||
Ton bag | 20 m3 | 40 m3 | Within 7-14 days | Chinese National Standard; Offer quality assurance as request. | T/T, L/C, Paypal, West Union | |
Plastic bag | 20 m3 | 40 m3 | ||||
Paper box | 20 m3 | 40 m3 | ||||
Wooden box | 20 m3 | 40 m3 | ||||
About us
Company Profile
Pingxiang Bestn Chemical Packing Co., Ltd was established in 2007, It is a professional manufacturer and exporter that has more than 10 years experience in Chemical Packing. We are located in Hi-Tech Industrial Park, Development area, Pingxiang city, Jiangxi Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Our main products are molecular sieve, activated alumina, ceramic ball, honeycomb ceramics, Plastic lamella clarifiers, MBBR Media, random and structured chemical packing in ceramic, plastic and metal material, can be used in all types of petrochemical chemical processes and environmental application.Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001: 2008 certificate, SGS report, etc. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching seven Continents.Since its foundation, our company keeps living up to the belief of "honest selling, best quality, people-orientation and benefits to customers" We are doing everything to offer our customers with best services and best products. We promise that we will be responsible all the way to the end once our services begin.If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with you, also warmly welcome to visit our factory.
Похожие товары
Лучшее качество, оригинальное сырье рутил, используемое в качестве драгоценного камня, но искусственный рутил, произведенный из Индии для экспорта
100,00 $ - 300,00 $

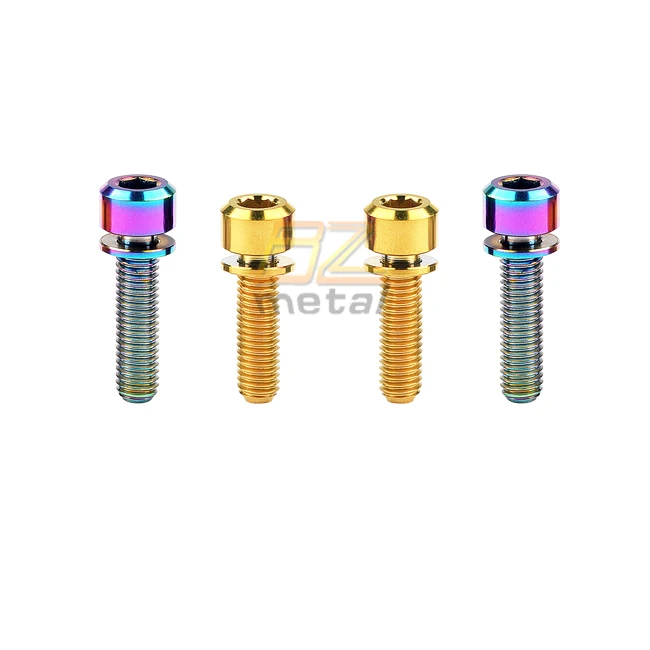

Titanium GR5 велосипедный дисковый тормоз хомут с шайбой для велосипеда аксессуары крепежные детали
1,80 $ - 2,20 $

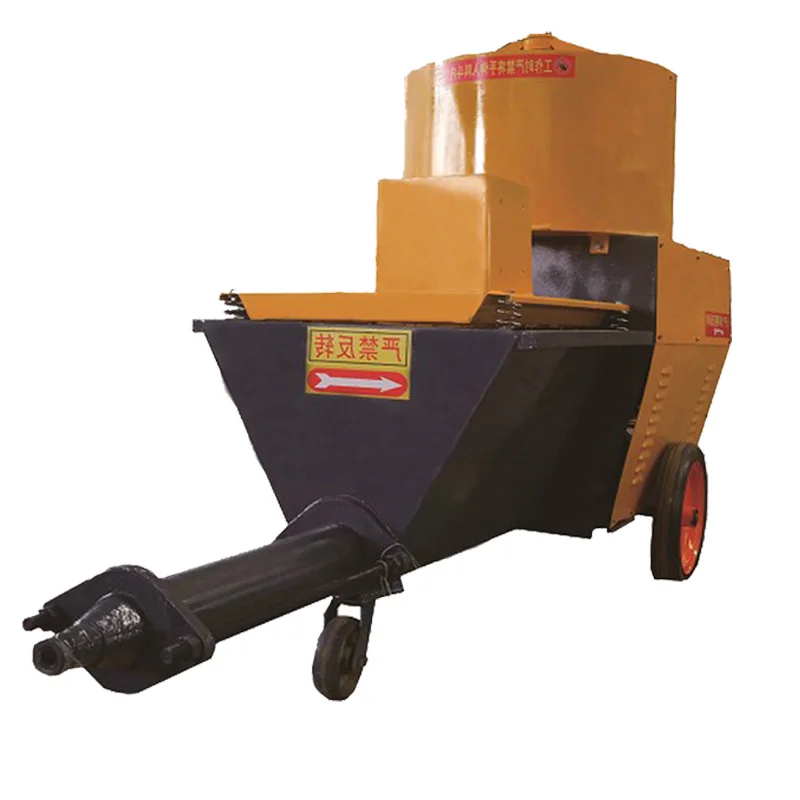

Бетономешалка, распылитель штукатурного цемента, опрыскиватель Gunite, дизельный распылитель раствора, цена
4 280,00 $ - 4 880,00 $

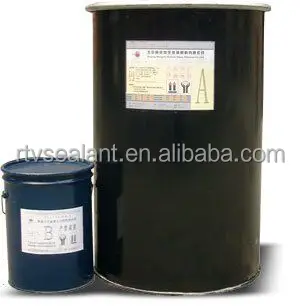

Прямая продажа с завода, двухкомпонентный тиокол герметик для изоляционного стекла

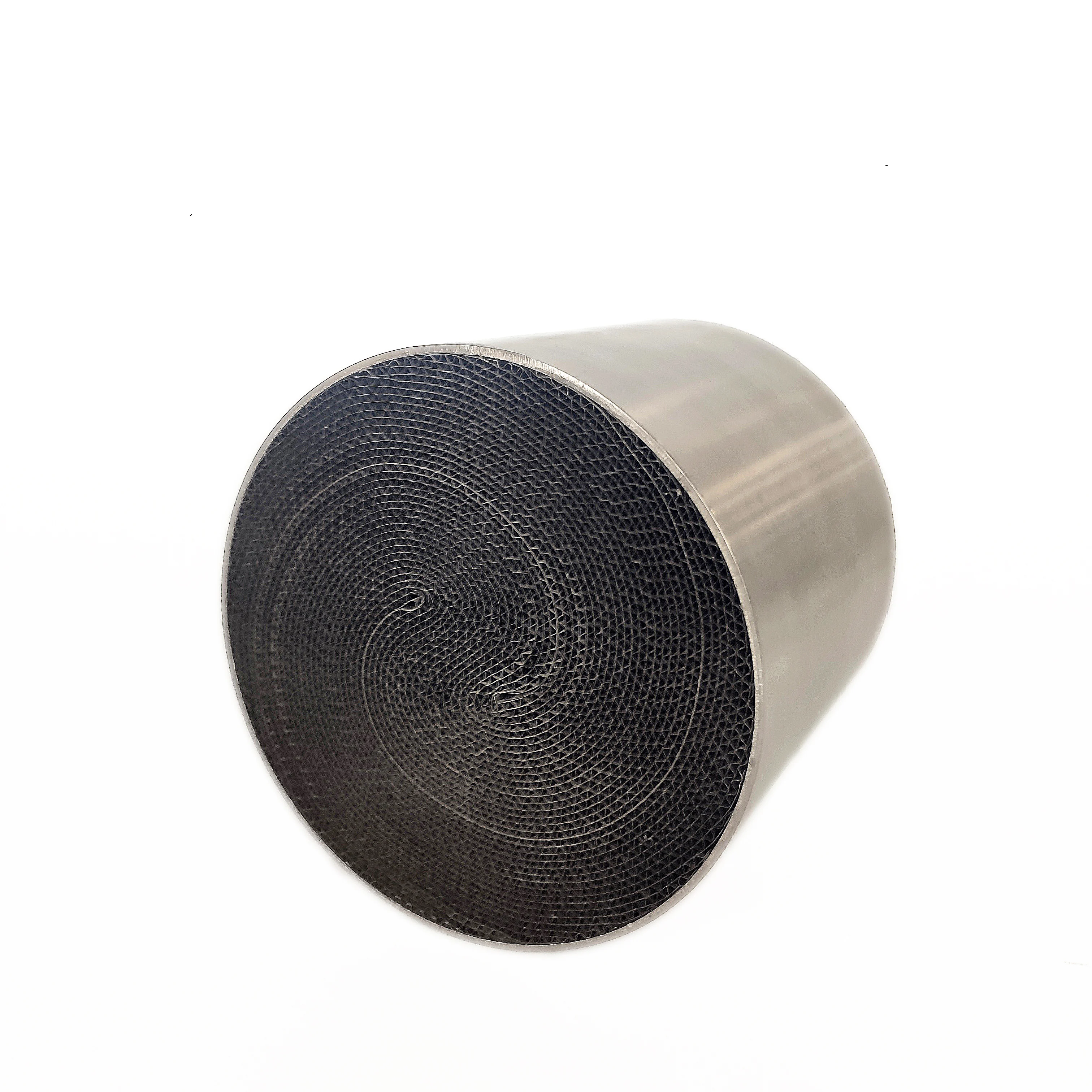

Платиновая палладиевая родиевая бензиновая Автомобильная металлическая сотовая Подложка для трехстороннего катализатора бензинового автомобиля
