Products Description

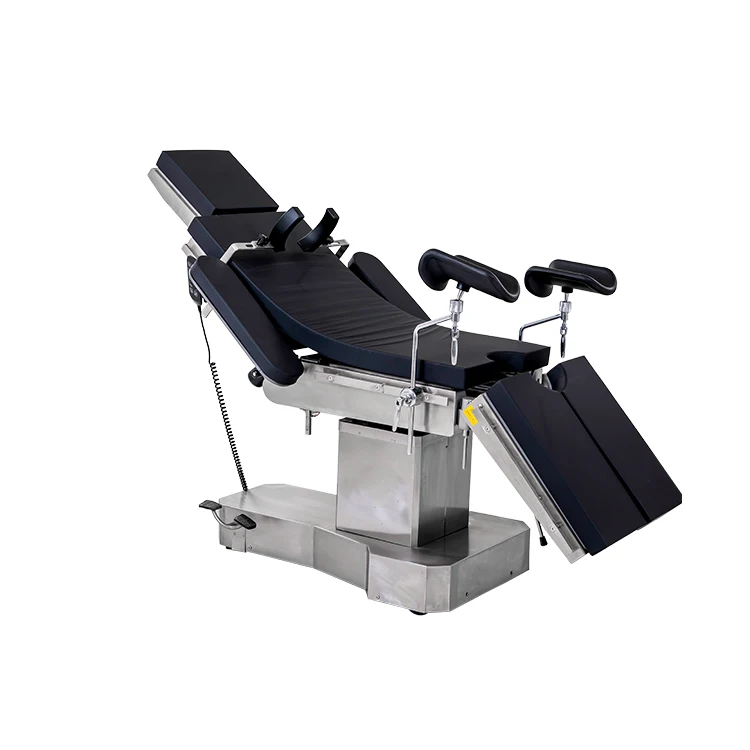

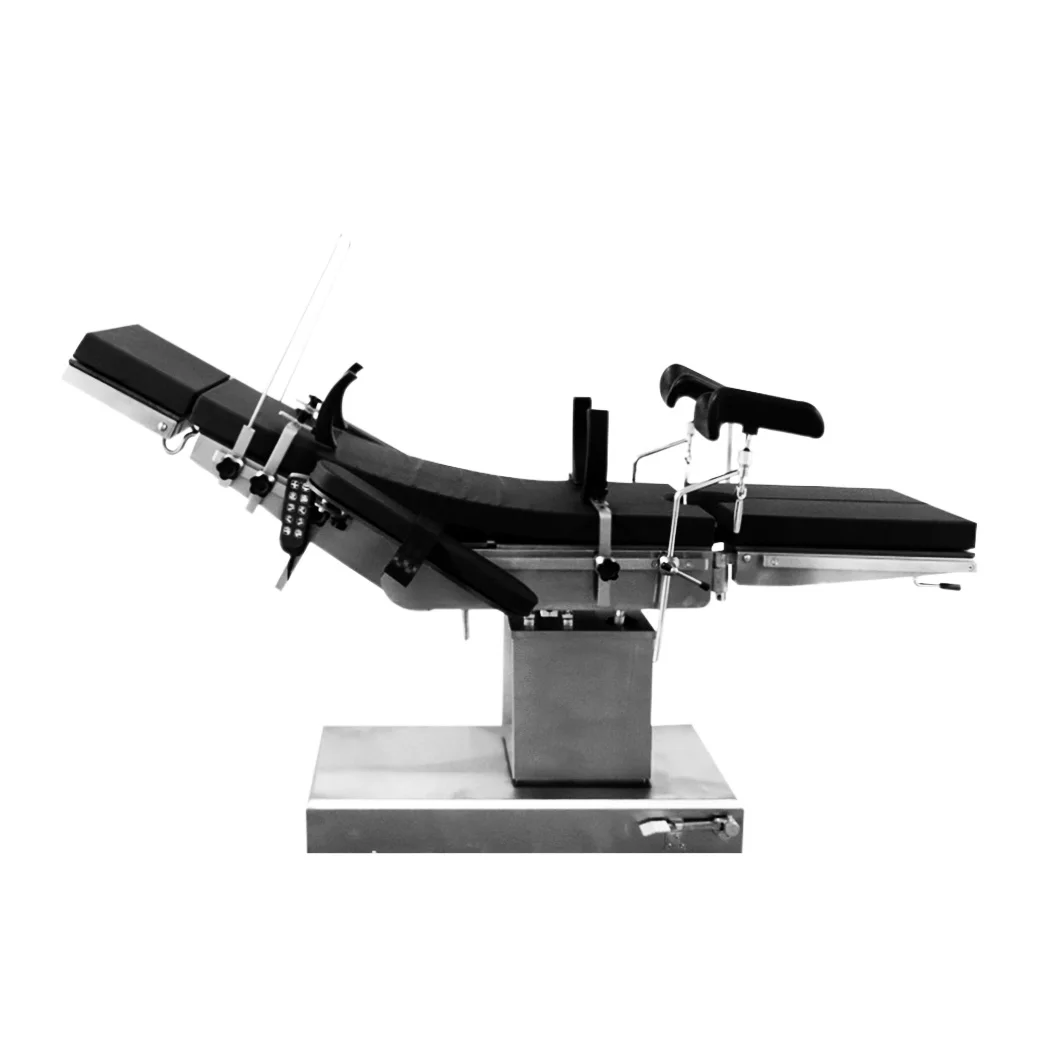

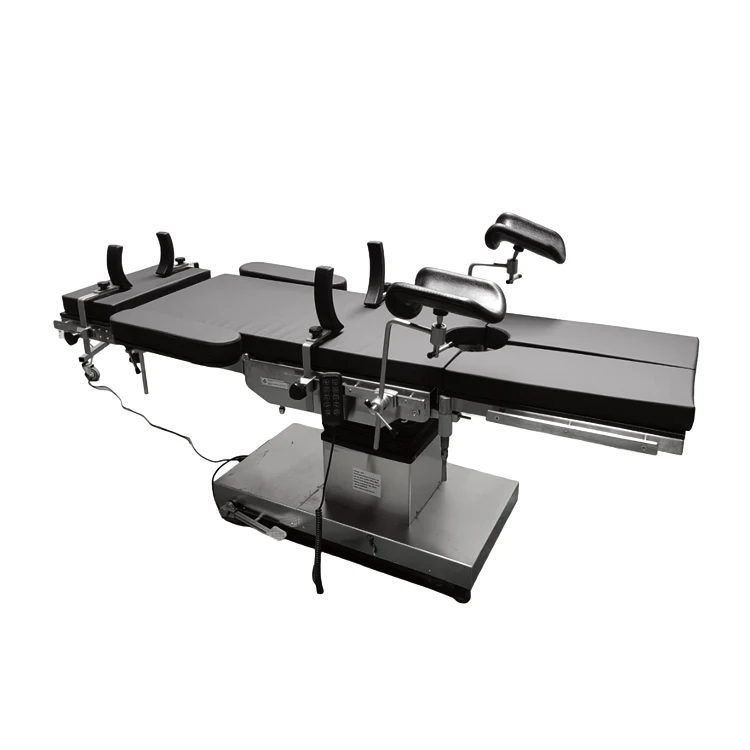

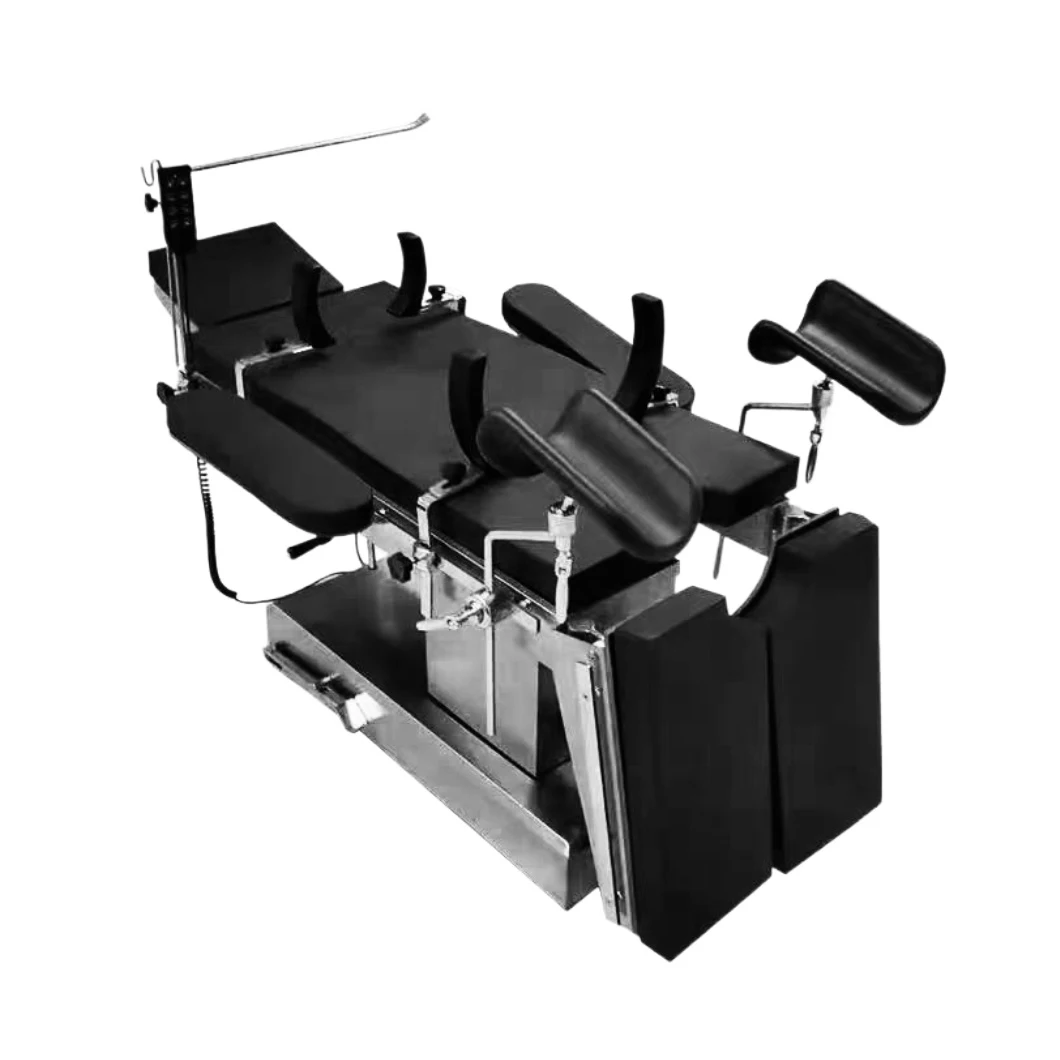

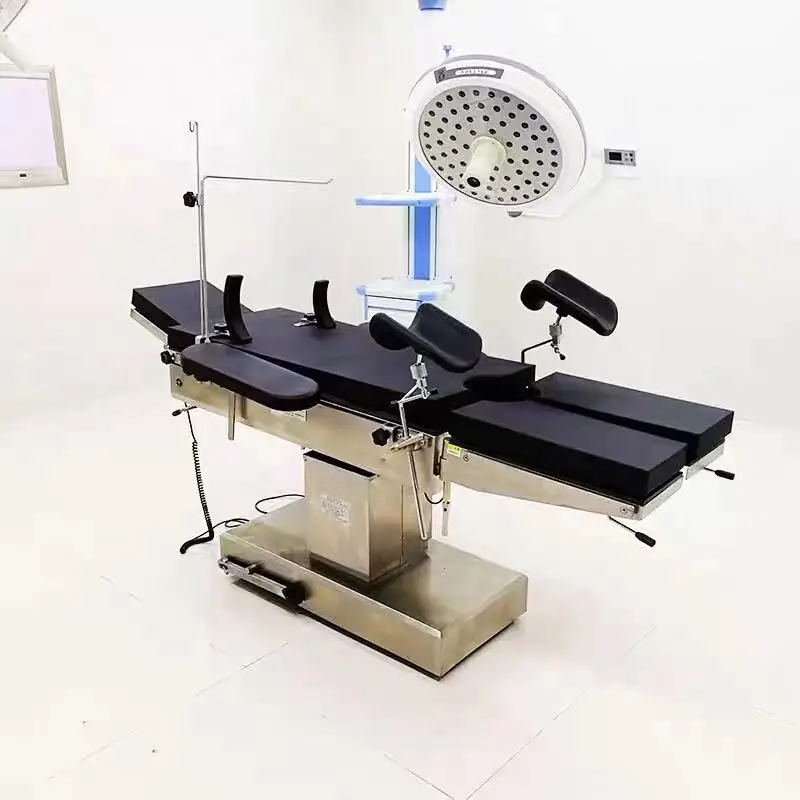

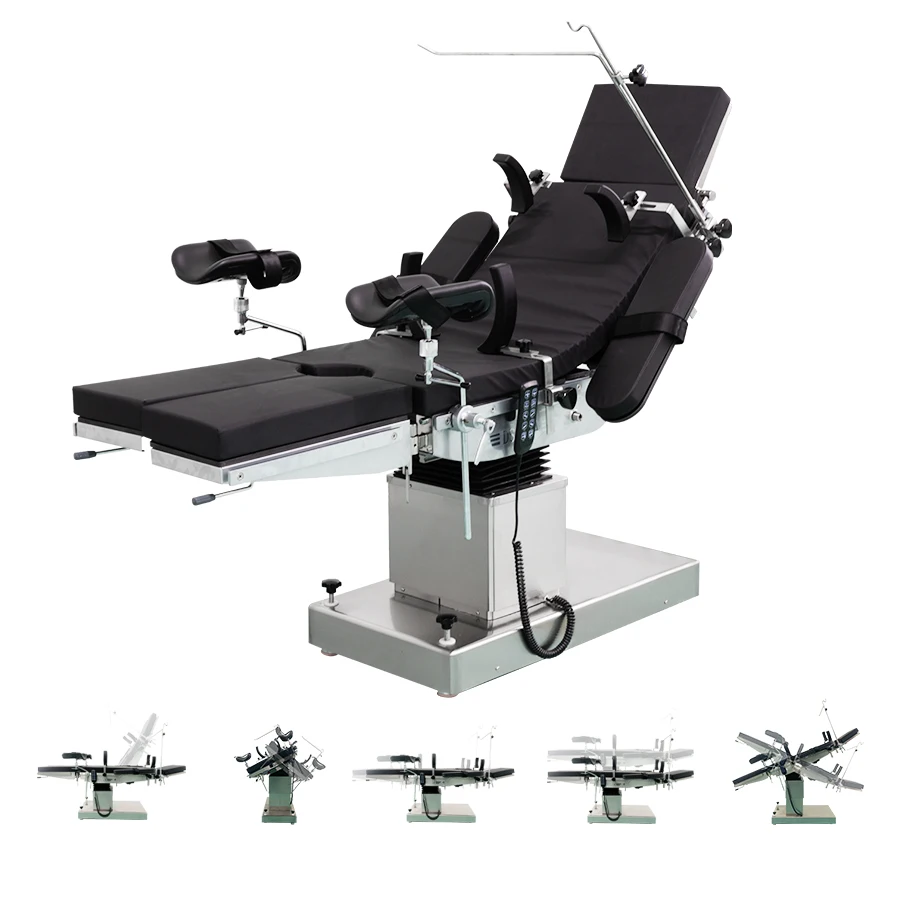

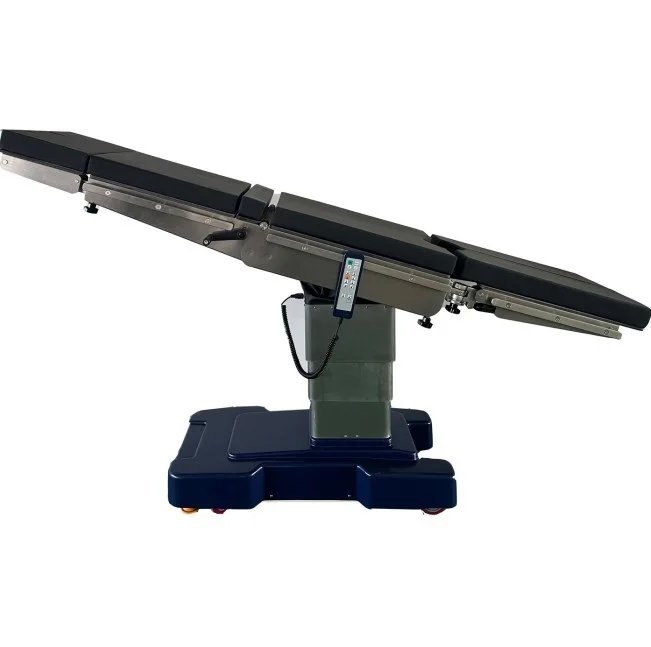

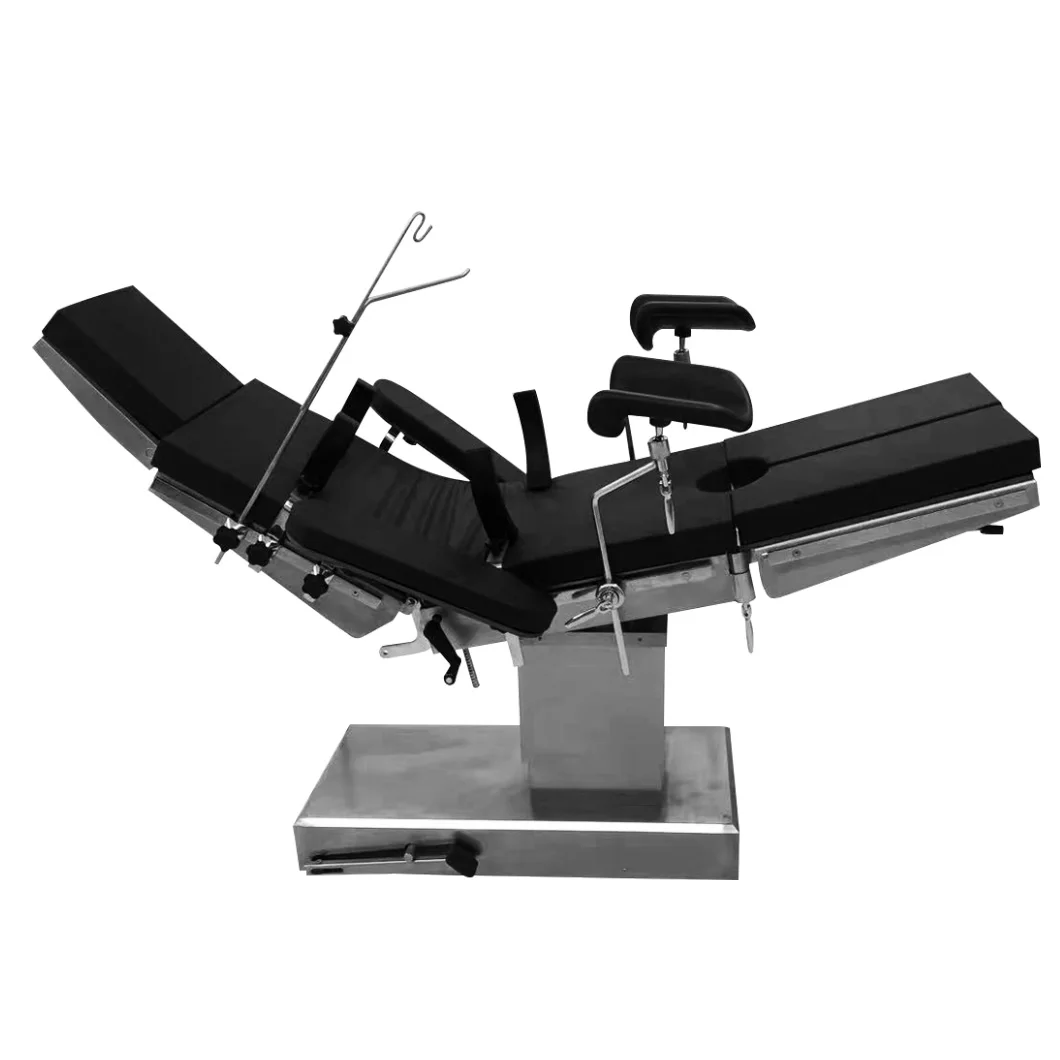

Multifunction Functions 304 Stainless Steel Electric Operating Table
1. Product introduction:
The electric comprehensive operating table is used for comprehensive surgery in thoracic, abdominal surgery, brain surgery, ophthalmology, otolaryngology, obstetrics and gynecology, urology, orthopedics, etc. It can be used with C-arm X-ray machine.
2. The product has unique advantages:
1. The main body position adjustments such as table top lifting, front and rear inclination, left and right inclination, translation, and back panel folding are all realized by button operation and electric push rod transmission;
2. The table can be moved longitudinally, and it can be used in conjunction with the C-arm for radiographic examination or filming;
3. The table top is made of high-quality acrylic sheet, and the mattress is formed of slow-rebound memory foam, which evenly shares the pressure of the loaders. It has the advantages of corrosion resistance, acid and alkali resistance, ventilation, and easy cleaning. It can be naturally shaped according to the patient's body temperature Effectively prevent patients from developing bedsores;
4. The leg plate is detachable, and the manual rotation abducts and folds down, which is convenient to adjust, which is very convenient for urological surgery;
5. The head and leg plates are detachable, which is easy to operate and provides a more flexible surgical space;
6. The hand-held manipulator adopts 24V DC voltage, which is easy to operate, safe and reliable;
7. The operating table is made of medical grade 304 stainless steel, and the surface is treated with special matt, which is more modern and more convenient to clean;
8. High-strength stainless steel bottom cover, strong pressure resistance, anti-corrosion, easy to clean;
9. The base of the operating table has the function of fixing or moving, and the bottom has wheels, which are flexible in movement and reliable in fixation;
10. The table top can be equipped with a built-in waist bridge, which provides convenience for gallbladder, kidney and other operations;
11. The main actions of this operating table: the table top is lifted, the table is tilted forward and backward, the table is tilted left and right, the back plate is folded, and the bed body is translated using an electric device, which is composed of a controller, an electric push rod, etc.; The turning is controlled by the gas spring; the waist plate is raised mechanically.
12. The electronic control part is mainly composed of power supply, control button box and so on. The power supply used in this operating table is: external 220V AC power is converted into 24V DC power through the power supply to drive the motor action.
The electric comprehensive operating table is used for comprehensive surgery in thoracic, abdominal surgery, brain surgery, ophthalmology, otolaryngology, obstetrics and gynecology, urology, orthopedics, etc. It can be used with C-arm X-ray machine.
2. The product has unique advantages:
1. The main body position adjustments such as table top lifting, front and rear inclination, left and right inclination, translation, and back panel folding are all realized by button operation and electric push rod transmission;
2. The table can be moved longitudinally, and it can be used in conjunction with the C-arm for radiographic examination or filming;
3. The table top is made of high-quality acrylic sheet, and the mattress is formed of slow-rebound memory foam, which evenly shares the pressure of the loaders. It has the advantages of corrosion resistance, acid and alkali resistance, ventilation, and easy cleaning. It can be naturally shaped according to the patient's body temperature Effectively prevent patients from developing bedsores;
4. The leg plate is detachable, and the manual rotation abducts and folds down, which is convenient to adjust, which is very convenient for urological surgery;
5. The head and leg plates are detachable, which is easy to operate and provides a more flexible surgical space;
6. The hand-held manipulator adopts 24V DC voltage, which is easy to operate, safe and reliable;
7. The operating table is made of medical grade 304 stainless steel, and the surface is treated with special matt, which is more modern and more convenient to clean;
8. High-strength stainless steel bottom cover, strong pressure resistance, anti-corrosion, easy to clean;
9. The base of the operating table has the function of fixing or moving, and the bottom has wheels, which are flexible in movement and reliable in fixation;
10. The table top can be equipped with a built-in waist bridge, which provides convenience for gallbladder, kidney and other operations;
11. The main actions of this operating table: the table top is lifted, the table is tilted forward and backward, the table is tilted left and right, the back plate is folded, and the bed body is translated using an electric device, which is composed of a controller, an electric push rod, etc.; The turning is controlled by the gas spring; the waist plate is raised mechanically.
12. The electronic control part is mainly composed of power supply, control button box and so on. The power supply used in this operating table is: external 220V AC power is converted into 24V DC power through the power supply to drive the motor action.
Technical Parameters | ||||||
Model | HDS-3000 | HDS-4000 | HDS-5000 | |||
Function | 3 functions | 4 functions | 5 functions | |||
Table length and width | 2020(±20)×500(±20)mm | |||||
Table height | Minimum 650( ± 20)---950( ± 20)mm | 730(±20)---maximum 1030(±20)mm | ||||
Longitudinal translation of the table | none | none | 300mm (electric) | |||
Left and right tilt of the bed (lateral tilt) | ≤20° (electric) | |||||
The bed is tilted forward | ≤25° | |||||
tilted back | ≤20° | |||||
Folding on the back panel | ≤75° | |||||
Folding down | ≤15° (gas spring) | ≥15° (electric) | ||||
Fold down the leg plate | 90° | |||||
shaft type can be expanded | 180° detachable (manual) | |||||
Rated load | 135kg | |||||
Pan function | none | |||||
Related products
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
Похожие товары

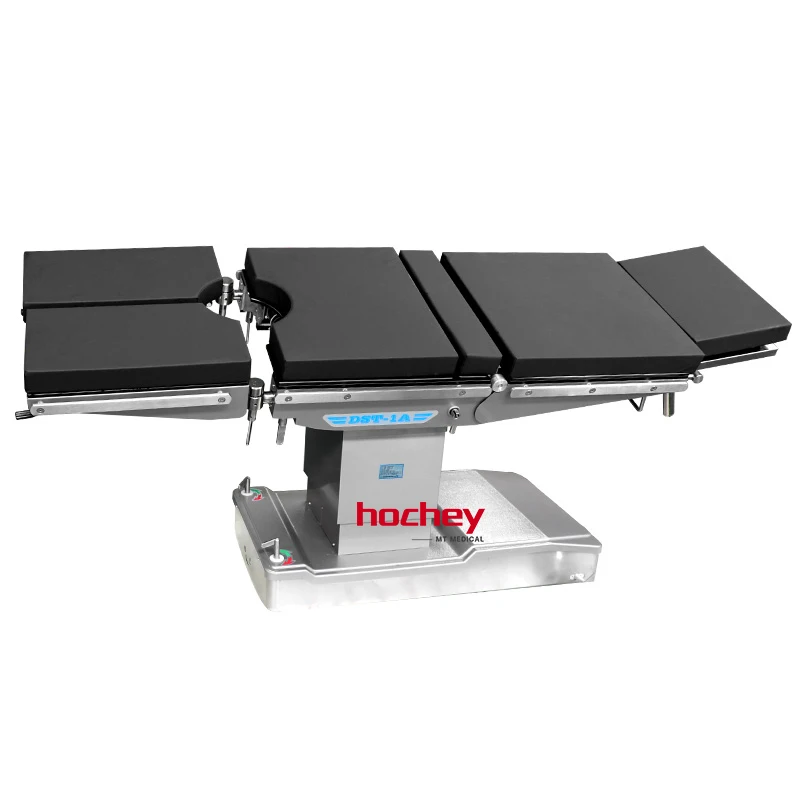

MT Medical Multifunction Adjustable Electric OT Bed Operating Surgical Table Orthopedic

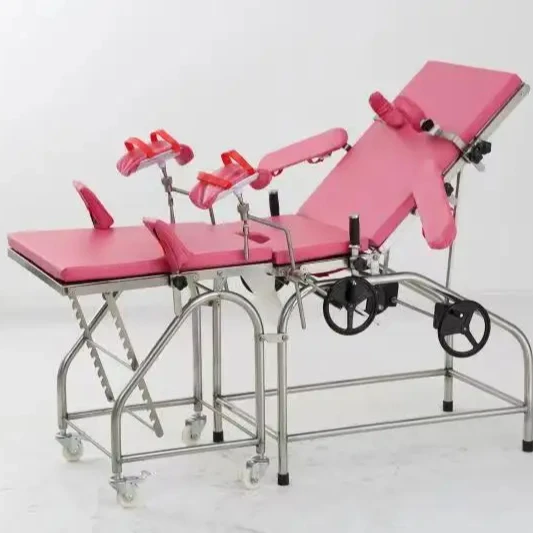

Ручная Гинекологическая кровать с ручным управлением Акушерская для больничного Медицинского Хирургического Стола
