ELEJOY WS M300 14.6V MPPT контроллер солнечного заряда 99% эффективность солнечной батареи Контроллер нормально открыт

Сохранить в закладки 1600857386750:


Цена:12,00-15,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики






 Professional MPPT solar charge controller factory in China


All of the MPPT solar charge controllers have passed CE certification.





MPPT: Maximum Power Point Tracking
The MPPT controller utilizes Solar Maximum Power Point Tracking (MPPT) technology to extract maximum power from the solar array. The tracking algorithm is fully automatic and does not require user adjustment. MPPT technology tracks the array maximum power point as it varies with weather conditions, ensuring that maximum power is harvested from the array throughout the course of the day.





300W solar charge controllers, we have folowing models:


WS-M300-12.6V (Normally open)


WS-M301-12.6V (Light sense)


WS-M300-13.8V (Normally open)


WS-M301-13.8V (Light sense)


WS-M300-14.6V ( Normally open)


WS-M301-14.6V (Light sense)


WS-M300-25.2V (Normally open)


WS-M301-25.2V (Light sense)


WS-M300-27.6V (Normally open)


WS-M300-27.6V (Light sense)





Notice: Light sense is just for street light using, when the charging current is lower than 0.4a, and the solar panel voltage is lower than 15v, the light will on automatically.





Please check our website https://zjwansan.en.alibaba.com/productgrouplist-806422304/SOLAR_CONTROLLER.html?spm=a2700.icbuShop.prup15aafb.1.185e4423misqgy for more information.




























































































PRODUCT NAMEMPPT SOLAR CONTROLLER
MANUFACTURERELELJOY
MODELEY-M300-14.6V
CHARGING MODULEPHOTOVOLTAIC INPUT POWER300W
PHOTOVOLTAIC INPUT VOLTAGE20-50V
OUTPUT TO BATTERY VOLTAGE14.6V
BATTERY OUTPUT CURRENT20A(MAX 24A)
PWM CONVERSION EFFICIENCY97%
MPPT EFFECTIVENESS99%
DISCHARGE MODULEINPUT VOLTAGEEQUAL BATTERY VOLTAGE
LOAD OUTPUT VOLTAGEEQUAL BATTERY VOLTAGE
LOAD OUTPUT CURRENT20A(MAX 24A)
LOAD OUT TYPENormally open
PROTECTION MODULEBATTERY OUTPUT UNDERVOLTAGE PROTECTION11.2V (Delay 10 seconds)
BATTERY SHORT CIRCUIT PROTECTIONYES
SHORT CIRCUIT PROTECTIONYES
TEMPERATURE PROTECTIONYES
PROTECTION CLASS IPIP67
LINE LENGTH10CM
DIMENSIONS74mm × 74mm × 32mm
N.W.300g

WS-M300-13.8V NO DATASHEET.jpg

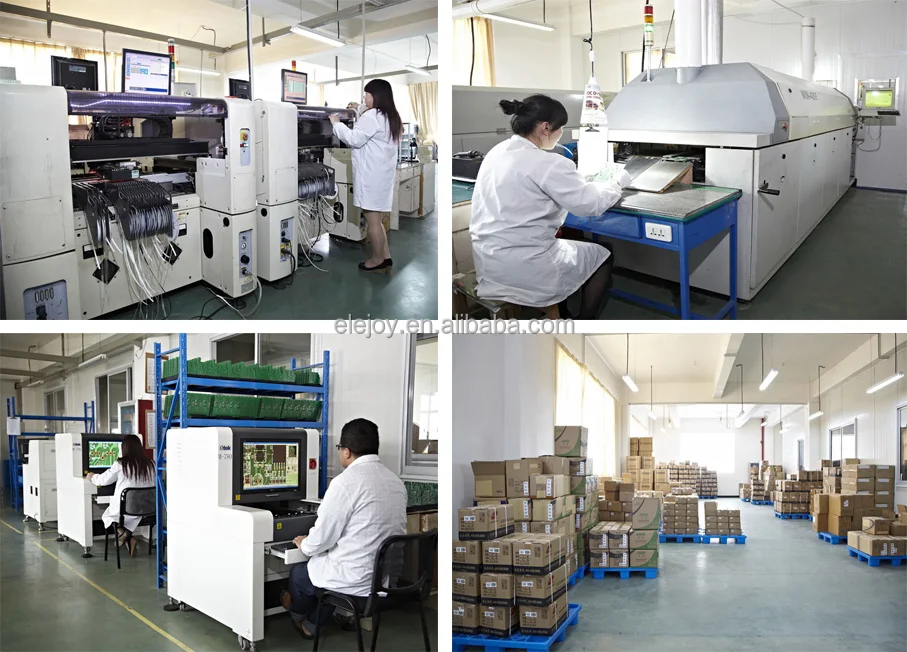

COMPANY INFORMATION:


FACTORY 2..jpg


.jpg


FAQ:


1. Are you a manufacturer?


100% yes, if you have a chance, you can visit our factory anytime.


2. Do you have any MOQ limit?


One piece is possible, you can buy one sample for testing first.


3. What about the lead-time?


Normally 1-2 working days after receive the payment.


4. How to pay for the sample fee?


Please send the payment to our PayPal account or from alibaba directly.


5. How do you ship the goods?


We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.


6. Do you offer guarantee for the products?


Yes, we offer 1-year warranty for all solar charge controllers.


7. I cannot find the suitable model, can I ask for a special model I need?


Sure. We are professional solar charge controllers designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
