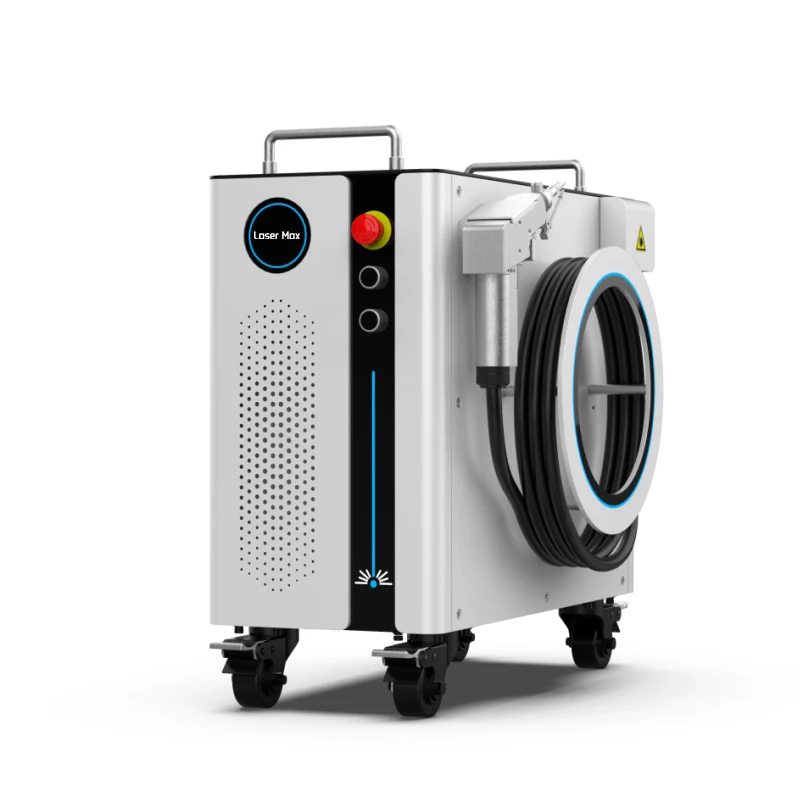

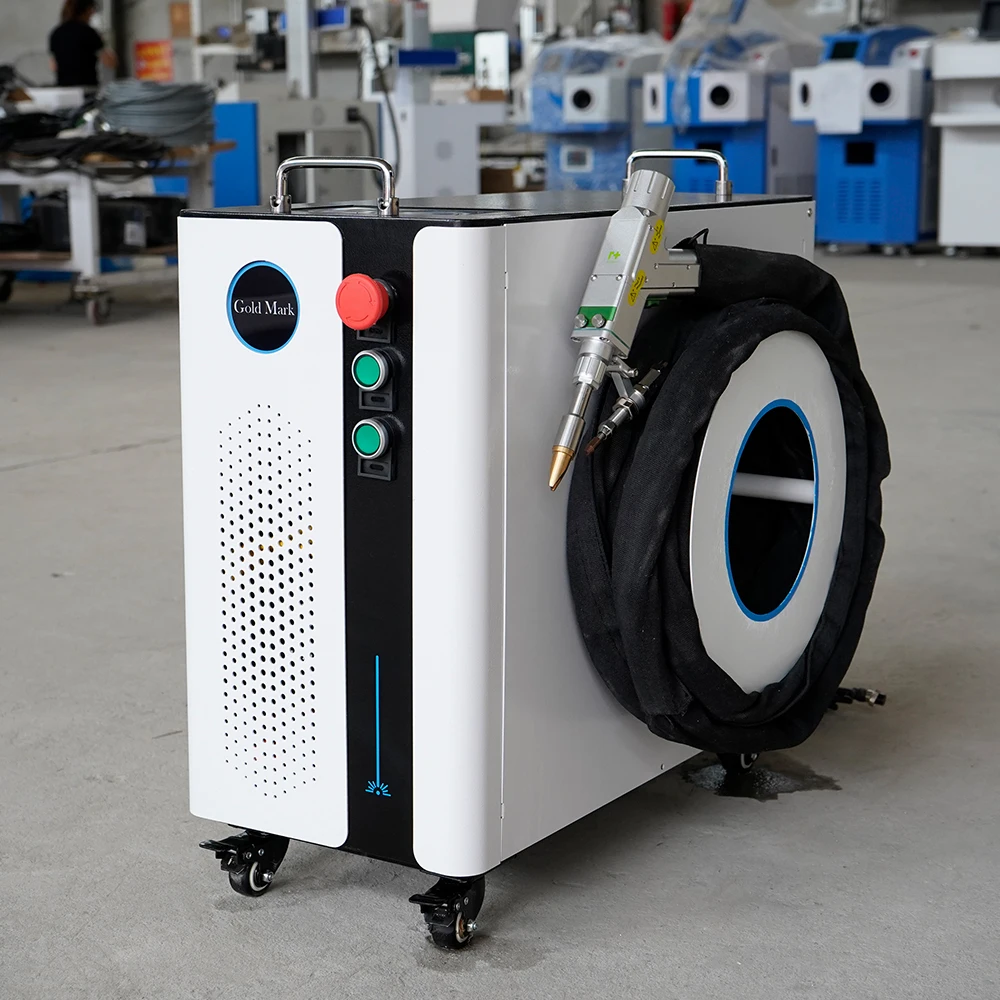

7% цена от cnc RECI портативный металлический волоконно-лазерный сварочный аппарат с воздушным охлаждением
464 426,66 ₽ - 518 429,76 ₽

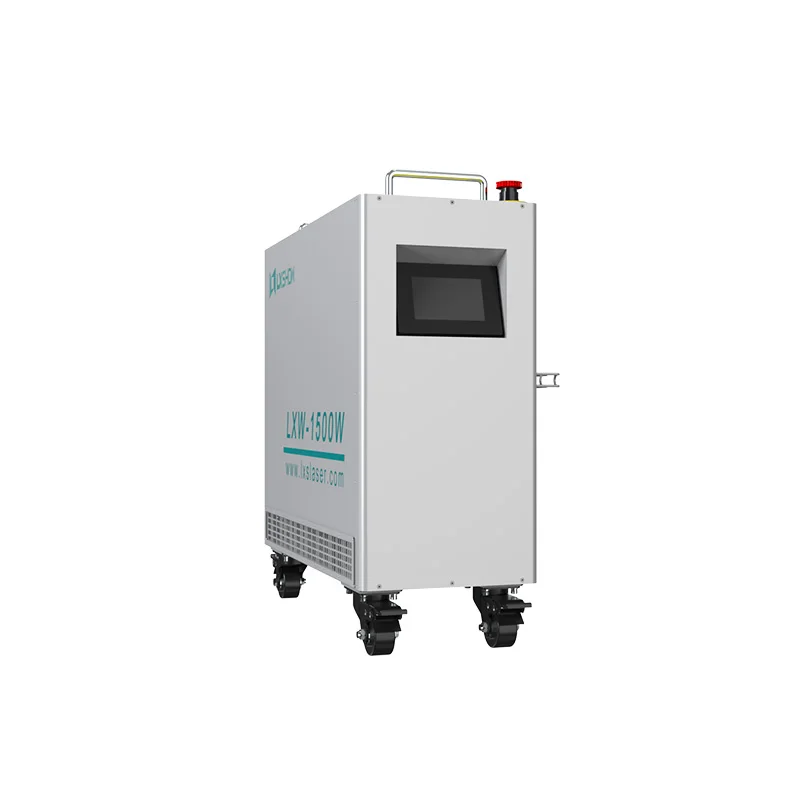

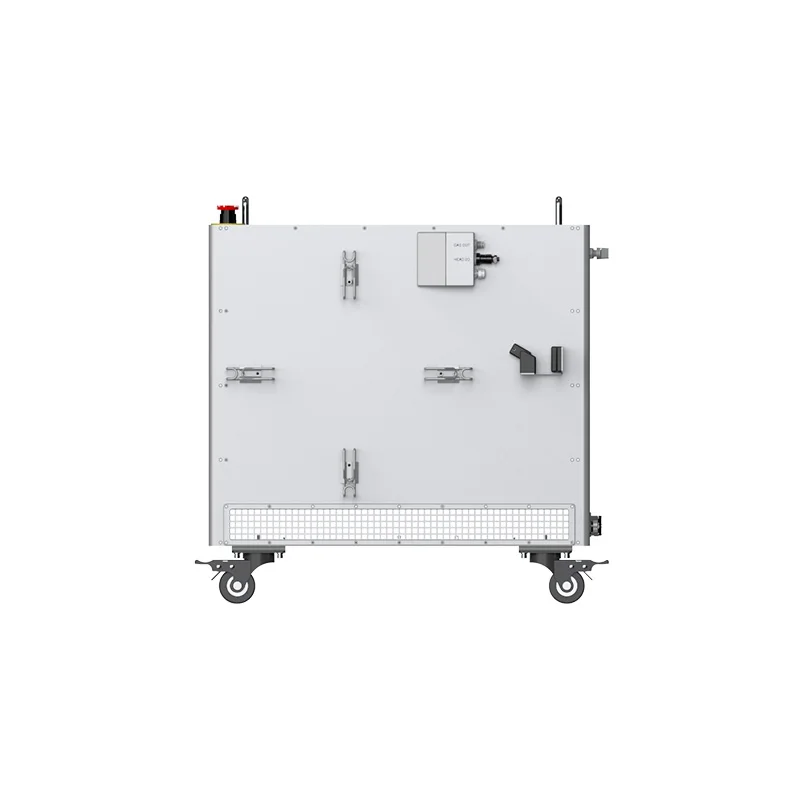

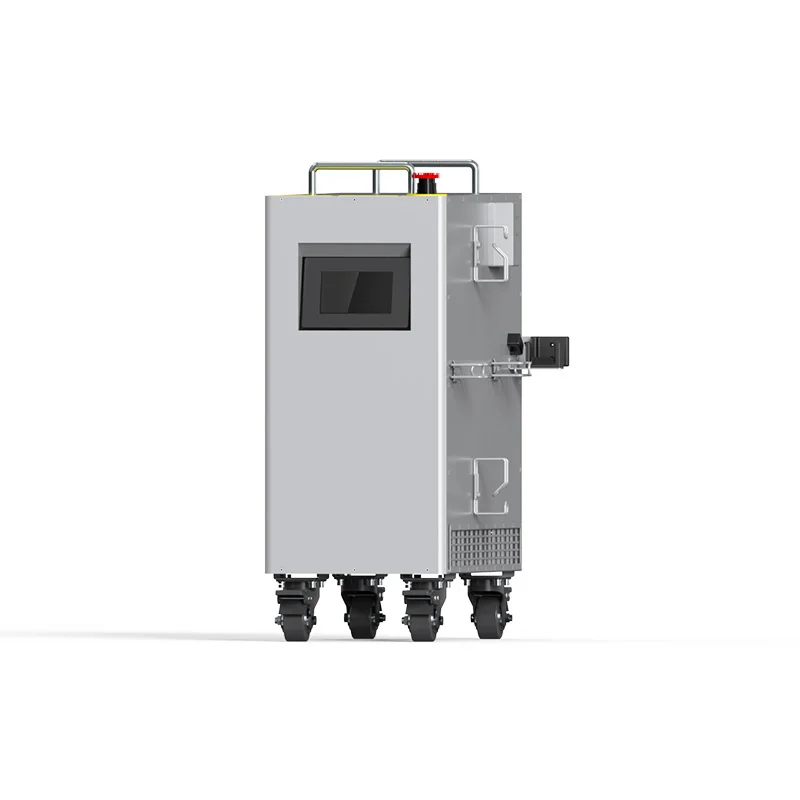

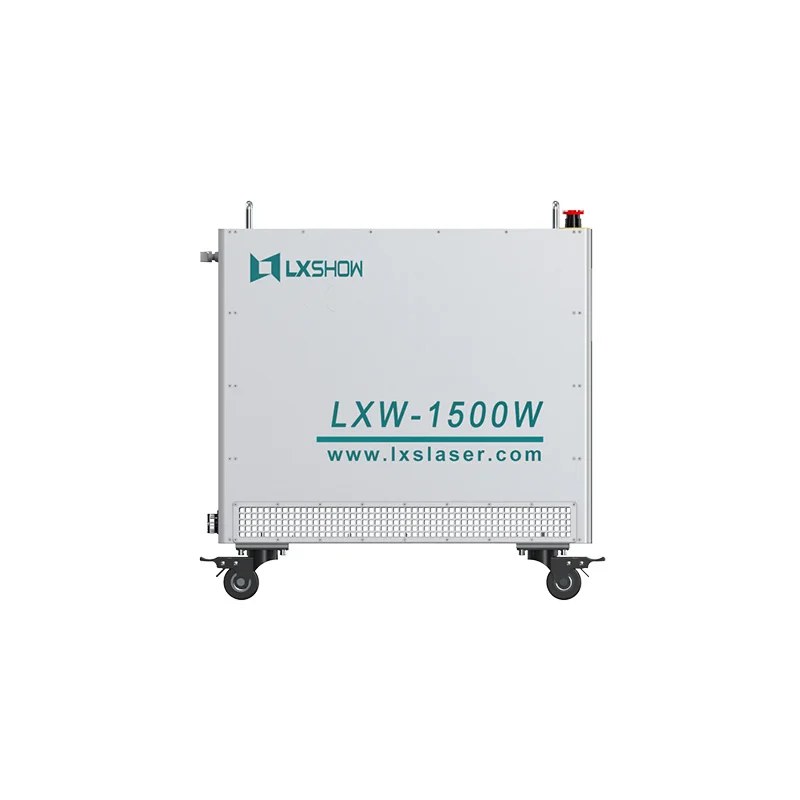

LXW 2000w аппарат для лазерной сварки металла с воздушным охлаждением 1000 Вт 1500 2000
- Категория: >>>
- Поставщик: Jinan Lingxiu Laser Equipment Co. Ltd.
Сохранить в закладки 1600857441209:
Описание и отзывы
Характеристики
Application field
Quick answers to common questions:
1.How long is the warranty period?
Our warranty period is 2 years. If there is any problem during the period, we will solve it as soon as possible after contacting us.
2. How long is the cable?
Different generators have different lengths. The cable length of JPT is 7 meters, and the cable length of raycus and max is about 9 meters.
3. How thick can 1000w be welded
The 1000w welding machine can weld materials with a thickness of 2mm
4. Is there a wire feeder
We have three types of wire feeders to choose from, namely Hanwei, Kirin and Wanshunxing. If you are interested in this, you can contact us and provide your email address. We will send more detailed pictures to your mailbox
5. Can aluminum be welded?
Yes, not only aluminum, all metal materials can be welded
6.Packaging
All our machines are packed in wooden boxes
7. Language interface:
French, Chinese, English, Japanese, Korean, Spanish and other 8 languages can be selected, or you can set the language according to your needs
Parameters
Model | LXW-1000/1500/2000W |
Laser power | 1000/1500/2000W |
Center wavelength | 1070+-5nm |
Laser frequency | 50Hz-5KHz |
Work patterns | Continuous |
Electricity demand | AC220V |
Output fiber length | 5/10/15m (Optional) |
Cooling method | Water Cooling |
Dimensions | 1150*760*1370mm |
Weight | 275kg(About) |
Cooling water temperature | 5-45℃ |
Average consumed power | 2500/2800/3500/4000W |
Laser Energy Stability | <2% |
Air humidity | 10-90% |

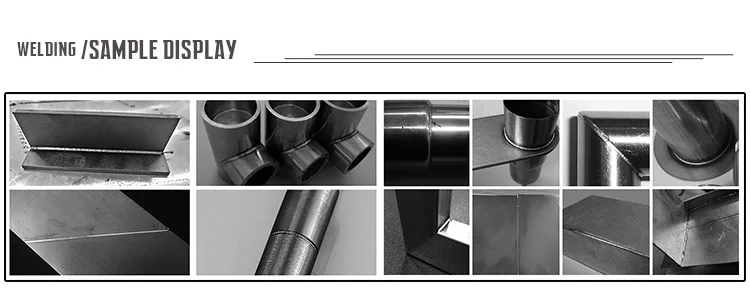

sample
After sales service
After you buy the machine, LXSHOW LASER will provide you with professional guidance to use it, so there is no worries
Advantages of LXSHOW LASER welding
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Factory
JInan Lingxiu Laser Equipment Co,.Ltd
is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory. All machines , passed the European Union CE authentication.
Customer visit
LXSHOW LASER offline exhibition
FAQ
How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
How can I get the sample to check you quality ?
If you want to welding sample to check the quality, we can help you do this.Just tell us your needs, when finished the testing, we can send testing video to you, if you need, we also can send welding sample to you.
If you want to welding sample to check the quality, we can help you do this.Just tell us your needs, when finished the testing, we can send testing video to you, if you need, we also can send welding sample to you.
Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.
Tell us your needs, and we will customize your own solutions
Yes, we have a strong technical team and have rich experience.
Tell us your needs, and we will customize your own solutions
