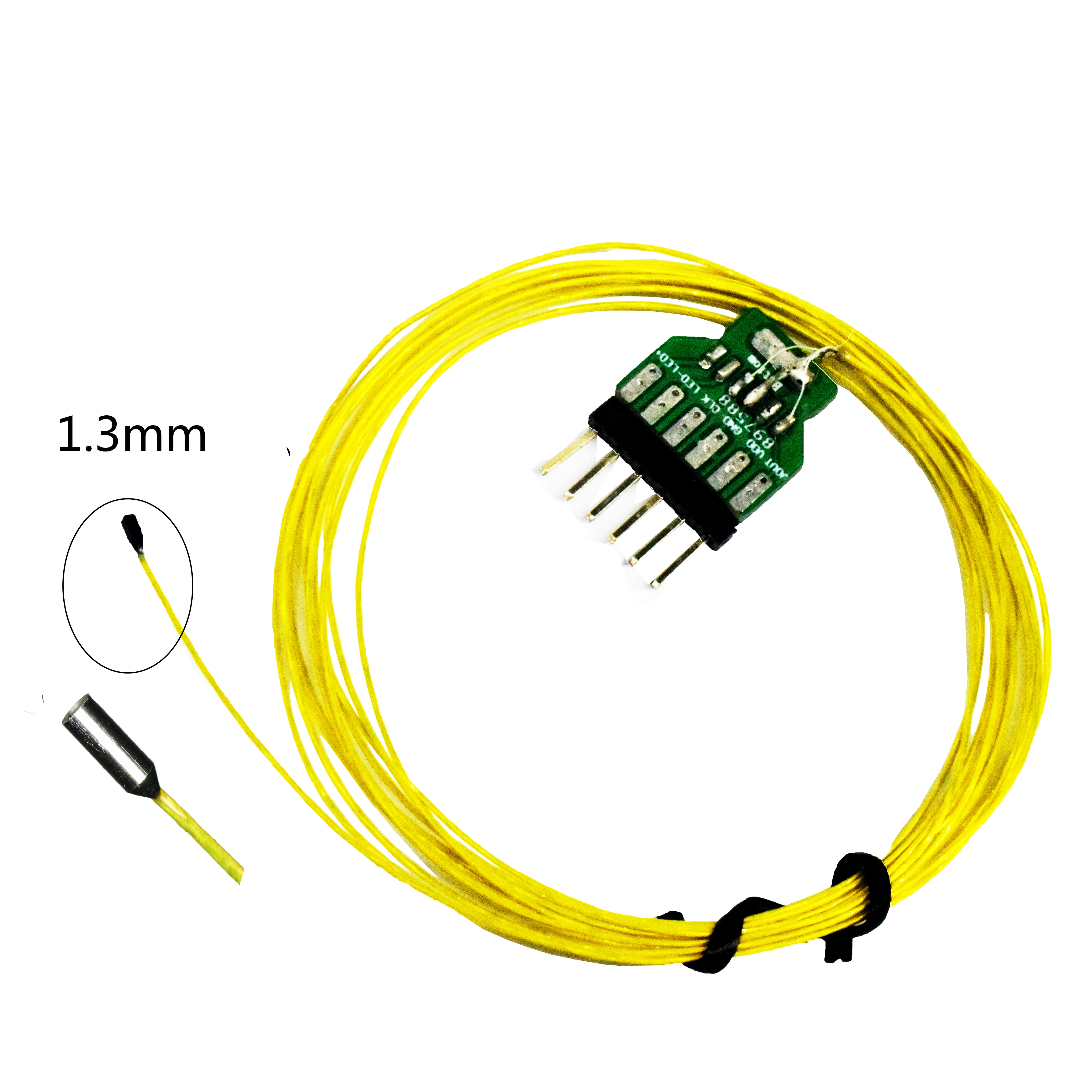

Поддержка любого интерфейса OVM6946 модуль камеры 1,3 мм USB для медицинской камеры mofule
110,00 $ - 140,00 $
LRLINK PCIe x1 Однопортовый 10/100/1000 Мбит/с медь RJ45 сетевая карта NICS настольный адаптер на базе Realtek
- Категория: >>>
- Поставщик: Linkreal Co. Ltd.
Сохранить в закладки 1600858870467:
Описание и отзывы
Характеристики

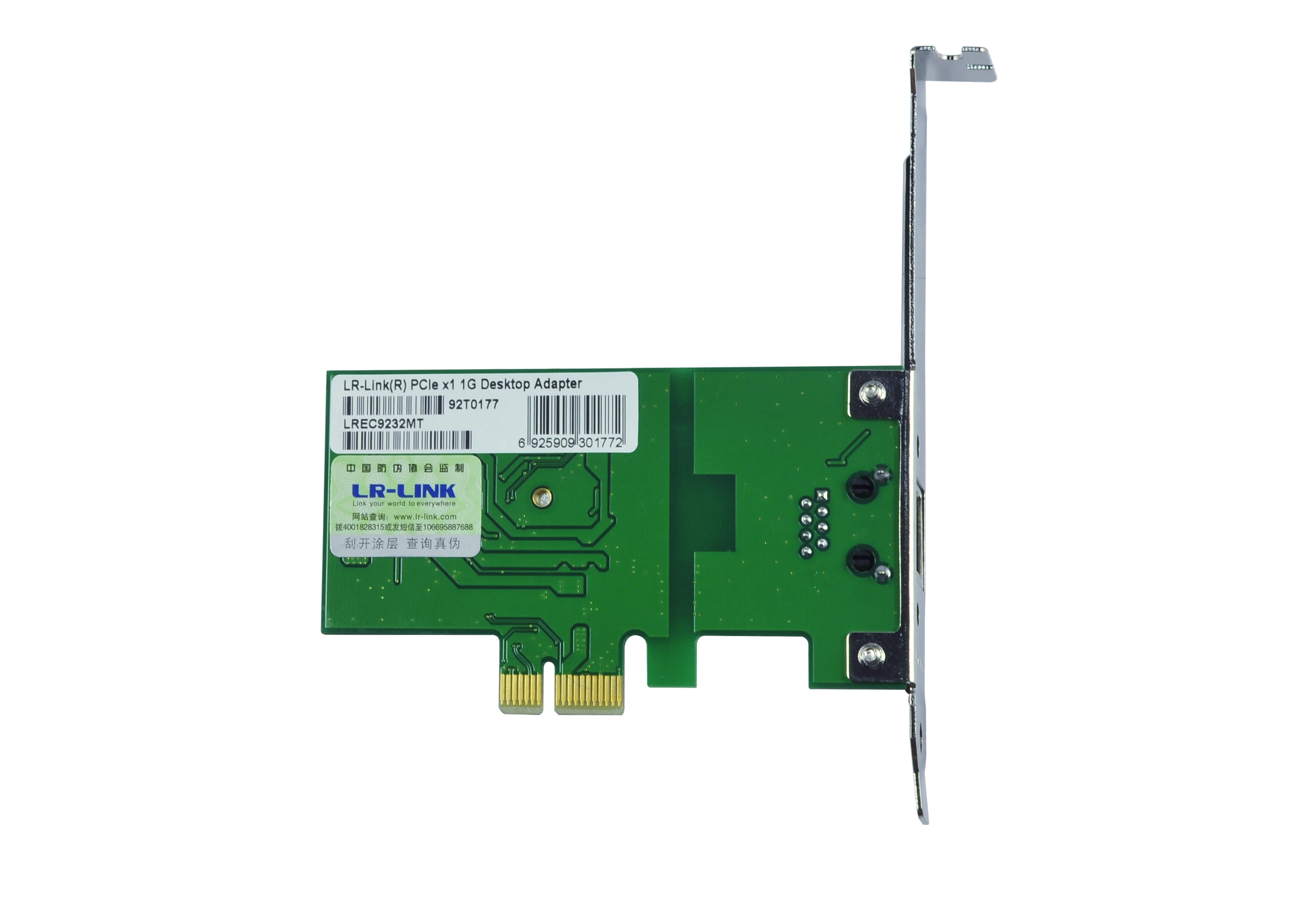

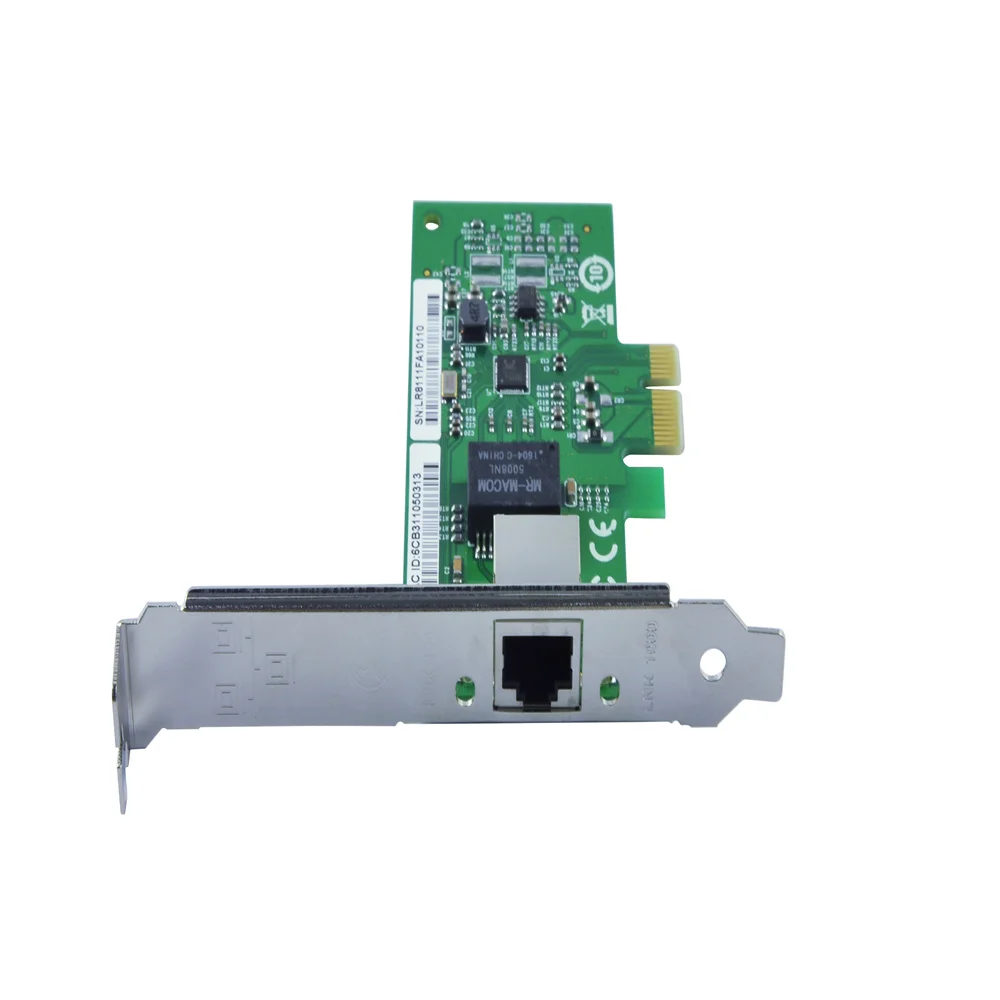

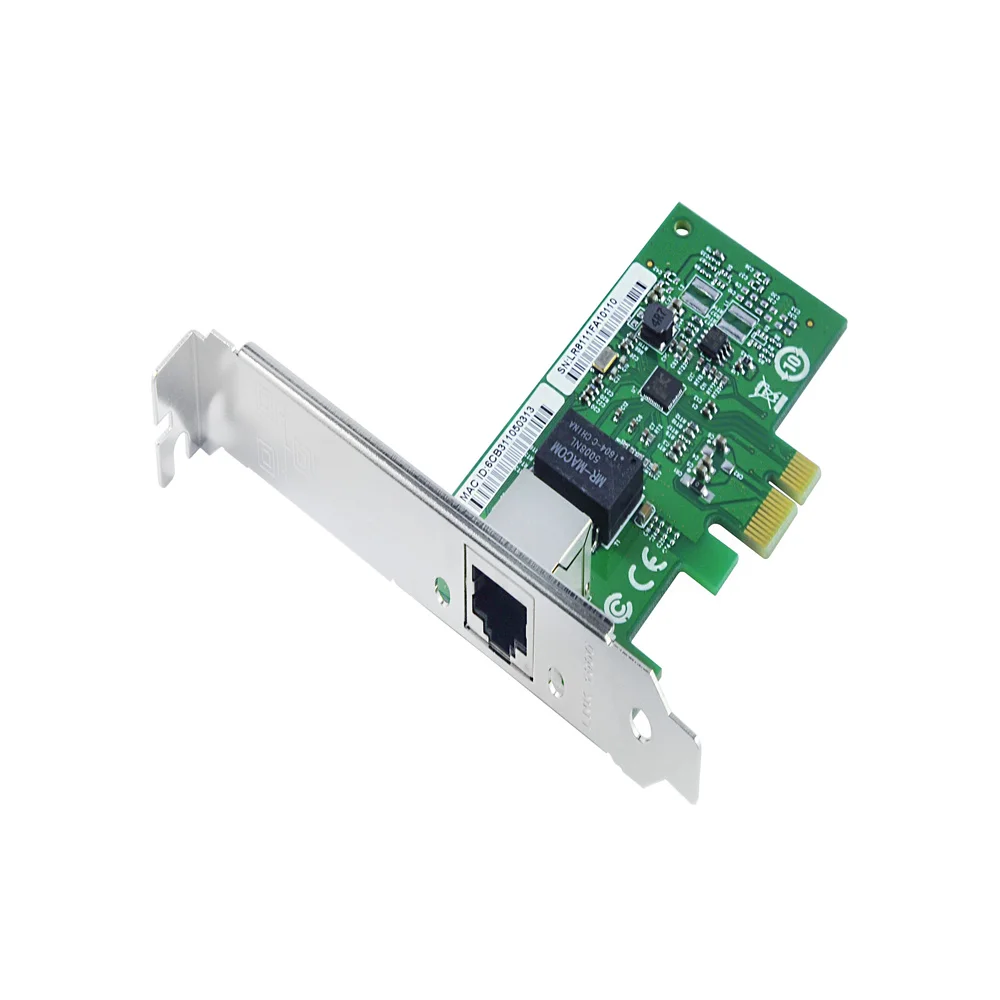

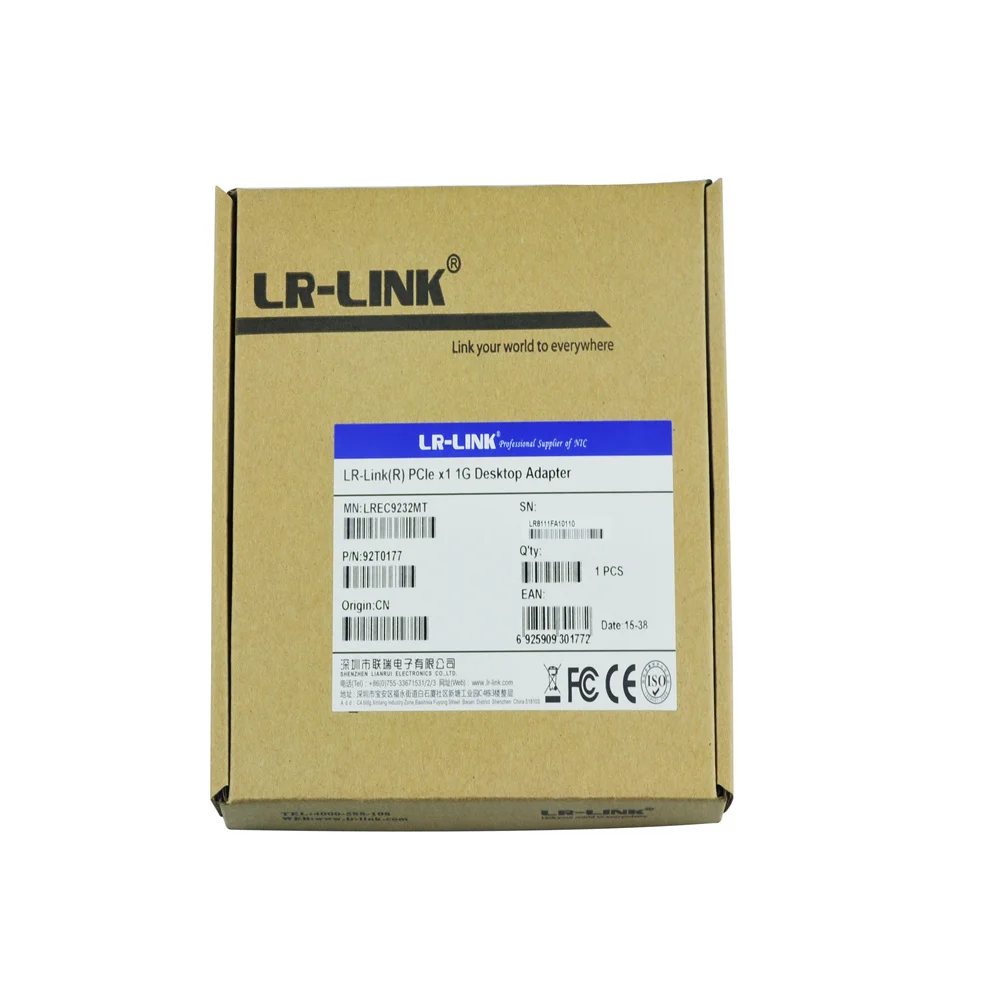

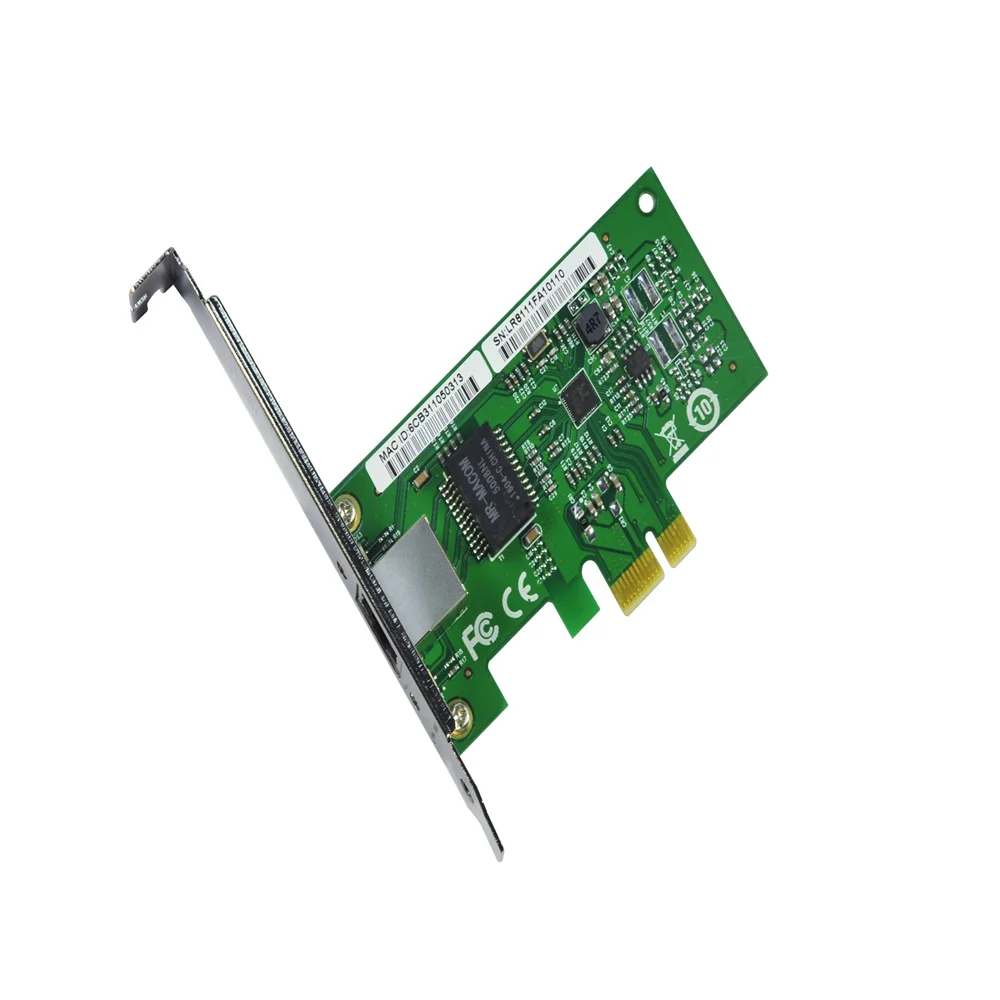

LRLINK PCIe x1 Single-port 10/100/1000Mbps Copper RJ45 Network Lan Card NICS Desktop Adapter Based on Realtek RTL8111H
LREC9232MT is a PCI Express x1 bus interface Gigabit Ethernet Realtek RTL8111H PCIe Lan Card developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Realtek RTL8111H controller. The Realtek RTL8111H PCIe Lan Card combines a PCI Express bus controller with embedded memory.Featuring state-of-the-art DSP technology and mixed-mode signal technology, the product delivers high-speed transmission over CAT5 UTP cable, CAT3 UTP (10Mbps only) or higher. Realize functions such as cross detection and auto correction, polarity correction, adaptive equalization, crosstalk cancellation, echo cancellation, timing recovery and error correction to provide powerful transmission and reception at high speeds.
This product supports the ECMA (European Computer Manufacturers Association) Sleep Host Standard Agent. The standard specifies the maintenance of network connections and presence through agents to extend the sleep duration of higher power hosts. It handles some network tasks on behalf of the host, allowing the host to stay in sleep mode for a long time. The required and optional behaviors of the operations agent include generating reply packets, ignoring packets, and waking up the host.
LREC9232MT Realtek RTL8111H PCIe Lan Card supports Receive Side Extension (RSS) to hash incoming TCP connections and load balance the received data between multiple CPUs. RSS can increase the number of transactions per second and the number of connections per second. Improve network throughput.
LREC9232MT is suitable for multiple market segments and new functional applications such as desktops, mobiles,workstations, servers, communication platforms and embedded applications.
This product supports the ECMA (European Computer Manufacturers Association) Sleep Host Standard Agent. The standard specifies the maintenance of network connections and presence through agents to extend the sleep duration of higher power hosts. It handles some network tasks on behalf of the host, allowing the host to stay in sleep mode for a long time. The required and optional behaviors of the operations agent include generating reply packets, ignoring packets, and waking up the host.
LREC9232MT Realtek RTL8111H PCIe Lan Card supports Receive Side Extension (RSS) to hash incoming TCP connections and load balance the received data between multiple CPUs. RSS can increase the number of transactions per second and the number of connections per second. Improve network throughput.
LREC9232MT is suitable for multiple market segments and new functional applications such as desktops, mobiles,workstations, servers, communication platforms and embedded applications.
Plug and play
PCI-E X1 compliant
8-Pin RJ45 connector,
IEEE 802.3ab 1000BASE-T Gbit/s Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Full Duplex and flow control
IEEE 802.3Q Virtual Bridged Local Area Networks
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1ad Link aggregation for parallel links
Support flow control
Support priority queuing
Advanced management
Support most NOS systems
PCI-E X1 compliant
8-Pin RJ45 connector,
IEEE 802.3ab 1000BASE-T Gbit/s Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Full Duplex and flow control
IEEE 802.3Q Virtual Bridged Local Area Networks
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1ad Link aggregation for parallel links
Support flow control
Support priority queuing
Advanced management
Support most NOS systems
Features | ||||||||
Controller | RTL8111H | |||||||
Transmission rate per port | 10/100/1000Mbps | |||||||
Network Standard Physical Layer Interfaces | 1000BASE-T:Cat 5eor higherup to 100m 100BASE-Tx:Cat5/5e/6or higherup to 100m 10BASE-T: Cat3/4/5/5e/6or higherup to 100m | |||||||
Jumbo Frame Support | Up to 9.5 KB | |||||||
Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) | |||||||
Network Virtualization | WoL | |||||||
LED Indicators | 1000Mbps/s:Yellow Link and Green Ack, 100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate | |||||||
Technical Features | ||||||||
Operating System Support | Windows Server2008 / 2008 R2 / 2012 /2012 R2 /2016 R2 Windows 7 / 8 / 8.1 / 10 Linux Stable Kernel version 2.6.x / 3.x / 4.x or later Linux SLES 10 / 11 or later VMvare ESX/ESXi 5.x/6.x or later | |||||||
Order Information | ||||||||
M/N | Description | |||||||
LREC9232MT | PCIe x1 Single-port 10/100/1000Mbps Copper RJ45 Network Card (RTL8111H) | |||||||
PS: The above details is just for reference,if there is any change,no inform will have. | ||||||||
1. Who are we?
We are based in Guangdong, China, is a Design-R&D-Production-Sales-in-one National High-tech Enterprise.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
fiber optic network card,server network card,RJ45 optic card,OCP optic card,ethernet card,PoE frame grabber card
4. Why should you buy from us not from other suppliers?
Independent R&D, Own factory, focus on NIC 16 years ISO 9001:2015 Quality Management Certificate Integrity, Pragmatism, Innovation and Win-win Over 30 intellectual properties and 300 products PCIE Network Adapter
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese PCIE Network Adapter
We are based in Guangdong, China, is a Design-R&D-Production-Sales-in-one National High-tech Enterprise.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
fiber optic network card,server network card,RJ45 optic card,OCP optic card,ethernet card,PoE frame grabber card
4. Why should you buy from us not from other suppliers?
Independent R&D, Own factory, focus on NIC 16 years ISO 9001:2015 Quality Management Certificate Integrity, Pragmatism, Innovation and Win-win Over 30 intellectual properties and 300 products PCIE Network Adapter
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese PCIE Network Adapter
Похожие товары

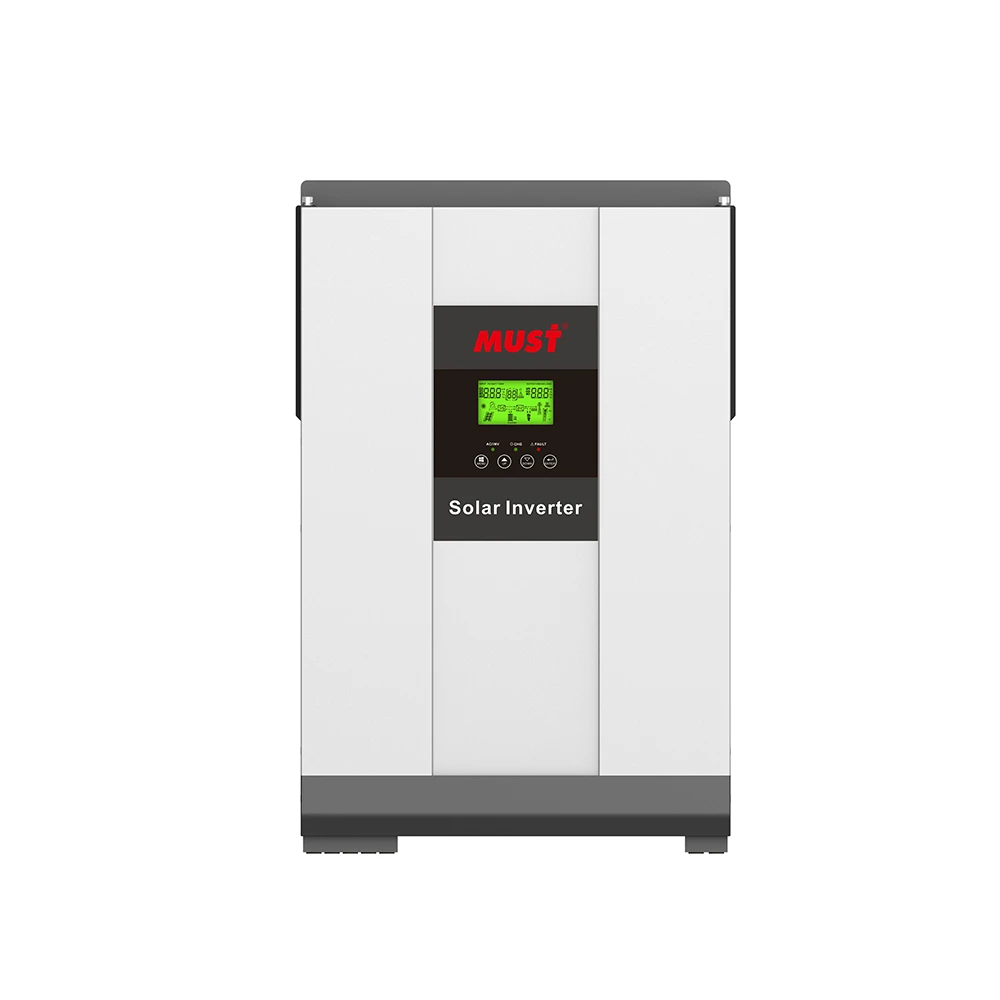

Неэлектрифицированный Гибридный солнечный инвертор MUST PH1800 Plus 2021 UPS 1 кВт 2 кВт 3 кВт 5 ква 5 кВт 7 кВт 8 кВт MPPT 80A
360,00 $ - 380,00 $
3-(N-морфолино) пропансульфоновая кислота геминатриевая соль, Лидер продаж, CAS 117961-20-3
10,00 $
Золотой металлический держатель для салфеток высокого размера ручной работы декоративный из нержавеющей стали туалетной
Оптовая продажа, отбеливание кожи лица, тела, отбеливание, натуральное органическое мыло ручной работы, койевая кислота
0,65 $ - 0,95 $

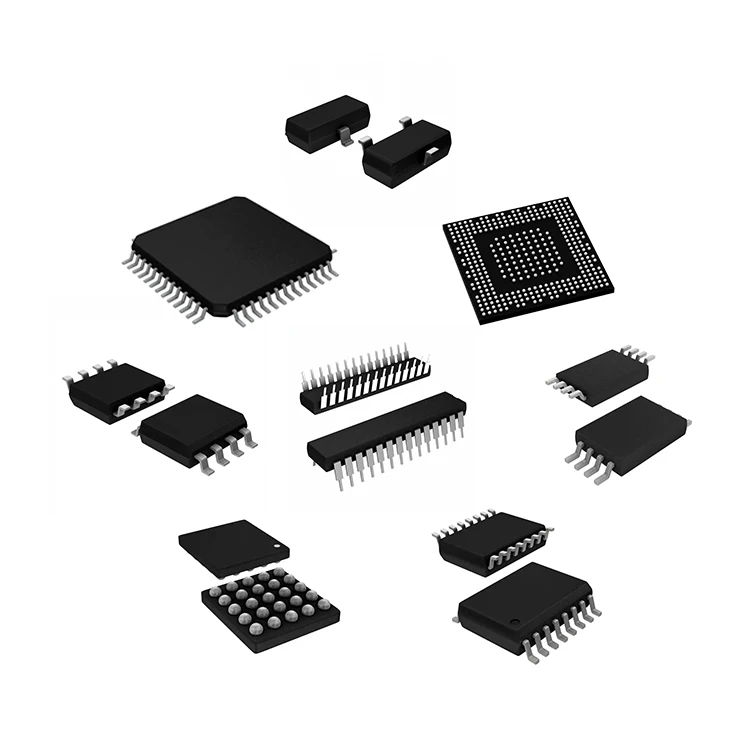

Интегральная схема, новый и оригинальный, в наличии, микросхема TSUM16AWR-LF-1, список BOM, Сервисный электронный компонент
0,19 $

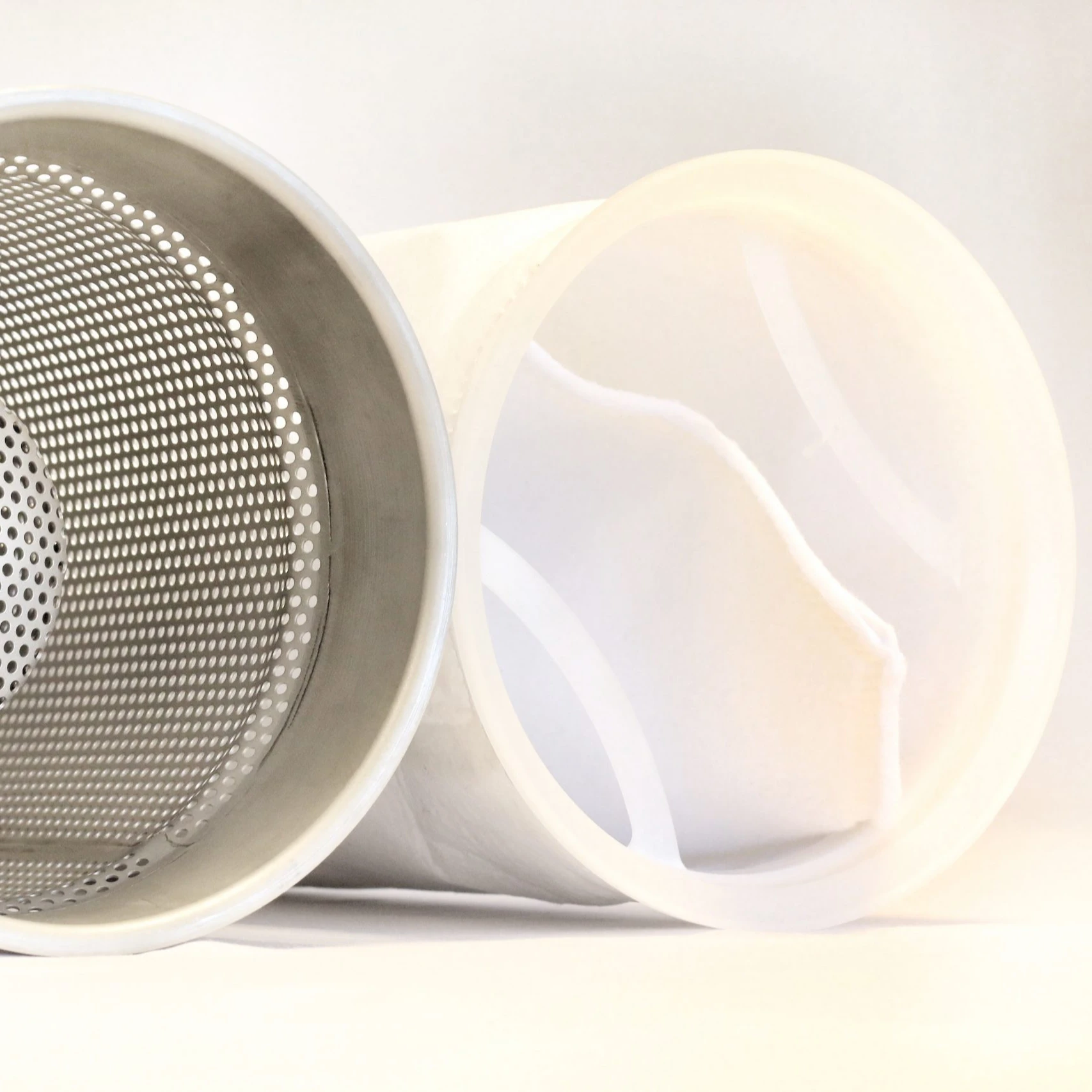

Полимикро Микрофибра Бесшовные/игольчатый войлок/фланцевый ошейник, пылезащитные сетчатые фильтровальные Мешки
