Popular Type Mini Electric Swivel Vehicle-mounted Winch Pickup Truck Crane Small Pickup Truck Car Lift Crane

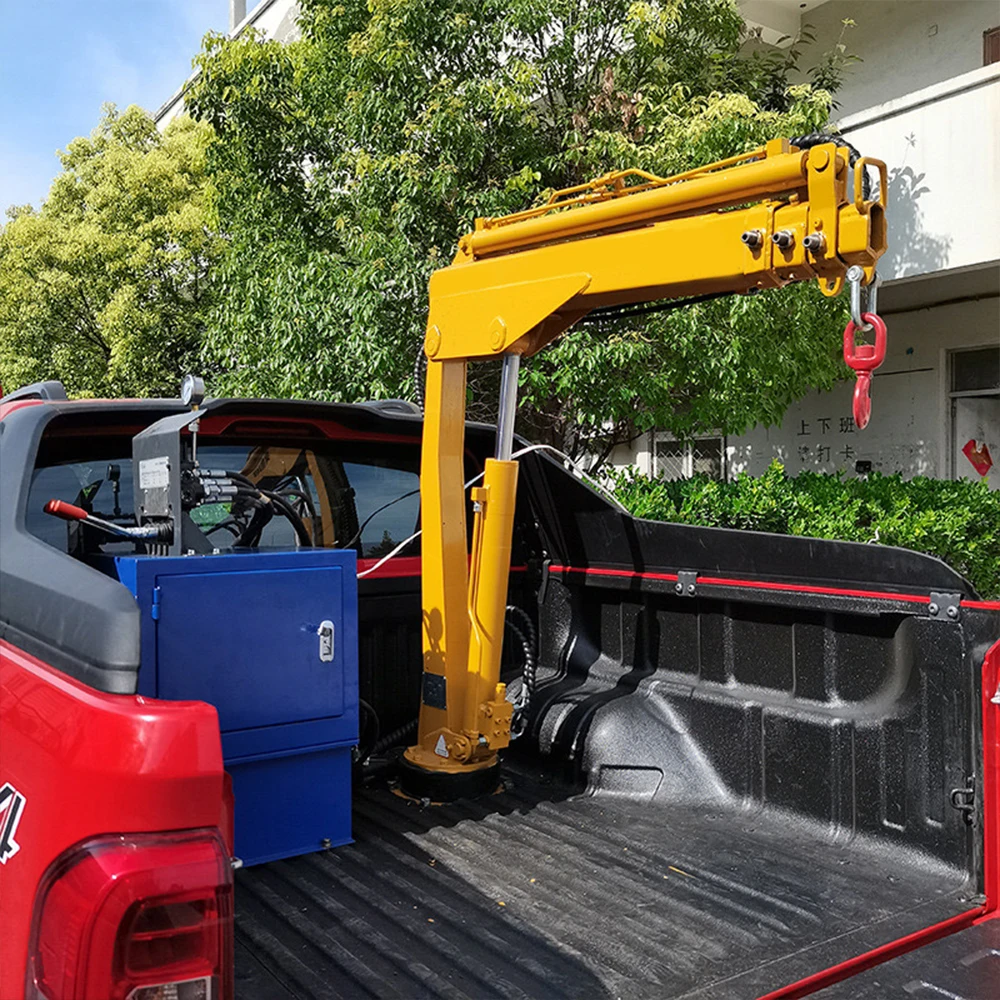

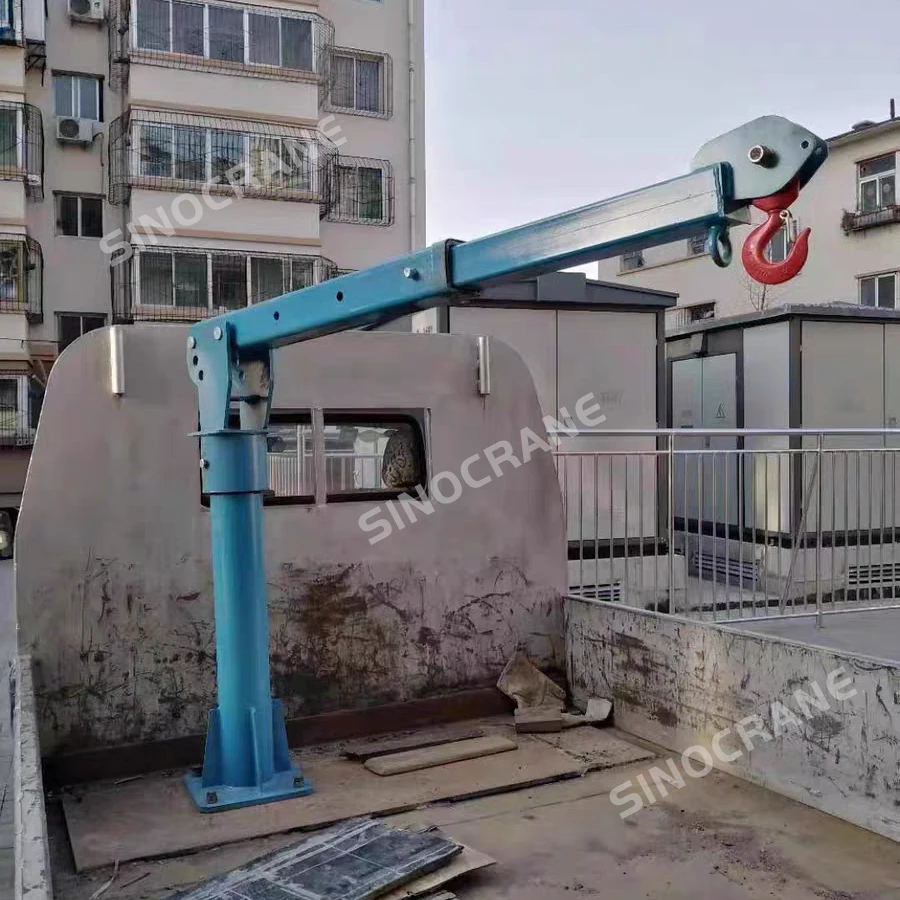

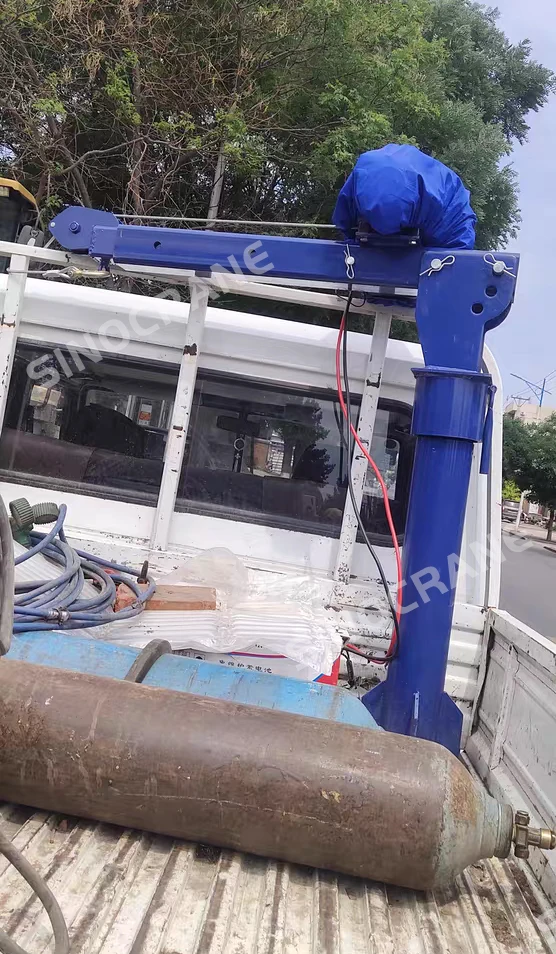

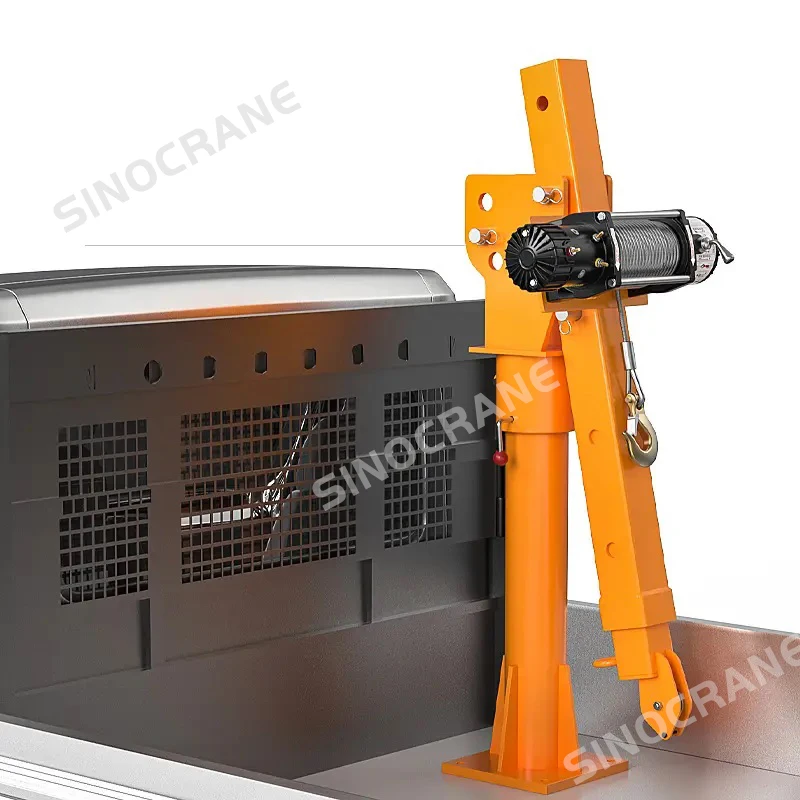

Truck Mounted Crane is one of our professional products, with. It is widely used in pick-up trucks, caravan cars, loading docks, platforms etc. With outstanding features such as structually compact , small sized, light weighted, and minimal space required, this is a good helper for lifting goods.

Truck Mounted Crane consists of five major parts: column, supporting rack,arm,boom and winch as well as other accessories. ball bearings serves as the suppoting point for the crane. The user operates the push bar making the boom rotate 360° to finish the job of loading and unloading. Goods can be lifted and lowered with the winch.

Powerful function: Cooperate with winch to easily move generators, engines, compressors and small equipment into your truck or out of your truck bed. This Truck Mounted Crane can be folded when you don't use it.

High quality: Made of galvanize welded steel with Yellow paint finish. Weather resistant, not easy to rust

Boom reach: This Truck Mounted Crane has boom with adjustable length, which can reach from 46.06" to 57.08" to meet your requirements

Three elevation settings: Features three different boom height adjustments(45.27" to 86.61") for added versatility

Safety Operation: The base of this truck can rotate 360 degrees for limitless operation! After the optimal position is found a locking handle at the base of the crane davit keeps the crane in place

Features:

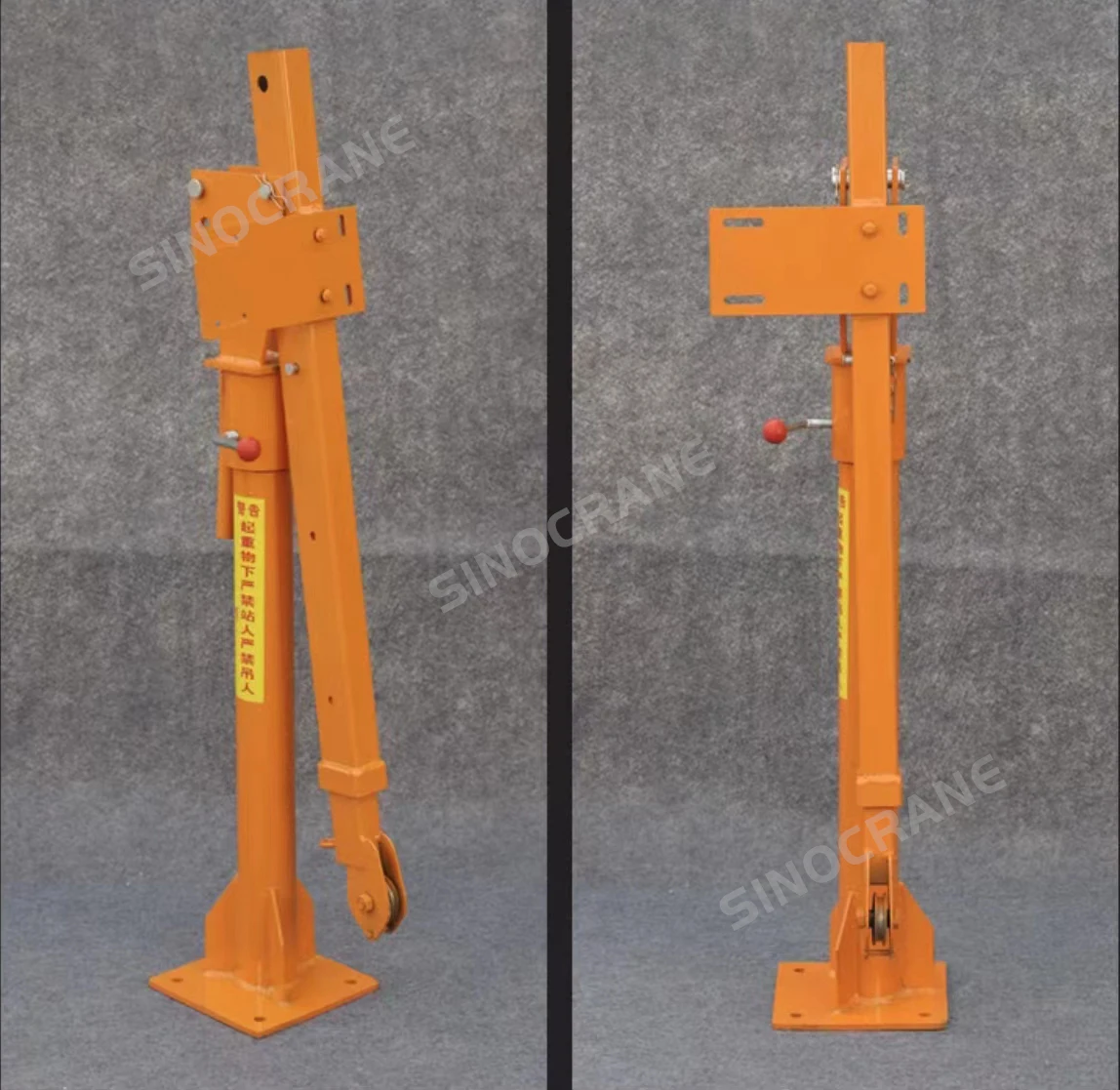

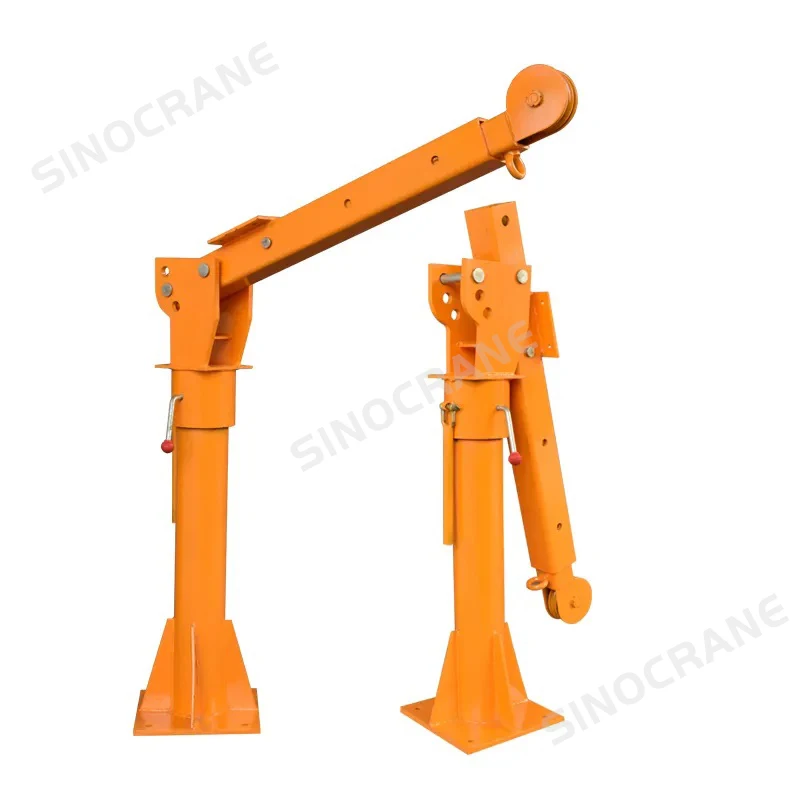

1.Compact design ,folds away when not in use.
2.Easily installed,on site or by a vehicle body builder.
3.Conforms to CE safety standard.
4.Unique technology of quick lifting.
5.Larger capacity than normal shop cranes at 3 position.
6.360ºswivel operating handle.
7.Forged heavy duty swivel hook.
8.125% overload testing before delivery.

v Application conditions of Truck Mounted Crane:

Access to various environments, field operations, laboratories, schools, construction industry, decoration industry, assembly line assembly, light trucks, vans, light trucks, heavy trucks, caravans, automobiles, loading yards, platforms, rescue vehicles; The vehicle matching can replace small cantilever cranes, bridges, storage and loading and unloading of vehicle cargo, etc., integrating many advantages. It has won unanimous favor from domestic and foreign merchants, and it is an ideal handling model at home and abroad.

This is the specific parameter of our Truck Mounted Crane.

If you are interested in our products, please leave your specific parameters below. Our products can be customized according to your data.

l Lifting capacity: ____kg

l Jib Length:____m

l What material the Truck Mounted Crane will be used to lift? (from where to where)

l Transportation: tell us the sea port name near you, we can quote you shipping freight

It would be even better if you can leave your contact information, please leave your email/phone/WhatsApp to facilitate our communication.

We have a professional technical design team to design customized crane drawings for your crane, and then our factory will produce the most accurate drawings for you according to the drawings.

SINOCRANE GLOBAL was established as a systems engineering company in the field of material handling in the year of 2012. Our services cover a wide range of industries, which includes manufacturing industry, processing industry, energy regeneration and so on.

Design and Construction Rules

All the standards which are required for the cranes are the FEM standard, DIN standard and Chinese National standard.

Europe Main National Standards

--  89/392/EEC standard (93/68/EEC)

--  91/368/EEC standard

--  73/23/CEE standard

--  "EMC" standard 89/336/EEC

--  EN 60204-1

--  EN 292 mechanical safety

--  ISO 2141

--  ISO 2766

International Standards

--  June 9, 1993 / Sept. 22, 1993 notice

--  July 29, 1992, 92-765, 92-766, 92-767 notice

--  DIN 5684

--  DIN 15400; DIN 15401

--  NFE 26-010

--  NFE 26-030

Technical Standards

--  FEM 9.511    Mechanical group

--  FEM 9.661    Hoisting and traveling components size and quality standard

--  FEM 9.671    Wire rope quality standard/Chains quality standard.

--  FEM 9.681    Travel motor choice

--  FEM 9.682    Hoisting motor choice

--  FEM 9.755    Electric hoisting equipment

--  FEM 9.811    Electric crane standard

--  FEM 9.901    Hoisting components design reference

--  IEC 34-1      Traveling and allocation performance

--  IEC 34-5      Protection grade standard

--  IEC 947-5-1   Low voltage equipment

China Main National Standards

Design rules for cranes             GB/T 3811-2008

Safety rules for lifting appliances          GB 6067-2010

Common crane technical condition          GB 7592-87

² Safe Use Of Truck Mounted Crane

1. When operating the Truck Mounted Crane, it is strictly forbidden for anyone to stand, work or pass in the working area under the boom, under the hook and the hoisted goods.

2. When the Truck Mounted Crane is running, it is strictly forbidden for irrelevant personnel to enter the working vehicle.

3. When running the Truck Mounted Crane on soft ground, the ground should be flattened and compacted. Fix the vehicle stably, the support must be firmly placed, and there must be enough space and site in the lifting area.

4. When the Truck Mounted Crane is lifting at full load or close to full load, it is forbidden to perform two or more other operations at the same time. The left and right rotation angles of the boom should not exceed 45°, and cable-stayed and fast landing are strictly prohibited. Do not lift objects buried in the ground. Do not work under high voltage lines.

5. It is strictly forbidden to overload the Truck Mounted Crane. Overloading is very dangerous and prone to accidents, which will not only reduce the service life of the equipment, but may even cause personal injury.

6. The Truck Mounted Crane is not allowed to run laterally on the slope, and it is not allowed to turn the boom down the slope. If it is necessary to run or rotate, the fuselage must be leveled first.

7. It is strictly forbidden to ride or use a Truck Mounted Crane to carry people to lift, and do not touch the wire rope and pulley with your hands during work.

8. When the Truck Mounted Crane is working near the live line, it should keep a certain safe distance from the live line. When working in rainy and foggy days, it is to improve concentration, and to observe the operation of the equipment. Ensure safe operation.
