Линзы с 24 дегидратами

Категория: >>>
Поставщик: Karhi Lighting (Zhongshan) Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Recommendation

Welcome to check more products:

spot light, down light, track light, linear light, surface mounted, fixed, adjustable, and so on.

Ask us for full product range.

Product Information

Features:

1. All alum ium housing, die-casting or machining housing.

2. Famous LED brand, like: Osram, Bridgelux, CREE, etc. Check details on quotation or below product information.

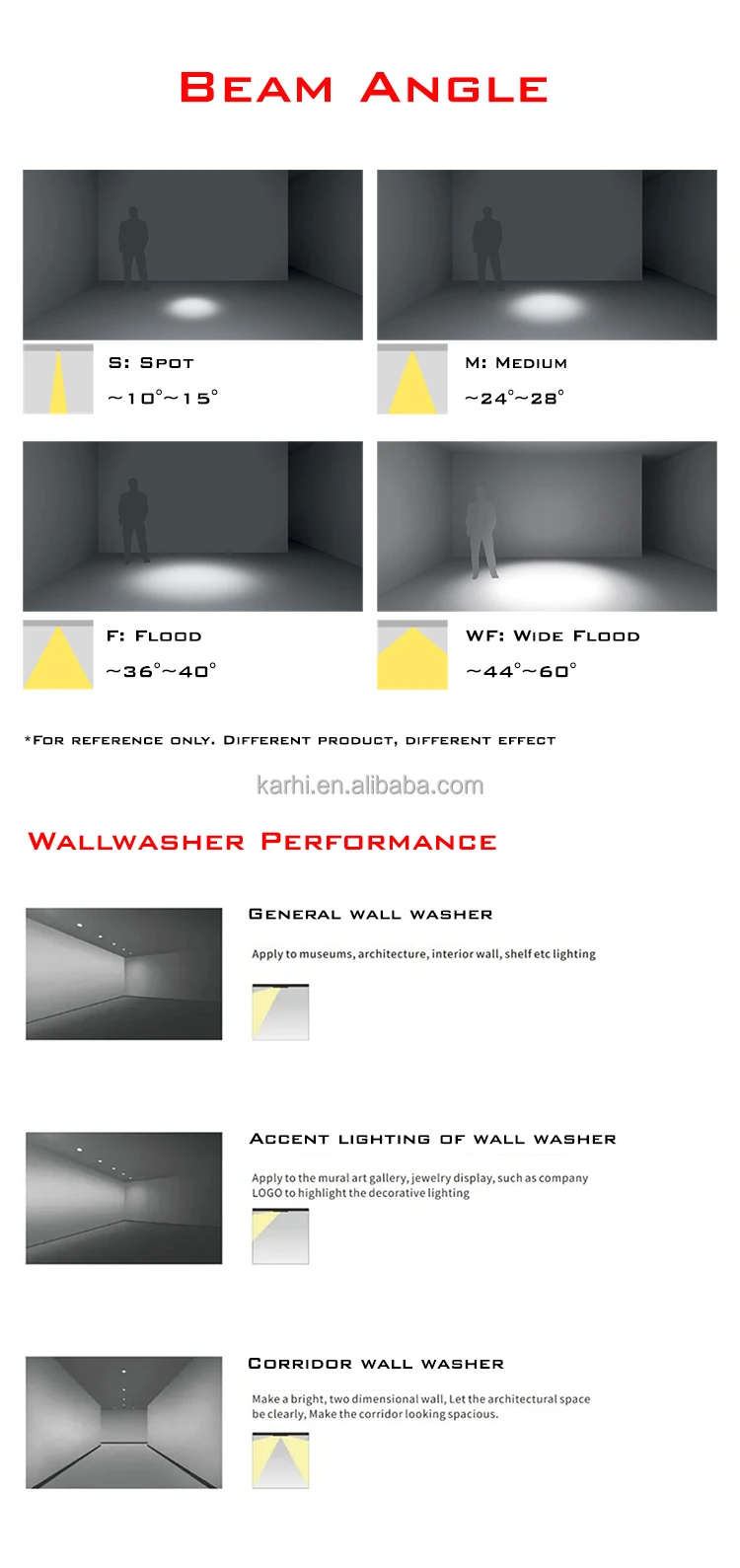

3. Optional Beam Angle. Check product specification.

4. CRI can be Ra80 / 90 / 95. Ask us if you need different.

5. Good driver brand: Tridonic, Osram, Eaglerise, Kegu, Lifud, etc. Depends on your request.

6. Dimming optional: 1-10, phase-cut / triac, DALI, etc, ask us if you need.

7. Providing high / low power factor, flicker-free driver, as your choice, pls ask us.

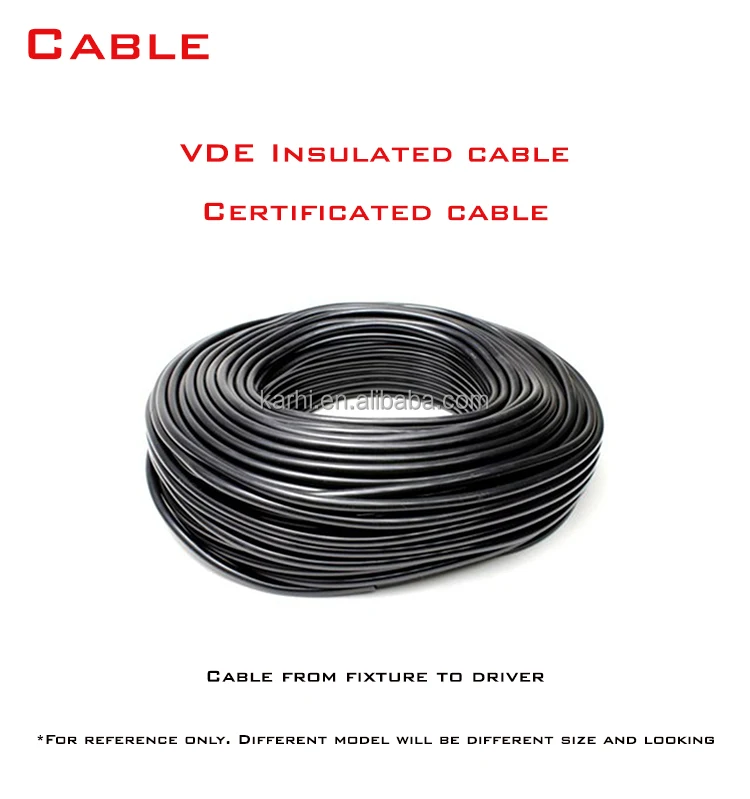

8. Isolated cable. VDE certificated cable.

9. Custom-made sticker, box, carton. Depends on your request.

Feel free to ask us for more choice for you.

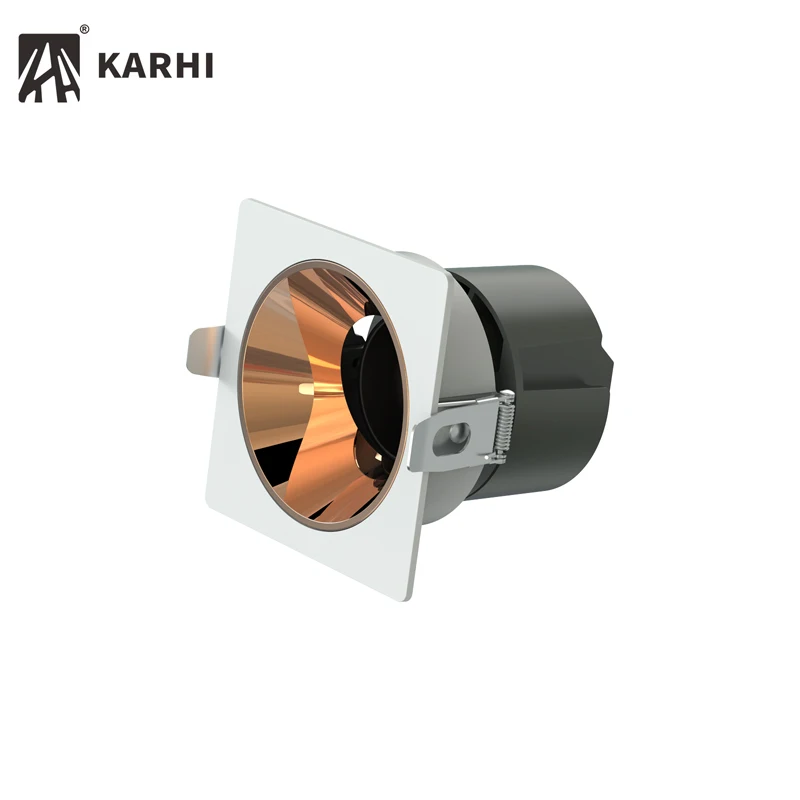

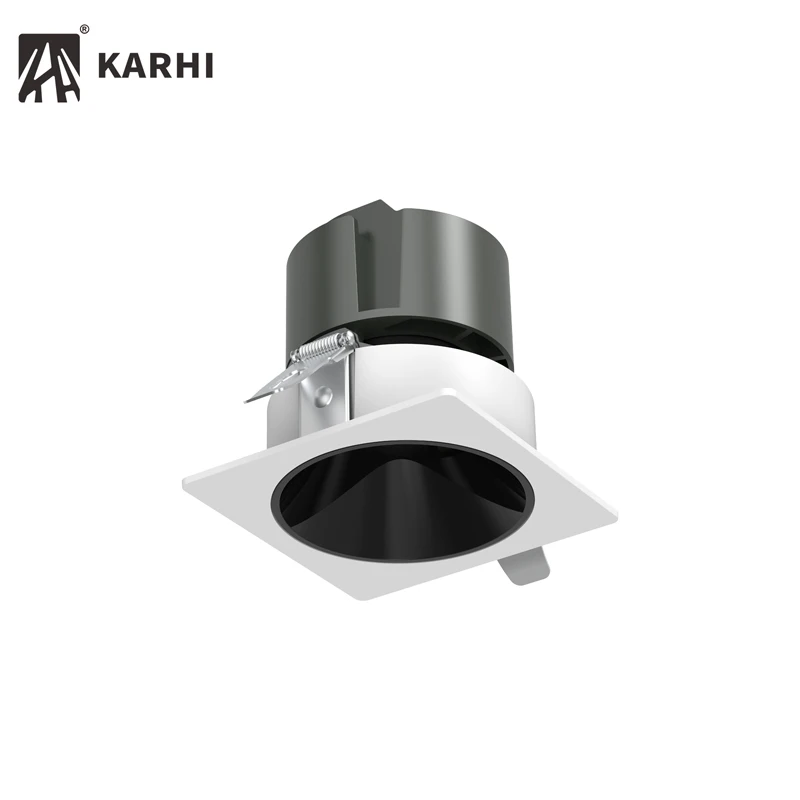

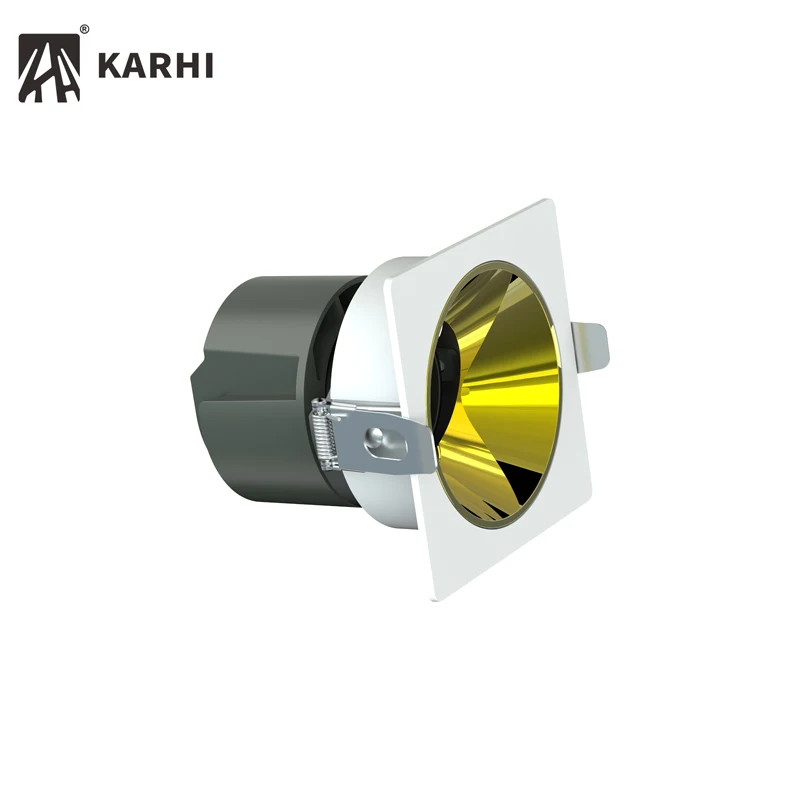

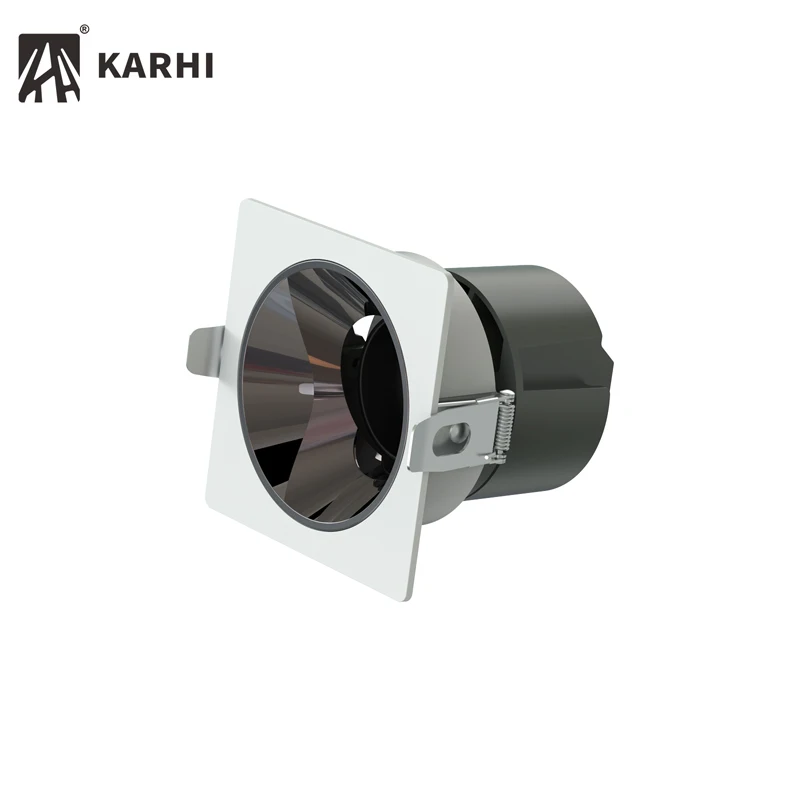

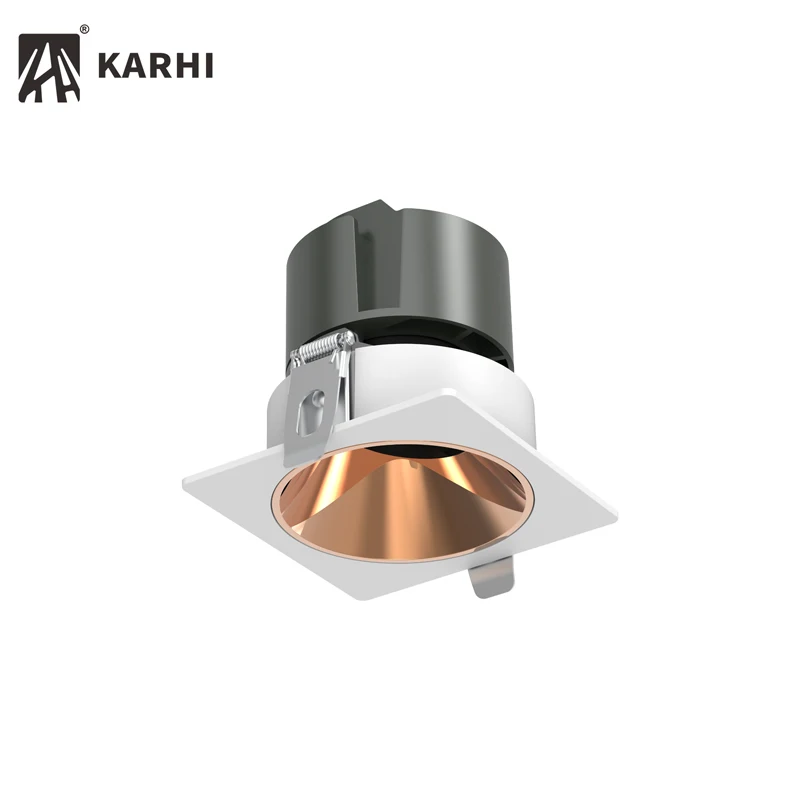

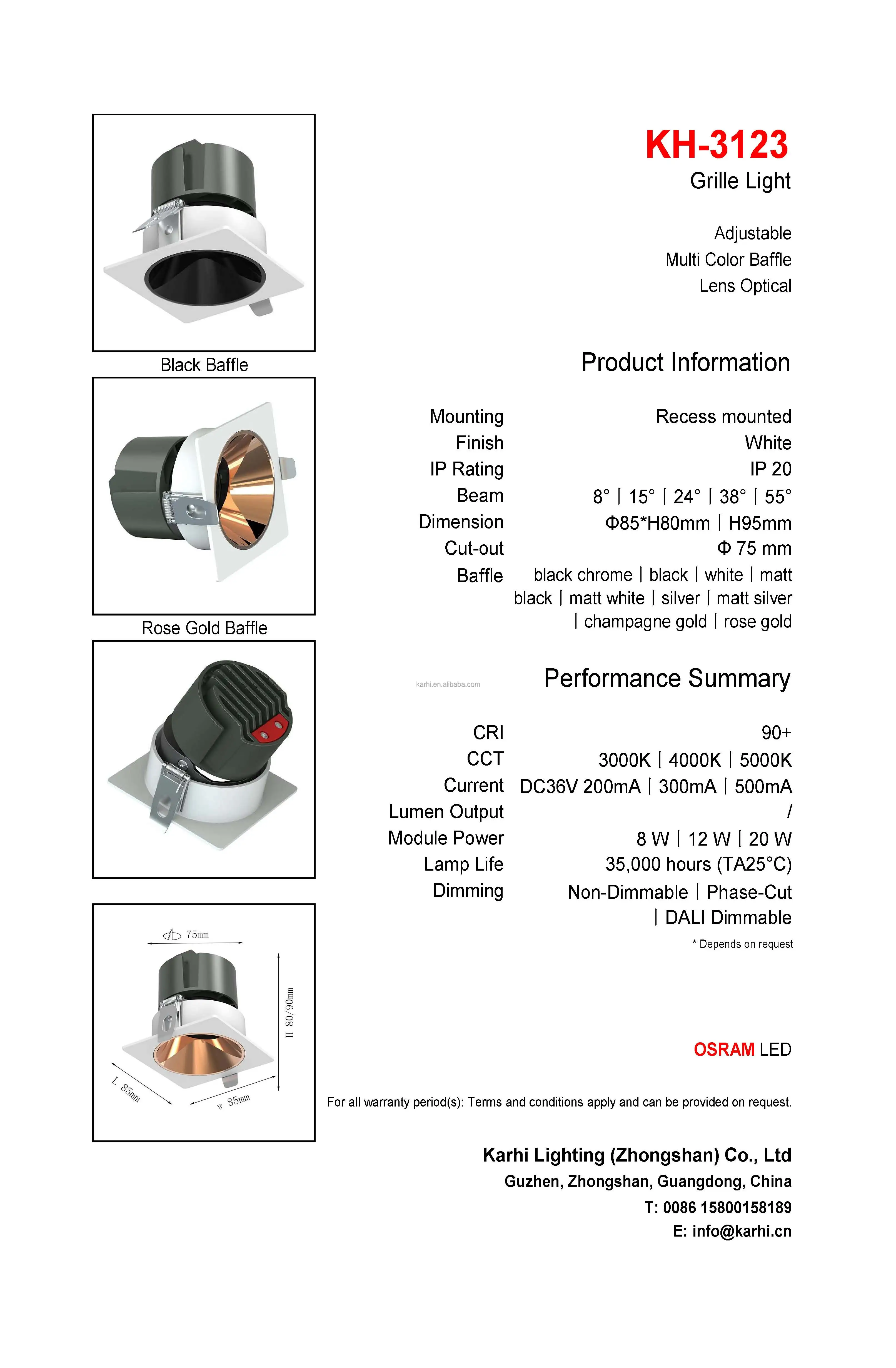

KH-3123.8	Item no.: KH-3123.8 Discription: Adjustable Square recess mounted secondary reflection LED spot light, with die-cast aluminum body in matt white powder-coated, equipped with 8°/15°/24°/38°/55° LV anti-glare optical lens, black chrome/black/white/matt black/matt white/silver/matt silver/champagne gold/rose gold baffle Dimension: Φ85*H80mm Cutout: Φ75mm Rated Power: 8W
		Light Source: Osram COB LED 1202 3000K Ra90 DC36V 200mA 7.2W
		Appliance: external driver 220-240VAC 50/60Hz 36VDC 200mA PF0.5， Eaglerise, flicker free

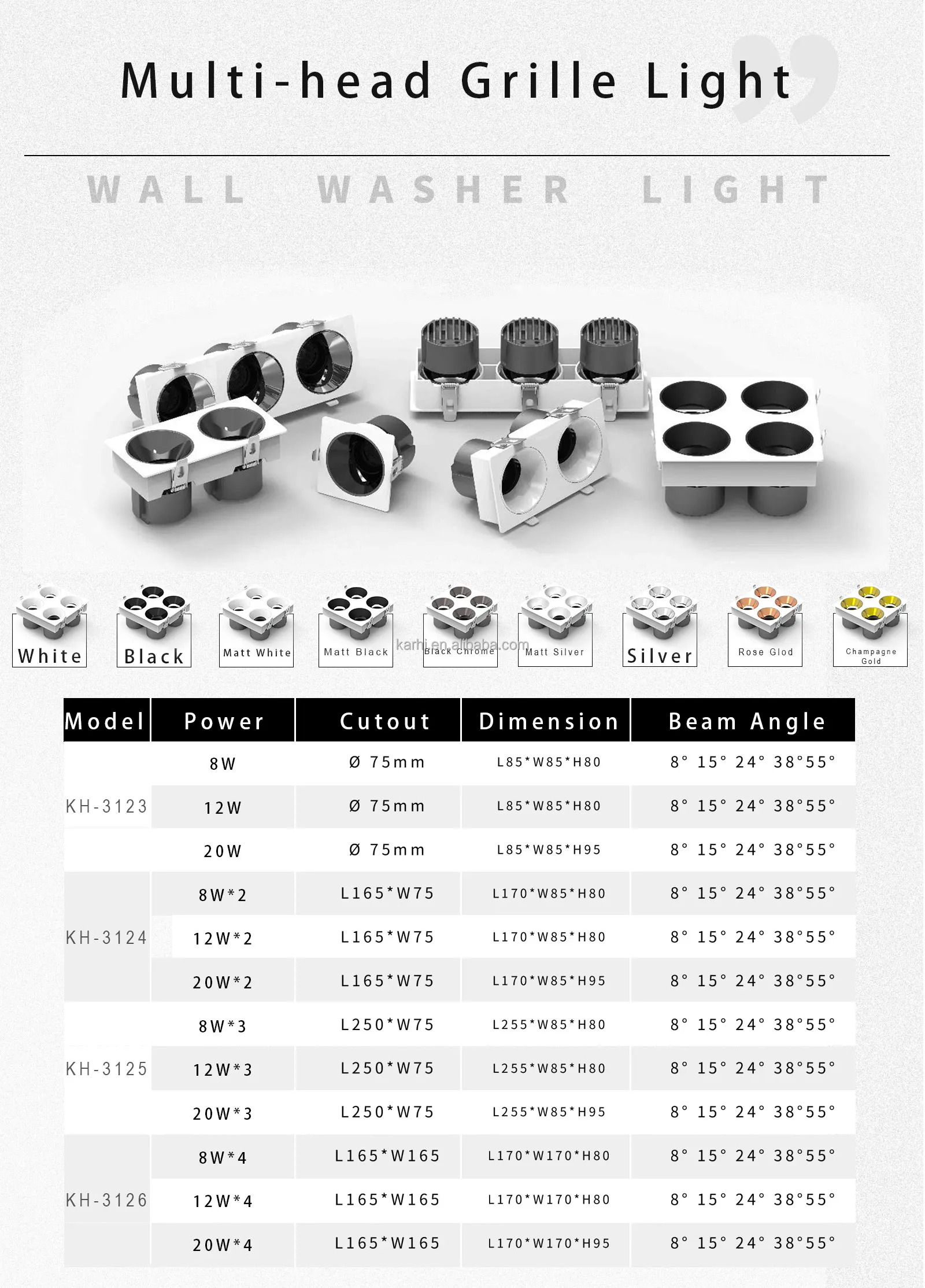

Model	KH-3123.8	KH-3123	KH-3123.20
Wattage	8 W	12 W	20.0 W

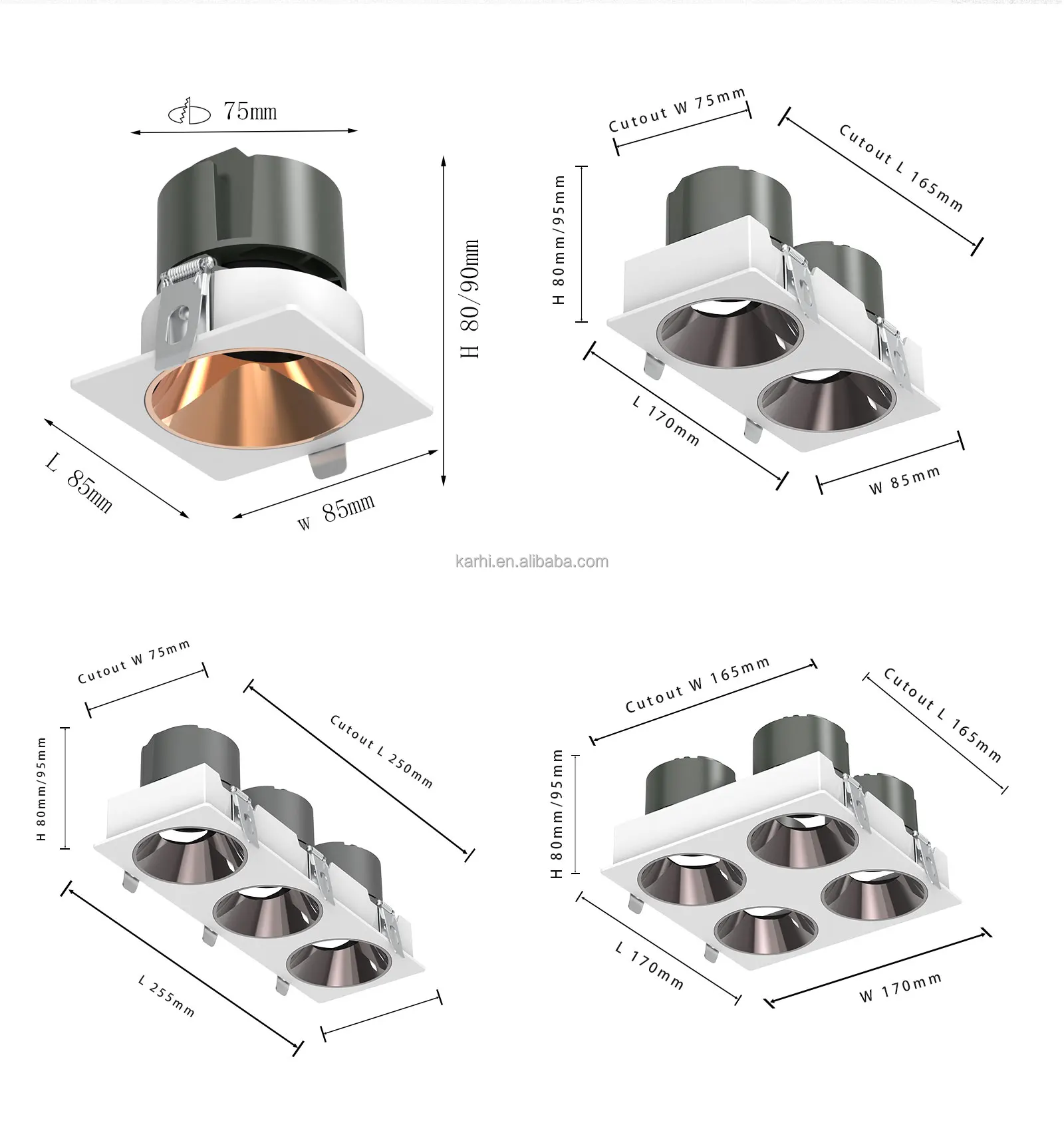

Dimension	SQ85*H80mm	SQ85*H80mm	SQ85*H95mm
Cut-out	Φ 75 mm	Φ 75 mm	Φ 75 mm

Material	Die Casting Aluminium
LED brand	Osram (Germany brand)
LED package	COB LED
Color Temperature	1, 3000K4000K5000K. 2, Pls ask us if you need 2700K or different color temperature.
CRI (Ra)	≥90 (Pls ask us if you need different CRI / Ra)
Control method	1, On/off 2, Pls ask us if require 1-10v dimming, phase-cut/triac dimming or dali-dimming

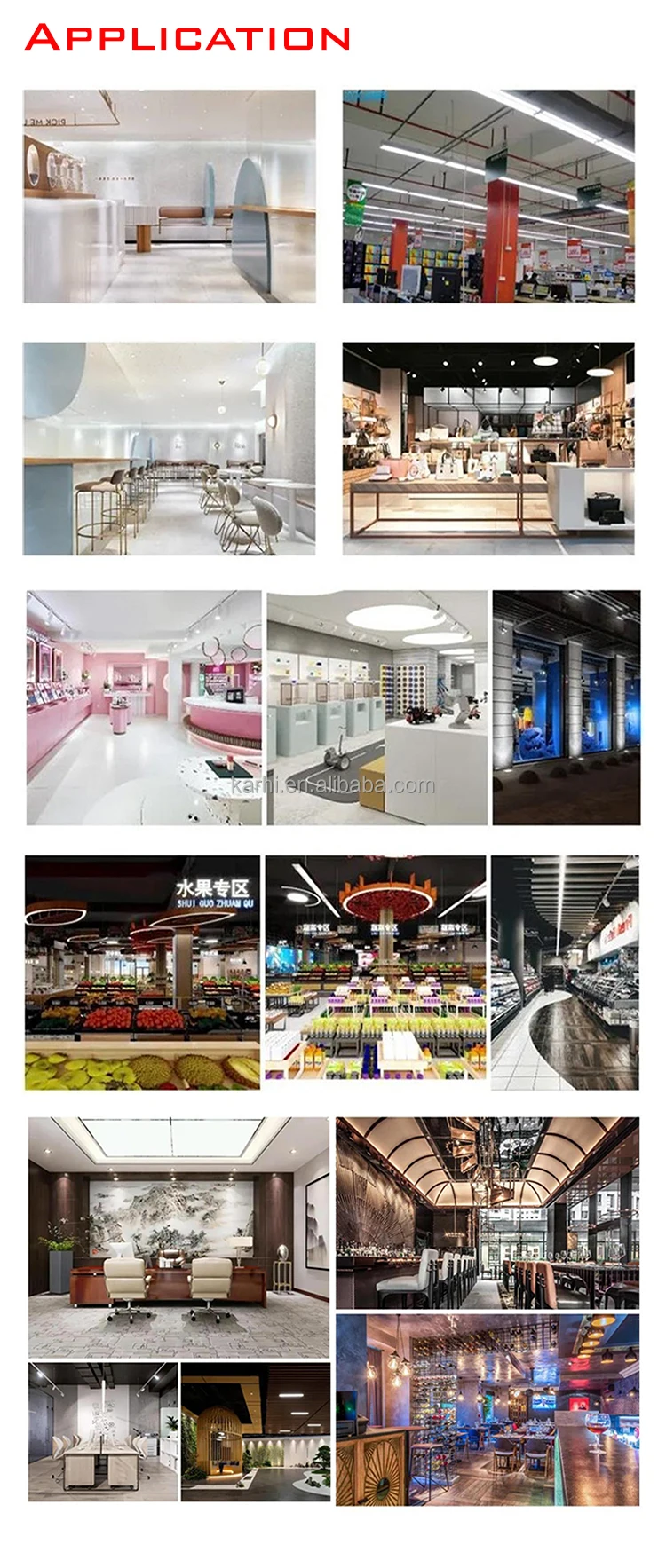

Usage	Indoor use, IP20
Input voltage	AC220~240V
Driver	CE certificated. Flicker free
IES or spectrum testing report	Pls ask us for reports
Package, Sticker	1, Neutral package with KH brand sticker / label 2, Pls ask us if you need neutral package or your own LOGO
IP	IP20
Accessories	1, Accessories, like spring / clips, driver brand, may be different from images in page, depending on material stock. 2, Pls ask us to check stock if you need more information.
Warranty	1, 3 years 2, Pls ask us to offer price if 5 years needed

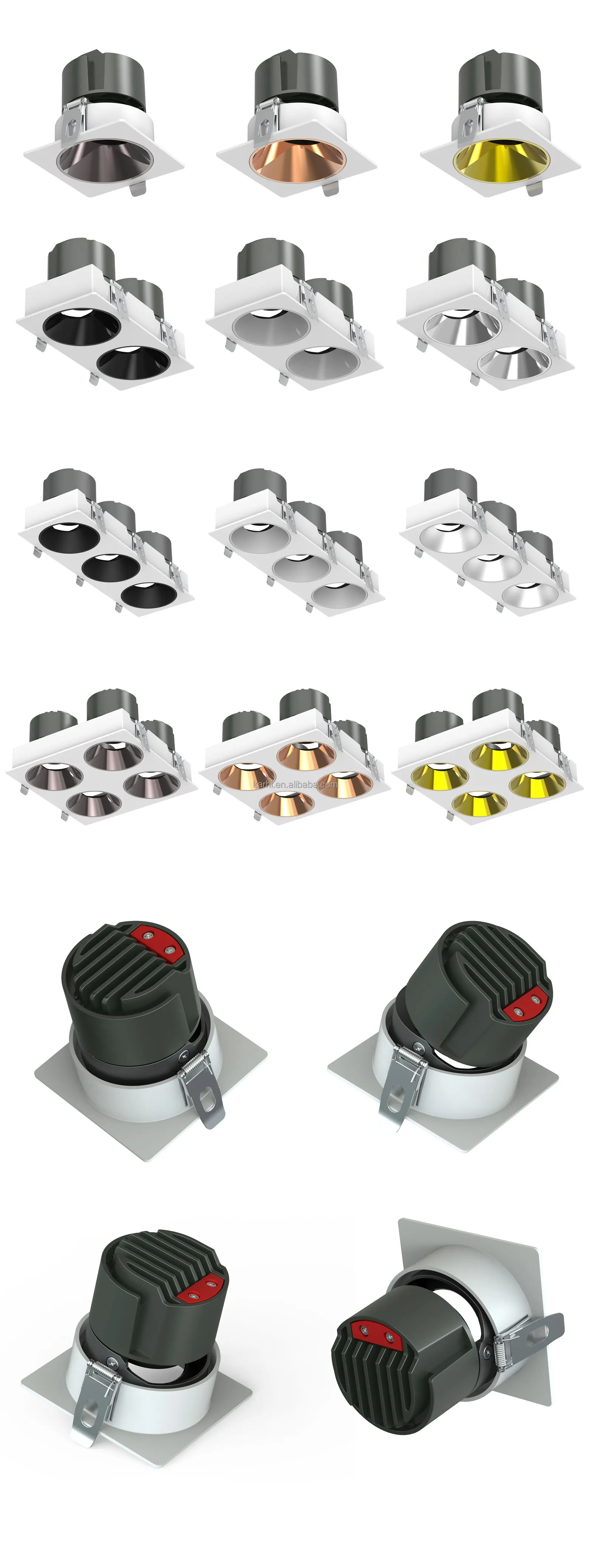

Different Size and power	Yes, we do have many types of this kind, pls ask us to send you product link.

Specification

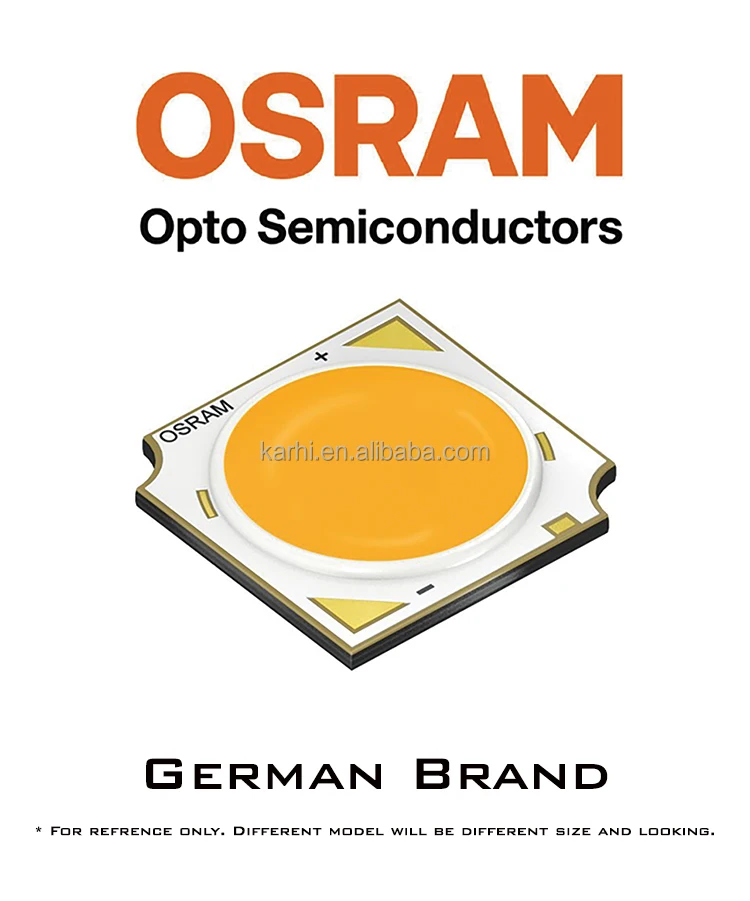

LED

Model	Osram Code	Max Current	Dimension	Power	Voltage
1202	GW KADEBA.CM	250mA	7/13.5*13.5	5-10W	36-38 VDC
1203	GW KAFFBA.CM	450mA	10.5/15.85*15.85	10-18W	36-38 VDC
1204	GW KAFHBA.CM	600mA	10.5/15.85*15.85	15-24W	36-38 VDC
1205	GW KAMJBA.CM	750mA	14/17.85*17.85	24-30W	36-38 VDC
1207	GW KAMLBA.CM	1050mA	14/17.85*17.85	30-40W	36-38 VDC

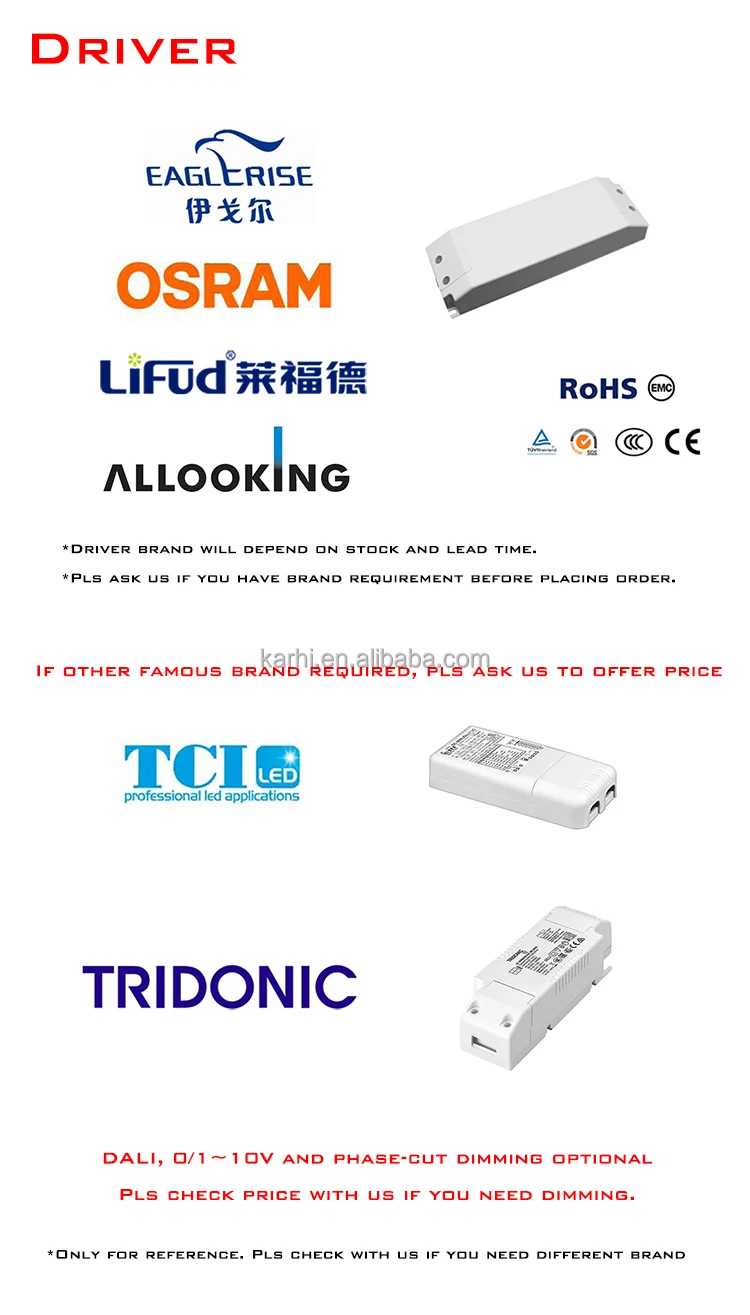

Driver

Good quality and good price driver: Tridonic, Osram, Eaglerise, Kegu, Lifud, etc. Depends on your request.

Provide high / low power factor, flicker-free driver.

1-10V, phase cut/ triac dimming, DALI otptions.

Isolated cable. VDE certificated cable.

Custom-made sticker, box, carton. Depends on your request.

Product Label: Silver PET label / sticker

Box Label: White label / sticker

Certifications

Company Profile

Karhi Lighting (zhongshan) Co., Ltd.

Devoting into lighting business since 2008, our team has 15 years commercial lighting experience, project experience and sourcing ability, specializing in project - commercial lighting.

We’ve taken part in many projects, like City of Dream (Macau), Oceanus Casino (Macau), Hotel Lisboa (Macau), Grand Lisboa (Macau),

E-mart (Korea), and many others small projects in different countries. (Iring, took part in those projects when she worked in Huayi Lighting from 2008 to 2014).

We established Karhi (KH brand) on 2021 and built up our own team to achieve in design, source, assemble, test and deliver by ourselves to get more cooperation possibility.

Karhi Lighting is a responsible lighting supplier, and that means we are responsible for all our actions – socially, ethically and environmentally. As well as providing local employment, we support a range of ongoing initiatives that help create healthy, vibrant and cohesive communities.

We believe the best way that Karhi Lighting can make a broad and meaningful contribution to the communities in which we operate is through engagement. We see ourselves as part of the communities in which we operate, and as such we strive to be positive, active and contributing participants in community life.

We are very flexible and can achieve your final goal. Talk to us to get better proposal, best price, and OEM sticker, small MOQ, and so on.

We offer the best and suitable for you. We know that if we succeed, then all our valued clients and partners also succeed. This integrated approach begins with our people and the belief that together we can develop trusting relationships with all stakeholders to achieve long term mutual goals.

Give us a chance and get one more possible option for yourself and your clients. Ordering sample to compare and test, trying new
and you will find out how good we are.

Trust our professional service. Let’s get elder and best together.

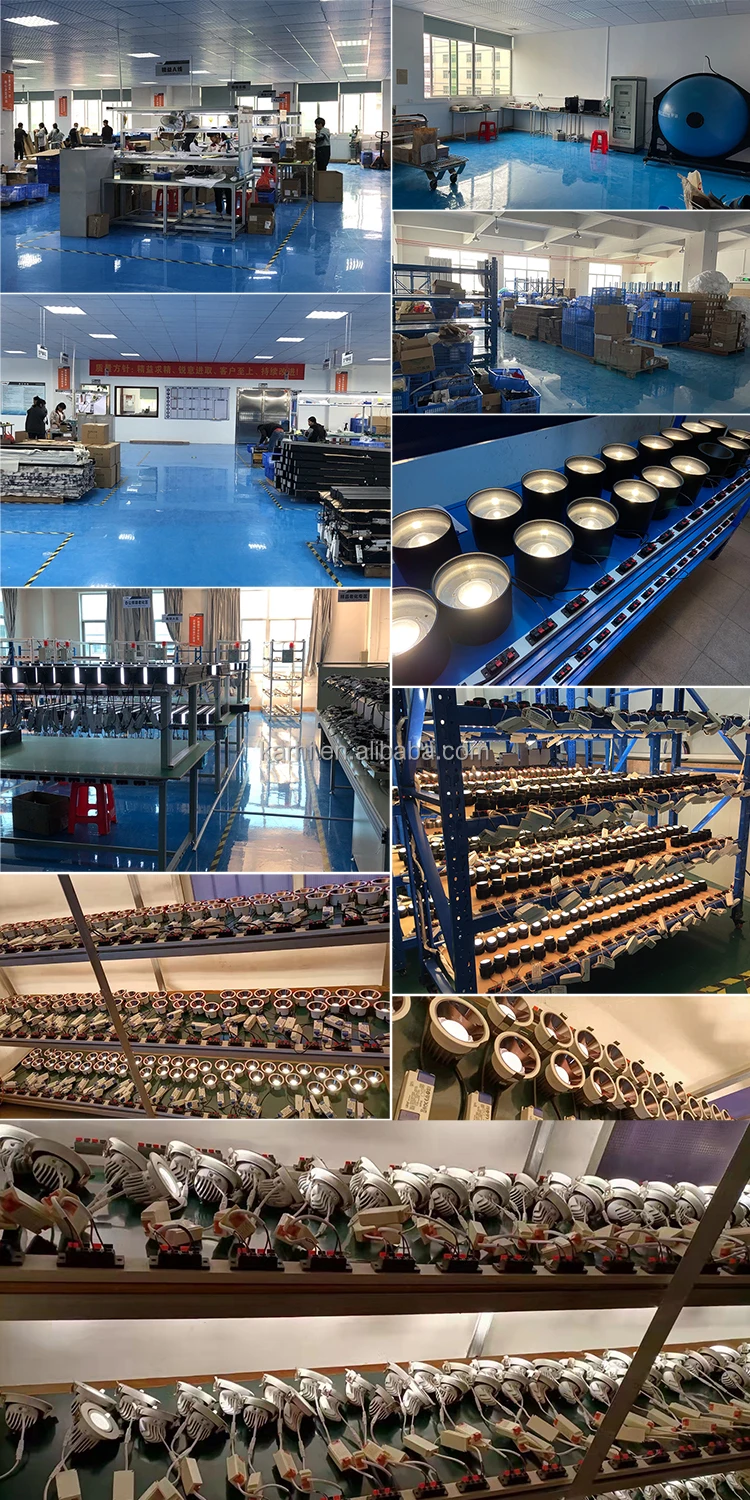

Manufacturing Technique

Exhibition

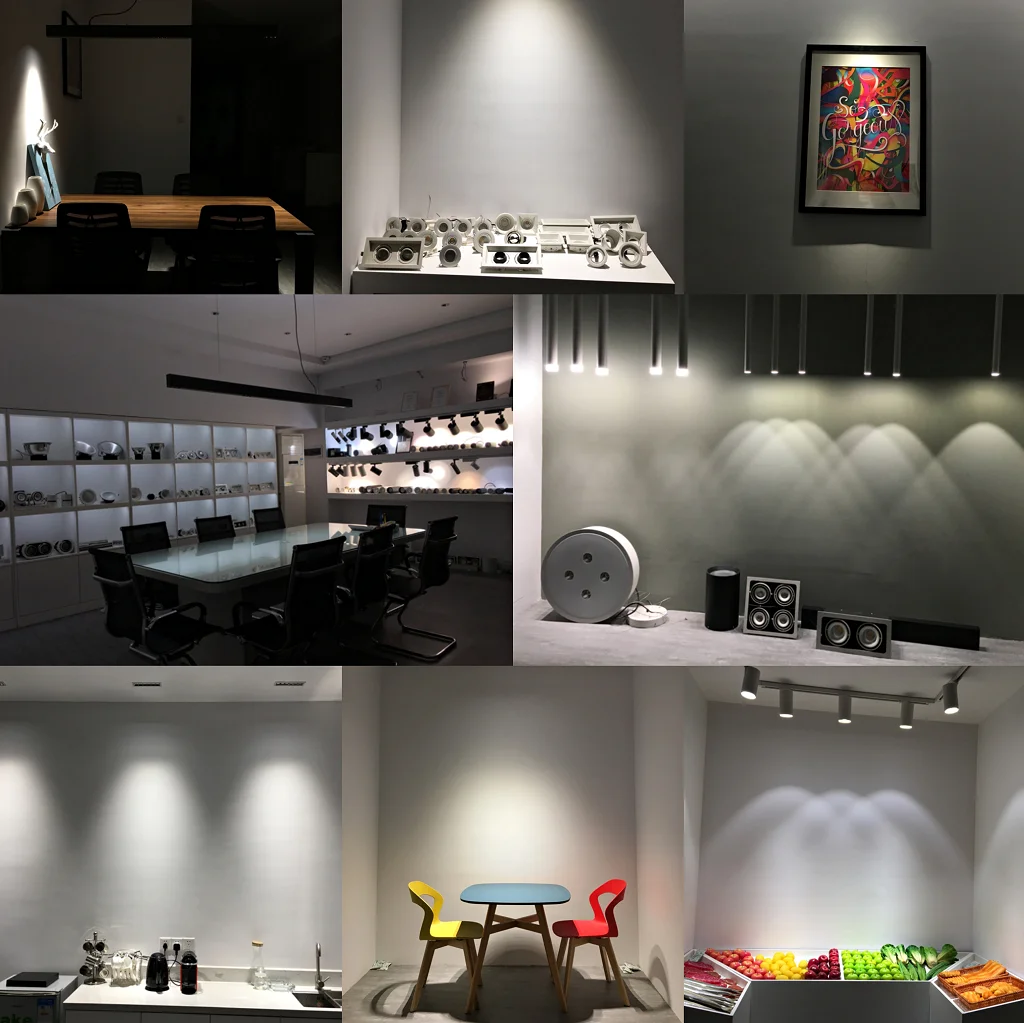

Showroom

Why Choose Us

1. Low MOQ & Best Price.

2. Good quality & certificated standard.

3. Sample order & mini order accepted.

4. Equipped Osram, Bridgelux (brand LED) or CREE, with flicker-free, high power factor driver (brand driver).

5. 15 years experience on commercial lighting projects and professional OEM manufacturer.6. Flexible service. Ask us anything you want.

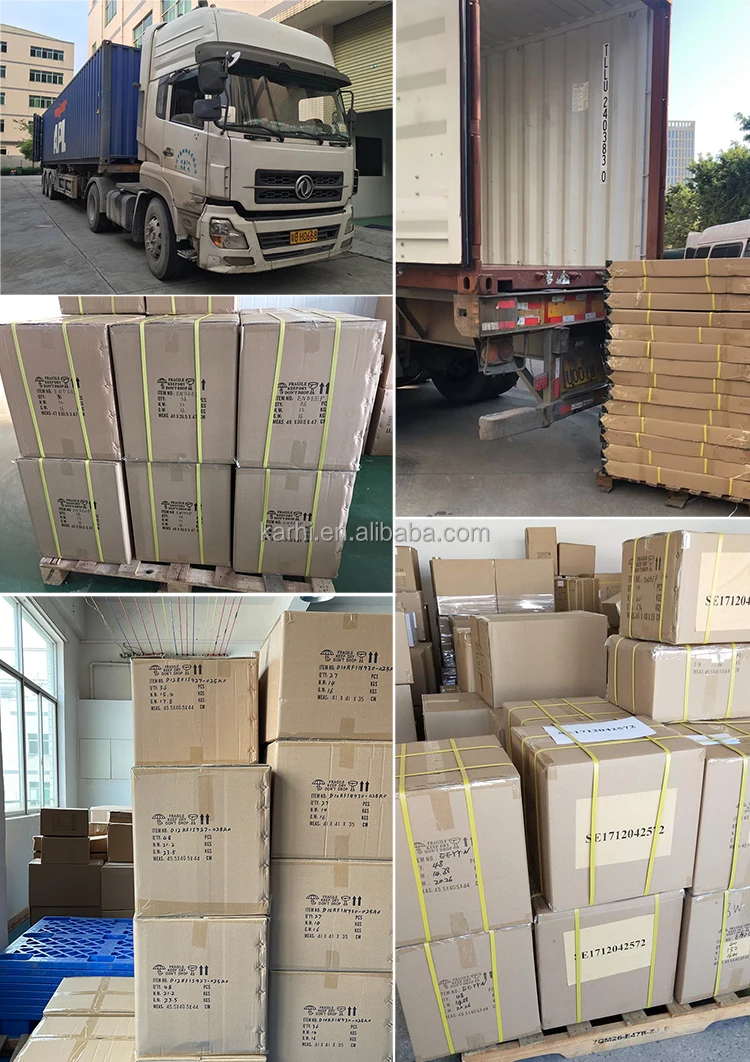

Product Packaging

FAQ

Wattage / Dimension / Beam Angle	Pls ask us if you need different power, size, color temperature, or beam angle.
Color Temperature	Pls ask us if you need different color temperature or higher lumen output. We do have different LED brand for your choice, like Bridgelux (USA) Gen7 high lumen output series.
Driver	1, Regular CE certificated, marking in Information Table. Offering SAA, UL or other certifications, pls ask us to check. 2, High efficiency, high PF and flicker-free driver. But some special products may use low PF because special current and voltage. 3, If famous driver brands required, pls ask us to quote. Like Osram driver, TCI driver, Tridonic driver, or Philips, and so on. Will equip as your request. 4, Will mark in Information Table or quotation if not certificated, or low PF for some special current or voltage products.
Cable	VDE certificated

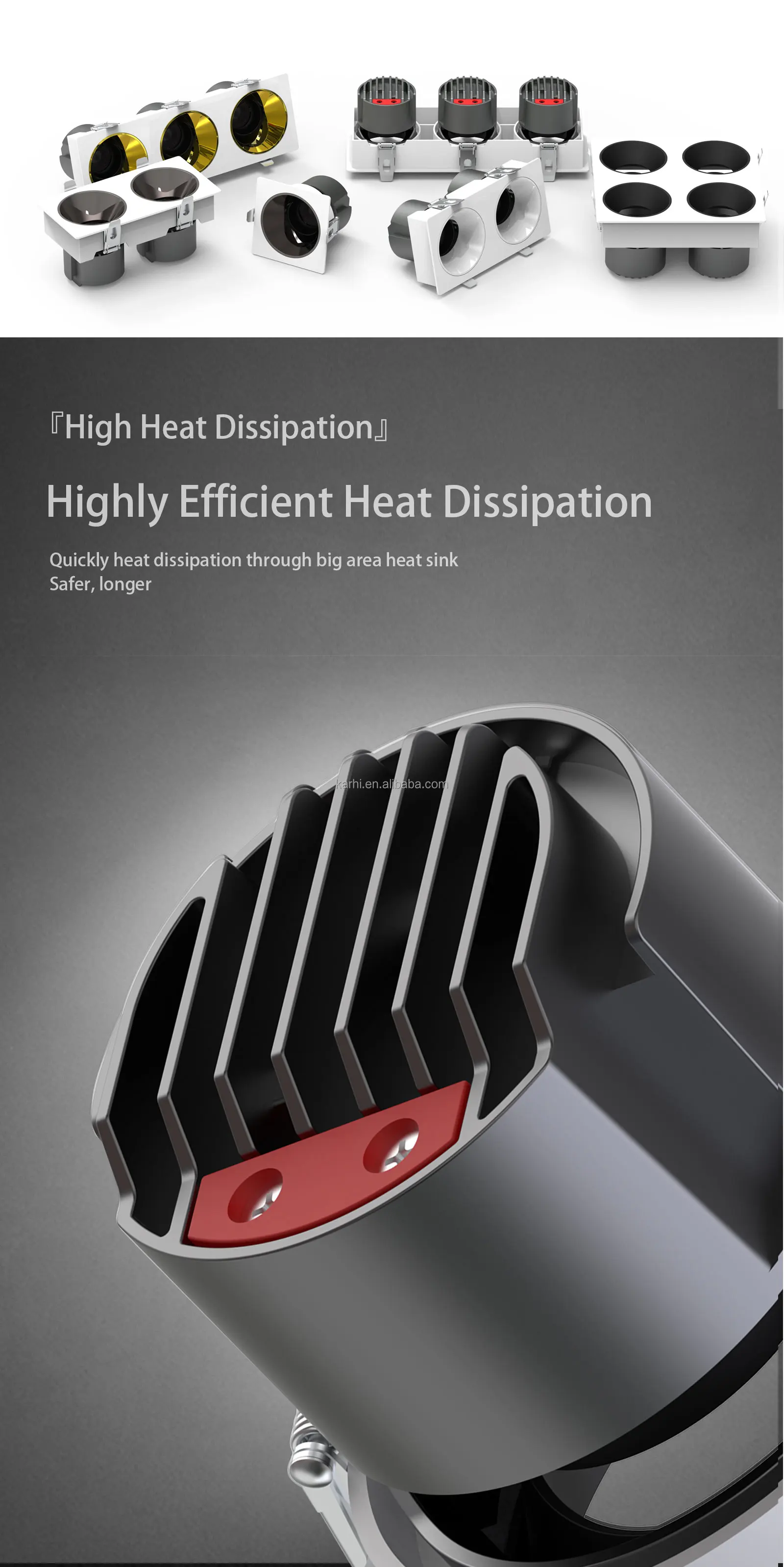

Silica gel	Yes, using good heat dissipation silica gel between COB, PCB and heatsink for all products.
Control method	1, On/off 2, Ask us if require 1-10v dimming, phase-cut dimming or DALI-dimming.
Usage	Most products are indoor use (IP20), but some are IP65 (surface protection). Marking in Specification. Pls check.
Unit price	Price is adjusted if different LED brand, driver brand, certification required and cable etc..
Lead time	Regular 7 days for sample order, 15 days for small order, and 15 - 30 days for bulk order less than 500 pcs. Check lead time with us before placing orders.
Warranty	1, 3 years. (Some special price items are 1 year warranty, pls check Information table as above or ask us) 2, If 5 years needed, ask us to offer.
Documents	If form A, COO, or other documents needed, pls ask us.
IES / spectral report	IES or spectral report is available if you need.
Shipment	Pls ask us to check price and arrange if you need shipment service.
OEM / ODM / Manufacturer	1, We are manufacturer. 2, Sticker / label can be customized with your LOGO. 3, Ask us to provide you more options. LED brand, driver brand, or special requirement, check with us.
Alternative for project	Pls send us BQ and original spec if projects alternative selection, so that we can provide better service.
Semi-knock-down (SKD)	Pls ask us to offer price.
